Protect your investment with this 304-page JCB 3CX Compact Operator Manual PDF (OEM #EN-9831/1400 ISSUE 11 - 06/2018), detailing the complete operation, safety, and daily maintenance routines for your backhoe loader. Inside, you get a full breakdown of dashboard indicators, complete fluid capacity charts, and step-by-step operating procedures for both the loader and backhoe ends. Open to the maintenance section to find exact service intervals, daily walk-around checklists, and safe handling guidelines for auxiliary attachments like the side-shift carriage and hose reel. Confirm the wheel nuts are tightened to 650-680 N-m and check that the quickhitch pivot pin is locked down at 56 N-m before starting your shift. Stop ruining equipment due to missed daily maintenance. Download the bookmarked file straight to your tablet, pull it up in the cab, and keep your machine running strong.
What's Inside This JCB 3CX Compact Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 12 | - |

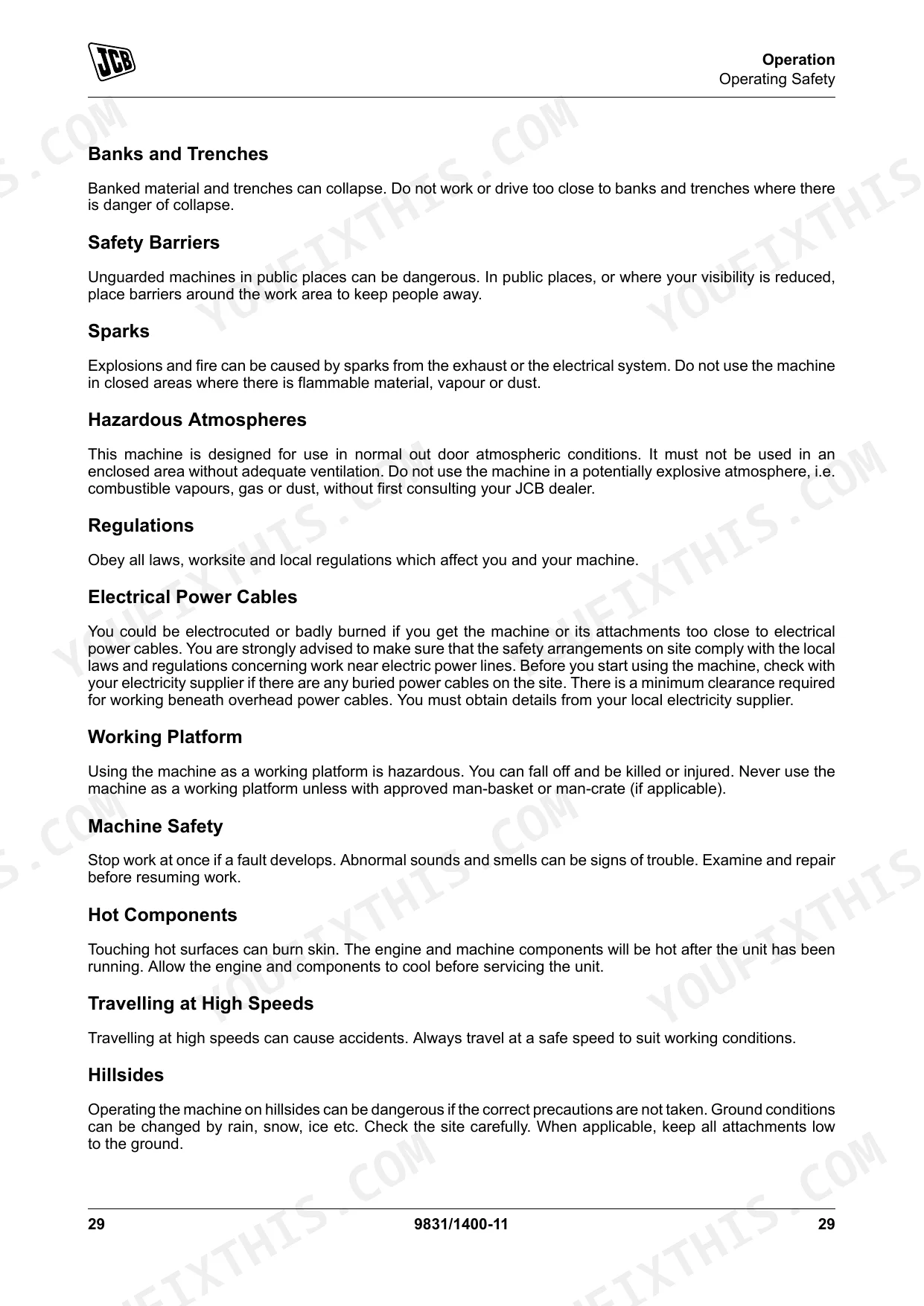

| Safety | 15-18 | Safety - Yours and Others, General Safety, Clothing and Personal Protective Equipment (Ppe) |

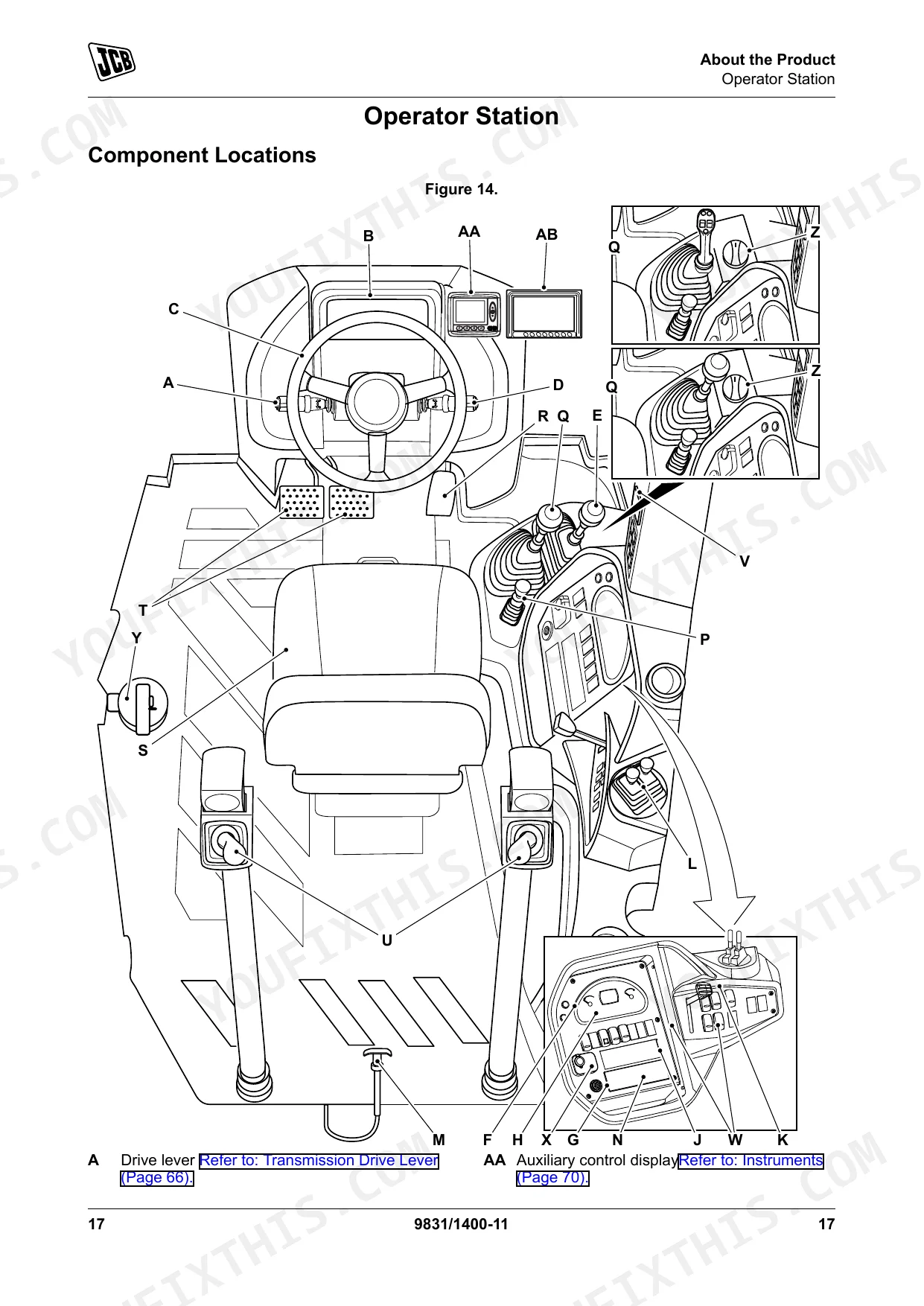

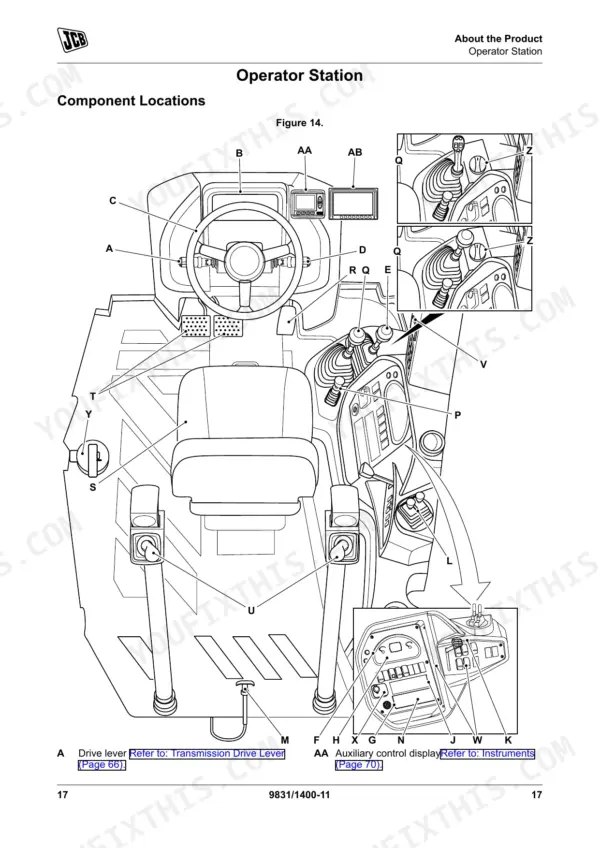

| About the Product | 19-38 | Introduction, Product and Component Identification, Safety Labels, Operator Station, Interior Switches, Console Switches |

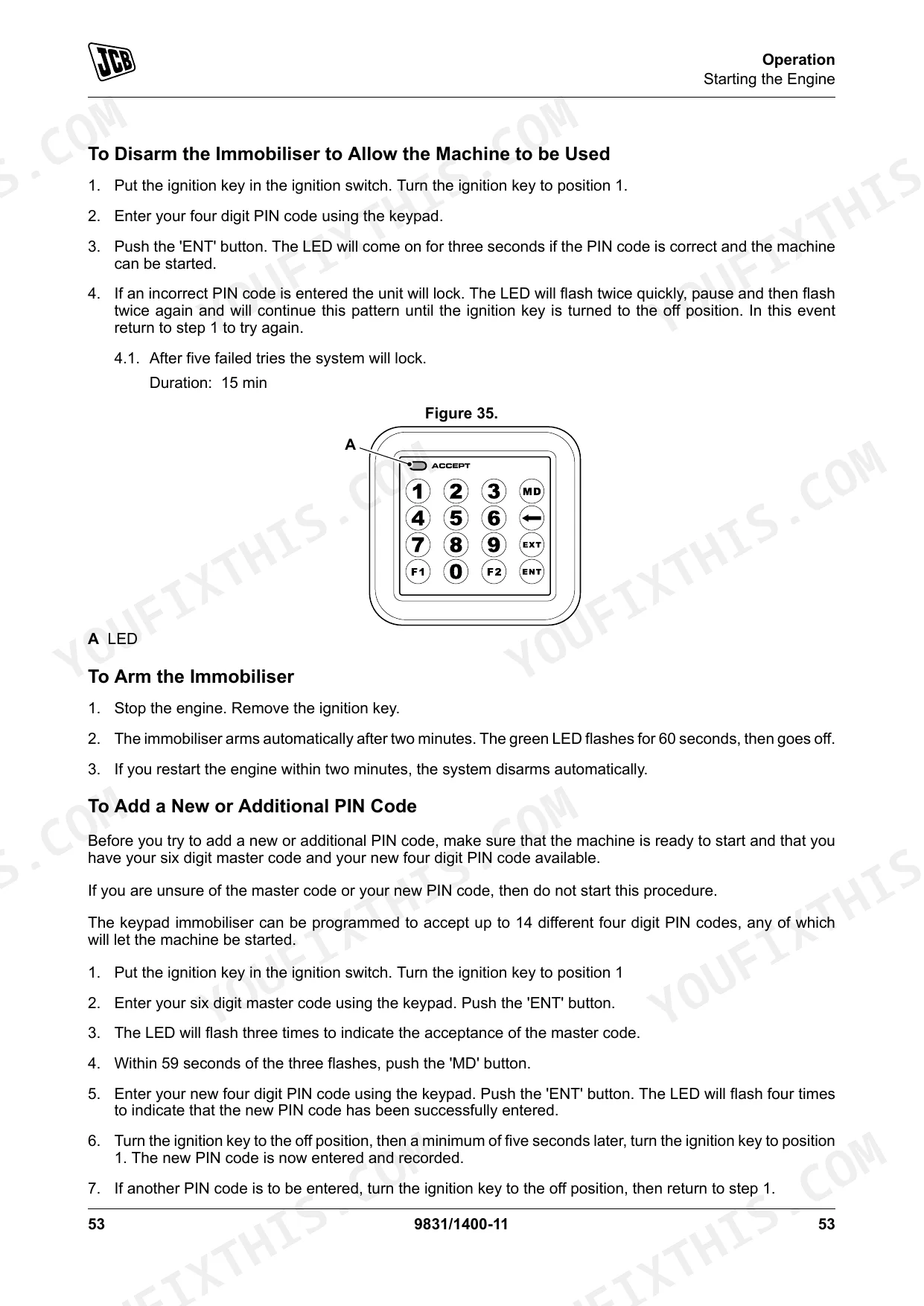

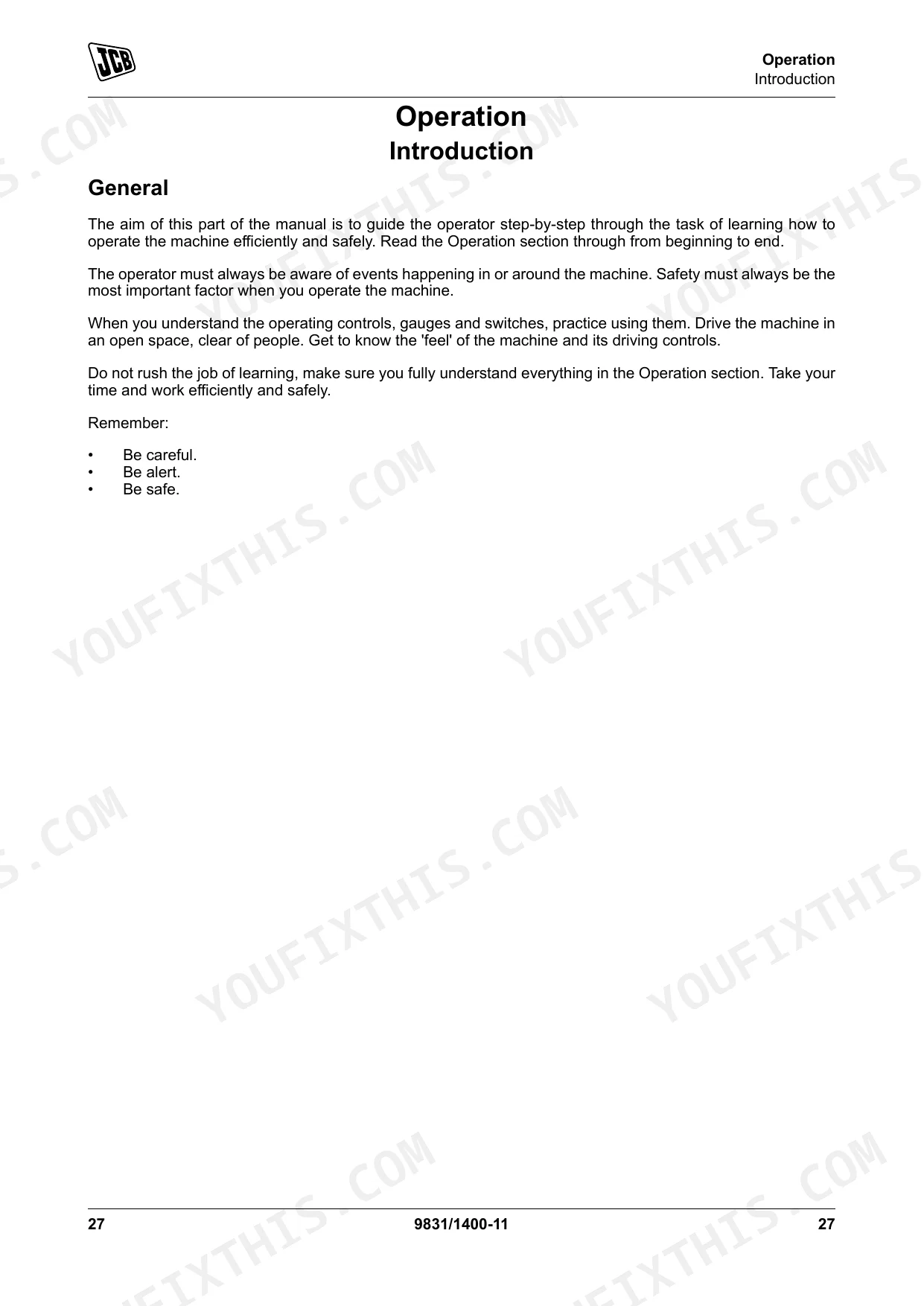

| Operation | 39-154 | Introduction, Operating Safety, Walk-Around Inspection, Entering and Leaving the Operator Station, Doors, Windows, Battery Isolator, Before Starting the Engine |
| Attachments | 155-186 | Working with Attachments, Direct-Mounted Attachments, Quickhitch, Auxiliary Circuits, Shovels, Side-Shift Carriage, Hose Reel, Work Platforms |
| Preservation and Storage | 187-192 | Cleaning, Preparation, Checking for Damage, Storage, Security |

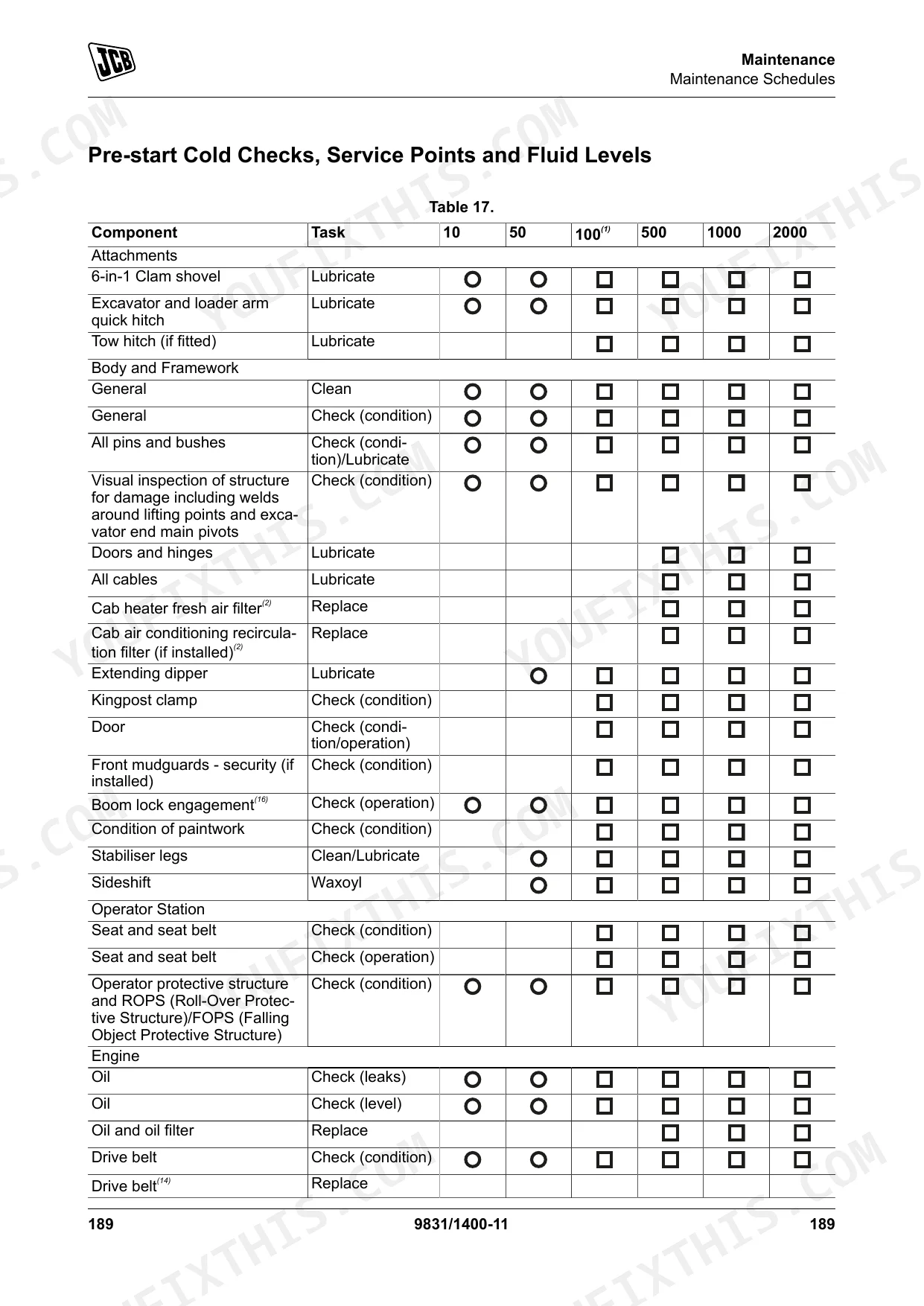

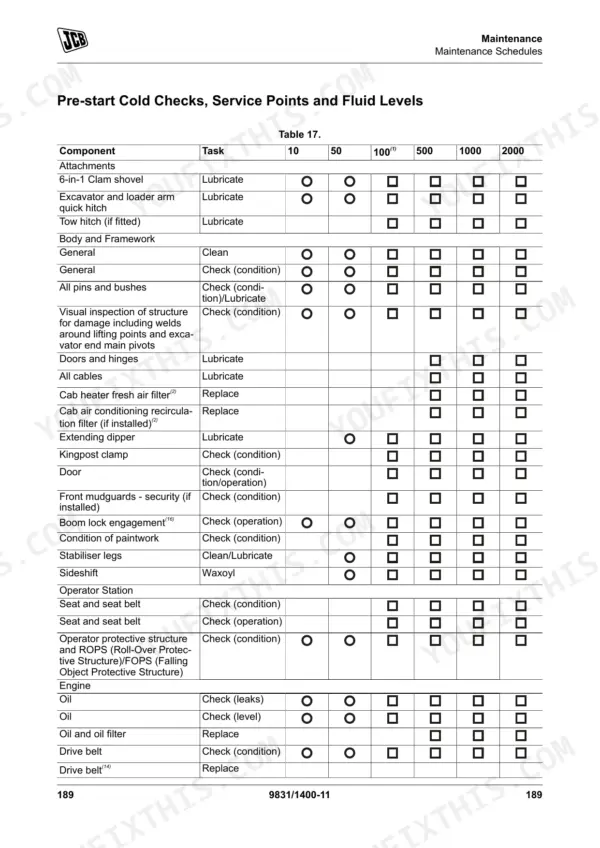

| Maintenance | 193-258 | Introduction, Maintenance Safety, Maintenance Schedules, Maintenance Positions, Service Points, Access Apertures, Tools, Lubrication |
| Technical Data | 259-297 | Static Dimensions, Performance Dimensions, Attachment Dimensions, Noise Emissions, Vibration Emissions, Fluids, Lubricants and Capacities, Torque Values |
| Warranty Information | 298-304 | Service Record Sheet |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nuts torque | 650 –680 N·m | p. 283 |
| Quickhitch pivot pin and tipping link pivot pin torque | 56 N·m | p. 168 |
| Hydraulic hose (6.35 mm HP) Maximum Working Pressure | 400 bar (5,797 psi) | p. 293 |
| Hydraulic hose (6.35 mm HP) Minimum Burst Pressure | 1,600 bar (23,188 psi) | p. 293 |
| Hydraulic fluid condition indicating contamination | cloudy fluid (water or air in system) | p. 247 |
| Fuel Tank Capacity | 80 L | p. 280 |
| Engine Oil Capacity (Wet) | 11 L | p. 280 |
| Hydraulic System Capacity | 130 L | p. 280 |
| ROPS/FOPS Mounting Bolts Torque | 205 N·m | p. 283 |
| Engine Oil Filter Cartridge Cap Torque | 25 N·m | p. 283 |
| 340/80 xR18 Radial Michelin XMCL Front Tyre Pressure | 3.2 bar (46.4 psi) | p. 295 |
| Maximum Travel Speed | 40 km/h (24.9 mph) | p. 274 |
JCB 3CX Compact Common Problems This Manual Covers
JCB 3CX Compact backhoe loader hydraulic fluid level dropping daily with weak boom operation p. 247
Inspect the fluid condition as outlined on page 247. Drain the reservoir if you see cloudy fluid indicating water or air contamination. Refill the system to the full 130 L capacity found on page 280. Verify all hoses are tight and free of external leaks.
Manual Section: Hydraulic System Leaks and DamageFront loader arm quickhitch pivot pins backing out or rattling during heavy lifting operations p. 168
Check the pivot hardware before every 10 hours daily service interval as shown on page 200. Torque the quickhitch pivot pin and tipping link pivot pin to exactly 56 N·m. Replace any damaged retaining bolts before returning the machine to service.
Manual Section: AttachmentsMachine bouncing excessively from the front axle when roading at maximum travel speed p. 295
Verify the front tire pressure matches the specifications on page 295. Inflate the 340/80 xR18 Radial Michelin XMCL tires to exactly 3.2 bar (46.4 psi) when cold. Check the wheel nuts and torque them to 650 to 680 N·m on page 283 for safe transport.
Manual Section: Technical DataFrequently Asked Questions
What is the torque spec for JCB 3CX Compact wheel nuts?
The torque specification for the wheel nuts on the JCB 3CX Compact is between 650 and 680 N·m. This information can be found in Table 48 of the manual under the 'Torque Values' section.
How do you fix JCB 3CX Compact backhoe loader hydraulic fluid level dropping daily with weak boom operation?
Inspect the fluid condition as outlined on page 247. Drain the reservoir if you see cloudy fluid indicating water or air contamination. Refill the system to the full 130 L capacity found on page 280. Verify all hoses are tight and free of external leaks.
How do you fix front loader arm quickhitch pivot pins backing out or rattling during heavy lifting operations?
Check the pivot hardware before every 10 hours daily service interval as shown on page 200. Torque the quickhitch pivot pin and tipping link pivot pin to exactly 56 N·m. Replace any damaged retaining bolts before returning the machine to service.
How do you fix machine bouncing excessively from the front axle when roading at maximum travel speed?
Verify the front tire pressure matches the specifications on page 295. Inflate the 340/80 xR18 Radial Michelin XMCL tires to exactly 3.2 bar (46.4 psi) when cold. Check the wheel nuts and torque them to 650 to 680 N·m on page 283 for safe transport.
Is this JCB 3CX Compact Operator Manual a digital download?
You get a 304-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this JCB 3CX Compact Operator Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
