Looking for the factory daily maintenance and operating guidelines for your JCB backhoe? This 352-page JCB 3CX, 4CX ECO operator manual PDF (OEM #9821/1300) breaks down every cab control, service schedule, and load chart for the machine. Complete daily inspection routines, detailed fluid capacity tables, proper lifting regulations, and step-by-step greasing schedules are all covered. You will find clear instructions on operating levers, optional attachments, and correct machine start-up procedures. Verify your hydraulic system is filled to exactly 130 liters with ISO VG46 oil, swap the 5-micron filter element at 100 hours, and torque the wheel nuts to 680 Nm before putting the loader back to work. Equipment downtime kills profits. Open this bookmarked digital file on your tablet right in the cab, and get your maintenance done correctly.
What's Inside This JCB 3CX, 4CX ECO Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 11-12 | Important Information, Operator Manual, Safety Warnings |

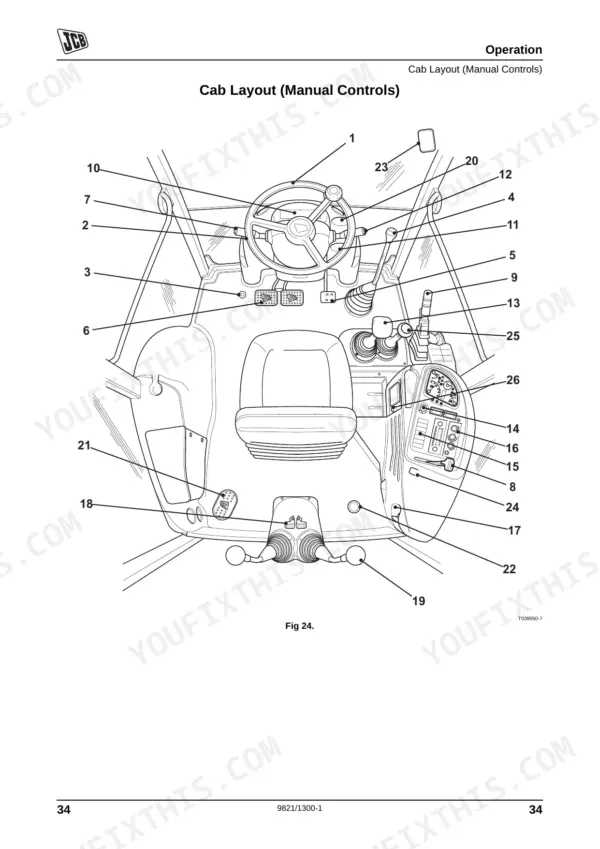

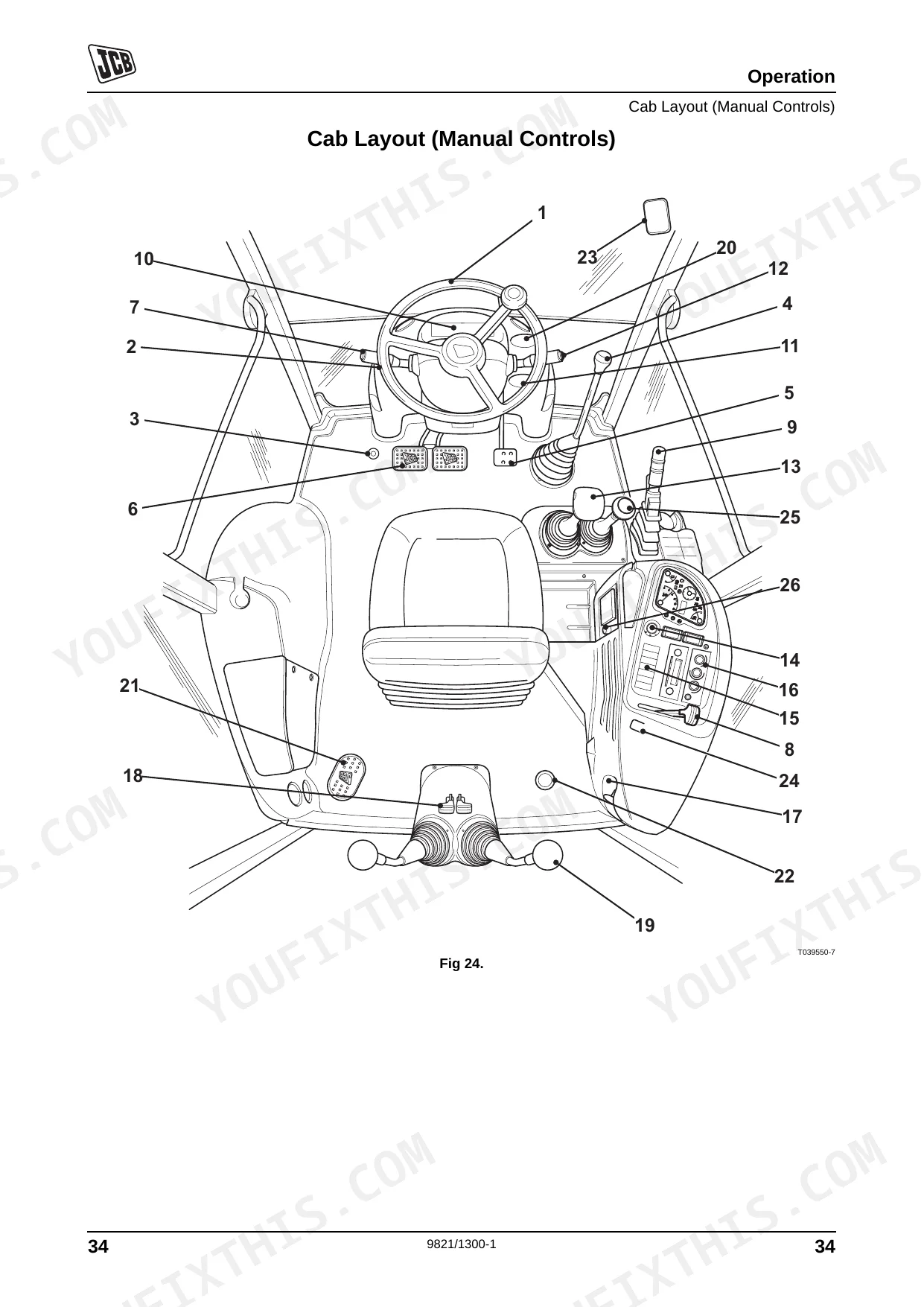

| Cab Access and Controls | 36-81 | Before Entering the Cab |
| Operating Levers | 82-123 | - |
| Safety Equipment | 124-129 | - |

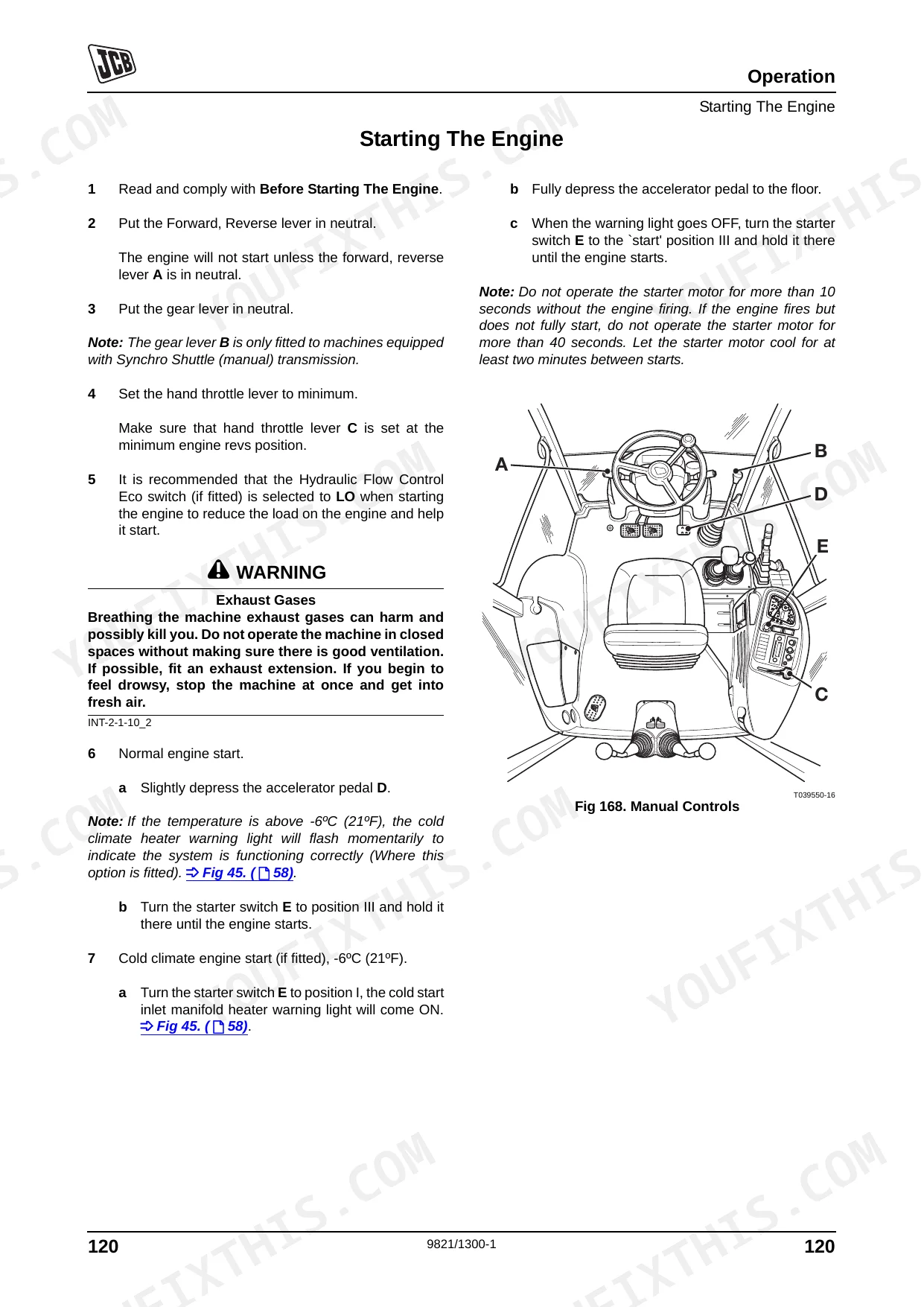

| Engine and Machine Start-Up | 130-141 | - |
| Machine Operation | 142-171 | - |
| Operating Environment | 172 | - |
| Refuelling the Machine | 173-174 | - |
| Moving and Storing the Machine | 175-184 | - |

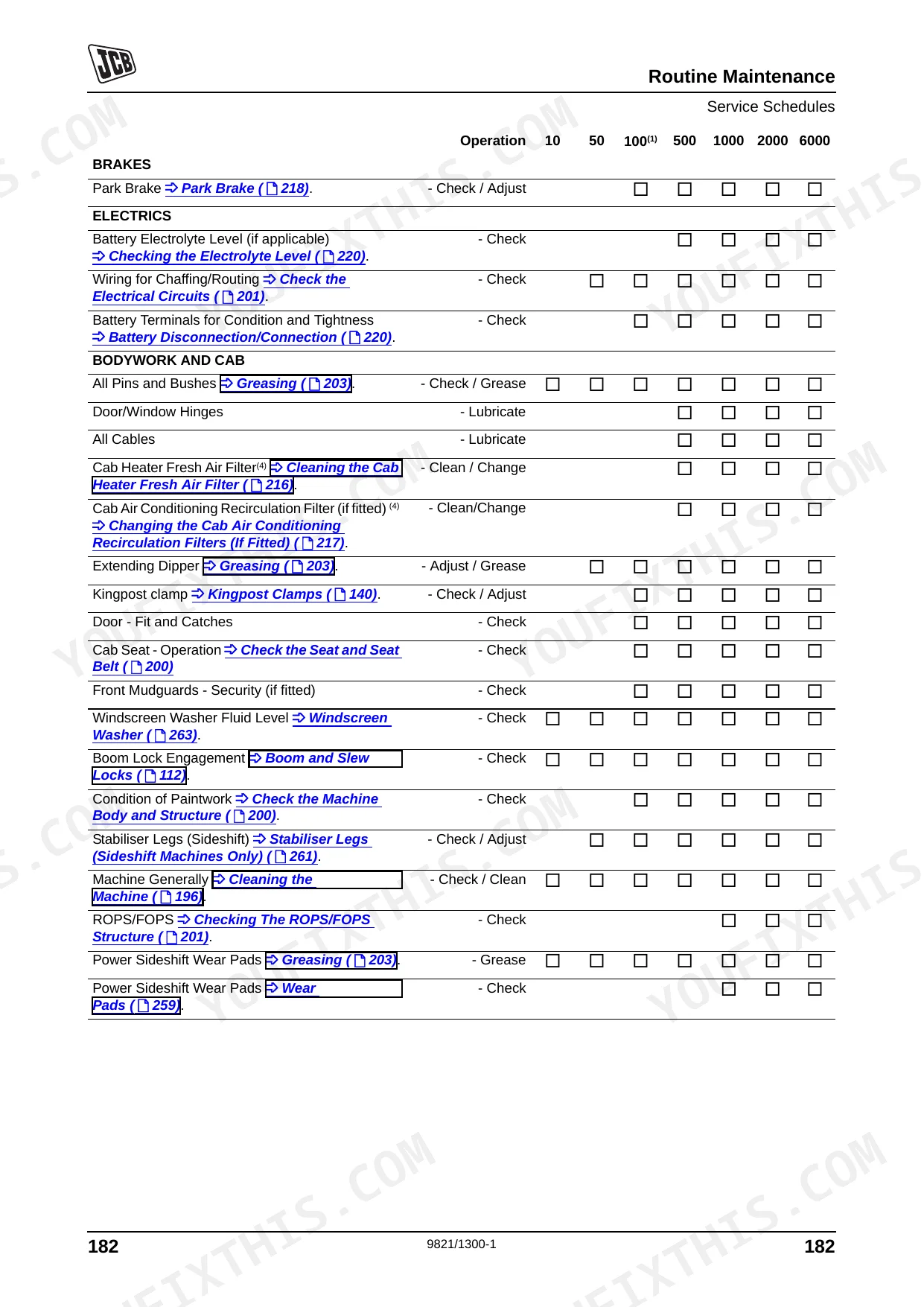

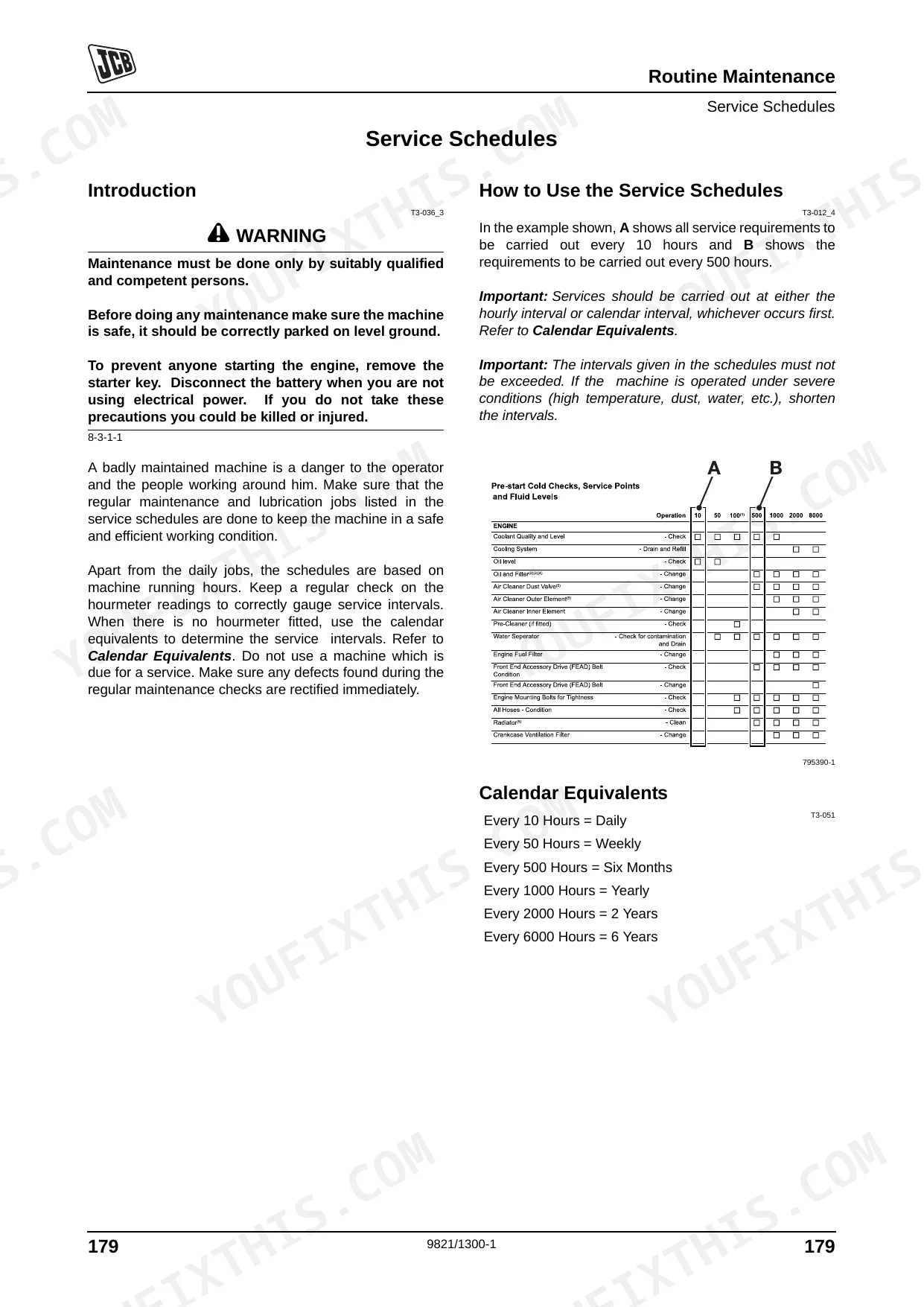

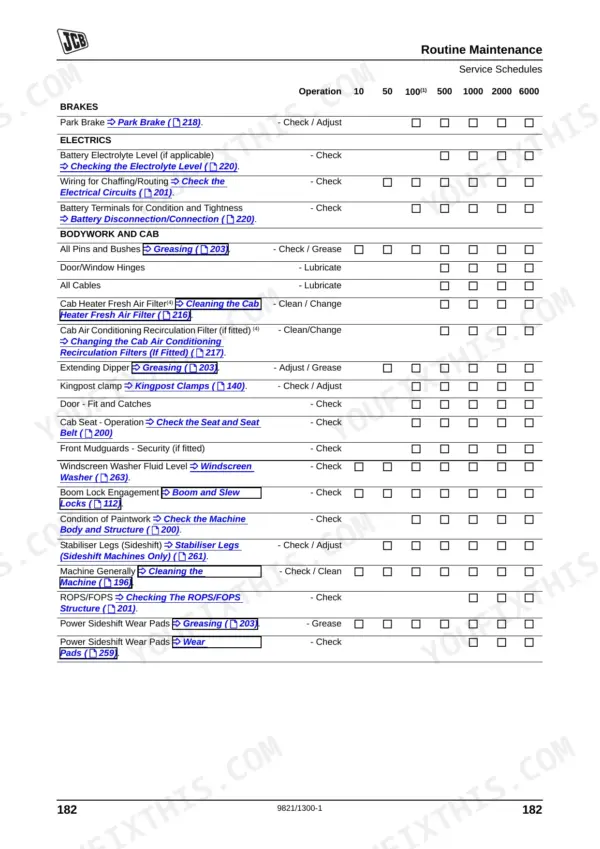

| Routine Maintenance | 185-276 | Service Requirements and Health, Service Schedules and Fluids, Tools and Preparation, Cleaning and Inspection, Greasing, Access Panels and Cab Systems, Brake and Electrical Systems |
| Optional Attachments | 277-314 | Attachments Overview, Backhoe Attachments, Loader Attachments, Hammer and Hydraulic Circuits, Side Tip Shovel (If Fitted), Work Platforms |

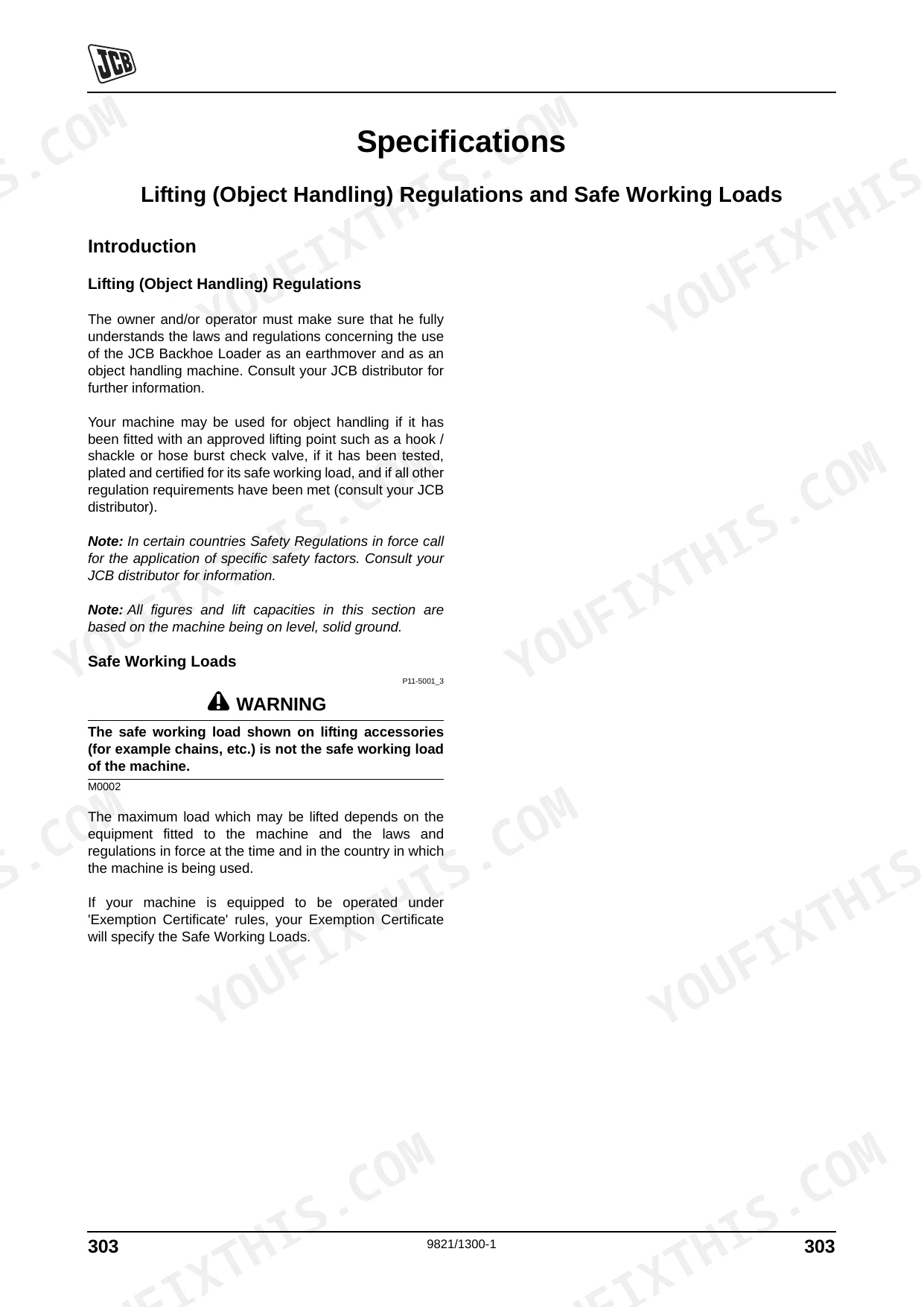

| Specifications | 315-344 | Lifting Regulations and Loads, Bucket Weights and Dimensions, Static Dimensions, Hydraulic Hose Burst Pressures, Noise Data, Vibration Data, Tyre Sizes and Pressures, Travel Speed |
| Warranty Information | 345-348 | Machine Service Record Sheet, Installation Checklist, Registration Information |
| European Community Standards | 349-352 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Nut Torque | 680 Nm (500 lbf ft) | p. 269 |
| Hydraulic System Capacity | 130 Litres | p. 198 |
| Hydraulic Fluid Type | JCB High Performance Hydraulic Oil ISO VG46 | p. 198 |
| Fuel Tank Capacity | 160 Litres (35.2 UK Gal) | p. 186 |
| Engine Oil Capacity (Max) | 15 Litres (3.3 UK Gal) | p. 186 |
| Engine Coolant Capacity (Wet) | 17.5 Litres (3.85 UK Gal) | p. 186 |
| Hydraulic System Capacity (Manual and Easy Control) | 130 Litres (28.6 UK Gal) | p. 186 |
| Maximum Travel Speed | 25mph (40kph) | p. 344 |
| ROPS/FOPS Mounting Bolts Torque | 205 Nm (150 lbf ft) | p. 213 |
| Loader End Safe Working Load (Bucket Mounted Fork) | 1000kg (2205lb) | p. 316 |
| 3CX | ||
| 3CX Overall Length | 5.62 m (18-5) | p. 317 |
| 4CX | ||
| 4CX Overall Length | 5.91 m (19-5) | p. 319 |
JCB 3CX, 4CX ECO Common Problems This Manual Covers
JCB 3CX/4CX ECO hydraulic performance feels weak and loader lift is inconsistent during heavy operation p. 256
Inspect the fluid level and check the maintenance schedule on page 256. Replace the hydraulic filter with a 5 micron filter element at 100 hours for the first service. Torque the hydraulic filter cover plate to 24 Nm (17.7 lbf ft) as detailed on page 257.
Manual Section: Routine MaintenancePopping noise from wheel hub area when moving under load or changing directions p. 269
Verify wheel lug tightness during daily walkaround inspections. Torque all wheel nuts to exactly 680 Nm (500 lbf ft) in a star pattern. Refer to page 269 for proper maintenance intervals to prevent loose rims and stud damage during operation.
Manual Section: Routine MaintenanceFront loader arms sag and machine feels unstable when lifting palletized materials p. 316
Check the material weight before attempting any lift. Limit your cargo strictly to the loader end safe working load of 1000kg (2205lb) for bucket mounted forks. Review page 316 to verify load limits and ensure correct operating technique to prevent dangerous tipping hazards.
Manual Section: SpecificationsMachine roading feels sluggish and engine RPM stays high without shifting into top gear p. 344
Verify the transmission dump pedal is not partially engaged by debris (refer to page 56). Inspect transmission fluid levels (refer to page 249) and ensure proper engine revs are maintained during roading operations (refer to page 53). Consult the Transmission section (pages 249-255) for detailed troubleshooting.
Manual Section: SpecificationsFrequently Asked Questions
How do I reset a JCB 3CX/4CX ECO service light?
To reset the service hours on a JCB 3CX/4CX ECO, first ensure the loader arm is lowered and the park brake is engaged. Then, switch on the ignition and quickly press and release the Information 'i' button until the 'Time Until Service' screen is displayed. Hold the Information button for 20 seconds, scroll to 'SRV RST' using the arrow buttons, and then hold the Information button for one second to enter the RESET screen. Finally, hold the Information button for three seconds to reset the service hours, which will make the word RESET flash once.
What are the torque specs for JCB 3CX wheel nuts?
The torque specification for JCB 3CX wheel nuts is 680 Nm (500 lbf ft). It is recommended to check the wheel nut torques every two hours on new machines, and whenever a wheel has been removed, until they remain correct. Daily checks are also advised to ensure tightness.
What are the replacement specifications for Hydraulic fluid and filters?
The recommended hydraulic fluid for the Hydraulic System (Manual and Easy Control) is JCB High Performance Hydraulic Oil, ISO VG46, with a total system capacity of 130 litres (28.6 UK Gal) (Above 38 °C, 100 °F). For the hydraulic filter, new machines are fitted with a 5 micron filter element, which must be replaced at the first 100 hour service with a 10 micron filter element.
How do you fix JCB 3CX/4CX ECO hydraulic performance feels weak and loader lift is inconsistent during heavy operation?
Inspect the fluid level and check the maintenance schedule on page 256. Replace the hydraulic filter with a 5 micron filter element at 100 hours for the first service. Torque the hydraulic filter cover plate to 24 Nm (17.7 lbf ft) as detailed on page 257.
How will I receive this JCB 3CX, 4CX ECO Operator Manual?
This is a 352-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text is consistently crisp and easy to read throughout. Diagrams and illustrations are clear raster images, with all labels remaining readable. Pages are generally clean, though you might notice minor scan artifacts on some. Please note that pages 2, 12, 348, and 352 are intentionally blank filler pages.
