Are you looking for the factory daily maintenance and operating procedures for your 2007-2012 backhoe loader? This 250-page JCB 3CX, 4CX operator manual pdf (OEM #9811/1720) covers every dashboard indicator, fluid capacity, and routine service schedule. Inside, you get complete maintenance intervals, safe craning load charts, and detailed operating instructions for optional attachments like the loader quickhitch. Packed with daily walkaround checklists and exact greasing points, this guide takes the guesswork out of your routine service. Swap out the engine oil filter every 500 hours and verify the front and rear wheel nuts are torqued securely to 680 Nm (500 lbf ft) before hitting the site. Ignoring a dashboard warning light costs serious money. Download this bookmarked file right to your tablet, find the correct fluid specs, and get back to work.
What's Inside This JCB 3CX, 4CX Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 9-10 | Important Information, Operator Manual, Safety Warnings |
| Introduction | 11-30 | Machine Model and Serial Number, Using This Manual, Units of Measurement, Left Side, Right Side, Using the Machine |

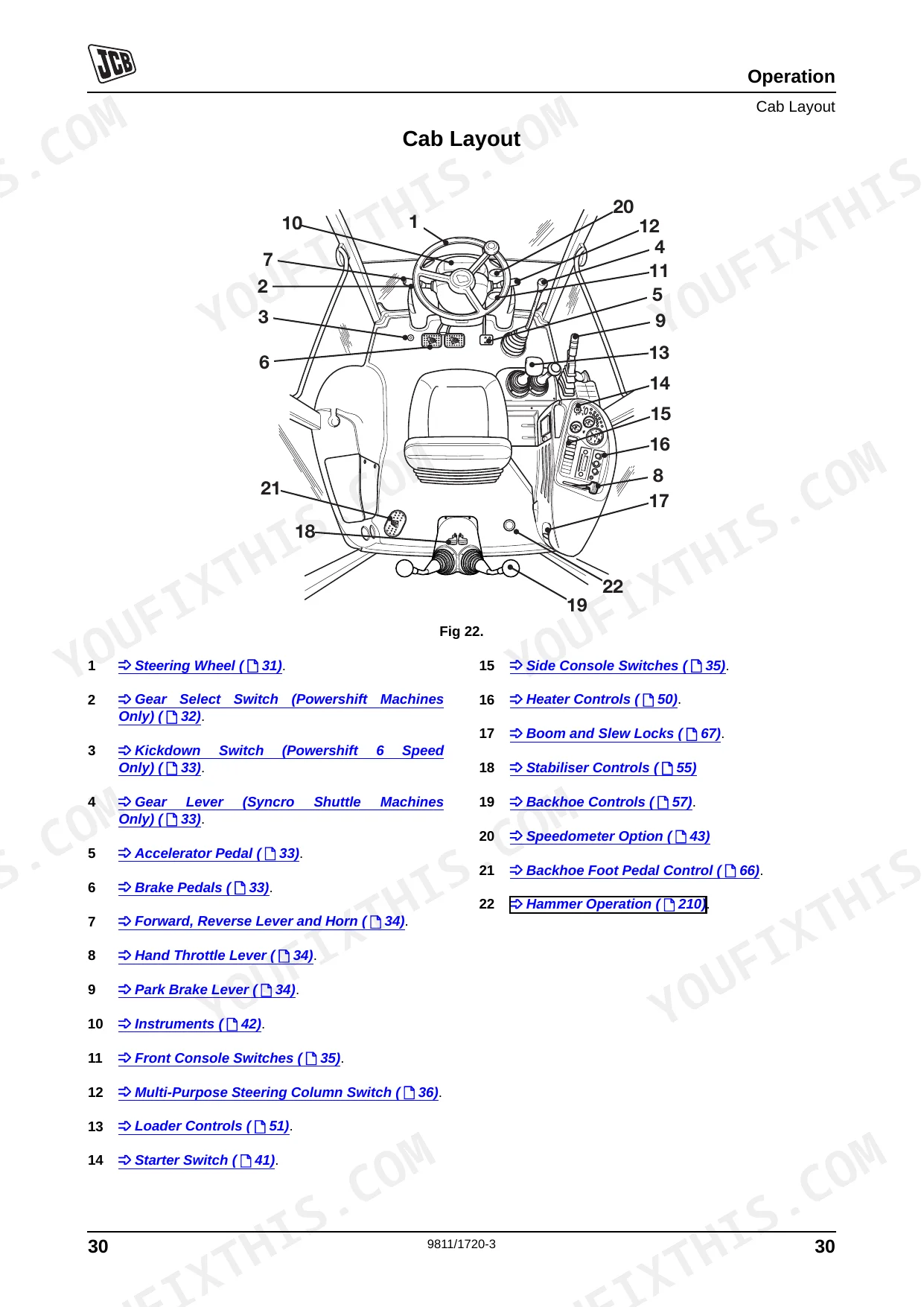

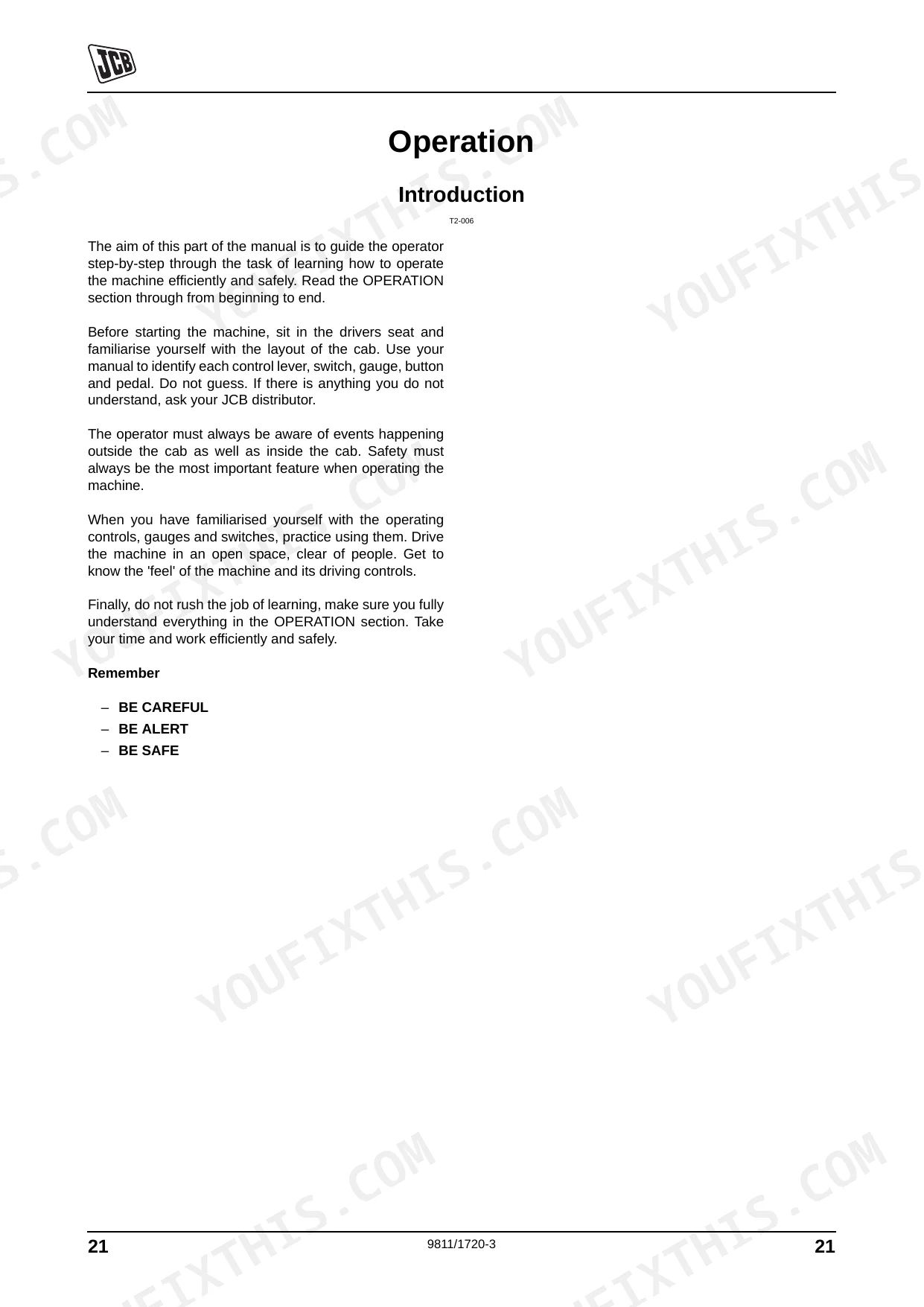

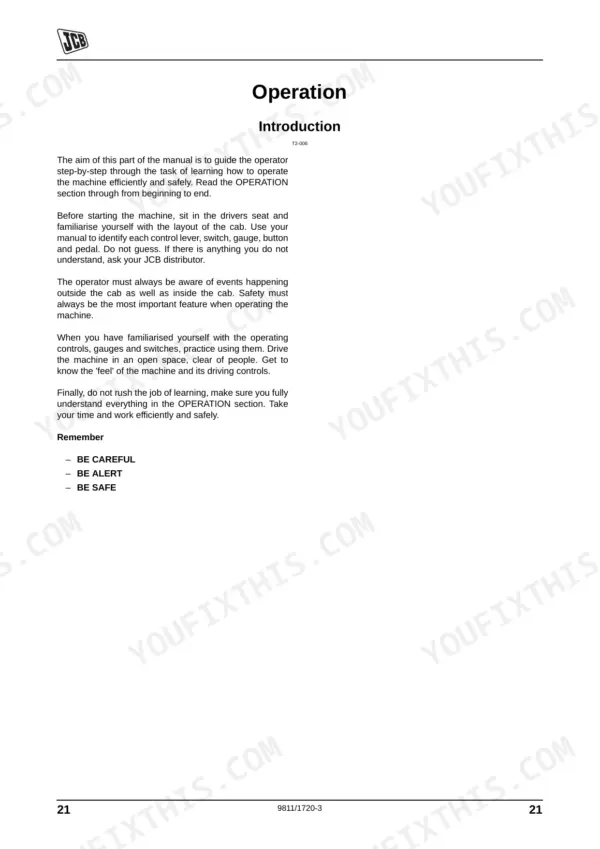

| Operation | 31-116 | Drive Controls, Switches and Instruments, Operating Levers, Safety Equipment, Before Starting the Engine, Preparing the Machine for Travel, Working with the Machine |
| Routine Maintenance | 117-194 | Service Schedules, Fluids, Lubricants and Capacities, Greasing, Brakes, Electrical System, Engine |
| Optional Attachments | 195-228 | Quick Release Couplings, Loader Quickhitch, Backhoe Quickhitch, Shovel - Forks Option, Hammer Operation, Hydraulic Tool Circuit |

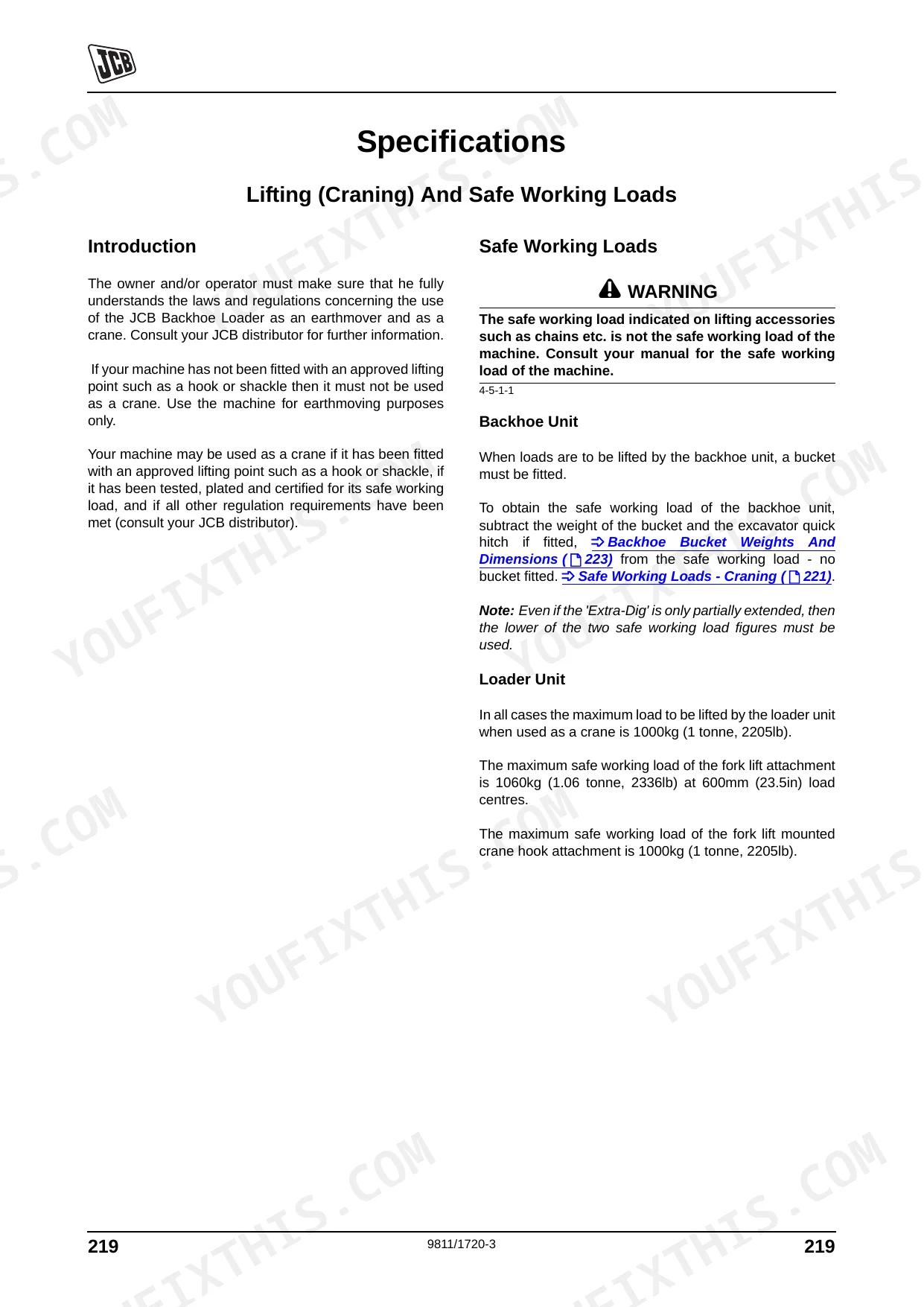

| Specifications | 229-246 | Lifting (Craning) and Safe Working Loads, Backhoe Bucket Weights and Dimensions, Static Dimensions, Hydraulic Hose Burst Pressures, Noise Data, Vibration Data |
| Warranty Information | 247-250 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Nut Torque (Front and Rear) | 680 Nm (500 lbf ft) | p. 185 |
| Hydraulic Hose Burst Pressure (607/ 19.05 mm Medium Pressure) | 950 bar | p. 238 |
| Hydraulic Hose Burst Pressure (612/ 9.525 mm High Pressure) | 1320 bar | p. 238 |
| Engine Oil Filter Change Interval | 500 hours | p. 123 |
| Hydraulic Oil Filter Change Interval | 1000 hours | p. 123 |
| 'O' rings, Seals and Gaskets Replacement Condition | Renew whenever disturbed unless otherwise instructed | p. 21 |
| MRV Pressure Check and Adjust Interval | Check and Adjust at 10, 50, 100, 500, 1000, 2000, 6000 hours | p. 126 |
| Offloader Valve Pressure Check and Adjust Interval | Check and Adjust at 500, 1000, 2000, 6000 hours | p. 126 |
| ROPS/FOPS Mounting Bolts Torque | 205 Nm | p. 138 |
| Hydraulic Hose Maximum Working Pressure (611/ 6.35 mm High Pressure) | 400 bar | p. 238 |
| 4CX, 3CX Super | ||
| Whole-Body Vibration Emission (4CX, 3CX Super) | 0.34 m/s² | p. 241 |
| 3CX | ||
| Whole-Body Vibration Emission (3CX) | 0.28 m/s² | p. 242 |
JCB 3CX, 4CX Common Problems This Manual Covers
JCB 3CX and 4CX machine will not start or starts and dies shortly after cold startup p. 123
Inspect the electrical system and battery connections. Disconnect the battery temporarily to clear any stored generic fault messages. Check the engine oil filter change interval on page 123, ensuring it is replaced every 500 hours to maintain proper engine oil flow and pressure during startup.
Manual Section: Routine MaintenanceBackhoe or loader hydraulics operate weakly, erratically, or not at all during heavy lifting operations p. 123
Check hydraulic fluid levels with the loader and backhoe in the travel position. Inspect all hydraulic hoses for leaks. Replace the hydraulic oil filter every 1000 hours as specified on page 123. Ensure filter element cover plate screws are tightened to the torque specified in the manual.
Manual Section: Routine MaintenanceGeneric security or fault message INT-1-1-1 appears on the dashboard and the machine will not move p. 126
Disconnect the batteries temporarily to clear stored transmission or electrical codes. Inspect the battery cables and alternator connections for corrosion. Review the maintenance schedule on page 126 to verify MRV pressure checks are performed at required intervals like 500 and 1000 hours to prevent system faults.
Manual Section: Routine MaintenanceOperator experiences excessive cab shaking and rough ride quality during high speed road travel p. 185
Check tire condition and verify wheel nut torque is set to 680 Nm (500 lbf ft) as detailed on page 185. For the 4CX model, confirm the whole-body vibration emission stays within the 0.34 m/s² specification found on page 241 during normal operation.
Manual Section: SpecificationsFrequently Asked Questions
How do you fix JCB 3CX and 4CX machine will not start or starts and dies shortly after cold startup?
Inspect the electrical system and battery connections. Disconnect the battery temporarily to clear any stored generic fault messages. Check the engine oil filter change interval on page 123, ensuring it is replaced every 500 hours to maintain proper engine oil flow and pressure during startup.
How do you fix backhoe or loader hydraulics operate weakly, erratically, or not at all during heavy lifting operations?
Check hydraulic fluid levels with the loader and backhoe in the travel position. Inspect all hydraulic hoses for leaks. Replace the hydraulic oil filter every 1000 hours as specified on page 123. Ensure filter element cover plate screws are tightened to the torque specified in the manual.
How do you fix generic security or fault message INT-1-1-1 appears on the dashboard and the machine will not move?
Disconnect the batteries temporarily to clear stored transmission or electrical codes. Inspect the battery cables and alternator connections for corrosion. Review the maintenance schedule on page 126 to verify MRV pressure checks are performed at required intervals like 500 and 1000 hours to prevent system faults.
How do you fix operator experiences excessive cab shaking and rough ride quality during high speed road travel?
Check tire condition and verify wheel nut torque is set to 680 Nm (500 lbf ft) as detailed on page 185. For the 4CX model, confirm the whole-body vibration emission stays within the 0.34 m/s² specification found on page 241 during normal operation.
Is this JCB 3CX, 4CX Operator Manual a digital download?
This is a 250-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is crisp and generally easy to read throughout. Diagrams and illustrations are raster images, which become pixelated when zoomed, but their labels remain mostly readable. Pages are clean with minimal scan artifacts, though some exhibit slight skewing. Several pages are intentionally left blank as filler.
