Before you put another hour on your 2013-2015 backhoe loader, grab this 197-page JCB 3DX Super Operator Manual PDF (OEM #9831/1050) to make sure you are running it right. Inside, you get a complete breakdown of dashboard indicators, daily maintenance intervals, and strict operating procedures for both the loader and excavator controls. Open to the routine maintenance section to find exact fluid capacities, correct greasing schedules, and load charts that keep you out of trouble on the job site. Lock down the wheel nuts to 680 Nm and verify the engine oil drain plug is tightened between 40-60 Nm before starting your shift. A neglected machine is a broken machine. Download this bookmarked file straight to your phone, jump to the right section, and keep your iron moving.
What's Inside This JCB 3DX SUPER Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Important Information | 8-9 | Operator Manual, Safety Warnings |

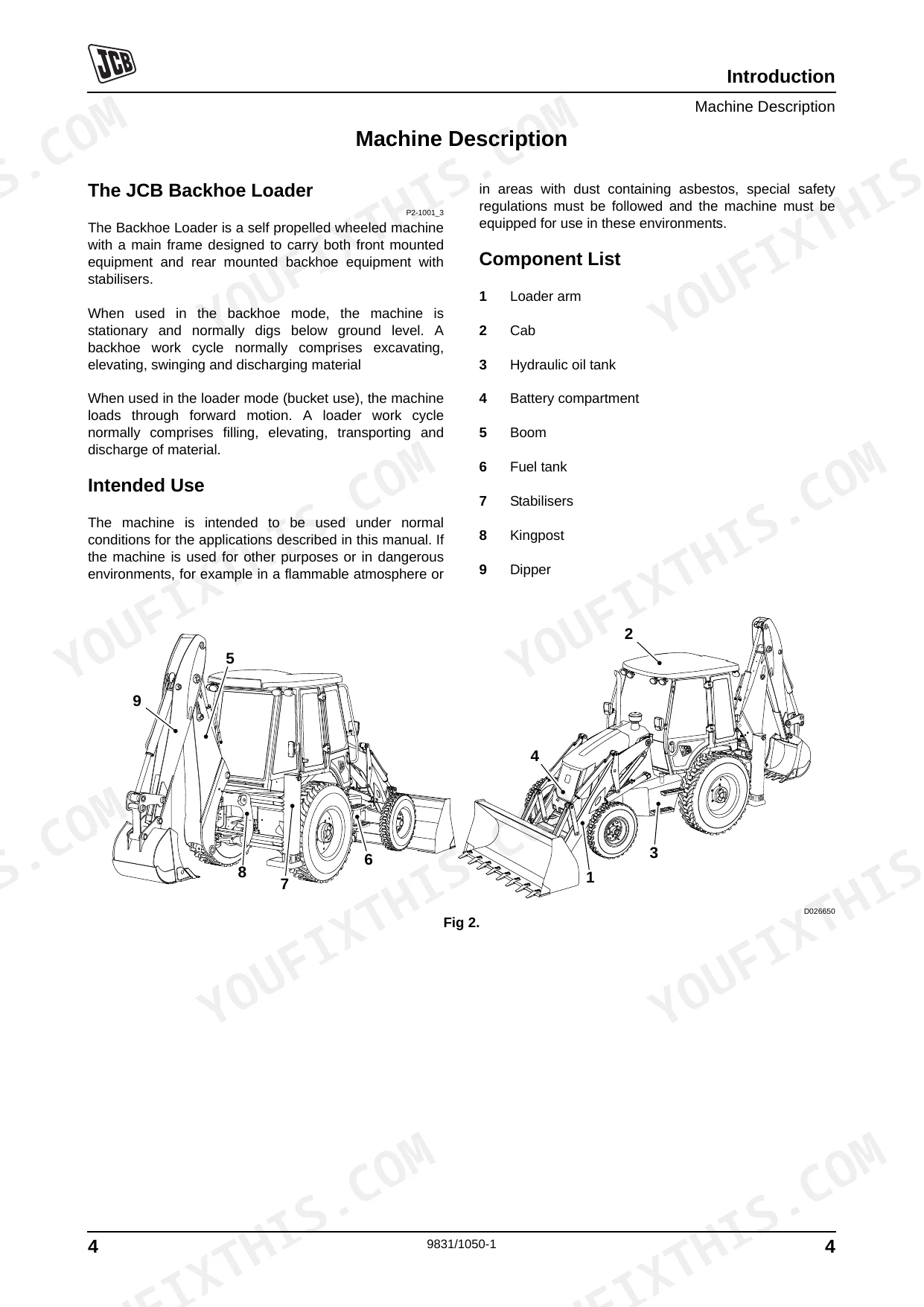

| Introduction | 10-25 | Safety Check List, Identifying Your Machine |

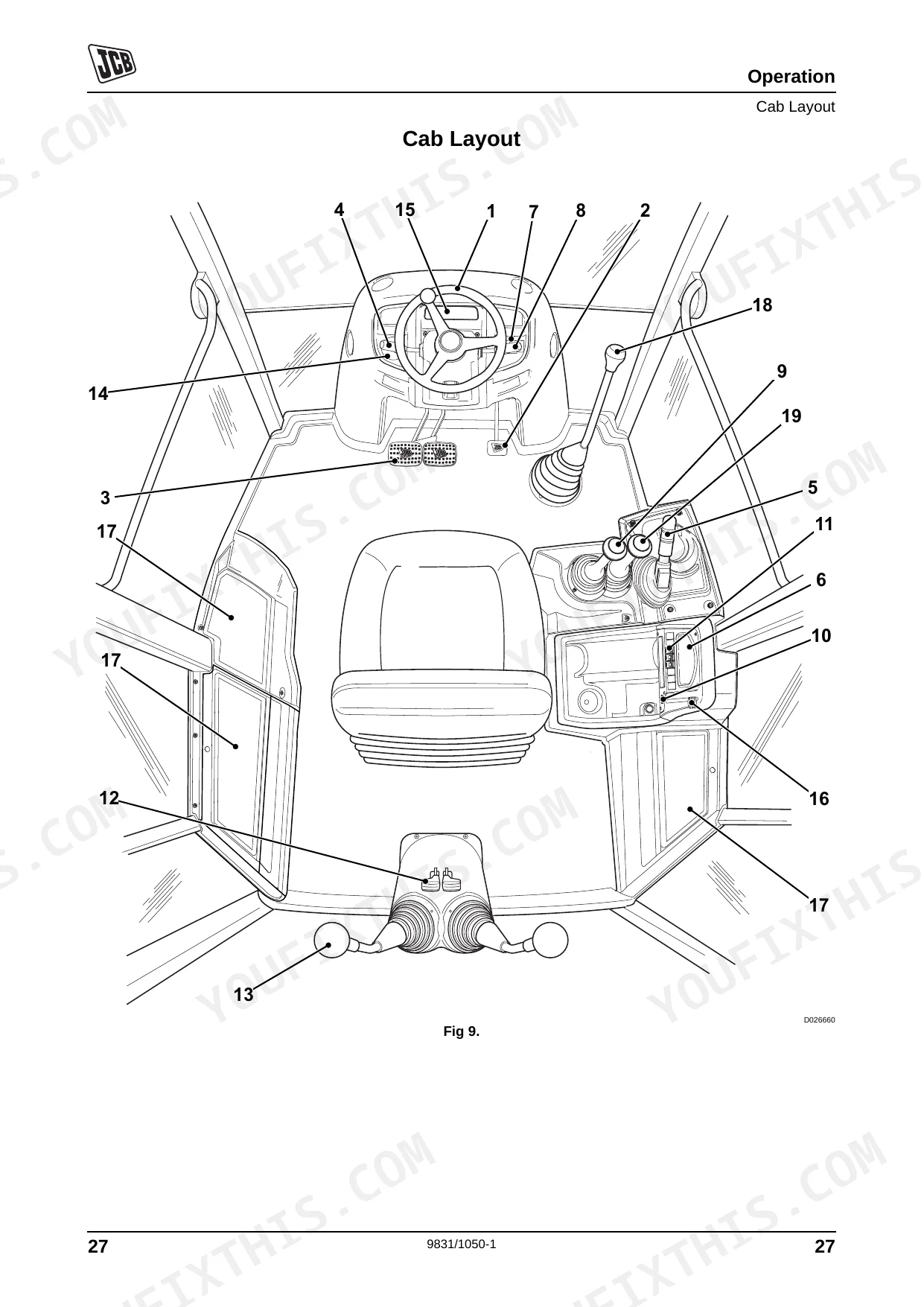

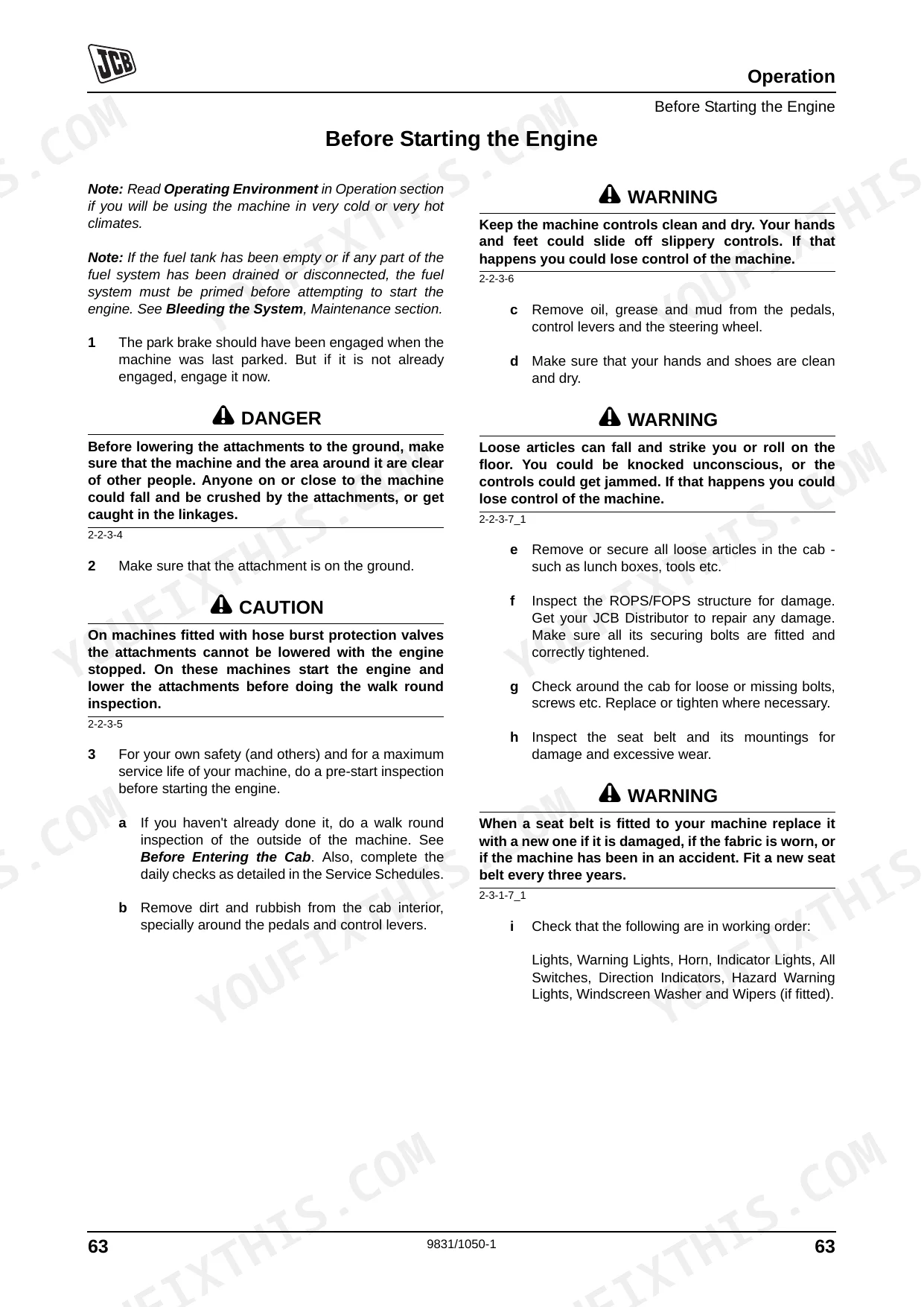

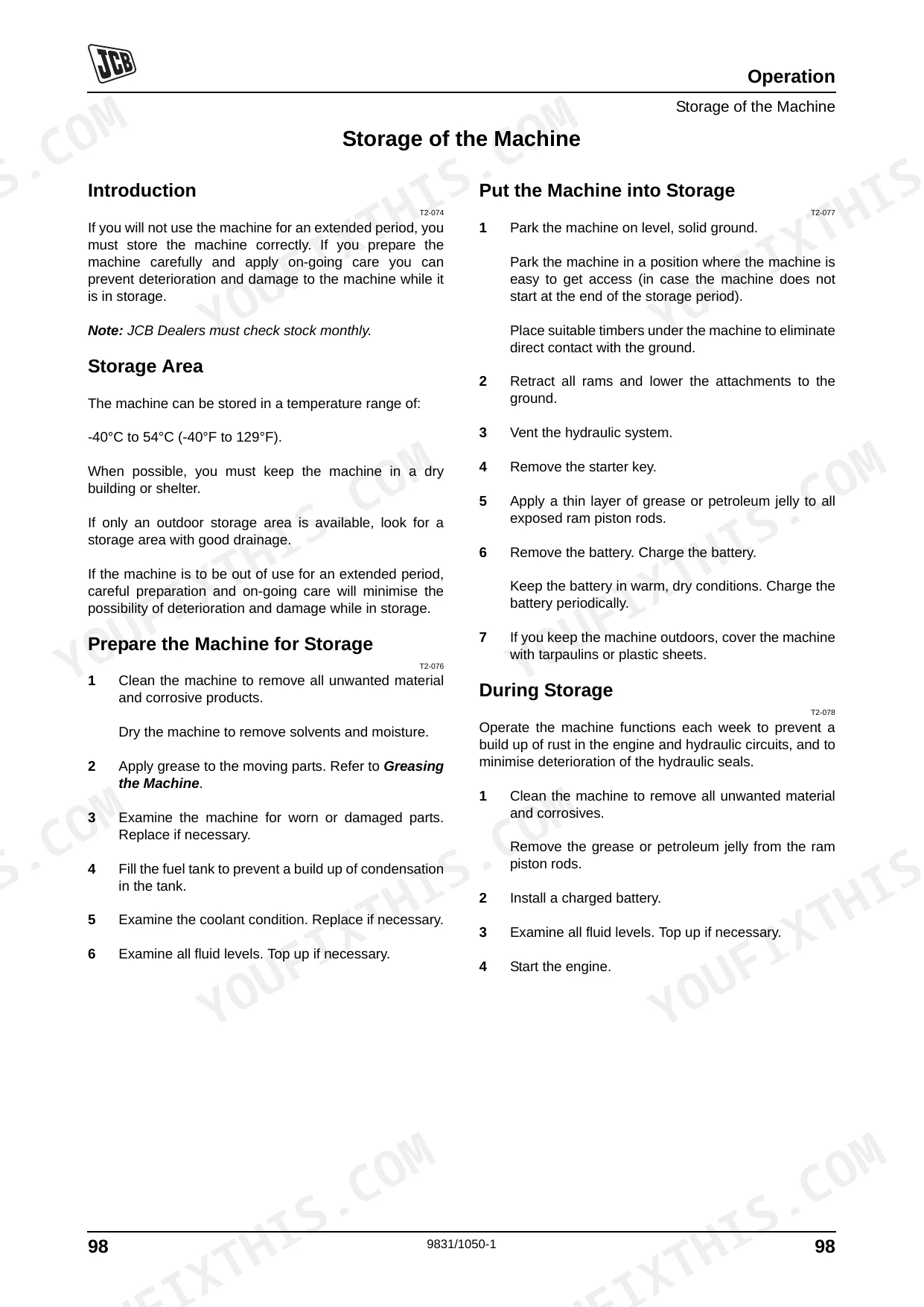

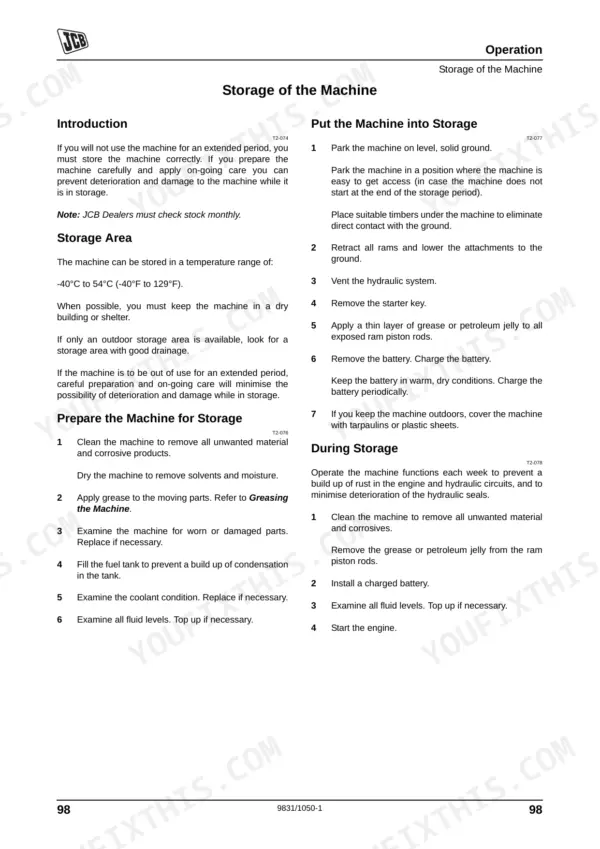

| Operation | 26-106 | Before Entering the Cab, Entering and Leaving the Cab, Doors and Windows (Opening Closing: Door, Side Windows, Rear Window), Seat Controls (Introduction, Seat Control) |
| Machine Security | 107 | General, Security Locks, LiveLink |
| Routine Maintenance | 108-197 | Service Schedules, Fluids, Lubricants and Capacities, Prepare the Machine for Maintenance, Cleaning the Machine, Checking for Damage, Greasing, Access Panels |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil drain plug torque | 40-60 Nm (30-44 lbf ft) | p. 153 |
| Wheel nut torque | 680 Nm (500 lbf ft) | p. 174 |
| Hydraulic hose burst pressure (Old Type Hose 607/19.05 mm bore) | Max Working Pressure: 235 bar, Min Burst Pressure: 950 bar | p. 195 |
| Hydraulic hose burst pressure (Old Type Hose 611/6.35 mm bore) | Max Working Pressure: 400 bar, Min Burst Pressure: 1600 bar | p. 195 |
| Tyre inflation air supply pressure regulator setting | no higher than 1.38 bar (20 psi) above the recommended tyre pressure | p. 173 |
| Fuel Tank Capacity | 128 Litres | p. 117 |
| ROPS/FOPS Mounting Bolts Torque | 205 Nm | p. 131 |
| Air Filter Outer Element Replacement Interval | 1000 hours | p. 157 |
| Maximum Load by Loader Unit (as crane) | 1000 kg | p. 190 |

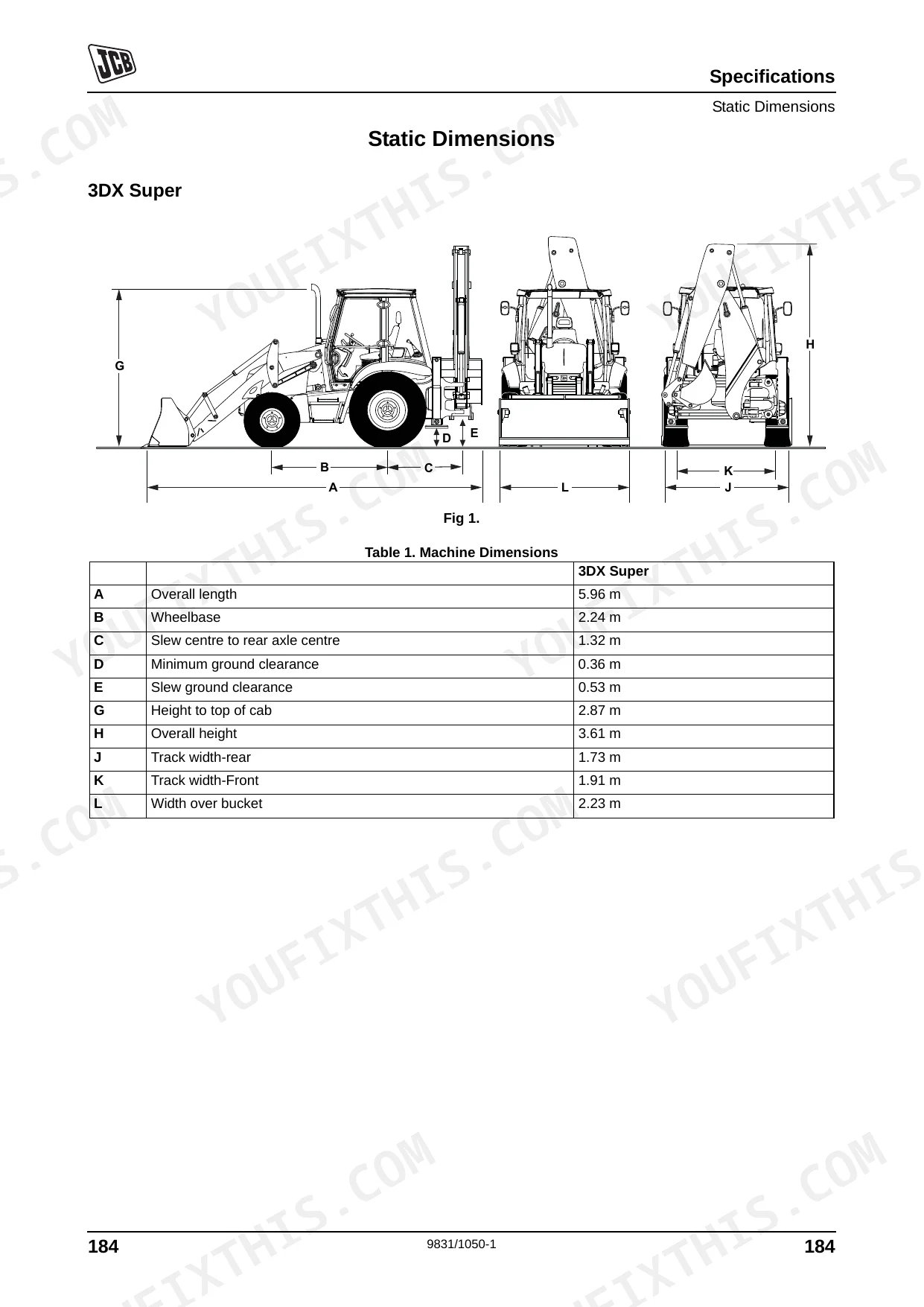

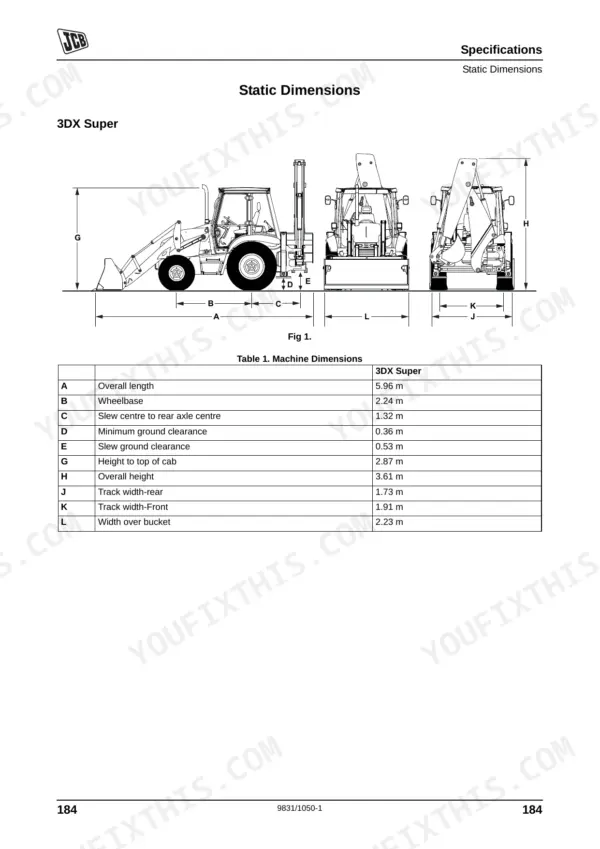

| Overall Length | 5.96 m | p. 191 |
| Max. Dig Depth (Excavator) | 4.77 m | p. 194 |
JCB 3DX SUPER Common Problems This Manual Covers
JCB 3DX Super engine will not start or starts briefly and then dies in cold weather p. 139
Inspect battery terminals for corrosion and check the fluid. Fill cells with distilled water until the electrolyte level reaches 6 mm (1/4 in) above the plates as shown on page 139. If the engine still turns over slowly, test the alternator output and verify the charging circuit fuses.
Manual Section: Routine MaintenanceHydraulic functions become weak or erratic with visible fluid leaks at the loader arm joints p. 196
Check all exposed hydraulic lines for chafing or bubbling. Replace any damaged high-pressure hose per the hose specifications on page 196, verifying burst pressure requirements for the applicable hose type and bore. Verify the hydraulic fluid level is correct before resuming work.
Manual Section: Routine MaintenanceMachine shakes heavily at road transport speeds or tyre pressure drops rapidly during daily operation p. 174
Verify tyre pressures daily before traveling on public roads. Set your inflation air supply pressure regulator no higher than 1.38 bar (20 psi) above the recommended tyre pressure per page 173. Torque all front and rear wheel nuts to exactly 680 Nm as detailed on page 174.
Manual Section: Routine MaintenanceEngine runs hot or loses power after extended operating hours in extremely dusty site conditions p. 157
Clean the outer engine debris screens and inspect the intake system. Replace the air filter outer element if it has reached the 1000 hours replacement interval specified on page 157. Drain the engine oil and retorque the drain plug to 40-60 Nm (30-44 lbf ft) per page 153.
Manual Section: Routine MaintenanceFrequently Asked Questions
What is the bucket capacity of the JCB 3DX Super?
The JCB 3DX Super has a shovel capacity of 1.0 cubic meter. This information is found in the 'Loader End' table within the specifications section of the manual.
What is the hydraulic oil capacity of the JCB 3DX Super?
The hydraulic system of the JCB 3DX Super has a capacity of 130 Litres (28.6 UK Gallons). This is the total system capacity for the hydraulic oil.
How do you fix JCB 3DX Super engine will not start or starts briefly and then dies in cold weather?
Inspect battery terminals for corrosion and check the fluid. Fill cells with distilled water until the electrolyte level reaches 6 mm (1/4 in) above the plates as shown on page 139. If the engine still turns over slowly, test the alternator output and verify the charging circuit fuses.
How do you fix hydraulic functions become weak or erratic with visible fluid leaks at the loader arm joints?
Check all exposed hydraulic lines for chafing or bubbling. Replace any damaged high-pressure hose per the specifications on page 196, verifying it meets the minimum burst pressure for its type and bore size. Verify the hydraulic fluid level is correct before resuming work.
What format is this manual in?
Immediate download of the complete 197-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text is generally crisp and easy to read, although some characters exhibit minor imperfections common with OCR processing. Diagrams and illustrations are raster images, which means they may show slight pixelation when magnified, but their labels remain readable. The pages are clean, free from scan artifacts, stains, or skewed content. Please note that pages 9, 177, and 190 are intentionally left blank.
