Every daily check, safety protocol, and cab control for your excavator is broken down in this 230-page JCB JS140, JS205, JS215 operator manual PDF (OEM #9831/7950). You get a complete breakdown of the operator station, detailed attachment guidelines for rockbreakers and crushers, and a full section of step-by-step daily maintenance procedures. Open to the technical data chapters to find complete fluid capacities, fault-finding charts for the hydraulic pump, and exact lubrication schedules to keep your equipment running strong. Swap the hydraulic oil return filter every 500 hours, and make sure the lower track roller bolts are locked down to exactly 288 N·m during your walk-around inspections. Prevent unnecessary wear and tear on your undercarriage and hydraulics. Grab this bookmarked download, open it on your tablet right in the cab, and get back to moving dirt.
What's Inside This JCB JS140, JS205, JS215 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 11-12 | Heating Ventilation Air Conditioning, International Organization for Standardization, Light Emitting Diode, Product Identification Number, Personal Protective Equipment |

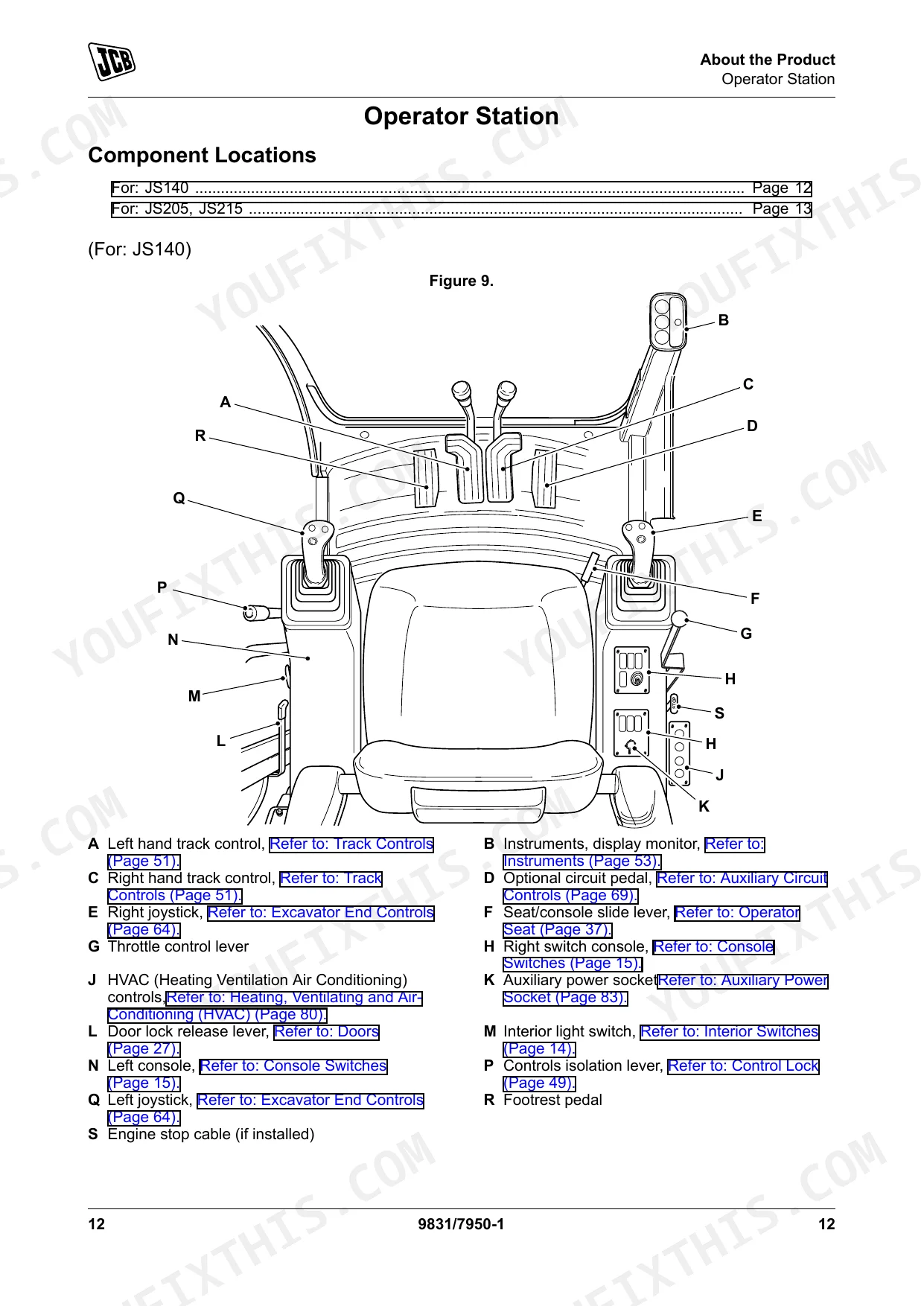

| Introduction | 13-28 | About This Manual, Safety, About the Product, Product and Component Identification, Safety Labels, Operator Station, Interior Switches |

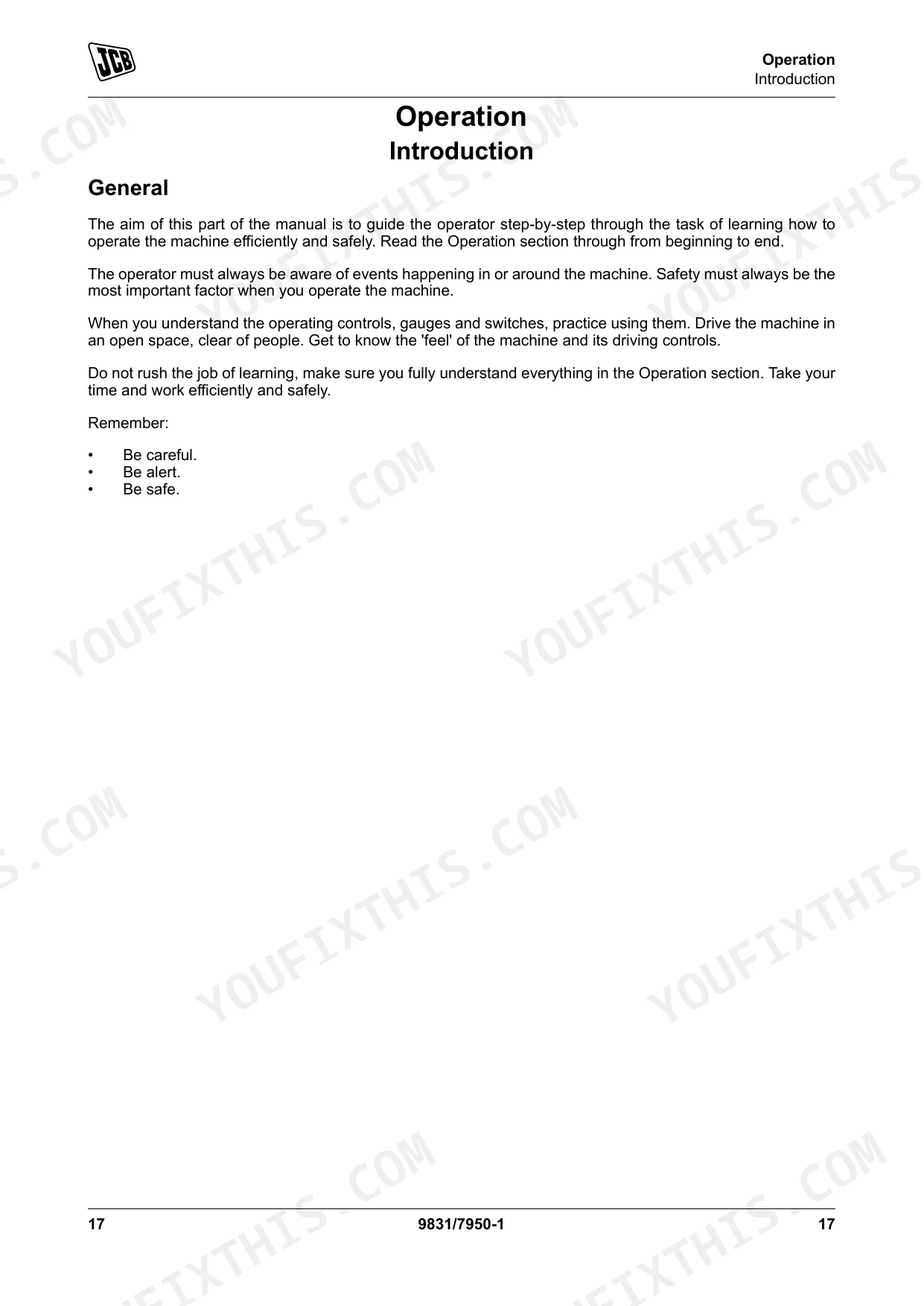

| Operation | 29-73 | Operating Safety, Walk-Around Inspection, Entering and Leaving the Operator Station, Doors, Windows, Sun Visor/Sunblind, Battery Isolator |
| Driving the Machine | 74-75 | General |
| Operating Levers/Pedals | 76-81 | General, Auxiliary Circuit Controls |
| Lifting and Loading | 82-83 | General |
| Working with the Excavator End | 84-91 | General, Digging, Changing the Bucket Linkage |
| Heating, Ventilating and Air-Conditioning (HVAC) | 92-94 | General, Face Level Fan |
| Power Sockets | 95 | Auxiliary Power Socket |
| Fire Extinguisher | 96-97 | General |
| Moving a Disabled Machine | 98-101 | General, Jump-Starting the Engine, Retrieval |
| Lifting the Machine | 102-103 | General |
| Transporting the Machine | 104-107 | General, Unloading the Machine From the Transporting Vehicle/Trailer |
| Operating Environment | 108-109 | General, Operating in High Temperatures |
| Refuelling | 110-112 | General |
| Attachments | 113-128 | Working with Attachments, Impact Protection, Direct-Mounted Attachments, Quickhitch, Buckets, Rockbreaker, Crusher, Cutter |

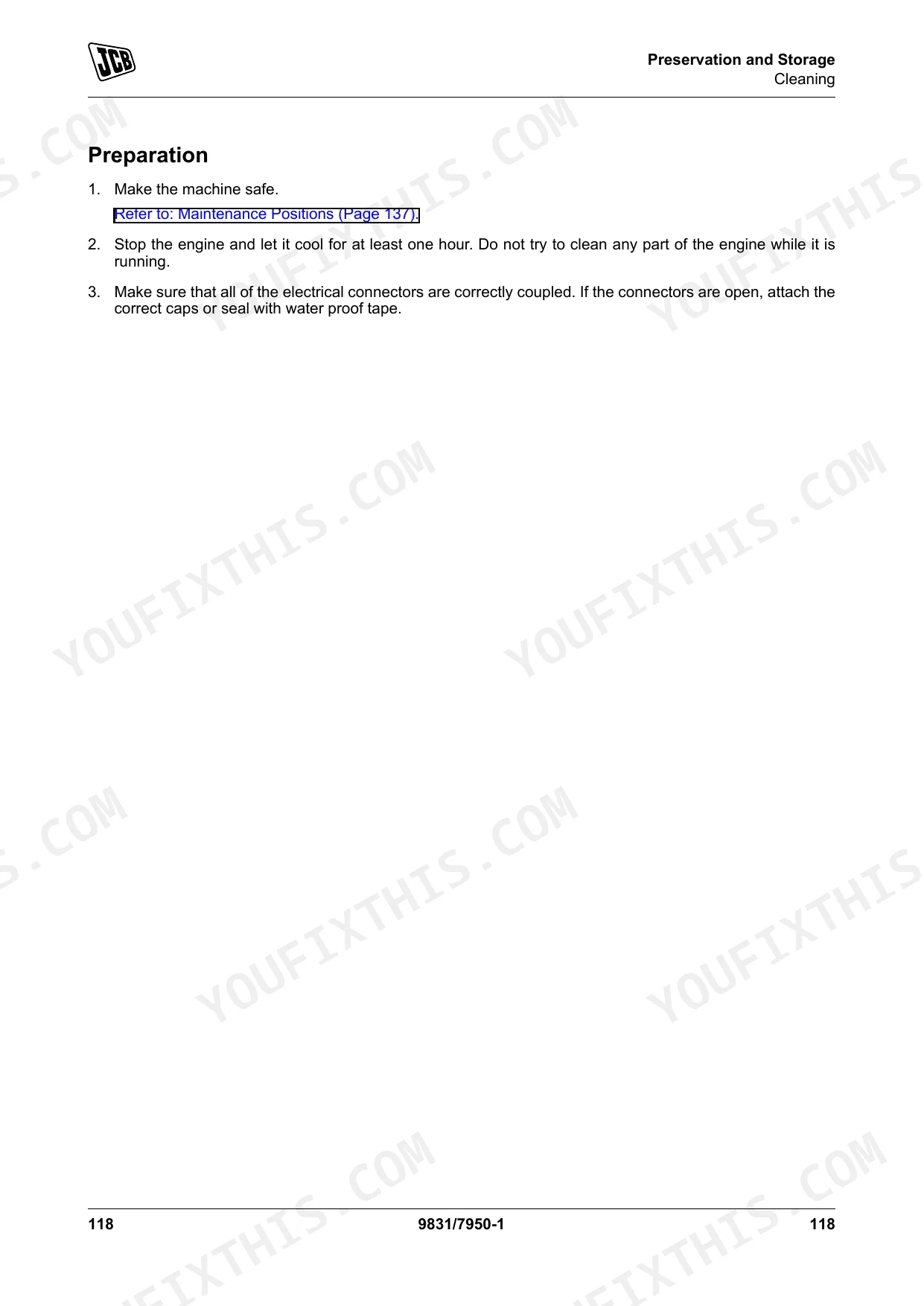

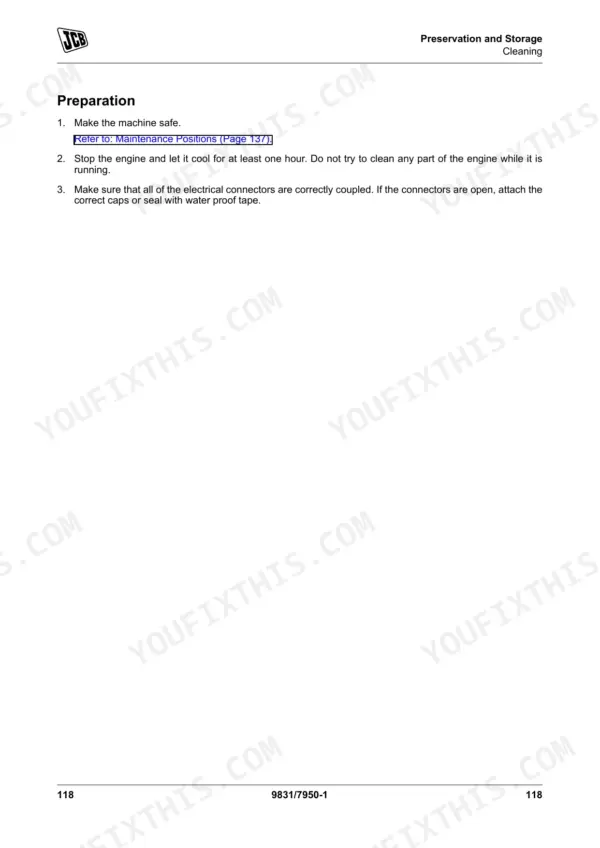

| Preservation and Storage | 129-134 | Cleaning, Checking for Damage, Storage, Security |
| Maintenance | 135-193 | Maintenance Safety, Maintenance Schedules, Maintenance Positions, Service Points, Access Apertures, Tools, Lubrication |

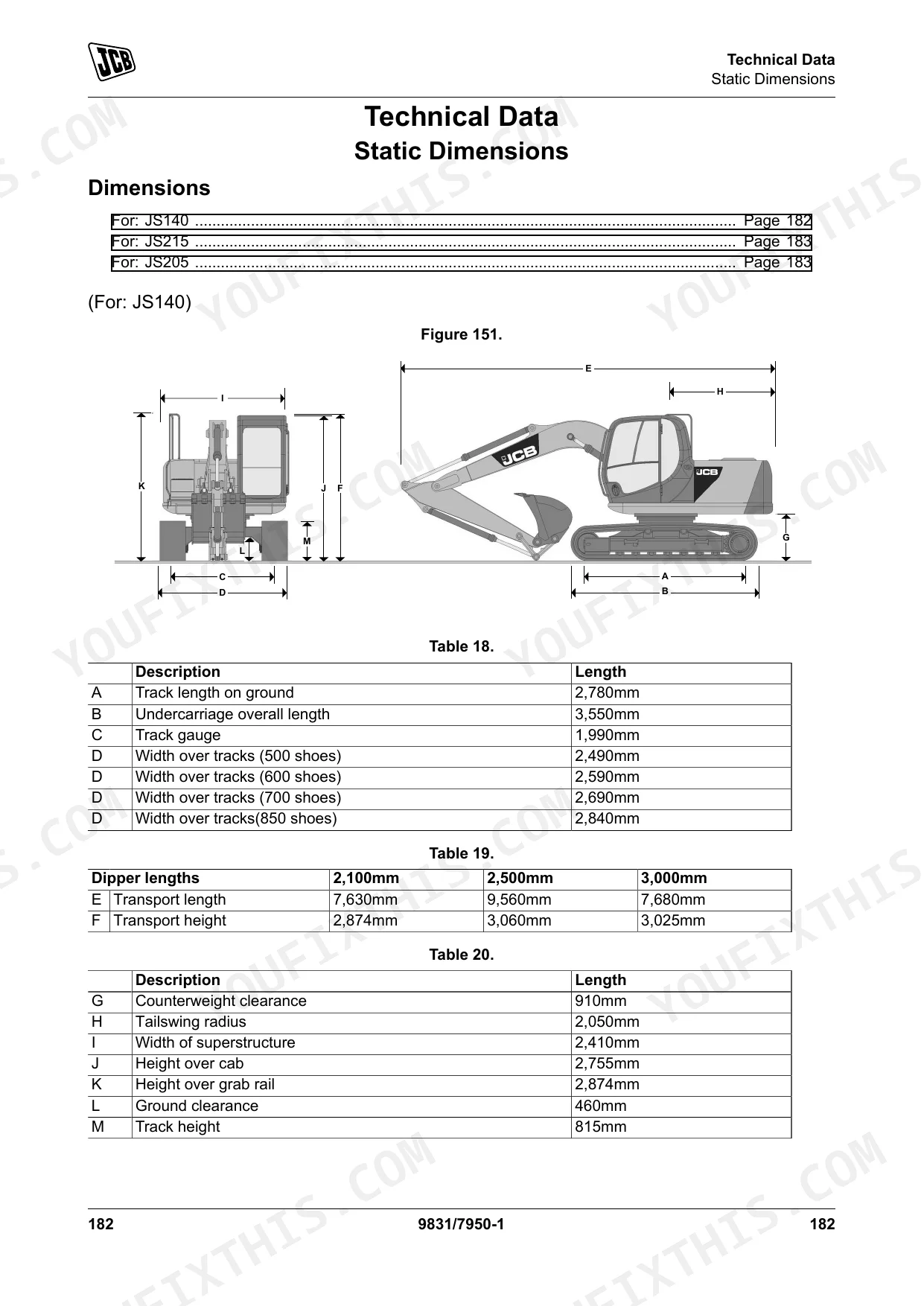

| Technical Data | 194-218 | Static Dimensions, Performance Dimensions, Noise Emissions, Vibration Emissions, Fluids, Lubricants and Capacities, Torque Values, Electrical System |

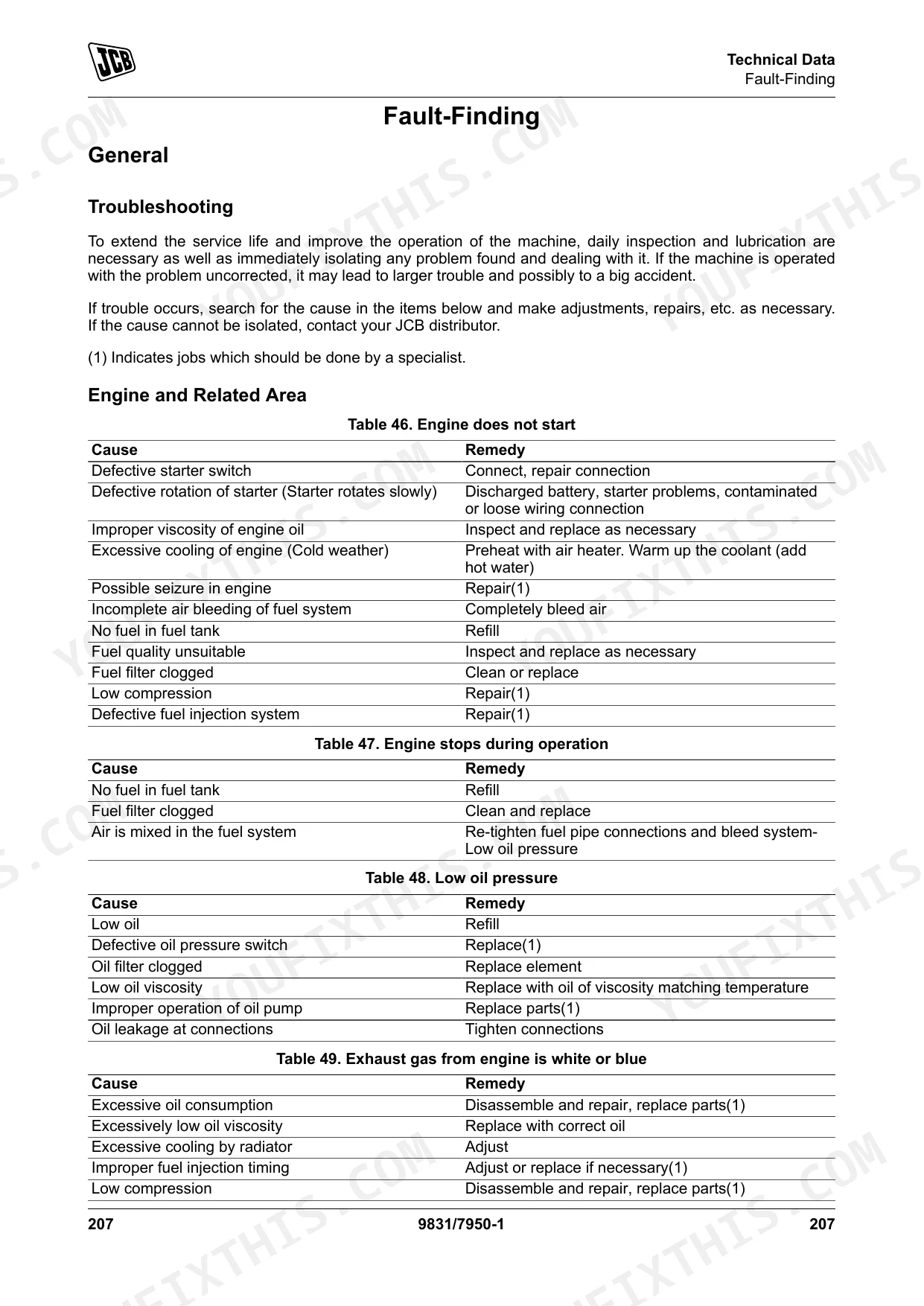

| Fault-Finding | 219-224 | General, Operations, Hydraulic Pump, Travel, Hydraulic Ram |
| Warranty Information | 225-230 | Service Record Sheet |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Lower (track) roller tightening torque | 288 N·m | p. 211 |
| Hydraulic oil filter replacement interval | 500h | p. 145 |
| Suction strainer replacement interval | 2000h | p. 143 |
| Drain filter replacement interval | 1000h | p. 145 |
| Servo filter element replacement interval | 1000h | p. 145 |
| Breaker filter replacement interval | 100h | p. 143 |
| Hydraulic pump abnormal noise remedy (excessively high viscosity oil) | Replace with hydraulic oil of suitable viscosity | p. 222 |
| Engine overheating remedy (low coolant) | Refill | p. 220 |
| Insufficient engine output remedy | Refer to Engine Service Manual | p. 222 |
| Fuel Tank Capacity | 253L | p. 207 |
| Engine Oil Capacity | 9L | p. 195 |
| Cooling System Capacity | 19.7L | p. 207 |
JCB JS140, JS205, JS215 Common Problems This Manual Covers
JCB JS140 engine will not start or stops unexpectedly during morning startup sequence p. 219
Inspect the battery isolator switch and check the system voltage. Review the fuel system and starter switch wiring for faults using the diagnostic steps on page 219. Recharge or replace the battery if it is completely discharged before attempting another start.
Manual Section: Fault-FindingEngine overheating and reduced machine output under heavy load during afternoon shifts p. 220
Check the coolant reservoir and refill if low, noting the JS140 cooling system capacity is 19.7L. Inspect the radiator for dirt buildup and verify the fan belt is tight. Test the water temperature sensor and thermostat using page 220 if the temperature gauge remains high.
Manual Section: Fault-FindingHydraulic attachment performance drops significantly during continuous rock breaker or crusher use p. 143
Replace the breaker in-line filter, which has a strict 100h replacement interval documented on page 143. Verify the hydraulic oil level in the sight glass. Check the hydraulic flow rate is within the specification for your attachment to prevent slowdown.
Manual Section: MaintenanceWeak or erratic hydraulic performance and sluggish boom movement during normal operation p. 143
Replace the hydraulic oil return filter at the 500h interval specified on page 143. Drain the tank and refill with fresh fluid if the oil viscosity is excessively high. Verify the lower track rollers are torqued to 288 N·m if you hear undercarriage noise.
Manual Section: MaintenanceFrequently Asked Questions
What is the torque spec for JCB JS140 slew ring bolts?
For the JCB JS140, the tightening torque for the turntable bearing (undercarriage) bolts is 259 N·m, and for the turntable bearing (revolving frame) bolts, it is also 259 N·m. Both use M16 bolt diameters and require a 24 mm wrench.
What are the replacement specifications for Hydraulic oil return filter?
For crusher, cutter, or pulveriser use, the hydraulic oil return filter (1) must be changed whenever the period of breaker/crusher/pulveriser use exceeds 100 hours, regardless of the total machine operating hours. For general use, the hydraulic return filter (inside tank) has a change period of 500 hours.
What are the replacement specifications for Suction filter?
For crusher, cutter, or pulveriser use, the suction filter (1) must be changed whenever the period of breaker/crusher/pulveriser use exceeds 100 hours, regardless of the total machine operating hours. For general use, the suction strainer has a change period of 2,000 hours.
How do you fix JCB JS140 engine will not start or stops unexpectedly during morning startup sequence?
Inspect the battery isolator switch and check the system voltage using the diagnostic steps on page 219. Recharge or replace the battery if it is completely discharged before attempting another start.
What format is this manual in?
Immediate download of the complete 230-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is crisp and easy to read throughout the manual. Diagrams and illustrations are clear with readable labels, appearing to be raster images. Pages are generally clean, without significant scan artifacts, stains, or skewed content. However, there are numerous blank pages interspersed, especially towards the end, which serve as filler.
