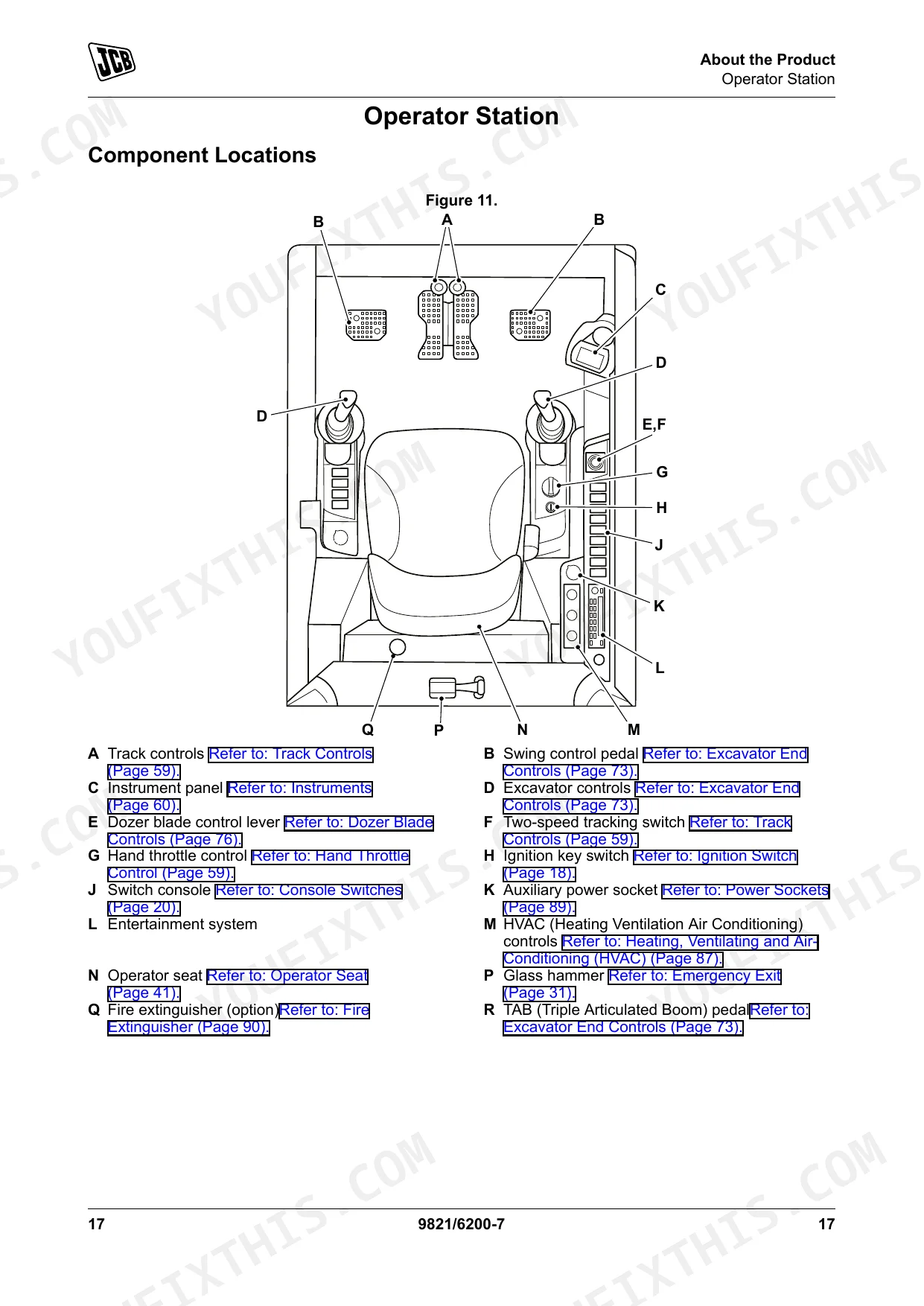

Keep your compact excavators running properly with this 224-page JCB 85Z-1 and 86C-1 Operator Manual (OEM #9821/6200). The guide covers operating procedures in detail, covering every console switch, joystick function, and instrument panel indicator. You will find load charts and overload warning system details required before lifting operations begin. Step-by-step instructions cover pre-start cold checks, daily greasing, and safe machine transport onto a trailer. Maintenance schedules are clearly mapped out from 250 to 5,000 hours, including specific intervals like swapping the outer air filter at 1,000 hours and the inner element at 2,000 hours. Because downtime costs money, this keyword-searchable PDF is fully bookmarked by section. Open it directly on your tablet to reference fluid capacities, like the 118 L hydraulic system, right in the field.
What's Inside This JCB 85Z-1, 86C-1 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 11-12 | Cesar, Decu, DEF, Ecm, ECU, Esos, Fogs, Fops |

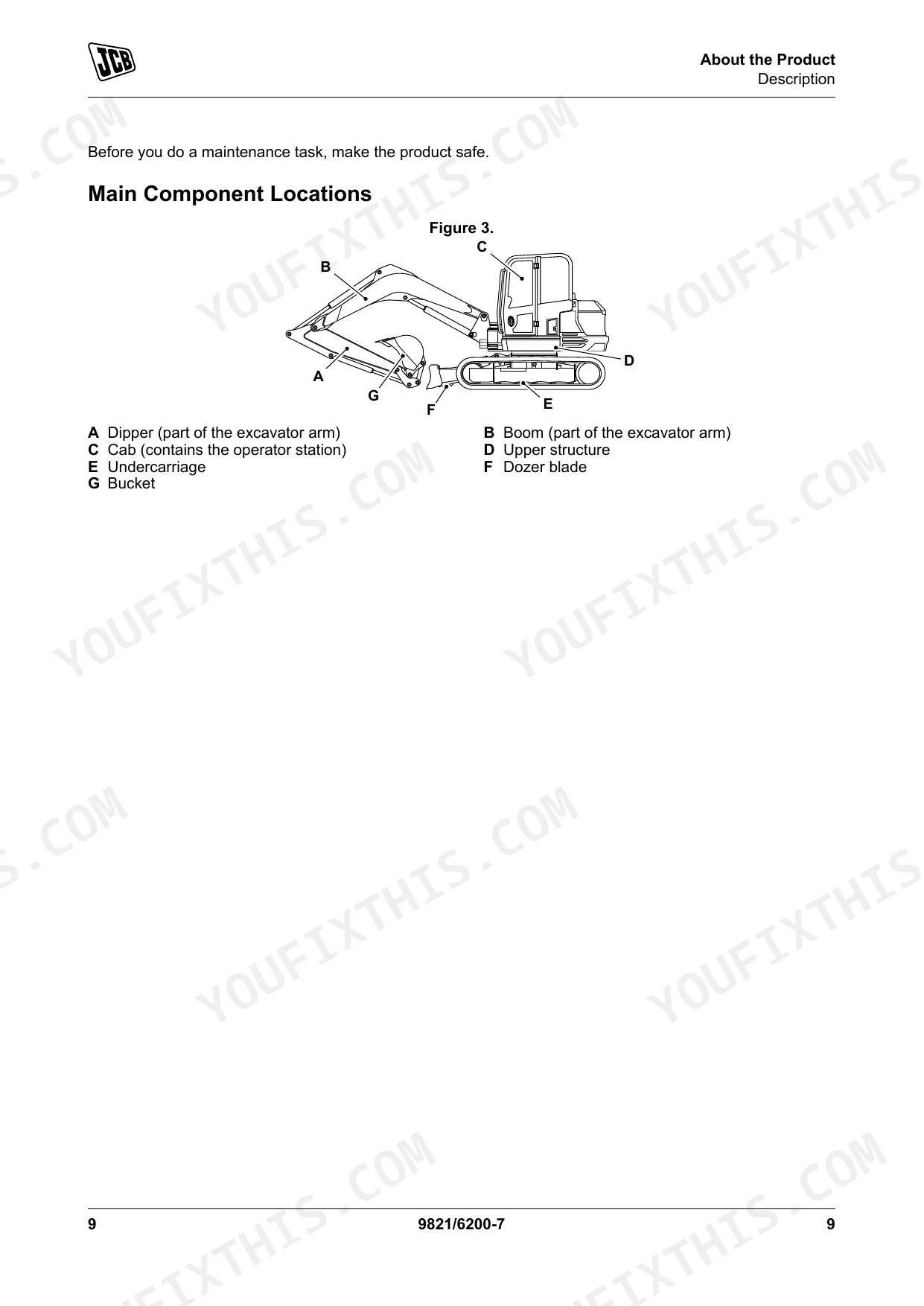

| About the Product | 19-34 | Introduction (General, Name and Address of the Manufacturer, Product Compliance) |

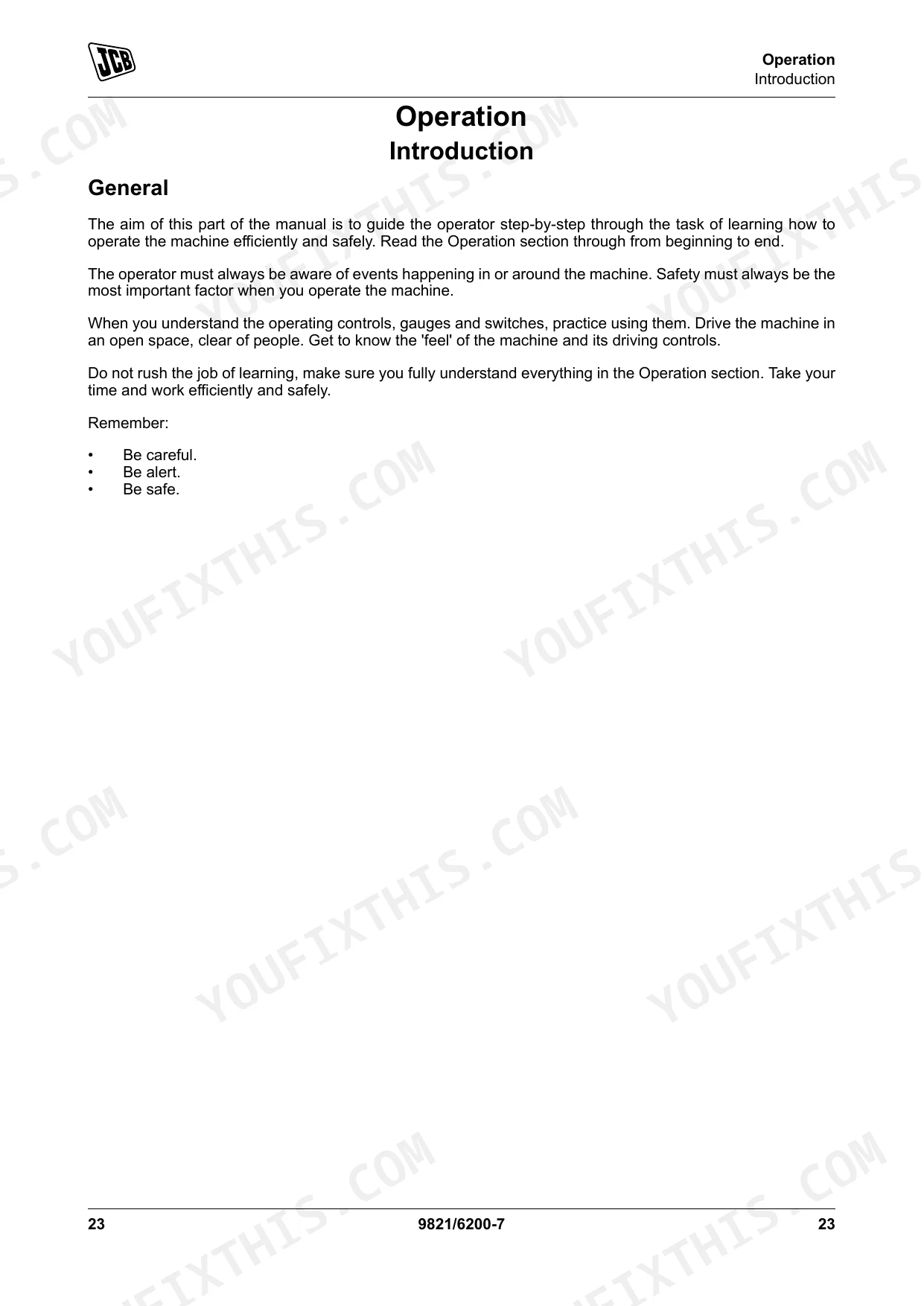

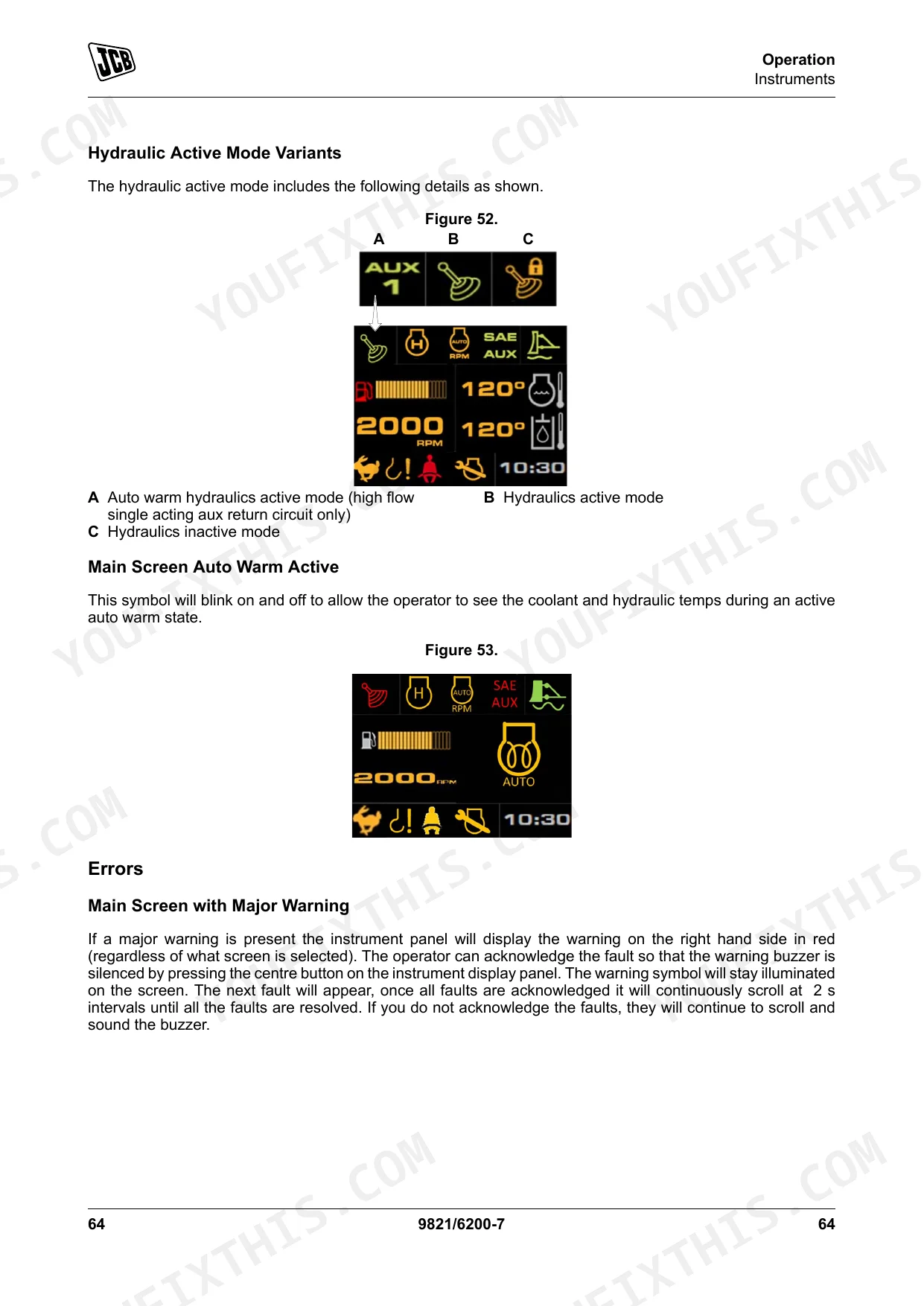

| Operation | 35-116 | Introduction (General), Operating Safety (General, Worksite Safety, Risk Assessment), Walk-Around Inspection (General) |

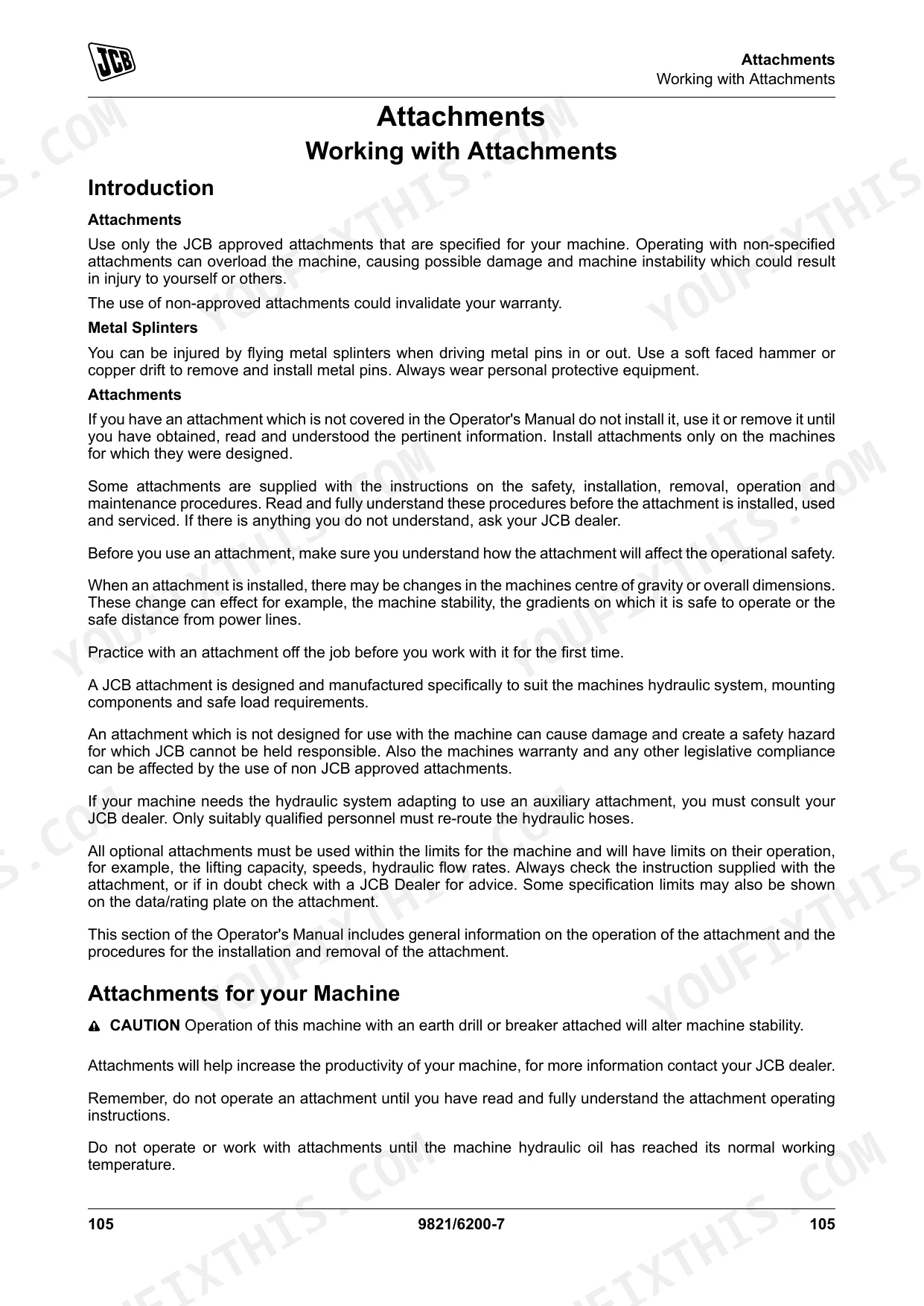

| Attachments | 117-136 | Working with Attachments, Connecting/Disconnecting Hydraulic Hoses, Impact Protection, Direct-Mounted Attachments, Quickhitch, Buckets, Rockbreaker |
| Preservation and Storage | 137-142 | Cleaning (General, Preparation), Checking for Damage (General), Storage (General, Put Into Storage, During Storage, Take Out of Storage) |
| Maintenance | 143-190 | Introduction (General, Owner/Operator Support, Service/Maintenance Agreements, Obtaining Spare Parts), Maintenance Safety (General, Fluids and Lubricants) |
| Technical Data | 191-214 | Static Dimensions (Weights, Visibility Diagrams), Performance Dimensions (Excavator End Dimensions and Performance), Noise Emissions (General, Noise Data) |
| Declaration of Conformity | 215-217 | General, Data, Table 33 |
| Warranty Information | 218-224 | Service Record Sheet, Table 34, Installation Checklist, 250h/3 Month, 500h/6 Month, 1000h/12 Month, 1500h/18 Month, 2000h/24 Month |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Track plate bolts torque | 74 N·m | p. 208 |
| Track tensioner cover plate bolts torque | 43 N·m | p. 208 |
| Air Filter (outer) replacement interval | 1000h | p. 151 |
| Air Filter (inner) replacement interval | 2000h | p. 151 |
| Grease gun strokes for general greasing | 2 strokes | p. 161 |
| Grease gun strokes for slew ring bearings | 4 strokes | p. 164 |
| Primary Fuse F1 rating | 60 A | p. 209 |
| Primary Fuse F2 rating | 60 A | p. 209 |
| Engine Oil Capacity (KDI TCR) | 11.2 L | p. 205 |
| Fuel Tank Capacity | 112 L | p. 205 |
| 85Z-1 | ||
| Operating Weight (85Z-1, 450mm rubber tracks) | 8,300 kg | p. 193 |
| 86C-1 | ||
| Operating Weight (86C-1, 450mm rubber tracks) | 8,600 kg | p. 193 |
JCB 85Z-1, 86C-1 Common Problems This Manual Covers
JCB 85Z-1 86C-1 ECO or generic warning symbol stays on display after restart
Review the troubleshooting procedures to identify the active fault. Inspect the window washer bottle fluid level and examine the pump connector for corrosion or a loose pin on the 12 V circuit (page 209). Look for a blown secondary fuse before assuming a deeper electrical fault.
Manual Section: Electrical System FaultsHydraulic fluid dripping on tracks or ground, visible around cylinder rods and hoses p. 193
Examine hoses, cylinder rod seals, and all fittings during the pre-start walkaround. Clean the wet area with a rag before starting to pinpoint the exact source. Verify the hydraulic oil sight glass and top up if below the MIN mark; the system total capacity is 118 L (page 193).
Manual Section: Hydraulic System FaultsAir filter service indicator trips or engine loses power in dusty site conditions p. 151
Halt the machine and remove the outer air filter element for inspection. Clean or replace it if clogged, planning for a fresh outer element at 1,000 hours (page 151). Never clean the inner safety element; swap it out at 2,000 hours only. Reseat the intake ducting and reset the service indicator before restarting.
Manual Section: MaintenanceBoom, dipper, and bucket pins feel loose or show excessive play during digging p. 161
Lubricate all excavator end pins and bushings at every daily service interval. Apply 2 strokes per nipple at each general pivot point (page 161). Slew ring bearings require 4 strokes (page 164). If movement persists after proper lubrication, flag it to your service team to prevent accelerated pin bore wear.
Manual Section: MaintenanceTracks appear slack, or machine drifts to one side during straight-line travel p. 208
Check track sag and the condition of rollers, sprockets, and idler wheels during your daily walkaround. Verify track plate bolts are tight, with a specified torque of 74 N·m (page 208). Persistent deviation on flat ground with correct tension indicates a drive or undercarriage issue requiring dealer inspection.
Manual Section: Track Damage/TensionFrequently Asked Questions
What should I do if the air filter service indicator trips or the JCB 85Z-1 loses power in dusty conditions?
Halt the machine and remove the outer air filter element for inspection or replacement as described on page 151. The manual specifies replacing the outer element at 1,000 hours and the inner element at 2,000 hours.
How do I address hydraulic fluid leaking around cylinder rods or hoses on the JCB 85Z-1/86C-1?
Examine hoses, cylinder rod seals, and all fittings for damage or wear following the hydraulic inspection procedure on page 193. Replace worn seals or damaged hoses before returning to service.
What is the torque specification for JCB 85Z-1 track plate bolts?
Track plate bolts torque to 74 N·m. This figure is listed in the technical data section on page 208.
How do I lubricate boom, dipper, and bucket pins that feel loose or show play on the JCB 85Z-1?
Lubricate all excavator end pins and pivot points following the greasing schedule on page 161. Excessive play indicates worn pins or bushings that should be measured and replaced if beyond the service limit.
Document Quality
This document is a scanned PDF with an underlying OCR layer, which means you can search and copy the full text. The text quality is generally crisp and clear, making it easy to read all sections of the manual. Diagrams and illustrations are presented as raster images, but they are sufficiently clear, and all labels are easily readable. The pages themselves are clean, consistently well-aligned, and free from any distracting scan artifacts or marks. Please note that there are several blank 'Notes:' pages included at various points throughout the document.
