Looking for the factory procedures to run and maintain your 2001-2006 JCB Tracked Excavator? This 222-page JCB JZ140, JZ235, JZ255 Operator Manual PDF (OEM #9801/9340 - 4) gives you the exact daily schedules and control layouts straight from the manufacturer. Inside, you get complete cab control breakdowns, detailed maintenance interval charts, and safety checks for the single and two-man cabs. Open to the ISO operating method section to master the travel levers, check dashboard indicators, and verify proper fluid capacities before firing up the machine. Swap out the Tier II fuel filter element every 250 hours and torque the undercarriage turntable bearing bolts to 280-310 Nm to keep your rig tracking straight. Stop guessing at daily maintenance schedules. Download this bookmarked file directly to your phone, find the exact service interval you need, and get back in the operator seat.
What's Inside This JCB JZ140, JZ235, JZ255 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 7-8 | Introduction |

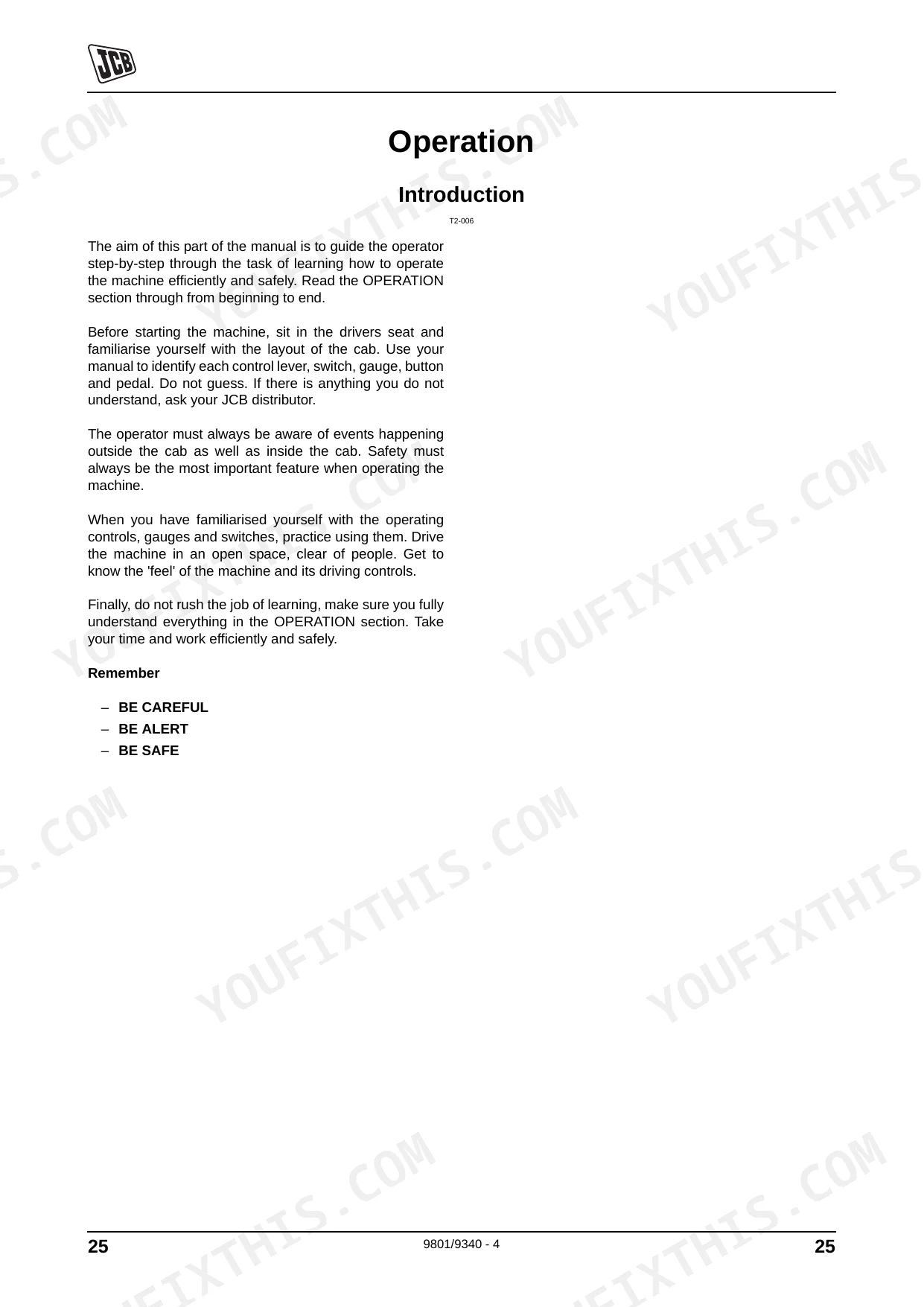

| Operation | 31-43 | Introduction, Before Entering the Cab, Entering and Leaving the Cab (Single Man Cab, Two Man Cab) |

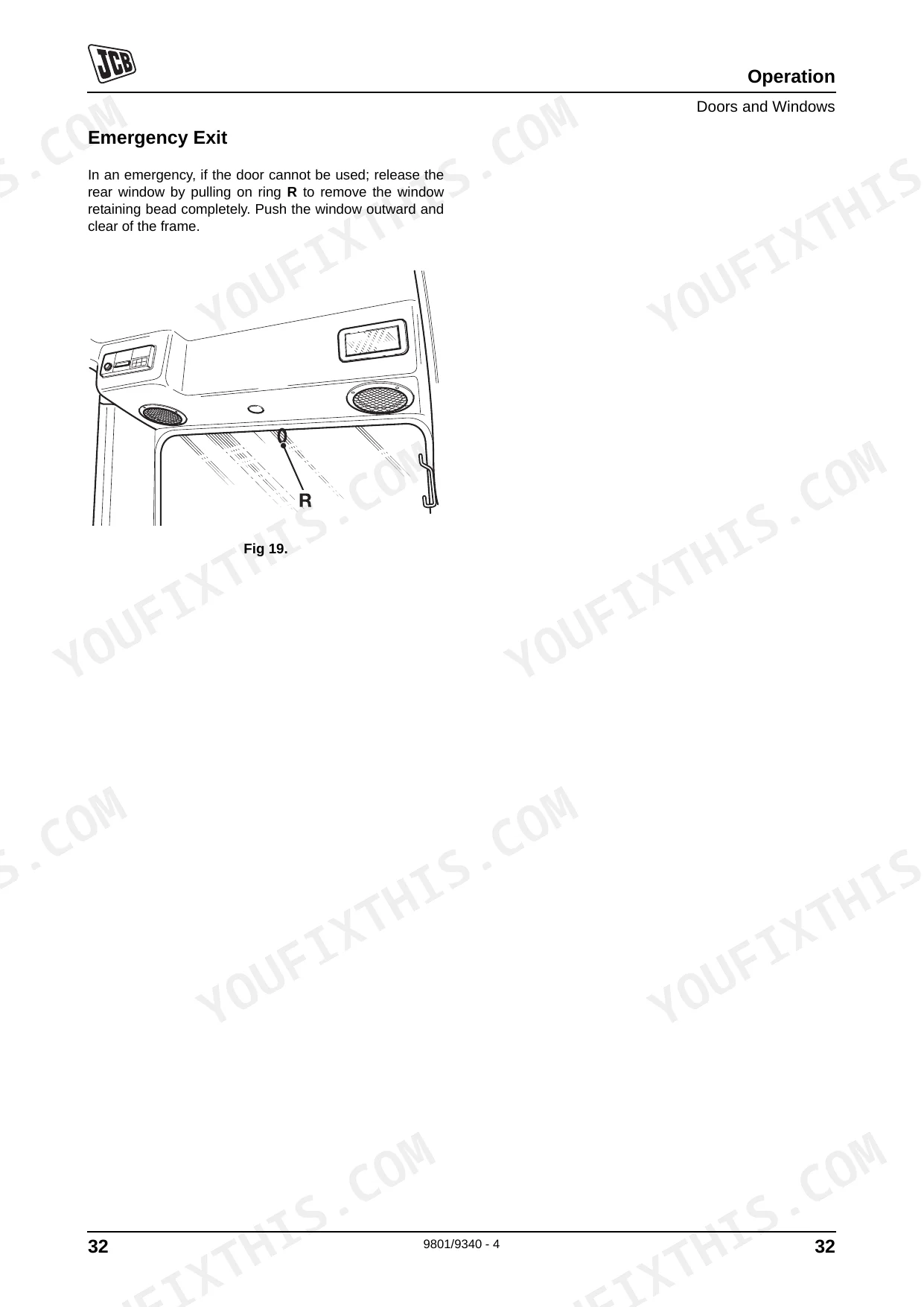

| Fascia Panel | 47-48 | Emergency Stop, Slew Lock, Overload Caution, Cushion, Isolator, Quickhitch |
| Emergency Back-Up Switch | 49 | Single Man Cab, Two Man Cab, Mechanical Engine RPM Override - JZ140 Only |
| Heater/Air Conditioning Controls | 50 | Heater Controls, Heater Fan, Temperature, Air Conditioning Controls, Fresh Air/Recirculated Air, Using the Air Conditioning |
| Cab Interior Lights | 51 | - |
| Radio (If Fitted) | 51 | Tone Control, On/off Switch and Volume Control, Tuning Display, Waveband/frequency Select Buttons, Pre-Set Memory store/select Buttons, Cassette loading/control Features |
| Operating Levers/Pedals | 52 | Travel Levers, Travel Speed Change Button |
| Optional Circuit Pedal (If Fitted) | 53 | Operation Levers |
| Iso Operating Method | 53-222 | - |

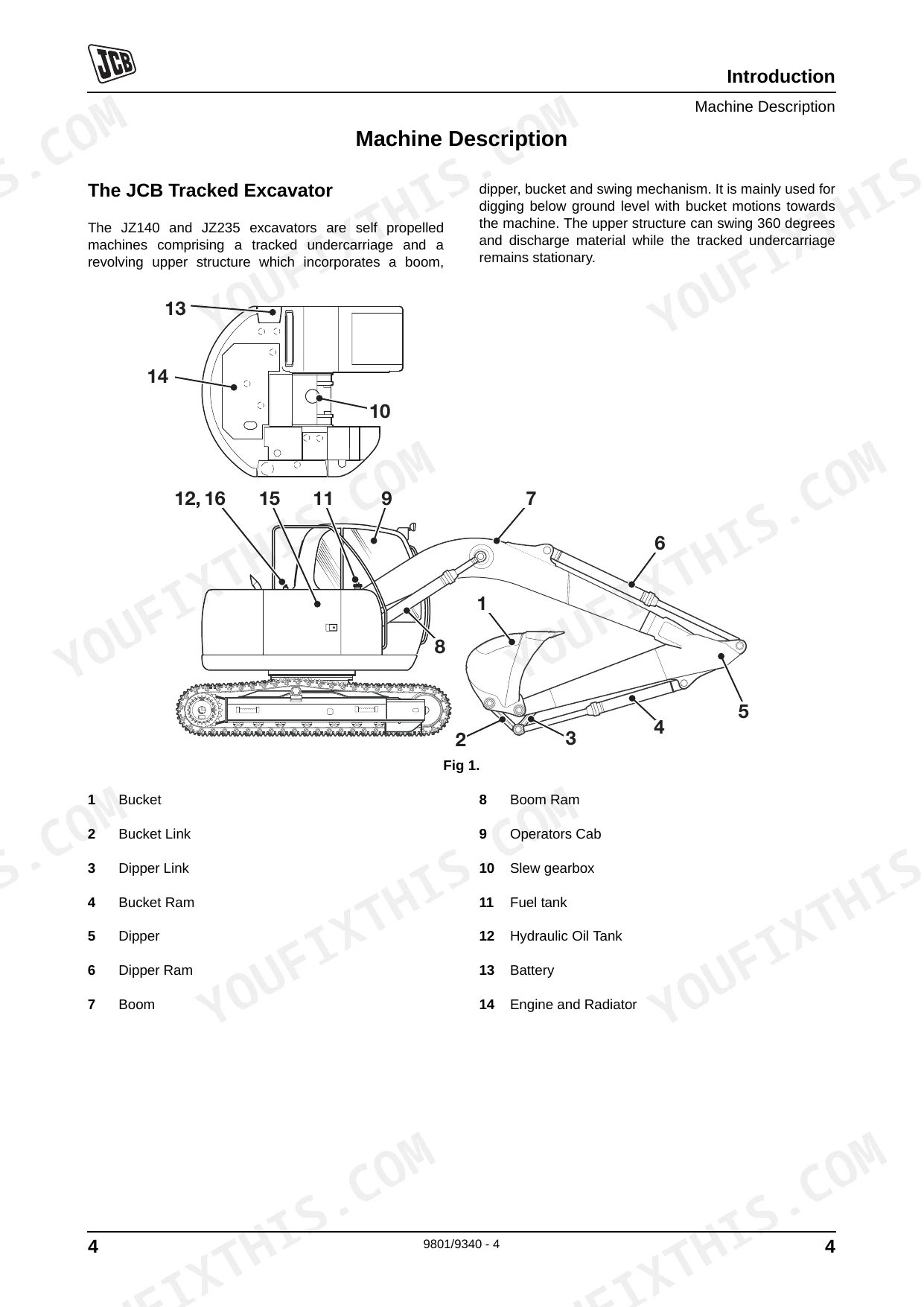

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| JZ140 | ||
| Turntable Bearing (Undercarriage) Bolt Torque | 280~310 Nm (205~230 lbf ft) | p. 124 |
| Fuel Filter Element (Tier II) Replacement Interval | Every 250 hours | p. 104 |
| Plexus Filter Bolt Torque | 20Nm (14.75 lbf ft) | p. 164 |
| All Models | ||
| Air Cleaner Outer Element Replacement Interval | Every 250 hours (Monthly) or more frequently in dusty conditions | p. 104 |
| Air Cleaner Inner Element Replacement Interval | Every third time the outer element is changed (Every 500 hours) | p. 104 |
| Hydraulic Filter Replacement Interval (Less than 10% breaker/crusher/pulverizer use) | Every 4000 hrs | p. 114 |
| Battery Electrolyte Level | 15 mm (0.6 in) above the plates | p. 101 |
| Battery Mounting Bolt Torque | 7 Nm (5 lbf ft) | p. 124 |
| Controller Outputs 1-6 Fuse Rating | 15A | p. 129 |
| Heater/Air Conditioner, Auto fan Fuse Rating | 20A | p. 129 |
| Seal Replacement | Renew whenever disturbed unless otherwise instructed | p. 19 |
| JZ235/255 | ||
| Fuel Pump Filter Element (Tier III) Replacement Interval | Every 250 hours | p. 104 |
JCB JZ140, JZ235, JZ255 Common Problems This Manual Covers
JCB JZ140 excavator engine will not start or turns over slowly during morning startup p. 101
Check the battery electrolyte level is 15 mm (0.6 in) above the plates as shown on page 101. Inspect the ignition supply fuse on page 129 and clean any corroded terminal connections before attempting restart.
Manual Section: Engine Troubleshooting (No Start, Low Oil Pressure, Overheating, Exhaust Gas, Abnormal Noise, Defective Battery Charge)Tracks are loose, slipping off idlers, or making loud clanking noises during travel p. 178
Park the machine on hard ground and measure the track tension gap. Adjust the track grease cylinder until the gap is within the specification on page 178. Clean all packed mud and debris from the undercarriage components before measuring to get an accurate reading.
Manual Section: Travel System Troubleshooting (Insufficient Force, Rough Travel, Crooked Travel)Hydraulic functions are noticeably weak, erratic, or respond slowly to joystick inputs p. 114
Verify the hydraulic filter replacement schedule on page 114. Replace the main return filter if the machine has exceeded the 4000 hrs interval. Check the hydraulic oil level sight glass and inspect all pump exit hoses for visible leaks or weeping connections before operating.
Manual Section: Hydraulic Pump Troubleshooting (No Oil Delivery, No Pressure Build, Abnormal Noise, Oil Leakage)Engine runs rough, loses RPM under load, or unexpectedly stalls during heavy digging p. 109
Inspect the main fuel hoses routed from the fuel tank to the engine. Replace any cracked lines immediately — page 109 specifies replacement every 2 years or every 4000 hours, whichever comes first. Drain the primary sedimenter bowl to remove any trapped water or debris.
Manual Section: Engine Troubleshooting (No Start, Low Oil Pressure, Overheating, Exhaust Gas, Abnormal Noise, Defective Battery Charge)Frequently Asked Questions
How do I reset the JCB JZ140/JZ235/JZ255 service light?
The service required warning light comes on when a service is due. For a minor service (250 hours), the warning flashes and can be cancelled by pressing the ACK switch on the monitor. For a major service (500 hours), the warning stays on continuously — contact your JCB dealer.
What are the torque specs for JCB JZ140/JZ235/JZ255 track frame or undercarriage bolts?
For the JZ140, track plate bolts should be tightened to 310-360Nm (228-265lbf ft). For the JZ235/255 shoe bolt torque, refer to page 180 of the manual for the correct specification — the value differs significantly from the JZ140 and must be read directly from Table 14.
What are the replacement specifications for air filter?
The outer air filter element should be renewed immediately if its warning light comes on. The inner air filter element must be fitted at least every third time the outer element is changed. Mark the inner element with a felt-tipped pen each time the outer element is changed to track replacements.
What are the replacement specifications for fuel filter?
The fuel filter element for Tier II engines should be changed per the service schedule at regular intervals including the 250-hour service. For Tier III engines, the fuel pump filter element, primary filter/sedimenter, and main fuel filter/sedimenter also require periodic change per the schedule.
How quickly can I access this manual after buying?
Immediate download of the complete 222-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this JCB JZ140, JZ235, JZ255 Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
