Looking for the factory operating guidelines for your wheeled agricultural tractor? This 300-page JCB 8250 Fastrac operator manual PDF (OEM #9811/1701) breaks down every pre-start inspection, cab control, and daily service routine. Inside, you get complete dashboard indicator explanations, continuously variable transmission (CVT) operating procedures, and step-by-step fluid capacity charts. Packed with safety warnings and maintenance intervals, it shows you exactly how to program the EMS and adjust the steering column multi-purpose switch. Dial in the air conditioning compressor belt slack to exactly 10 mm and torque the front and rear wheel nuts to 600 Nm. Stop guessing what that cab warning light means. Download the bookmarked file directly to your phone, jump straight to the maintenance schedule, and keep your tractor in the field.
What's Inside This JCB 8250 Fastrac Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 9-10 | Important Information, Operator Manual, Safety Warnings |

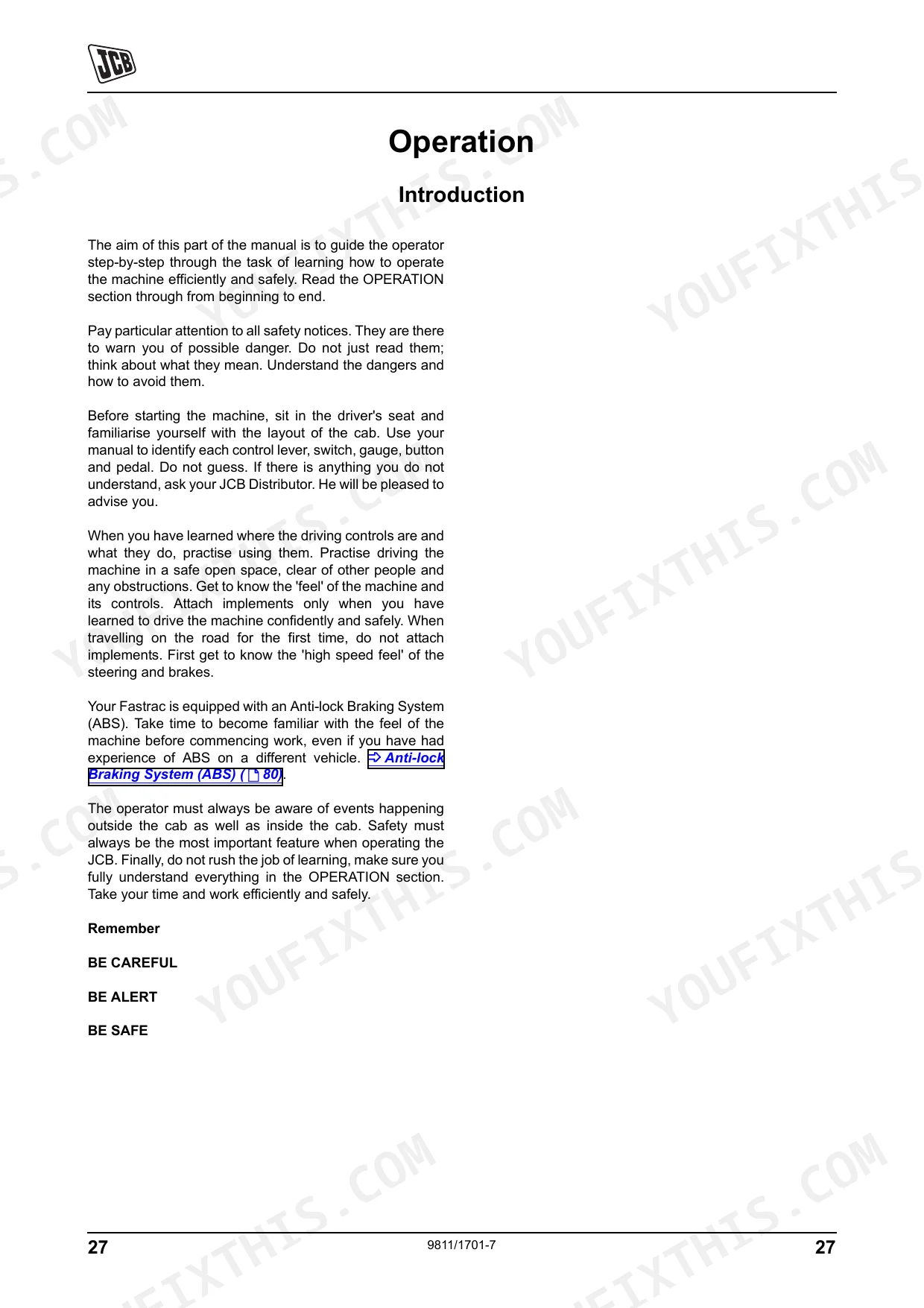

| Operation | 37-51 | Introduction, Before Entering the Cab, Entering and Leaving the Cab - Door and Windows (Emergency Exit, Opening and Closing the Door, Opening and Closing the Rear Window) |
| Ems Programming | 52-54 | Total Distance Travelled, Total Hours Worked, Area Worked, Fuel Used, Wheel Slip, Implement Width |
| Heater/Air Conditioning Controls | 55 | On/Off Switch, Auto Mode Switch, Recirculation Switch, Defrost/Demist Switch, Temperature Control, Fault Codes |
| Cab Interior Light | 56 | Automatic Switching, Manual Switching, Door Open Activation, Door Closed Activation |
| Auxiliary Panel | 57 | Auxiliary Sockets, Power Supplies, Iso Socket F, Limp Home Switch G, Radar Sensed Speed Signal, Gearbox Sensed Speed Signal |
| Safety Equipment | 58 | Transport Lock |
| Before Starting the Engine | 59-60 | Park Brake Engagement, Pre-Start Inspection, Cab Cleanliness, Steering Column Adjustment, Rear View Mirror Setting, PTO Guards |
| Starting the Engine | 61 | Normal Starting, Cold Starting |
| Preparing for Travel | 62 | Before Travelling on Public Roads |
| Getting the Machine Moving | 63-74 | Forward and Reverse Selection, Ground Speed Control, Differential Lock, Four Wheel Drive Engagement, Foot Brake Operation, Park Brake |
| Continuously Variable Transmission (CVT) | 75-92 | CVT Operating Modes, Powershift Mode, High Range, Low Range, Speed Ratios, Engine Speed Control, Reverse Speed |
| Working with Your Machine | 93-109 | Implement Attachment, Weight Distribution, PTO Engagement, Rear Linkage Operation, Field Operation Procedures |
| Drawbars and Hitches | 110-128 | Category II/III Three Point Hitch, Drawbar Adjustment, Towing Limits, Implement Attachment, Swinging Drawbar |
| Independent Power Take-Off (PTO) | 129-137 | PTO Shaft Engagement, 540/1000 RPM Selection, PTO Guards, Stub Shaft Fitting, Independent PTO Control |
| Touch Screen Settings | 138-153 | Display Configuration, Headland Turn Settings, Isobus Terminal, Speed Display, Implement Width Entry |
| Headland Management System | 154-162 | Headland Sequence Programming, Automatic Lifting, Turn Sequence, Headland Activation, Return to Work |

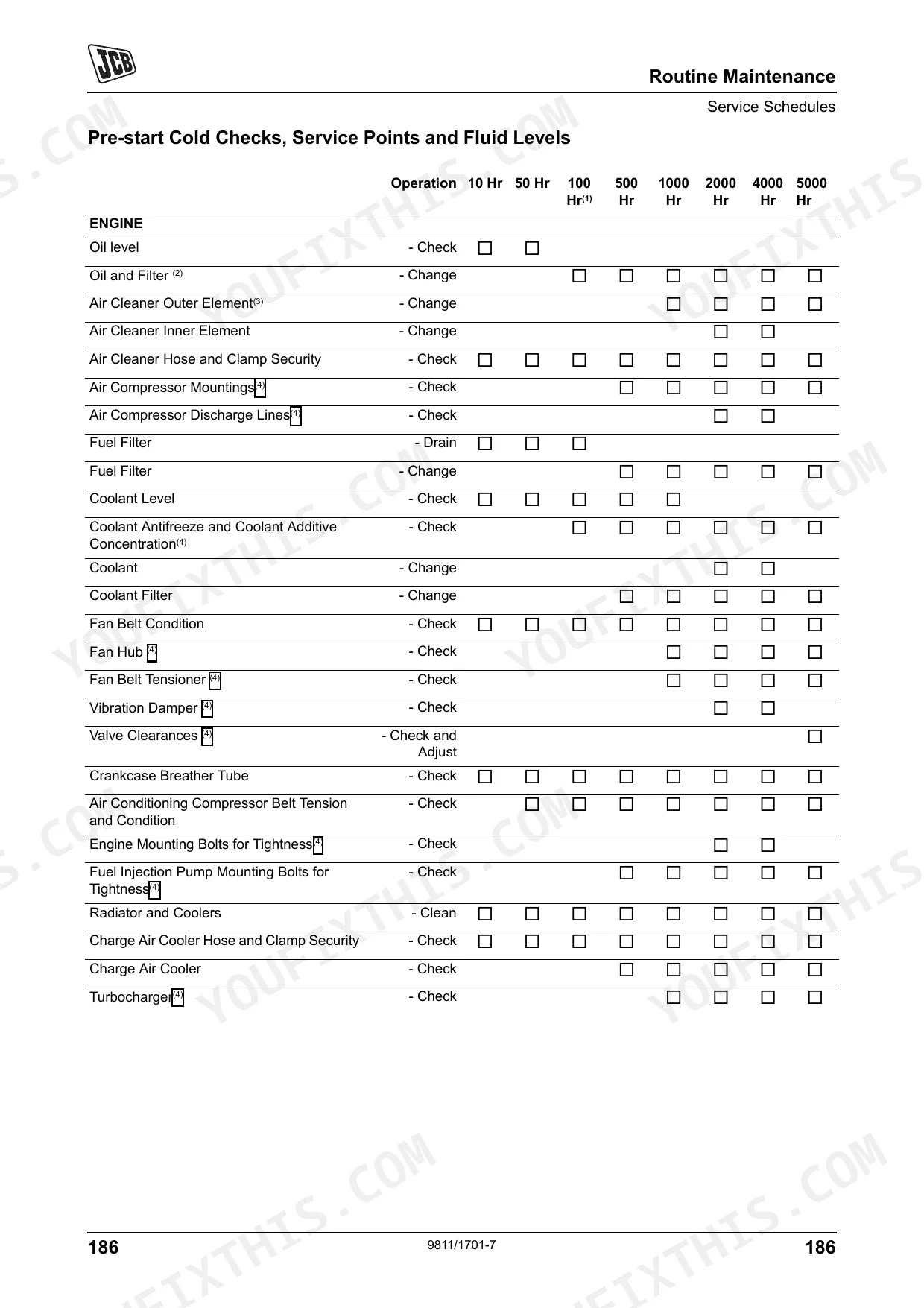

| Service Information, General | 163-191 | Service Introduction, Maintenance Schedule, Safety Precautions, Recommended Lubricants |
| Service Information, Fluid Capacities | 192-211 | Fuel Tank 577 L, Engine Oil 24 L, Coolant 33 L, Transmission Fluid 75 L, Service Intervals |
| Service Information, Structural Torques | 212-215 | ROPS Mounting Bolts 365 Nm, Cab Mounting Torques |
| Service Information, Air Conditioning | 216-228 | Compressor Drive Belt Tension 10 Mm, Belt Replacement, AC System Service |
| Service Information, Brakes and Wheels | 229-237 | Foot Brake Pad Minimum Thickness 3 Mm, Brake Adjustment, Wheel and Tyre Service |
| Service Information, Electrical and Fuses | 238-275 | Fuse Box Reference, Radio Fuse Fi 4 10A, AC Temperature Control Fuse Fi 6 7.5A, Electrical System Checks |

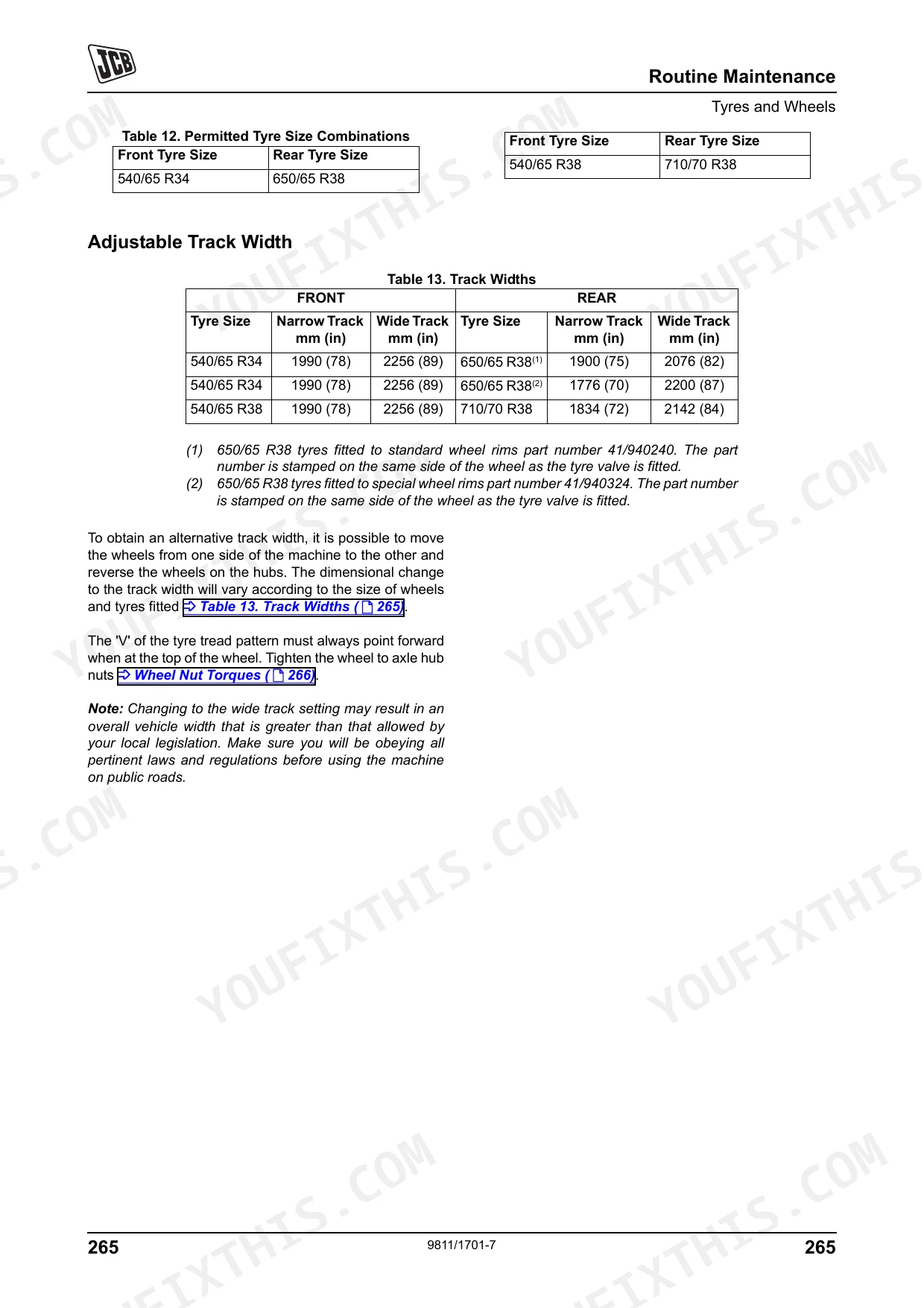

| Service Information, Final Torques and Specifications | 276-300 | Front Wheels Wheel Nut Torque 600 Nm, Rear Wheels Wheel Nut Torque 600 Nm, Tyre Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheels Wheel Nut Torque | 600 Nm | p. 276 |
| Rear Wheels Wheel Nut Torque | 600 Nm | p. 276 |
| Radio Fuse Rating (FI 4) | 10 Amps | p. 238 |
| Air Conditioning Compressor Belt Slack | 10 mm (0.4 in) | p. 216 |
| Air Conditioning Air Temperature Control Fuse Rating (FI 6) | 7.5 Amps | p. 238 |
| Fuel Tank Capacity | 577 Litres | p. 192 |
| Engine Oil Capacity | 24 Litres | p. 192 |
| Engine Coolant Capacity | 33 Litres | p. 192 |
| Transmission Fluid Capacity | 75 Litres | p. 192 |
| ROPS Mounting Bolts Torque | 365 Nm | p. 212 |
| Foot Brake Pad Minimum Thickness | 3 mm | p. 229 |
JCB 8250 Fastrac Common Problems This Manual Covers
JCB 8250 Fastrac air conditioning blows warm air and displays fault code 01 on the climate panel p. 55
Check the climate control panel for fault codes on page 55. Inspect the compressor drive belt and adjust the tension to maintain exactly 10 mm (0.4 in) of belt slack. If the compressor will not engage, verify the 10 Amp compressor clutch fuse FI 7 is intact on page 238.
Manual Section: Heater/Air Conditioning ControlsMaintenance alarm and service due message remains active on the dashboard display after completing scheduled fluid changes
Verify all fluid levels are correct, including the 75 Litres of transmission fluid listed on page 192. Consult your JCB dealer for instructions on clearing service reminders, as the manual describes how to view service due messages and error codes, but not how to clear them. Check the error code reference if the visual warning persists or if secondary central controller faults appear.
Manual Section: Getting the Machine MovingCab radio and auxiliary power sockets lose power intermittently or fail completely after several hours of operation p. 57
Check the auxiliary panel connections on page 57. Inspect the fuse box and replace the FI 4 radio fuse with a new 10 Amp unit if blown, referenced on page 238. Inspect the battery terminals for corrosion and ensure the master disconnect switch is fully engaged.
Manual Section: Auxiliary PanelTransmission oil filter warning light illuminates during transport and the continuously variable transmission feels sluggish p. 192
Drain the transmission and refill with exactly 75 Litres of approved fluid as specified on page 192. Replace the transmission oil filter element. Start the engine and verify the warning light turns off. Inspect the front and rear wheel nuts, torquing them to 600 Nm on page 276.
Manual Section: Getting the Machine MovingFrequently Asked Questions
How much horsepower does a JCB 8250 Fastrac have?
The manual indicates the maximum permitted power for the Rear PTO (21 splines) is 115 kW (154 hp). This is the closest specific power figure provided in the document, related to the machine's operational capabilities.
What is the top speed of a JCB Fastrac 8250?
The top speed of the JCB Fastrac 8250 in Powershift Mode - High Range is 67.1 kph, achieved at Ratio 10 with a rated engine speed of 2200 rpm.
How do you fix JCB 8250 Fastrac air conditioning blows warm air and displays fault code 01 on the climate panel?
Check the climate control panel for fault codes on page 55. Inspect the compressor drive belt and adjust the tension to maintain exactly 10 mm (0.4 in) of belt slack. If the compressor will not engage, verify the compressor clutch fuse is intact on page 238.
How do you fix maintenance alarm and service due message remains active on the dashboard display after completing scheduled fluid changes?
Verify all fluid levels are correct, including the 75 Litres of transmission fluid listed on page 192. Consult your JCB dealer for instructions on clearing service reminders, as the manual describes how to view service due messages and error codes, but not how to clear them. Check the error code reference if the visual warning persists or if secondary central controller faults appear.
Is this JCB 8250 Fastrac Operator Manual a digital download?
This is a 300-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this JCB 8250 Fastrac Operator Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and clear, making it easy to read throughout. Diagrams and illustrations are present on most pages; they appear to be raster images, so some pixelation is visible when zoomed, but labels and details remain readable. Pages are generally clean, though you will find several pages explicitly marked as "Page left intentionally blank" which serve as filler.
