Keeping your JCB 1CX Backhoe Loader running safely starts with the exact factory operating and maintenance procedures found inside this 108-page JCB 1CX operator manual pdf (OEM #4200-1). Complete daily inspection checklists, dashboard indicator guides, and detailed control layouts help you master the cab environment. Open up the service schedules to find exact fluid capacities, grease point locations, and step-by-step instructions for safely connecting optional attachments like the 6-in-1 shovel. Tighten the wheel bolts to 220 Nm and confirm your battery electrolyte level sits exactly 6 mm above the plates before firing up the engine. Prevent costly downtime caused by missed service intervals and ignored warning lights. Download this bookmarked file straight to your phone or tablet and run your machine with absolute confidence.

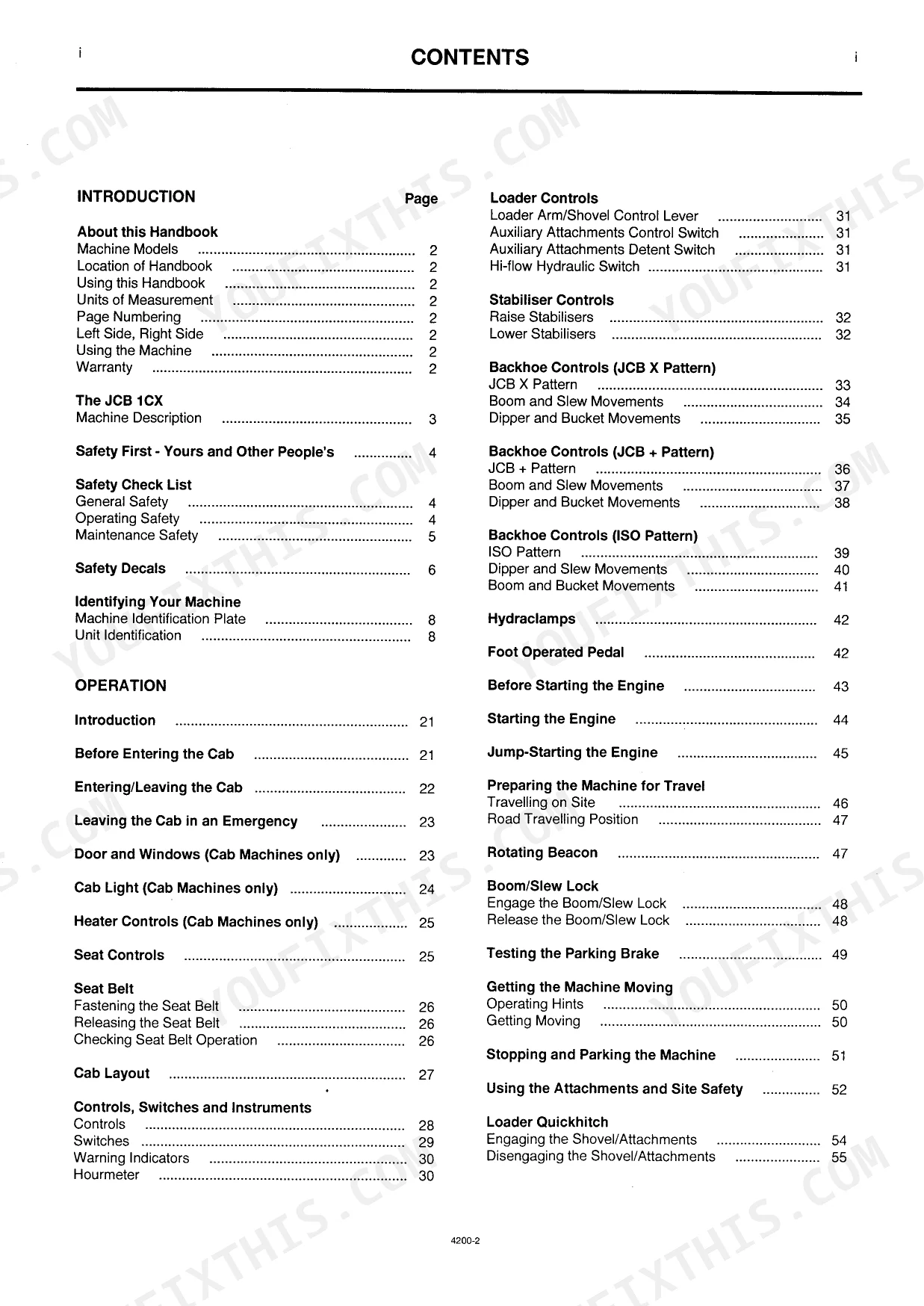

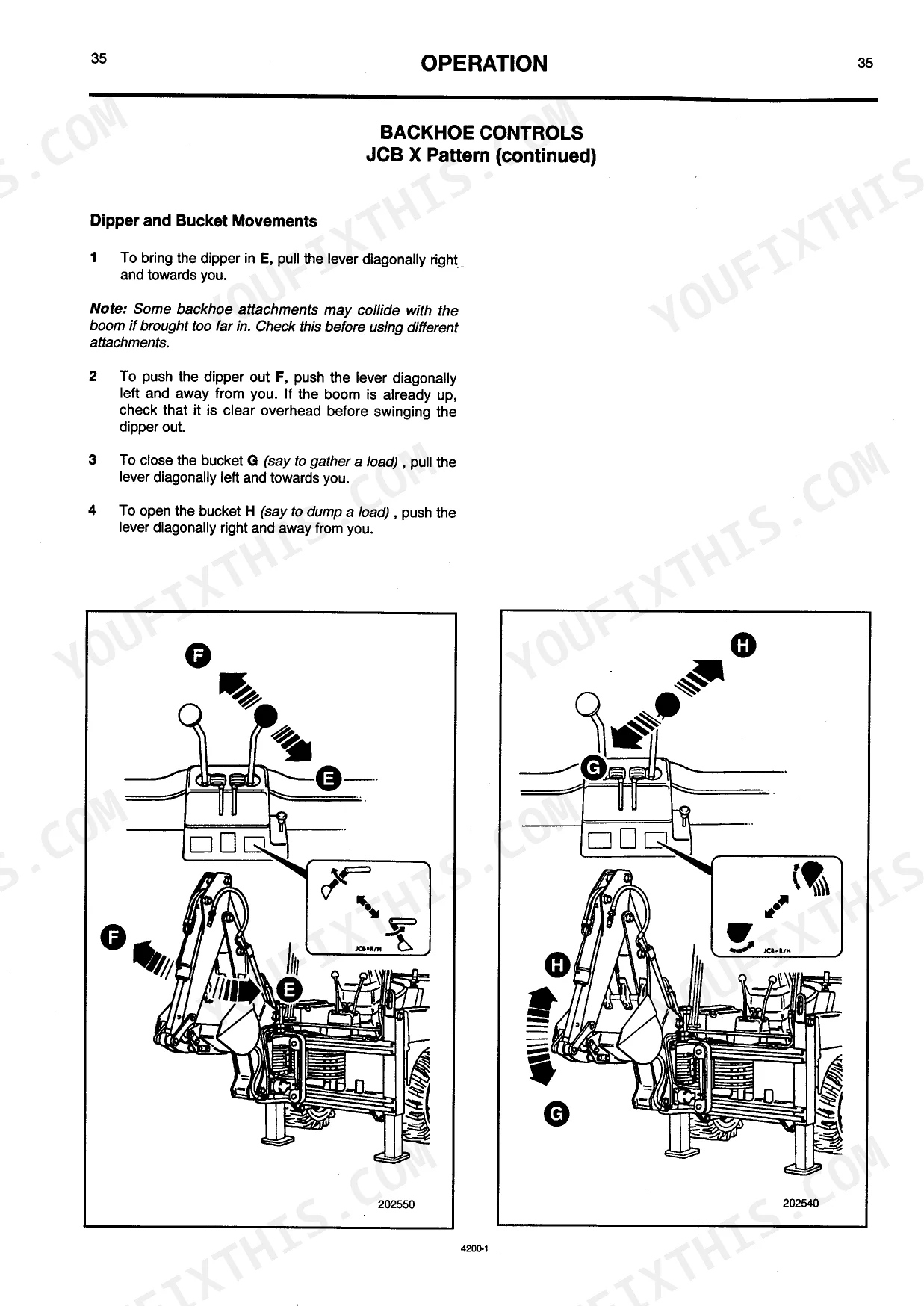

What's Inside This JCB 1CX Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Controls, Switches and Instruments | 15-24 | Cab Light, Entering/Leaving the Cab, Introduction, Leaving the Cab in an Emergency, Seat Belt, Heater Controls, Cab Layout, Controls |
| Backhoe Controls Jcb X Pattern | 25-29 | Stabiliser Controls, Loader Controls |
| Backhoe Controls Iso Pattern | 30-35 | Backhoe Controls Jcb + Pattern |
| Testing the Parking Brake | 36-43 | Jump-Starting the Engine, Before Starting the Engine, Hydraclamps, Starting the Engine, Rotating Beacon, Preparing the Machine for Travel, Boom/Slew Lock |
| Using the Attachments and Site Safety | 44-47 | Stopping and Parking the Machine, Getting the Machine Moving |
| Working with the Backhoe | 48-53 | Loader Quickhitch, Working with the Loader |
| Moving a Disabled Machine | 54-57 | Operating in Low Temperatures, Sideshifting the Backhoe |
| Emergency Lower Procedure | 58 | - |
| Maintenance | 59-87 | Lubricants - Health and Safety, Service Requirements, Service Schedules, Cleaning the Machine, Loader Arm Safety Strut, Engine Compartment Access, Seat Belt, Lubrication |
| Optional Attachments | 88-99 | Introduction, Quick Release Couplings, Connecting/Disconnecting Hydraulic Hoses, Shovels, 6 - in - 1 Shovel, Pallet Forks, Manure/Silage Fork with Top Grab, Attachment Frame |
| Specification | 100-102 | Static Dimensions and Specifications, Noise and Vibration Data |
| Service Record Sheet | 103-104 | Distributor Preparation Despatch Sheet, First 50 Hours Only, 250 Hours/3 Months, 1st 6 Monthly Lifting Point Inspection, 1000 Hrs./12 Monthly Inspection |
| Registration Information | 105-106 | P.I.N./Machine Serial Number, Vehicle Registration Number, Engine Serial Number, Jcb Model, Alpha + Dot Security System, Registration Date |
| Warranty and Procedure | 107-108 | Examination of the Goods, Manufacturer's Liability, Manufacturer's Warranty, Defective Parts, 50 Hour Service, Genuine Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system warning action | Contact your JCB distributor if the fluid is cloudy, water or air has entered the system. | p. 80 |
| Wheel bolt torque | 220 Nm (162 lbf ft, 22 kgf m) | p. 86 |
| Hub locking ring bolt torque | 98 Nm (72 lbf ft, 10 kgf m) | p. 77 |
| Fuel filter bolt torque | 8-11 Nm (6-8 lbf ft, 0.8-1.1 kgf m) | p. 78 |
| Battery electrolyte level | 6 mm (1/4 in) above the plates | p. 81 |
| Low Hydraulic Charge Pressure indicator | Lights if the hydraulic charge pressure drops too far. | p. 30 |
| Engine Oil Capacity | 5 litres | p. 87 |
| Hydraulic System Capacity | 45 litres | p. 87 |
| Cooling System Total Capacity | 11 litres | p. 87 |
| Fuel System Capacity | 45 litres | p. 87 |
| Alternator Belt Slack | 10 mm | p. 75 |
| Drive Chain Tension (Adjustable Spanner) | 3.5-4.0 mm | p. 77 |
JCB 1CX Common Problems This Manual Covers
JCB 1CX front loader hydraulic functions become weak, slow, or stop operating completely during normal use p. 30
Inspect the dashboard for the low hydraulic charge pressure indicator on page 30. If illuminated, check the fluid level immediately. Verify the system contains the full 45 litres capacity. Contact your distributor if the fluid appears cloudy on page 94, indicating water or air ingestion.
Manual Section: OperationEngine starts poorly, runs rough, or stalls repeatedly during operation in cold weather p. 78
Drain the water separator and inspect the fuel filter element. Replace the filter if contaminated. Torque the fuel filter bolt to 8-11 Nm as shown on page 93. Prime the fuel system completely before attempting to restart the engine to prevent airlocks.
Manual Section: MaintenanceLoader attachment feels loose or the wheel shifts while carrying heavy materials p. 102
Verify the payload does not exceed the 456 kg operating capacity listed on page 102. Inspect the wheel mounting hardware for signs of movement. Torque all wheel bolts to 220 Nm as specified on page 100 before returning the machine to service.
Manual Section: SpecificationEngine runs hot and dashboard warning light flashes during routine daily operation p. 87
Stop the machine safely and check the engine oil dipstick. Fill the crankcase to the required 5 litres capacity as noted on page 101. Inspect the engine compartment for oil leaks. Clean the exterior of the radiator to ensure proper airflow before restarting.
Manual Section: MaintenanceFrequently Asked Questions
What are the torque specs for JCB 1CX wheel nuts and loader arms?
The torque specification for the JCB 1CX wheel nuts is 220 Nm (162 lbf ft) or 22 kgf m for both the front and rear wheels. This information can be found in the 'Tyres and Wheels' section on page 100. The manual does not provide specific torque specifications for loader arms.
What are the replacement specifications for hydraulic filters?
The hydraulic fluid filter for the JCB 1CX should be changed every 50 operating hours or weekly, whichever occurs first, as detailed in the 'Service Schedules' section on page 75. The hydraulic system uses JCB 15W/40 Multigrade or JCB 10W/30 Multigrade fluid, as listed in the 'Fluids, Capacities and Lubricants' table on page 101.
What are the replacement specifications for air filter?
For the JCB 1CX, the air filter outer element should be checked every 100 operating hours or 2 weekly, especially in dusty conditions. The air filter inner element must be replaced, not cleaned, every 2000 operating hours or 2 yearly. These intervals are specified in the 'Service Schedules' section on page 76.
How do you fix JCB 1CX front loader hydraulic functions become weak, slow, or stop operating completely during normal use?
Inspect the dashboard for the low hydraulic charge pressure indicator on page 30. If illuminated, check the fluid level immediately. Verify the system contains the full 45 litres capacity. Contact your distributor if the fluid appears cloudy on page 94, indicating water or air ingestion.
How will I receive this JCB 1CX Operator Manual?
A 108-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This is a scanned PDF document, not a native digital file. An OCR layer allows you to search the full text, though some characters may show minor imperfections. The text is generally clear and readable, but not as crisp as native digital text. Diagrams and illustrations are raster images that pixelate on zoom, but their labels are mostly readable. Pages are largely clean, with occasional faint specks, slight skewing, and minor edge discoloration, and there are several blank pages included.
