One OEM source (#9813/6050) for the whole machine, wheeled 1CX or tracked 1CXT, crankshaft to kingpost across 1,124 pages. Hydraulic schematics trace each valve block, gear pump, and cylinder circuit; wiring diagrams map the Power Management System and joystick harnesses, with fault-code diagnostics for the electrical side. Step-by-step rebuild procedures and torque tables cover engine, driveline, and undercarriage fasteners. Wheel nuts go to 390 N·m. The main hydraulic filter is a 5-micron spin-on, fed through a 125-micron suction strainer. Bookmarked by system and searchable by keyword, so it opens on any device and jumps straight to the section you're standing in front of.
What's Inside This JCB 1CX, 1CXT Manual

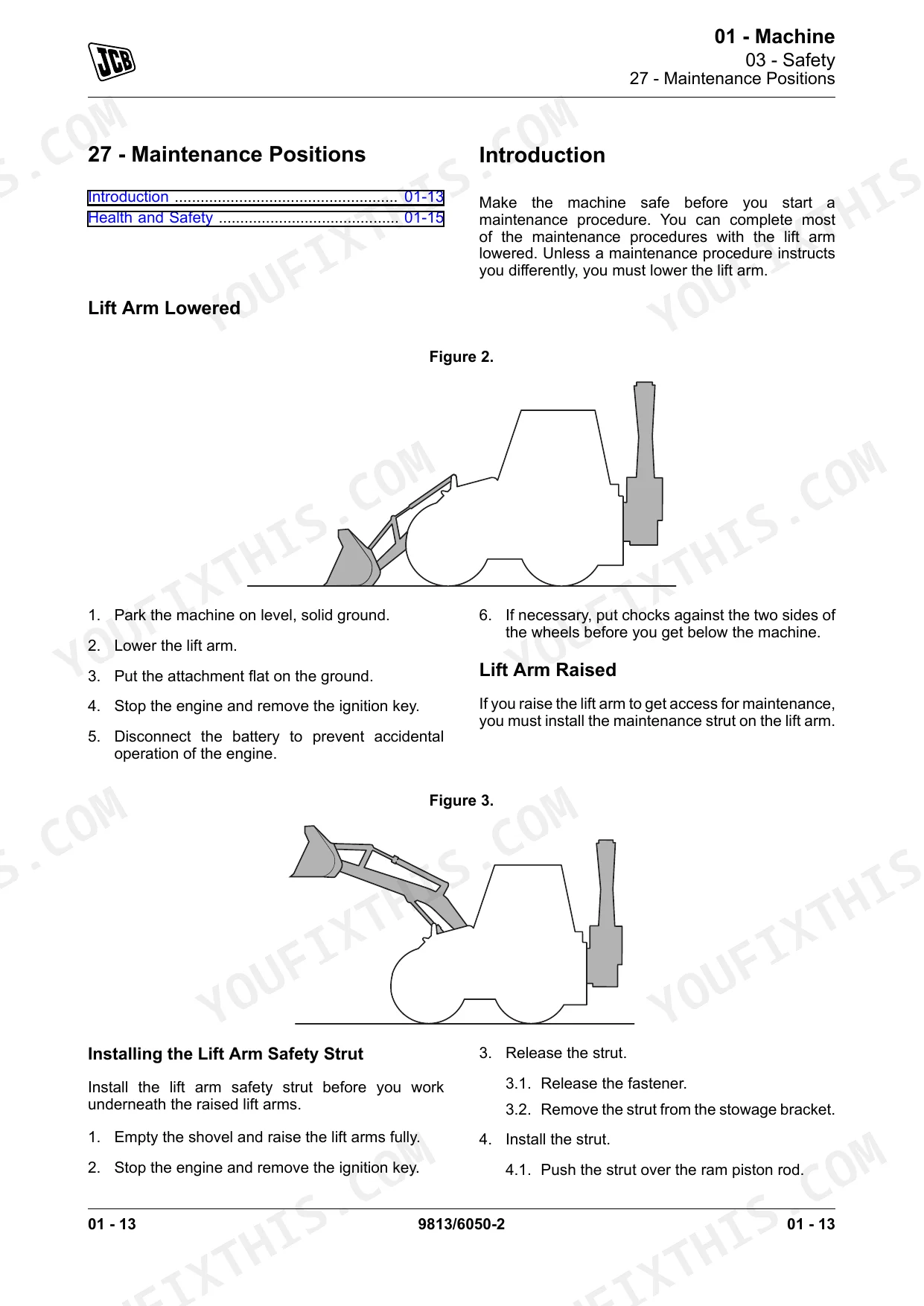

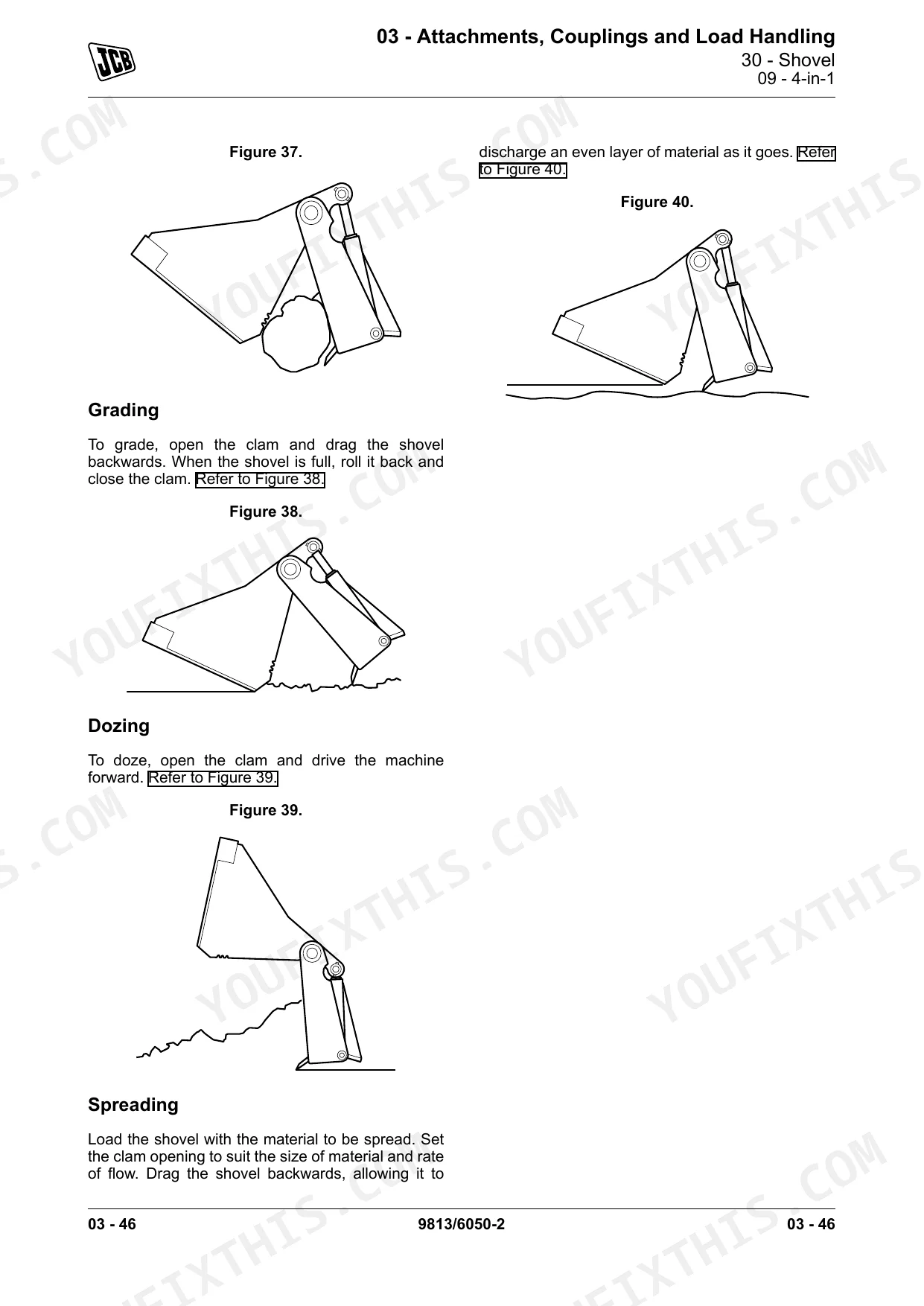

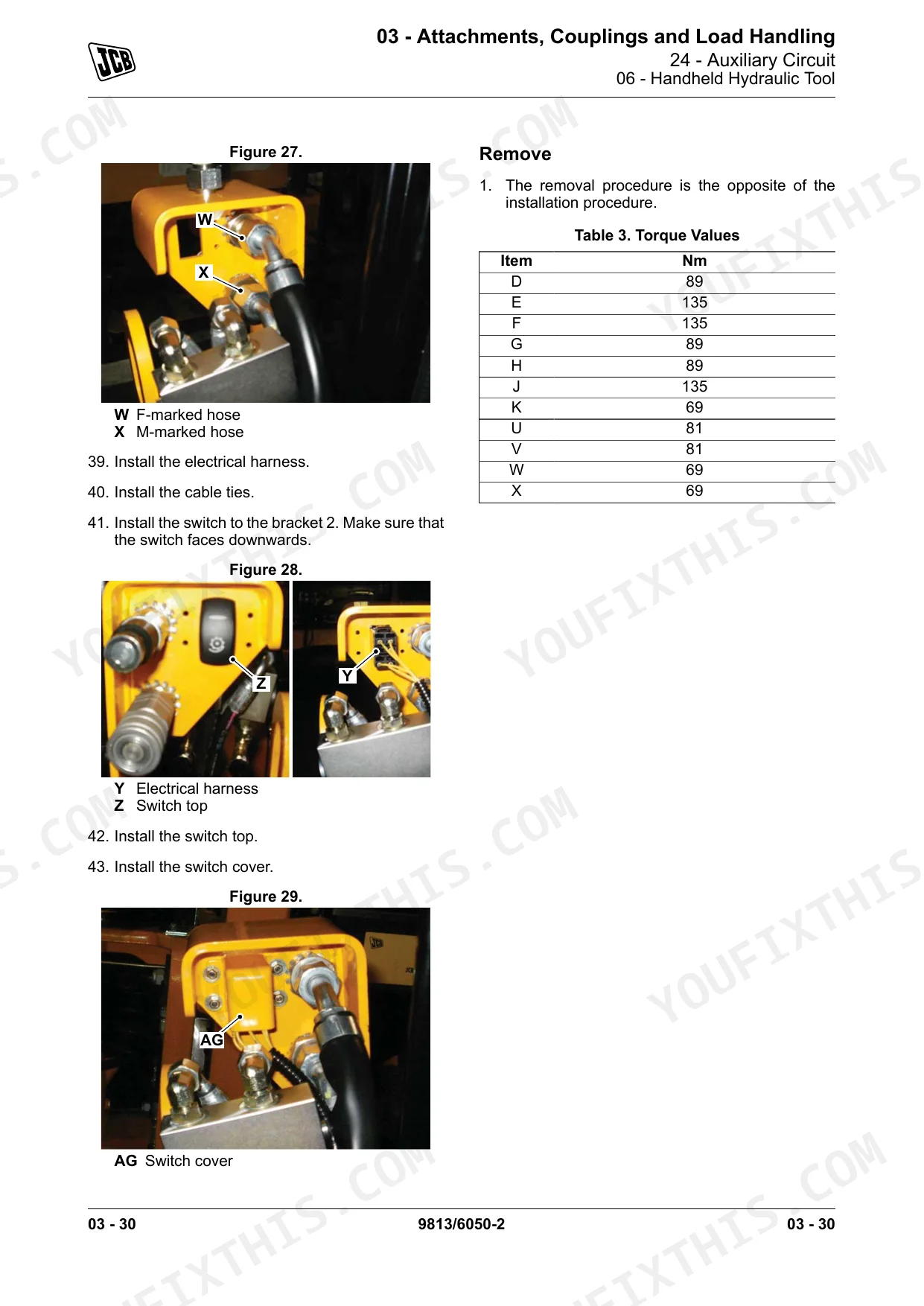

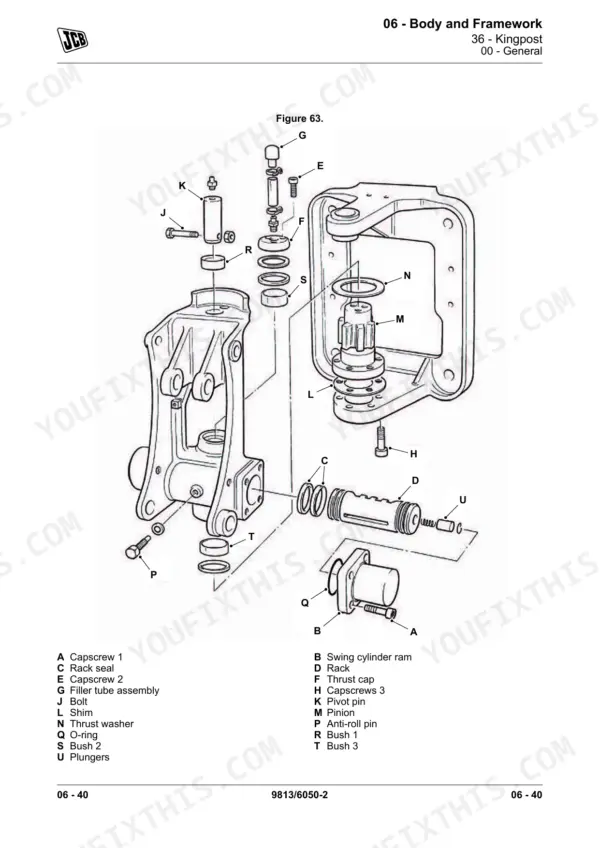

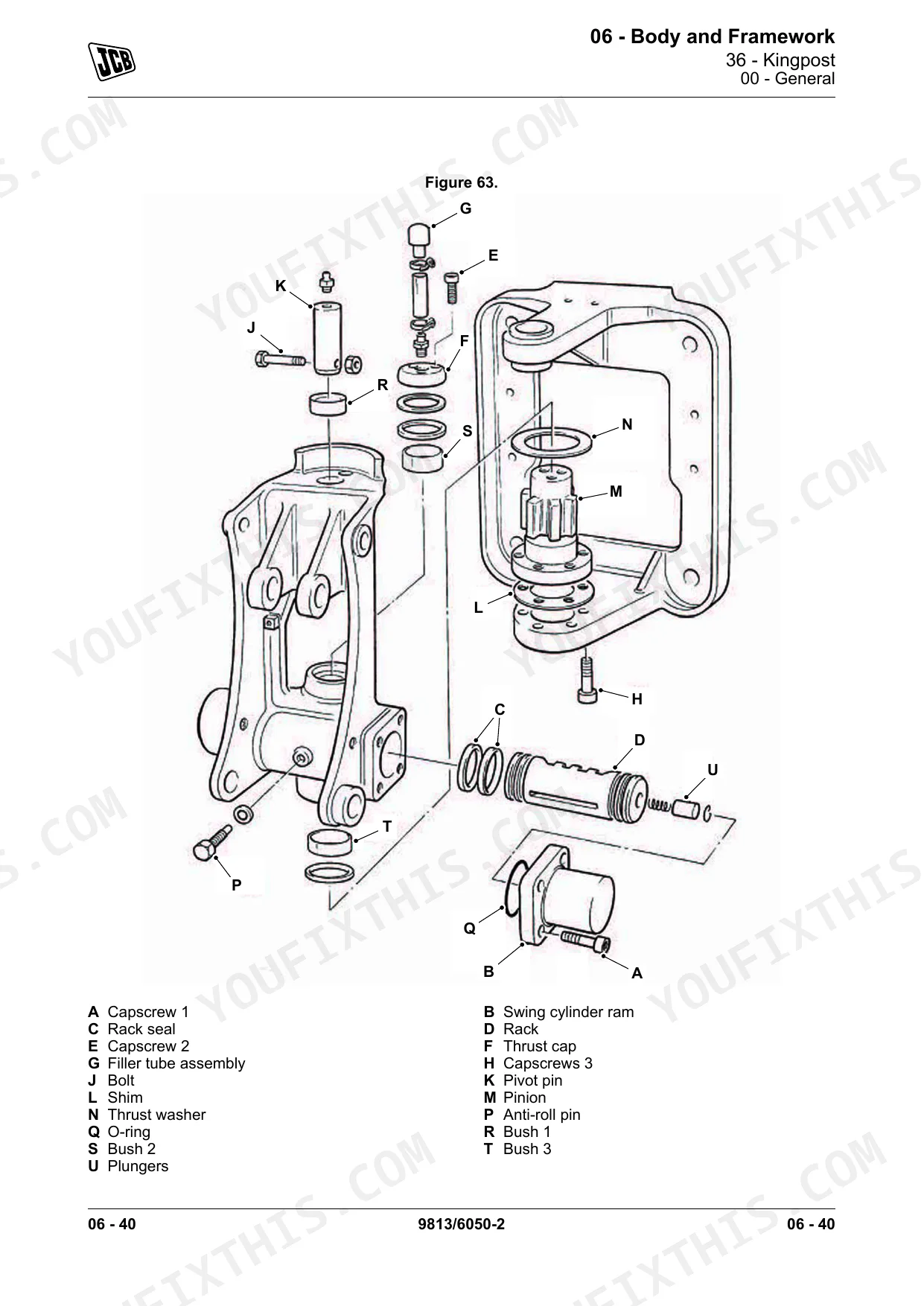

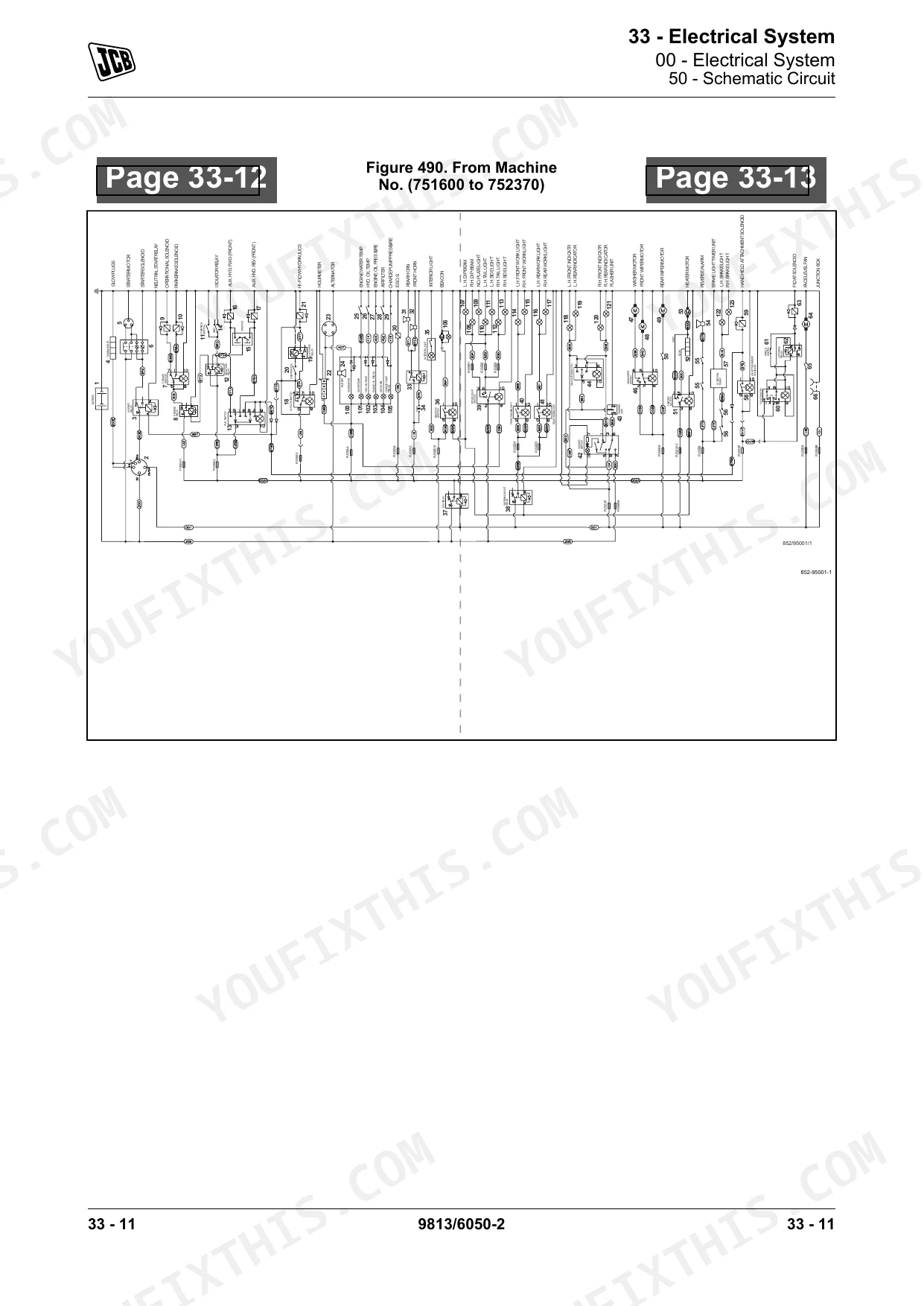

| System | Pages | Key Topics |
|---|---|---|
| Machine | 5-28 | Safety (- Yours and Others, Warnings, Maintenance Safety, Operating Safety, Worksite Safety, Risk Assessment, Maintenance Positions, Model and Serial Number, Using the Manual) |
| Attachments, Couplings and Load Handling | 29-90 | Attachments (General), Direct-Mounted Attachments (General), Lift Arm Quickhitch (General), Excavator End Quickhitch (General, Mechanical Quickhitch) |
| Body and Framework | 91-152 | Moveable Panel and Cover, Battery Compartment, Engine Compartment, Lift Arm |
| Operator Station | 153-194 | Operator Protective Structure, Window, Operator Seat, Seat Belt |
| Heating, Ventilating and Air-Conditioning (HVAC) | 195-208 | Heating, Ventilating and Air-Conditioning (HVAC), HVAC Unit, Fresh Air, Recirculation, Filter |
| Engine | 209-434 | Crankcase, Cylinder Head, Crankshaft |
| Fuel and Exhaust System | 435-518 | Water Separator, Tank, Filter |
| Cooling System | 519-554 | Cooling Pack, Radiator, Expansion Tank, Pump |
| Brake System | 555-564 | Park Brake |
| Driveline | 565-684 | Hub, Wheel, Wheel Nuts |
| Hydraulic System | 685-898 | Gear Pump (General), Cylinder / Ram (General, Swing, Seal Kit), Excavator Control Valve Block (General) |
| Electrical System | 899-1012 | Schematic Circuit, Earth Point, Battery, Isolator Switch |
| Fasteners and Fixings | 1013-1040 | Screws, Bolts, Bearings |
| Consumable Products | 1041-1092 | Oil, Refrigerant |
| After Sales | 1093-1124 | Maintenance Schedules (General, Maintenance Intervals, Pre-Start Cold Checks, Service Points and Fluid Levels, Functional Tests and Final Inspection) |
Every system also includes acronyms glossary and general.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| MRV pressure adjustment procedure | Tighten the lock nut and reset MRV pressure | p. 801 |
| Wheel nut torque | 390 N·m | p. 588 |
| Sprocket retaining bolts torque | 300 Nm | p. 651 |
| Main Hydraulic Filter Type | HP (High Pressure) Spin On - 5 micron | p. 691 |
| Suction strainer filtration | 125 micron | p. 691 |
| Auxiliary Pump - Standard Flowrate | 48 L/min at 3000 RPM | p. 691 |
| Auxiliary Pump - Standard Maximum working pressure | 185 –192 bar ( 2,681.1 – 2,782.6 psi) | p. 691 |
| Bucket ram bore diameter | 70 mm | p. 692 |
| Bucket ram rod diameter | 40 mm | p. 692 |
| Hydraulic system 1CXWS Fluid/Lubricant | JCB Optimum Performance Hydraulic Oil | p. 1048 |
| Hydraulic system 1CXWS Capacity | 80 L | p. 1048 |
| Pressure Reducing Solenoid Valve oil temperature range | -40 –106 °C ( -39.9 – 222.7 °F) | p. 693 |
JCB 1CX, 1CXT Common Problems This Manual Covers
Hydraulics turn weak, slow, or dead once the 1CX or 1CXT warms to operating temperature p. 801
Confirm the hydraulic oil temperature and charge pressure on page 691. Read pressure at 3000 RPM with the oil at 50 °C (121.9 °F); if it falls below 19.5 bar (282.6 psi), replace the pump and torque the gear pump mounting bolts to 77 Nm per page 769.
Manual Section: Hydraulic System Fault-FindingBucket attachment pins work loose frequently and the front loader bucket ram falls under load p. 801
Check the bucket ram cylinder components. Measure the bucket ram bore to confirm it meets the 70 mm spec on page 692. When rebuilding the cylinder, tighten the bucket ram piston head to 405 N·m as detailed on page 693.

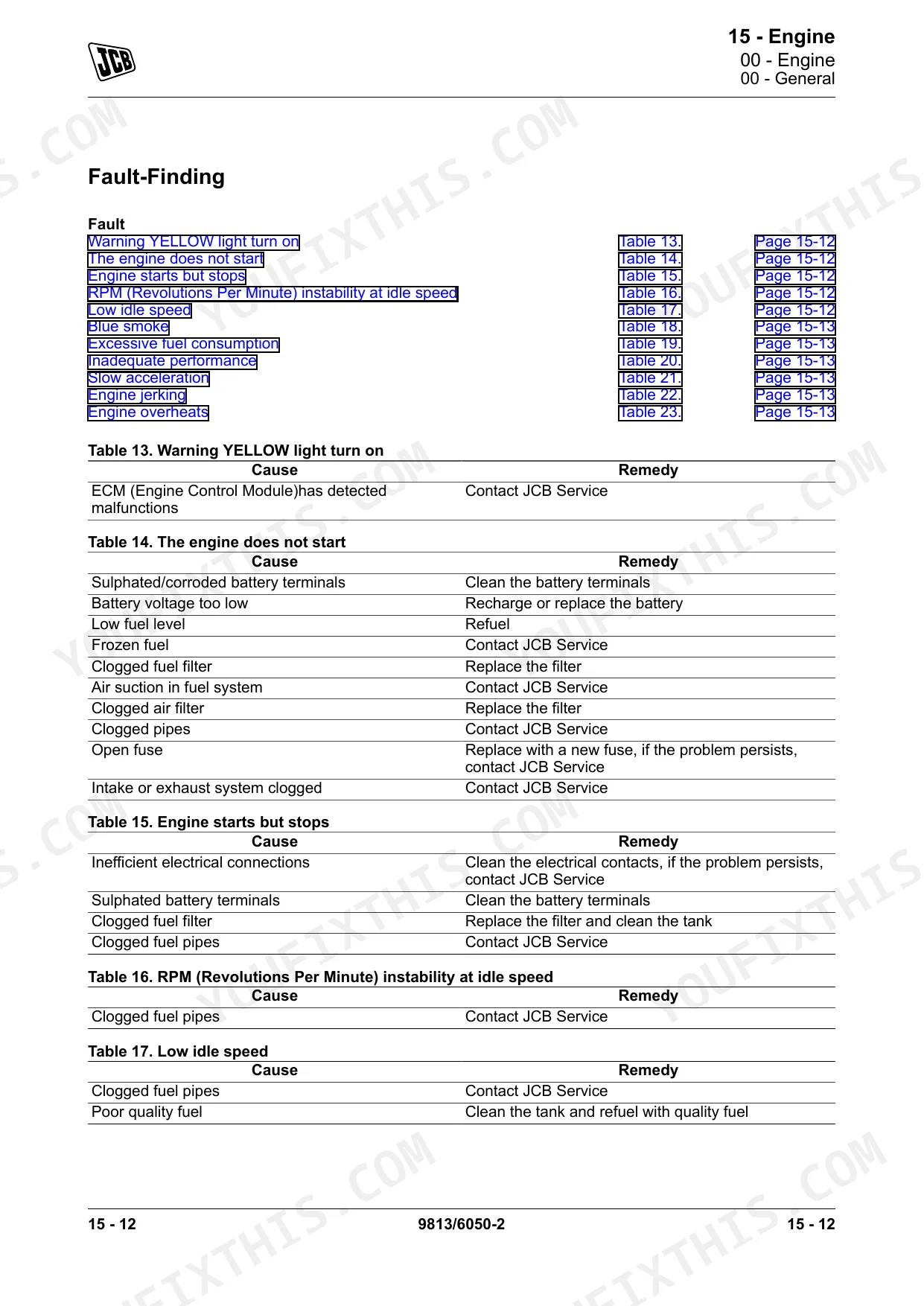

Manual Section: Hydraulic System Fault-FindingEngine starts normally but loses power, stalls, or shows inadequate performance during heavy backhoe operation p. 225
Test the engine oil pressure at high idle using page 230, where the gauge should read between 1.96 and 4.41 bar. If pressure checks out, drain the 45 L fuel tank (page 1048) to look for sediment and swap the filters before restarting.
Manual Section: Engine Fault-FindingRubber tracks feel loose and slip off the drive sprockets during tight turns on uneven ground p. 639
Measure the gap from the frame to the track. Adjust the tensioning cylinder until it sits at exactly 103 mm, the figure given on page 646. Then inspect the wheel nuts and torque any loose fittings to 390 N·m following page 588.
Manual Section: Driveline Fault-Finding (Hydrostatic Transmission)Frequently Asked Questions
How do I reset JCB 1CX error codes?
The 1CX carries no onboard diagnostics, so there are no error codes to reset. A warning YELLOW light points to ECM malfunctions; the fix is to contact JCB Service.
What does the JCB 1CX warning light mean?
A YELLOW warning light on the 1CX means the ECM (Engine Control Module) has found a fault, and the remedy is to contact JCB Service. A blocked air filter trips its own warning lamp, sounds an internal buzzer, and displays "AIR FILTER".
Why is my JCB 1CXT beeping and showing a code?
Beeping paired with a code on the 1CXT often points to a blocked air filter. As it clogs, vacuum rises, trips the air filter vacuum switch, and grounds the ECM input. The instrument panel ECU then lights the air filter warning lamp, displays "AIR FILTER", and sounds the internal buzzer.
How will I receive this Service Manual?
Delivery is a 1124-page searchable PDF you download right away. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
Yes. The PDF carries no DRM restrictions, so you can print any page or section you need for your shop. Any standard printer handles it.

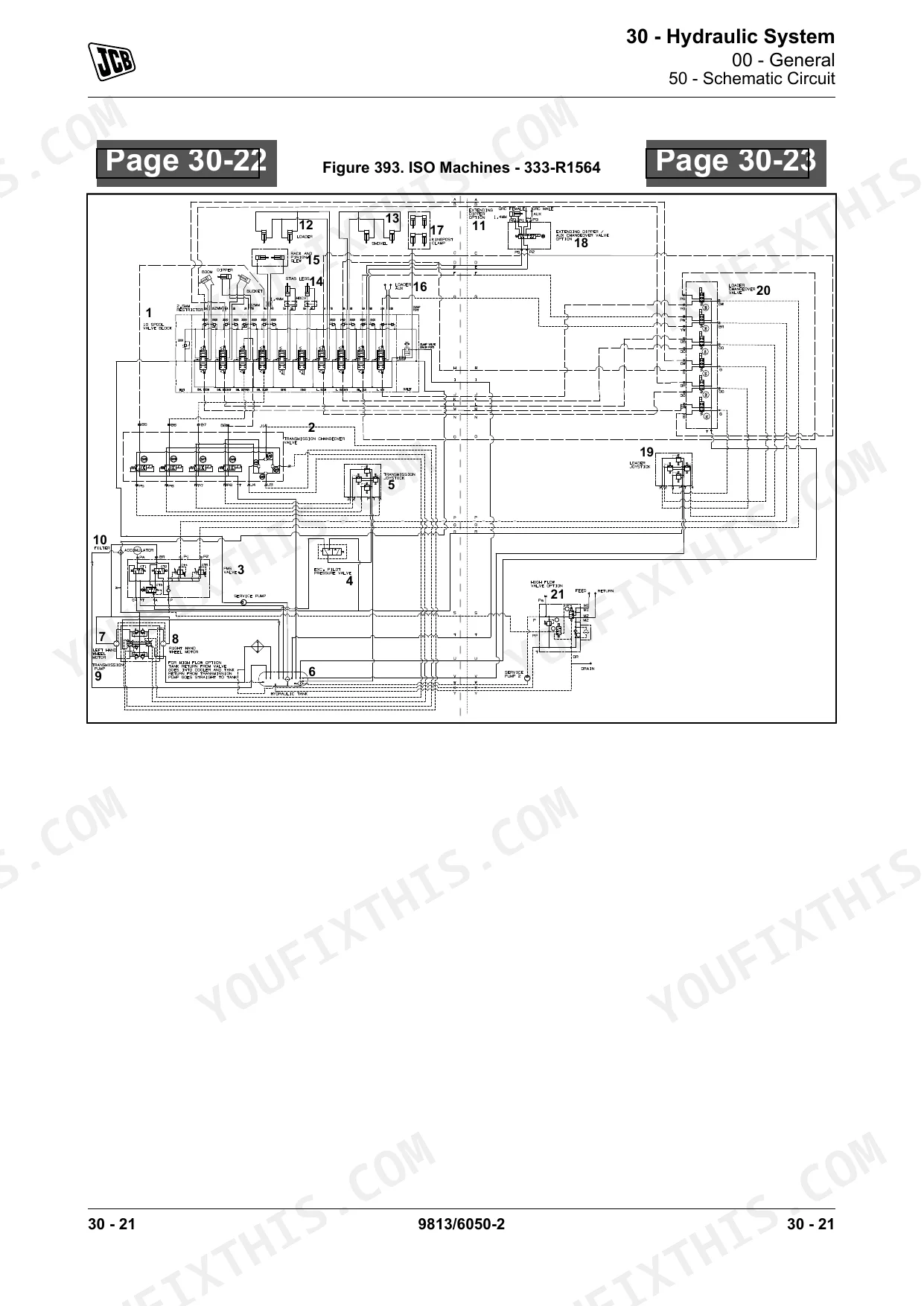

Are hydraulic system diagrams in this JCB 1CX, 1CXT Service Manual?
Yes. Full hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text throughout is crisp and consistently easy to read, with no blurry or faded sections. Diagrams and illustrations are a mix of clear raster images and sharp vector-like drawings, with all labels remaining readable even when zoomed in. Pages are generally clean, free from significant scan artifacts, stains, or skewed content. You will find some blank "Notes:" pages interspersed throughout the document, serving as filler.
