Keep the machine running properly with this 322-page JCB 4160, 4190, 4220 operator manual pdf (OEM #EN - 9831/3950), detailing every daily maintenance check and operating procedure for your 2017 agricultural tractor. Complete dashboard indicator breakdowns, fluid capacity charts, and step-by-step instructions for operating the three-point linkage and PTO systems are all included. Open to the maintenance schedules to find exactly when to grease the steering system and service the cooling components. Verify the gearbox sensed speed calibration is set to 130 pulses per metre and torque the front and rear wheel nuts to exactly 500 N-m before hitting the field. Don't risk expensive downtime from skipped daily services or guessed fluid capacities. Download this bookmarked file straight to your phone, find the exact interval you need, and get your tractor ready for the day.
What's Inside This JCB 4160, 4190, 4220 Operator Manual

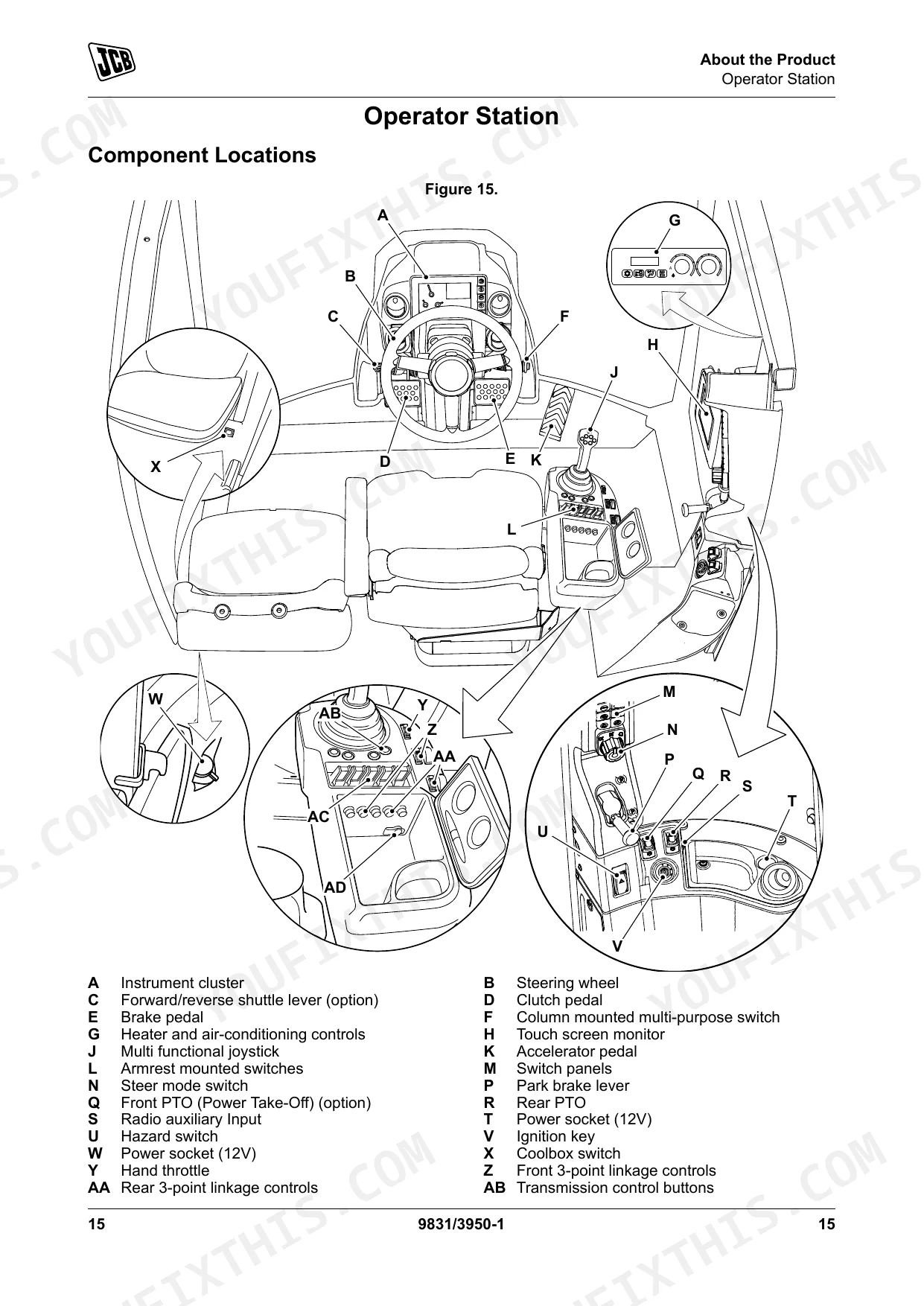

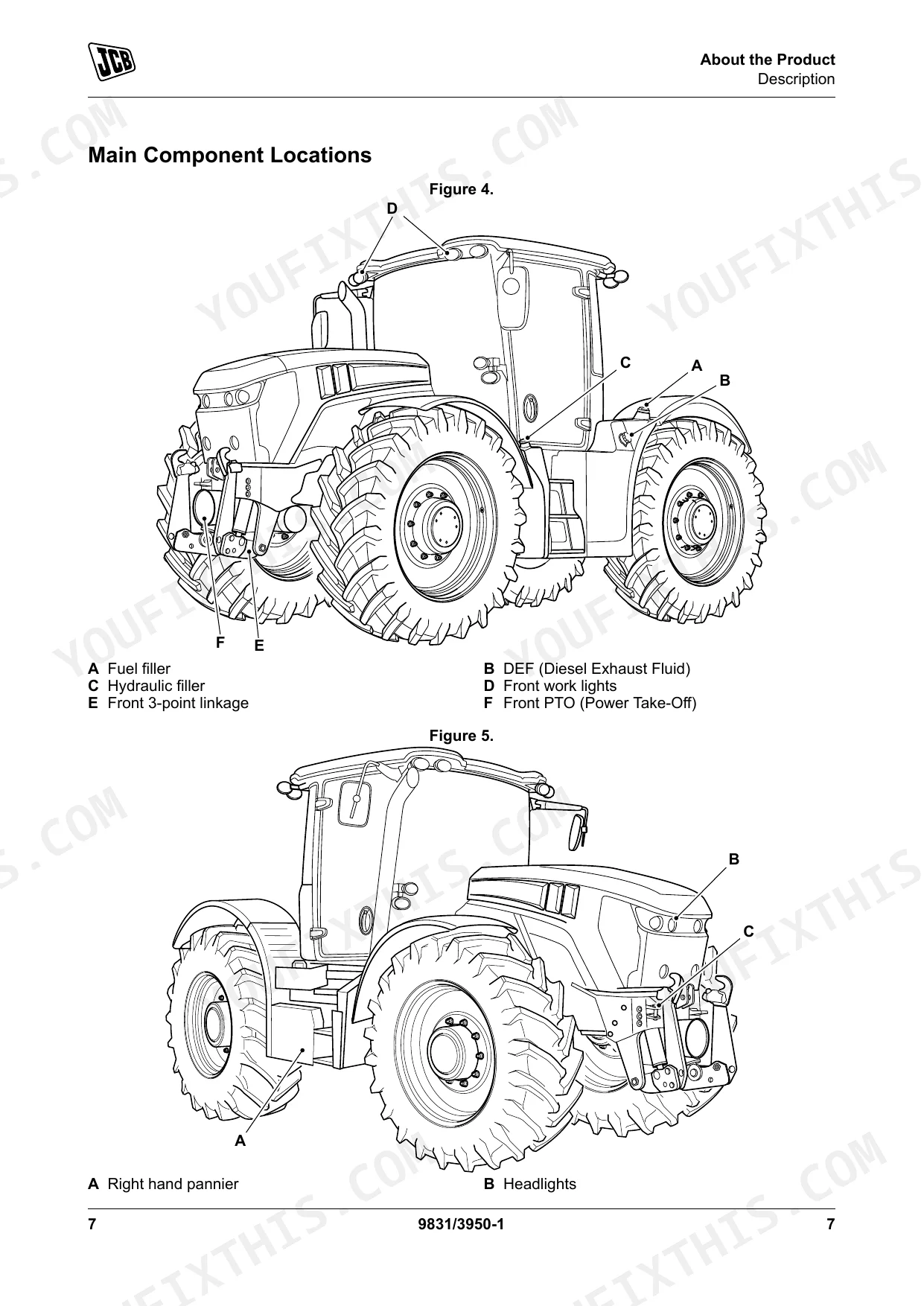

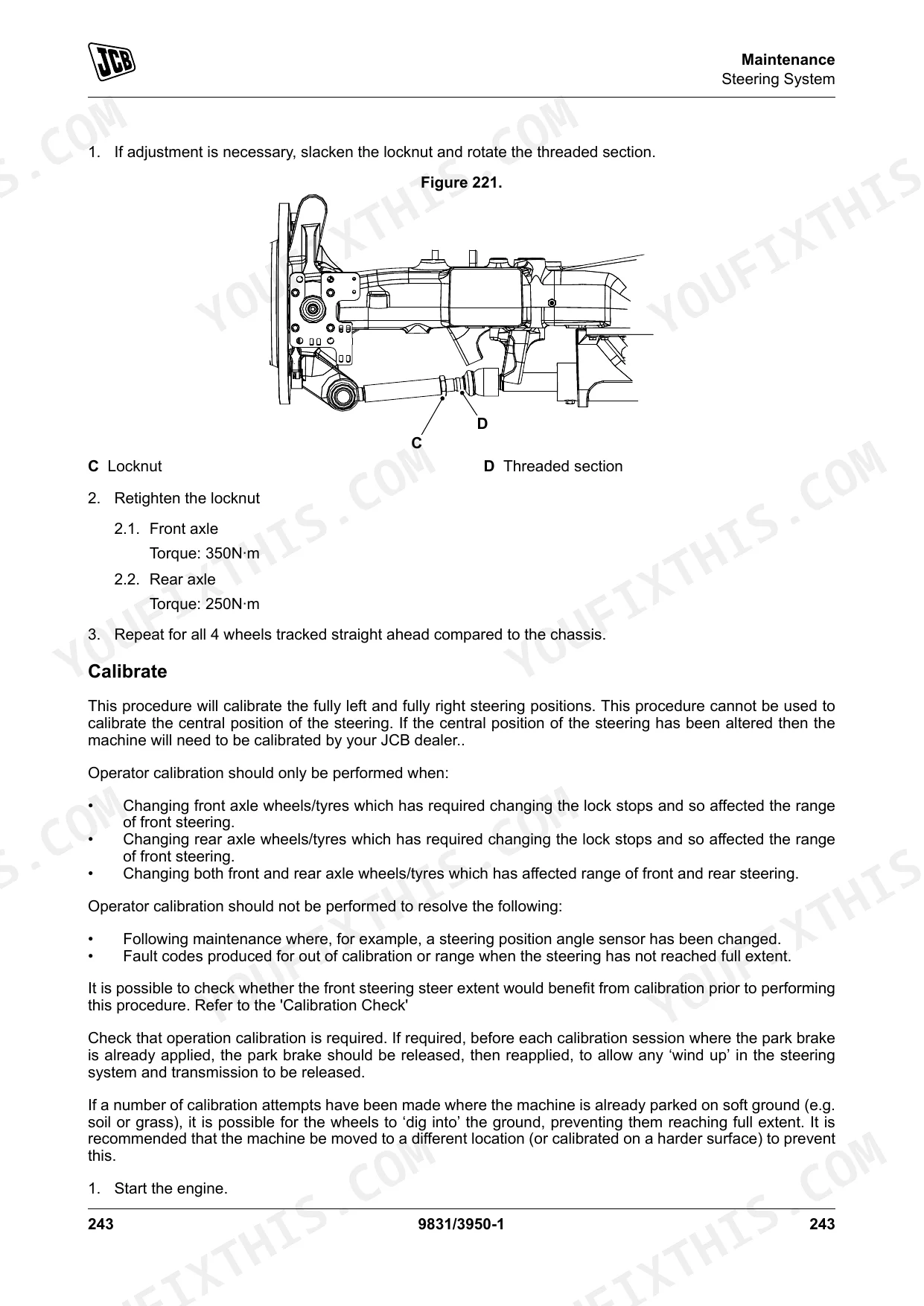

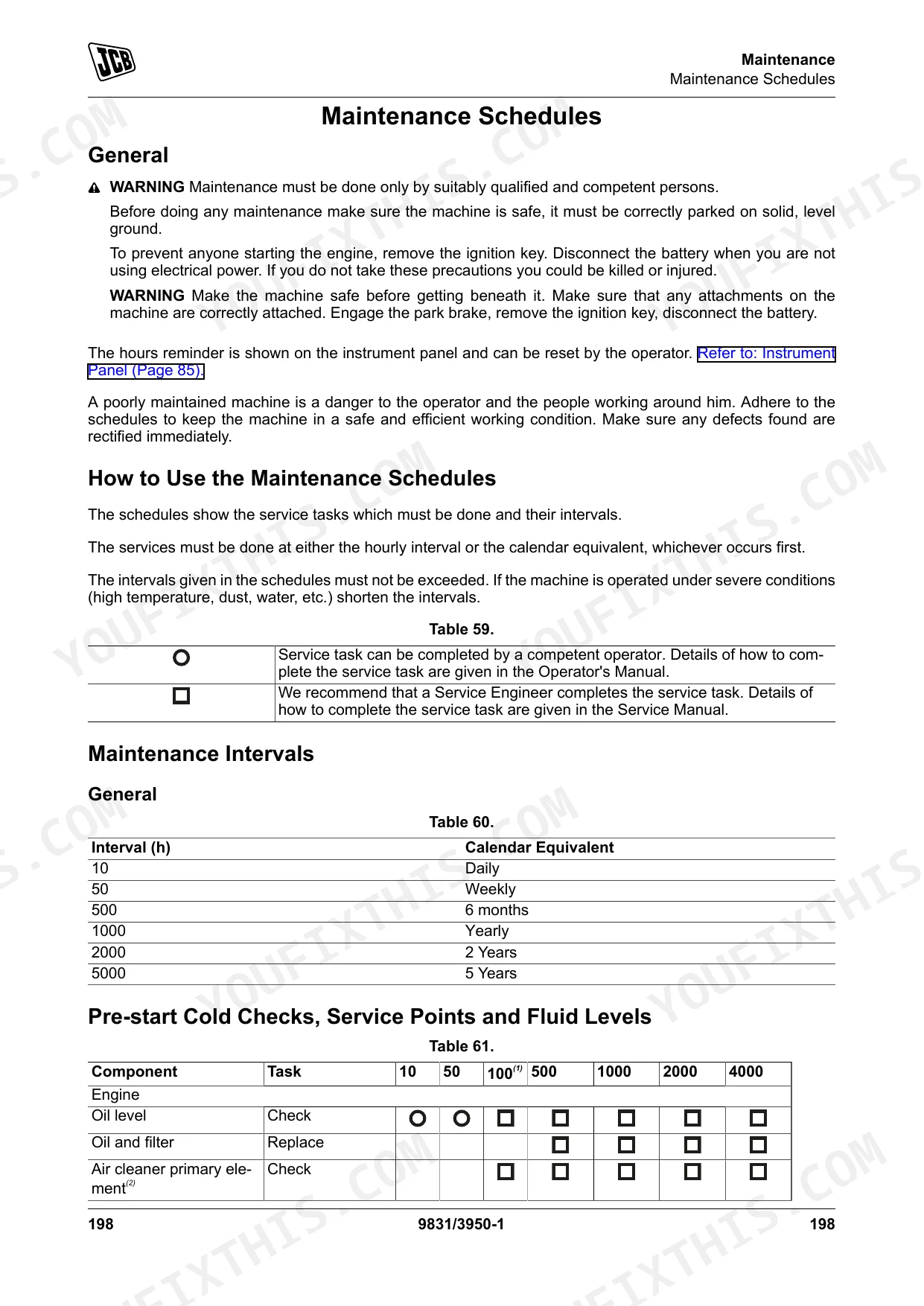

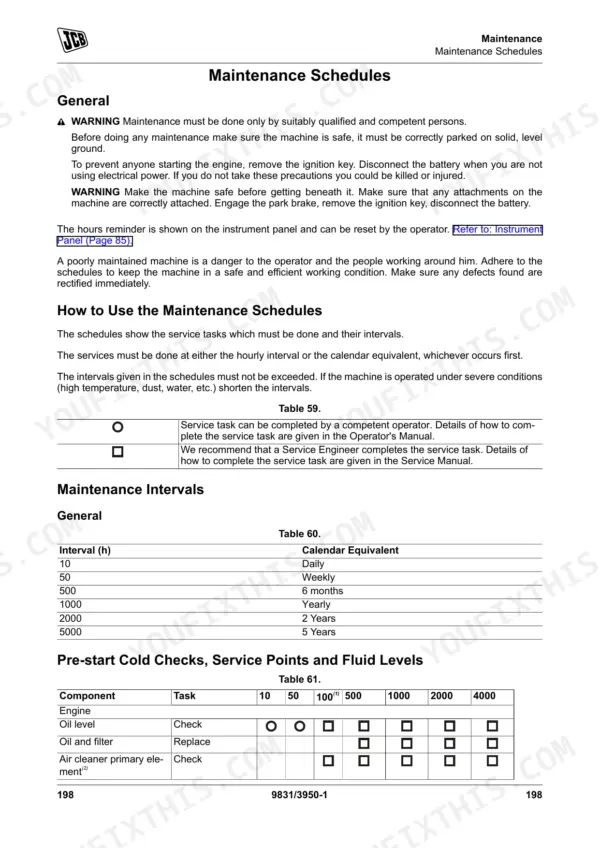

| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 11-12 | - |
| About the Product | 17-34 | Introduction (General, Name and Address of the Manufacturer, Product Compliance), Description (General, Intended Use, Danger Zone, Main Component Locations) |
| Operating Safety | 36-48 | - |
| Starting the Engine | 49-62 | Operator Seat |
| Instruments | 63-91 | - |
| Getting the Machine Moving | 92-109 | - |
| Trailer Hitches | 110-146 | Three Point Linkage, Auxiliary Hydraulics, Auxiliary Electrics |
| Moving a Disabled Machine | 147-165 | Power Take-Off (PTO), Heating, Ventilating and Air-Conditioning (HVAC) |
| Attachments | 166-179 | Refuelling |
| Preservation and Storage | 180-202 | Global Positioning System (Gps) |
| Maintenance | 203-280 | Maintenance Safety, Maintenance Schedules, Access Apertures, Lubrication, Engine, Cooling System, Brakes, Steering System |

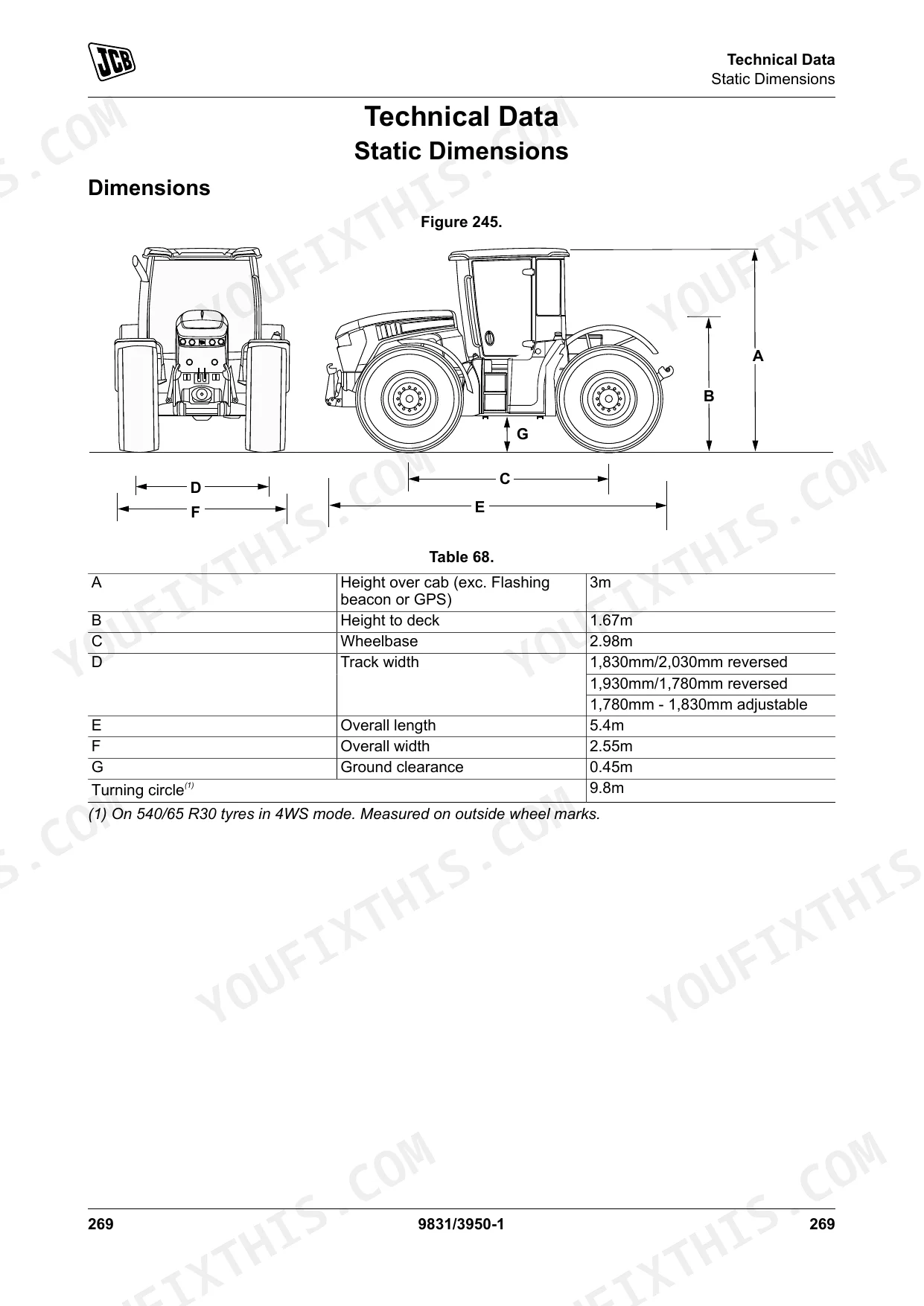

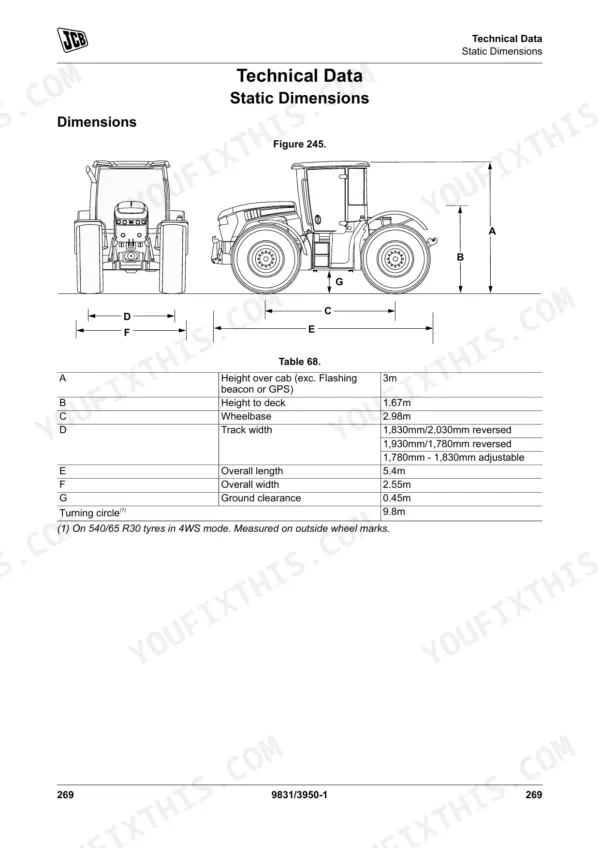

| Technical Data | 281-322 | Static Dimensions, Fluids, Lubricants and Capacities, Electrical System, Wheels and Tyres, Warranty Information |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front/Rear wheel nuts torque | 500N·m | p. 293 |
| Hydraulic settings reset procedure | Hold until buzzer sounds (for 'Restore all user settings') | p. 93 |
| Radar sensed speed calibration | UK=131.8 pulses per metre, Elsewhere 132.7 pulses per metre | p. 170 |
| Gearbox sensed speed calibration | 130 pulses per metre | p. 170 |
| Wiring connectors inspection | Check for damaged connectors, loose connections, chafing on wiring harnesses, corrosion, missing insulation, incorrect routing | p. 275 |
| Transmission-related connectors/harness inspection | Check for damaged connectors, loose connections, chafing on wiring harnesses, corrosion, missing insulation, incorrect routing | p. 275 |
| Engine air filter replacement interval | After cleaning five times or every year | p. 240 |
| Engine air filter cleaning air pressure | max 5bar (72.5psi) | p. 240 |
| Engine oil capacity | 21L | p. 290 |
| Engine oil type | JCB Ultra Performance Engine Oil -20°C (-4.0°F) to 40°C (103.9°F) API CJ-4, SAE15W/40 | p. 290 |
| Valve block pilot valve open circuit error code | C0130 | p. 295 |
| Valve block pressure sensor open circuit error code | C0150 | p. 295 |
JCB 4160, 4190, 4220 Common Problems This Manual Covers
JCB 4160 transmission G fault code flashing on display with loss of drive speed p. 275
Inspect the wiring connectors behind the rear right-hand cab panel as instructed on page 275. Check for damaged connectors, loose connections, and chafed insulation. Verify the radar sensed speed calibration is set to 131.8 pulses per metre for UK models or 132.7 pulses per metre elsewhere.
Manual Section: Electrical System DiagnosticsHigh coolant temperature warning light illuminates with audible alarm during heavy towing p. 244
Stop the machine and let the engine cool. Check the radiator and cooler for clogging as shown on page 244. Verify the coolant level is correct and torque the coolant filler cap to 20 N·m. If the system is low, fill the 31L capacity cooling system with approved JCB antifreeze.
Manual Section: Engine & Fuel System FaultsFront 3-point linkage drops under load or hydraulic controls fail to respond p. 212
Verify the load does not exceed the 3,500kg maximum front 3-point linkage capacity. Replace the hydraulic oil filter as indicated on page 212 if the service interval is met. Hold the hydraulic settings reset button until the buzzer sounds to restore all user settings as outlined on page 93.
Manual Section: Hydraulic System MalfunctionsGearbox oil temperature warning code G0016 appears on the dashboard display during operation p. 297
Check the transmission fluid level immediately. Review the error code reference on page 297, which indicates the gearbox oil temperature has exceeded 110°C (229.8°F). Drain the transmission and refill the 35L capacity system with fresh fluid if the oil smells burnt or shows heavy contamination.
Manual Section: Transmission & Gearbox IssuesFrequently Asked Questions
How to reset a JCB Fastrac 4160/4190/4220 service or maintenance message?
The hours reminder, which indicates the service interval, is shown on the instrument panel and can be reset by the operator. To adjust the service interval, navigate to the menu settings on the touchscreen and use the up/down/enter keys.
How to clear JCB Fastrac 4220 error codes?
The manual indicates that if a fault is detected and an error code is displayed, the machine must be stopped and the fault rectified as soon as it is safe. For rectification or further diagnostic information, you should contact your nearest JCB dealer, as clearing error codes is not a user-level procedure.
What are the torque specs for JCB Fastrac 4160/4190/4220 wheel nuts?
The torque specification for the front/rear wheel nuts on the JCB Fastrac 4160/4190/4220 models is 500 N·m. When installing wheels, first tighten the nuts evenly with an ordinary hand or power tool, then use a torque wrench to tighten all nuts in a clockwise sequence to the specified torque setting.
How do I reset the transmission warning on a JCB Fastrac 4220?
If a transmission fault is detected and a warning light illuminates, the manual advises to stop the machine immediately and remedy the fault. The manual does not provide a user-level procedure for resetting transmission warnings; instead, it directs the operator to address the underlying fault.
How to recalibrate the hydraulics on a JCB Fastrac 4160?
The manual describes a bleeding procedure for the emergency steer pump if the hydraulic oil tank is drained and refilled, stating that the system will not self-bleed by driving the tractor and to consult your dealer for more information. It does not provide a general user-level recalibration procedure for the main hydraulic system.
What format is this manual in?
You get a 322-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This is a native digital PDF, not a scanned document, ensuring high fidelity. You can search and copy the full text, which is crisp and very easy to read throughout the manual. All diagrams and illustrations are vector-based, appearing sharp and clear at any zoom level, with all labels perfectly readable. The pages are clean, free from any scan artifacts, stains, or skewed content. You will find several "Notes:" pages intended for your own annotations, along with some blank pages at the end of sections, which is standard for this type of manual.
