Looking for the correct factory operating guidelines for your wheeled loader? This 142-page JCB 406 Operator Manual PDF (OEM #9801/7680) also covers the 408, Industrial, and Farm Master variants to keep your daily operations running smoothly. Inside, you get a full breakdown of cab layout, dashboard indicators, and safe working loads. Open to the maintenance section to find clear service intervals, step-by-step fluid checks, and connection procedures for optional attachments like the 6-in-1 bucket and silage fork. Complete your daily service requirements at the 10-hour mark, and confirm the 406 cooling system takes exactly 12.5 liters of fluid before starting the engine. A blinking dash light shouldn't stall your shift. Download this bookmarked file, pull it up on your phone right in the cab, and get back to moving material.
What's Inside This JCB 406–408 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|

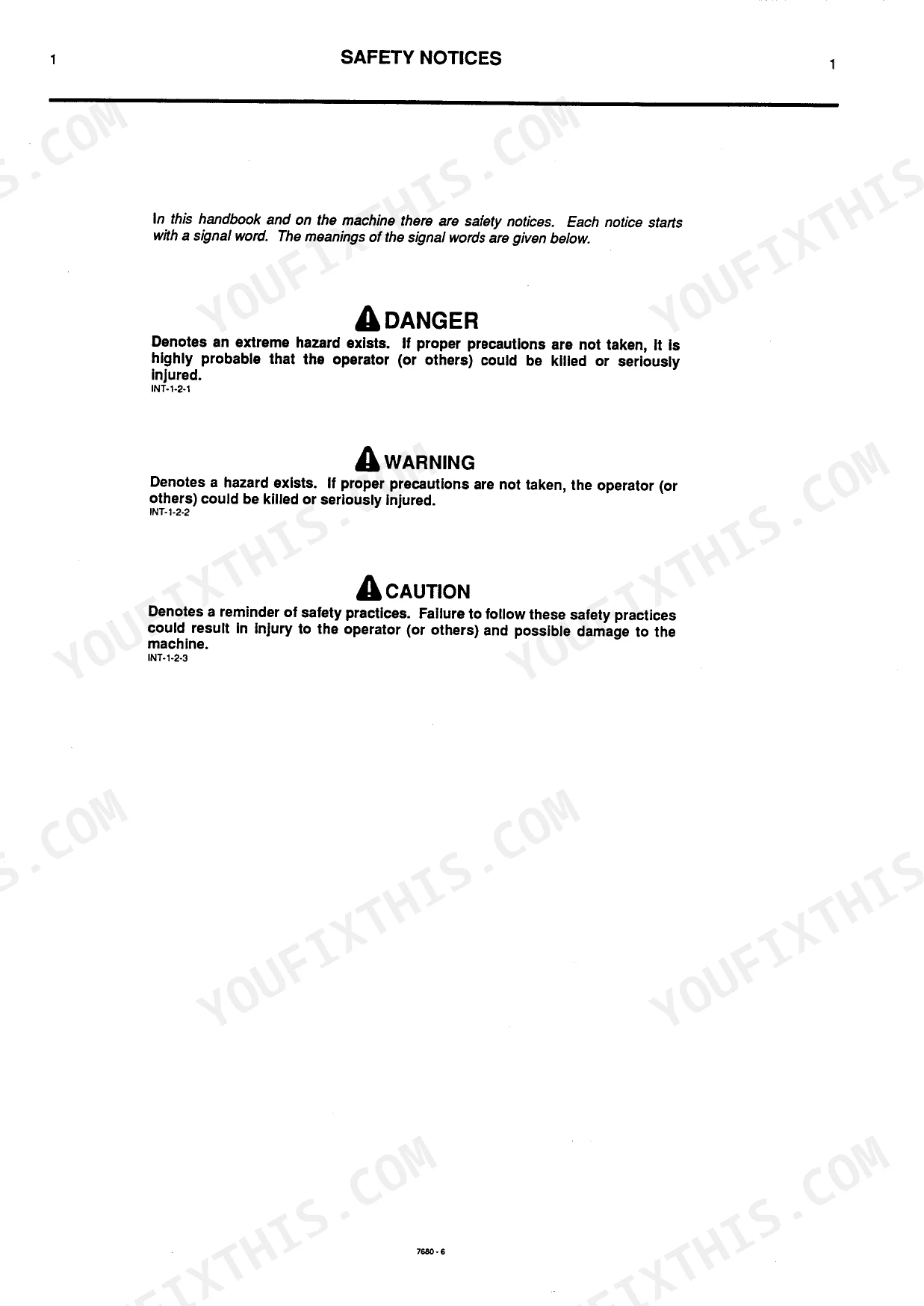

| Introduction | 5-17 | Safety First - Yours and Other People's |

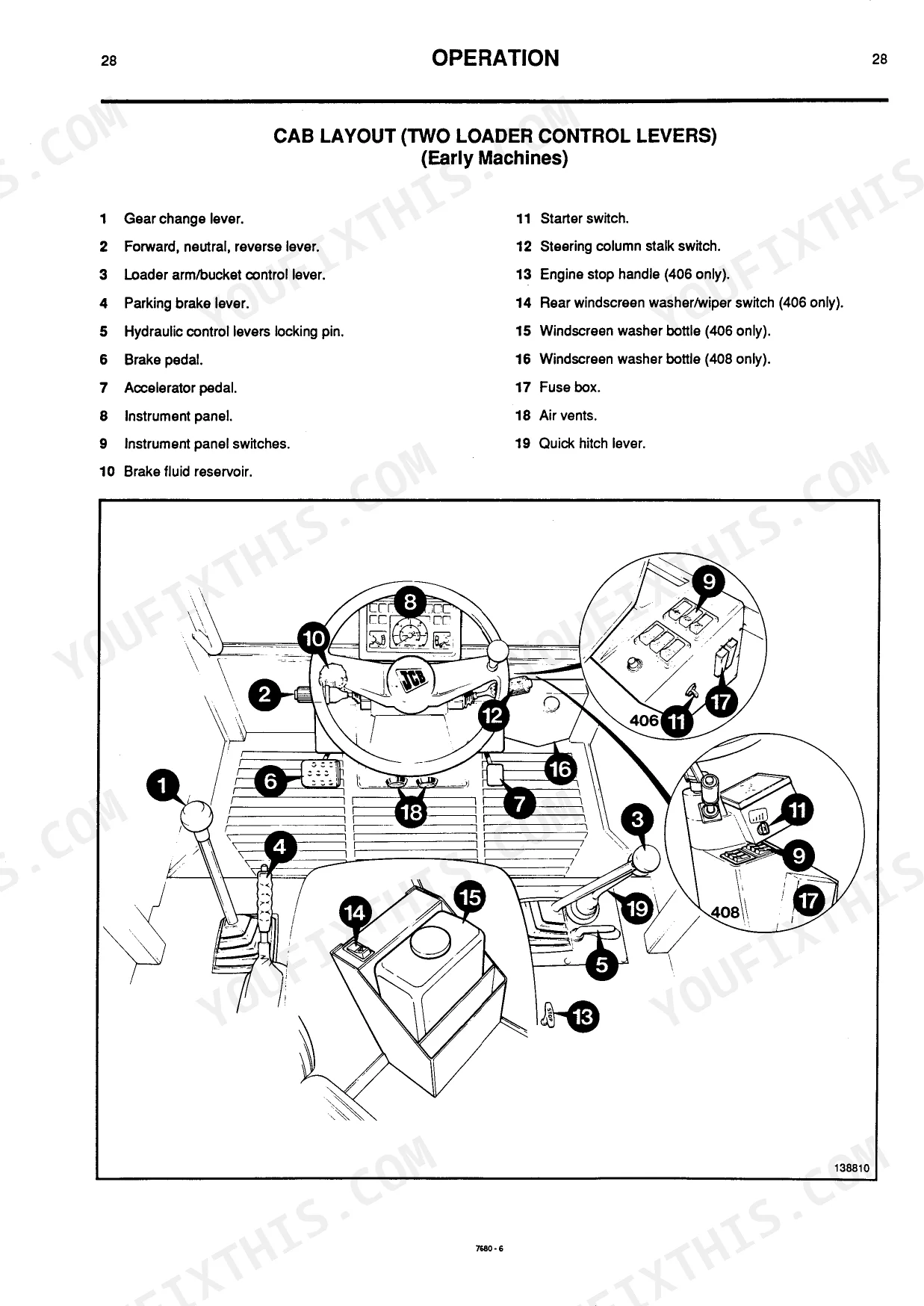

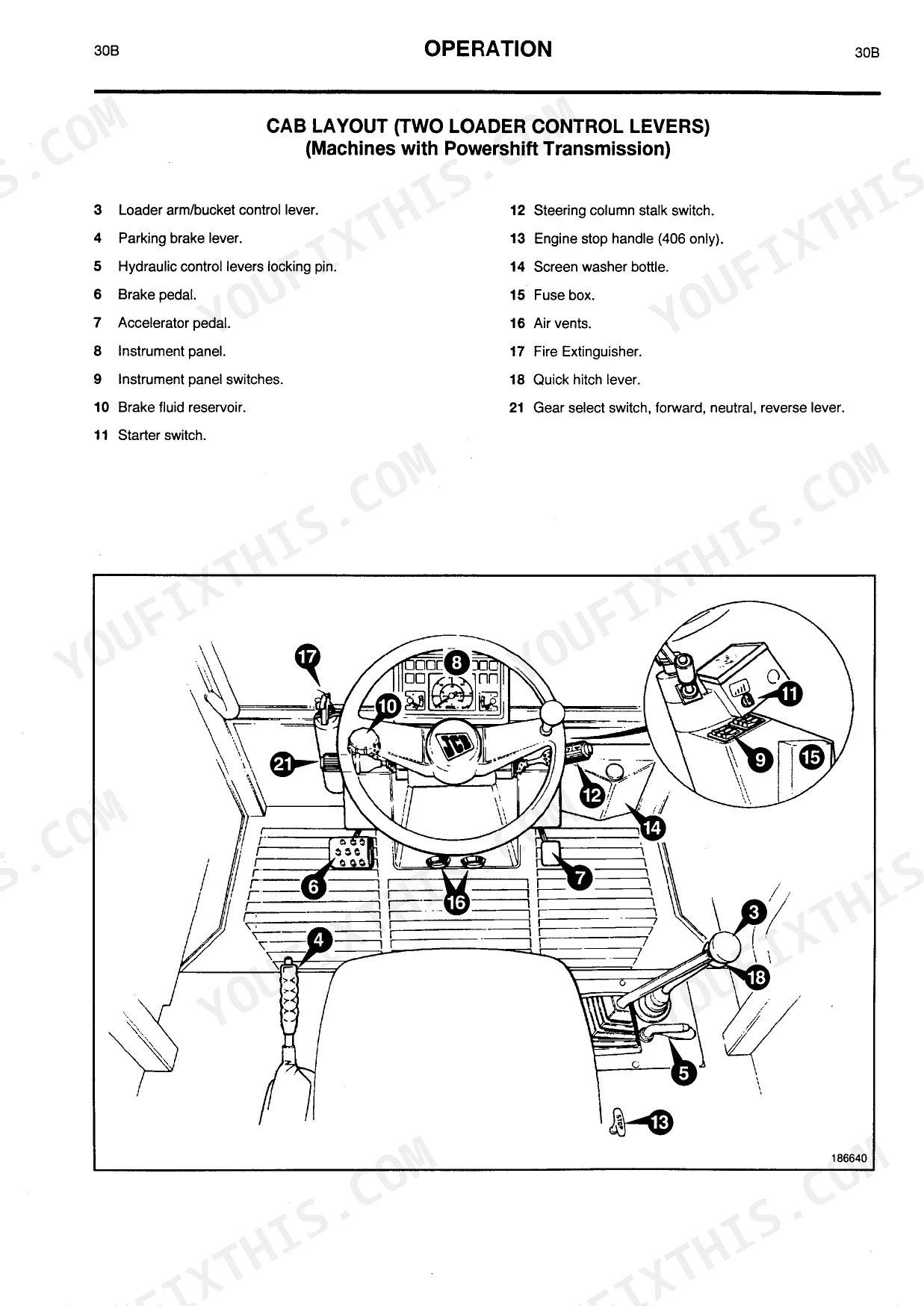

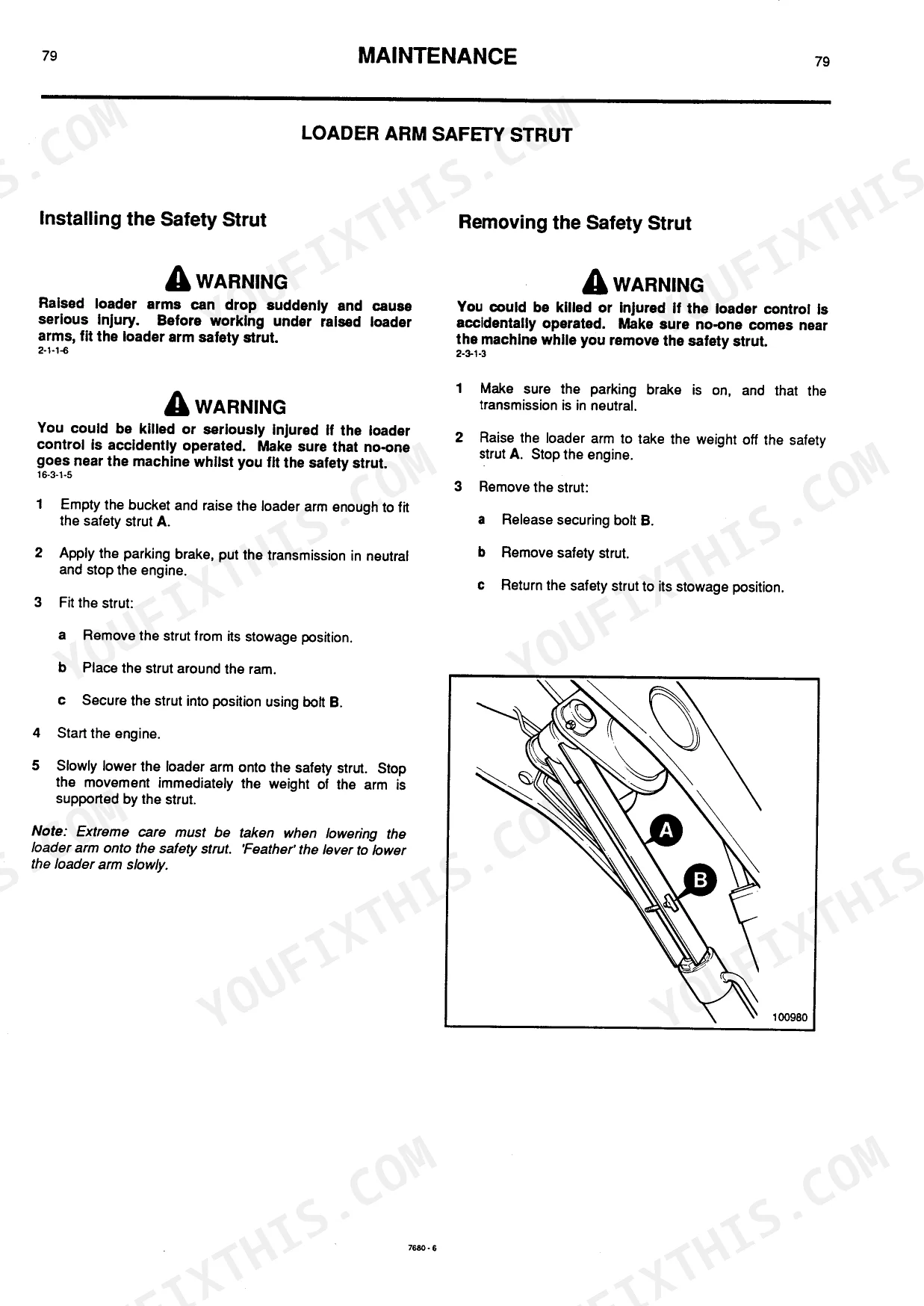

| Operation | 20-69 | Cab Layout, Engine and Drive Controls, Switches and Instruments, Quick Hitch Control, Loader Controls, Seat Adjustment, Seat Belt |
| Service Schedules | 74-81 | - |
| Greasing | 82-96 | - |
| Fuel System | 97-111 | - |
| Electrical System | 112-129 | - |
| Optional Attachments | 130-142 | Connecting/Disconnecting Hydraulic Hoses, Quick Release Couplings, Silage Fork with Top Clamp, 6 in 1 Bucket |
| Specifications | - | Lifting (Craning) Regulations and Safe Working Loads, Working Capacity, Tyre Pressures, Static Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Early 406 Machines | ||
| Fuse Rating - Front Work Lights | 10 Amp | p. 112 |
| 406 | ||

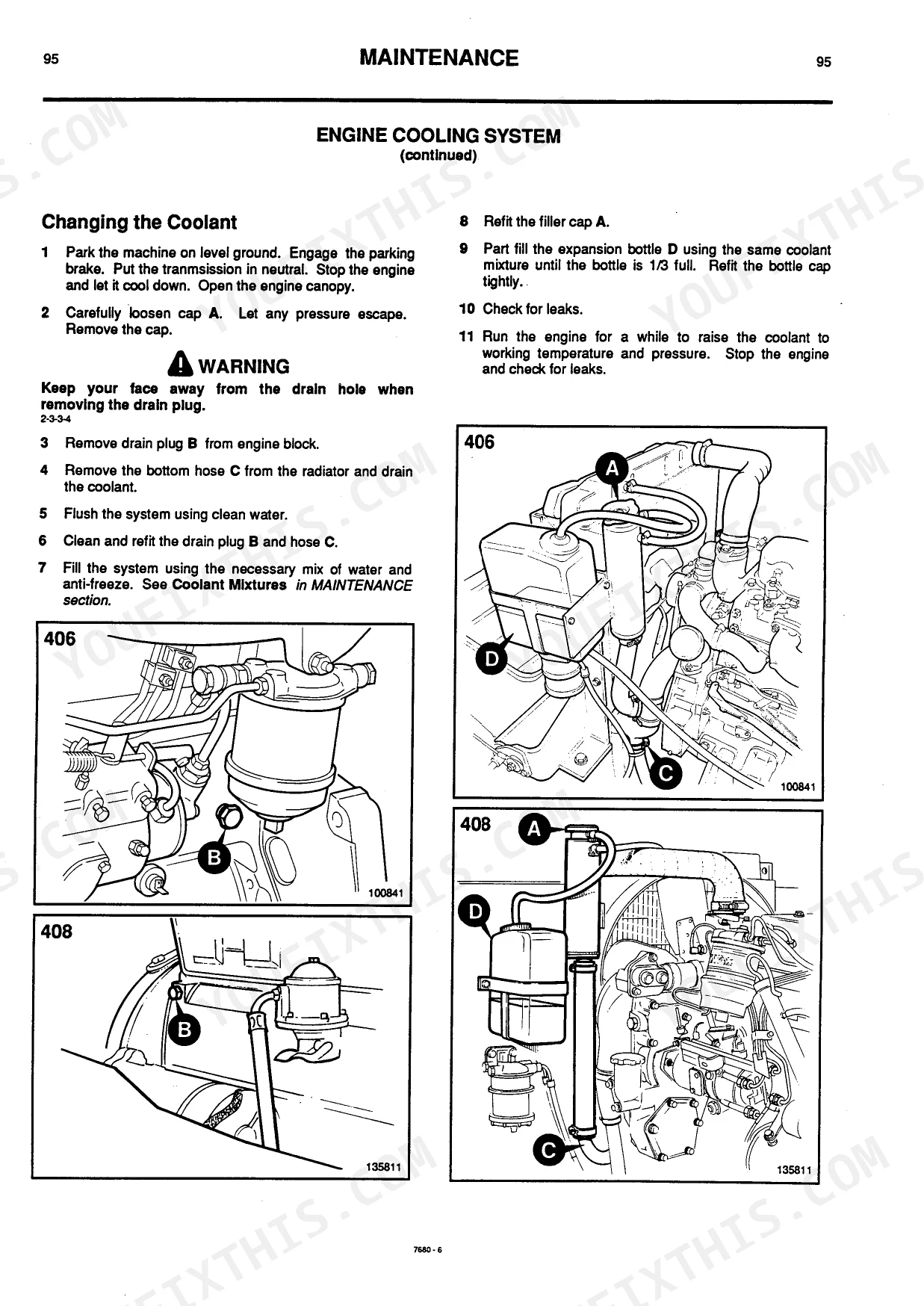

| Coolant Capacity | 12.5 litres (2.8 UK gal) | p. 117 |
| 408 | ||
| Coolant Capacity | 15.5 litres (3.5 UK gal) | p. 117 |
| All Models | ||
| Daily Service Interval | 10 hours | p. 74 |
| Monthly Service Interval | 250 hours | p. 76 |
| Parking Brake Pad Nut Torque | 6 Nm (4.4 lbf ft) | p. 89 |
| Engine Fan Belt Slack | 10 mm (3/8 in) | p. 96 |
| Battery Electrolyte Level | 6 mm (1/4 in) | p. 111 |
| Wheelnut Torque (Front/Rear) | 680 Nm (500 lbf ft) | p. 116 |
| Syncro Shuttle | ||
| Syncro Shuttle Transmission Oil Capacity | 19 litres (4.2 gal) | p. 104 |
| Powershift | ||
| Powershift Transmission Oil Capacity | 15.0 litres (3.3 gal) | p. 105 |
| 406, 408 | ||
| Engine Oil Capacity | 406: 7.2 litres (1.6 UK gal), 408: 10.7 litres (2.4 UK gal) | p. 117 |
JCB 406–408 Series Common Problems This Manual Covers
JCB 406 wheeled loader engine cranks but will not start during daily morning checks p. 111
To address an engine that cranks but will not start, first ensure the battery electrolyte level is correct (page 111). For a comprehensive diagnosis, refer to 'Starting the Engine' on page 46 for pre-start checks and 'Jump-Starting the Engine' on pages 47-48 for procedures if the battery is flat.
Manual Section: MaintenanceMachine rolls on incline when parking brake is applied or brake pedal feels loose p. 89
Adjust the parking brake cable slack on page 89. Tighten the parking brake pad nut and verify the final torque is exactly 6 Nm (4.4 lbf ft). Test the brake engagement again to ensure the machine holds firmly on a slope.
Manual Section: Parking Brake AdjustmentEngine temperature warning light stays on after startup or during heavy load operation p. 96
Check the engine fan belt slack as detailed on page 96. Adjust the tensioner until you measure exactly 10 mm (3/8 in) of deflection. Inspect the cooling pack for debris and verify the coolant mixture maintains a freezing point of -36°C (-33°F).
Manual Section: MaintenanceSyncro Shuttle transmission slips or hesitates when shifting gears during heavy load operation p. 104
Drain the transmission housing and refill the system with clean fluid. Add exactly 19 litres (4.2 gal) of oil for the Syncro Shuttle transmission as shown on page 104. Verify the fluid level on the dipstick before returning the machine to service.
Manual Section: MaintenanceClicking noise from axles during sharp turns or visible gap behind wheel rims p. 116
Torque all front and rear wheel nuts immediately to 680 Nm (500 lbf ft) as specified on page 116. Inspect the rims for damage. Perform this check every 10 hours during your daily service interval on page 74 to prevent loosening.
Manual Section: MaintenanceFrequently Asked Questions
What do the warning lights mean on a JCB 406 or 408?
The manual details several warning lights and their meanings. For instance, a green flashing light indicates the direction indicators are on, a blue light signifies the main beam is on, and a red flashing light indicates hazard warning lights. Other lights include those for air filter blockage, high water temperature, high transmission oil temperature, no battery charge, low engine oil pressure, engaged parking brake, and low transmission oil pressure. For a full list, refer to page 34.
What is the torque spec for JCB 406/408 wheel loader wheel nuts?
The torque specification for the wheel nuts on a JCB 406/408 wheel loader is 680 Nm (500 lbf ft) for both the front and rear wheels. It is recommended to check the wheel nuts every day before starting work and whenever a wheel has been removed.
What are the replacement specifications for fuses?
The manual provides detailed fuse ratings for various circuits, which vary slightly between early 406, early 408, and later 406/408 machines. For example, on an Early 406 Machine, Front Work Lights require a 10 Amp fuse, Headlight Dip Beam requires a 10 Amp fuse, and the Heater and Rear Washer requires a 15 Amp fuse. Always replace fuses with ones of the correct amperage rating to avoid electrical system damage.
How do you fix JCB 406 wheeled loader engine cranks but will not start during daily morning checks?
To address an engine that cranks but will not start, first ensure the battery electrolyte level is correct (page 111). For a comprehensive diagnosis, refer to 'Starting the Engine' on page 46 for pre-start checks and 'Jump-Starting the Engine' on pages 47-48 for procedures if the battery is flat.
What do I get after purchasing this JCB 406 & variants manual?
Immediate download of the complete 142-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this JCB 406 & variants Operator Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a high-quality scanned PDF with an excellent OCR layer, allowing you to search and copy all text. The text is consistently crisp and clear throughout, ensuring easy readability on any device. Diagrams and illustrations are sharp vector graphics, maintaining clarity even when zoomed in, and all labels are perfectly legible. Pages are clean with no significant scan artifacts, stains, or skewed content, though some have very faint background discoloration. You will find several blank pages interspersed, which are intentional separators and do not contain content.
