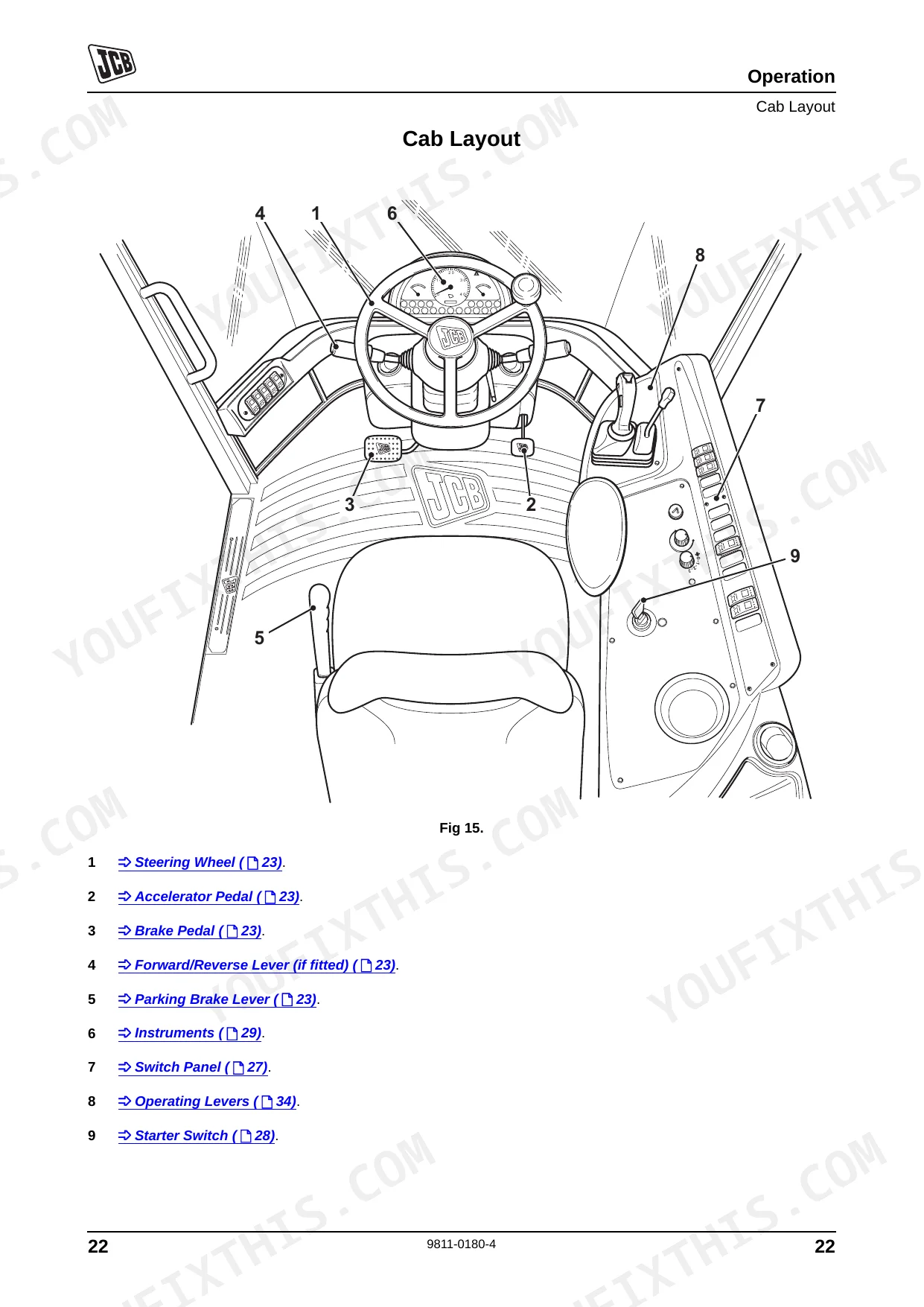

Looking for the factory operating and maintenance schedules for your 2003-2006 wheeled loading shovel? This 127-page JCB 406 operator manual pdf (OEM #9811/0180) details every control, daily check, and fluid requirement to keep your loader running safely. You get complete cab layouts, dashboard instrument definitions, and step-by-step cold weather starting procedures. Open to the routine maintenance section to find exact service schedules, pre-start checks, and complete lubricant capacities. Verify the ROPS mounting bolts are secured to 135 Nm and confirm the heater fan is protected by a 30A fuse before firing up the engine. A neglected machine breaks down when you need it most. Download this bookmarked file directly to your phone and check those fluid levels right on the job site.
What's Inside This JCB 406 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 6-7 | Important Information, Operator Manual, Safety Warnings |
| Introduction | 8-21 | About This Manual, Machine Description, Safety Check List, Operating Safety, Maintenance Safety, Safety Decals, Identifying Your Machine, Machine Security |

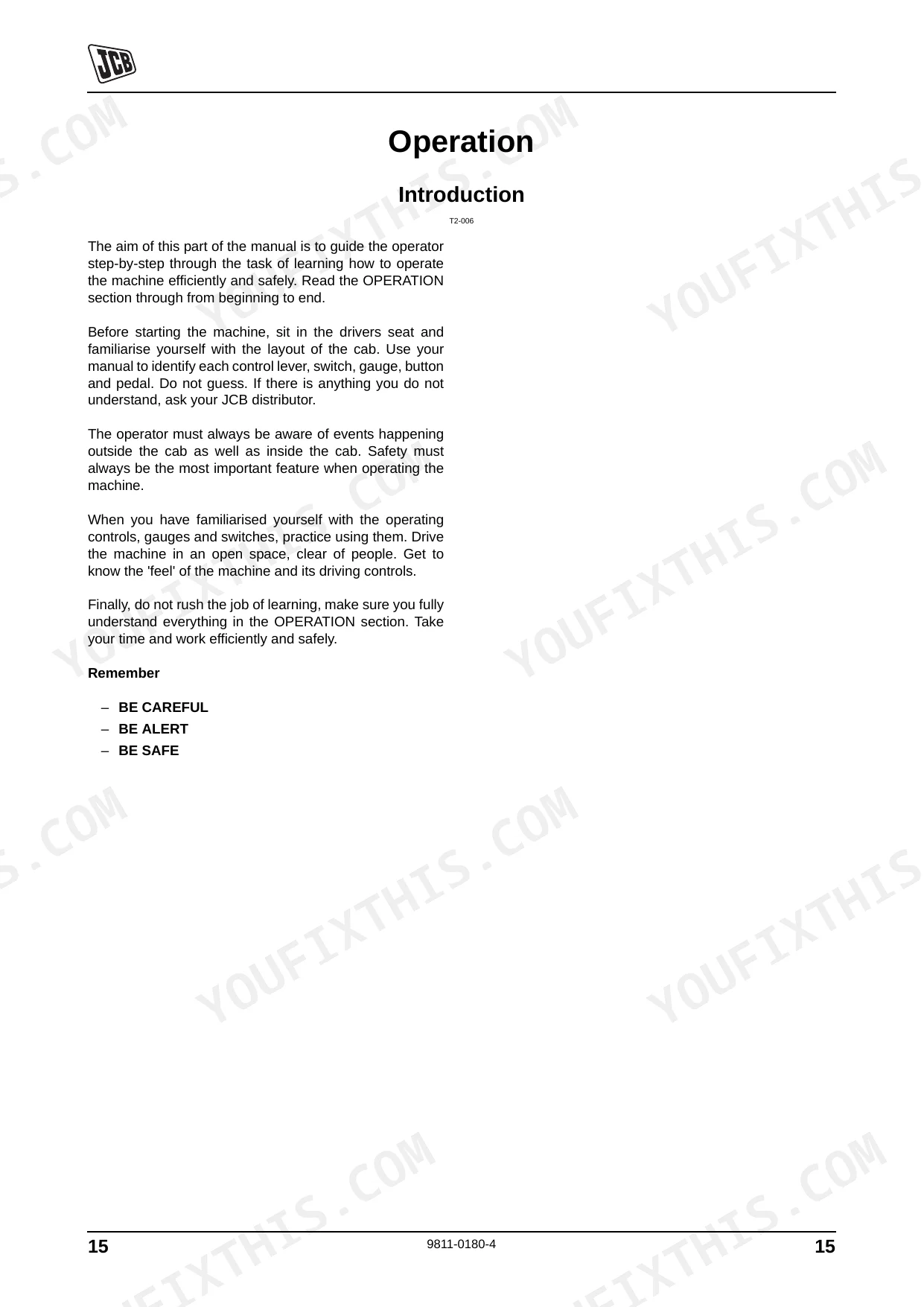

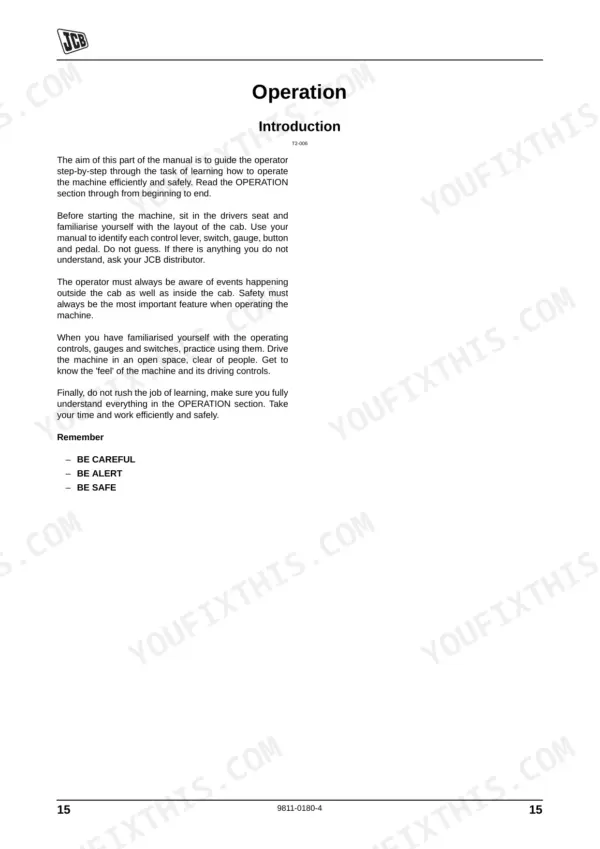

| Operation | 22-59 | Before Entering the Cab, Entering and Leaving the Cab, Doors and Windows (Opening and Closing the Door, Opening and Closing the Window, Emergency Exit) |

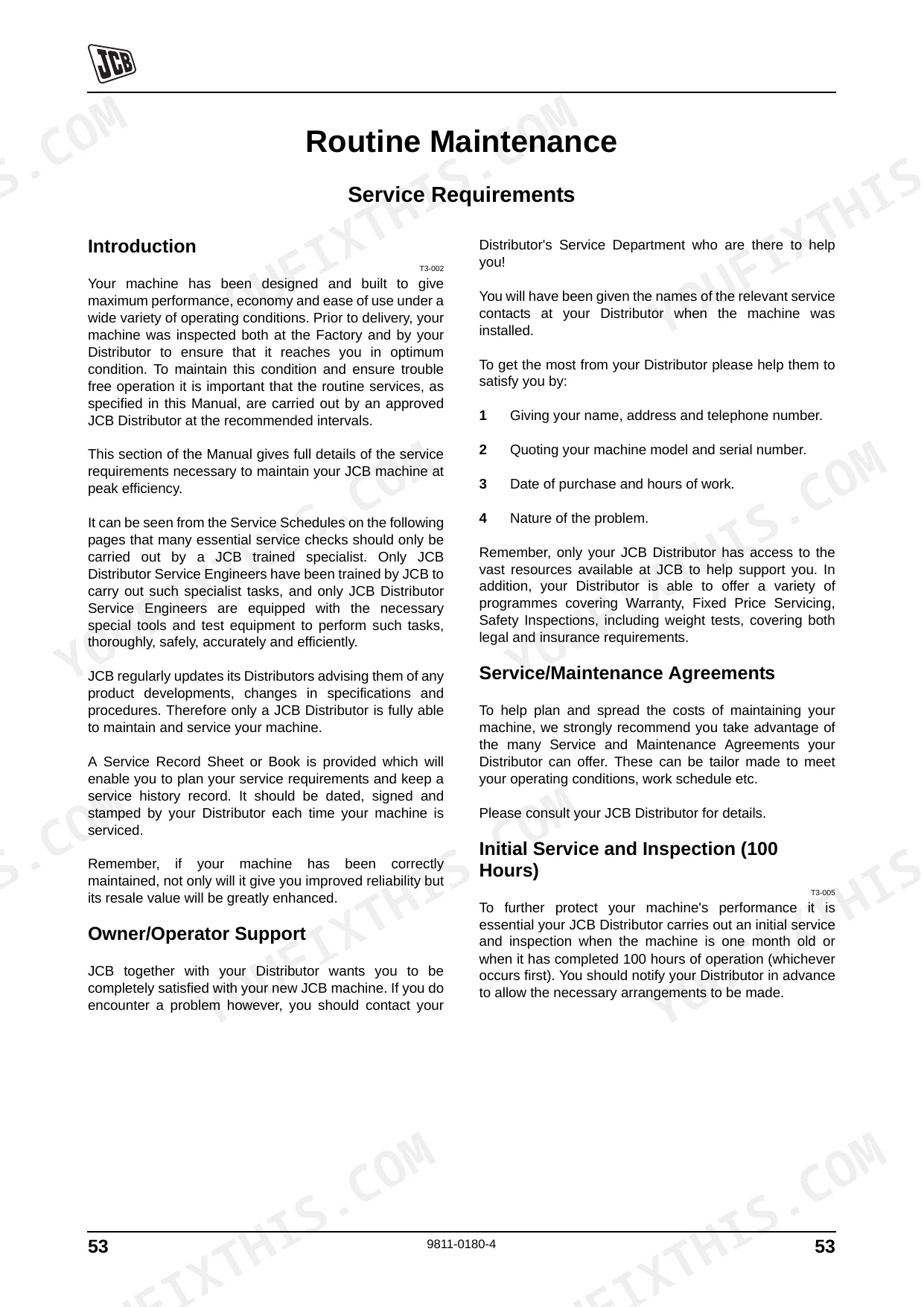

| Routine Maintenance | 60-107 | Service Requirements, Lifting Regulations - Inspections and Tests, Service Schedules, Pre-Start Cold Checks, Service Points and Fluid Levels, Lubricants and Capacities |
| Optional Attachments | 108-115 | Quickhitch Attachments, Quick Release Couplings, Venting the Service Hose Line, Quickhitch Control |

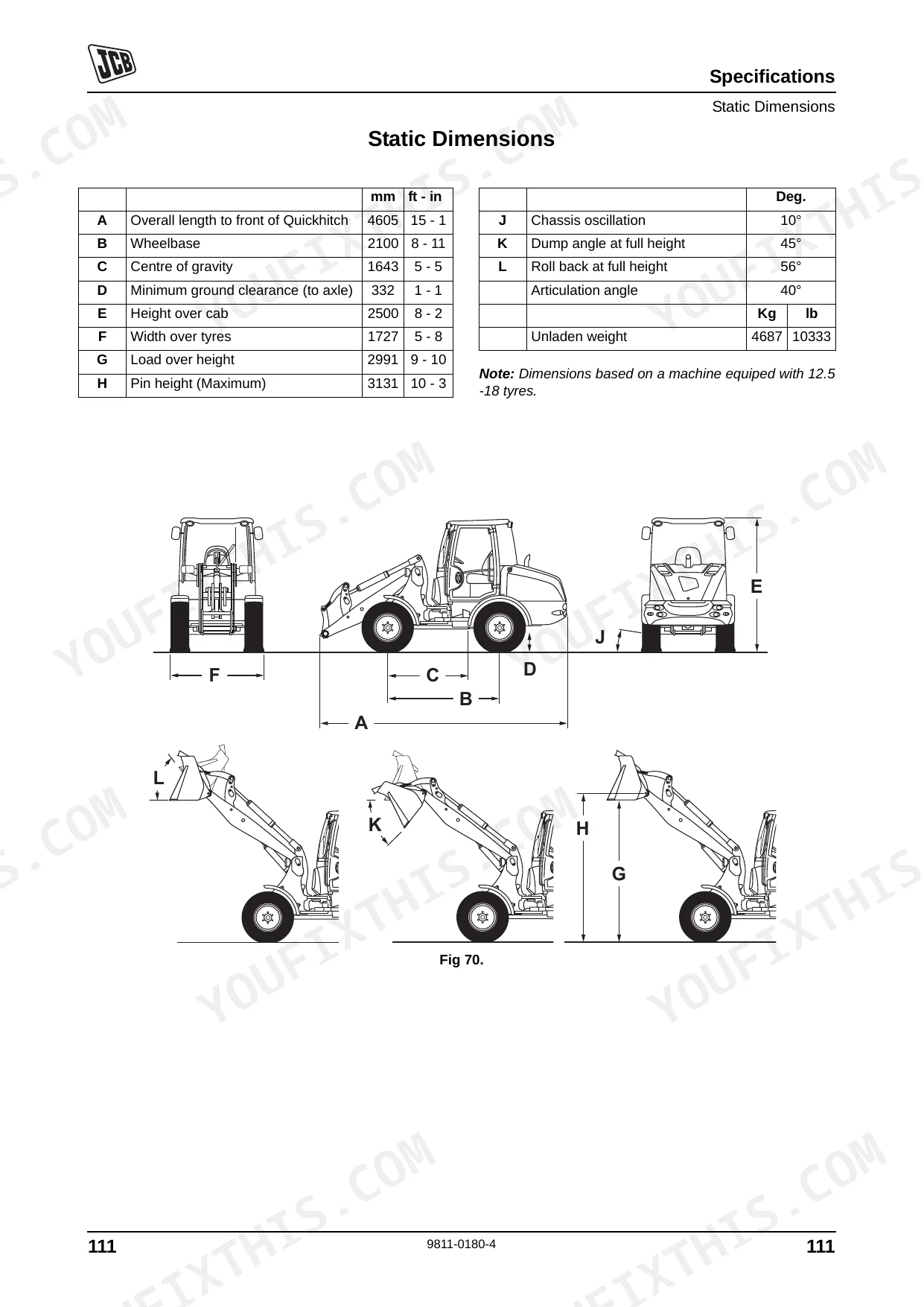

| Specifications | 116-123 | Lifting (Craning) Regulations and Safe Working Loads, Working Capacity, Static Dimensions, Noise Data, Vibration Data, Wheels and Tyres |
| Warranty Information | 124-127 | Machine Service Record Sheet, Registration Information |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic pressure venting procedure | Press the auxiliary circuit switches on the servo control lever | p. 112 |
| ROPS/FOPS mounting bolts torque | 135 Nm (99.5 lbf ft) | p. 70 |
| Hydraulic filter cap torque | 40 Nm (29.5 lbf ft) | p. 96 |
| Heater Fan fuse rating (A9) | 30A | p. 81 |
| Brake Lights primary fuse rating (PF1) | 60A | p. 83 |
| Fuel Tank Capacity | 80 Litres | p. 66 |
| Engine Drain Plug Torque | 55 Nm | p. 85 |
| Transmission Drop-box Fill/Level Plug Torque | 35-40 Nm | p. 101 |
| Wheel Nut Torque Front | 680 Nm | p. 106 |
| Maximum Load Lifted by Loader Unit (Crane) | 1000 kg | p. 116 |
| External Noise Level (LwA) | 101 | p. 119 |
JCB 406 Common Problems This Manual Covers
JCB 406 loader arms lifting slowly under load or failing to raise the bucket p. 96
Inspect the hydraulic system filter element and replace it immediately if you suspect severe clogging. Clean the surrounding area thoroughly before removal. Install the new filter and torque the hydraulic filter cap to exactly 40 Nm as detailed on page 96. Test the loader arms to verify normal lifting speed.
Manual Section: Routine MaintenanceCab heater blower motor fails to activate when switched on during cold weather startup p. 81
Check the fuse panel located in the cab. Locate the A9 fuse slot for the heater fan on page 81. Remove and inspect the fuse for a broken element. Replace a blown fuse with a new 30A fuse. Test the blower switch on all speed settings to confirm proper operation.
Manual Section: Fuses and RelaysOverload alarm sounds continuously during operation and prevents raising or lowering the loader arms p. 116
Reduce the material in the bucket immediately. Verify the total weight does not exceed the maximum load lifted by the loader unit of 1000 kg, detailed on page 116. Lower the load closer to the ground if possible. Cycle the controls once the weight is safely reduced to reset.
Manual Section: SpecificationsEngine cranks normally but refuses to start after running completely out of diesel fuel p. 66
Refill the tank to its maximum fuel tank capacity of 80 Litres as noted on page 66. Bleed the air from the lines using the manual primer pump. Crank the engine in short bursts. Stop cranking if it does not fire within fifteen seconds to protect the starter motor.

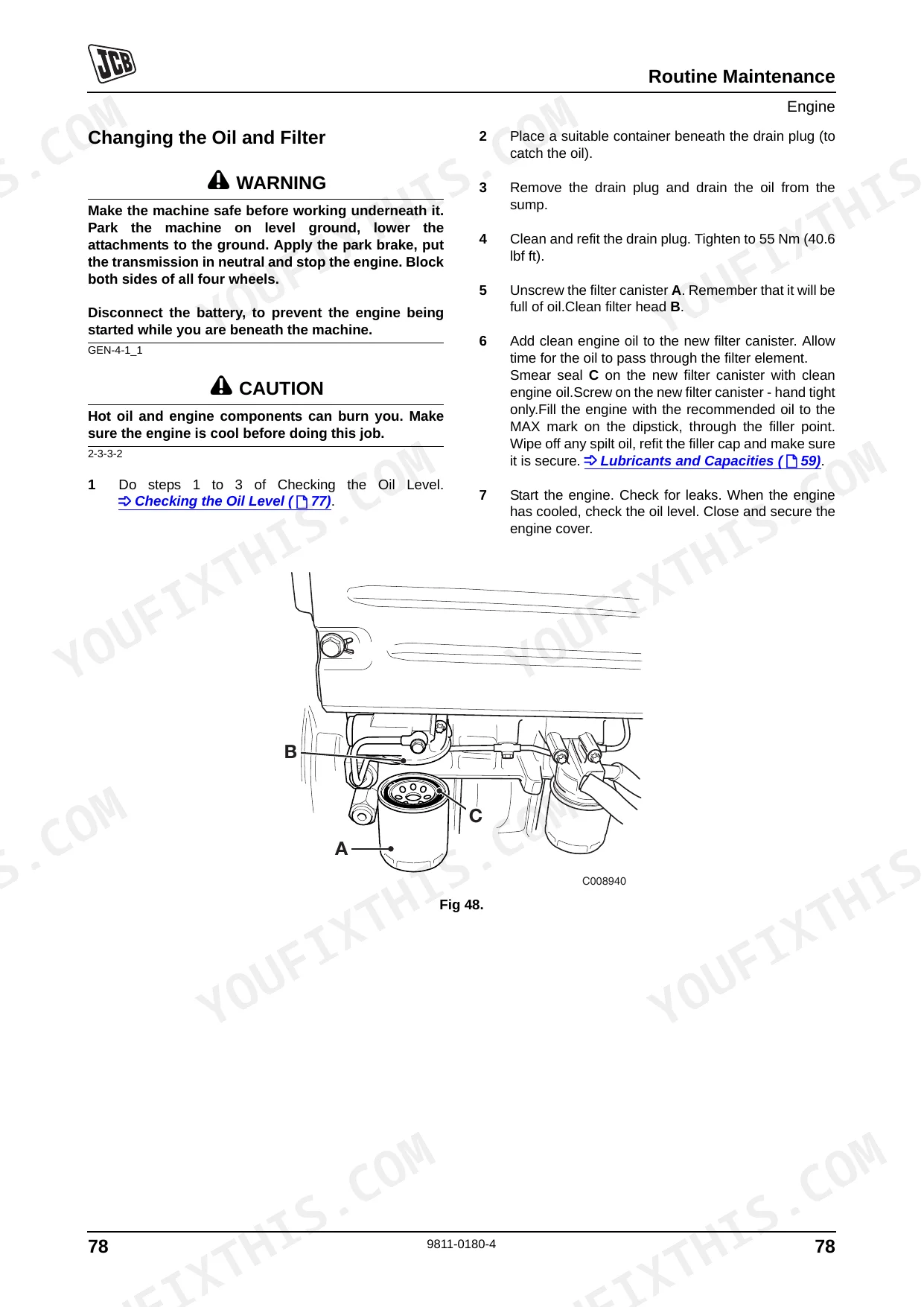

Manual Section: Routine MaintenanceDashboard warning light stays on after startup indicating low engine oil pressure p. 85
Shut down the engine immediately. Check the dipstick to verify the oil level is correct. If draining and refilling the oil, install the new filter and tighten the engine drain plug to 55 Nm as specified on page 85. Restart the engine and confirm the warning light turns off.
Manual Section: Changing the Oil and Filter (Engine)Frequently Asked Questions
How do I reset the hydraulic system on a JCB 406?
To vent residual hydraulic pressure in the service hose line, turn the starter key to IGN (do not start the engine) and press the auxiliary circuit switches on the servo control lever. For general hydraulic pressure release, slowly release the hydraulic tank filler cap to ensure all residual pressure has been released before maintenance.
What are the torque specs for JCB 406 wheel loader bolts?
The wheel nut torques for both front and rear wheels are 680 Nm (500 lbf ft). Additionally, the ROPS/FOPS mounting bolts should be tightened to 135 Nm (99.5 lbf ft).
How to reset JCB 406 service light
Service and warning lights on the JCB 406 indicate specific faults that require attention before operating. Check the instrument panel fuse block first — the A9 fuse (30A) powers the heater fan circuit and a blown fuse can trigger cab warnings on page 81. For hydraulic-related warning lights, shut down and vent the system before inspection. Consult the instrument section (pages 8–21) for a full list of warning light definitions and the correct response procedure for each.
How do you fix JCB 406 loader arms lifting slowly under load or failing to raise the bucket?
Inspect the hydraulic system filter element and replace it immediately if you suspect severe clogging. Clean the surrounding area thoroughly before removal. Install the new filter and torque the hydraulic filter cap to exactly 40 Nm as detailed on page 96. Test the loader arms to verify normal lifting speed.
How quickly can I access this manual after buying?
Instant PDF download. You get the full 127-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This is a scanned PDF document with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text is crisp and consistently easy to read across all pages. Diagrams and illustrations are raster images; most are clear with readable labels, though some older graphics show slight pixelation when magnified. Pages are clean with no notable scan artifacts, stains, or skewed content, and there are four "Page left intentionally blank" filler pages.
