Ready to master the daily upkeep on your tracked excavator? This 153-page JCB JS130 operator manual PDF (OEM #9801/6950) details every dashboard control, maintenance schedule, and operating procedure for the JS family, including the 160, 180, 200, 210, 220, 240, 260, 330, and 460 variants. You get complete daily lubrication schedules, exact fluid capacity charts, and step-by-step air bleeding instructions for the hydraulic pump. Open to the troubleshooting section to decode monitor panel error codes and review safe lifting capacities before rigging up a load. Lock down your track guards with 270 to 310 Nm of torque, and clear that 250-hour minor service warning directly from the ACK switch on the console. Don't rely on guesswork to run heavy iron. Download this bookmarked file straight to your phone, climb into the cab, and get to work.
What's Inside This JCB JS 130–460 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Operator Handbook | 1-3 | Machine Identification, Safety Notices, Controls and Operation, Maintenance Procedures, Troubleshooting, Technical Specifications |
| Safety Notices | 4-7 | Machine Security |
| Introduction | 8-15 | About This Handbook, Identification of Machine Components, Safety First - Yours and Other People's, Safety Decals, Identifying Your Machine |

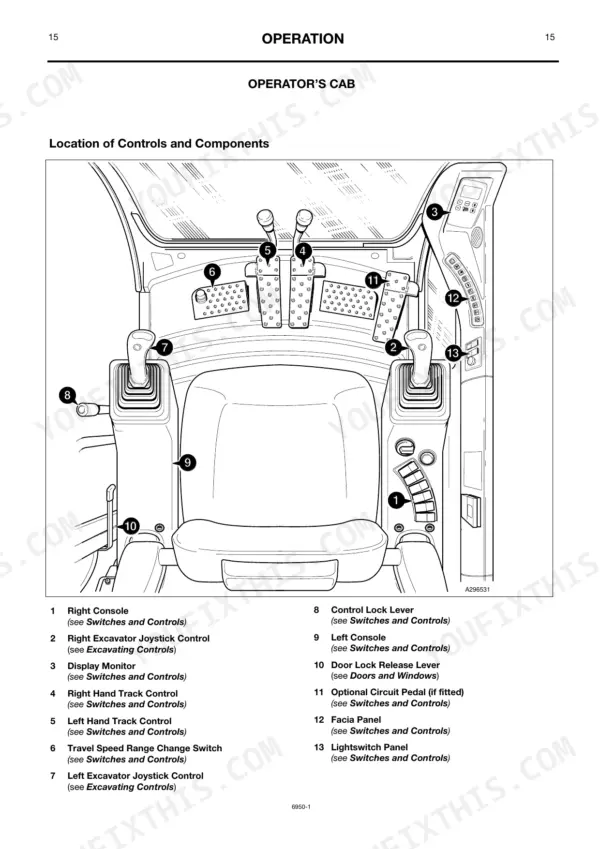

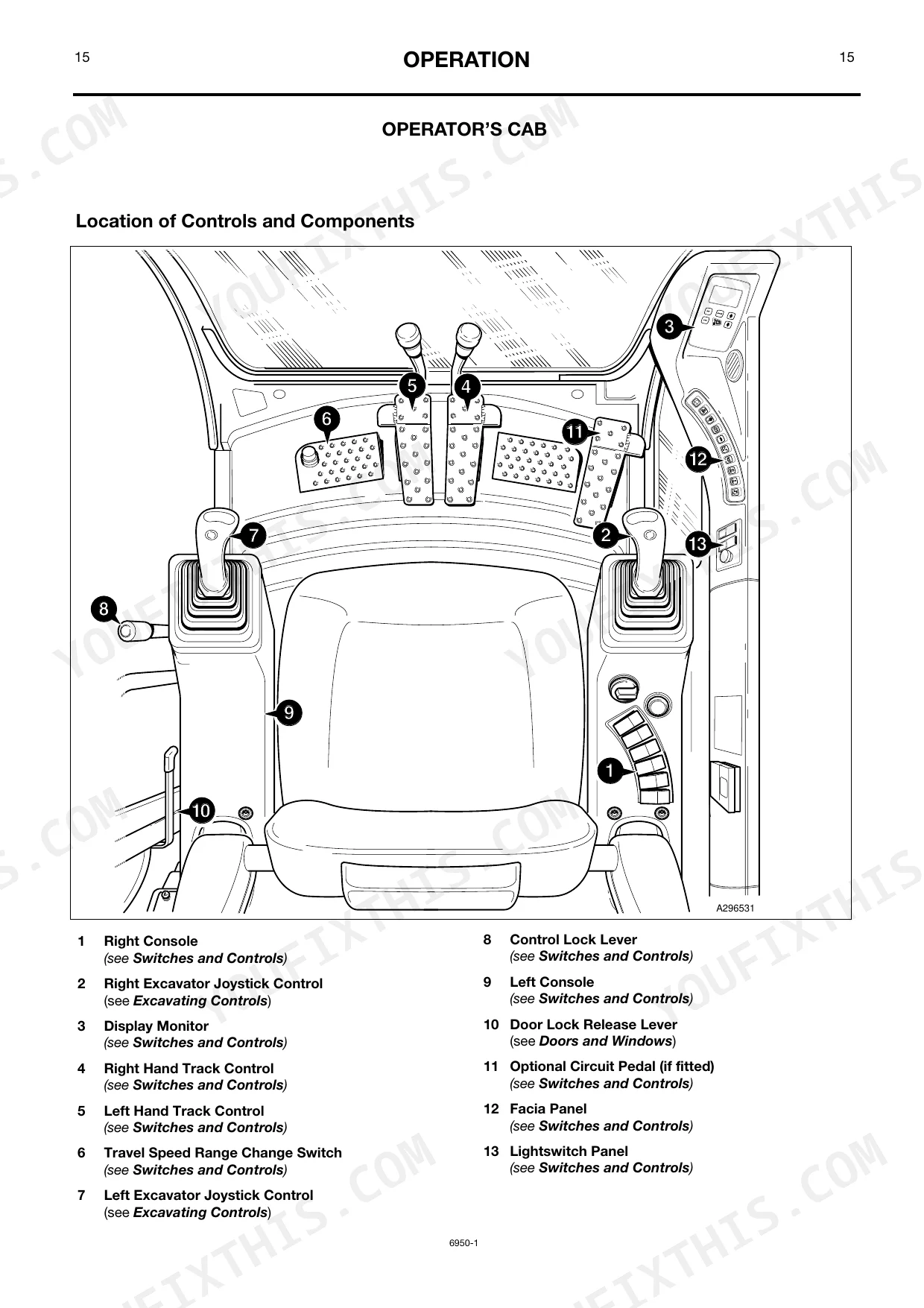

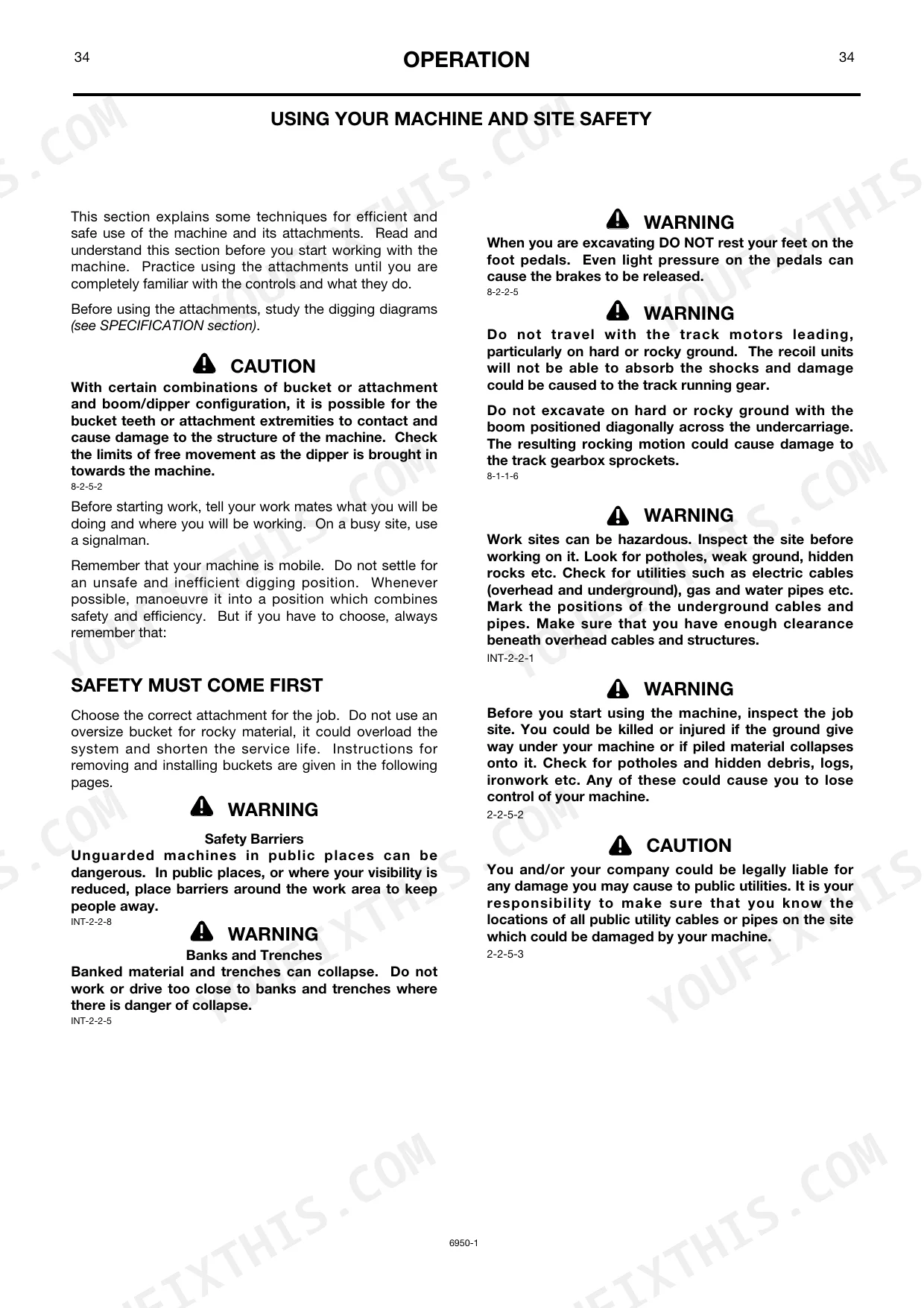

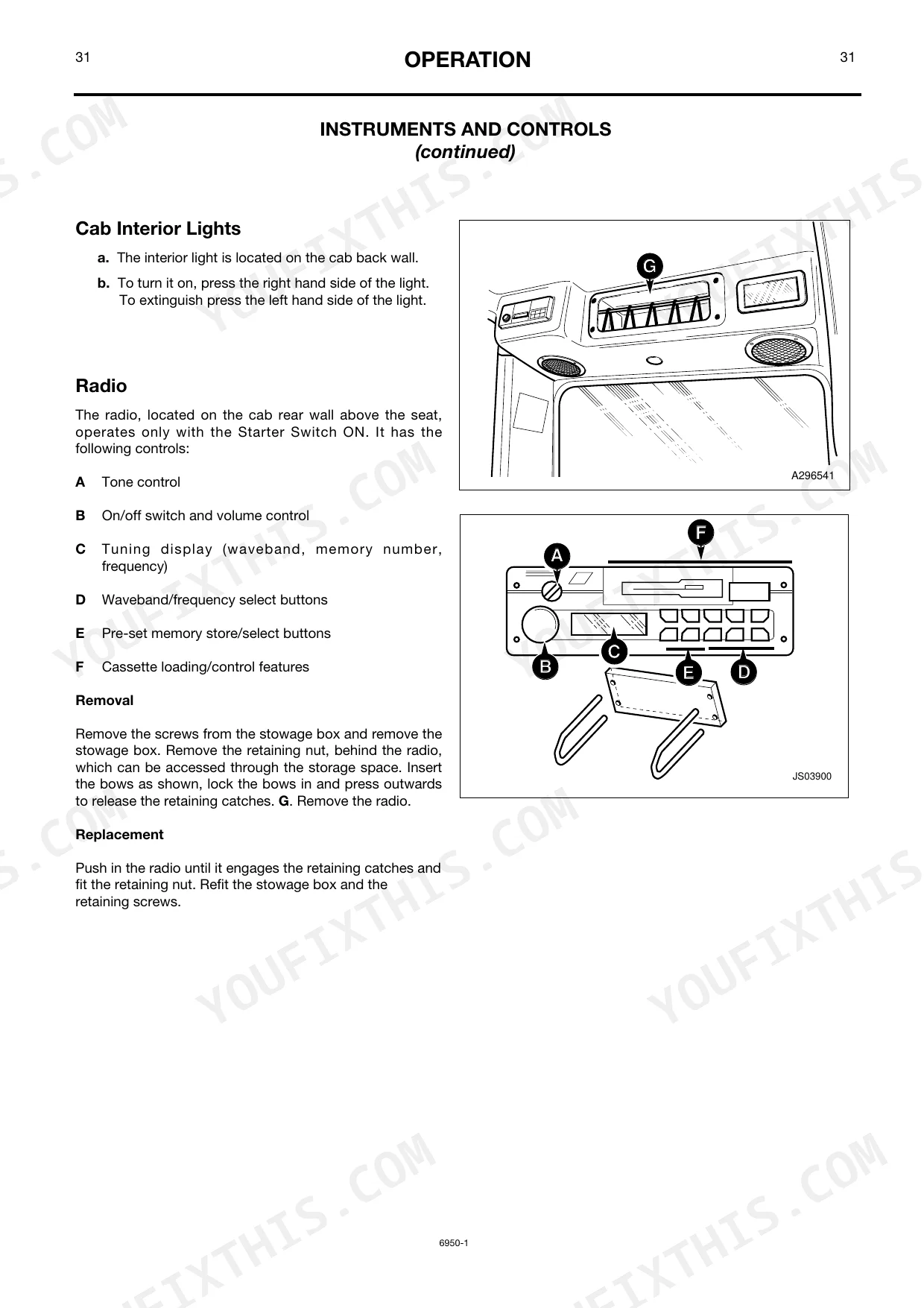

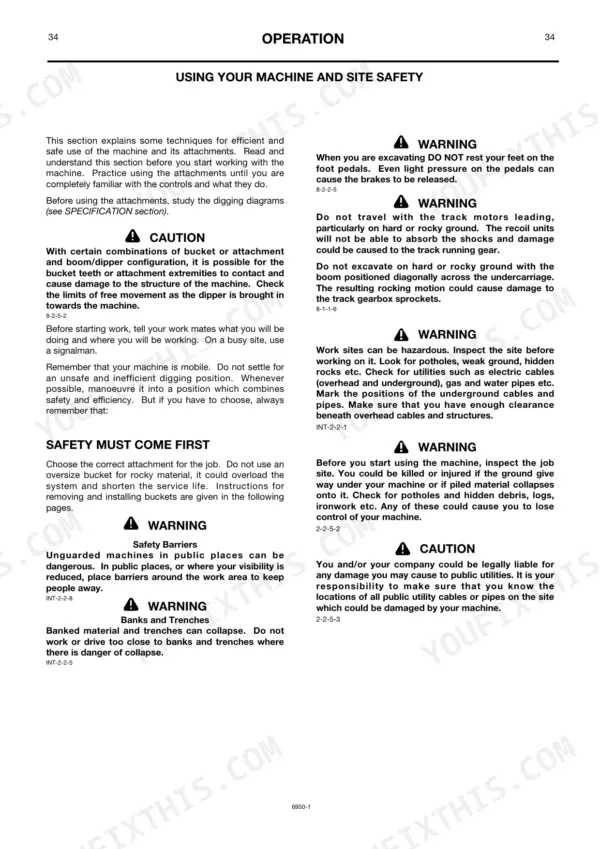

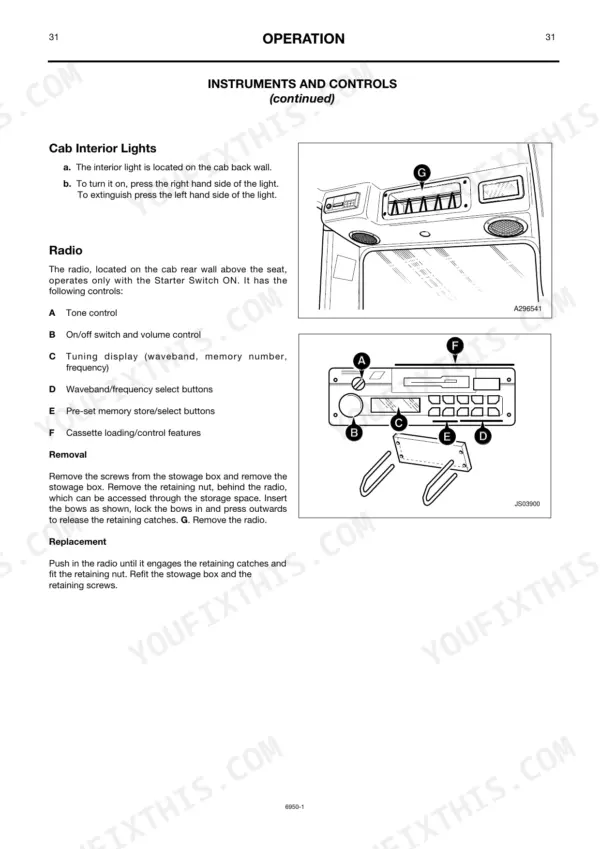

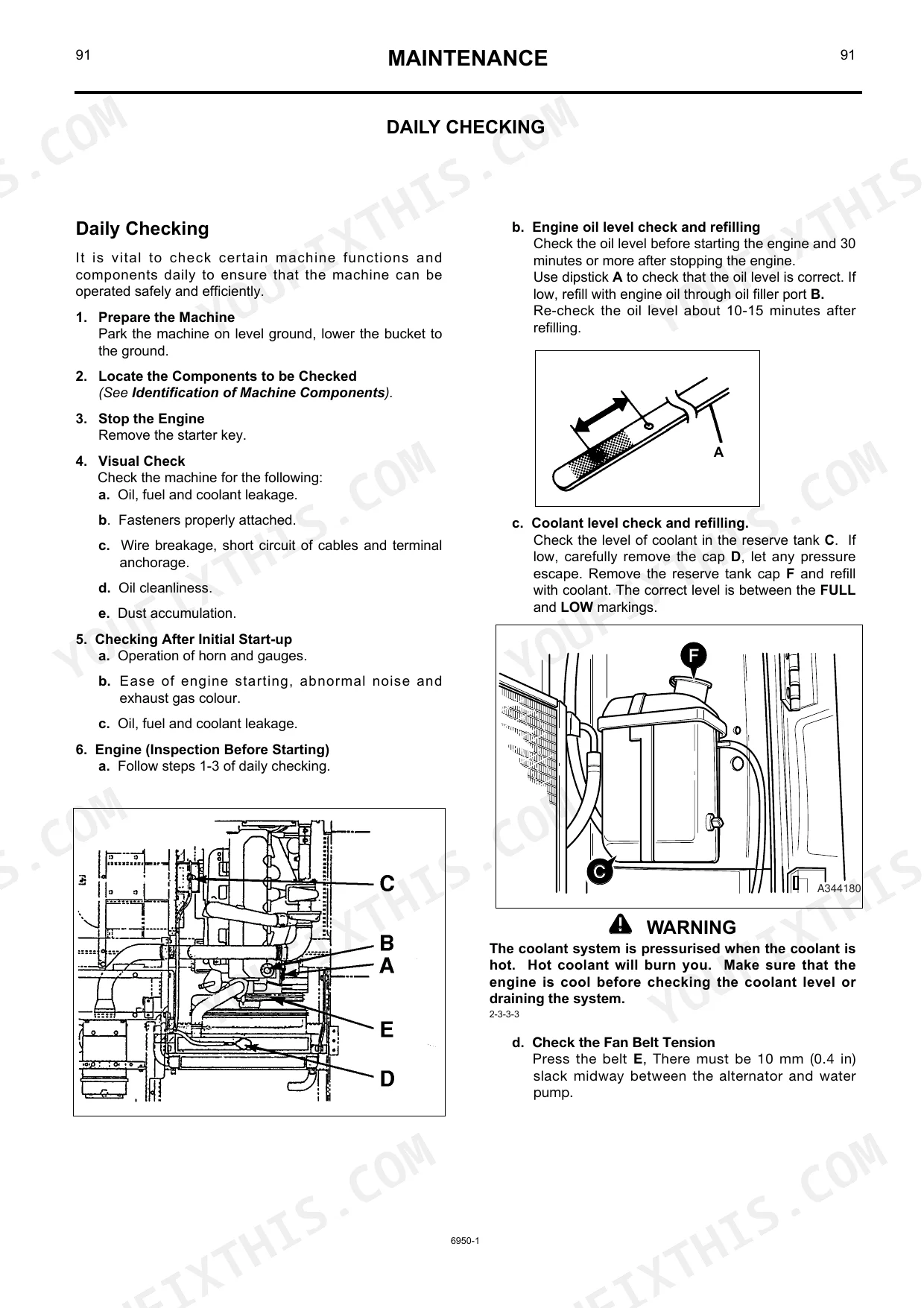

| Operation | 16-71 | Before Entering the Cab, Entering and Leaving the Cab, Operator's Cab (Location of Controls and Components) |
| Maintenance | 72-129 | Service Contracts, Regular Maintenance and Lubrication Schedules, Service Schedules, Lubricants - Health and Safety, Lubricants and Capacities, Cleaning the Machine |

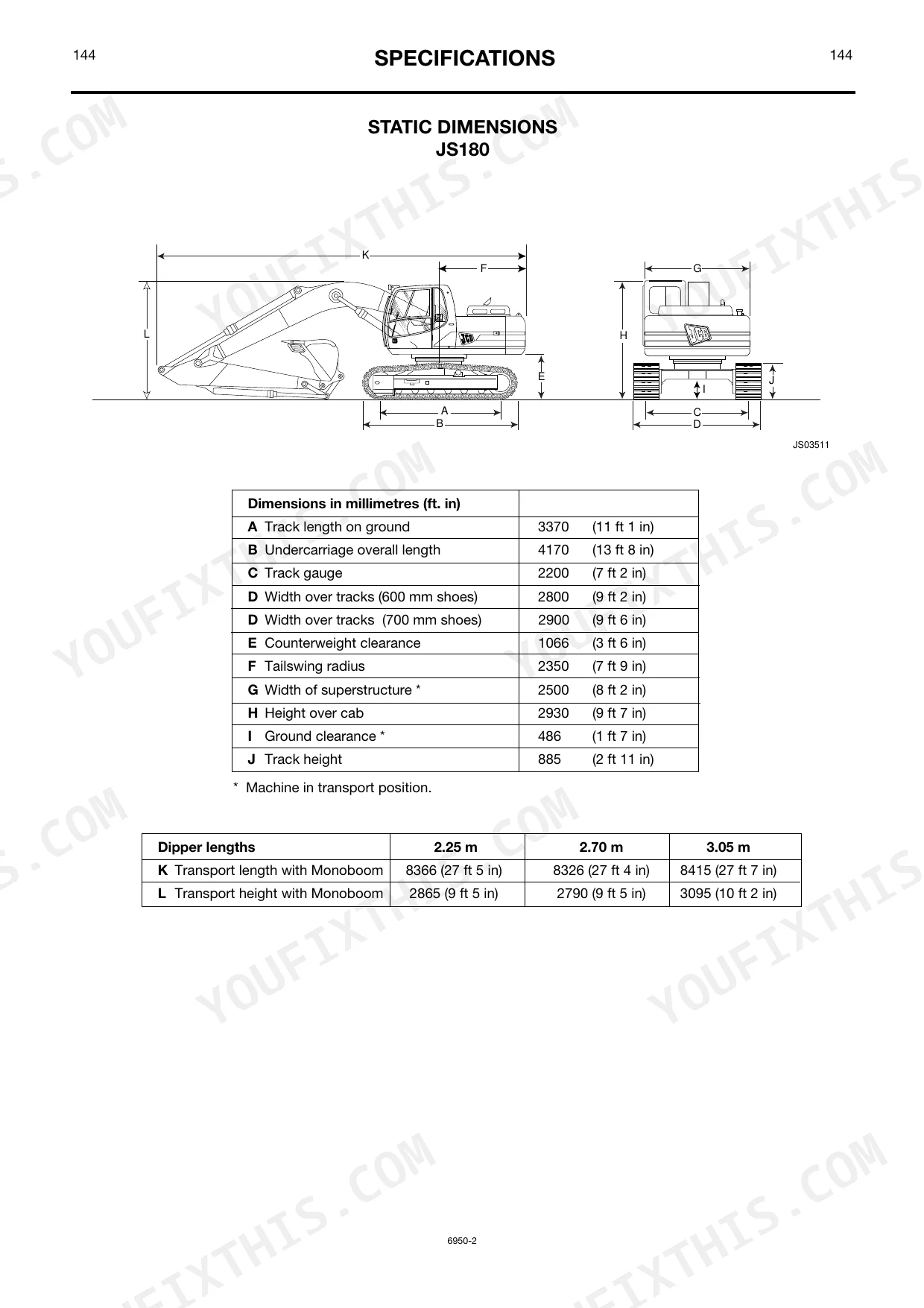

| Specifications | 130-153 | Lift (Craning) Regulations and Safe Working Loads, Bucket, Periodic Replacement of Safety Related Components, Trouble Shooting, Shipping Weight (Approximate), Dig Depth Chart |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Minor service warning cancellation | Pressing the ACK switch on the monitor can cancel the warning for a minor service (250 hours). For major service (500 hours), contact your JCB dealer. | p. 25 |
| Fuel filter element replacement interval | Every 500 Operating Hours or 3-Monthly | p. 74 |
| Fuel water separator draining interval | Every 50 Operating Hours or Weekly | p. 73 |
| JS200/210/220/240/260 | ||
| Air bleeding procedure for hydraulic pump | 1. Temporarily loosen the air bleeding plug A. 2. If oil does not come out, remove plug A and pour hydraulic oil into the port. 3. Start engine at low speed, slightly loosen plug A until oil comes out. 4. Completely tighten plug A. 5. Stop engine and allow bubbles to make their way through hydraulic tank. | p. 112 |
| JS130/JS160 | ||
| Lower (Track) Roller bolt torque | 270~310 Nm (200~230 lbf ft) | p. 84 |
| Track Guard bolt torque | 270~310 Nm (200~230 lbf ft) | p. 84 |
| JS200/JS220/JS240/JS260 | ||
| Turntable Bearing (Undercarriage) bolt torque | 475~550/780~910 Nm (350~400/575~670 lbf ft) | p. 86 |
| Turntable Bearing (Slew Frame) bolt torque | 475~550/780~910 Nm (350~400/575~670 lbf ft) | p. 86 |
| Upper (Carrier) Roller bolt torque | 520~608 Nm (385~450 lbf ft) | p. 86 |
| Lower (Track) Roller bolt torque | 370~430 Nm (275~315 lbf ft) | p. 86 |
| JS130, JS160, JS180 | ||
| Engine Oil Capacity | 12.1 litres | p. 78 |
| JS330, JS460 | ||
| Engine Oil Capacity | 34 litres | p. 80 |
JCB JS 130–460 Series Common Problems This Manual Covers
JCB JS130 engine stops during operation or shows severe performance issues under heavy load p. 133
Drain the fuel water separator every 50 Operating Hours or Weekly as directed on page 73. Replace the fuel filter element every 500 Operating Hours or 3-Monthly per page 74. Check the troubleshooting guide on page 133 if the engine continues to stall.
Manual Section: Engine Starting & Operation IssuesHydraulic pump fails to build operating pressure and emits abnormal noise after routine fluid change p. 135
Loosen air bleeding plug A temporarily on JS240 models as outlined on page 112. Start the engine at low speed, slightly loosening the plug until oil flows out, then tighten completely. Verify the pilot oil filter is torqued to 24.5 to 34.3 Nm.
Manual Section: Hydraulic System MalfunctionsExcessive vibration during travel and unexpected noise from loose undercarriage track components p. 137
Inspect all lower track roller bolts and tighten them to 270~310 Nm for JS130 or JS160 models as specified on page 84. Torque any loose M16 general hex bolts to 137.2 Nm. Verify track tension if rough travel persists during heavy operation.
Manual Section: Travel System IssuesMonitor displays an active minor service warning light after completing scheduled routine maintenance p. 25
Press the ACK switch on the monitor to cancel the warning for a minor service at 250 hours as detailed on page 25. Check the fan belt slack and adjust it to exactly 10 mm on page 87 before returning the machine to work.
Manual Section: Operator HandbookFrequently Asked Questions
What does error code mean on a JCB JS220/JS240 excavator?
The manual provides a list of "Monitor Display - Fault Messages" that indicate various issues. For example, if the "AIR FILTER" message is displayed, it means the air filter element is clogged or the intake system has foreign matter inside. The recommended remedy is to clean or replace the air filter element or clean the intake system.
What are the replacement specifications for fuel filters?
After the initial 100 hours of use, the fuel filter element should be changed as part of the "Every 500 Operating Hours or 3-Monthly" service, whichever occurs first. This is a routine maintenance task to ensure proper fuel system function.
How do you fix JCB JS130 engine stops during operation or shows severe performance issues under heavy load?
Drain the fuel water separator every 50 Operating Hours or Weekly as directed on page 73. Replace the fuel filter element every 500 Operating Hours or 3-Monthly per page 74. Check the troubleshooting guide on page 133 if the engine continues to stall.
How do you fix hydraulic pump fails to build operating pressure and emits abnormal noise after routine fluid change?
Loosen air bleeding plug A temporarily on JS240 models as outlined on page 112. Start the engine at low speed, slightly loosening the plug until oil flows out, then tighten completely. Verify the pilot oil filter is torqued to 24.5 to 34.3 Nm.
What format is this manual in?
Instant PDF download. You get the full 153-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF, not a native digital file. You can search the full text, and copy text, as an OCR layer has been applied, though some text has a slight fuzziness typical of scanned documents. Diagrams and illustrations are raster images, but they are generally clear with readable labels. The pages are clean with no notable scan artifacts, stains, marks, or skewed content. There is one blank page (page 3) which serves as a filler page.
