Looking for exact factory data in a JCB JS115–JS360 Series service manual PDF (OEM #9803/9880-3)? This 556-page resource covers every repair and maintenance procedure for your excavator. Open the file to find complete hydraulic schematics detailing pilot and main pump routing, along with full electrical wiring diagrams. You also get dedicated troubleshooting sections and a complete list of fault codes to trace electrical problems accurately. Lock down the JS115 travel motor bolts to 290 Nm and torque the JS200 turntable bearing to 525 Nm before sending the machine back to the dirt. Stop wasting hours trying to diagnose system faults without a map. Download the bookmarked file to your tablet, jump straight to the right section, and get back to turning wrenches.
What's Inside This JCB JS115–JS360 Series Manual
| System | Pages | Key Topics |
|---|---|---|

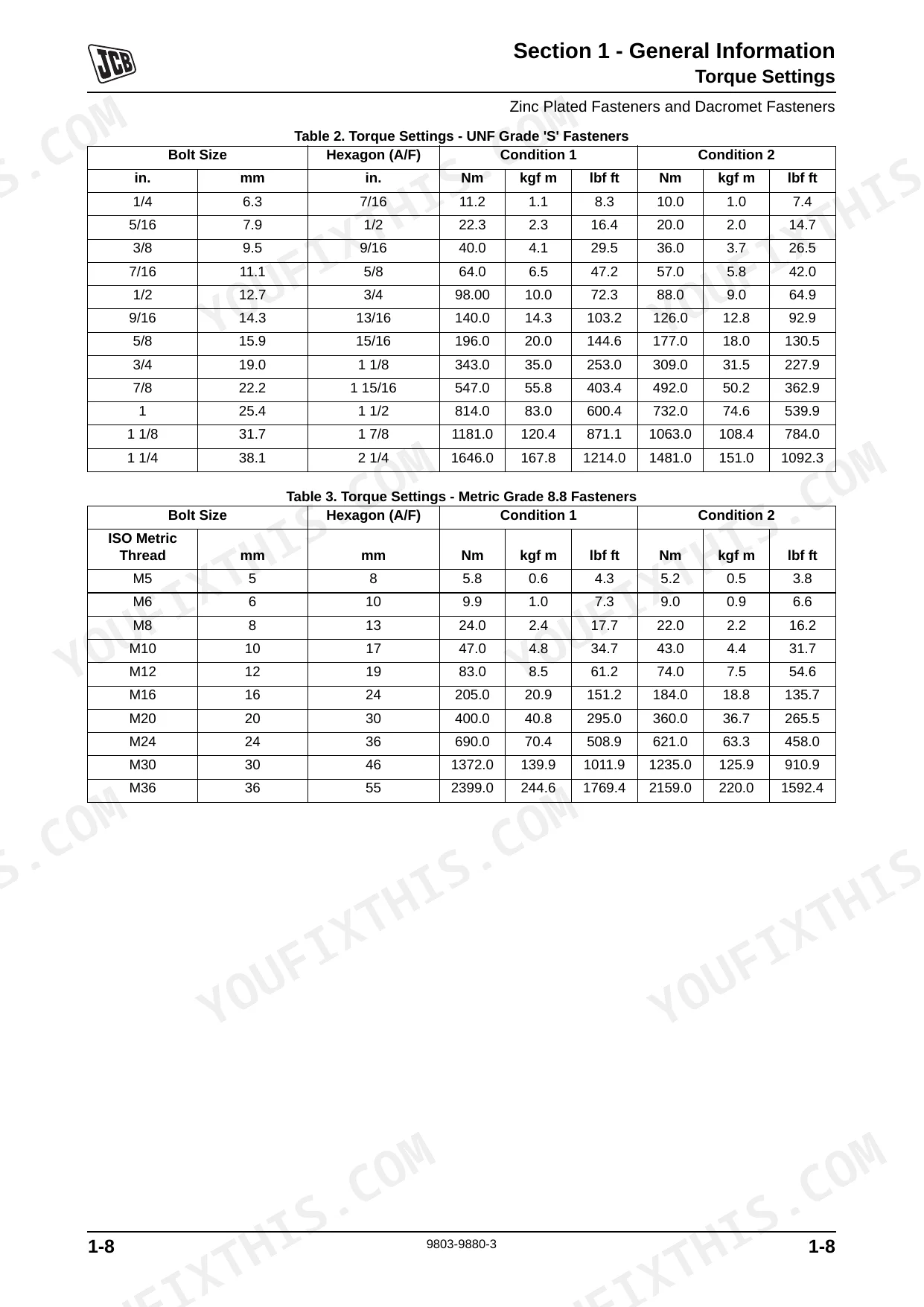

| General Information | 1-47 | Introduction (Identifying Your Machine), Torque Settings (Zinc Plated Fasteners and Dacromet Fasteners, Hydraulic Connections) |
| Care and Safety | 48-67 | Safety Notices, Safety Check List |
| Service Requirements | 70 | Introduction, Owner/Operator Support, Service/Maintenance Agreements, Fit for Purpose Tests for Lifting Equipment, Obtaining Replacement Parts |
| Health and Safety | 70 | Lubricants, Handling, First Aid - Oil, Fires, Battery |
| Service Schedules | 70 | Introduction, How to Use the Service Schedules, Calendar Equivalents |
| Fluids, Lubricants and Capacities | 70 | Coolant Mixtures, Fuel System, Typical Lubrication Chart, Icon Definitions |

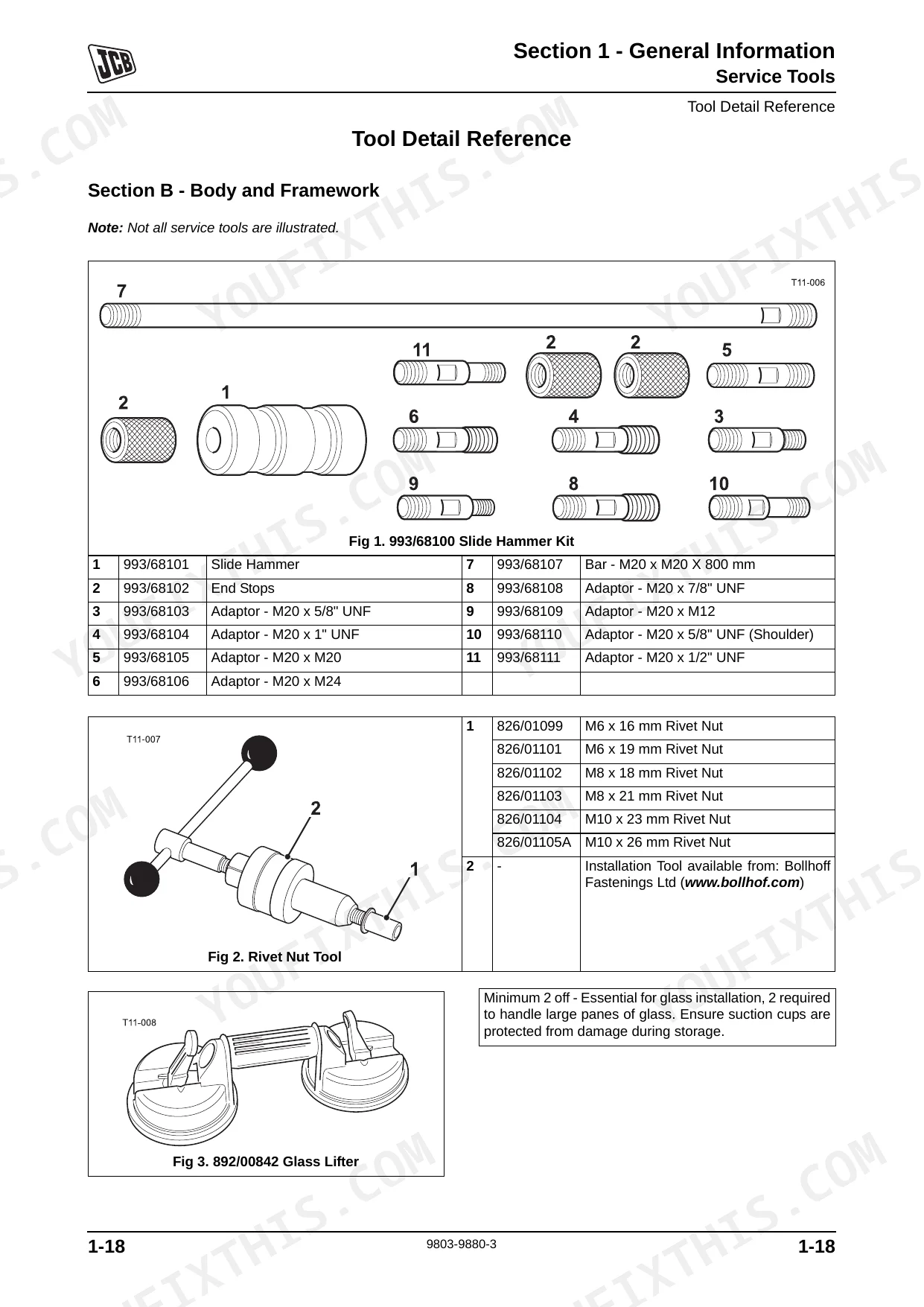

| Tools | 70 | Numerical List, Tool Detail Reference, Carrying Tools Onto the Machine, Locations |
| Prepare the Machine for Maintenance | 70 | Machine Isolation, Safe Working Position, Shutdown Procedures |
| Cleaning the Machine | 70 | Introduction, Detergents, Pressure Washing and Steam Cleaning, Preparing the Machine for Cleaning, Cleaning the Tracks, Cleaning the Radiator and Oil Cooler |
| Checking for Damage | 70 | Check the Machine Body and Structure, Check the Seat and Seat Belt, Checking the Fops Structure |
| Daily Checking | 70 | Prepare the Machine, Visual Check, Checking After Initial Start-Up, Hydraulic Oil Level Check and Refilling, Crawler, Boom/Dipper |
| Greasing | 70 | Slew Ring Bearing, Slew Ring Teeth, Slew Pinion, Greasing Points |
| Electrical System | 70 | Battery, Battery Isolator, Battery Disconnection/Connection, Terminal Cleaning, Electrolyte Level, Fuses |
| Bolt and Nut Torque Specifications | 70 | Travel Motor, Drive Sprocket, Idler Wheel, Turntable Bearing, Slew Equipment, Engine Mount |
| Engine | 70 | Oil and Filter, Cooling System, Fan Belt, Engine Air Filter |
| Fuel System | 70 | Fuel Tank Impurities, Primary Filter/Sedimenter Element, Fuel Feed Pump Filter, Main Filter/Sedimenter Element, Bleeding the System |
| Hydraulic System | 70 | Tank Pressure, Hydraulic Pressure, Oil and Filters, Suction Strainer, Return Filter, Air Bleeding Procedures |
| Slew Gearbox | 70 | Oil Level Check, Gear Condition Inspection |
| Tracks and Running Gear | 70 | Idler Wheel, Recoil Unit, Grease Cylinder, Drive Sprocket, Top Roller, Bottom Roller |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| JS115 | ||

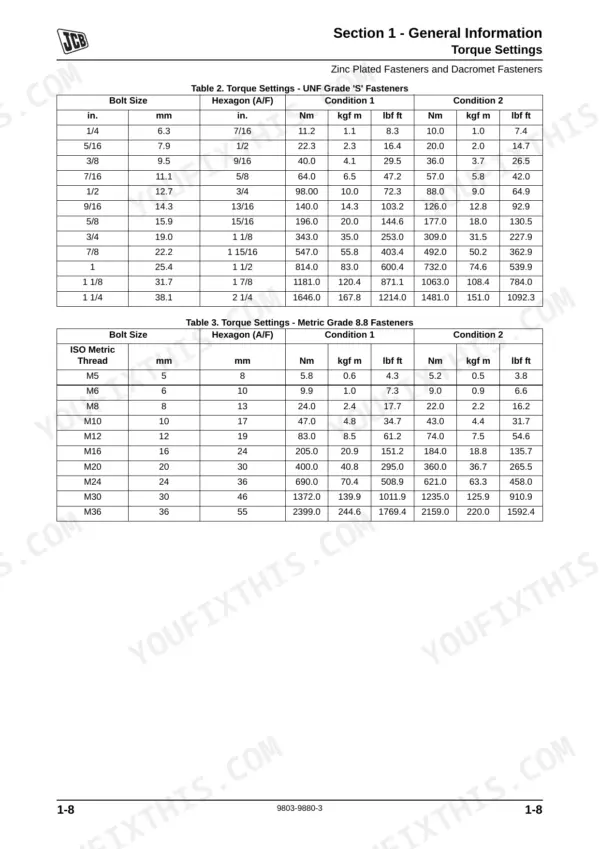

| Travel Motor Bolt Tightening Torque | 290 Nm (213 lbf ft) | p. 118 |
| JS145 | ||
| Turntable Bearing (Undercarriage) Tightening Torque | 296/525 Nm (218/387 lbf ft) | p. 119 |
| JS160 | ||
| Slew Equipment Tightening Torque | 290/550 Nm (213/405 lbf ft) | p. 120 |
| JS200 | ||
| Turntable Bearing (Undercarriage) Tightening Torque | 525 Nm (387 lbf ft) | p. 121 |
| JS235 | ||
| Travel Motor Bolt Tightening Torque | 290 Nm (213 lbf ft) | p. 121 |
| JS360 | ||
| JS360 Engine Oil Capacity | 38 litres | p. 92 |
| JS360 Hydraulic System Capacity | 320 litres | p. 92 |
| JS360 Fuel Tank Capacity | 650 litres | p. 91 |
| JS360 Cooling System Capacity | 38 litres | p. 92 |
| 6HK1X engine | ||
| Engine Valve Clearance (cold) Inlet | 0.40 mm | p. 510 |
| Engine Valve Clearance (cold) Exhaust | 0.40 mm | p. 510 |
| All Models | ||
| A/C Full System Oil Quantity | 150g +/- 5g | p. 18 |
JCB JS115–JS360 Series Common Problems This Manual Covers
JCB JS360 engine performance loss, fuel starvation, or hard starting under heavy load p. 510
Inspect the fuel system for contamination if hard starting occurs. Drain and flush the fuel tank as detailed on page 91. Replace primary and main filters. Check engine valve clearance on page 510, ensuring both inlet and exhaust measure exactly 0.40 mm.
Manual Section: Engine Fault Finding - Engine ComponentsHydraulic sluggishness, weak digging power, or slow and erratic implement response during operation p. 372
Check the main control valve and relief valve for contamination. Inspect the hydraulic system components for leaks. Retorque the main control valve to frame bolts to the torque value specified on page 372. Verify the engine oil level matches the 38 litres capacity shown on page 92.
Manual Section: Hydraulic SystemLoose or missing bolts, rattling, or undercarriage component loosening after initial run-in period p. 103
Verify all critical fasteners after the initial run-in period. Torque the cab mounted FOPS mounting bolts to the value specified on page 103. Inspect the undercarriage and adjust track tension to the measurement specified on page 164.
Manual Section: Bolt and Nut Torque SpecificationsTravel motor not running, low motor speed, or abnormal noise while tracking

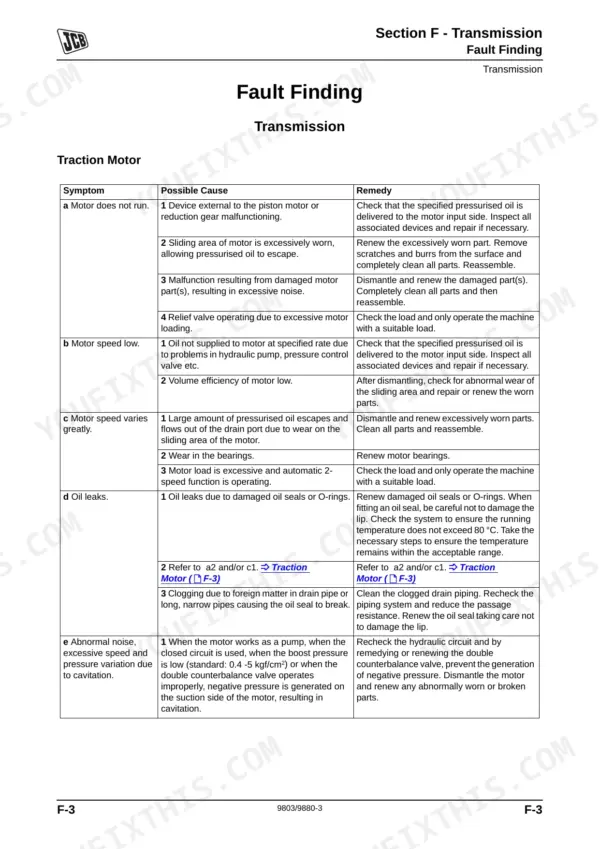

Drain and inspect the track motor fluid for metal wear particles. Refill the reduction gear with fresh oil to the quantity specified on page 412. Review the troubleshooting procedures to diagnose low motor speed, abnormal noise, or pressure variation due to cavitation.

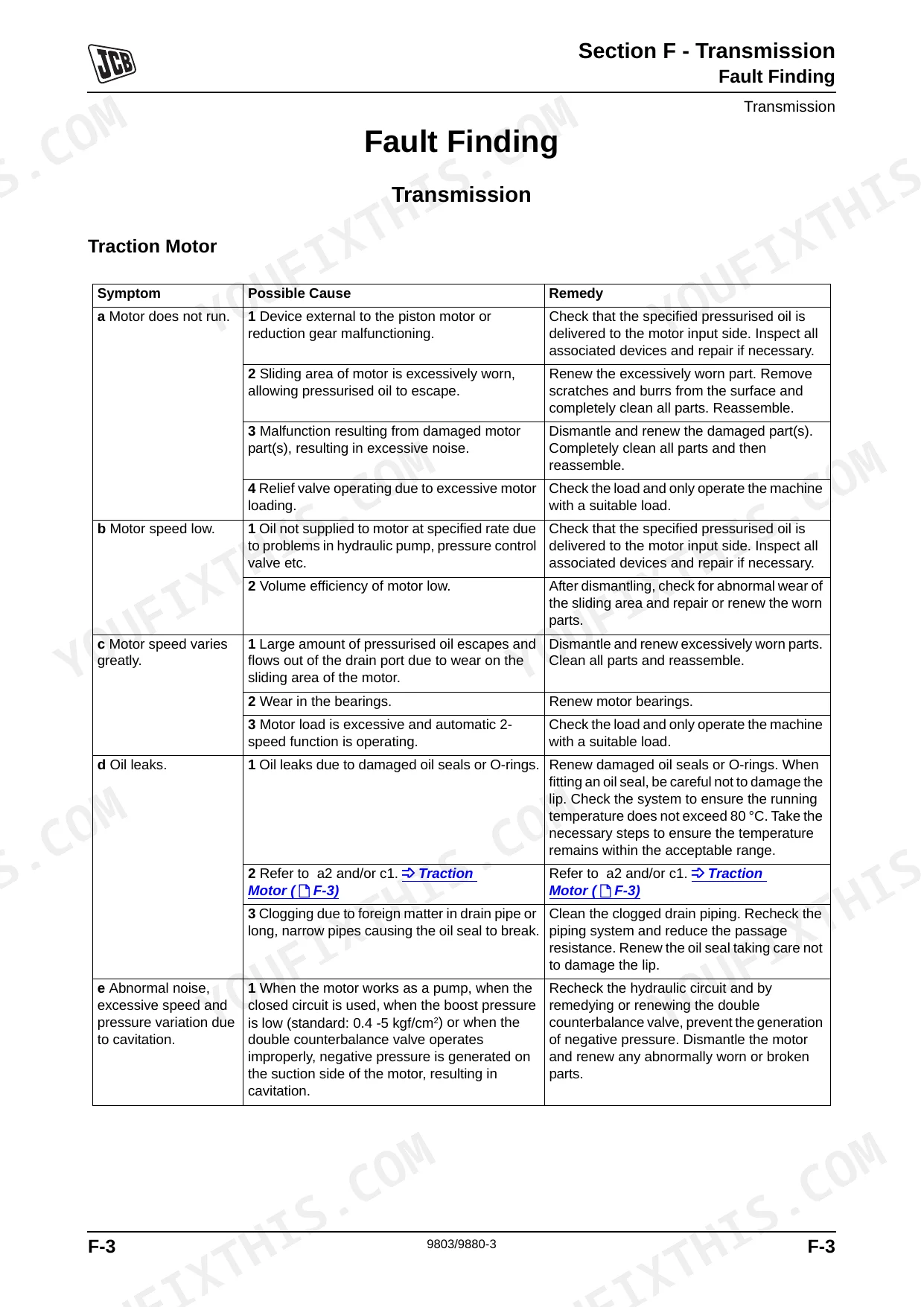

Manual Section: Transmission Fault Finding - Traction MotorFrequently Asked Questions
Why is my JCB excavator showing an error code after startup?

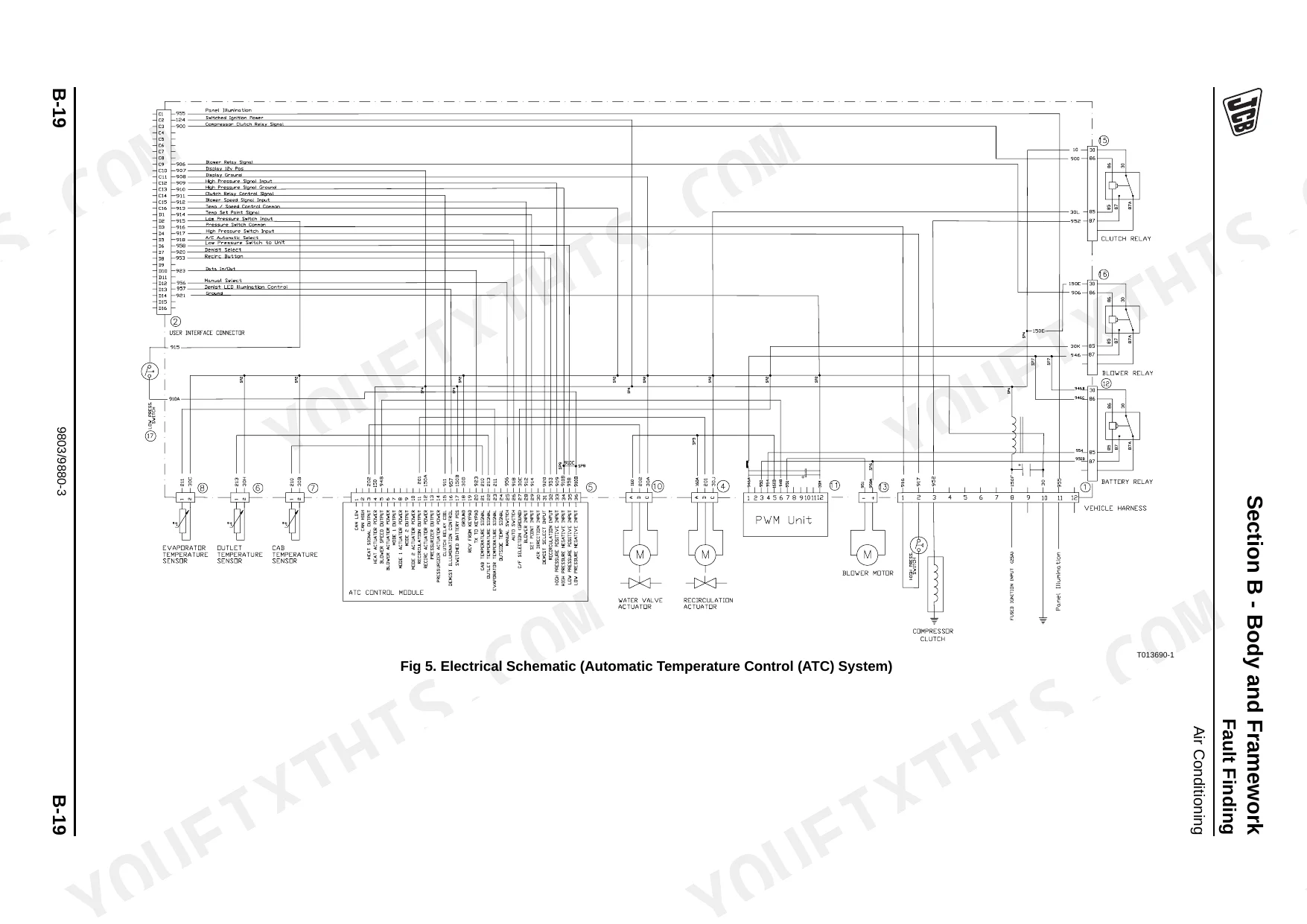

For the Automatic Temperature Control (ATC) system, an error code displayed instantly after startup indicates a wiring error. If the error code appears after one minute, it suggests a system error.
What does the JCB JS series warning light or buzzer mean?

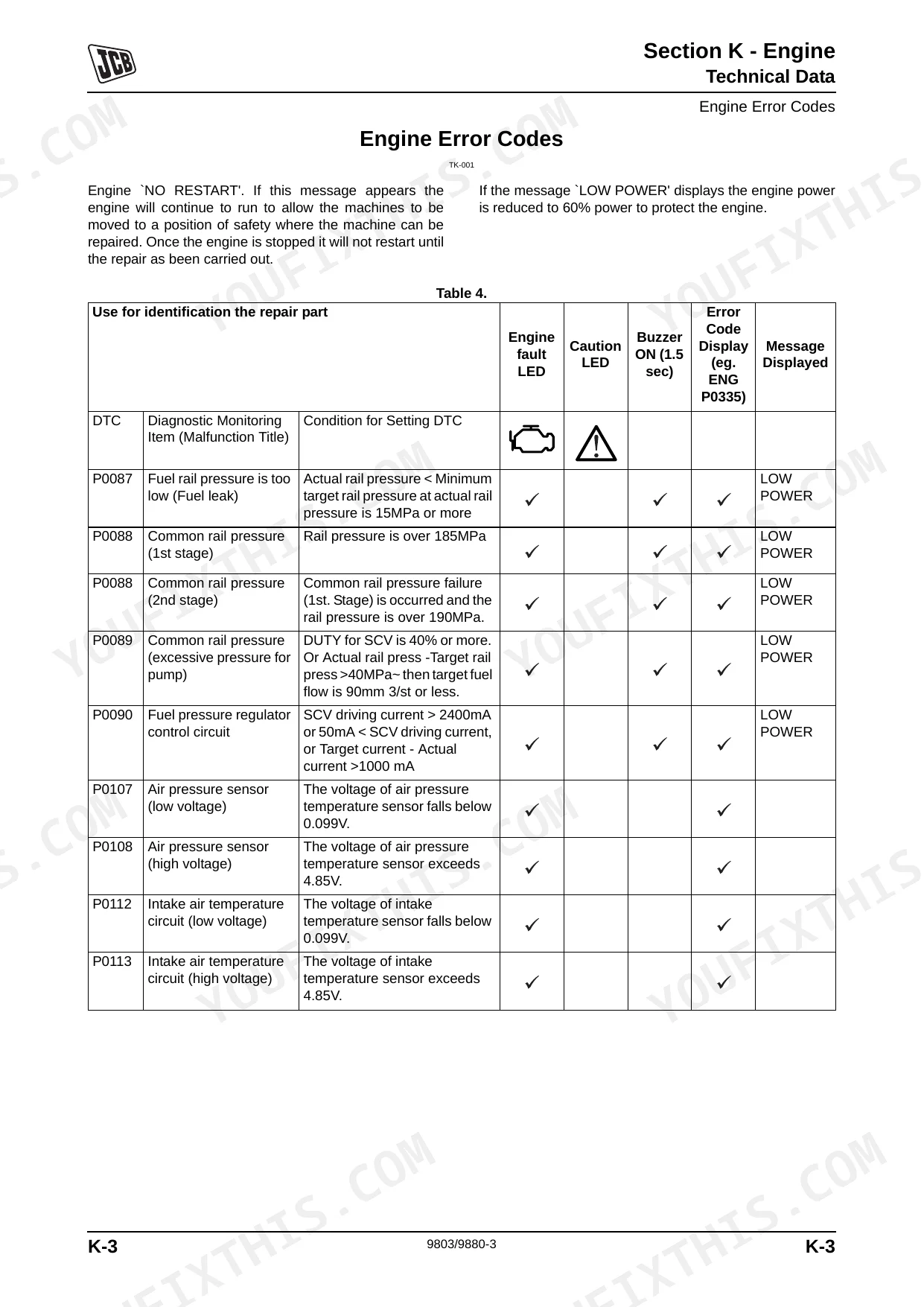

The meaning of warning lights and buzzers varies depending on the specific error. For engine-related issues, the 'Engine Error Codes' table on page K-3 provides details on whether an engine fault LED, caution LED, or buzzer (for 1.5 seconds) is activated, along with the error code display and message.
How to reset JCB JS115 error code
For errors within the Automatic Temperature Control (ATC) system, a battery reset may be required to clear the error after the necessary repair has been completed.
What are the replacement specifications for fuel filters?
The Primary Fuel Filter/Sedimenter should be changed every 250 hours, and the Main Fuel Filter/Sedimenter should be changed every 500 hours. The Fuel Pump Filter Element also requires changing every 250 hours.
What format is this manual in?
You get a 556-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Service Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

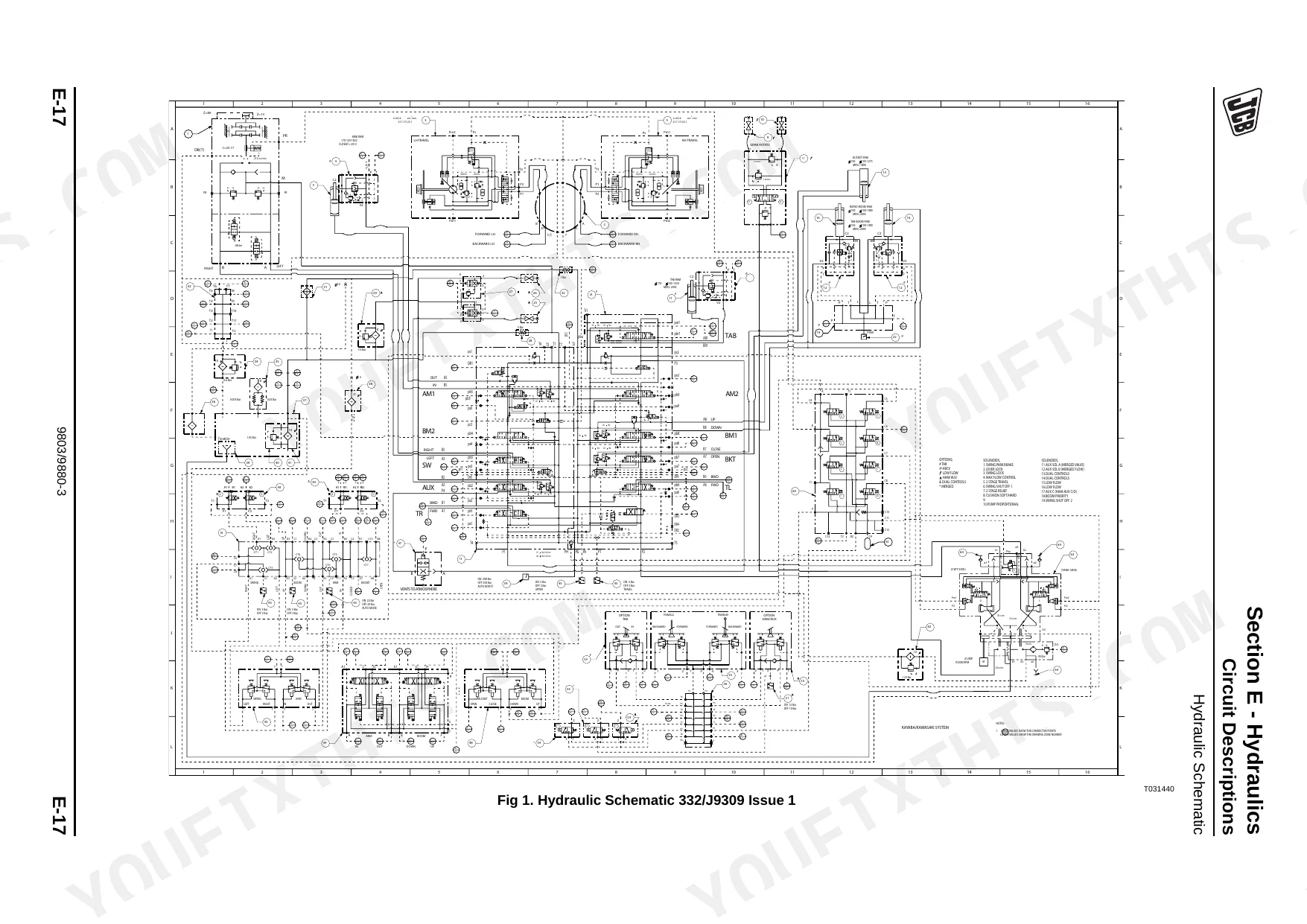

Can I find hydraulic circuit diagrams in this JCB JS115–JS360 Series manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the JCB JS115–JS360 Series.
