Looking for the factory repair procedures for your 2001-2006 JCB excavator? This 823-page JCB JS200 Service Manual PDF (OEM #9803/6510-03) breaks down every system for the JS200, JS210, JS220, JS240, and JS260 models. You get complete electrical troubleshooting with full wiring diagrams, plus heavy-duty hydraulic schematics mapping out the main control valve, travel motors, and auxiliary flow circuits. Open to the track and running gear sections to find step-by-step teardowns for the idler wheels, recoil units, and track gearboxes. Lock down the travel motor fastening bolts between 270 and 310 Nm, and verify the assembled height of the press plate and spherical bush sits exactly at 8.8 to 9.8mm before buttoning up the hydraulic pump. Stop wasting hours trying to decipher weak hydraulic pressure. Download this bookmarked file directly to your tablet, jump to the exact section you need, and get the machine digging again.
What's Inside This JCB JS200–JS260 Series Manual
| System | Pages | Key Topics |
|---|---|---|

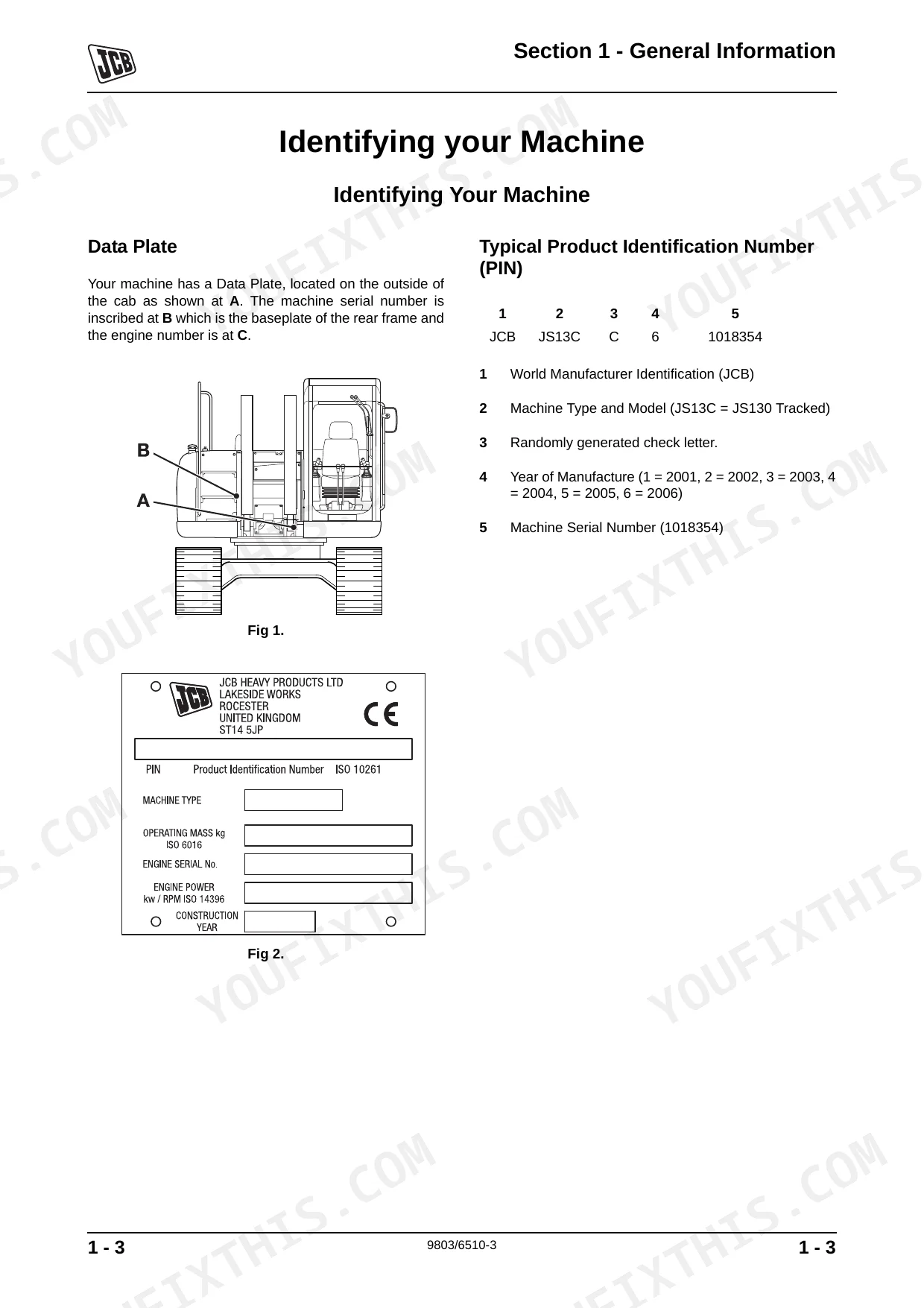

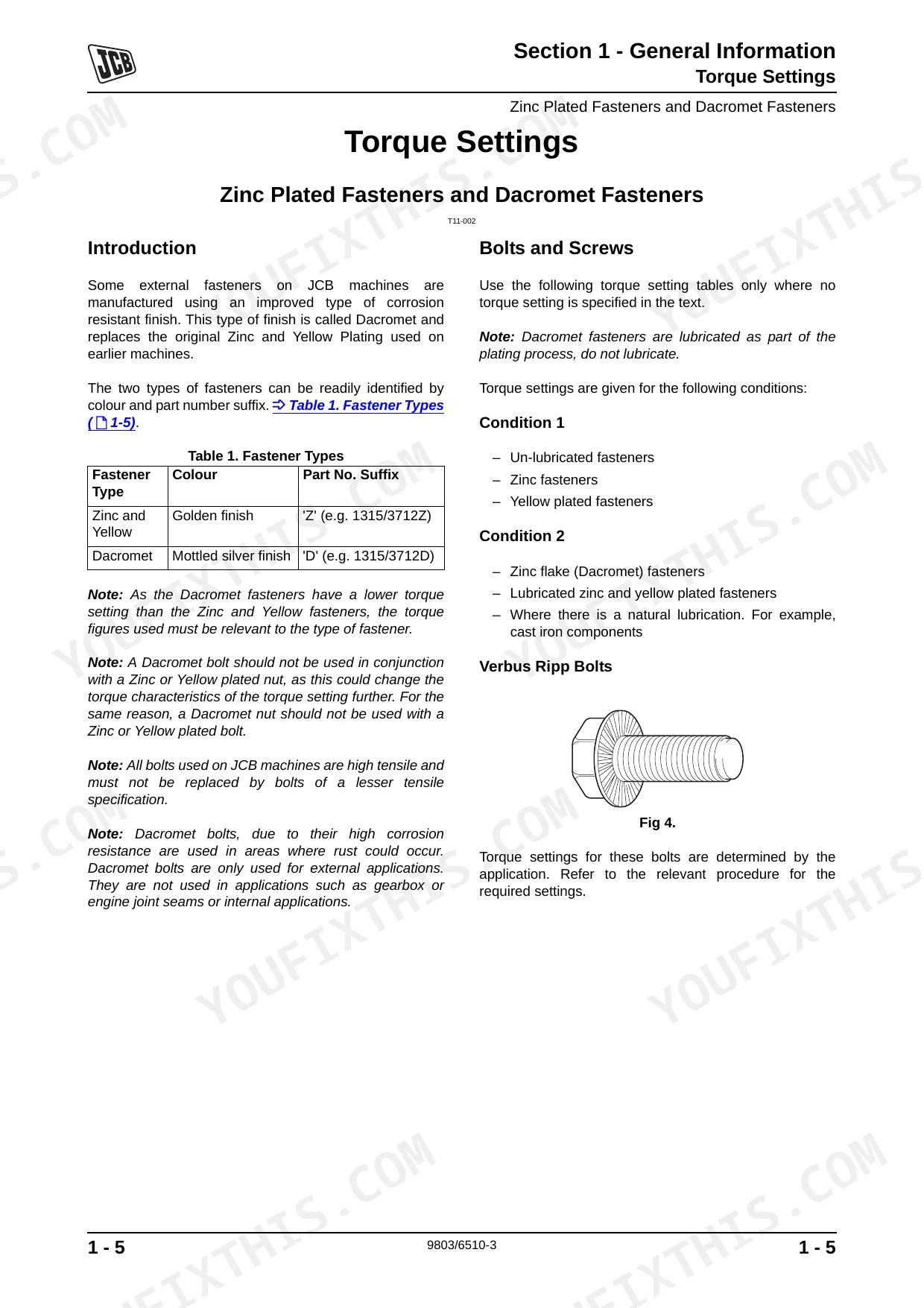

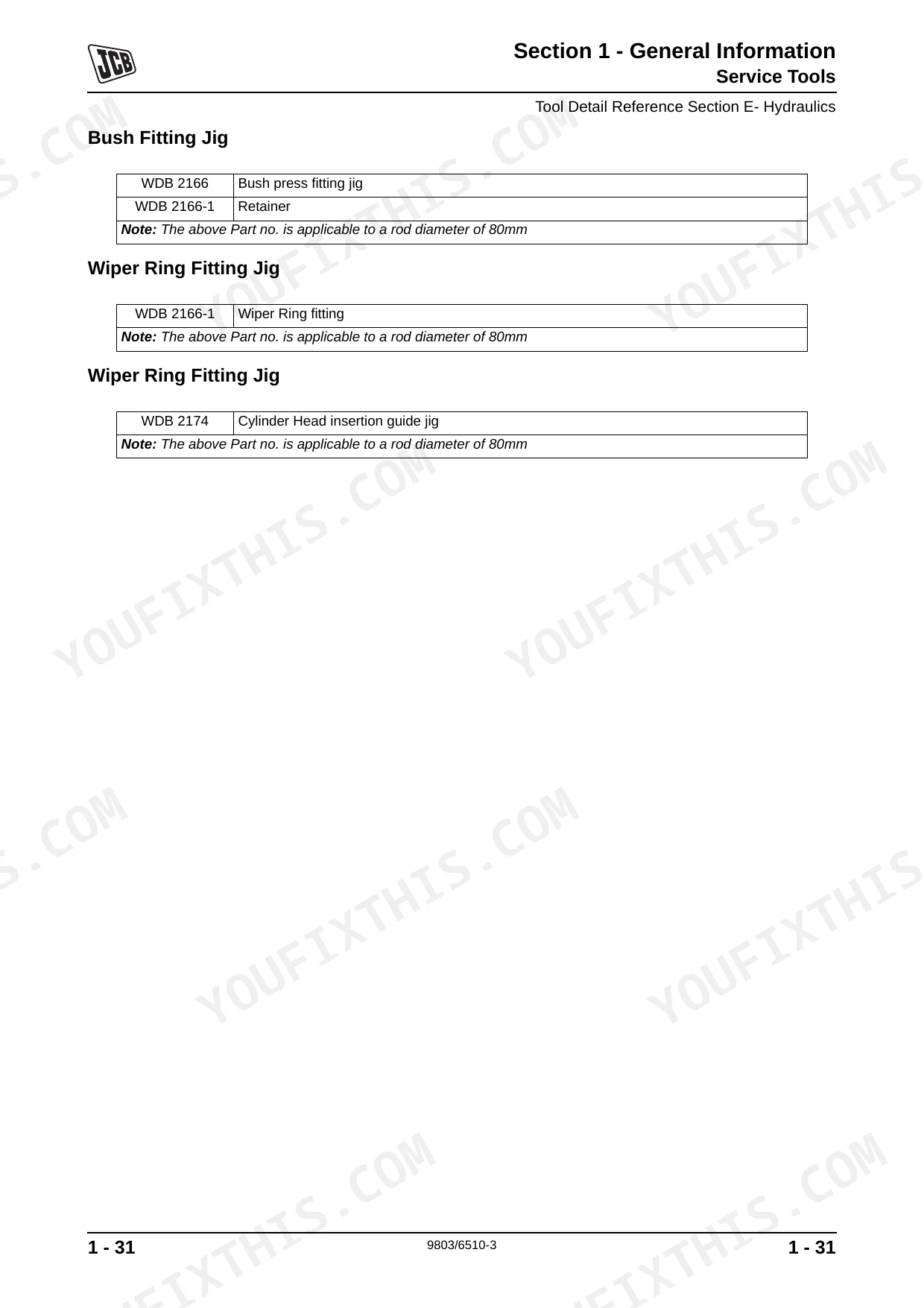

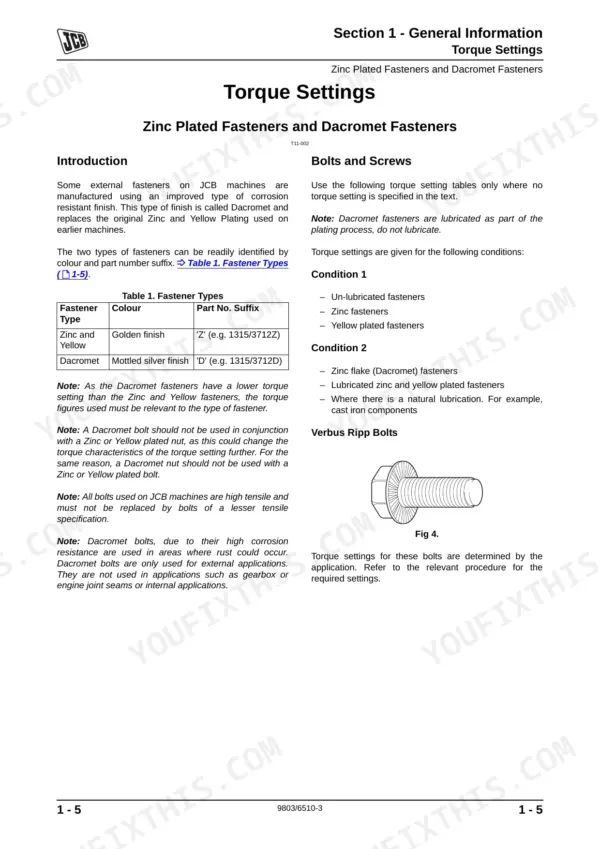

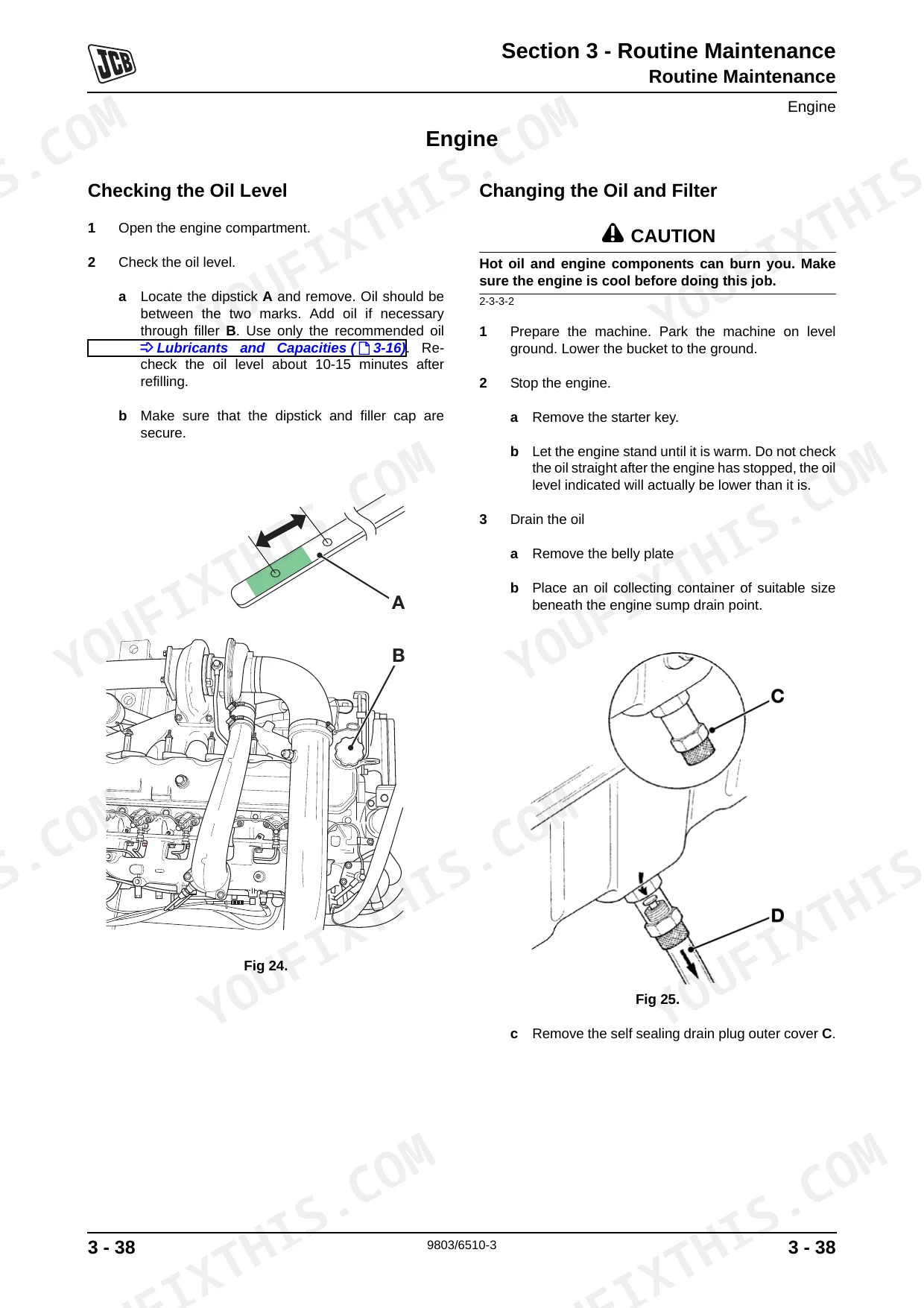

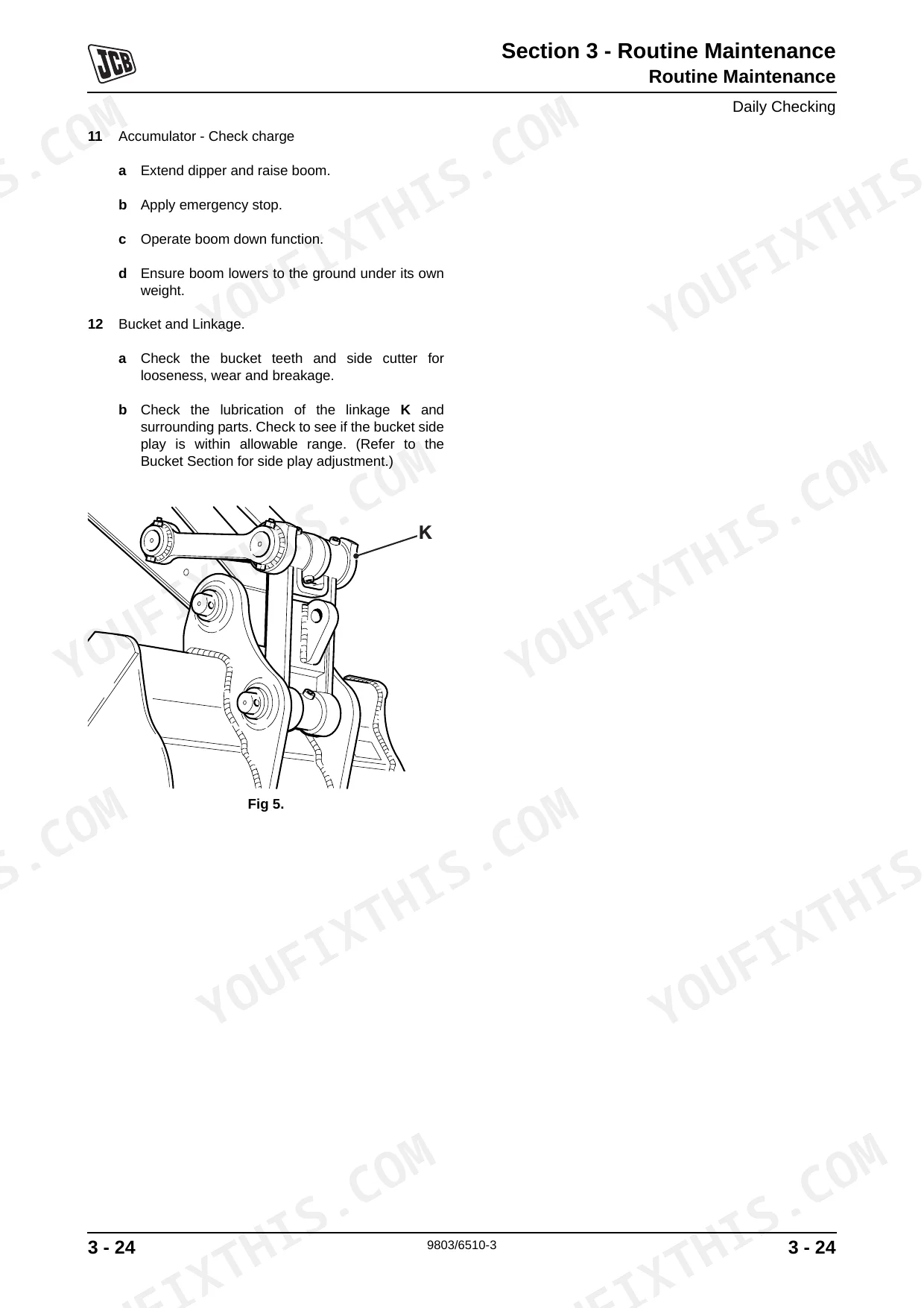

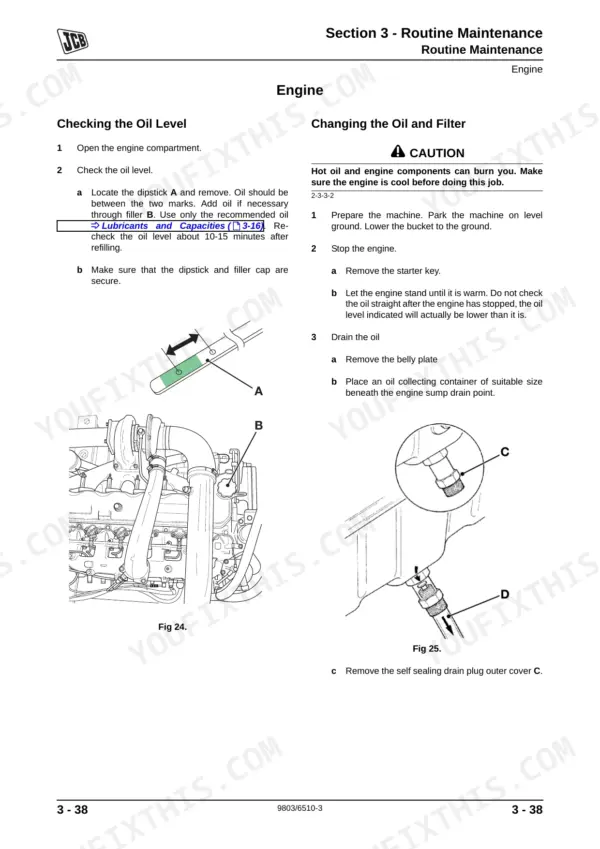

| General Information | 4-41 | Introduction (Schematic Codes, Colour Codes), Identifying Your Machine (Data Plate, Typical Product Identification Number, Typical Engine Identification Number) |
| Care and Safety | 42-59 | Safety Check List (Safety Notices, Safety - Yours and Others, Operating Safety, Maintenance Safety, Safety Decals, Safety Decal Recognition, Chart Definitions), Safety Notices |
| Routine Maintenance | 60-141 | Service Requirements, Identification of Machine Components, Health and Safety, Service Schedules, Lubricants and Capacities, Cleaning the Machine, Checking for Damage |
| Body & Framework | 142-198 | Technical Data (Static Dimensions, Shipping Weight, Dig Depth Chart, Attachments, Air Conditioning), Basic Operation (Air Conditioning), Fault Finding (Air Conditioning) |
| Electrics | 199-429 | Technical Data (Fuses), Wiring Schematics, Fault Finding, Ems Diagnostics |
| Hydraulics | 430-736 | Technical Data, Basic System Operation (Hydraulic Component Location, Introduction to Hydraulic Schematic Symbols), Hydraulic Schematics, Fault Finding |
| Transmission | 737-777 | Technical Data (Travel Equipment), Basic System Operation (Travel Motor Operation), Fault Finding (Introduction), Track Motor (Removal and Replacement) |
| Track and Running Gear | 778-817 | Technical Data (Torque Specifications), Idler Wheel and Recoil Unit (Removal, Replacement), Idler Wheel (Dismantling, Assembly, Wear Limits) |
| Engine | 818-823 | Technical Data (JS200, JS210, JS220, JS240, JS260) |
Quick Reference Specifications

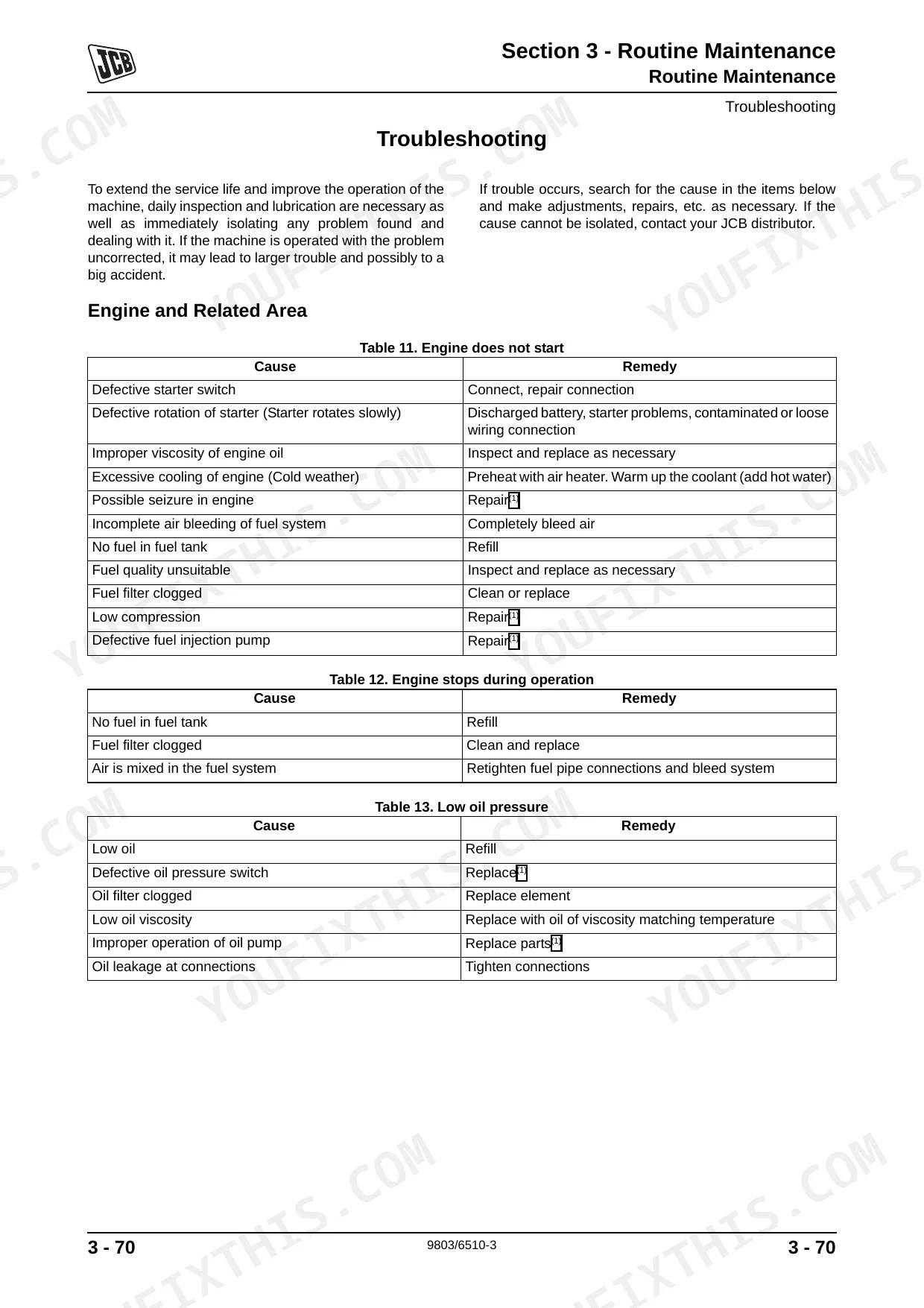

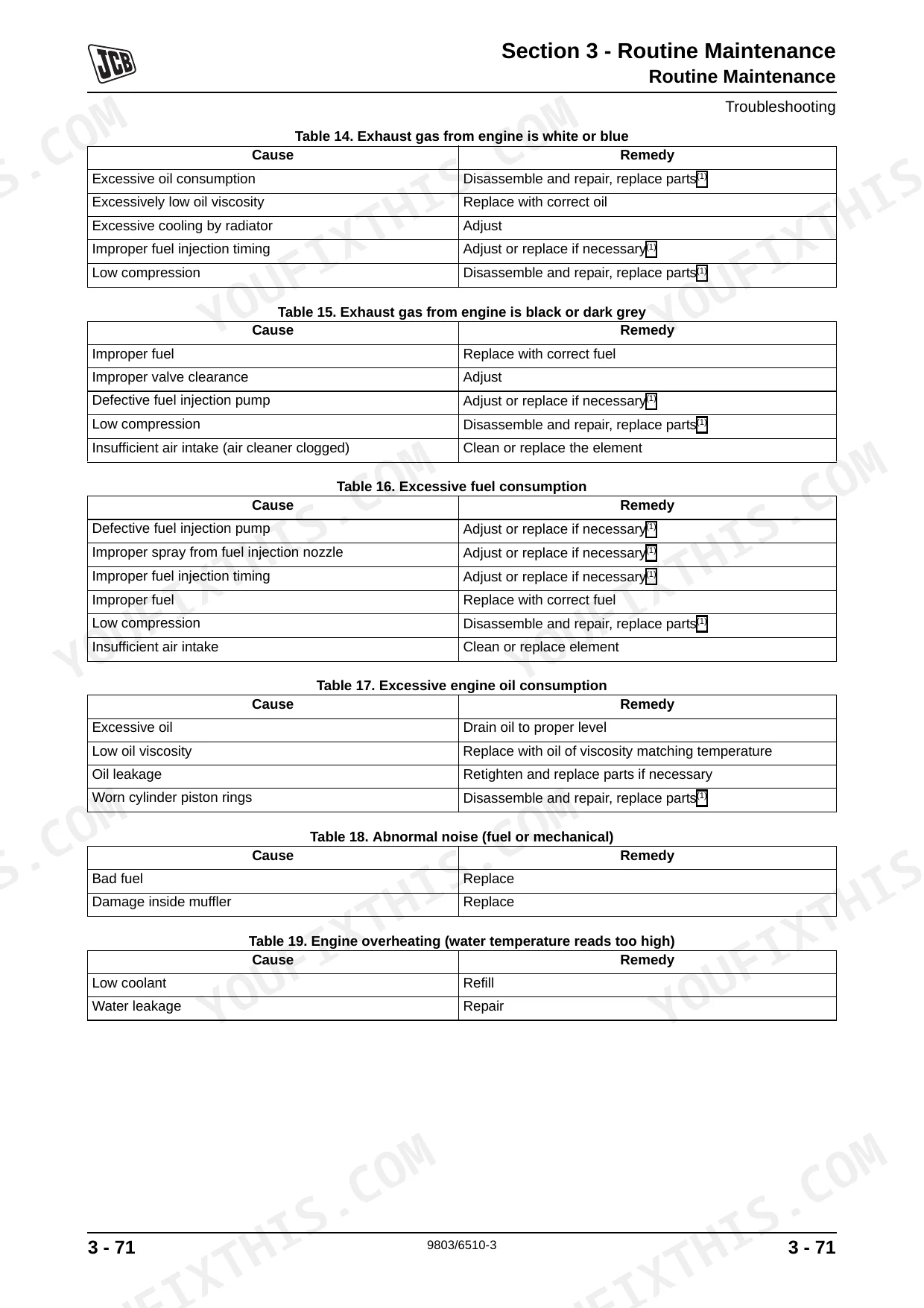

| Specification | Value | Page |
|---|---|---|
| Travel Motor fastening bolts torque | 270~310 Nm | p. 88 |
| Assembled height of press plate and spherical bush | 9.8 - 8.8mm | p. 552 |
| Defective thermostat remedy | Replace(1) | p. 194 |
| Defective fuel injection pump remedy | Repair(1) | p. 133 |
| Drive sprocket fastening bolts torque | 267-312 Nm | p. 782 |
| Radiator cap operation | Check and Clean | p. 73 |
| Top roller installation bolts torque | 521-608 Nm | p. 782 |
| Main Relief Valve (MRV) Standard pressure | 343 bar (4975 lb/in2) | p. 526 |
| Oil leakage remedy | Retighten and replace parts if necessary | p. 134 |
| Hydraulic system not working well or not at all remedy | Check the pressure or replace the pump | p. 693 |
| Engine Oil Capacity | 21.5 litres | p. 80 |
| Hydraulic System Capacity | 200 litres | p. 80 |
JCB JS200–JS260 Series Common Problems This Manual Covers
JCB JS200 JS220 excavator complete loss of hydraulic power or weak boom and lift movement p. 526
Test the main relief valve pressure using the diagnostic ports. Verify the MRV standard pressure reaches exactly 343 bar (4975 lb/in2) as detailed on page 526. If the reading drops below this threshold, inspect the main hydraulic pump seals or replace the relief valve entirely.
Manual Section: Hydraulics Fault Finding (Components & Tests)Unusual grinding noise from the track drive assembly during travel or pivot maneuvers p. 782
Inspect the final drive and track motor assemblies for excessive wear. Check the drive sprocket fastening bolts and torque them to 267-312 Nm as specified on page 782. Drain the travel motor oil and check for metal shavings indicating severe internal gear damage.
Manual Section: Transmission Fault FindingEngine overheating under heavy load with no visible coolant leaks or steam p. 73
Clean the radiator fins and inspect the radiator cap operation as outlined on page 73. Check the thermostat and replace it immediately if it fails to open at the correct temperature. Verify engine valve clearances are within specification by consulting the Engine Technical Data section.

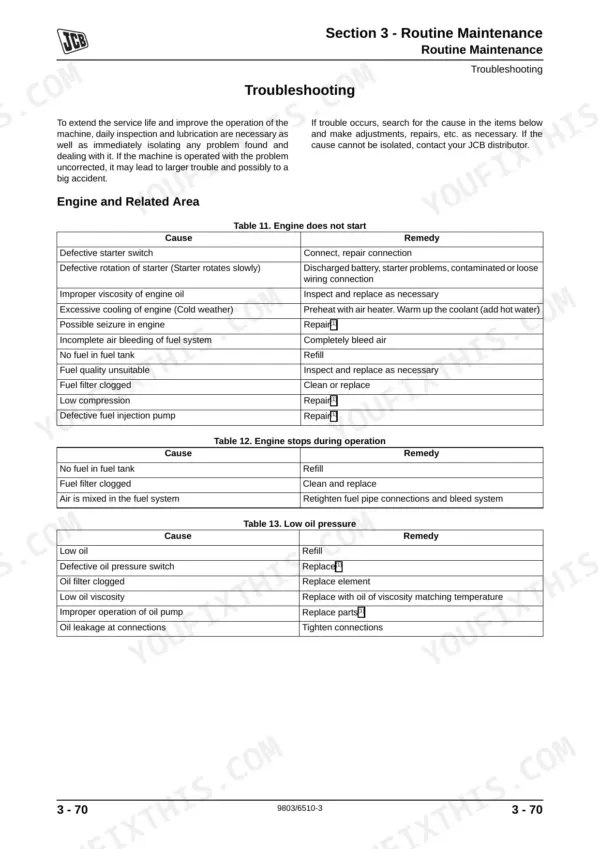

Manual Section: Engine and Related Area TroubleshootingRecurring failure to start or erratic engine operation in cold weather conditions p. 80
Verify the fuel system is free of contamination and bleed the injector lines. Check that the fuel tank is adequately filled, referring to page 80 for capacities, to prevent drawing air. Repair or replace the fuel injection pump if pressure remains low.
Manual Section: Engine and Related Area TroubleshootingFrequently Asked Questions
How do I reset the service indicator on a JCB JS200/JS210/JS220/JS240/JS260?
The service indicator on a JCB JS200/JS210/JS220/JS240/JS260 can be reset via the EMS Set + Mode (20 sec) menu. Press and hold the "Set" and "Mode" buttons for 20 seconds until "Service off" is displayed. Then, enter the four-digit dealer code using the "Up/Down" keys and "Ack" button to step through each digit. Press "Set" to save the code and extinguish the warning lamp.
What do JCB JS200/JS210/JS220/JS240/JS260 error codes mean?
JCB JS200/JS210/JS220/JS240/JS260 error codes are displayed on the EMS and indicate specific faults for solenoids, sensors, and electrical components. A comprehensive list of error codes and their meanings can be found in the "List of text messages displayed on the EMS" section on pages C-172 and C-173 of the Electrics chapter.
How do I clear fault codes on a JCB JS200 series excavator?
To clear fault codes on a JCB JS200 series excavator, use the "Error Log Reset Tool" within the JCB Service Master software. Double-click the icon to access the reset screen, then click the "send button" to reset all error logs.
What are the torque specs for JCB JS200/JS210/JS220/JS240/JS260 track motor bolts?
For JCB JS200/JS210/JS220/JS240/JS260 track motor bolts (Travel Motor), the torque specification is 270-310 Nm (27.6-31.8 kgf m, 200-230 lbf ft) for M16 bolts with a 24 mm wrench. It is recommended to use JCB Threadlocker and sealer (High Strength) and tighten to the specified torque.
How will I receive this Service Manual?
Instant PDF download. You get the full 823-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there wiring harness diagrams in this JCB JS200–JS260 Series manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR layer, enabling full text search and copying. The text is consistently crisp and easy to read, and diagrams are clear raster images with legible labels. Pages are clean, showing no significant scan artifacts or skewed content. You will find some pages intentionally left blank as filler.
