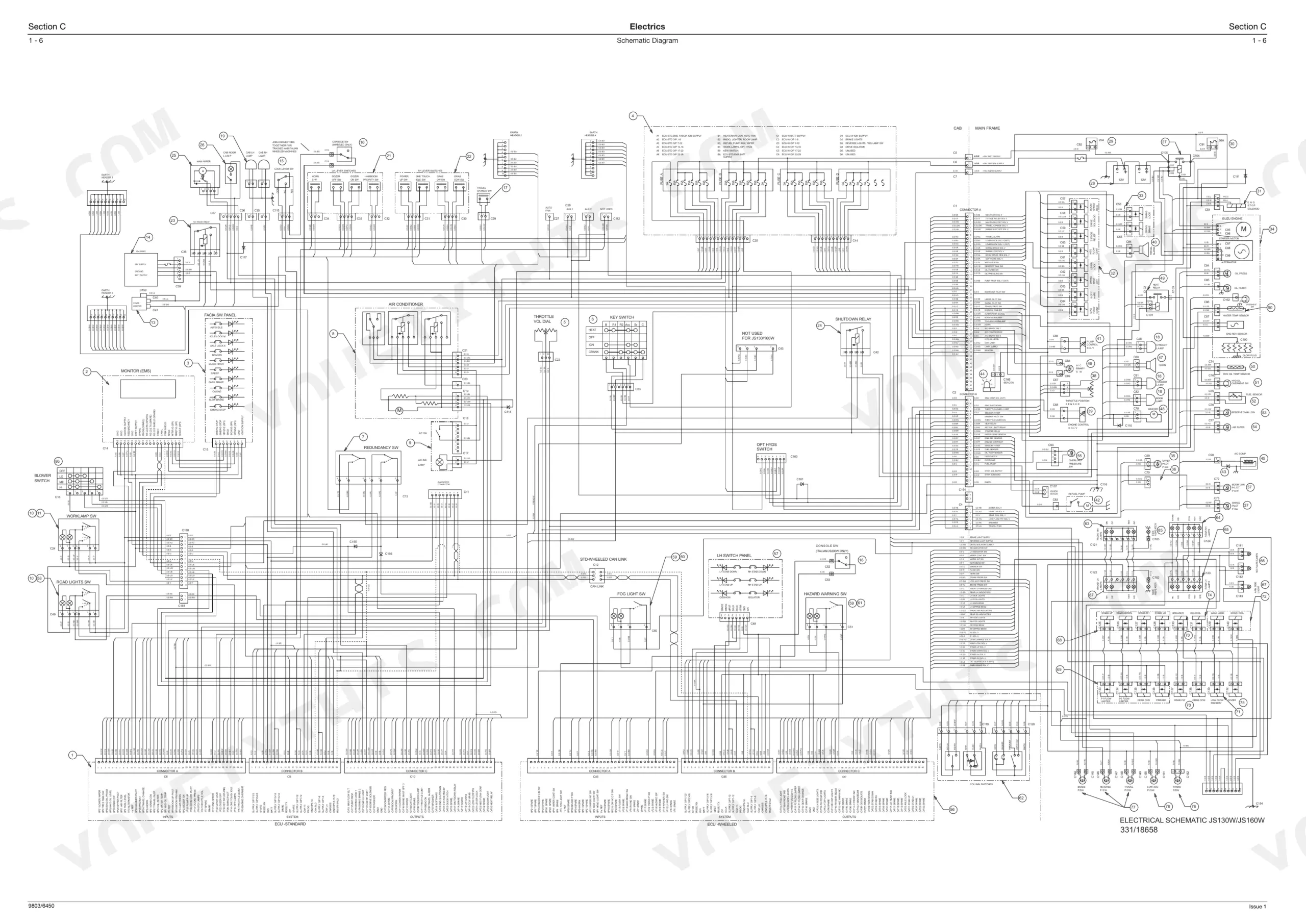

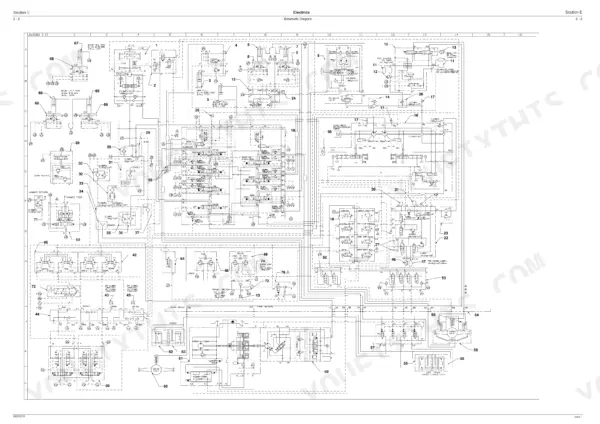

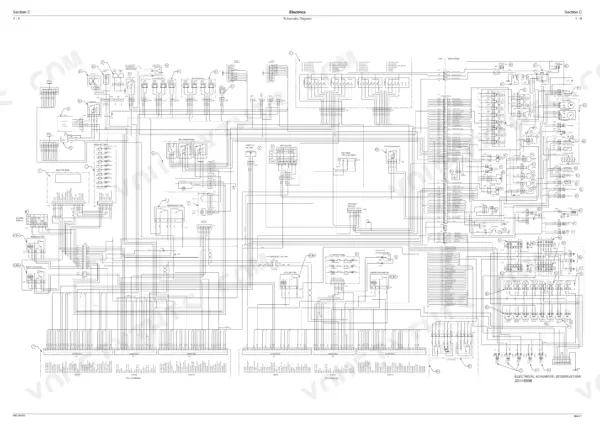

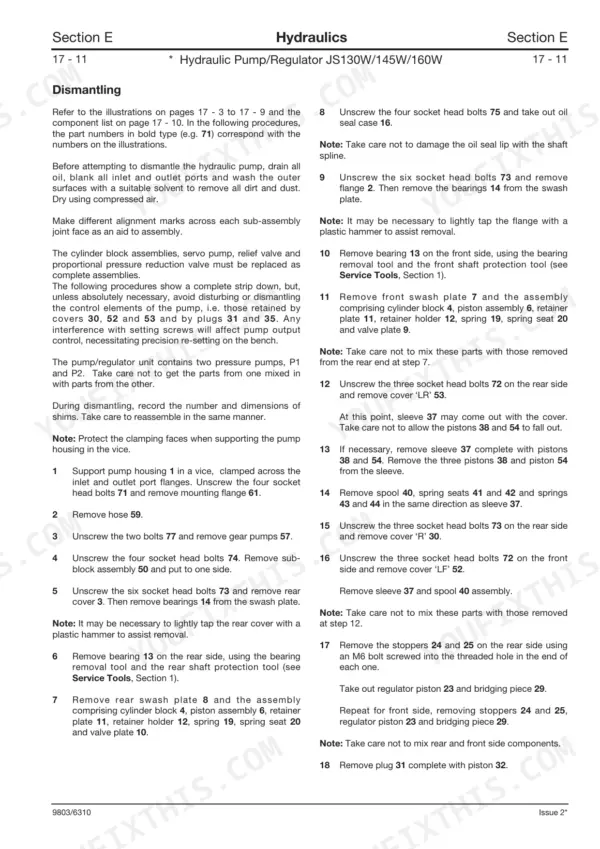

Looking for the official teardown procedures for your wheeled excavator? This 570-page JCB JS145W service manual PDF (OEM #9803/6310) covers every system across the JS130W, JS145W, JS160W, and JS175W models. You get complete hydraulic schematics tracing fluid through the slew and travel motors, plus full electrical wiring diagrams to track down electrical faults. Open up the procedures section to find step-by-step rebuilding instructions for the drive gearbox, axle hubs, and service brakes, backed by detailed exploded views. Fill the hydraulic system with exactly 124 litres of fluid and tighten those wheel nuts to 500 Nm before putting your machine back to work. Every hour in the shop costs money. Download this bookmarked file right to your tablet, jump straight to the correct technical data, and fix the problem on the first try.
What's Inside This JCB JS130W, JS145W, JS160W, JS175W Manual
| System | Pages | Key Topics |
|---|---|---|
| Routine Maintenance | 31-41 | Lubricants and Capacities, Service Schedules, Greasing, Hydraulics, Transmission, Engine |
| Service Brakes | 567 | Dismantling and Assembly, Bleeding Procedure |
| Technical Data | 568-570 | Technical Data Tier 2 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| JS130W, JS145W, JS160W | ||
| Engine Oil Capacity | 12.1 litres | p. 33 |
| JS175W | ||
| Engine Oil Capacity | 21.5 litres | p. 34 |
| All Models | ||
| Hydraulic System Fluid Capacity | 124 litres | p. 33 |
| Fuel Tank Capacity | 240 litres | p. 33 |
| Wheel Nut Tightness | 500 Nm | p. 47 |
| Control Valve Spool Stroke | 8 mm | p. 283 |
| Battery Securing Bolts Torque | 19.6-29.4 Nm | p. 104 |
| JS130W/JS145W | ||
| Slew Motor Weight | 99 kg | p. 361 |
| JS160W/JS175W | ||
| Slew Motor Weight | 197 kg | p. 378 |
JCB JS130W, JS145W, JS160W, JS175W Common Problems This Manual Covers
JCB JS130W wheeled excavator boom and stick functions responding slowly with weak hydraulic digging force p. 283
Inspect the control valve linkages and measure the spool stroke. Adjust the linkage to achieve exactly 8 mm of control valve spool stroke as detailed on page 283. Drain and refill the hydraulic system with 124 litres of fluid if contamination is present.
Manual Section: Hydraulic System Fault FindingUpper structure fails to rotate smoothly and slew motor casing leaking hot hydraulic oil p. 361
Disconnect the hydraulic lines and prepare a suitable hoist before removing the assembly. The slew motor weighs 99 kg, so secure it properly as shown on page 361. Inspect the motor sliding surfaces for seizure and replace the shaft seal to stop leaks.
Manual Section: Slew Motor Fault Finding (JS130W/JS145W)Intermittent electrical system message faults and computer display resetting during rough terrain operation p. 104
Check the battery terminals for corrosion and verify the hold-down bracket is tight. Torque the battery securing bolts to 19.6-29.4 Nm as specified on page 104. Inspect the wiring harnesses for chafing and test the charging system output under load.
Manual Section: Electrical System Fault Finding (CAPS II)Heavy clunking noise from the undercarriage axles when braking or changing travel direction p. 47
Inspect the wheel hubs for wear and verify all fasteners are tight. Torque the wheel nuts to exactly 500 Nm using a calibrated wrench as directed on page 47. Bleed the service brakes if pedal feel is spongy during operation.
Manual Section: Routine MaintenanceFrequently Asked Questions
What are the torque specs for the slew motor bolts on JCB JS145W?
For the JS130W/JS145W slew motor, the cap screws (item 27) that attach the cover (item 17) to the housing (item 25) should be tightened to a torque of 157 Nm (116 lbf ft).
What is the procedure to reset the engine temperature alarm on JCB JS175W?
The manual does not describe a specific reset procedure for the engine temperature alarm. Instead, to address the "! Overheat" message, you should turn the engine to low idling to lower the water or oil temperature, and check and clean the radiator. The alarm should clear once the temperature returns to normal.
How to reset hydraulic alarm on JCB JS160W
The manual does not describe a specific reset procedure for a hydraulic alarm. To address an "! Overheat" message, which indicates high hydraulic oil temperature, you should turn the engine to low idling to lower the oil temperature, and check and clean the radiator. The alarm should clear once the temperature returns to normal.
How do you fix JCB JS130W wheeled excavator boom and stick functions responding slowly with weak hydraulic digging force?
Inspect the control valve linkages and measure the spool stroke. Adjust the linkage to achieve exactly 8 mm of control valve spool stroke as detailed on page 283. Drain and refill the hydraulic system with 124 litres of fluid if contamination is present.
How will I receive this Service Manual?
You get a 570-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

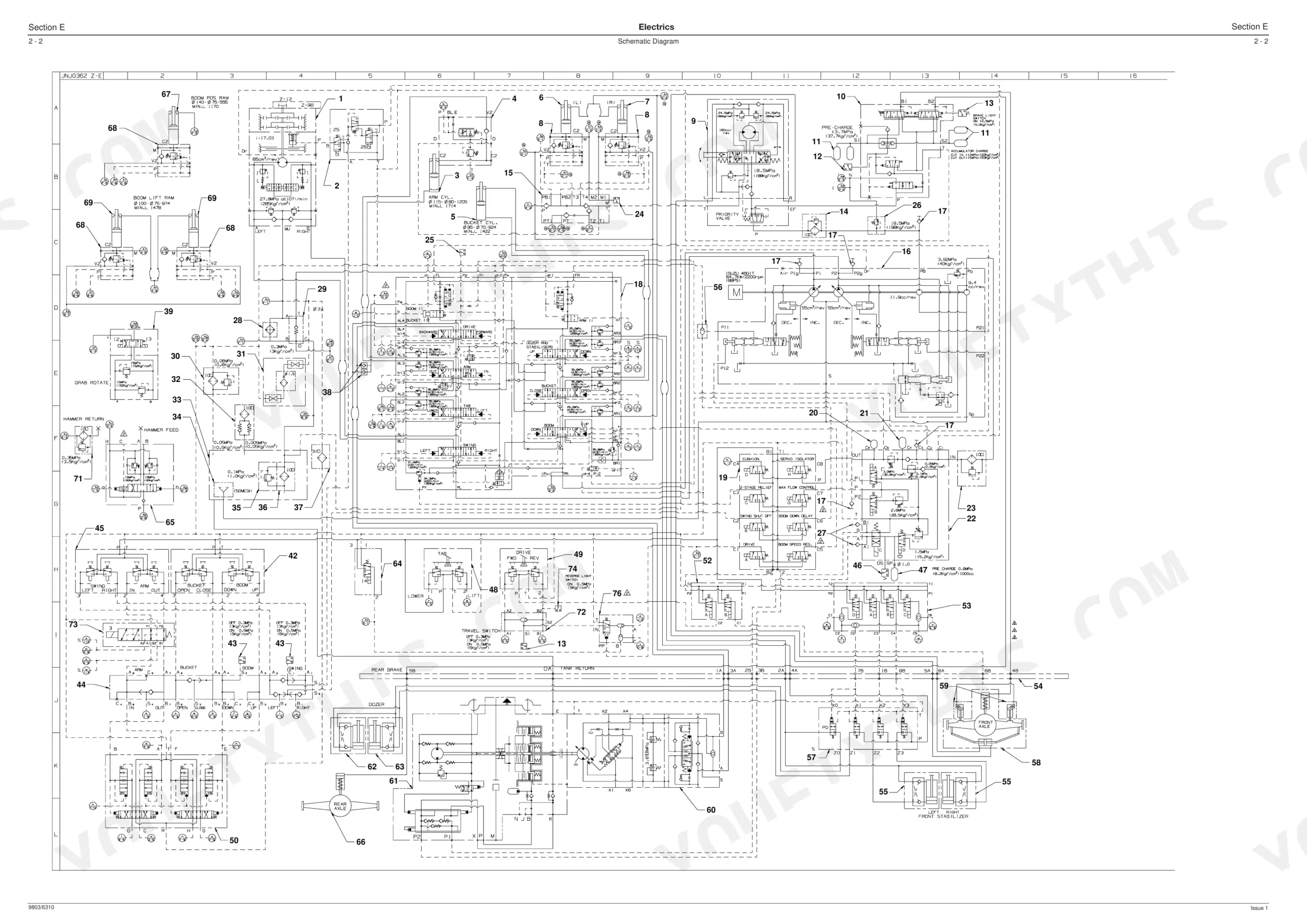

Are there hydraulic schematics in this JCB JS130–JS175 Series manual?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout the manual. The text quality is generally crisp and readable, though some smaller fonts in diagrams may show slight pixelation upon high zoom. Diagrams and illustrations are a mix of raster and vector, with most labels remaining clear. Pages are clean with no significant stains or marks, though some exhibit minor skewing from the scanning process. There are several blank or filler pages, particularly at the beginning of sections, which is common in service manuals.
