Mastering the cab of your wheeled excavator starts right here with this 342-page JCB JS145W operator manual pdf (OEM #9831/5150), fully detailing the controls for the JS160W, JS20 MH, and T4F variants. Inside, you get a complete breakdown of dashboard error codes, daily maintenance intervals, and precise fluid capacities to keep the machine running strong. Open to the technical data section to find exact load charts, lifting hook dimensions, and a full guide to walking around the equipment safely. Verify the F1 beacon fuse is rated for 10 A and lock down the boom base pivot pins to a strict 259 N.m. A blinking warning light should never ruin your shift. Grab this bookmarked file, pull it up on your tablet in the cab, and get back to digging.
Complete the set for your JS145W / JS160W / JS20MH
Other edition of this manual
What's Inside This Operator Manual
| System | Pages | Key Topics |
|---|
| Acronyms Glossary | 12 | Arv Auxiliary Relief Valve, Cesar Construction Equipment Security and Registration, Decu Display Electronic Control Unit, DEF Diesel Exhaust Fluid, Ecm Engine Control Module |
| Safety | 14-16 | Safety - Yours and Others, Safety Warnings, Clothing and Personal Protective Equipment |
| About the Product | 17-36 | Introduction (General, Name and Address of the Manufacturer, Product Compliance) |
| Operating Safety | 38-42 | General, Worksite Safety, Risk Assessment |
| Walk-Around Inspection | 43 | |
| Entering and Leaving the Operator Station | 44-51 | General, Emergency Exit |
| Doors | 52-53 | Operator Door |
| Windows | 54-56 | Front Window, Side Window |
| Sun Visor/Sunblind | 57-58 | Sunblind |
| Battery Isolator | 59 | |
| Before Starting the Engine | 60 | |
| Operator Seat | 61-63 | General, Suspension Seat, Heated Seat Controls, Seat Ventilation Controls |
| Seat Belt | 64-66 | General, Inertia Reel Seat Belt, Static Seat Belt |
| Mirrors | 67-71 | |
| Starting the Engine | 72-75 | General, Warming Up, Immobiliser |
| Stopping and Parking | 76-77 | |
| Preparing for Travel | 78-87 | |
| Drive Controls | 88-92 | |
| Instruments | 93-124 | |
| Operating Levers/Pedals | 125-222 | |
| Maintenance | 223-272 | Introduction (General, Owner/Operator Support, Service/Maintenance Agreements, Obtaining Spare Parts), Maintenance Safety (General, Fluids and Lubricants) |
| Technical Data | 273-334 | Static Dimensions (General, Lifting the Machine, Table 22. Item Dimension, Lifting Hook/Lug Options, Table 23. Lifting Hook Lifting Lug) |
| Declaration of Conformity | 335-336 | General, Data (Table 74), Figure 300 |
| Warranty Information | 337-342 | Service Record Sheet (Table 75, Figure 301. Installation Checklist), Figure 302. 500h/3 Month, Figure 303. 1000h/6 Month, Figure 304. 1500h/9 Month, Figure 305. 2000h/12 Month |
Quick Reference Specifications
| Specification | Value | Page |
|---|
| JS145W [T4F] |
| Hydraulic pump bolt tightening torque | 68 N.m | p. 323 |
| JS160W [T4F], JS20 MH [T4F] |
| Pivot pins (except boom base and dipper) tightening torque | 259 N.m | p. 324 |
| Pivot pins (boom base and dipper) tightening torque | 259 N.m | p. 324 |
| Hydraulic pump bolt tightening torque | 68 N.m | p. 324 |
| All Models |
| F1 Beacon fuse rating | 10 A | p. 325 |
| F2 Backlight fuse rating | 5 A | p. 325 |
| F4 Ignition wakeup fuse rating | 5 A | p. 326 |
| F5 Livelink 2 ECU (Electronic Control Unit) ignition fuse rating | 5 A | p. 326 |

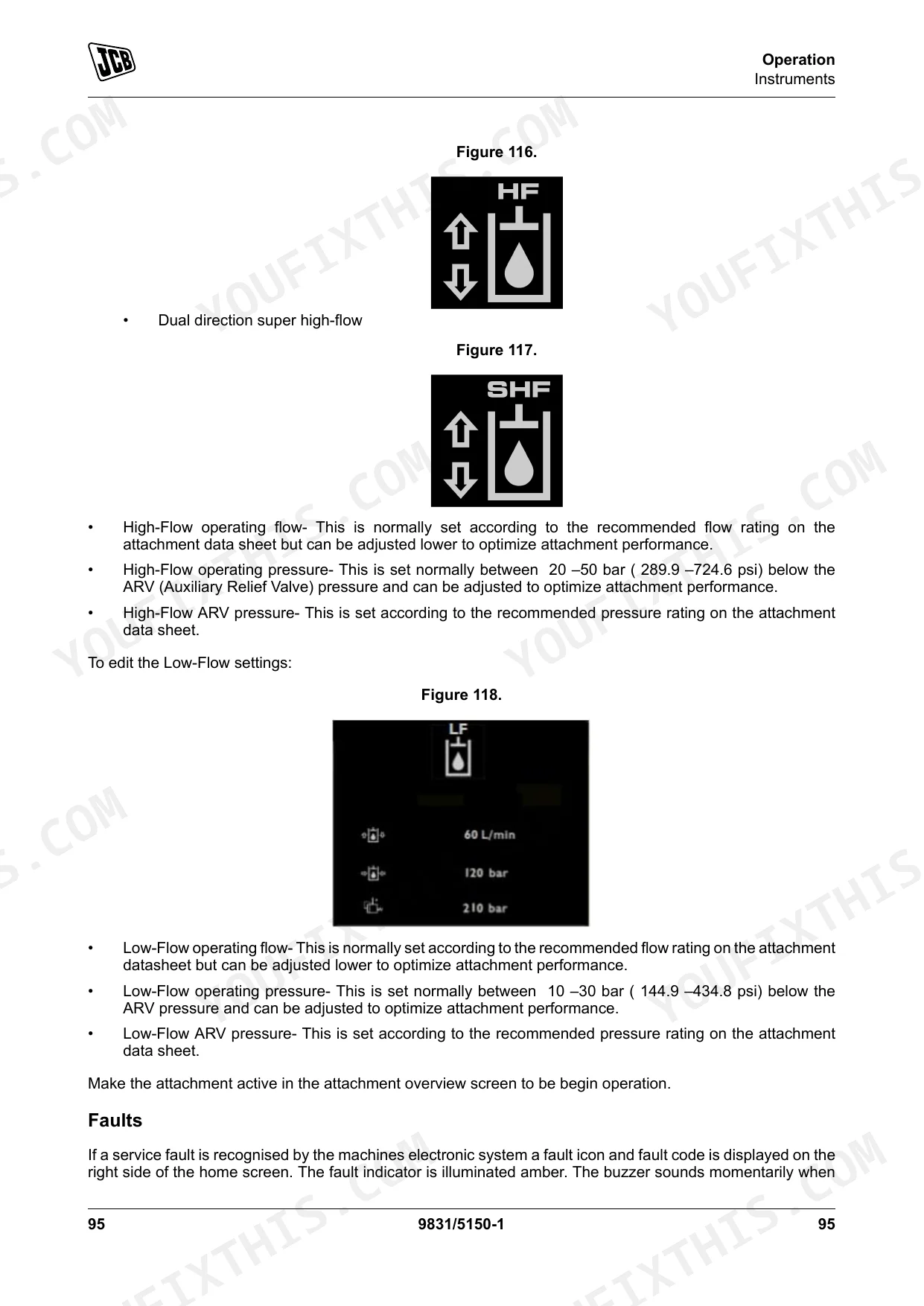

| Fault indicator (red) | Stop the machine and turn off the engine as soon as it is safe to do so. | p. 96 |
| Fault indicator (amber) | Proceed with caution, stop the machine and turn off the engine as soon as it is safe to do so. | p. 96 |
| Hydraulic performance in extremely low temperatures | A time lag may occur when selecting these services if the hydraulic oil is not sufficiently warm. | p. 191 |
| Hydraulic service operation check | Check for: Speed of operation, Strength of operation, Juddering, Abnormal noises. Do not use the machine if one or more of these faults are found. You must make sure that the hydraulic service is repaired immediately. | p. 275 |

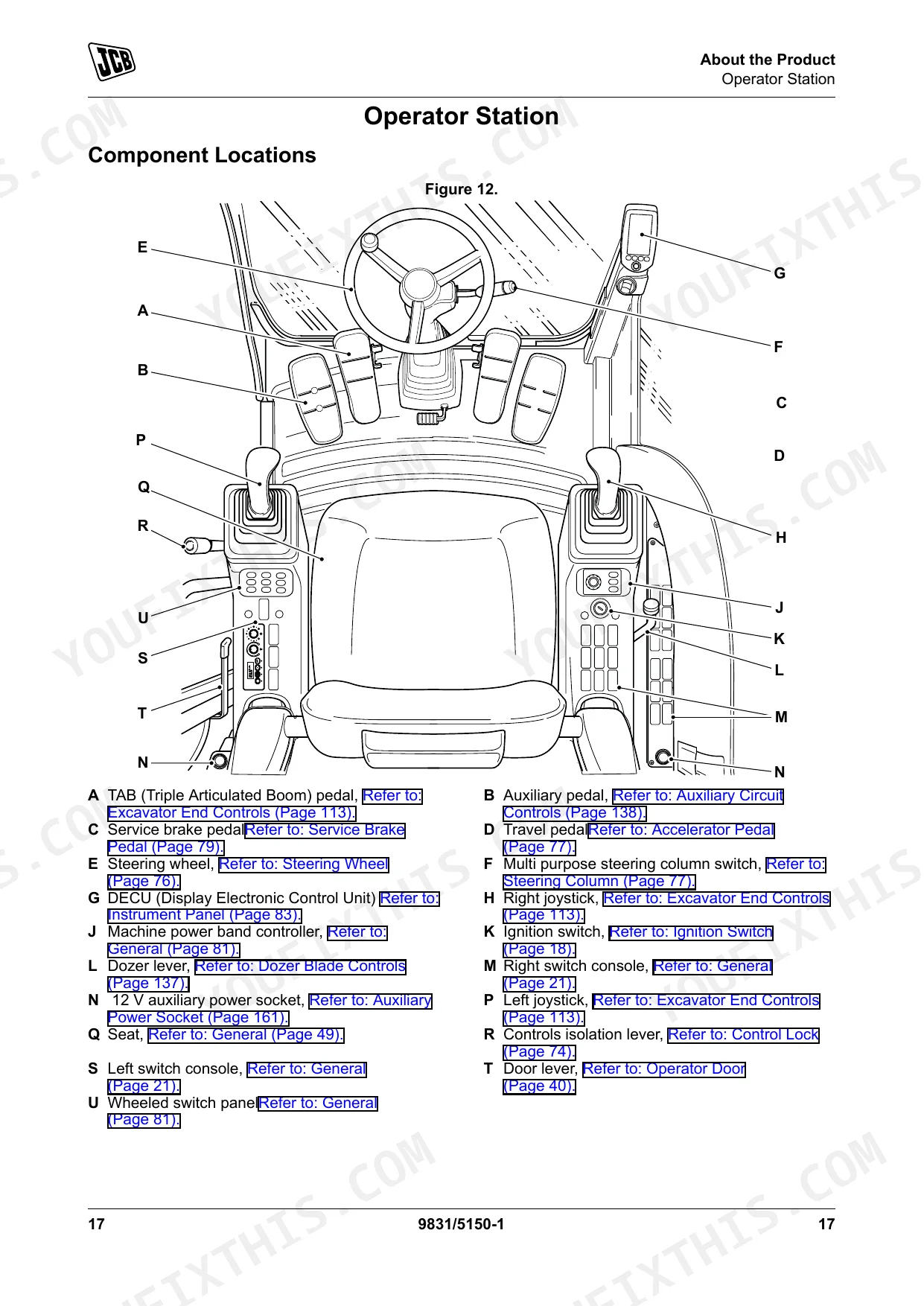

![JCB JS145W, JS160W, JS20 MH, JS145W [T4F], JS160W [T4F] operator station component location diagram and control list.](https://youfixthis.com/wp-content/uploads/2026/06/jcb-js145w-to-mh-wheeled-excavator-operator-manual-9831-5150-controls-29-600x848.webp "jcb-js145w-to-mh-wheeled-excavator-operator-manual-9831-5150-controls-29.webp")
