Spanning 807 pages, this JCB JS175W service manual PDF (OEM #9803/6550-1) breaks down the complete driveline, hydraulics, and cab structure for your 2001-2006 JS175W Auto and JS175W excavator. You get detailed hydraulic schematics mapping the main control valve and drive circuits, complete wiring diagrams for the throttle control and auto boost pressure systems, and a full section of diagnostic error codes. Open to the transmission section for exploded views of the drive gearbox and step-by-step teardown procedures to fix any fault. Confirm your front axle differential holds exactly 18 liters before tightening down the wheel nuts to a firm 500 Nm. Machine downtime kills your profit margin. Grab this bookmarked download, open it on your tablet in the yard, and get the exact numbers to finish the repair.
What's Inside This JCB JS175W Auto, JS175W, JS175 Wheeled Manual
| System | Pages | Key Topics |
|---|---|---|

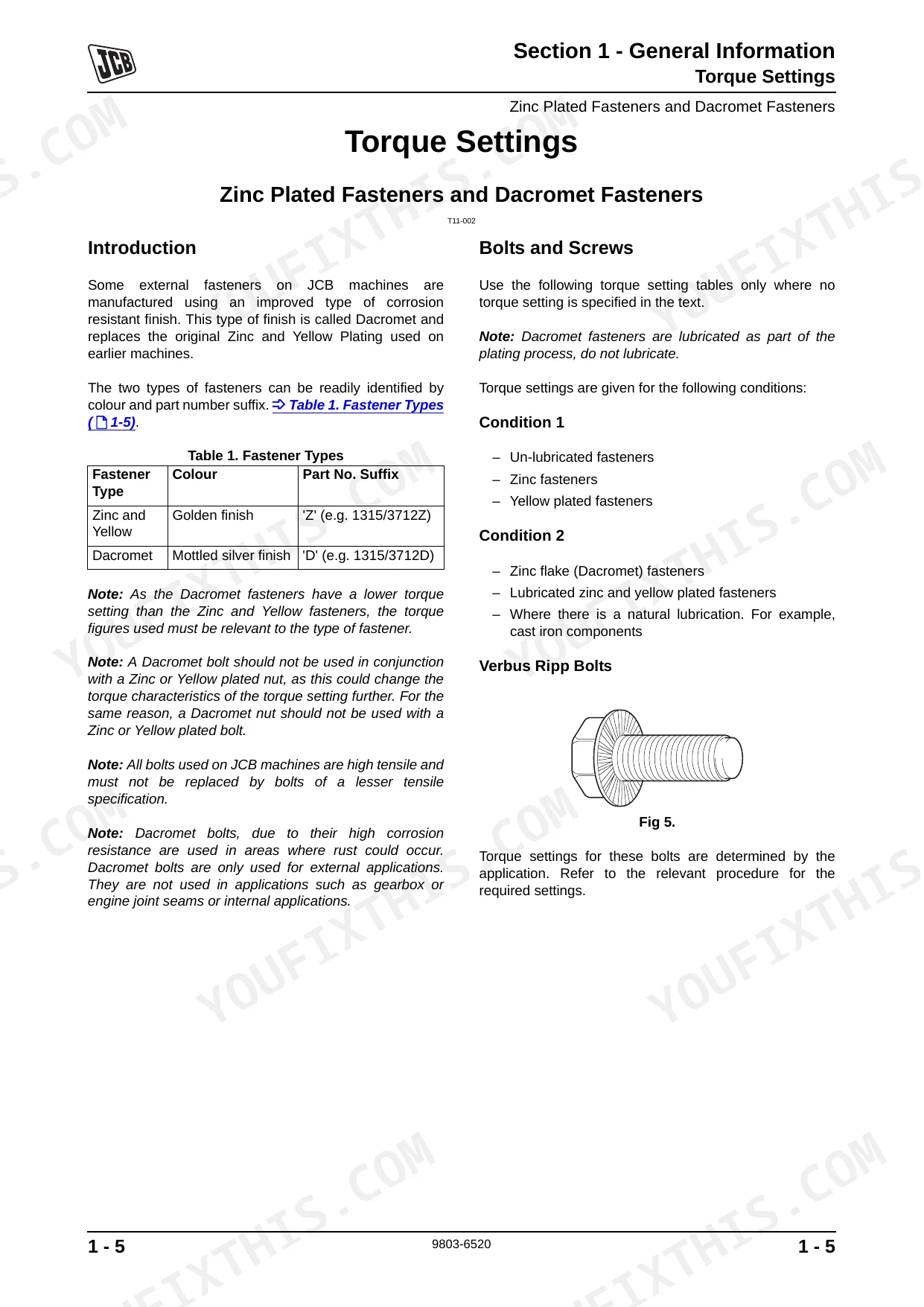

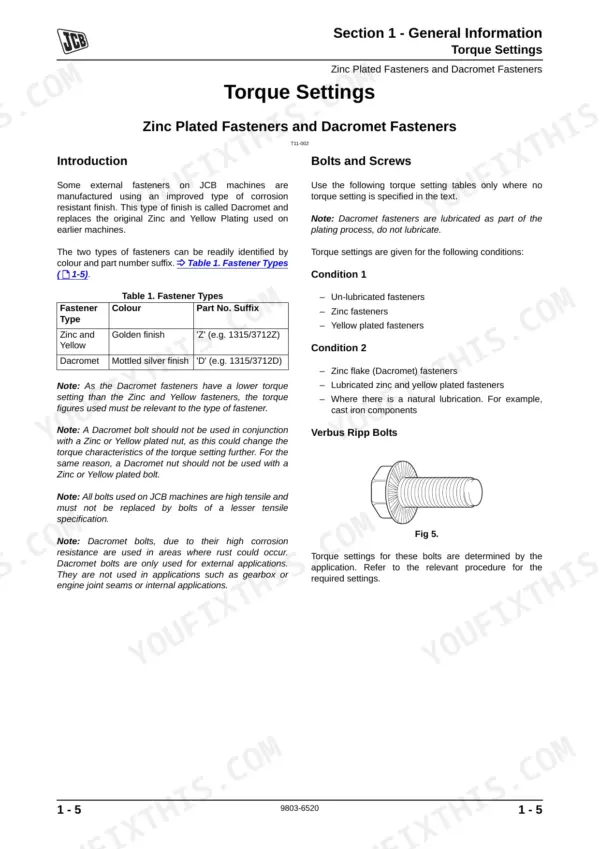

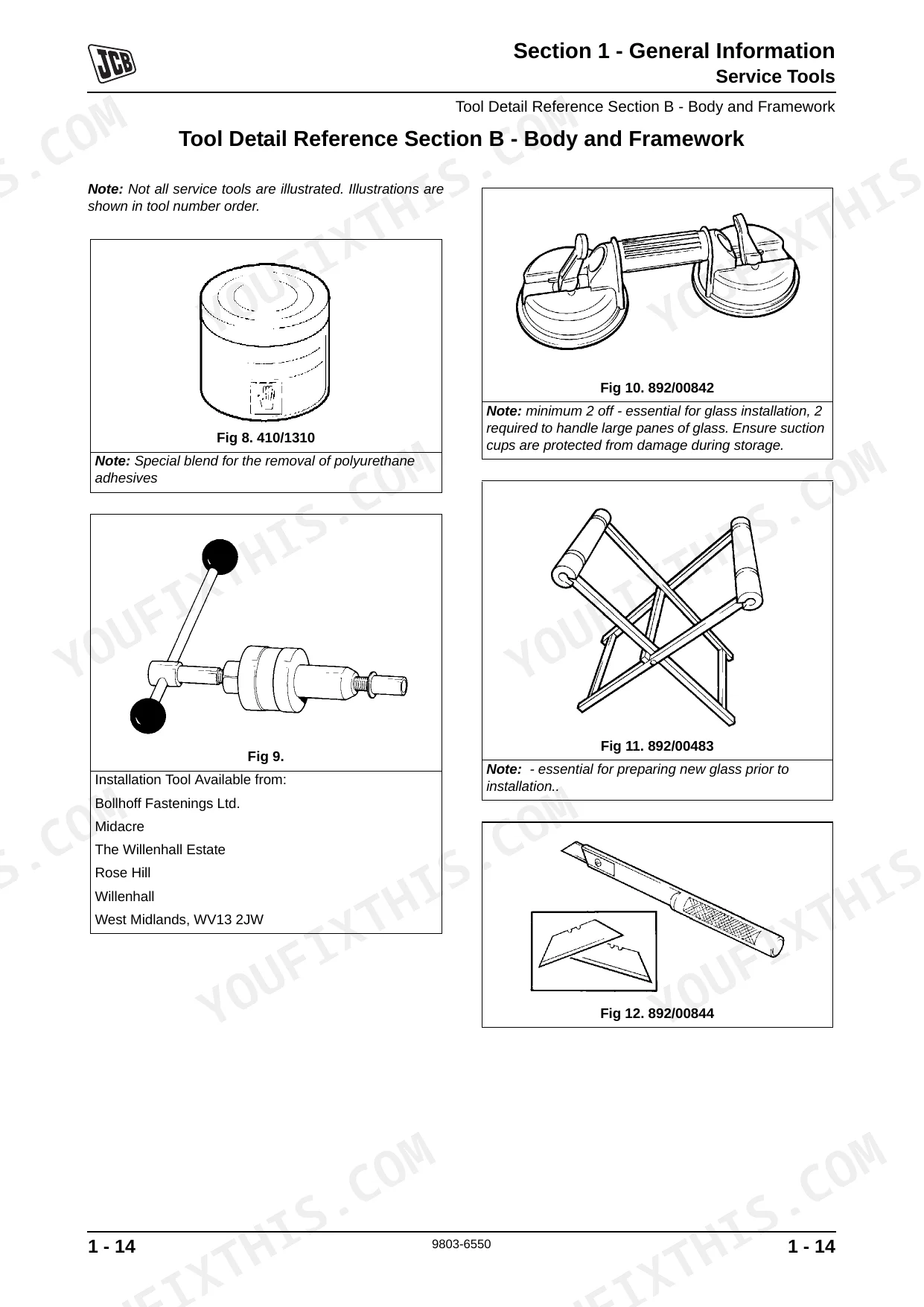

| General Information | 4-37 | Introduction (Schematic Codes), Identifying Your Machine (Identification Plates), Torque Settings (Zinc Plated Fasteners and Dacromet Fasteners, Hydraulic Connections) |
| Care & Safety | 38-57 | Safety Notices, Maintenance Safety, Safety Decals |

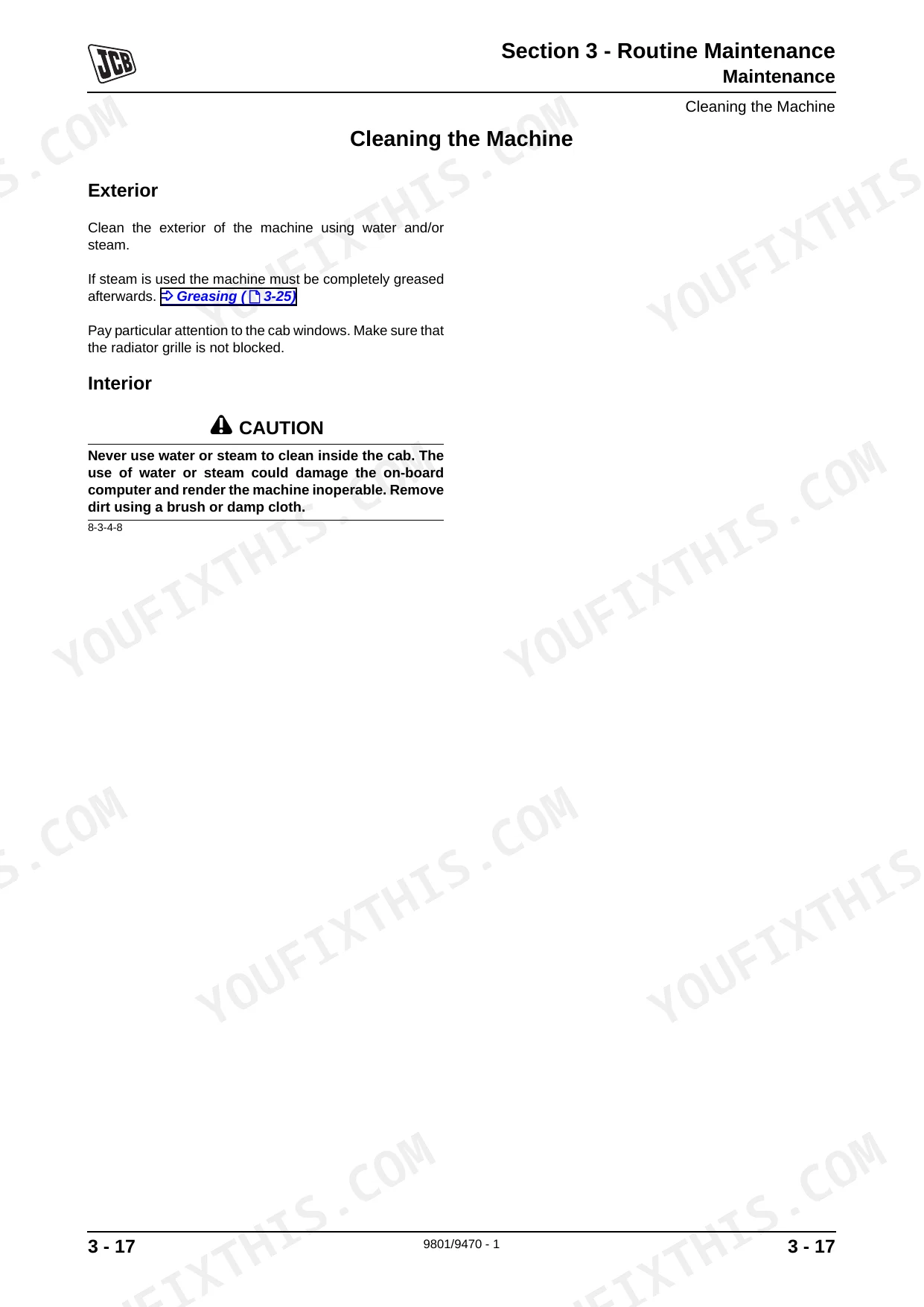

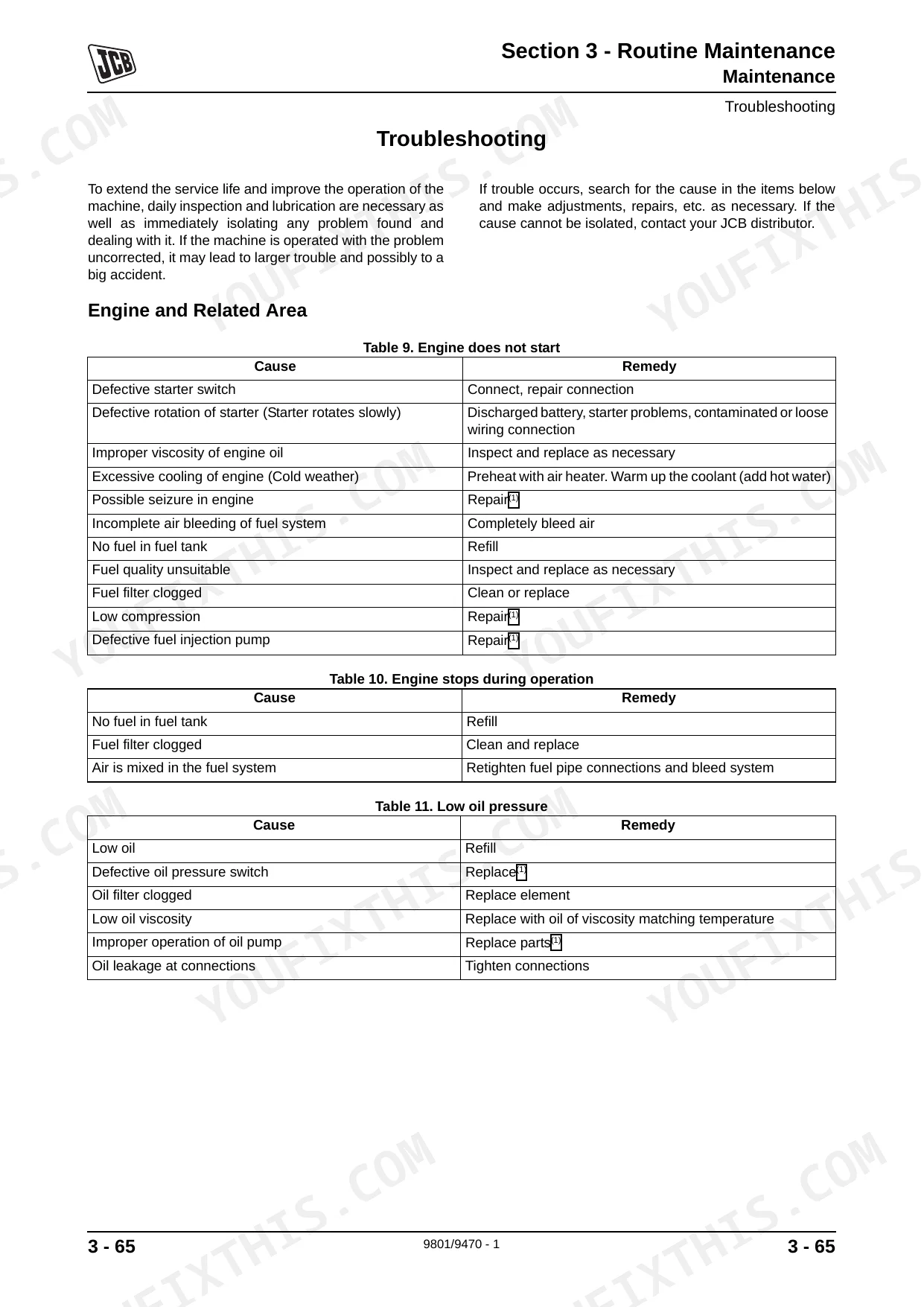

| Routine Maintenance | 58-133 | Health and Safety, Service Schedules, Greasing, Electrical System, Fuel System, Hydraulic System, Front Axle |

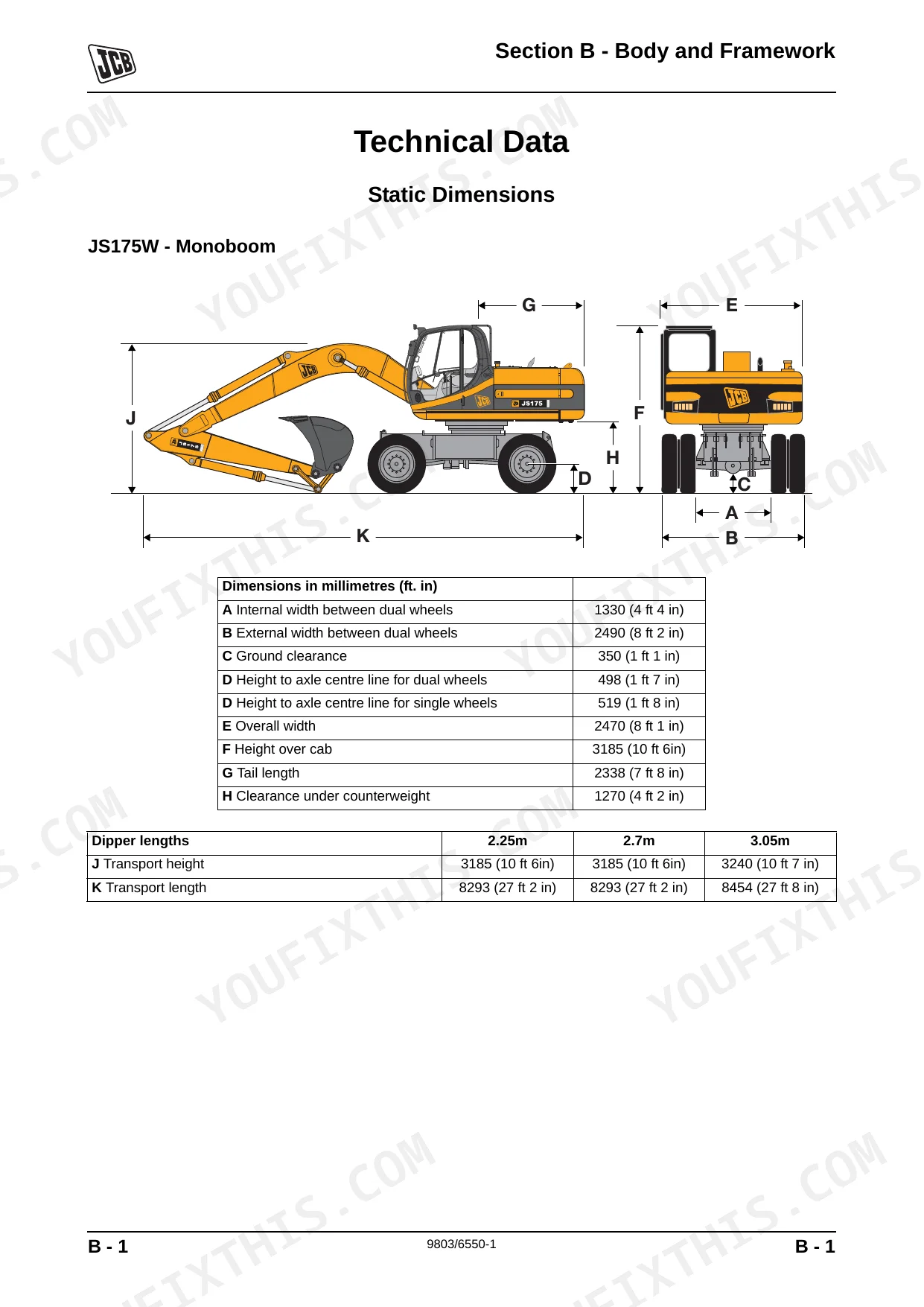

| Body & Framework | 134-180 | Technical Data, Attachments, Basic Operation, Fault Finding, Service Procedures, Cab Structure |
| Electrics | 181-425 | Basic System Operations, Driver Controls and Switches, Operating Levers and Pedals, Circuit Symbols, Circuit Concepts, Engine Throttle Control, Auto Boost Pressure |
| Controls | 426-430 | Steering Column, Lever Lock, Drive Isolator, Slew Brake (100%), Park Brake, Axle Lock |

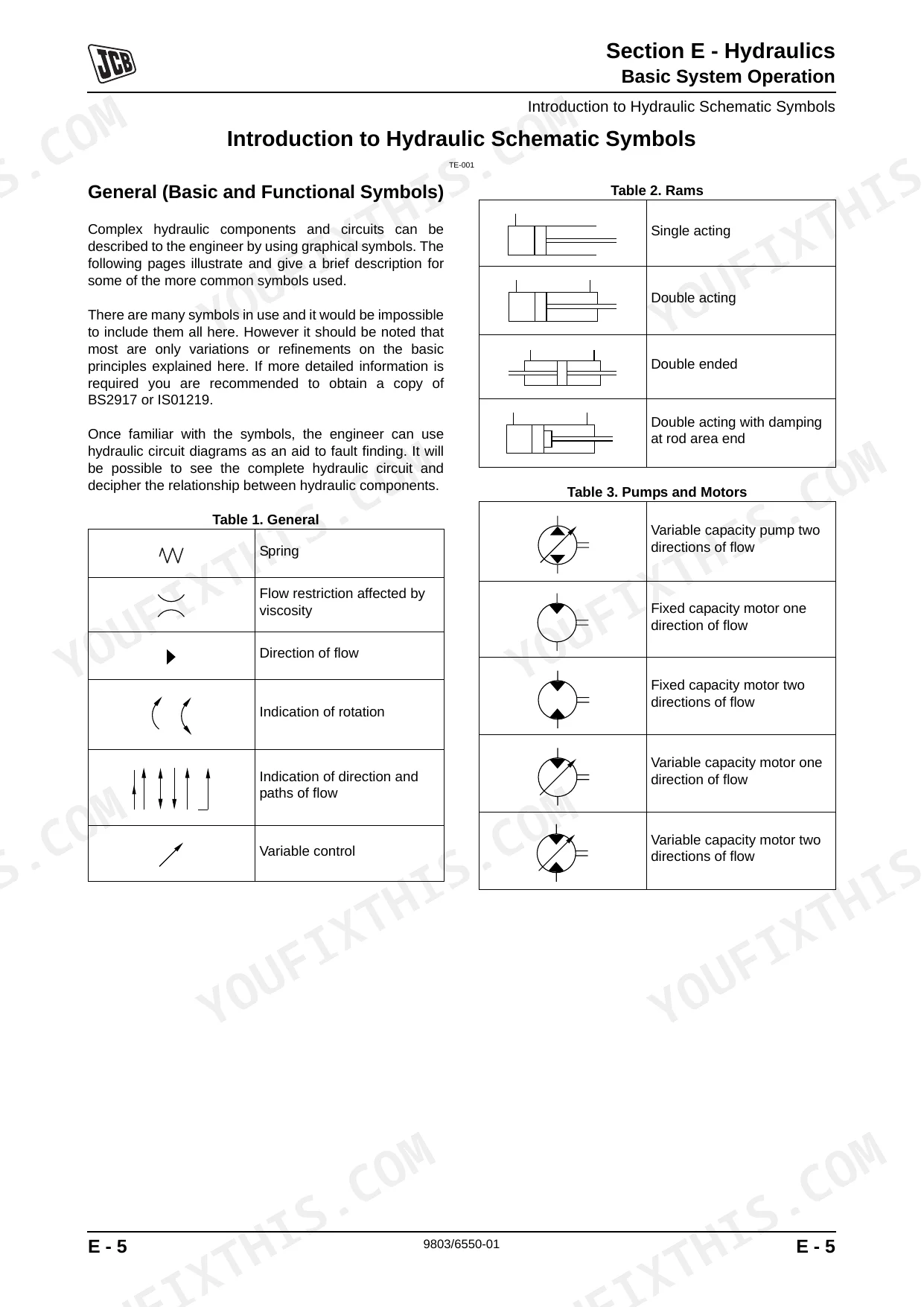

| Hydraulics | 431-738 | Technical Data, Main Control Valve, Basic System Operation, Introduction to Hydraulic Schematic Symbols, Circuit Descriptions, Servo Line, Drive |
| Transmission | 739-804 | Drive Gearbox, Dismantling and Assembly |
| Engine | 805-807 | Engine Throttle Control, Auto Boost Pressure, Engine Pre Heat (Glow Plugs), Engine Automatic Warm Up, Engine Automatic Idle, Engine Start/Stop |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Nut Torque | 500 Nm (369 lbf ft) | p. 87 |
| Tyre Pressure (10.0 x 20 - 14PR) | 6.5 bar (94 lbf/in2) | p. 139 |
| Air Conditioning Refrigerant (R-134a) | 1.415 Kg +/- 10g | p. 153 |
| JS175W and Variants | ||
| Engine Oil Capacity | 13.2 litres (2.9 UK gal) (3.5 US gal) | p. 74 |
| Hydraulic System Capacity | 142 litres (31.2 UK gal) (37.5 US gal) | p. 74 |
| Fuel Tank Capacity | 253 litres (55.6 UK gal) (66.7 US gal) | p. 74 |
| Front Axle Differential Capacity | 18 litres (3.9 UK gal) (4.7 US gal) | p. 74 |
| JS175W | ||
| Engine Bore | 105mm (4.13 in) | p. 807 |
| Engine Stroke | 125mm (4.92 in) | p. 807 |
| Engine Compression Pressure | 30 bar (441 lbf/in2) | p. 807 |
| Engine Valve Clearance (cold) Inlet | 0.40 mm (0.016 in) | p. 807 |
| Engine Max. Speed (No Load) | 2180 +/- 30 rev/min | p. 807 |
JCB JS175W Auto, JS175W, JS175 Wheeled Common Problems This Manual Covers
JCB JS175W excavator boom operates slowly and struggles to lift heavy loads under normal engine RPM. p. 436
Test the main control valve output. Connect a gauge to the main pump test port and verify the main relief valve pressure meets the specification on page 436. If pressure falls below the listed spec, inspect the main relief valve for worn O-rings or broken springs.

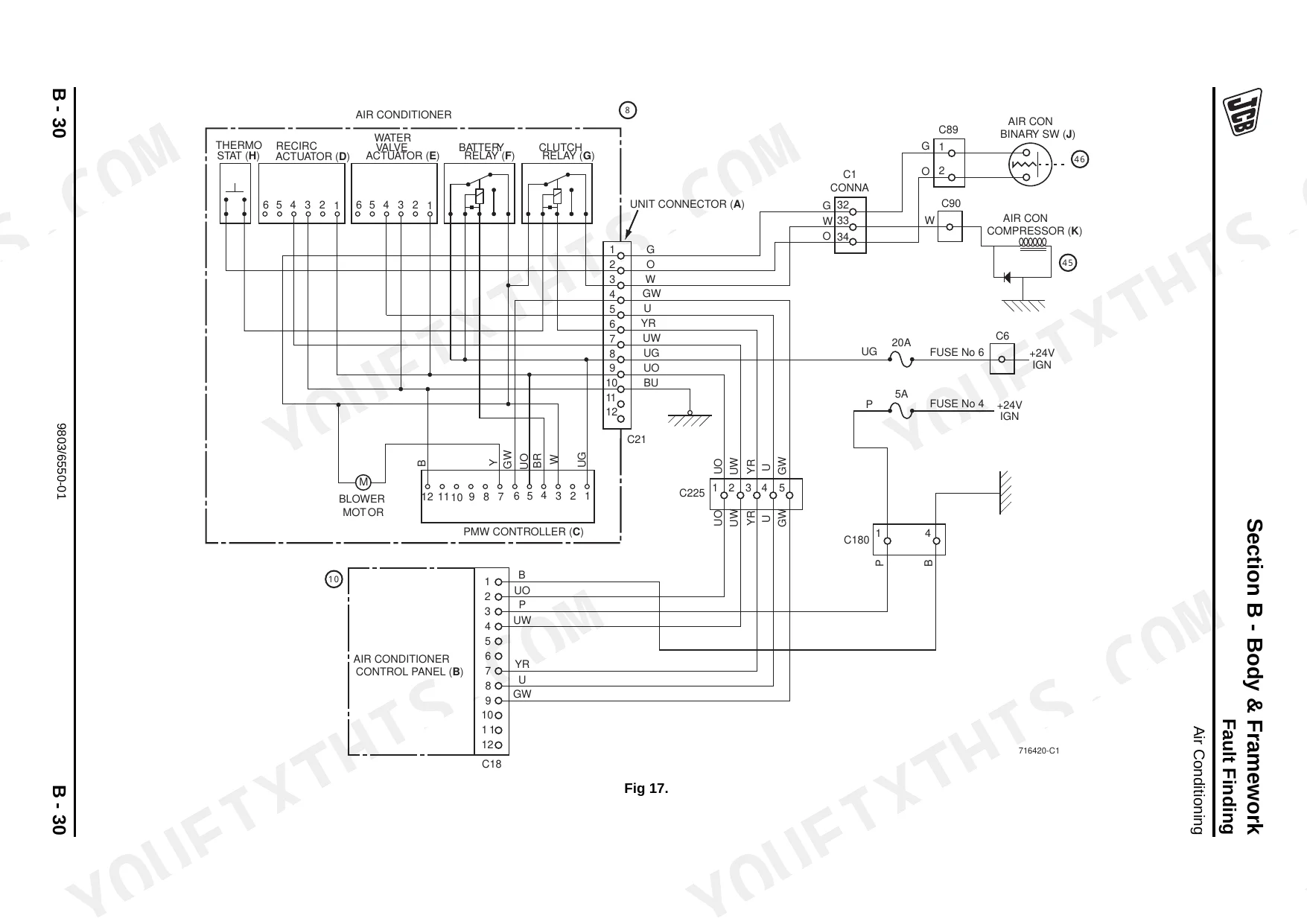

Manual Section: Hydraulic System Pressure TestingCab air conditioning blows warm air out of the vents during operation in hot weather. p. 153
Inspect the compressor belt tension and check for visible leaks around the condenser fittings. Recover the old Freon and recharge the system with exactly 1.415 Kg +/- 10g of R-134a refrigerant. Refer to page 153 for the correct filling procedure and test the vent temperatures again.
Manual Section: Air Conditioning Fault FindingPopping noise from the front axle area when turning or driving over rough terrain. p. 87
Inspect the front axle mounting hardware and check the wheel rims for cracks. Torque all wheel nuts in a crisscross pattern to exactly 500 Nm (369 lbf ft). Check page 87 for the proper tightening sequence. Verify the tyre pressure is set to 6.5 bar (94 lbf/in2).
Manual Section: Routine MaintenanceEngine runs rough at wide open throttle and lacks digging power under heavy load. p. 807
Verify the fuel filters are clean and water separators are drained. Run the machine and measure the maximum engine speed at no load. Adjust the throttle linkage until you hit 2180 +/- 30 rev/min as specified on page 807. Check the oil level and fill to 13.2 litres.
Manual Section: Engine Troubleshooting (General)Frequently Asked Questions
How do I reset the service indicator on a JCB JS175W?
The service indicator can be cancelled by JCB Service personnel through the SET+ Mode menu structure (20 seconds). When the Service sub menu is reached, enter a four-digit dealer code using the "Up/Down" keys and "Ack" button. Once the code is entered and the set button is pressed, the service warning is cancelled and the code is saved in memory.
How do I clear fault codes on a JCB JS175W?
Fault codes can be cleared using the Error Log Reset Tool by double-clicking its icon to access the reset screen and then clicking the send button to reset all error logs. Alternatively, the intermediate service warning can be cancelled via the EMS Set+Mode (20 sec) menu by entering a four-digit dealer code.
What does error code mean on a JCB JS175W?
The manual provides a table of electrical fault error codes and their descriptions. For example, error code 101 (CRANK) means "A crank signal was not detected by the ECU1", and error code 102 (FUEL) means "The fuel sensor is open-circuit".
What are the torque specs for JCB JS175W track/wheel nuts or wheel bolts?
The correct torque for both front and rear wheel nuts on the JCB JS175W is 500 Nm (369 lbf ft). On new machines, and whenever a wheel has been removed, check the wheel nut torques every two hours until they stay correct.
Is this manual a digital download?
You get a 807-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this JCB JS175W Auto, JS175W?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this JCB JS175W Auto, JS175W manual cover the hydraulic?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the JCB JS175W Auto, JS175W.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy text. The text throughout is crisp and easy to read, maintaining good clarity despite being a scan. Diagrams and illustrations are primarily rasterized line drawings and photos, with all labels remaining clearly readable. Pages are clean, showing no significant scan artifacts, stains, or skewing. You will find several blank pages, some explicitly marked as "Page left intentionally blank."
