Fixing a loader arm or chasing an electrical gremlin on your JCB 225, 260, 300, or 330 Skid Steer requires the 497-page factory service manual (OEM #9803/9950-3), which covers all 11 models in the Large Platform family: 225, 225T, 260, 260T, 280, 300, 300T, 320T, 330, 260WS, and the Skid Steer Large Platform. Open this PDF to find complete wiring diagrams, detailed hydraulic schematics, and step-by-step teardown procedures. Clear troubleshooting flowcharts cover complex drive motor issues, direct error code breakdowns, and a dedicated section for routine maintenance schedules. Lock down the SAE Tube Size 12 hydraulic connections to exactly 190.0 - 210.0 Nm and verify fault code C114 points directly to a short at the hydraulic oil temp sender. Guessing costs time and blown seals. Download it, open it on your shop tablet, and fix your machine the right way.
What's Inside This JCB 225–330 Skid Steer (Large Platform) Manual
| System | Pages | Key Topics |
|---|---|---|

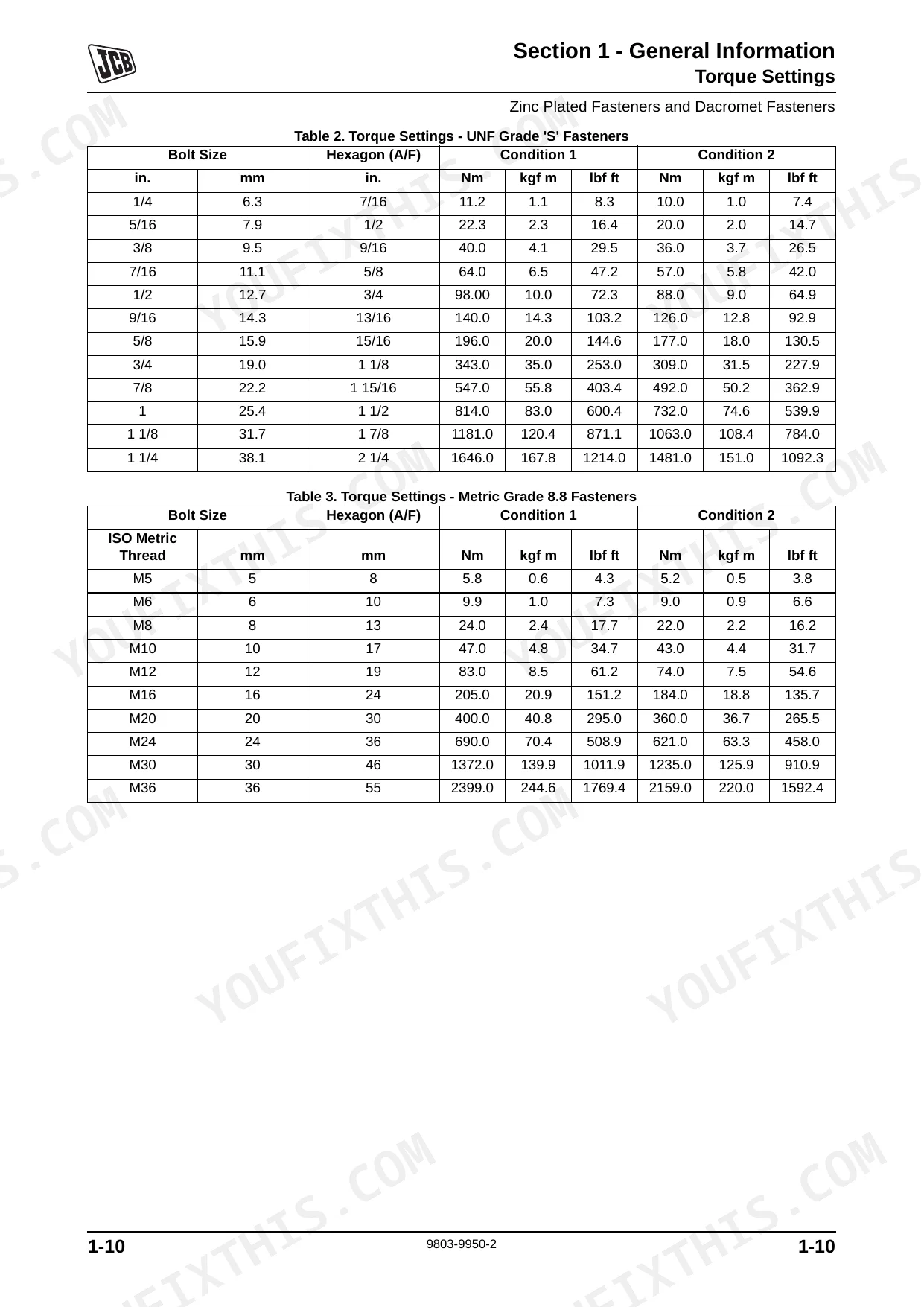

| General Information | 1-33 | Machine Identification, Torque Settings, Service Tools, Service Aids |
| Care and Safety | 34-49 | Safety Warnings, Operating Safety, Maintenance Safety, Fluid Under Pressure, Battery Safety |
| Maintenance | 50-131 | Service Schedules, Fluid Capacities, Engine Oil/Filters, Hydraulic System Checks, Track Adjustment |
| Attachments | 132-171 | Attachment Compatibility, Hydraulic Hoses, Quick Hitch Control, Shovel Operation, Snow Blade Setup |

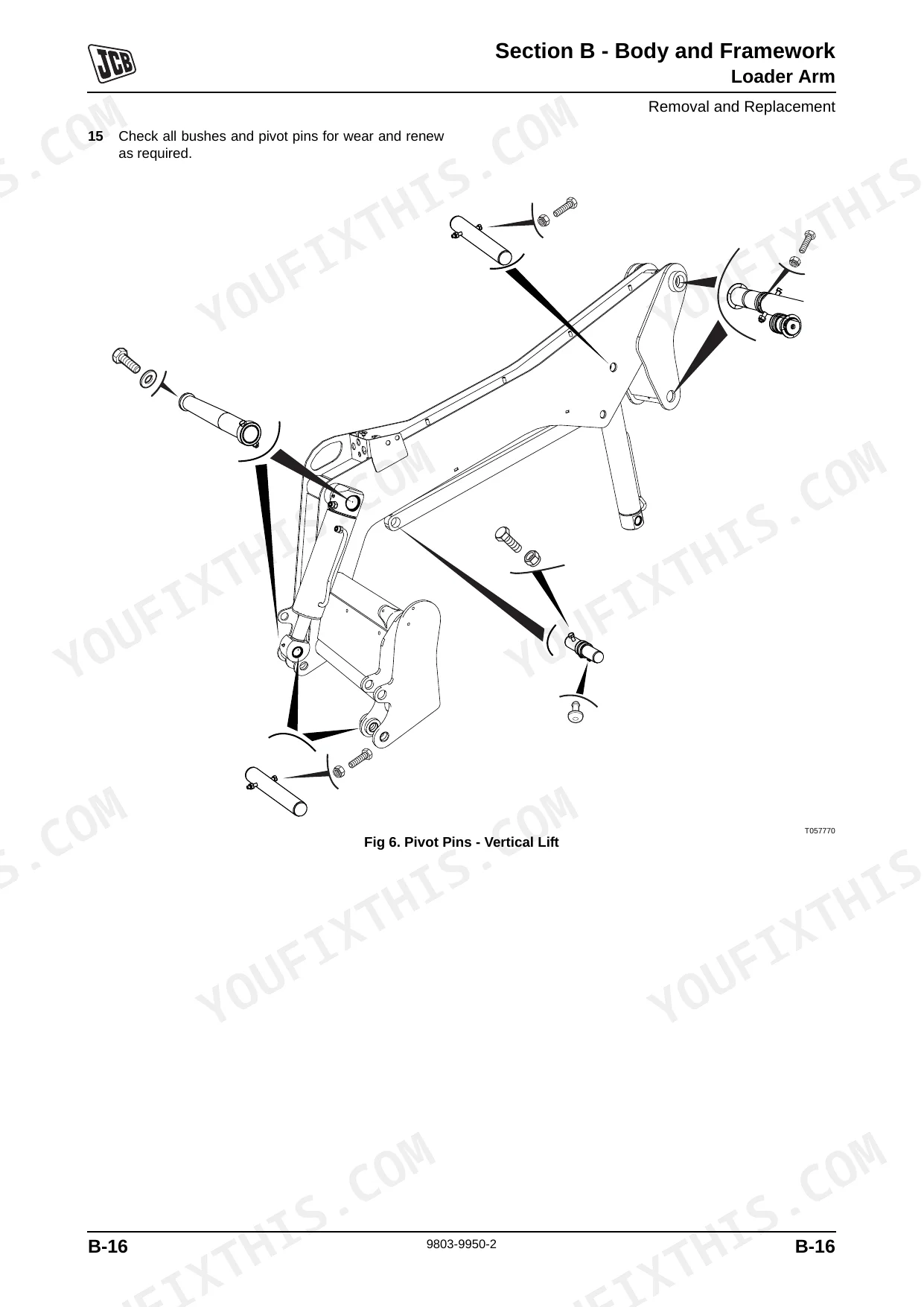

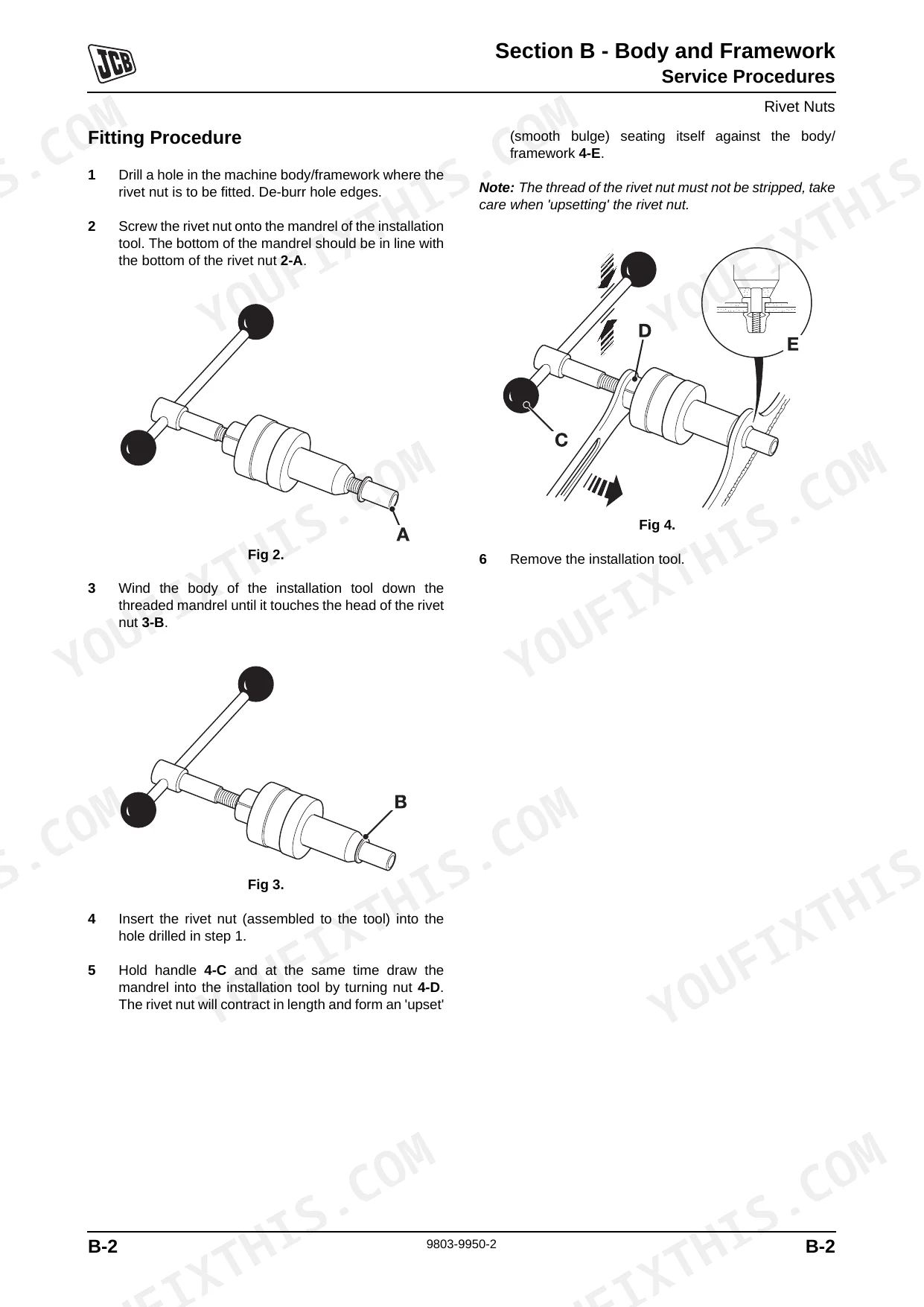

| Body and Framework | 172-207 | Rivet Nut Procedures, Glazing, Cab/Canopy Removal, Loader Arm Removal, Air Conditioning System |
| Electrics | 208-306 | Technical Data, Multimeter Use, Battery Testing, Alternator/Starter Motor, Wiring Harness Repair, Electronic Throttle Control |

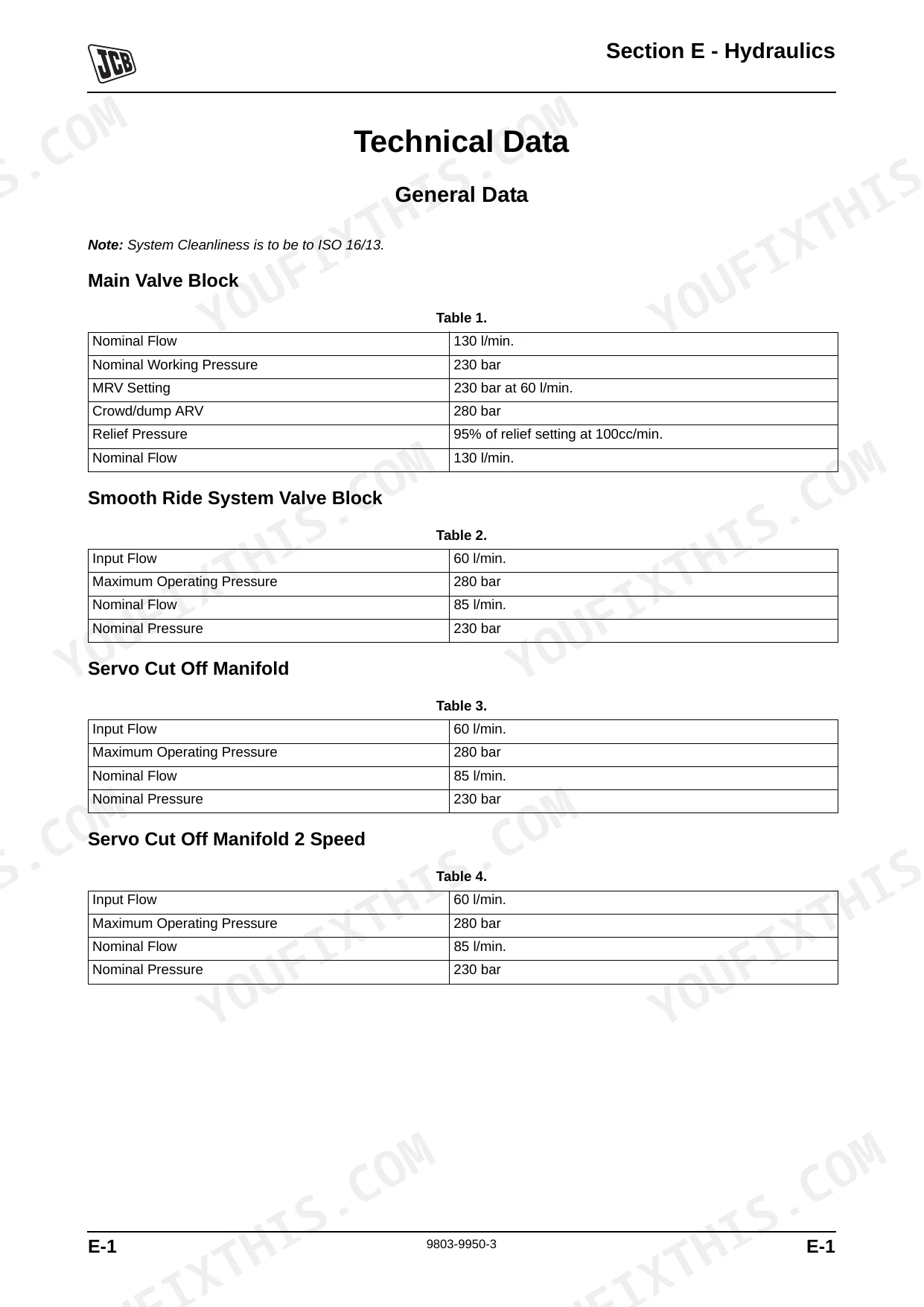

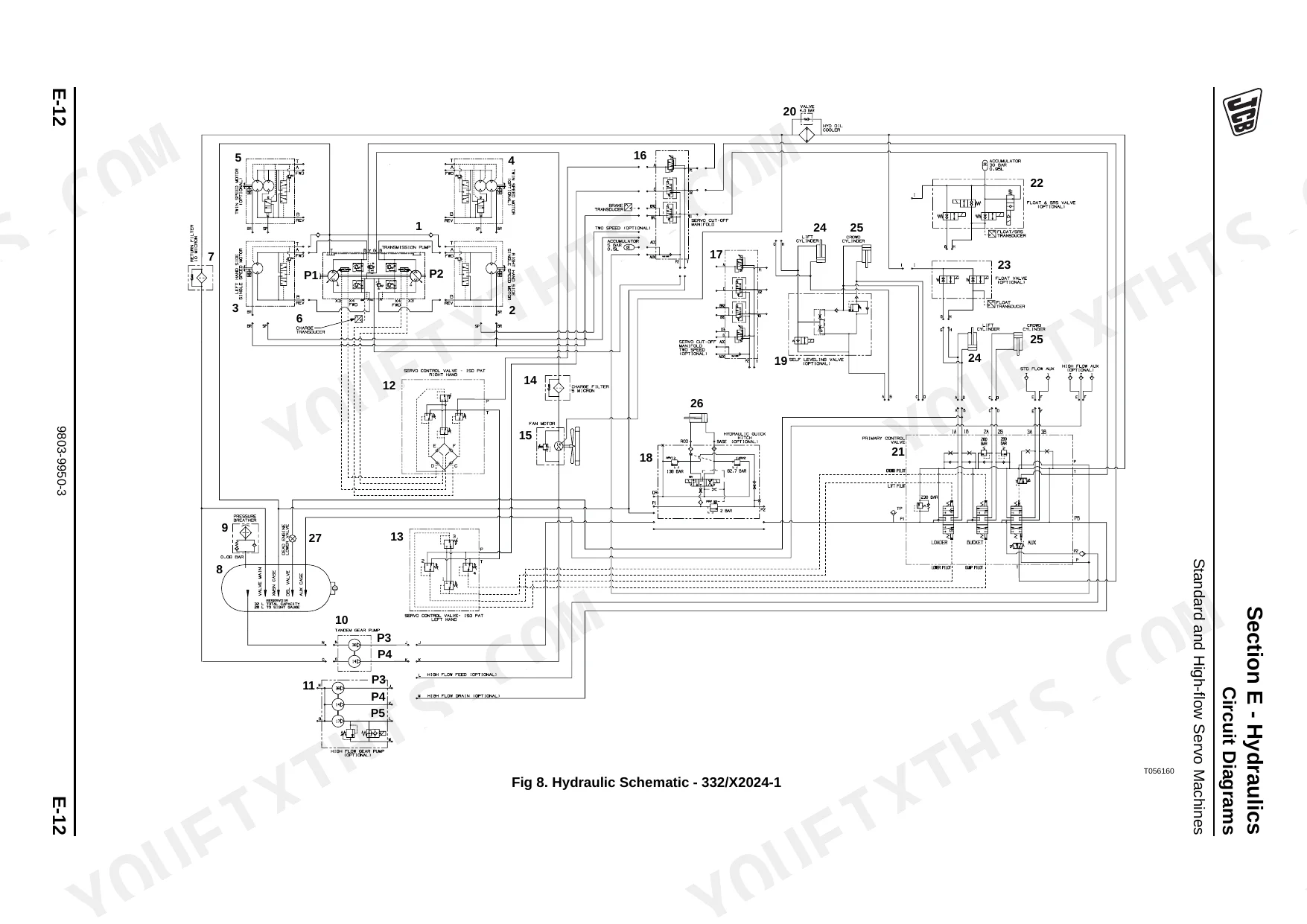

| Hydraulics | 307-390 | Technical Data, Circuit Diagrams, Valve Descriptions, Pump Removal, Ram Sealing |
| Transmission | 391-459 | Technical Data, Circuit Descriptions, Pump Adjustment, Drive Motors, Drive Chains, Axle Hubs |
| Tracks | 460-491 | Running Gear Components, Track Adjustment, Track Damage Types, Track Repair Procedures |
| Engine | 492-497 | Technical Data, JCB 444 Series Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel Nut Torques (Front and Rear) | 244 Nm (180 lbf ft) | p. 127 |
| Hydraulic Connections (SAE Tube Size 12) | 190.0 - 210.0 Nm (19.4 - 21.4 kgf m, 141.0 - 155.0 lbf ft) | p. 18 |
| Loader Arm Lift Ram / Quickhitch Tilt Ram Securing Bolts | 56 Nm (5.7 kg fm, 42 lbf ft) | p. 360 |
| Hydraulic Oil Temp Sender Fault Code (example) | C114 (SC to + at Hydraulic Oil Temp Sender) | p. 287 |
| Hydraulic Fittings (SAE Tube Size 12) Torque | 190.0 - 210.0 Nm (19.4 - 21.4 kgf m, 141.0 - 155.0 lbf ft) | p. 18 |
| Hydraulic Return Filter / Charge Filter Canister Torque | 30 Nm | p. 122 |
| Engine Oil and Filter Replacement Interval (Arduous Conditions) | 250 hours | p. 67 |
| Engine Oil Capacity (Min) | 12 Litres | p. 68 |
| Hydraulic System Capacity (Total) | 30 Litres | p. 68 |
| Engine Idle Speed | 1180 rpm | p. 496 |
| Road Wheel Retaining Nuts Torque | 244 Nm | p. 127 |
| ROPS/FOPS Mounting Nuts Torque | 205 Nm | p. 85 |
JCB 225–330 Skid Steer (Large Platform) Common Problems This Manual Covers
Hydrostatic transmission on the 225/260 losing power or causing the machine to veer to one side while travelling
Check track adjustment gap is 25 to 35 mm as detailed on page 128. Verify hydraulic charge pressure reaches 25 - 27 bar at maximum rev/min. Inspect loop relief valves and verify drive chains are tensioned correctly. Drain and clean the motor flushing circuit.

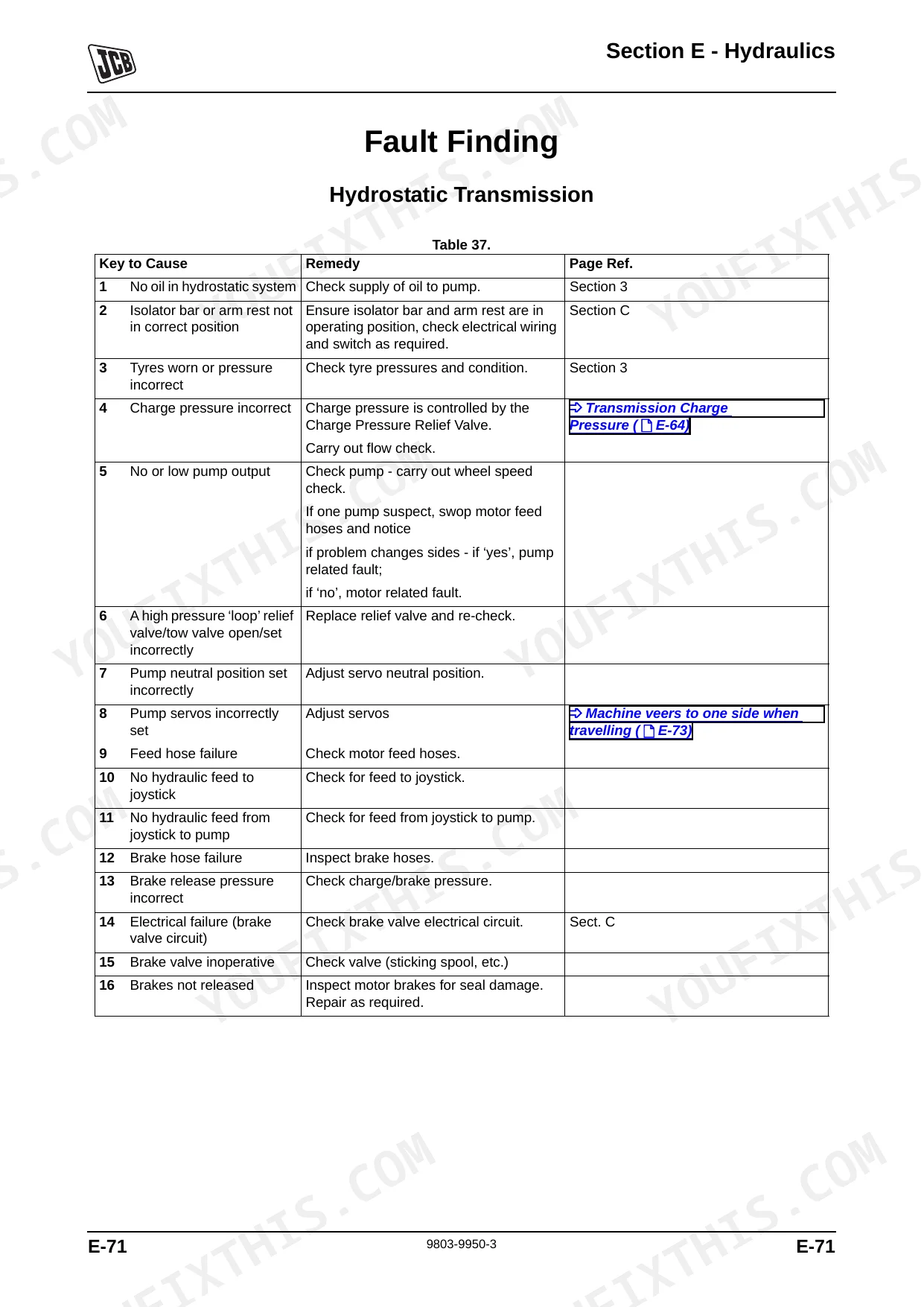

Manual Section: Hydrostatic Transmission Fault FindingLoader arms move slowly or lift ram creeps downward when holding a heavy load
Inspect the hydraulic return filter and charge filter canister. Torque the replacement filter canister to 30 Nm as specified on page 122. Verify the total hydraulic system capacity is filled to exactly 30 Litres. Check the loader valve spools for sticking or internal leakage.
Manual Section: Loader Circuit Fault FindingEngine turns over slowly, experiences hard-starting conditions, or registers low oil pressure at normal operating temperature p. 492
Test the alternator and starter motor connections. Verify engine oil pressure reaches 4.6 bar at maximum revs and normal operating temperature for 444 Series engines (see the Engine section starting around page 492). Replace the engine oil and filter every 250 hours under arduous conditions to prevent internal wear.
Manual Section: EngineDisplay shows error code C114 or hydraulic oil temperature warning light illuminates during operation p. 287
Review the machine error codes on page 287. Inspect the hydraulic oil temp sender for a short circuit to positive. Clean all harness connectors and verify wiring integrity. Check the alternator mounting bolts and torque them to 47 Nm to confirm proper ground.
Manual Section: Machine Error CodesFrequently Asked Questions
What do JCB skid steer loader error codes mean on 225, 260, 300, and 320T?
The manual lists error codes with descriptions. Code E401 means 'Motor over-current' with the cause being 'Throttle motor stall'; C108 indicates 'SC to + at Boom Proximity Sensor'. These codes pinpoint specific issues within the machine's electrical and hydraulic systems.
What is the torque spec for JCB 225/260/300 wheel nuts or track components?
For wheeled machines, the wheel nut torque specification is 244 Nm (180 lbf ft) for both front and rear. For tracked machines, the sprocket mounting bolts should be tightened to 300 Nm (30.6 Kgf m, 221 lbf ft).
How to reset JCB 225T service light
To reset the 'Time Until Next Service' interval shown on the display, press and hold the 'i' button for 3 seconds. This resets the interval to 500 hours.
What are the replacement specifications for Hydraulic hoses and seals?
For hydraulic rams, use only genuine JCB parts when replacing O-rings, seals, and gaskets — dimensions and shore hardness are critical. For rapid assembly hose fittings, replace the complete hose and fitting assembly if damaged, as the hose is not removable. When fitting ORFS hose connections, coat the O-ring with hydraulic oil before installation and torque tighten the nut to compress the fitting.
What do I get after purchasing this JCB 225 & variants manual?
A 497-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone and bring it right to the shop floor.
Am I able to print pages from this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Can I find wiring schematics in this JCB 225 & variants manual?

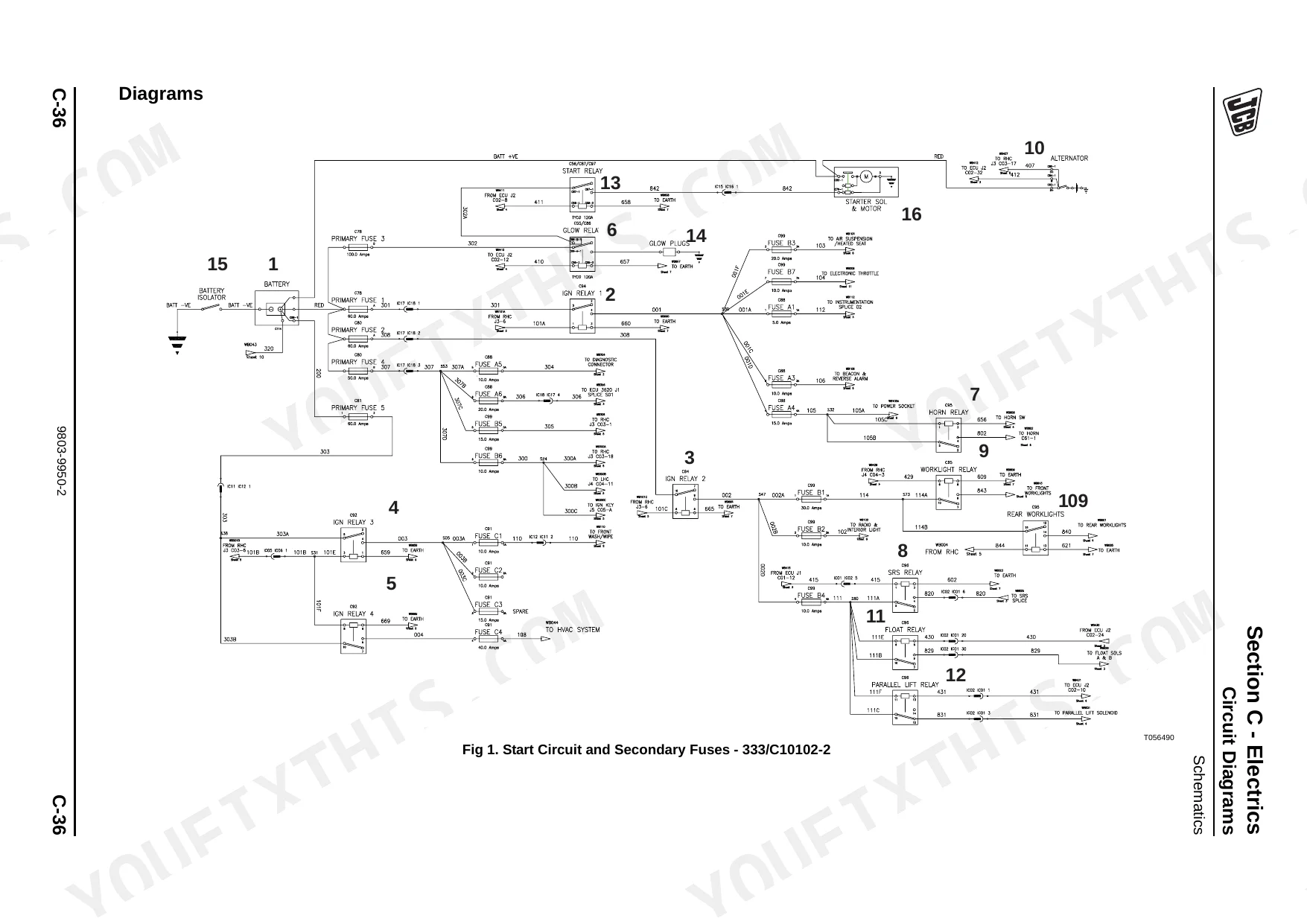

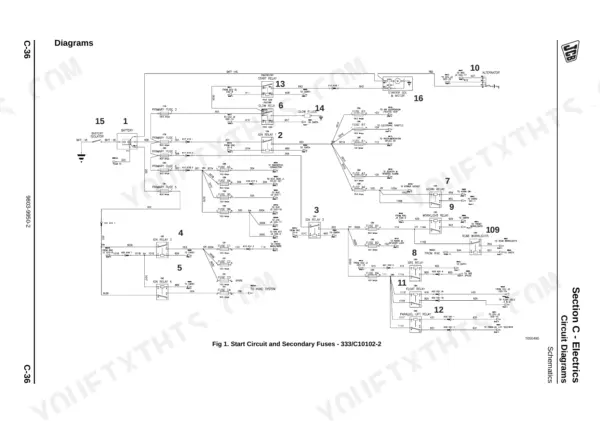

Yes, this JCB 225 & variants Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document is a scanned PDF, not a native digital file. An OCR layer is present, allowing you to search and copy the full text, though some smaller text and titles may appear slightly pixelated. Diagrams and illustrations are raster images, but their labels are generally clear and readable. The pages are clean with no notable scan artifacts, stains, or skewed content, and there are a few pages explicitly marked as "intentionally blank."
