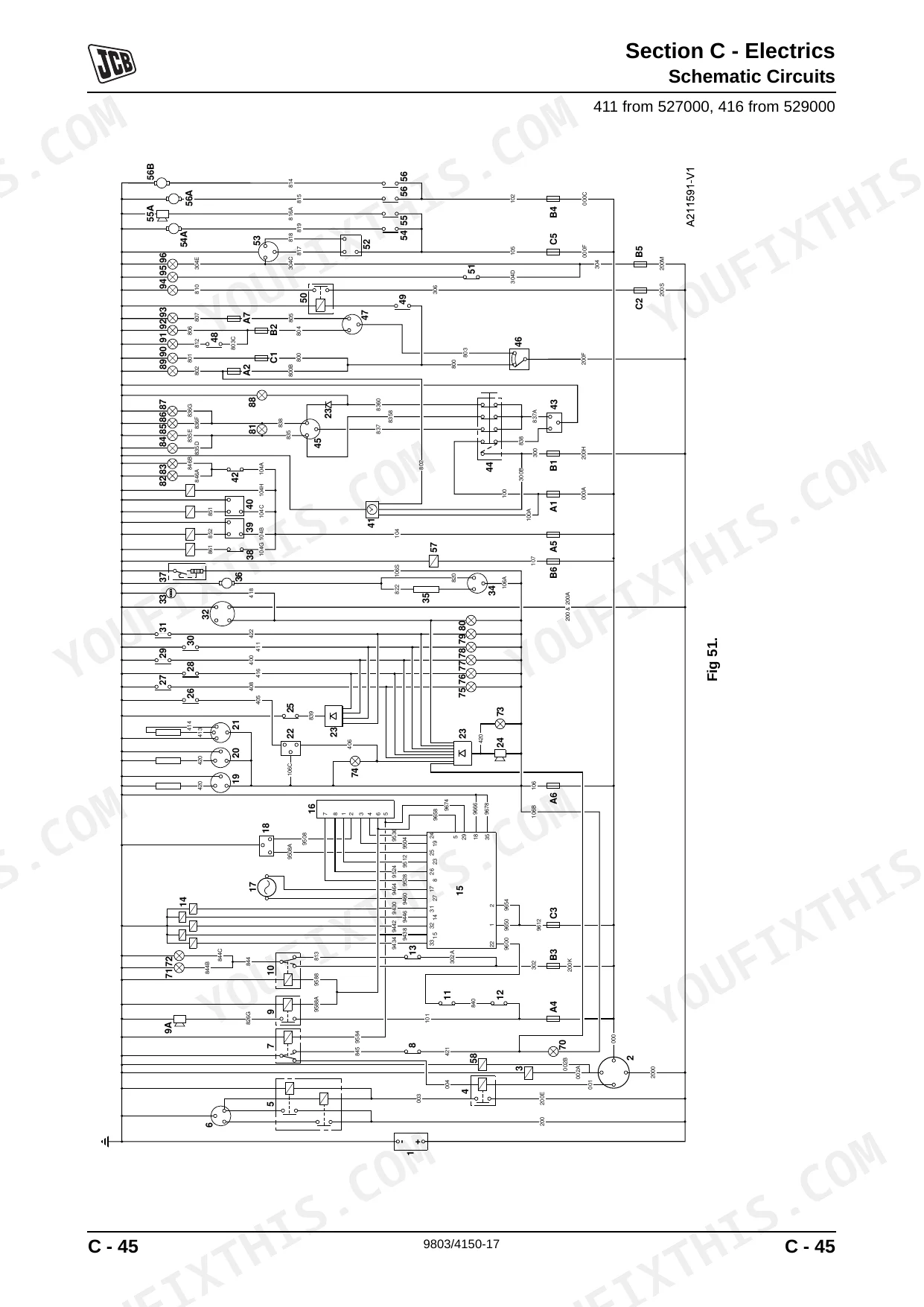

Stop searching for a reliable JCB 416 service manual pdf and grab this 973-page factory shop guide (OEM #9803/4150-17) covering every system on your 2007-2012 JCB 411, 416 Wheeled Loading Shovel. High-resolution wiring diagrams, detailed pinout charts, and complete hydraulic schematics map the loader valve and steering pump circuits. Open the transmission fault finding section to decode exact WG-110 error codes, or review step-by-step diagnostic procedures for the 444 Dieselmax engine. Secure the hydraulic filter element cover plate to exactly 7 Nm, and tighten the 1/8-inch BSP hoses to 14.0 Nm before testing the steering pressure. Stop chasing electrical faults blindly. Download this bookmarked file directly to your tablet, find the exact schematic, and get your shovel back to work.
What's Inside This JCB 411, 416, 411 Wheeled Loading Shovel, 416 Wheeled Loading Shovel Manual

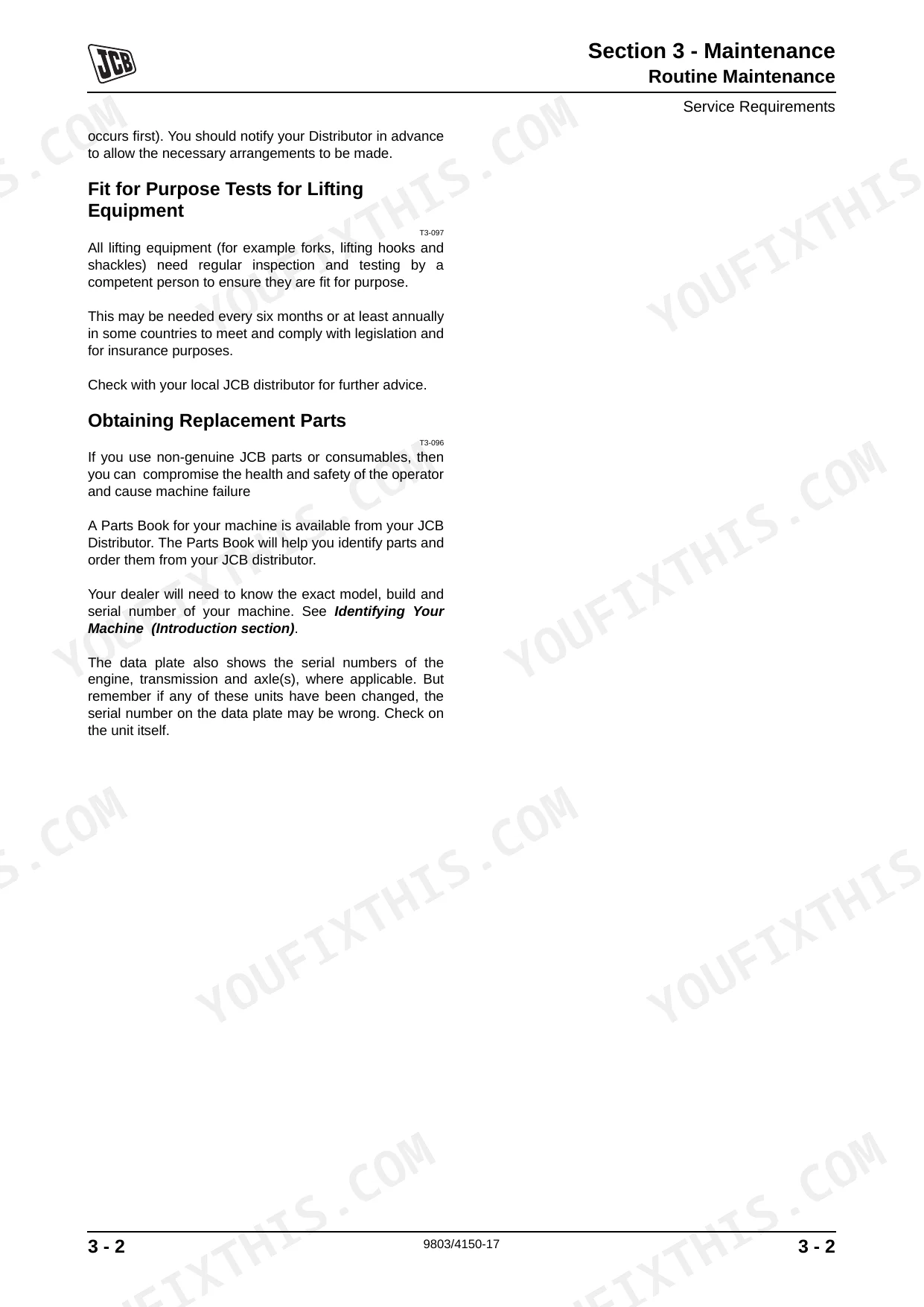

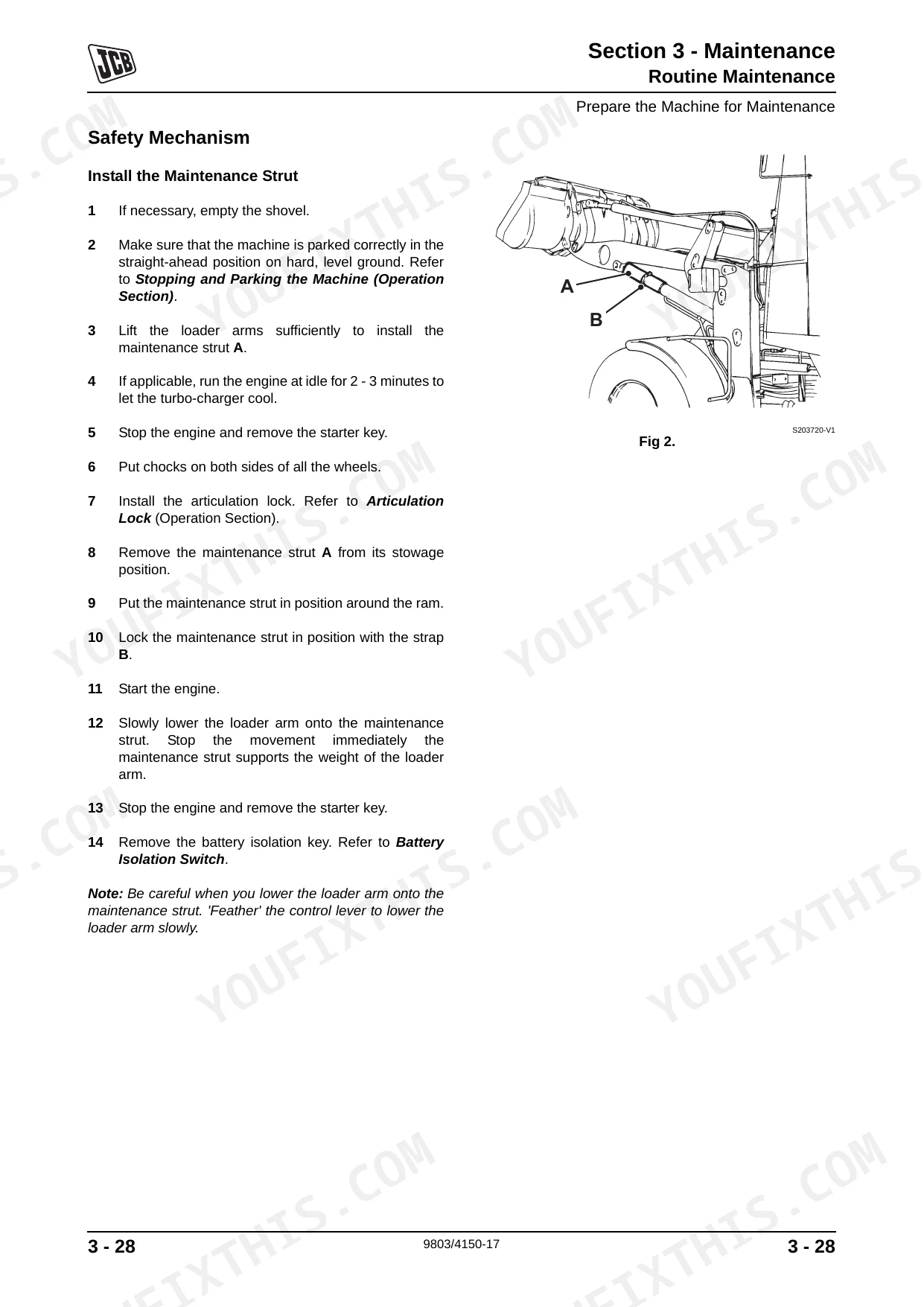

| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-39 | Introduction (Machine Model and Serial Number, Using the Service Manual, Section Numbering, Left Side, Right Side, Cross References, Identifying Your Machine, Machine Identification Plate, Component Identification Plates) |
| Care and Safety | 40-59 | Safety Notices (Important Information, Operator Manual, Safety Warnings), Safety Check List (Safety - Yours and Others, Operating Safety, Maintenance Safety) |
| Routine Maintenance | 60-179 | Service Requirements, Health and Safety, Service Schedules, Fluids, Lubricants and Capacities, Prepare the Machine for Maintenance, Cleaning the Machine, Checking for Damage |
| Attachments | 180-187 | Optional Attachments |
| Body and Framework | 188-263 | Technical Data (Air Conditioning Option), Basic Operation (Rivet Nuts, Fitting Procedure, Air Conditioning, R134a Refrigerant, System Operation, System Control, Safety Procedures) |
| Electrics | 264-603 | Technical Data (Bulbs, Fuses and Relays, To 527375, 416 to 529431, From 527400, 416 From 529500, From 527850, 416 From 530100, From 527957, 416 From 530296, From 1241500, 416 From 1243000 to 1317499, 411 and 416 From 1317500) |
| Hydraulics | 604-747 | Technical Data (411, Pump, Relief Valve Operating Pressures, 416, Loader Valve) |
| Transmission | 748-883 | Technical Data, Towing Procedure, Powershift Transmission, Axles, Functional Testing, Fault Finding, Control Lever, Electronic Monitoring System (Ems) Display Panel |
| Brakes | 884-945 | Technical Data, System Circuits, Service Procedures, Brake Circuits, Valves and Pedals, Brake Valve - 411 Variflow and 416, Brake Pedal - 411 Variflow and 416 |
| Hydraulic Steering | 946-961 | Technical Data (Information, Pump), Descriptions (Information, Steering Valve - Operation, Steering Valve - Operation 2, Steering Valve - Operation 3, Steering Shock Valve) |
| Engine | 962-973 | Technical Data (411, From 529000, From 530350, 411 From 528050), JCB 444 Dieselmax Series (Unit Identification, Specifications, From 1317500, From 1241500) |
Quick Reference Specifications

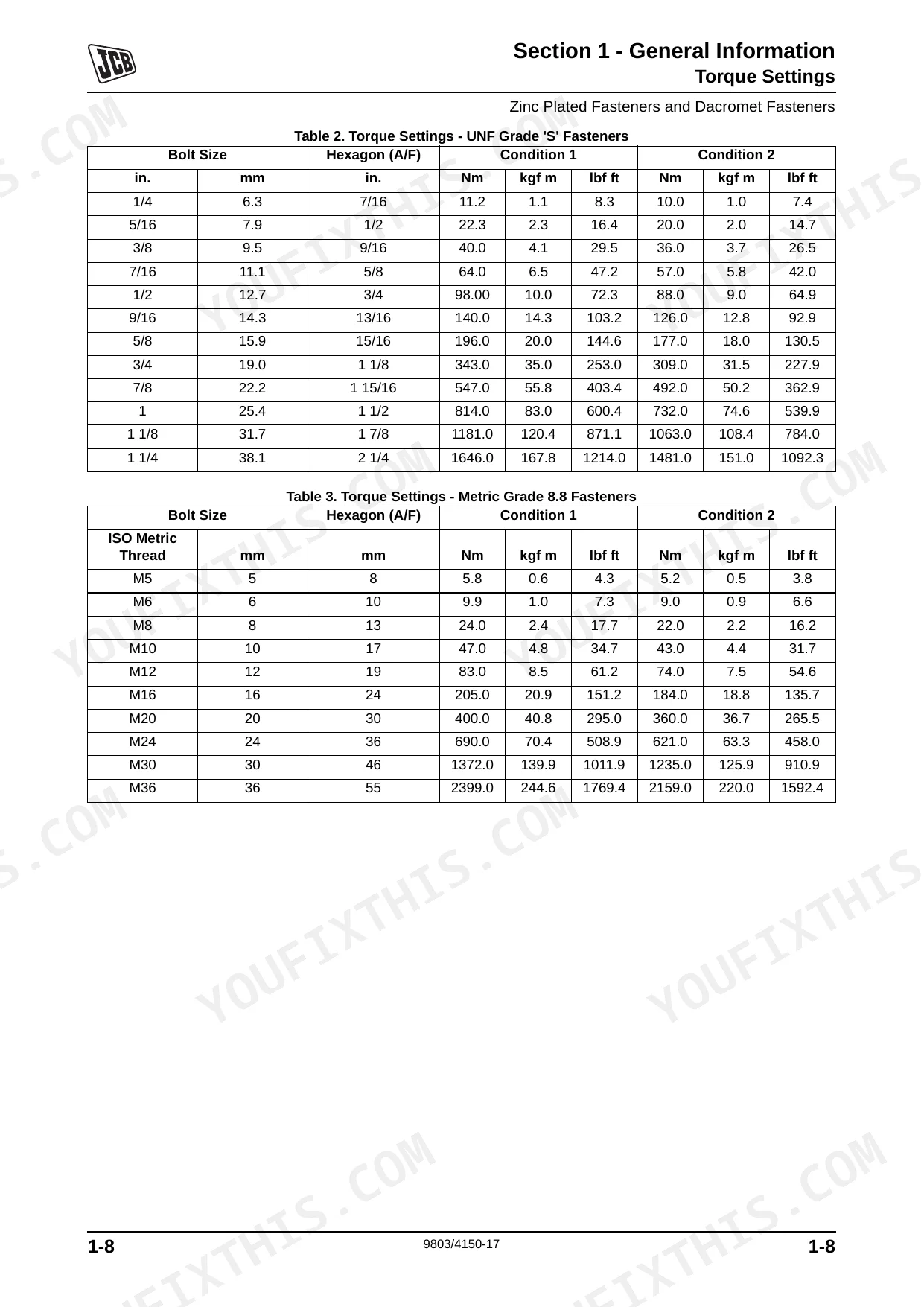

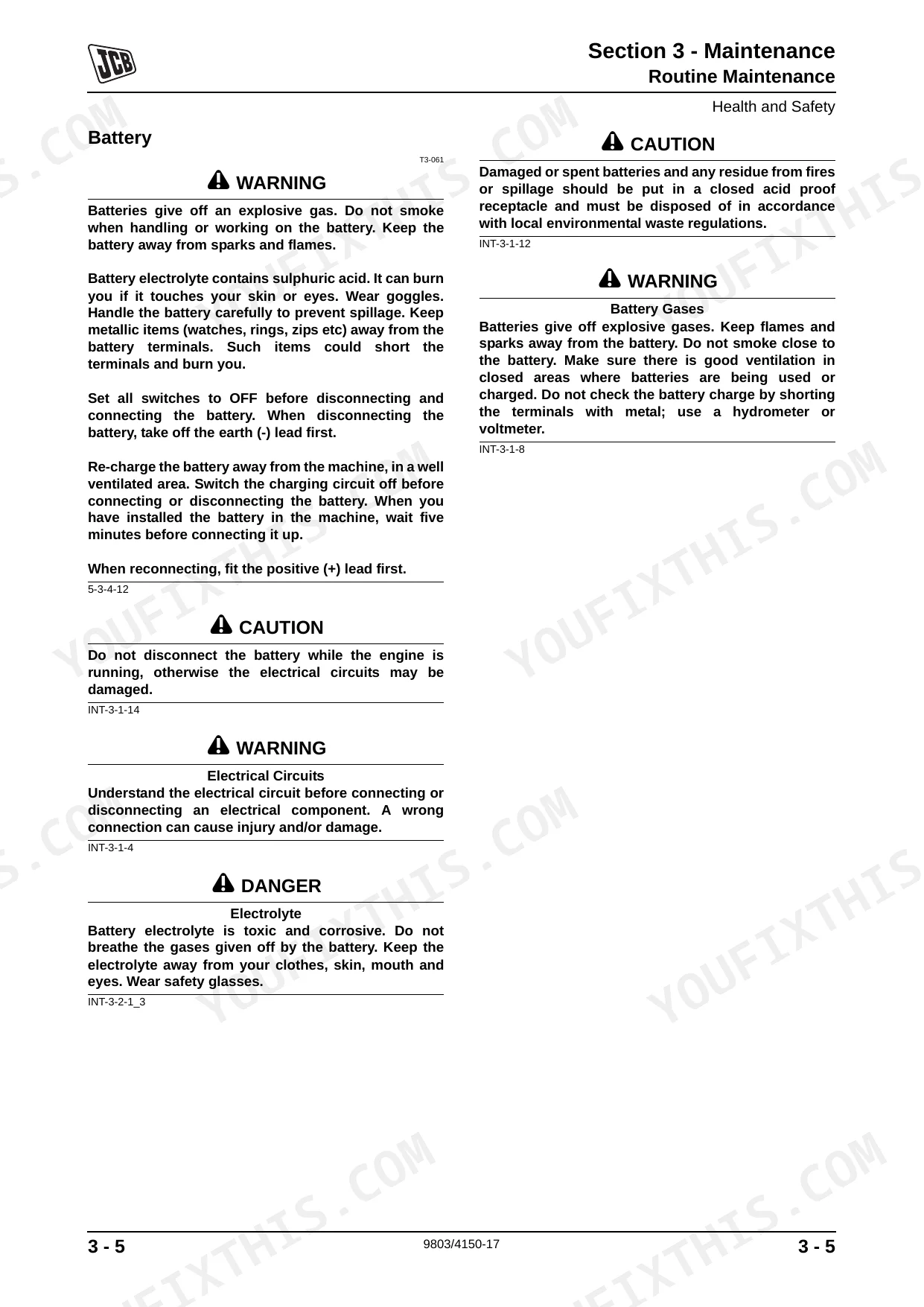

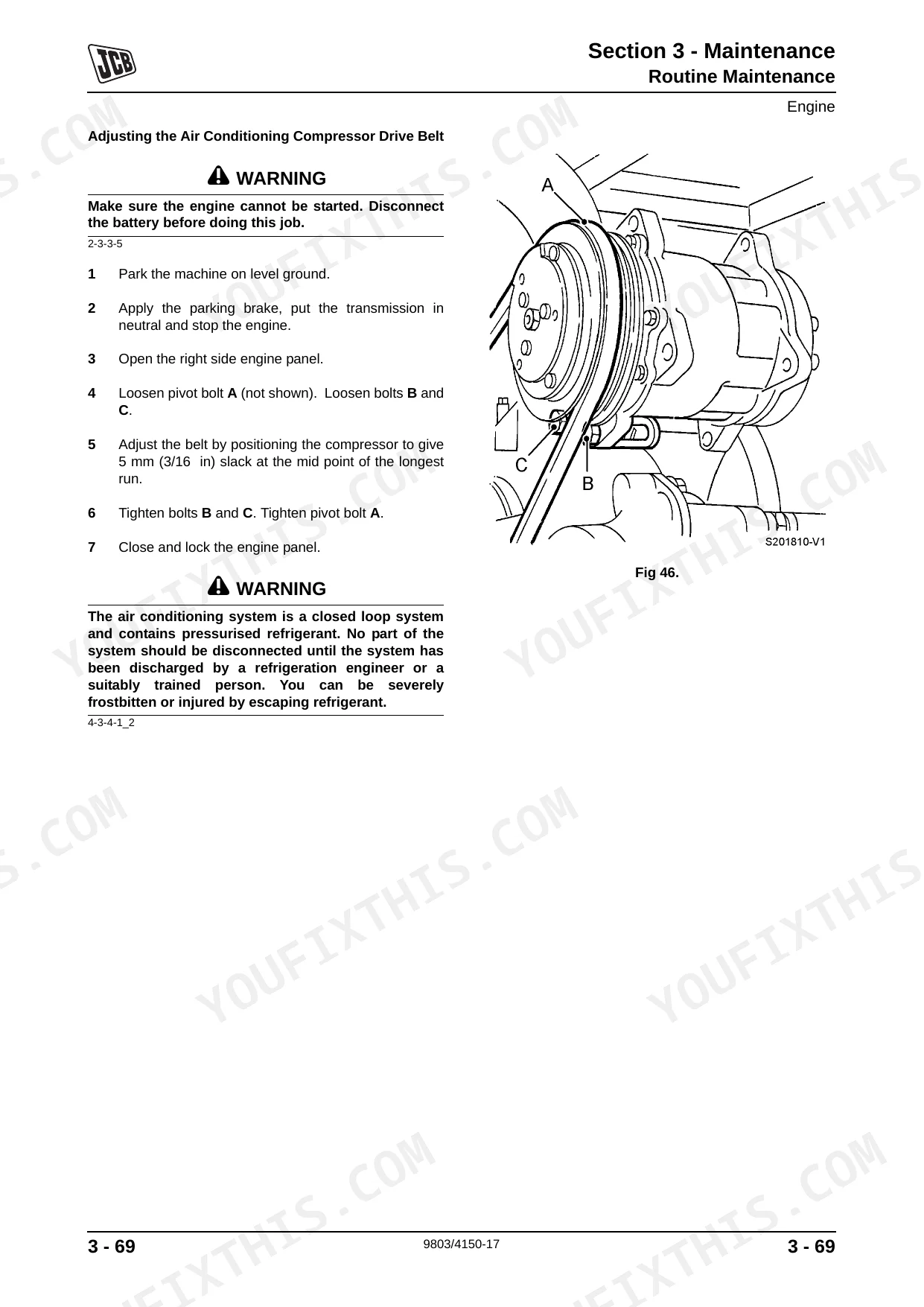

| Specification | Value | Page |
|---|---|---|
| General Torque Settings for Metric Grade 8.8 Fasteners (M5) | 5.8 Nm (Condition 1), 5.2 Nm (Condition 2) | p. 13 |
| BSP Hose Torque Setting (1/8 in.) | 14.0 - 16.00 Nm | p. 17 |
| Hydraulic hose replacement condition | Replace damaged hoses | p. 96 |
| Hydraulic seals replacement condition | Renew whenever disturbed | p. 52 |
| Hydraulic Filter Element Cover Plate Torque | 7 Nm (5 lbf ft) | p. 159 |
| Battery Cold Crank Amps | 410 Amps | p. 272 |
| Battery Electrolyte Level | 6 mm (0.25 in) above the plates | p. 121 |
| Starter Motor Brush Wear Limit | less than 8 mm (0.3 in) | p. 598 |
| Starter Motor Bolt Torque (243C) | 47 Nm (34.7 lbf ft) | p. 598 |
| Fan Belt Slack | 10 mm (3/8 in) | p. 131 |
| Air Conditioning Compressor Drive Belt Slack | 5 mm (3/16 in) | p. 132 |
| Coolant Hoses Condition | Check all hoses for condition and tightness | p. 114 |
JCB 411, 416, 411 Wheeled Loading Shovel, 416 Wheeled Loading Shovel Common Problems This Manual Covers
JCB 411/416 loader lift and tilt functions become slow, weak, or jerky under heavy loads p. 664
Inspect the system for leaks and check fluid levels using the fault finding guide on page 664. If fluid is adequate, check the hydraulic filter element and tighten the cover plate to 7 Nm (5 lbf ft) as shown on page 159. Renew hydraulic seals whenever disturbed.
Manual Section: HydraulicsEngine will not start or exhibits intermittent cranking behavior during cold morning operations p. 598
Verify the battery delivers the required 410 Amps cold crank rating listed on page 272. Inspect the starter motor brush wear limit, confirming it remains less than 8 mm (0.3 in). Torque the starter motor bolts to 47 Nm (34.7 lbf ft) upon reassembly as detailed on page 598.
Manual Section: ElectricsRepeated high engine temperature warnings and overheating alarms during continuous digging cycles p. 131

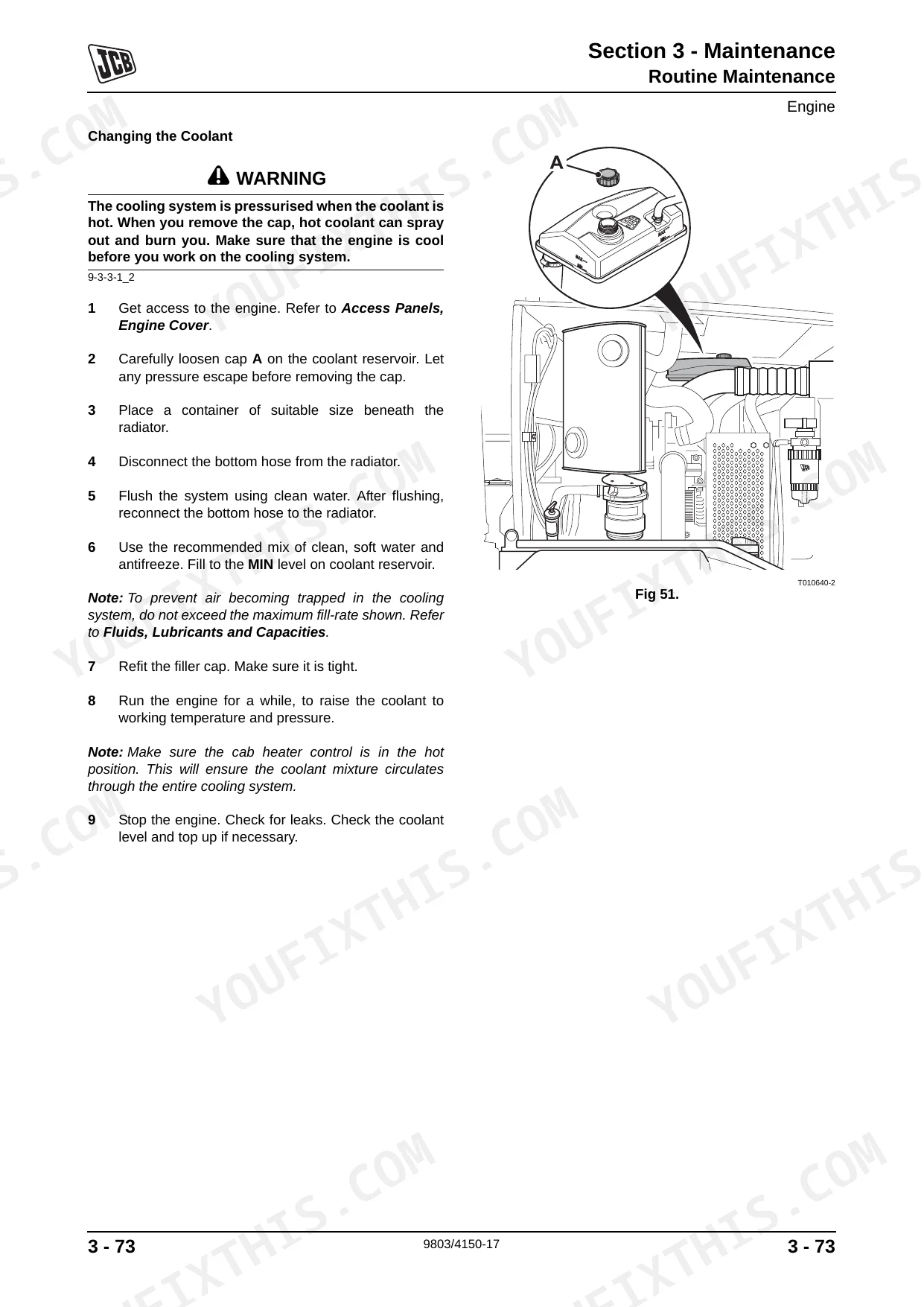

Inspect all coolant hoses for proper condition and tightness according to page 114. Measure the fan belt slack and adjust it to exactly 10 mm (3/8 in) as shown on page 131. Verify the coolant system holds its full 26 litres capacity if operating an older serial number machine.
Manual Section: Routine MaintenanceConstant fluid leaks around main pump fittings, loader valve hoses, and lift cylinders p. 17
Clean the affected area and locate the exact leak source. Replace damaged hydraulic lines and torque 1/8 inch BSP hoses to 14.0 Nm as specified on page 17. Remember to renew hydraulic seals whenever disturbed, adhering to the safety guidelines on page 52.
Manual Section: General InformationFrequently Asked Questions
How do I reset JCB 411/416 error codes?
To reset JCB 411/416 error codes, access the "Log Viewer" in the Electronic Monitoring System. Click the "View and Reset" button, which will prompt for a dealer code, engineer code, and filename to save the log information. After saving, the logs can be reset. Previously active fault codes can also be erased by clicking the button identified as item 39 on the diagnostic screen.
How do I reset the transmission warning on a JCB 411?
To reset a transmission warning on a JCB 411, the typical action for many fault codes is to restart the TCU by turning the ignition OFF/ON. For specific faults like "CLUTCH FAILURE" or "CLUTCH ADJUSTMENT DATA LOST", actions may include replacing the TCU or executing the AEB procedure. If the "CONFIGURATION LOST" fault occurs, the correct configuration for the vehicle needs to be reprogrammed.
What are the torque specs for JCB 411/416 wheel loader wheel nuts?
The torque specification for JCB 411/416 wheel loader wheel nuts is 600 Nm (443 lbf ft). On new machines, and whenever a wheel has been removed, the wheel nut torques should be checked every 10 hours until they remain correct.
Where is the diagnostic port on a JCB 416?
The diagnostic port on a JCB 416 is located on the fuse/relay panel, which is situated behind the operator's seat. To access it, release the single fastener on the panel cover and remove the cover. The interrogation lead (718/20237) connects to the 215-Y connector on this panel.
How quickly can I access this manual after buying?
A 973-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Service Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this JCB 411 & variants manual include hydraulic schematics?
Yes, this JCB 411 & variants Service Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
Document Quality
This document is a scanned PDF, not a native digital file. An OCR layer has been applied, so you can search and copy the full text, although the text itself appears slightly pixelated due to the scanning process. All diagrams and illustrations are raster images, but their labels are consistently clear and readable. The pages are clean with no noticeable scan artifacts, stains, or skewing. There are a few pages intentionally left blank as filler.
