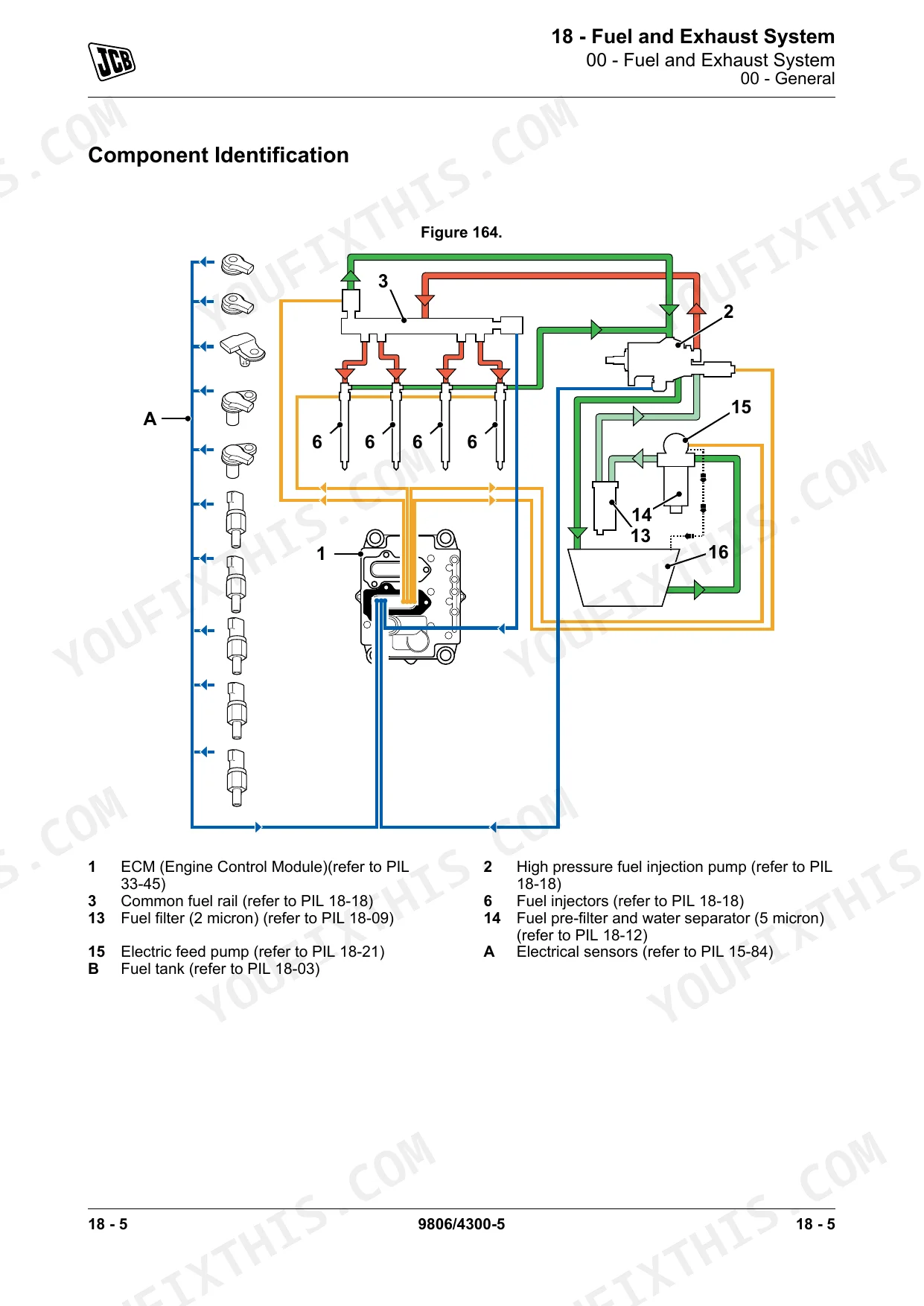

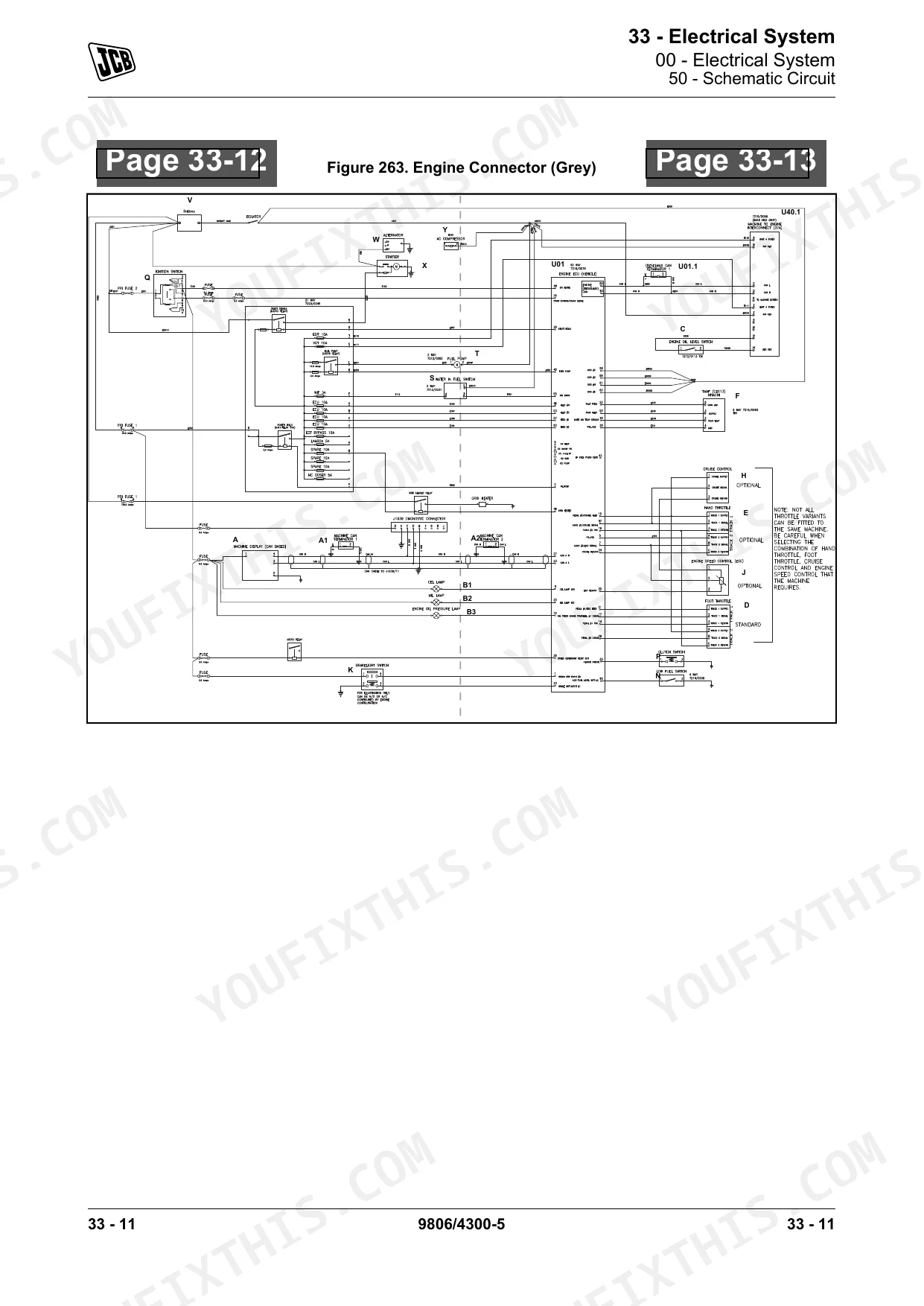

Getting your machine back to work starts here. This 694-page JCB T4F 444 (55kw) and T4i 444/448 Elec Engine Service Manual (OEM #9806/4300-5) breaks down every component from the bedplate to the rocker assemblies. Inside, you get full wiring diagrams to trace harness faults, complete fluid flow schematics, and a detailed troubleshooting section packed with Servicemaster electronic fault codes. Open to any chapter and find step-by-step teardown instructions for the variable geometry turbocharger, EGR actuator, and fuel injectors. Lock down the cylinder head to the crankcase in stages by pulling the bolts to 40 N-m first, then stepping up to 75 N-m for the second pass. Broken bolts and blown head gaskets kill profits. Download this bookmarked file straight to your tablet, jump right to the spec you need, and get that engine running right.
What's Inside This JCB JCB T4F 444 (55kw) Engine (4 Cyl), T4i 444 Elec Engine (4 Cyl), T4i 448 Elec Engine (4 Cyl) Manual
| System | Pages | Key Topics |
|---|---|---|
| Machine | 5-26 | Introduction (General, Product Compliance, Intended Use), Safety (- Yours and Others, Warnings, Maintenance Safety, Operating Safety, Worksite Safety, Risk Assessment, General) |
| Body and Framework | 27-32 | Identification Label, Engine |
| Operator Station | 33-38 | Safety Label/Chart, General Introduction |

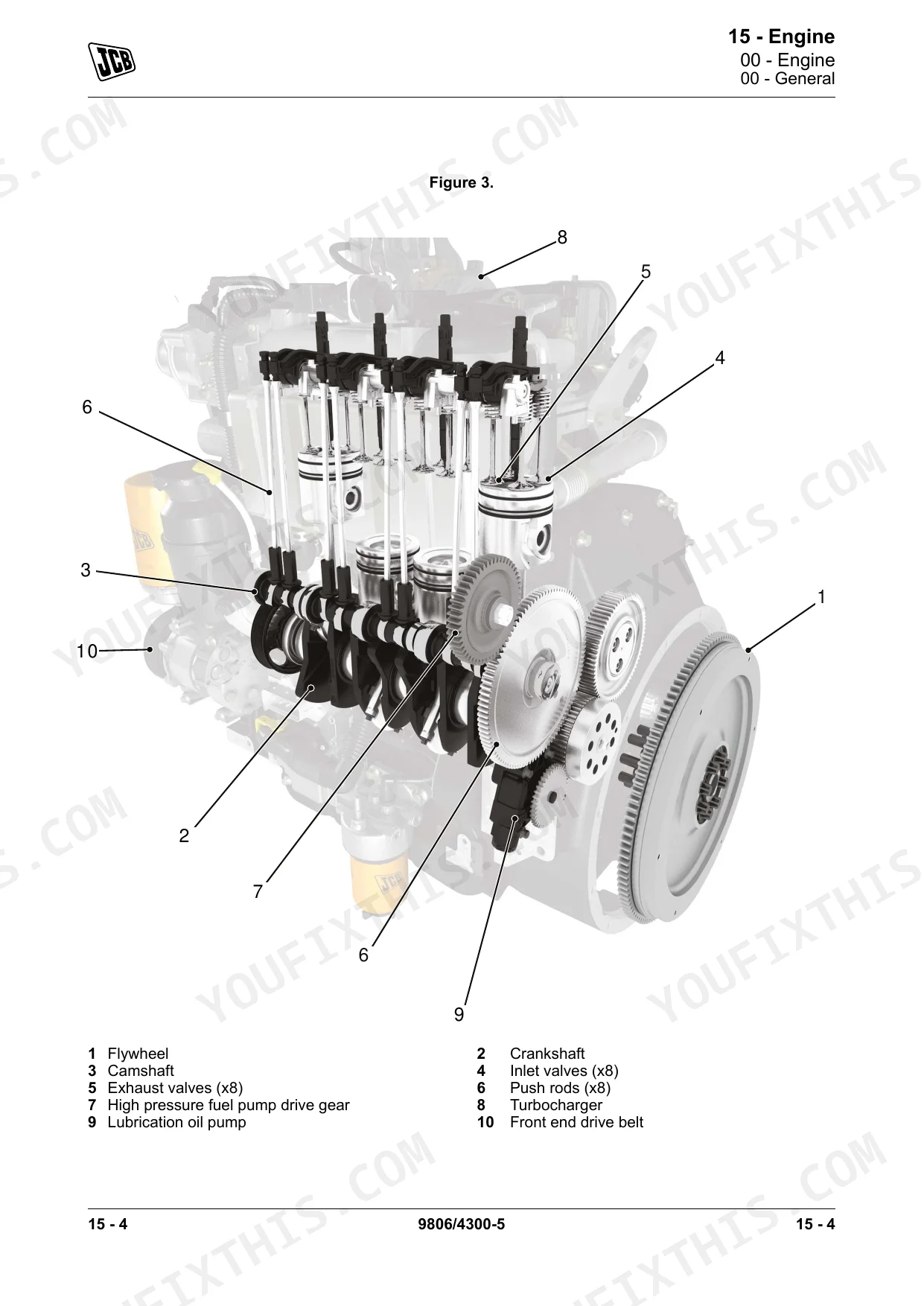

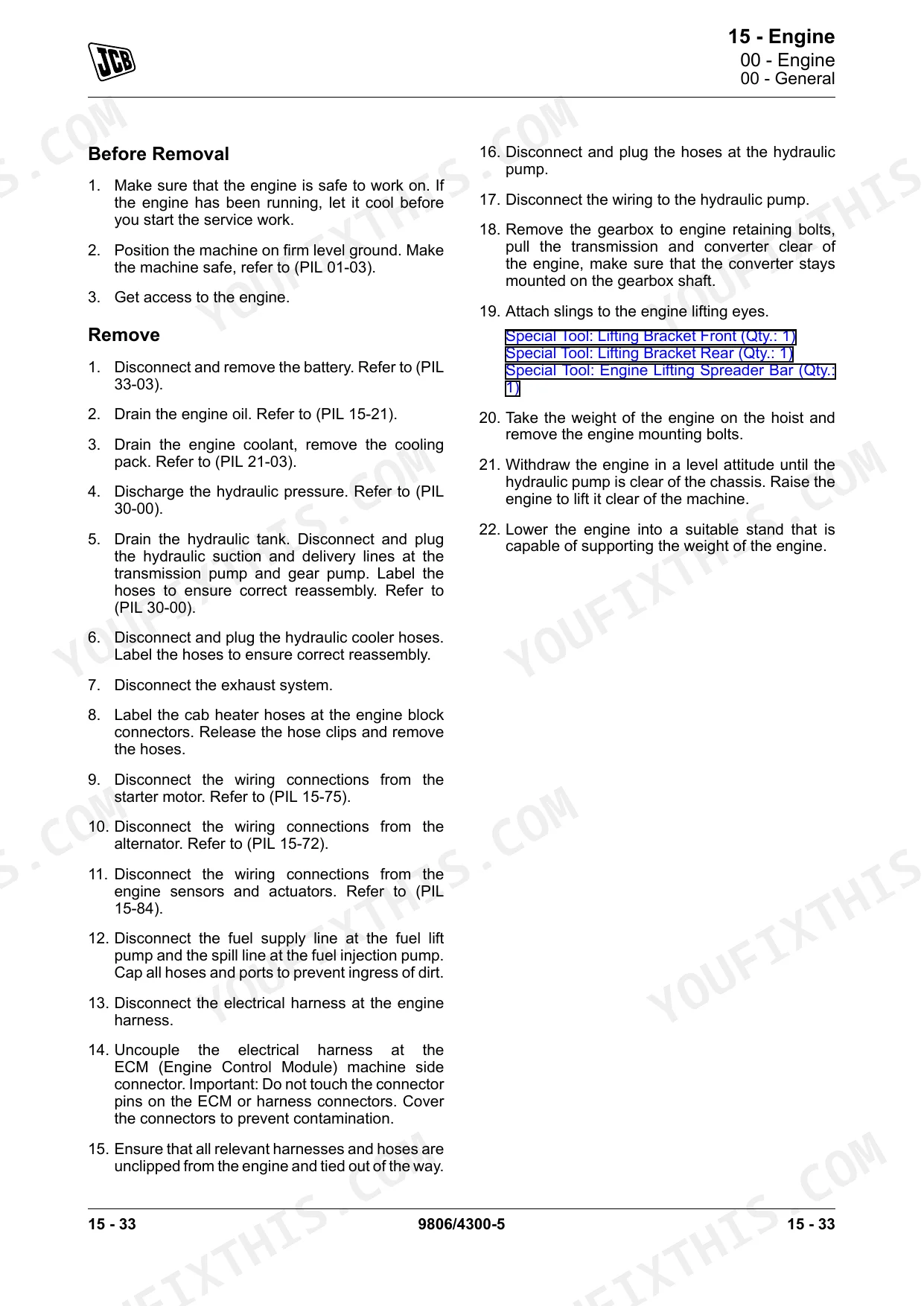

| Engine Component Overview | 39-40 | Crankcase, Cylinder Head, Bedplate, Crankshaft, Camshaft, Engine Belt, Oil Filter, Air Filter, Crankcase Ventilation Filter, Valve, Connecting Rod, Piston, Manifold, Rocker and Fittings, Oil Sump, Timing Gear, Flywheel, Oil Pump, Oil Cooler, Alternator, Starter Motor, Sensor, Switch |
| Engine Assembly and Service | 40-340 | Crankcase, Cylinder Head, Bedplate, Crankshaft, Camshaft, Valve Train, Connecting Rod, Piston, Manifold, Rocker and Fittings, Timing Gear, Flywheel, Oil Sump, Oil Pump, Oil Cooler, Engine Mount, Alternator, Starter Motor, Sensors, Switches, Turbocharger, EGR, Air Intake |
| Fuel and Exhaust System | 341-468 | Tank, Filter, Water Separator, Injection, Fuel Pump, Exhaust |
| Cooling System | 469-506 | Cooling Pack, Expansion Tank, Pump, Thermostat, Inlet, Hose |
| Electrical System | 507-624 | Harness, Control Module, Electronic Diagnostic |
| Fasteners and Fixings | 625-640 | Screws, Bolts |
| Consumable Products | 641-666 | Oil, Fluids, Fuel |
| After Sales | 667-694 | Maintenance Schedules (Maintenance Intervals, Pre-Start Cold Checks, Service Points and Fluid Levels) |

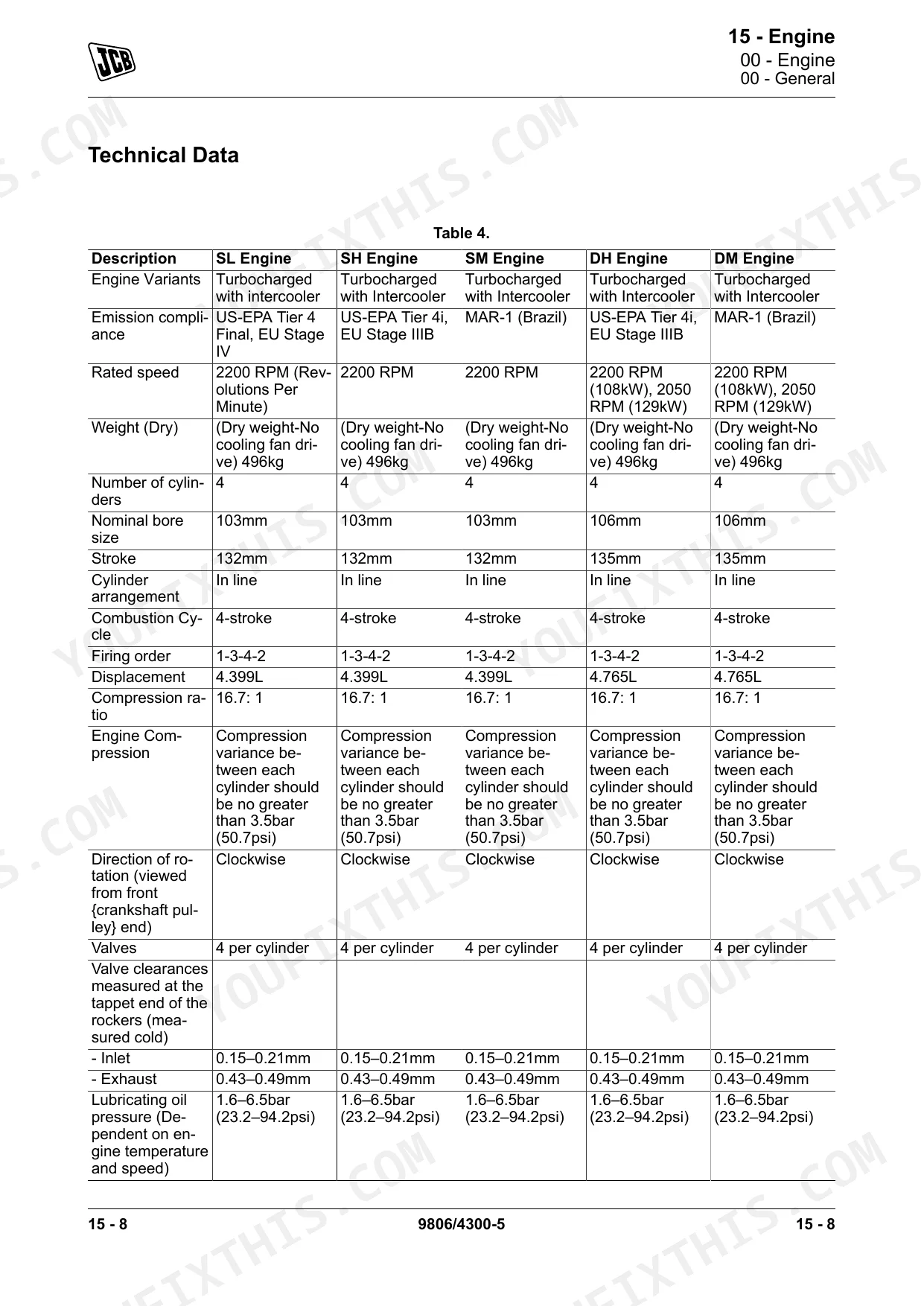

Quick Reference Specifications

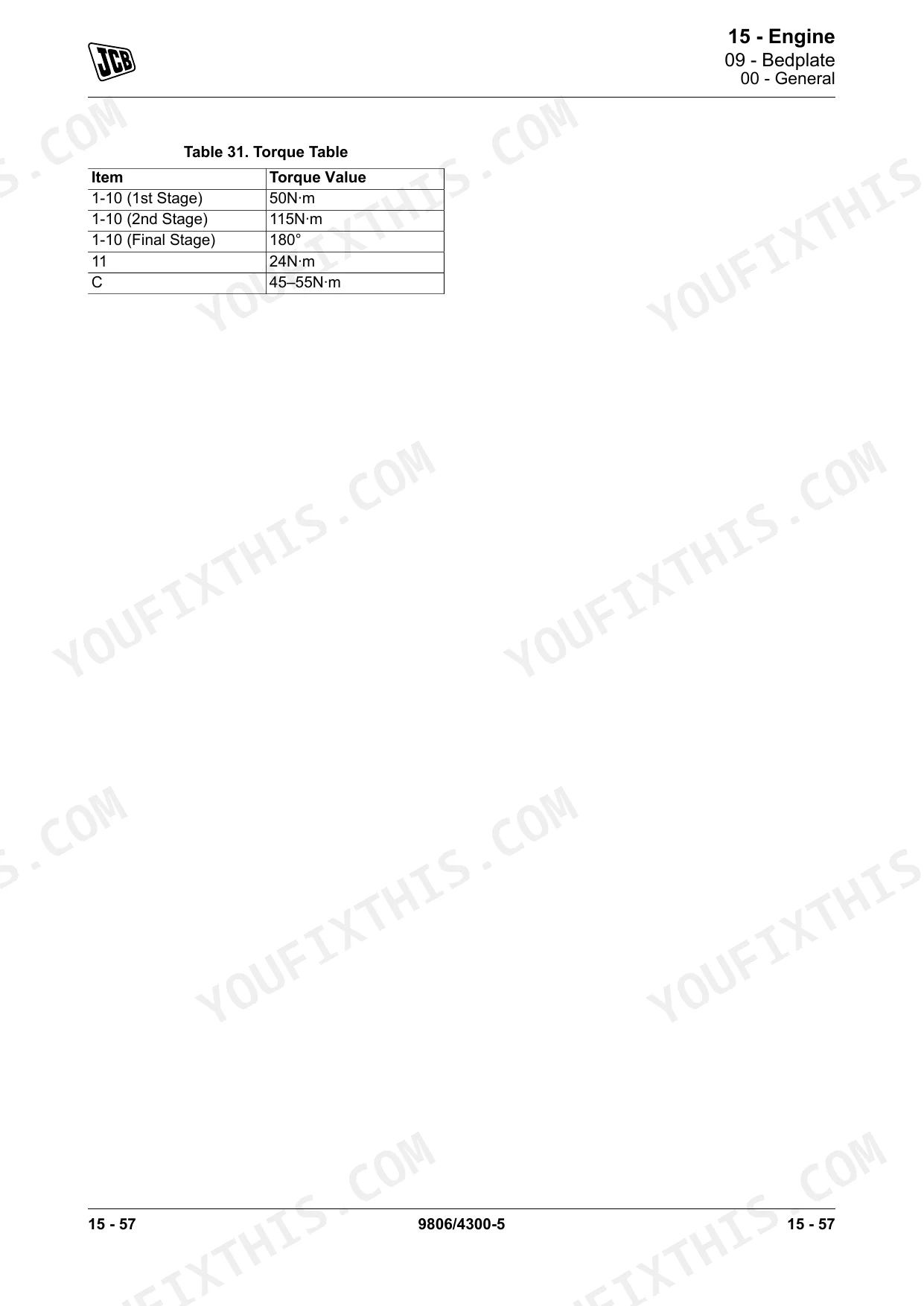

| Specification | Value | Page |
|---|---|---|
| Rocker shaft fixing bolts torque | 24 Nm | p. 199 |
| Rocker shaft - oil feed pedestal fixing bolt torque | 24 Nm | p. 199 |
| Cylinder head to crankcase bolts - first stage torque | 40N·m | p. 90 |
| Cylinder head to crankcase bolts - second stage torque | 75N·m | p. 90 |
| High pressure pump type | Delphi DFP 4.2 | p. 346 |
| Injection pump fixing nuts torque | 24 Nm | p. 408 |
| Fuel lift pump type | Electrically operated | p. 346 |
| Fuel filter micron rating - Pre-filter | 5 micron | p. 346 |
| Fuel filter micron rating - Main filter | 2 micron | p. 346 |
| Injector clamp bolt torque | 28 Nm | p. 397 |
| Injector sleeve torque | 39 Nm | p. 397 |
| Starter motor electrical lead (Terminal 30) torque | 15 ± 3 Nm | p. 275 |
JCB JCB T4F 444 (55kw) Engine (4 Cyl), T4i 444 Elec Engine (4 Cyl), T4i 448 Elec Engine (4 Cyl) Common Problems This Manual Covers
JCB T4F 444 and T4i 448 engines crank but will not start or die immediately after easy start.
Inspect the high pressure fuel pump and main fuel filter. Install a new 2 micron main filter as specified on page 346. Torque the fuel filter element to the value given in the specifications on page 365. Bleed the fuel system to remove any aerated fuel.
Manual Section: Engine - Will Not Start or Difficult to Start (No Exhaust Smoke)Engine runs hot under load with rapid coolant loss and temperature gauge spiking near redline. p. 469
Pressure test the cooling system and verify the radiator cap pressure rating as detailed on page 474. Check the coolant pump for weeping. If replacing the pump, torque the fixing screws to the value specified on page 492. Fill with correct coolant mix.
Manual Section: Cooling SystemStarter clicks rapidly but fails to crank the engine fully during cold weather conditions. p. 513
Measure battery voltage across the terminals. If voltage drops below 9 Volt during cranking, review page 513 for battery fault diagnostics. Clean all connections, inspect cables for corrosion, and torque the starter motor Terminal 30 electrical lead to 15 ± 3 Nm on page 275.
Manual Section: Electrical System - Battery FaultSudden loss of power and poor performance under load with loud whistling from the exhaust side. p. 341
Inspect the air intake hoses and turbocharger for leaks. Check the turbocharger oil feed pipe M12 banjo bolts and torque them to the value specified on page 448. Verify there is no excessive shaft play in the turbocharger assembly before testing under load.
Manual Section: Fuel and Exhaust SystemFrequently Asked Questions

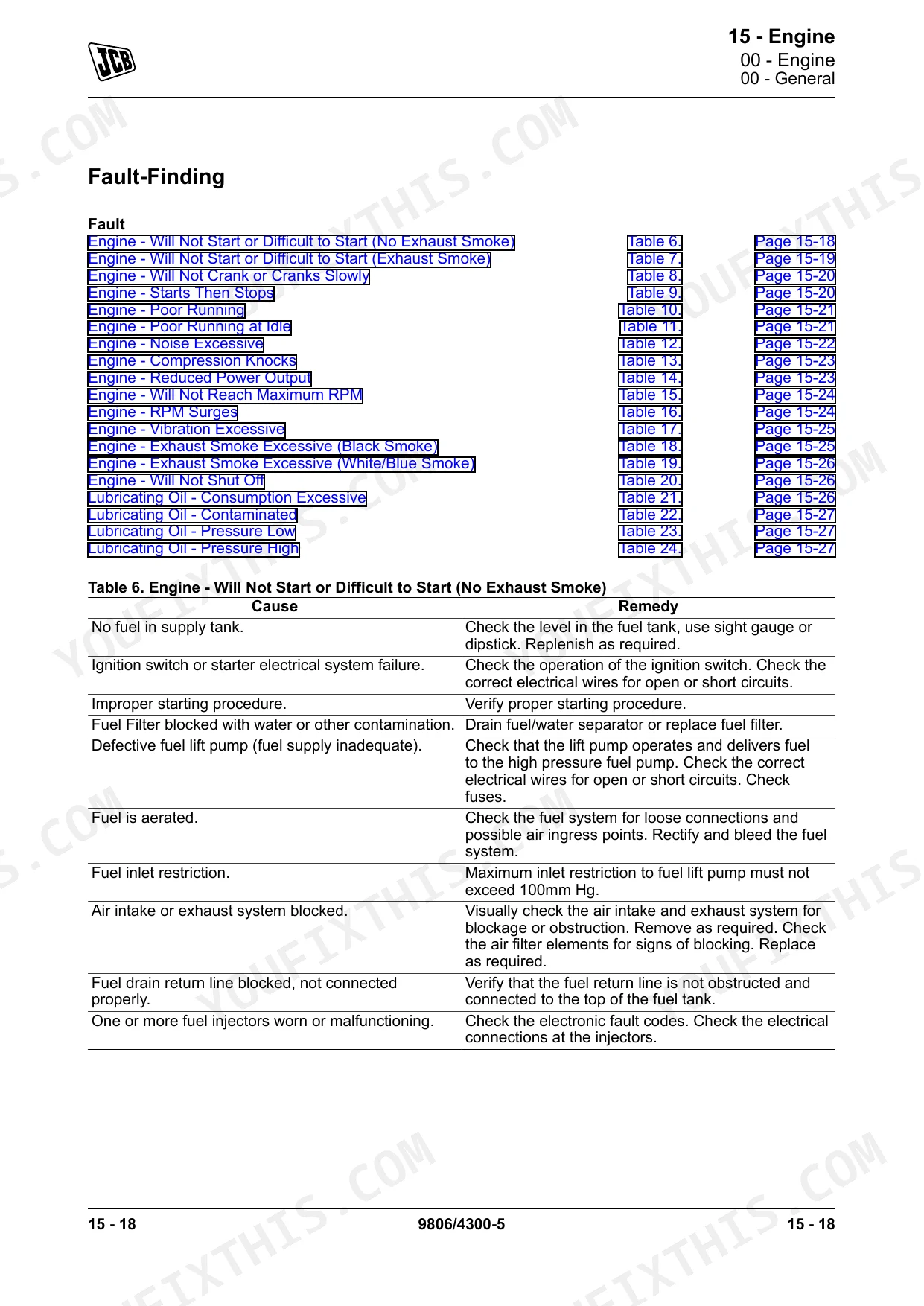

What are the common reasons a JCB 444 engine won't start in cold weather?
Common reasons a JCB 444 engine won't start or is difficult to start include no fuel in the supply tank, ignition switch or starter electrical system failure, improper starting procedure, blocked fuel filter, defective fuel lift pump, aerated fuel, or restricted fuel inlet (maximum inlet restriction to fuel lift pump must not exceed 100mm Hg). Additionally, an air intake or exhaust system blockage can prevent starting.
How do I diagnose a JCB 444 ECU fault or injector driver fault?
To diagnose an ECU fault, disconnect the harness from the engine ECM and inspect for damaged pins, corrosion, or contamination. If ECM pins are damaged, replace the ECM and re-flash appropriate calibration. For an injector driver fault, perform an injector buzz test; if the injector is faulty, it will not produce a buzzing sound, indicating a need to replace the injector.
What causes a JCB 444 engine to start and then die after a few seconds?
An engine that starts then stops can be caused by low fuel in the supply tank, the engine starting under load, a blocked air intake or exhaust system, aerated fuel, a defective fuel lift pump, waxing due to extremely cold weather, contaminated or incorrect grade diesel fuel, or blocked fuel filters. It is recommended to check the fuel level, inspect for blockages, verify fuel pump operation, and ensure correct fuel type and filtration.
How do I bleed air from the fuel system on a JCB 444 engine?
To bleed air from the fuel system, turn the machine ignition switch ON to start the fuel lift pump and allow it to run for 30 seconds without starting the engine. Then, turn the ignition key OFF, wait 10 seconds, and repeat the ON/OFF cycle twice more. After these steps, start the engine and ensure it runs smoothly.
Is this Service Manual a searchable PDF?
A 694-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there DRM restrictions on this Service Manual?
This PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are hydraulic system diagrams included in this JCB 444/448 Engine Service Manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the JCB T4F 444 (55kw) Engine, T4i 444 Elec Engine, and T4i 448 Elec Engine.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text is generally crisp and readable, though it exhibits minor artifacts typical of scanned documents. Diagrams and illustrations are raster images, meaning they may show some pixelation when highly magnified, but their labels are clear and legible. Pages are clean and consistently aligned, free from notable stains or marks. You will find several "Notes:" pages interspersed throughout the document, serving as filler pages.
