Every major system on your Loadall gets covered in this 280-page JCB 520-50, 525-50 Service Manual PDF (OEM #9803/3620 Issue 9), which also fully covers the 525-50S variant. Inside, you get complete hydraulic schematics detailing valve block flow, full wiring diagrams to trace stubborn electrical faults, and dedicated troubleshooting charts for the Syncro Shuttle transmission. Jump into the brake, steering, and body & framework sections to find step-by-step repair procedures paired with highly detailed exploded views. Verify your hydraulic filter relief valve is set precisely to 1.05 bar, and make sure you tighten the heavy-duty front wheel nuts to a solid 680 Nm. Guesswork in the shop only burns time and parts. Download this bookmarked file directly to your toughbook or phone, tap to the exact factory procedure, and get that machine loading again.
What's Inside This JCB 520-50, 525-50, 525-50S Manual
| System | Pages | Key Topics |
|---|---|---|

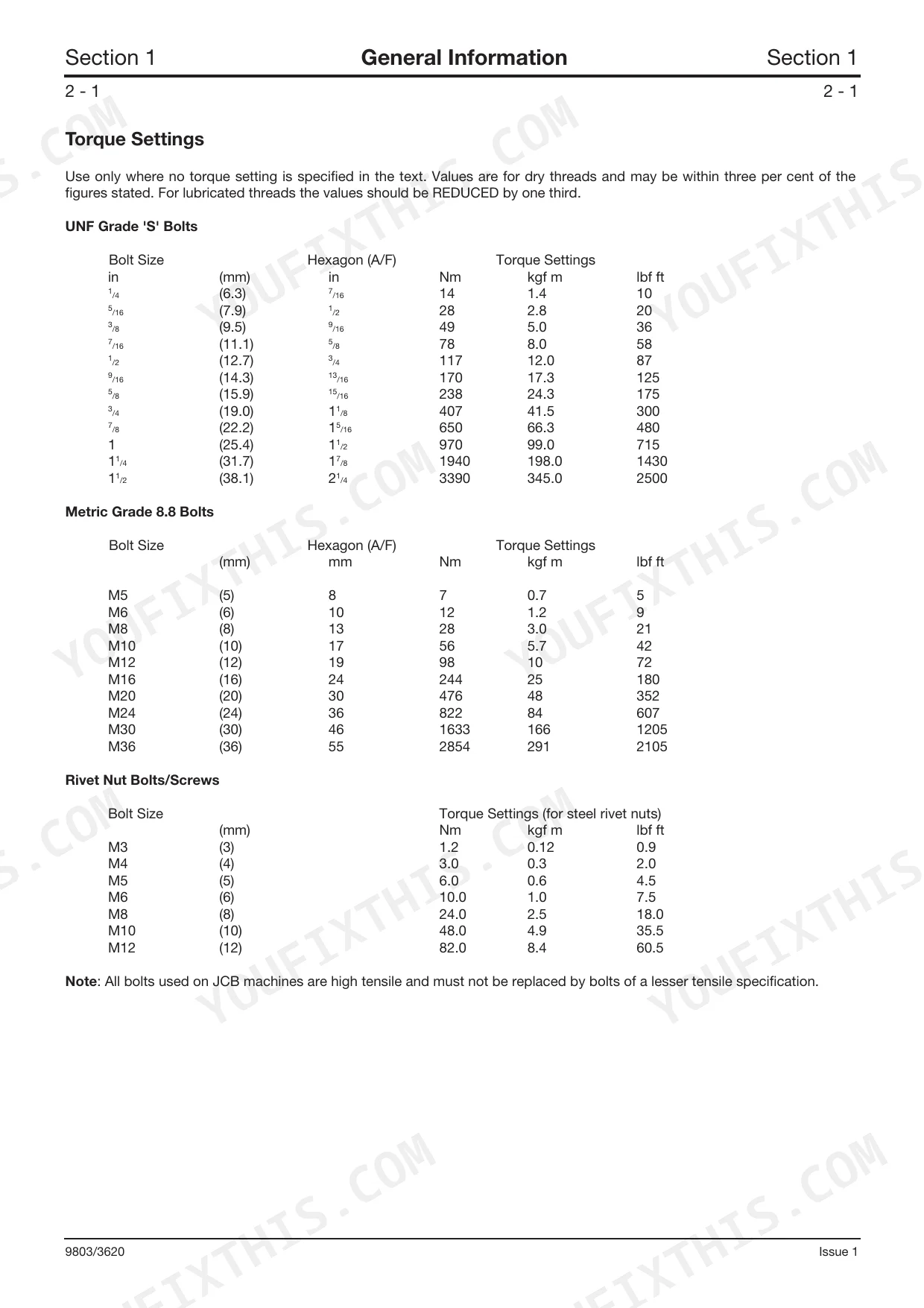

| General Information | 1-20 | Identification, Torque Settings, Service Tools, Sealing and Retaining Compounds |
| Care & Safety | 21-30 | Safety Notices, General Safety, Operating Safety, Maintenance Safety, Lubricants - Health and Safety |

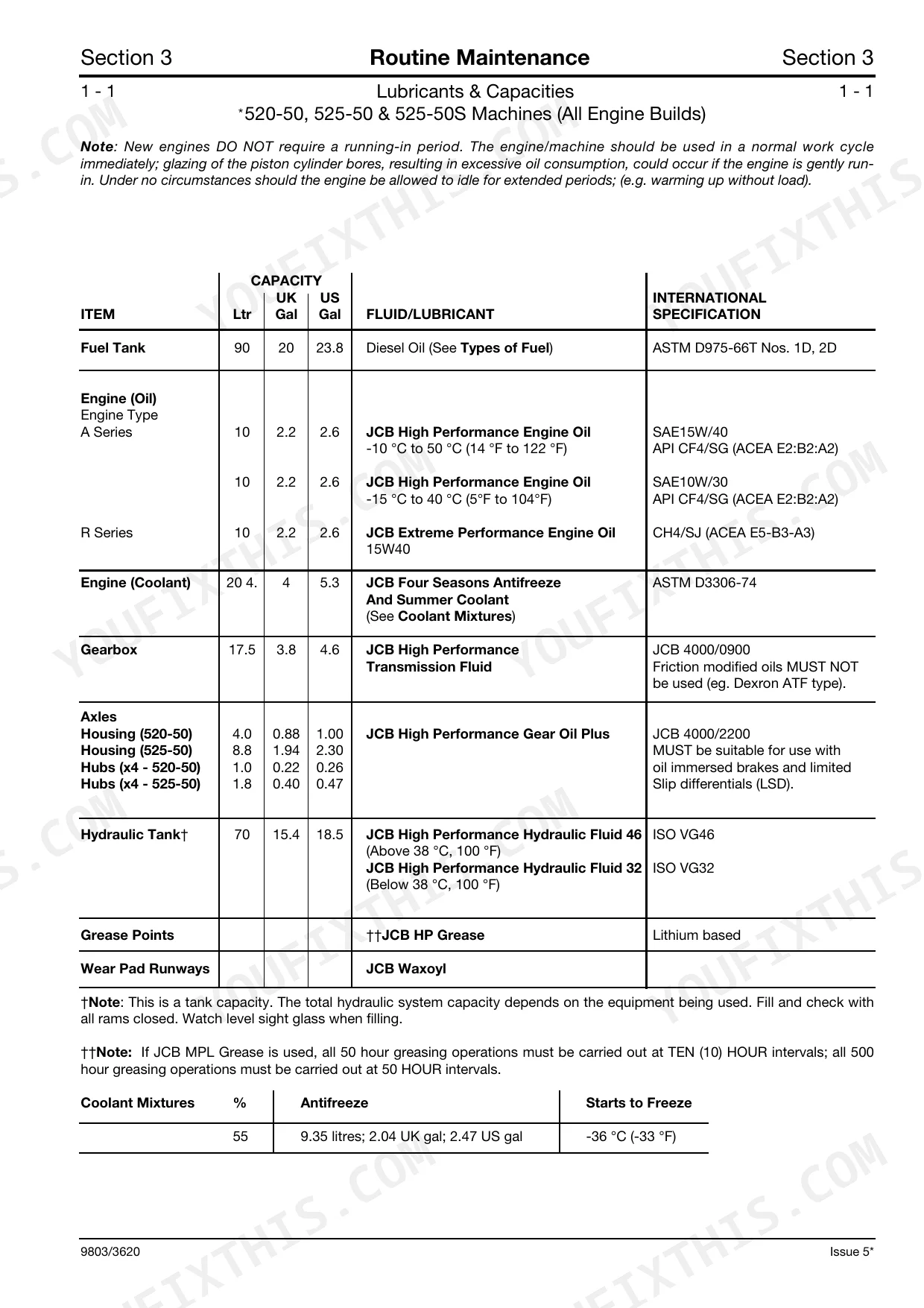

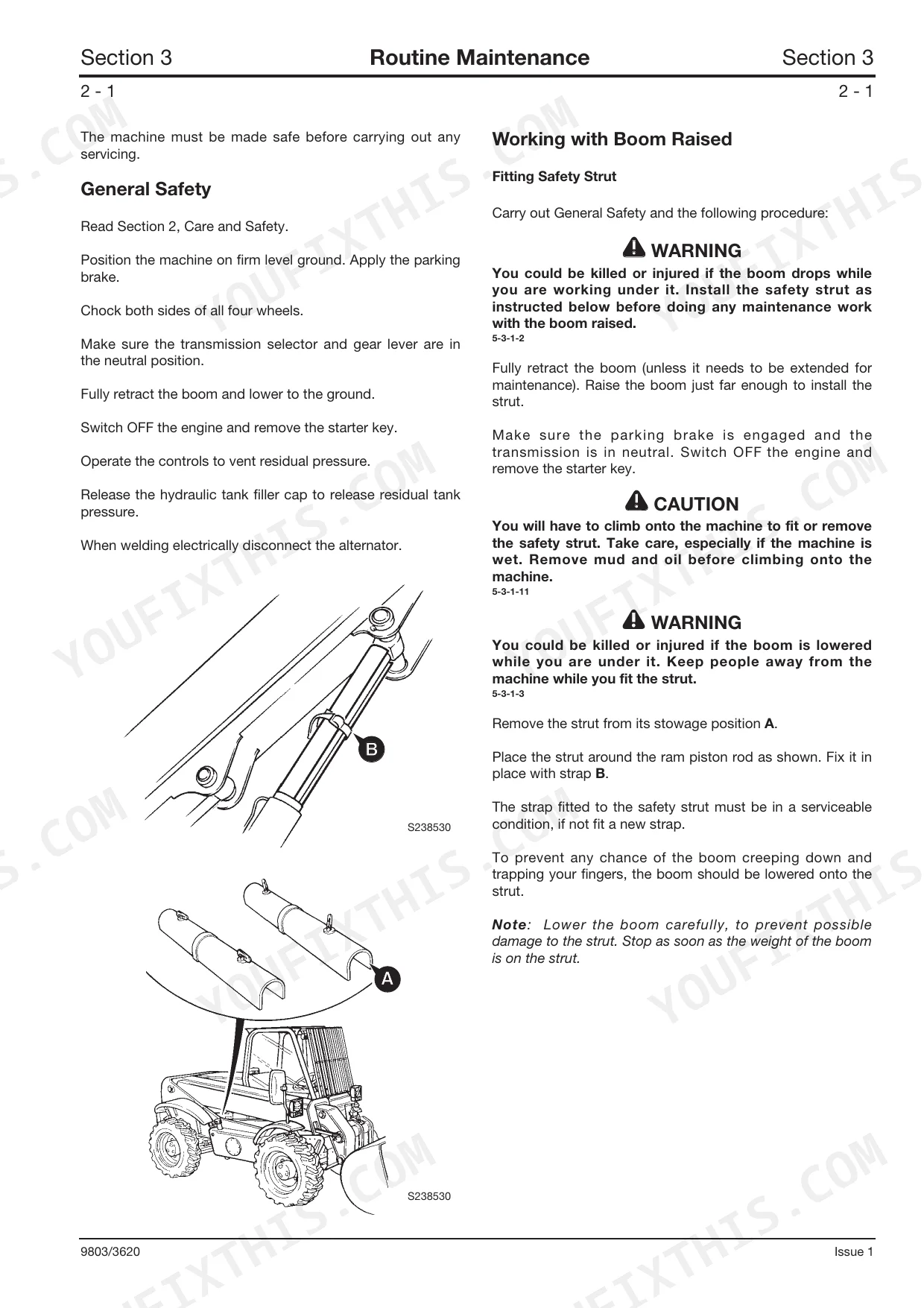

| Routine Maintenance | 31-67 | Lubricants & Capacities, Machine Safety, Service Schedules, Grease, Oiling, Boom Wear Pads, Tyres and Wheels, Engine Air Filter, Engine Oil and Filter, Engine Cooling System, Fuel System, Transmission, Axles, Front and Rear Hub, Hydraulic System, Hose Burst Protection Valves, Battery |
| Body & Framework | 69-84 | Cab, Tanks, Boom (Wear Pads, Inner and Outer, Adjusting Shovel Alignment) |

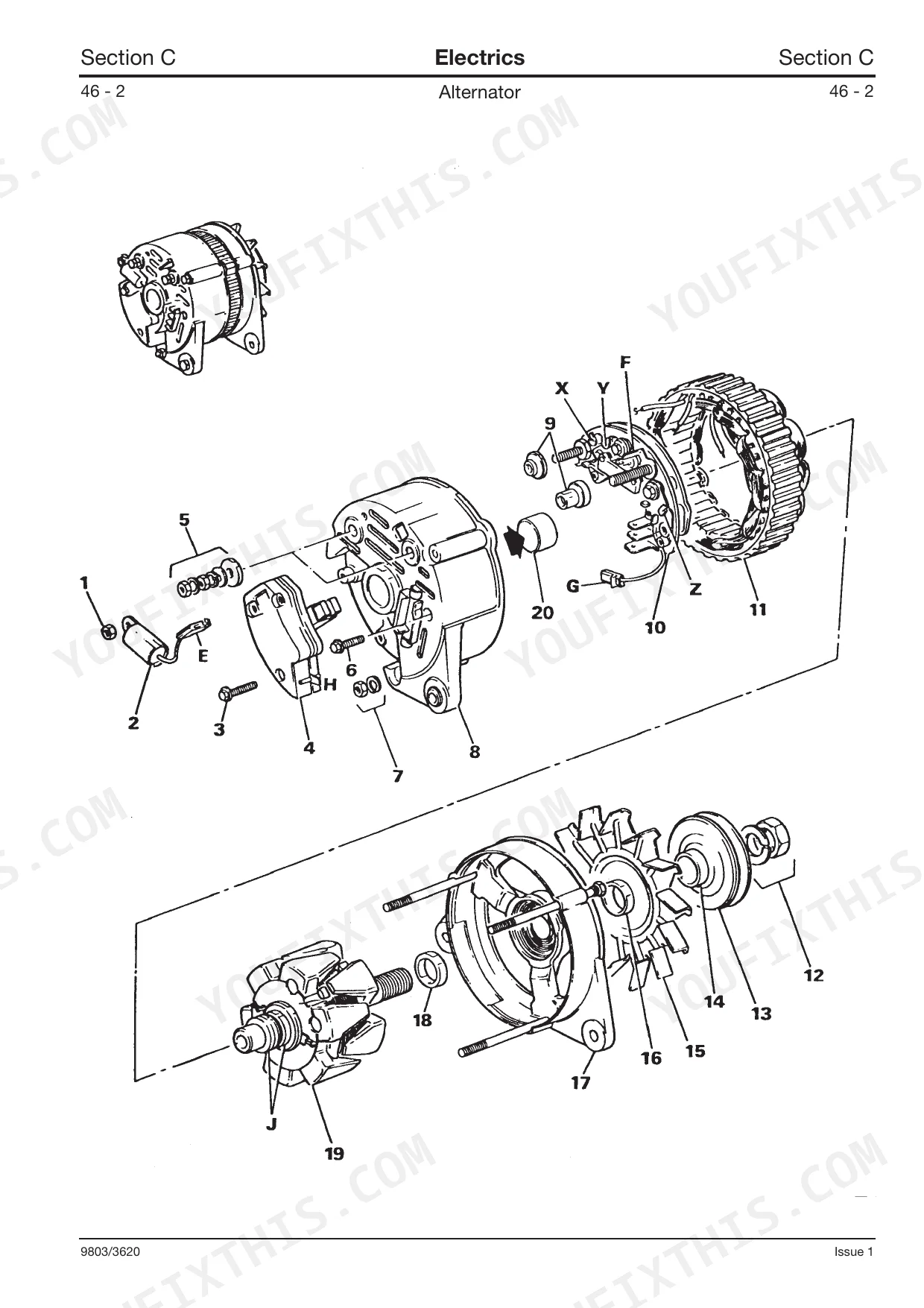

| Electrics | 85-138 | Technical Data, Test Methods, Schematics, Batteries, Alternator, Starter Motor, Safe Load Indicator & Load Moment Indicator |

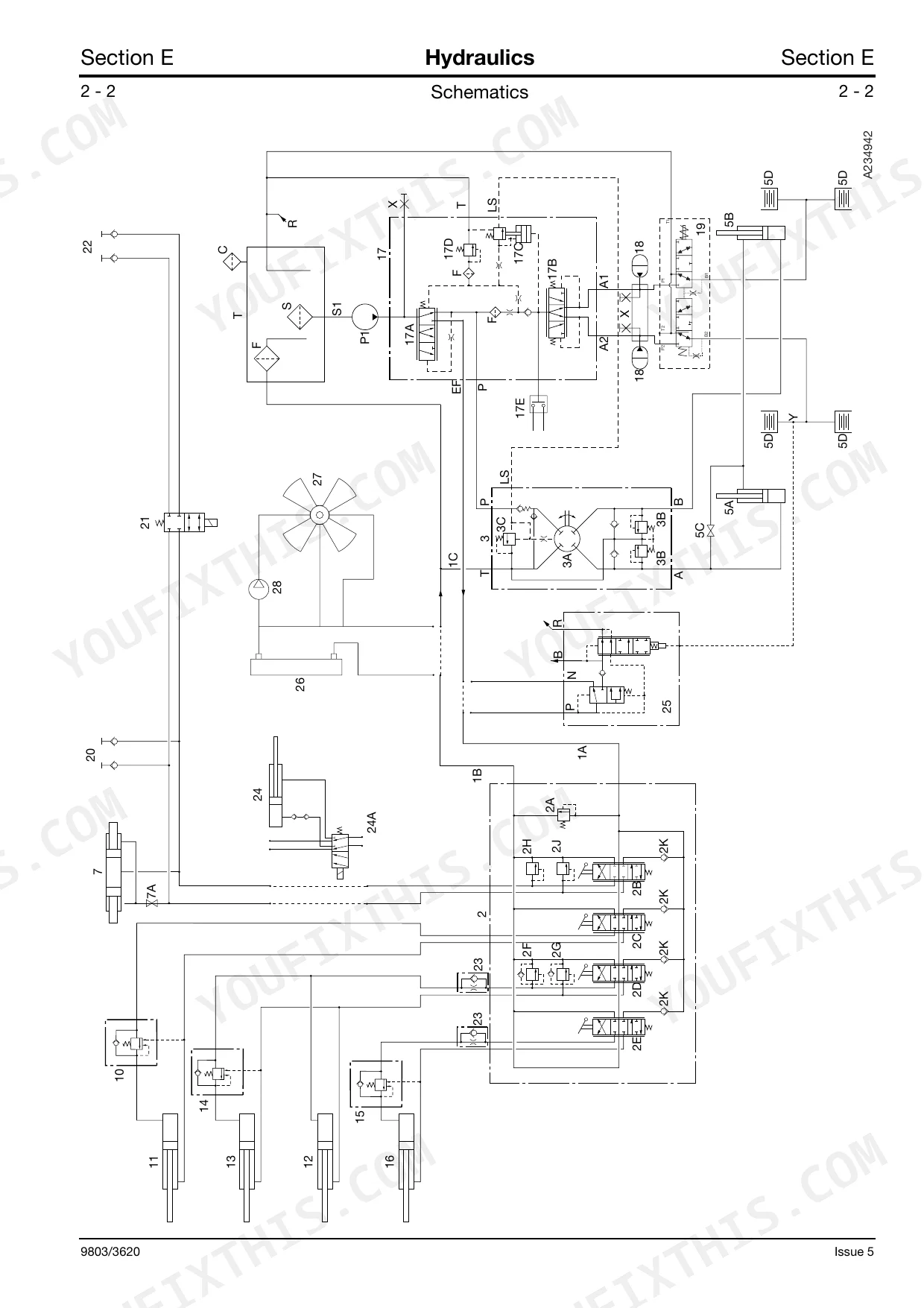

| Hydraulics | 139-170 | Technical Data, Schematics, Fault Finding, Pump, Valves, Rams |
| Transmission | 171-244 | Technical Data, Towing Procedure, Fault Finding, Torque Converter, Syncro Shuttle, Reverser Unit, Forward/Reverse Selector Valve, Pressure and Flow Testing, Front Axle, Rear Axle, Front and Rear Axles (Dismantling, Assembly, Crown Wheel & Pinion, Pinion Oil Seal, Axle Hub and Driveshaft), Propshafts, Salvage/Repair (Driveshaft Oil Seal, Wear Sleeve Fitting, Axle and Gearbox Driveshaft Flange Seals, Hub and Driveshaft - Fitting Bearing Carrier Seal) |
| Brakes | 245-260 | Technical Data, Descriptions (Charge/Priority Valve), Parking Brake, Brake System, Foot Brake Valve, Charge/Priority Valve |
| Steering | 261-274 | Technical Data, Circuit Description, Service Procedures (Re-Aligning the Road Wheels), Steer Mode Valve, Valves (Hydraulic Steering Unit), Bleeding Procedure |
| Engine | 275-280 | Technical Data, Standard Procedures (Engine Speed Setting, Radiator Fan Speed Setting) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel Nut Torque (Front) | 680 Nm | p. 43 |
| Wheel Nut Torque (Rear) | 680 Nm | p. 43 |
| Drive Head Carrier Securing Bolts Torque | 56 Nm | p. 211 |
| Filter Filtration Size | 25 microns (0.001 in) | p. 141 |
| Filter Relief Valve Setting | 1.05 bar | p. 141 |
| New Steer Axle Inner Driveshaft Seal Thickness | 16mm (0.65in) | p. 239 |
| Oil Seal Fitting Depth (25-26mm dimension) | level with the wheel bearing carrier face | p. 243 |
| Transducer Mounting Bolts Torque | 70 Nm | p. 138 |
| Transducer Output Voltage (Fitted) | 4.3V to 4.7V | p. 135 |
| Service Brakes System Pressure | 90 - 110 bar (1303 - 1595 lbf/in2) | p. 247 |
| Foot Brake Valve Retaining Bolts Torque | 16 Nm | p. 255 |
| Steering Relief Valve Operating Pressure | 138 to 143 bar (141 to 146 kgf/cm2; 2000 to 2074 lbf/in2) | p. 263 |
JCB 520-50, 525-50, 525-50S Common Problems This Manual Covers
JCB 520-50, 525-50, 525-50S hydraulic pump making noise with boom lift slow or erratic under load p. 141
Test the main relief valve operating pressure at the test port. Adjust the valve to exactly 241 bar as shown on page 141. Inspect the suction strainer and replace the hydraulic filter if the fluid is contaminated or foaming in the tank.
Manual Section: Hydraulics Fault FindingTransmission loses drive propulsion or machine completely stops moving when operating under heavy load p. 33
Drain the transmission and check the oil for metal flakes. Fill the system with exactly 17.5 L of fresh fluid as outlined on page 33. Inspect the forward/reverse selector valve and test the mainline pressure to verify pump flow is adequate.
Manual Section: Transmission Fault FindingBrake pedal feels extremely spongy and stopping performance becomes poor during normal operation p. 252
Test the brake system pressure at the accumulator. Verify the pressure does not decay below 30 bar (435 lbf/in2) as detailed on page 252. Inspect the piston seals for small cuts or nicks. Torque the foot brake valve retaining bolts to 16 Nm per page 255.
Manual Section: Brake System Pressure Testing & LeakageEngine will not turn over or starter motor cranks very slowly during cold weather p. 112
Check the battery electrolyte level is exactly 6 mm (1/4 in) above the plates using the guide on page 112. Test the specific gravity to confirm it reads 1.270 - 1.290 per page 113. Inspect the starter relay and verify there is no high resistance in the earth lead.
Manual Section: Starter Motor Starting Circuit TestFrequently Asked Questions
How do I reset the JCB 520-50/525-50/525-50S fault codes?

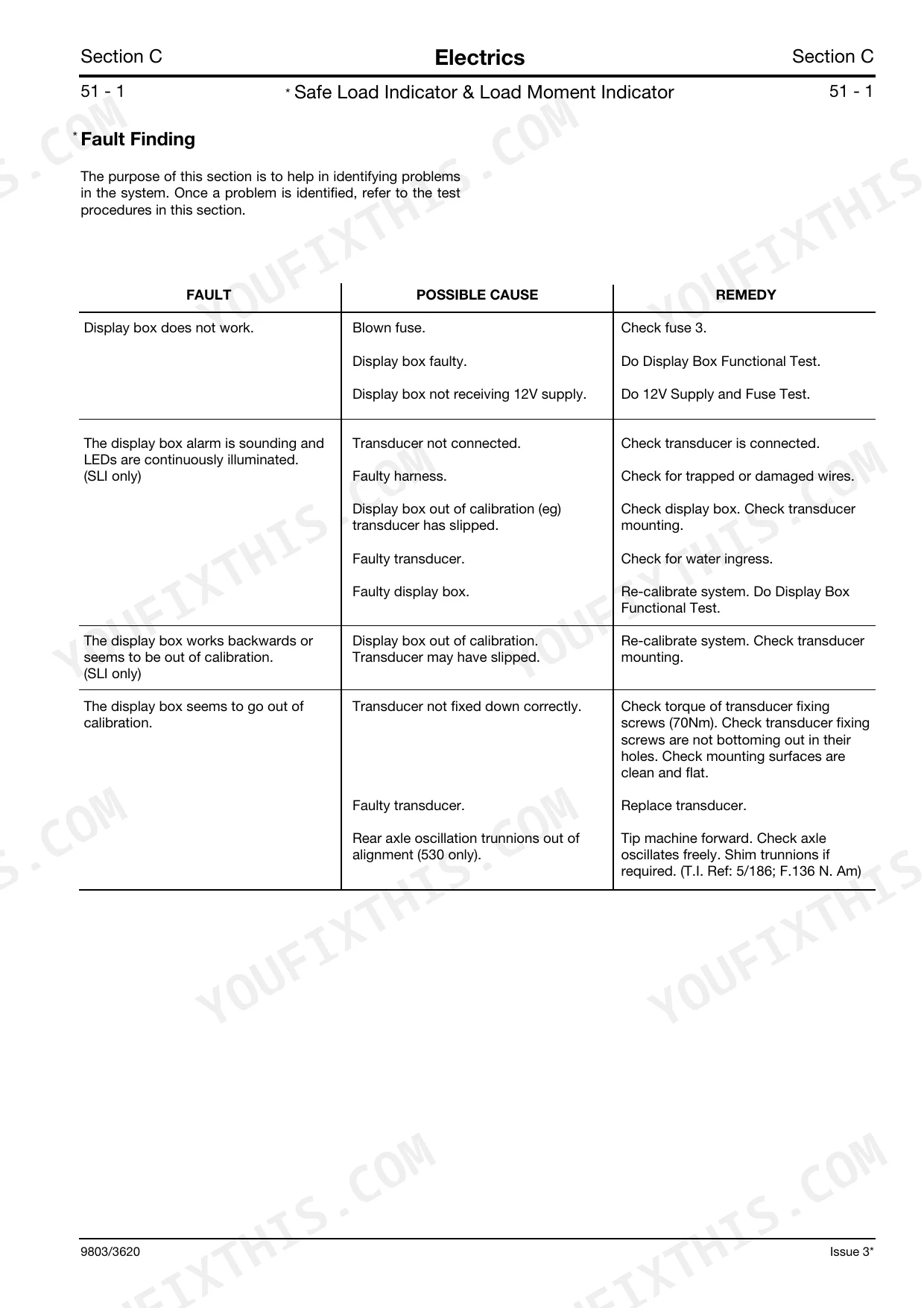

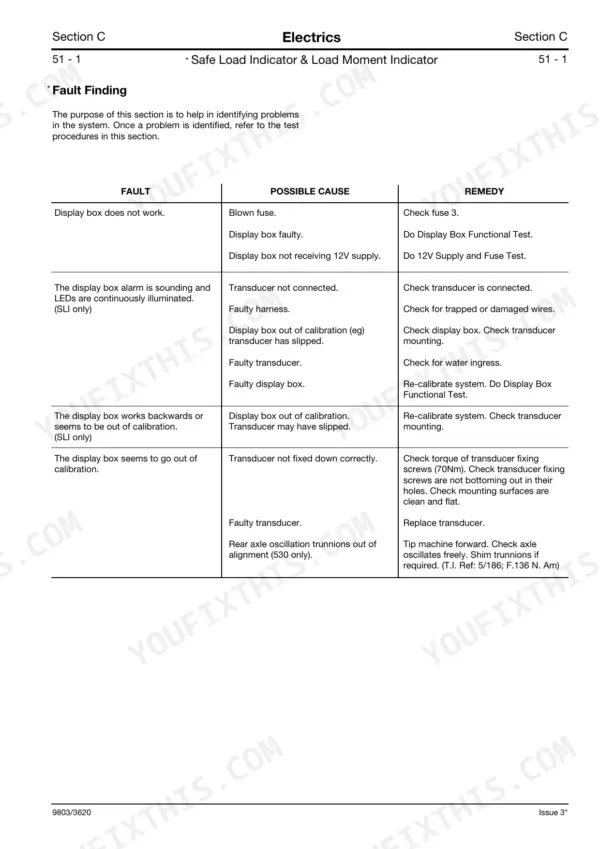

If any fault codes are displayed on the LMI system, switch the starter key off and then on again. If the fault persists, especially for Fault Code 4 (Display unit faulty), the display box may need to be replaced if switching the starter key off and on again does not clear the fault.
What does the hydraulic/brake buzzer warning mean on a JCB 520.50 telehandler?
The audible warning (buzzer) on a JCB 520.50 telehandler activates when the machine is nearing or exceeds its maximum working limit, specifically when the load exceeds the maximum working limit by 10%. It also sounds for approximately 10 seconds when the LMI system detects a fault.
What are the torque specs for JCB 520-50 wheel nuts and hub bolts?
For JCB 520-50 machines, the front and rear wheel nuts should be tightened to 680 Nm (500 lbf ft). For hub oil drain/fill plugs, the torque specification is 35-40 Nm (26-30 lbf ft).
How to clear JCB 525-50S error codes
To clear error codes on the JCB 525-50S, if any fault codes are displayed, switch the starter key off and then on again. If the error persists, especially for Fault Code 4 (Display unit faulty), the display box may need replacement if the key cycle does not clear the fault.
How will I receive this Service Manual?
This is a 280-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this JCB 520-50, 525-50, 525-50S manual include wiring diagrams?

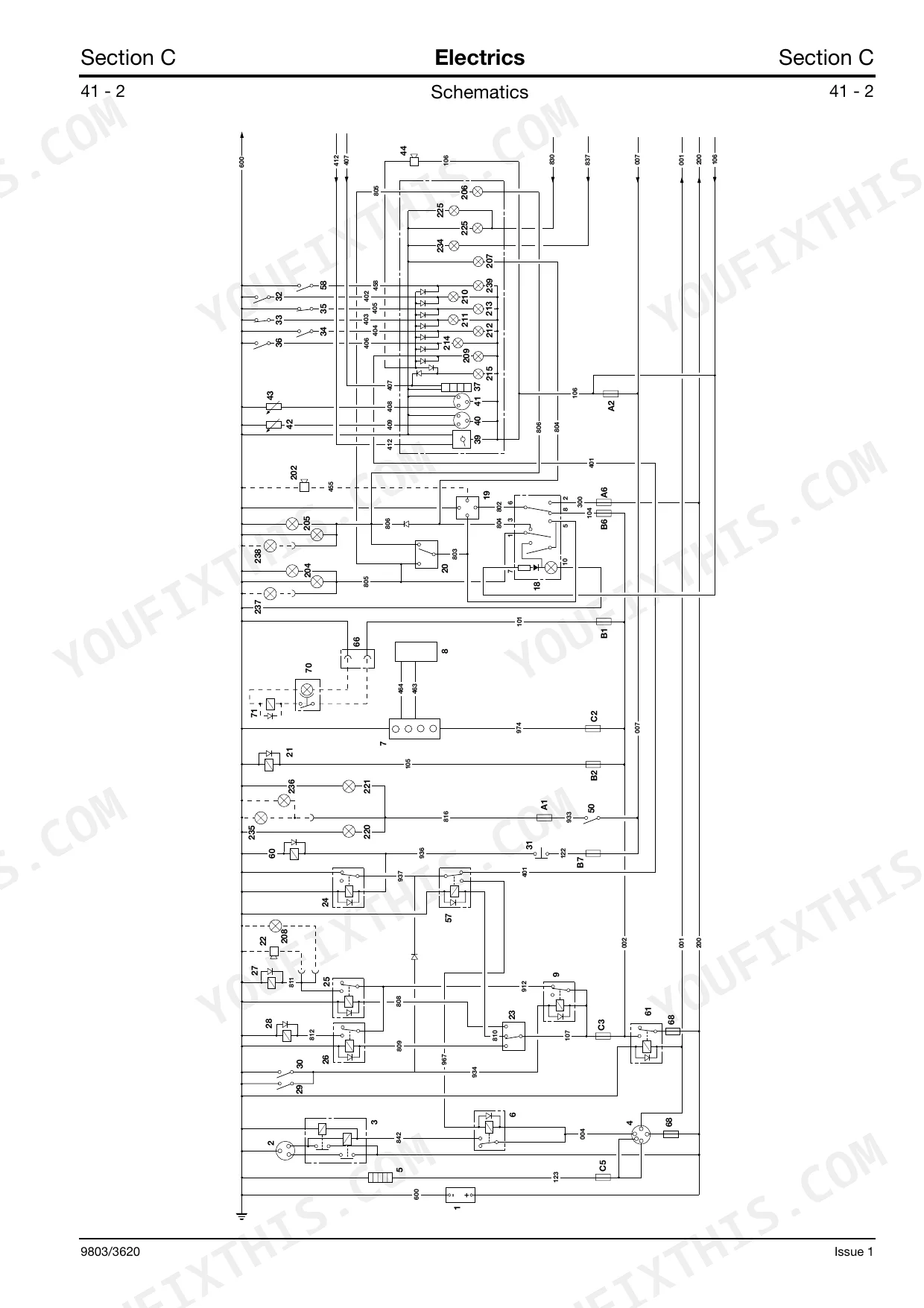

Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text. The text is generally crisp and readable throughout. Diagrams and illustrations are scanned raster images; while clear at normal viewing, they may pixelate when highly zoomed, though labels remain mostly legible. Pages are largely clean, with minor scan artifacts like faint lines or specks appearing occasionally, and some pages are slightly skewed. You will find several blank pages interspersed, typically at the end of sections.
