Looking to rebuild the syncro shuttle transmission on your 1994-2007 machine? This 381-page JCB 2CX, 2DX, 210, 212, 213S, Backhoe Loader Service Manual PDF (OEM #9803/7110) breaks down the complete hydraulic, electrical, and drivetrain systems. Inside, you get full wiring diagrams, schematic hydraulic circuits with flow diverter valve testing, and extensive fault finding charts for the front and rear axles. Packed with exploded views and step-by-step teardown instructions, this resource takes the guesswork out of maintaining your heavy equipment. Verify the return line filter bypass pressure hits exactly 1.72 bar, and confirm the air cleaner maximum restriction triggers the warning light at 635 mm H20. Stop relying on forum guesses when your iron is down. Download the bookmarked file, pull it up on your shop tablet, and get back to turning wrenches.
What's Inside This JCB 2CX & variants Manual
| System | Pages | Key Topics |
|---|---|---|

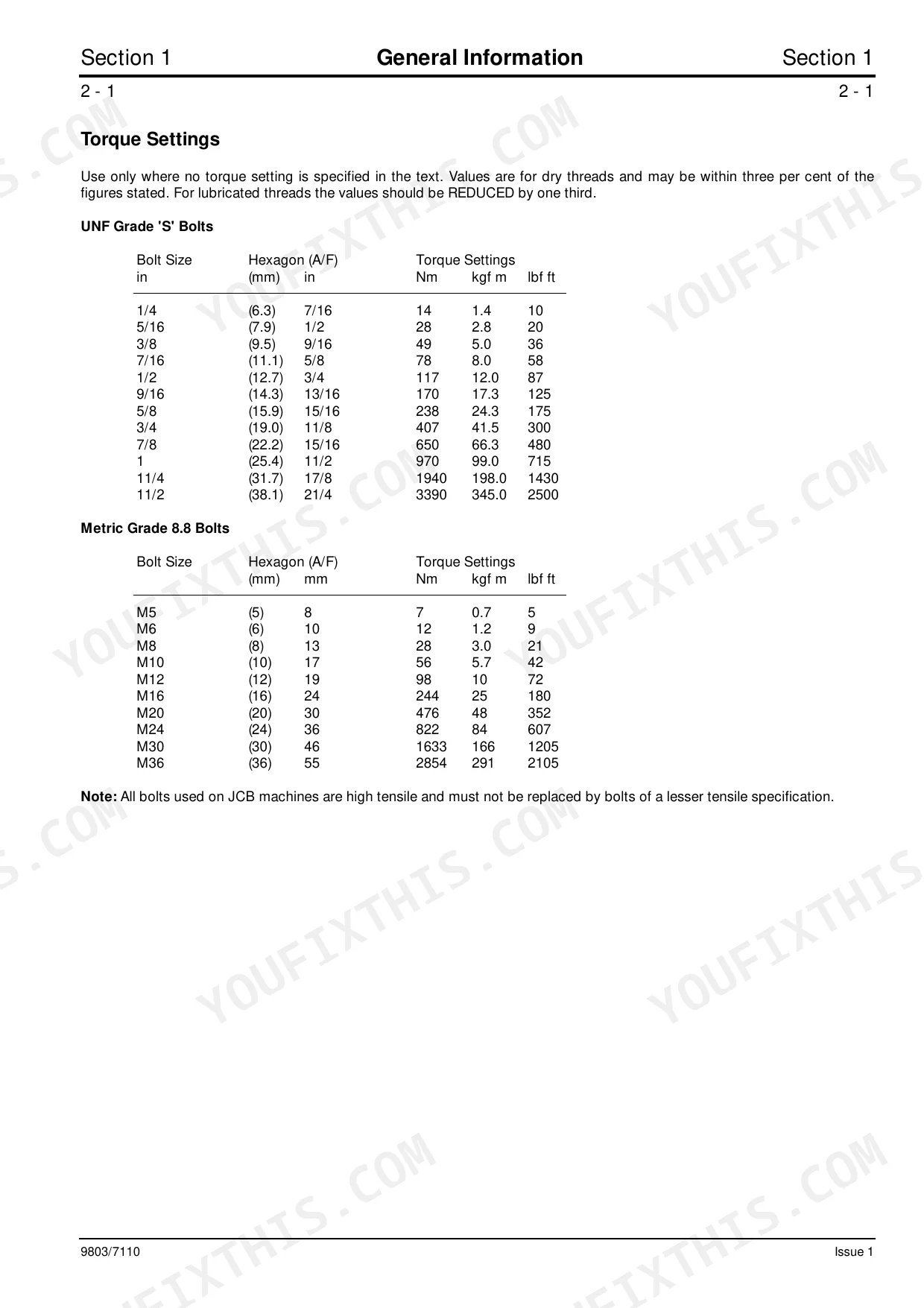

| General Information | 1-19 | Machine Identification, Unit Identification, Torque Settings, Service Tools, Sealing and Retaining Compounds |
| Care & Safety | 20-31 | Safety Notices, General Safety, Operating Safety, Maintenance Safety, Safety Decals |

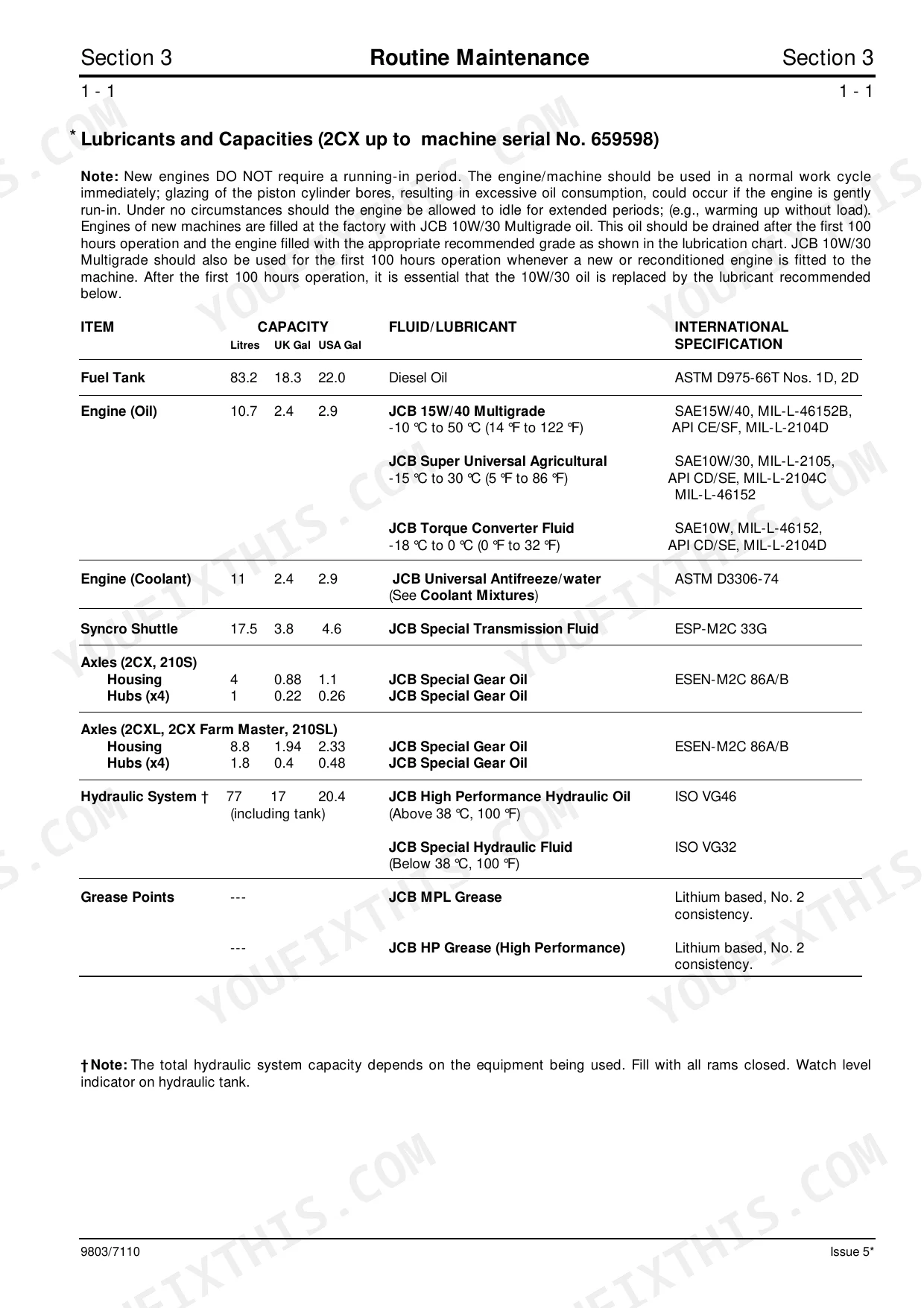

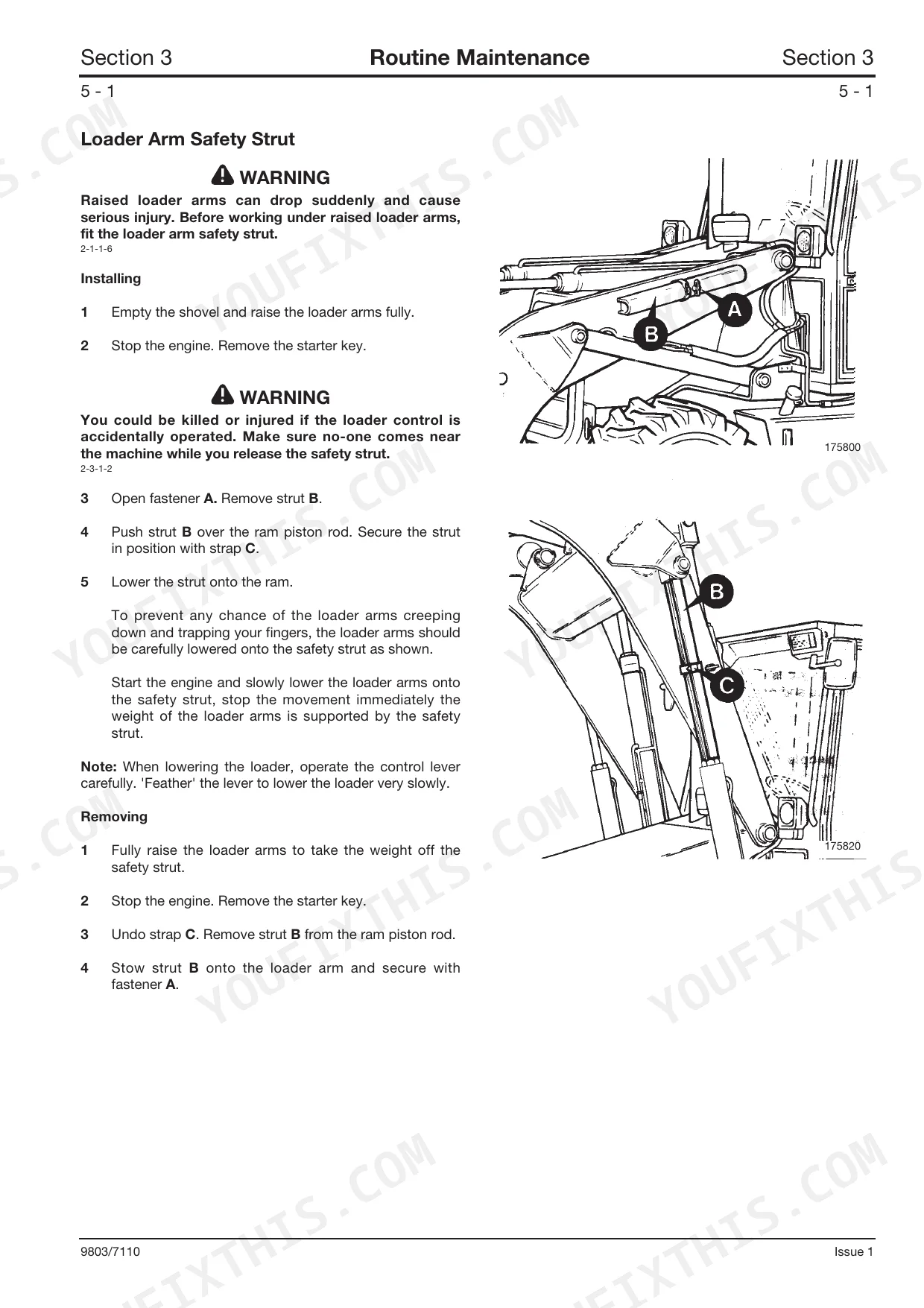

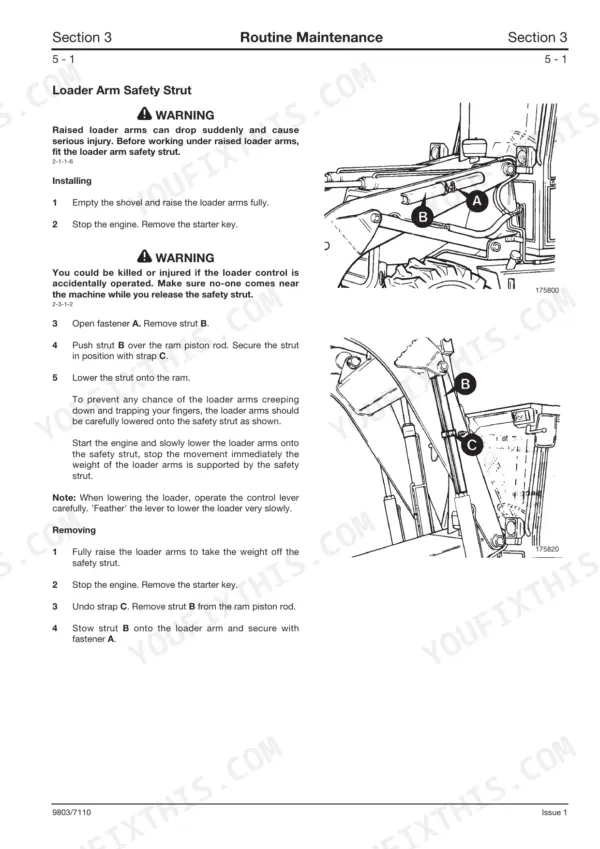

| Routine Maintenance | 32-65 | Lubricants & Capacities, Service Schedules, Greasing, Oiling, Loader Arm Safety Strut, Boom and Slew Locks, Hydraulic Fluid, Syncro Shuttle Transmission |
| Attachments | 66-72 | Schematic Hydraulic Circuit, Circuit Description, Flow Diverter Valve, Flow Testing & Pressure Testing |

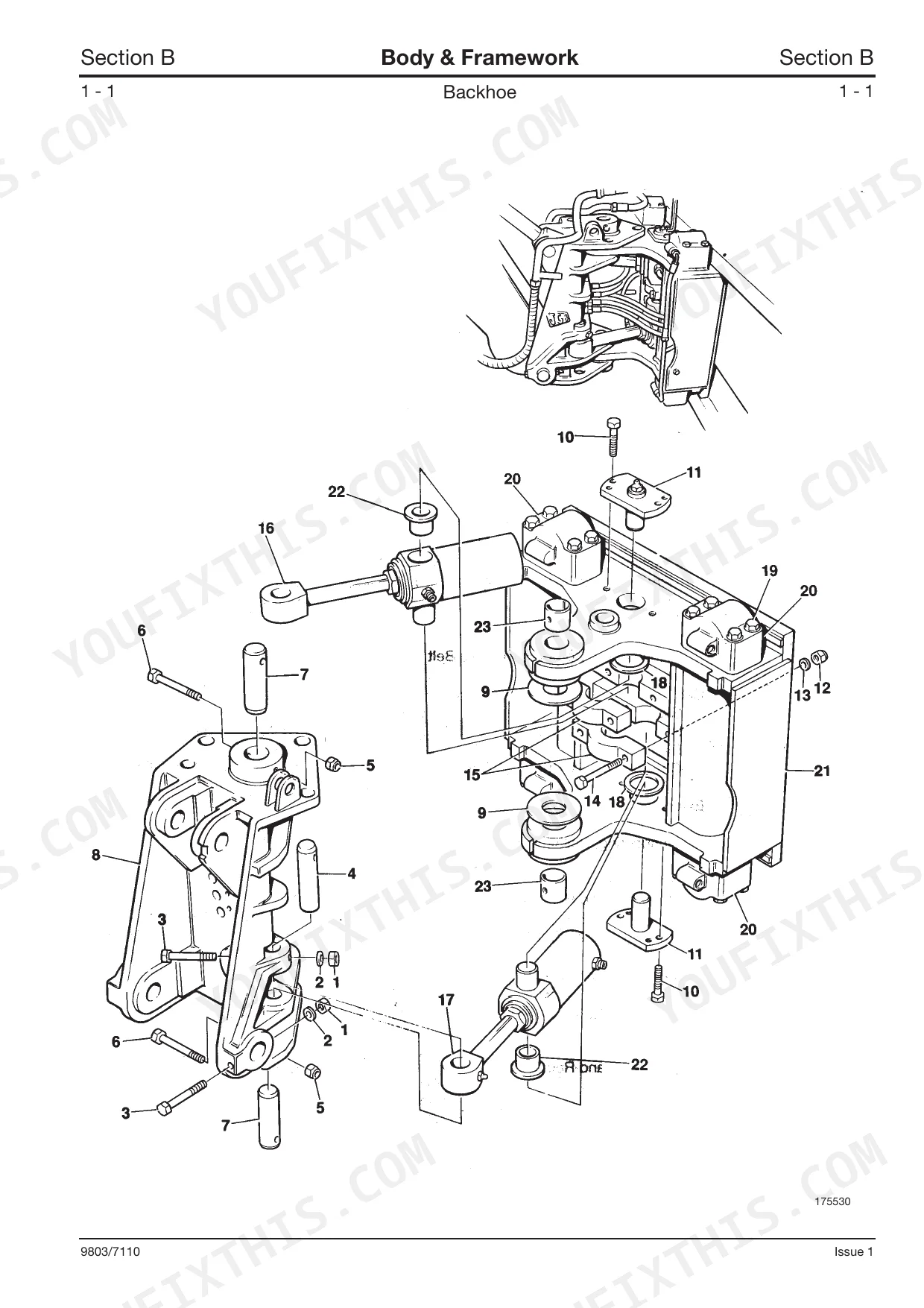

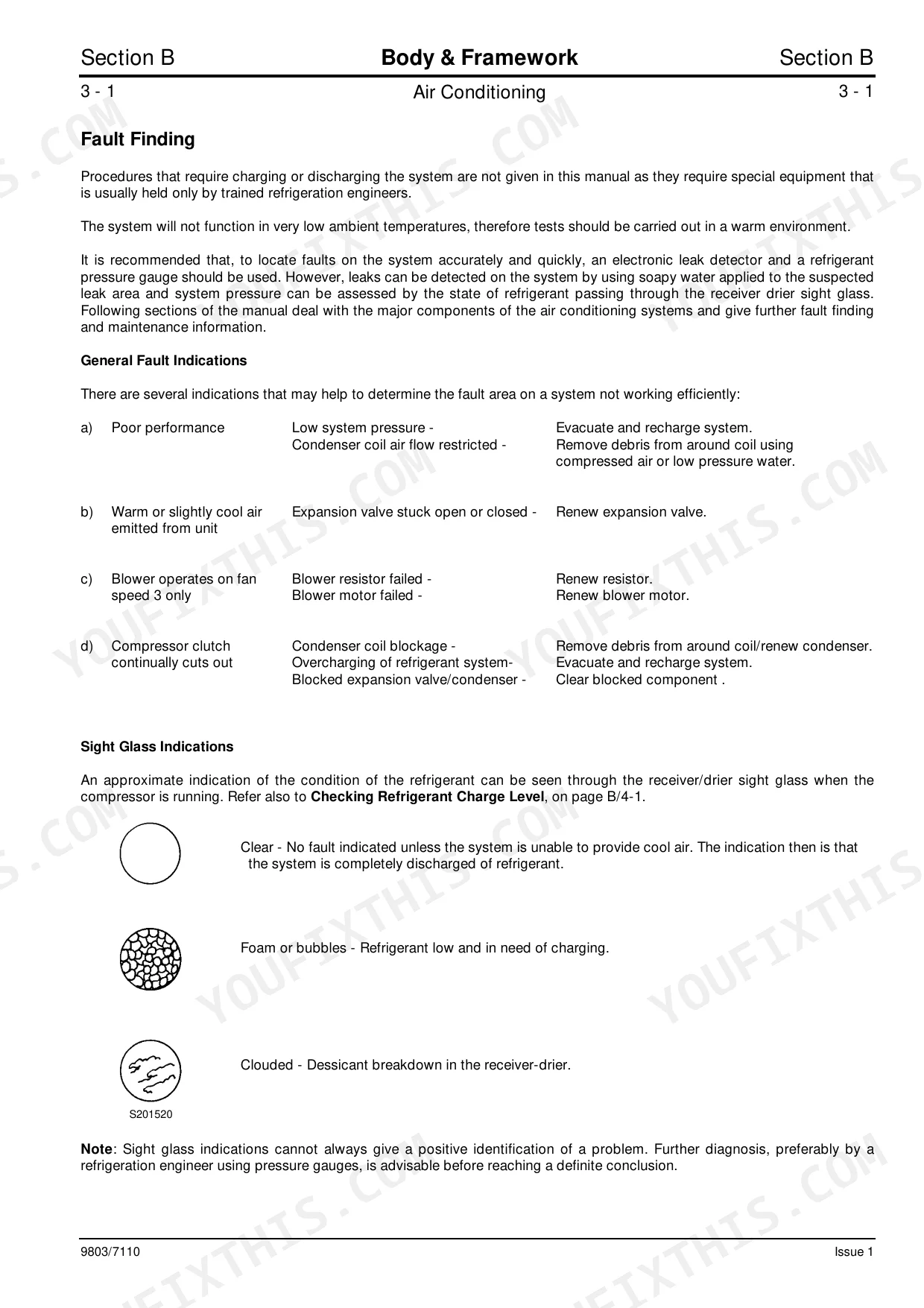

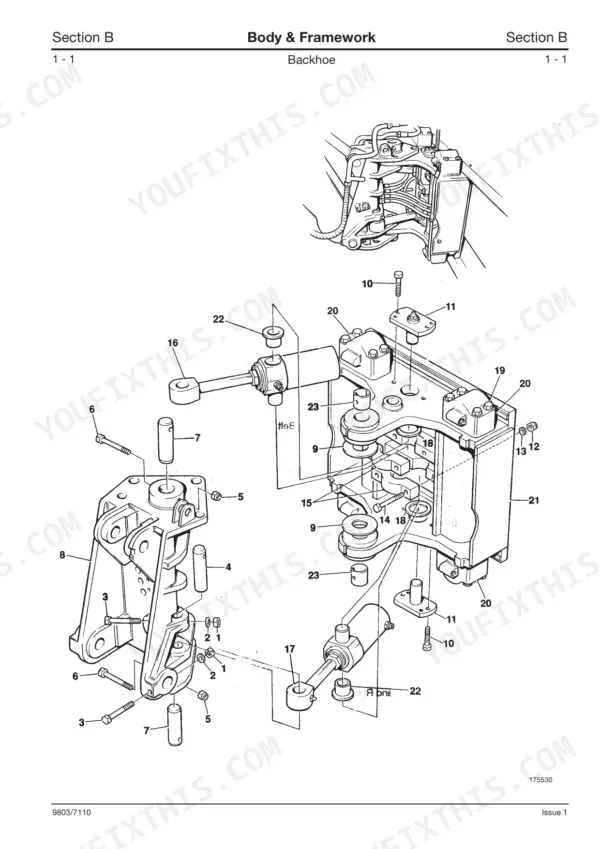

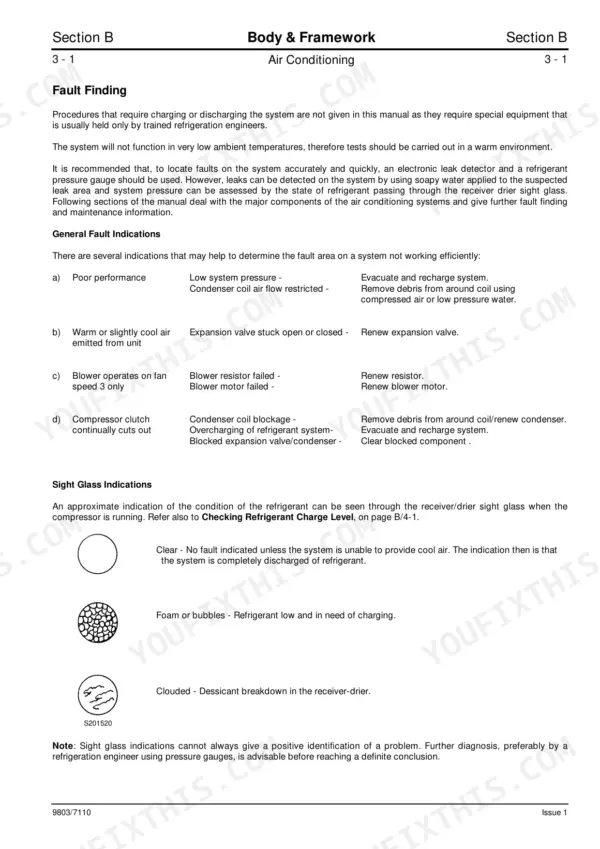

| Body & Framework | 73-102 | Backhoe (2CX Range of Machines), Air Conditioning, Cab Glazing, Checking the ROPS/FOPS Structure, Extending Dipper, Wear Pads, Stabiliser Leg, Backhoe (2DX Machines) |

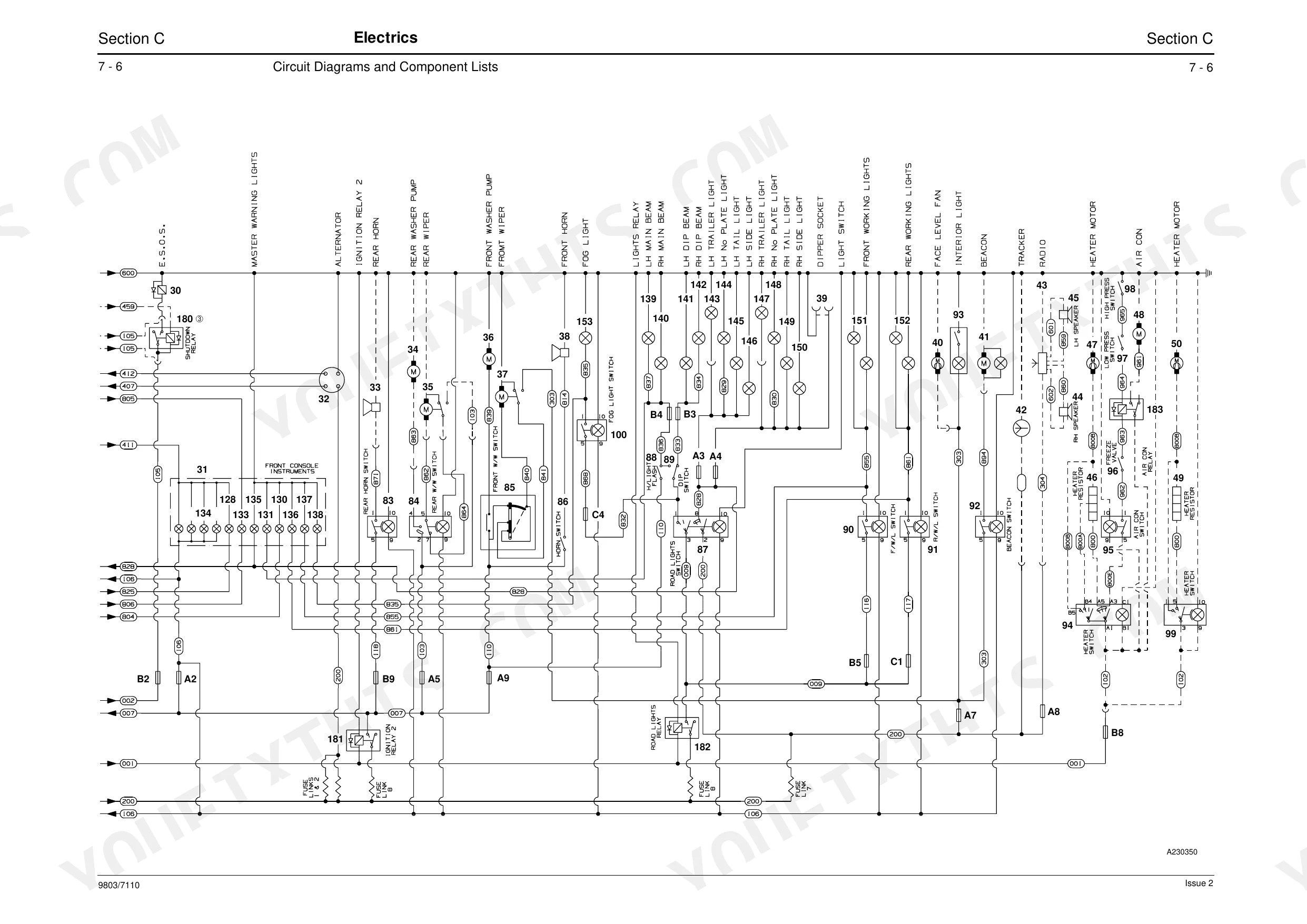

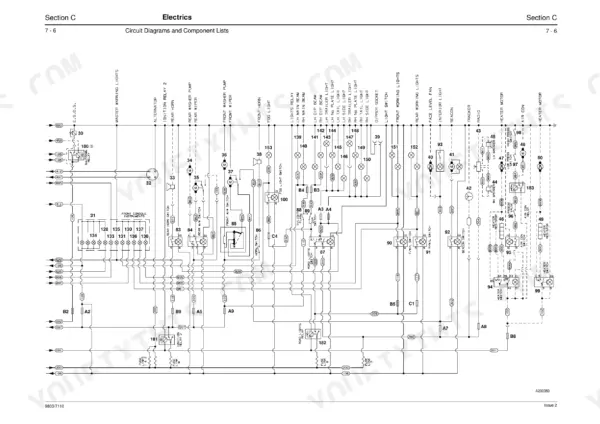

| Electrics | 103-161 | Technical Data, Fuses & Relays, Fuse Link Box, Batteries, Alternator, Starting Circuit Test, Starter Motor, Circuit Diagrams and Component Lists |
| Controls | 162-165 | Machine Controls, Steering Column |

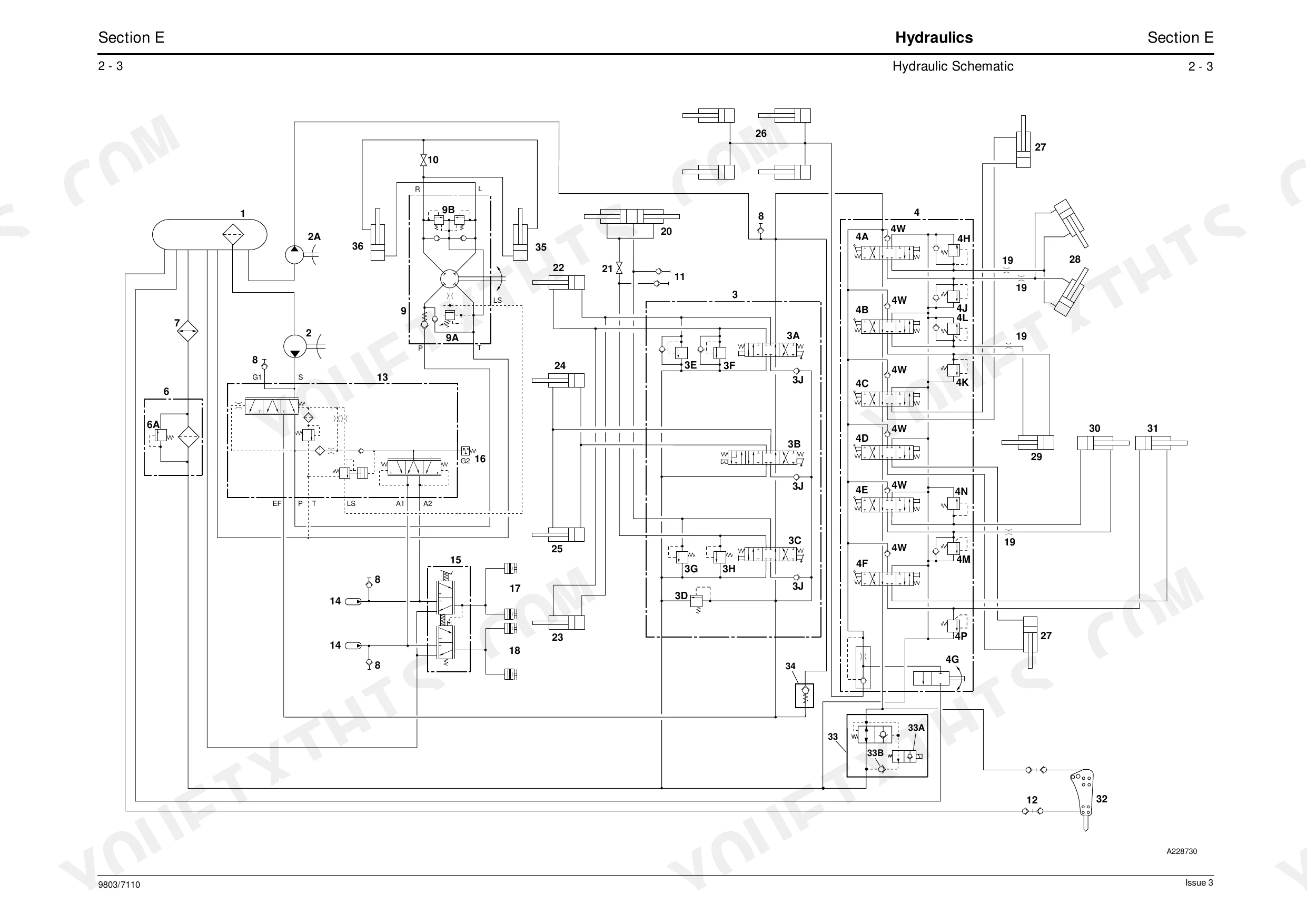

| Hydraulics | 166-279 | Technical Data, Schematic Hydraulic Circuit, Machine Neutral Circuit, Pump Operation, Loader Valve, Main Relief Valve, Excavator Valve Neutral Circuit, Steering Operation |
| Transmission | 280-358 | Technical Data, Towing Procedure, Synchromesh, Fault Finding, Front Axle, Rear Axle, Front and Rear Axles, Crown Wheel and Pinion |
| Brakes | 359-377 | Technical Data, Schematic Brake Circuit, Brake Circuit Description, Service Brakes, Accumulator Charge Valve, Foot Brake Valve, Parking Brake |
| Engine | 378-381 | Technical Data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 2CX Machines up to serial No. 658960 | ||
| Return Line Filter By-pass pressure | 1.72 bar, 1.76 kgf/cm2, 25 lbf/in2 | p. 169 |
| 2DX and 2CX Machines From 658961 | ||
| Return Line Filter By-pass pressure | 1.72 bar, 1.76 kgf/cm2, 25 lbf/in2 | p. 170 |
| All Models | ||
| Fuel filter element torque | Not specified, tighten bolt C | p. 54 |
| Fuel Tank Capacity | 83.2 Litres | p. 34 |
| 2CX Range of Machines (including 210S & 210SU up to serial No. 762079) | ||
| Air Cleaner Max. Restriction (at which warning light operates) | 635 mm (25 in) H20 | p. 379 |
| 2DX Machines (including 212S North American machines up to serial No. 762079) | ||
| Air Cleaner Max. Restriction (at which warning light operates) | 559mm (22 in) H20 | p. 380 |
| all JCB axles | ||
| Drive Shaft Oil Seal protrusion (if dimension V is 16 to 16.30 mm) | 2 mm (0.080 in) protruding | p. 355 |
| Drive Shaft Oil Seal fitting (if dimension V is 17.3 to 17.5 mm) | flush with the end of the housing | p. 355 |
| 2CX Machines up to serial No. 657447 | ||
| Hydraulic Pump Flow at 2000 rev/min and system pressure | 58 litres/min, 12.76 UK gal/min, 15.32 US gal/min | p. 169 |
| 2CX Machines from serial No. 657448 | ||
| Hydraulic Pump Flow at 2000 rev/min and system pressure | 58 litres/min, 12.76 UK gal/min, 15.32 US gal/min | p. 169 |
| 2CX up to machine serial No. 659598 | ||
| Engine Oil Capacity | 10.7 Litres | p. 34 |
| 2DX & 2CX from serial No. 659599, North American machines from serial No. 762080 | ||
| Engine Oil Capacity | 11.1 Litres | p. 35 |
JCB 2CX & variants Common Problems This Manual Covers
JCB 2CX backhoe and loader functions are weak or intermittently stop working under heavy loads p. 170
Test main relief valve pressure as outlined on page 170. Verify the pressure reads 240 bar for 2DX and 2CX machines from serial 658961. If readings fall below this spec, inspect the relief valve for worn O-rings or broken springs. Replace damaged components and retest the circuit.
Manual Section: HydraulicsFoot brake pedal feels spongy or requires excessive force to stop the machine p. 360
Check the brake system pressure testing procedures on page 360. Connect a gauge and verify the brakes accumulator pressure holds steady at 25 bar. If the pressure drops rapidly, bleed the brake circuit to remove trapped air or replace the accumulator charge valve seals.
Manual Section: BrakesSteering wheel becomes heavy or erratic when maneuvering at low engine speeds p. 171
Install a pressure gauge at the steering circuit test port. Verify the steering relief valve operating pressure reaches exactly 139 bar as specified on page 171. If pressure is low, inspect the steering alignment valve and steer ram for internal bypass leakage.
Manual Section: HydraulicsRepeated fluid leakage observed around the axle hubs and drive shaft bearing carriers p. 358
Remove the hub and inspect the driveshaft bearing carrier combination seal. Press the new seal level with the wheel bearing carrier face Z for a 25 to 26mm dimension as shown on page 358. Torque all 3/4-inch UNF Grade S retaining bolts to 407 Nm during reassembly.
Manual Section: TransmissionEngine runs rough, loses power, and the air cleaner warning light illuminates on the dash p. 381
Inspect the intake system for blockages before replacing the filter element. Measure the air cleaner maximum restriction according to page 381. Replace the primary element if the vacuum reading exceeds 559mm (22 in) H20 for North American machines built from serial number 762080.
Manual Section: EngineFrequently Asked Questions
What is the torque spec for JCB 2CX wheel nuts?
The torque specification for road wheel retaining nuts (Item B) is 680 Nm (69 kgf m, 500 lbf ft). It is recommended to check the tightness of wheel nuts every day for the first week when the machine is new, and thereafter every 50 hours.
What are the replacement specifications for Hydraulic filters?
When changing the hydraulic filter element, ensure to clean the mating faces and smear the seal D of the new element with hydraulic oil. Screw the new filter element on clockwise into the filter head until the gasket makes contact, then tighten it a further half a turn. The filter element should be changed at 100 Hr and 500 Hr intervals.
What are the replacement specifications for Fuel filters?
To renew the fuel filter element, first hold bowl B and unscrew bolt C to remove the bowl and filter element D, then wash the bowl in clean fuel. Inspect and renew sealing rings E, F, G, and H if damaged. Finally, fit the new element D, sealing rings, and bowl B, then tighten bolt C. The fuel filter should be changed at 100 Hr and 500 Hr intervals.
How do you fix JCB 2CX backhoe and loader functions are weak or intermittently stop working under heavy loads?
Test main relief valve pressure as outlined on page 170. Verify the pressure reads 240 bar for 2DX and 2CX machines from serial 658961. If readings fall below this spec, inspect the relief valve for worn O-rings or broken springs. Replace damaged components and retest the circuit.
How will I receive this Service Manual?
This is a 381-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this JCB 2CX & variants manual include wiring diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text throughout the manual. The text quality is consistently crisp and easy to read on all pages. Diagrams and illustrations are raster images, but they are clear with readable labels, providing good visual support. Page condition is clean with no noticeable scan artifacts, stains, or skewed pages. There are no notable blank or filler pages, ensuring the content is concise.
