Built strictly for the 2001-2007 model years, this 255-page JCB 403 Service Manual PDF (OEM #9803-9490-4) breaks down the complete engine, hydraulic, and electrical systems for your compact wheel loader. You get full hydraulic schematics detailing loader control valves, clear electrical wiring diagrams for continuity testing, and an extensive engine troubleshooting section. Open to any chapter and find step-by-step procedures for tearing down the chassis, calibrating the fuel system, and diagnosing heavy exhaust smoke. Verify your transmission pump hits a maximum pressure of 350 bar, and confirm the front wheel nuts are locked down to exactly 200 Nm before rolling out of the bay. Quit wasting hours trying to trace a phantom voltage drop. Grab this bookmarked download, open it on your shop tablet, and get the machine back in the dirt.
What's Inside This JCB 403, JCB 403 Manual
| System | Pages | Key Topics |
|---|---|---|
| Care and Safety | 29-41 | Safety Check List, Operating Safety, Maintenance Safety, Safety Decals |

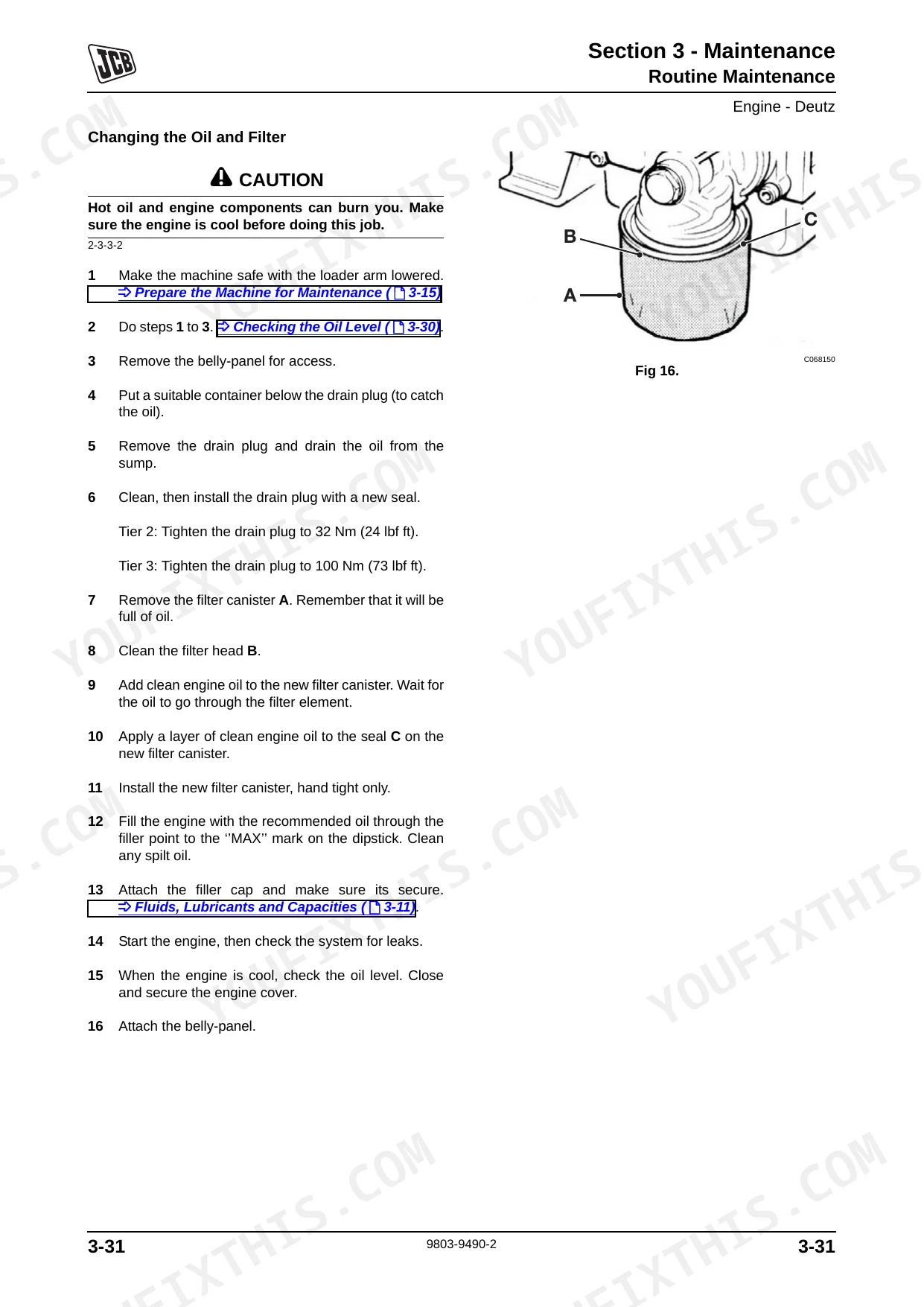

| Maintenance | 42-99 | Routine Maintenance, Fit for Purpose Tests for Lifting Equipment, Health and Safety, First Aid - Oil, Battery, Warning Symbols, Service Schedules, Pre-Start Cold Checks |
| Attachments | 100-107 | Introduction, Quick Release Couplings, Connecting and Disconnecting |
| Body and Framework | 108-117 | Rivet Nuts, Slide Hammer Kit, Chassis Assembly, Front and Rear Chassis |

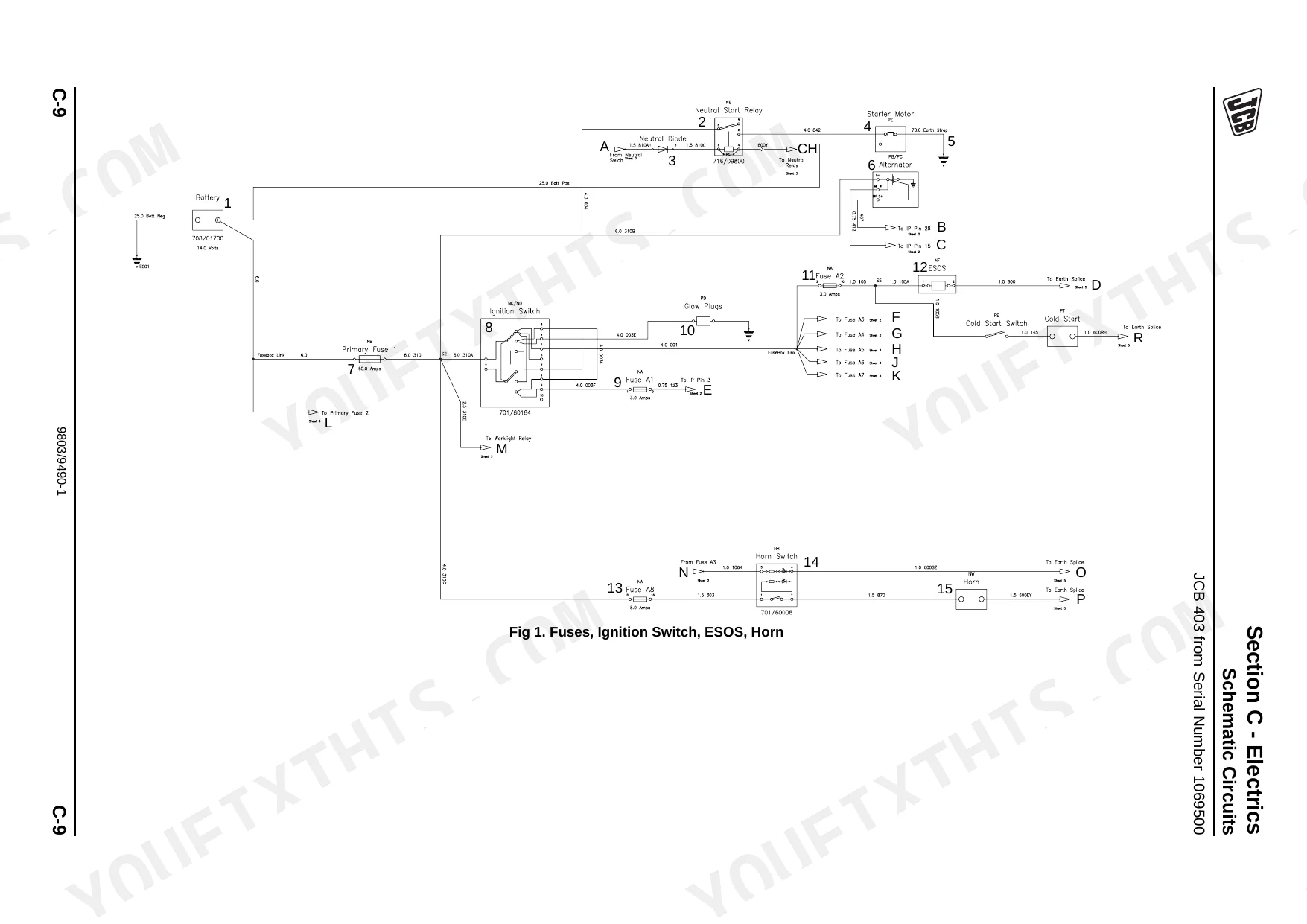

| Electrics | 118-153 | General Information, Testing, Specific Gravity Testing, Test Methods, Measuring DC Voltage, Measuring Continuity, Testing a Diode or a Diode Wire, Schematic Circuits |
| Hydraulics | 154-231 | Technical Data, Loader, Kohler 403 Pressure Settings, General Information, Contaminant Standards, Start-Up Procedure, System Operation, Control Valves |

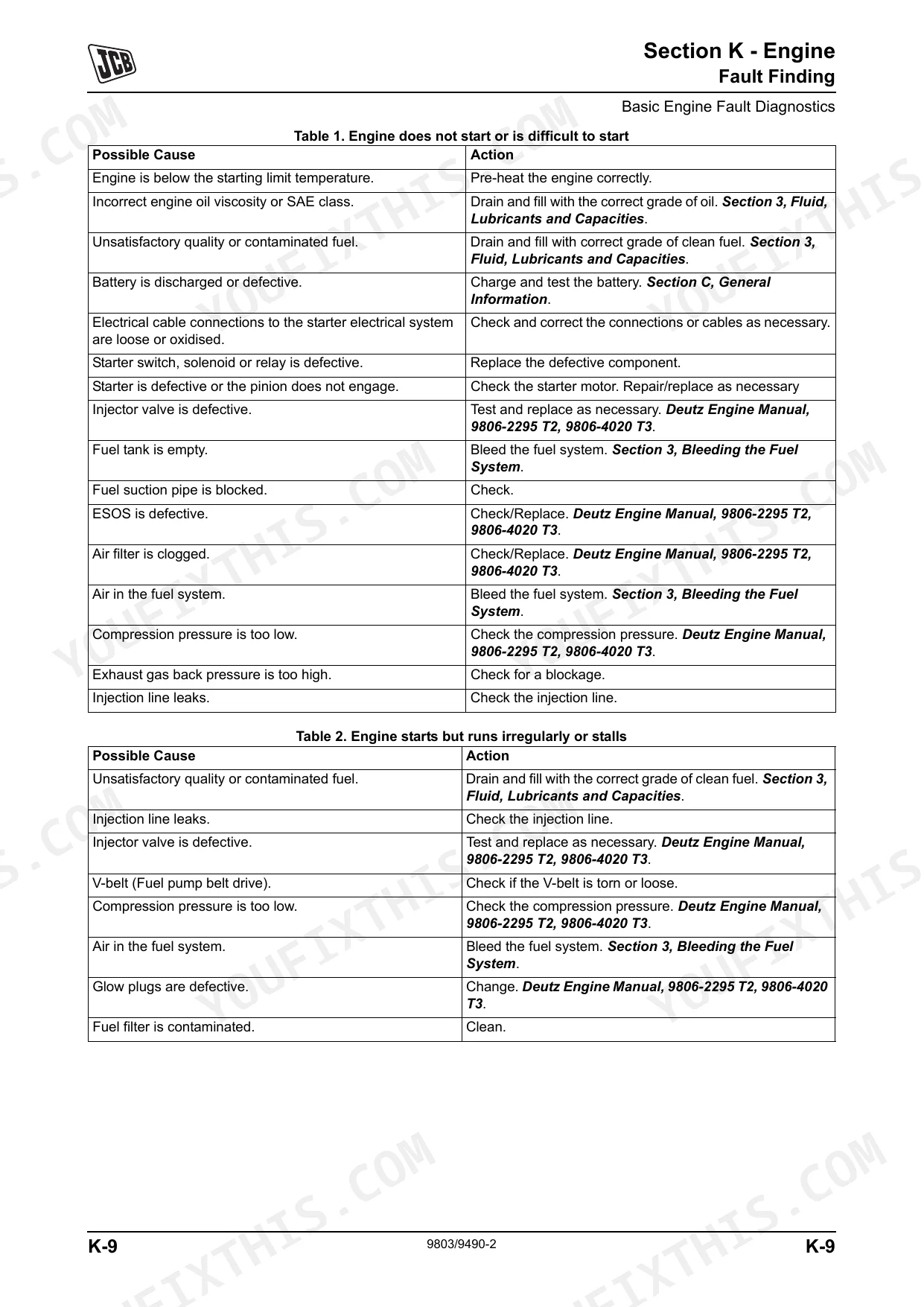

| Engine | 232-255 | Fault Finding (Engine Does Not Start or Is Difficult to Start, Engine Starts But Runs Irregularly or Stalls, Engine Becomes Excessively Hot, Engine Appears Down on Power - Poor Performance, Engine Oil Pressure Is Excessively Low, Engine Does Not Run on All the Cylinders, Engine Oil Consumption Is Excessive, Engine Emissions - Blue Smoke, Engine Emissions - White Smoke, Engine Emissions - Black Smoke, Lubricating Oil in the Exhaust System) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Transmission Pump Maximum Pressure | 350 bar | p. 158 |
| Auxiliary Pump Maximum Pressure | 200 bar | p. 158 |

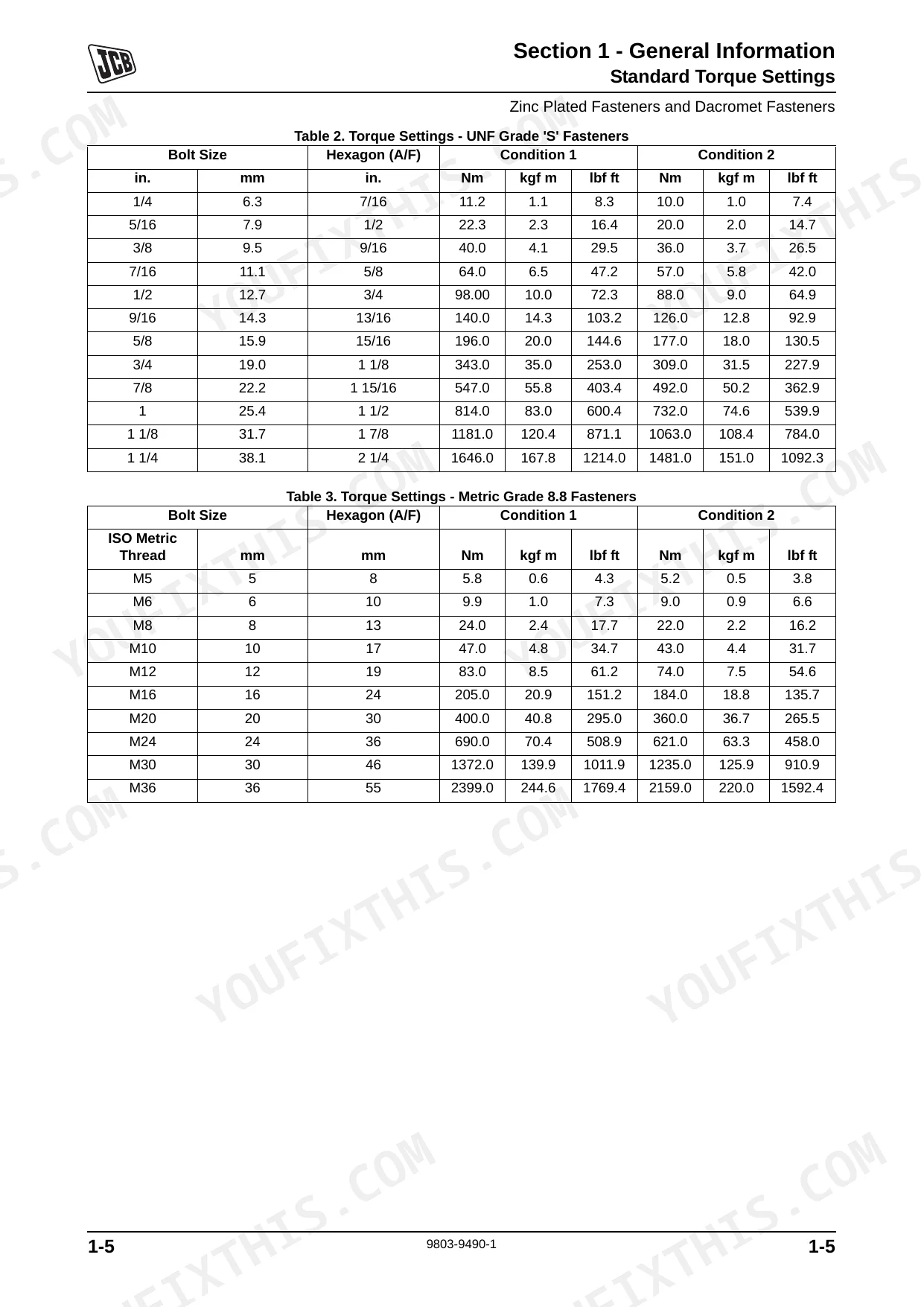

| UNF Grade 'S' Fasteners Torque Settings | Refer to Table 2 on page 1-5 | p. 9 |
| Metric Grade 8.8 Fasteners Torque Settings | Refer to Table 3 on page 1-5 | p. 9 |
| Wheel Nut Torque (Front) | 200 Nm | p. 97 |
| Wheel Nut Torque (Rear) | 200 Nm | p. 97 |
| BSP Hose Torque Setting (1/8 in.) | 14.0 - 16.00 Nm | p. 13 |
| BSP Hose Torque Setting (1/4 in.) | 24.0 - 27.0 Nm | p. 13 |
| Fault Finding Table: Transmission will not go into neutral | Refer to Table 14 on page E-31 | p. 188 |
| Fault Finding Table: Low pump efficiency | Refer to Table 15 on page E-32 | p. 189 |
| JCB 403 | ||
| Fuel Tank Capacity | 42 Litres | p. 56 |
| Deutz engine | ||
| Engine Oil Capacity (Deutz) | 5.8 Litres | p. 56 |
JCB 403, JCB 403 Common Problems This Manual Covers
JCB 403 hydrostatic transmission will not engage in forward or reverse gear under load p. 190
Inspect the transmission pump maximum pressure on page 158. Verify the system reaches 350 bar during operation. If pressure is low, check the fault finding table on page 190. Drain and refill the hydraulic system with exactly 40 Litres of approved fluid before retesting.
Manual Section: Hydraulic Transmission Pump Fault FindingDeutz tier 2 engine dashboard warning light indicates excessively low oil pressure at high idle p. 236
Test the oil circuit at 3000 rpm and confirm the minimum pressure is at least 2 bar as shown on page 236. Replace the oil filter and refill the crankcase with 5.8 Litres of fresh oil. Check for leaks around the sensor threads.
Manual Section: EngineFront loader arms lift slowly and lack breakout force when handling heavy bucket payloads p. 159
Measure the loader main relief valve pressure using a calibrated gauge. Adjust the relief valve setting to exactly 200 bar as specified on page 159. Check the hydraulic tank level and ensure the system holds its full 40 Litres capacity before returning the machine to service.
Manual Section: HydraulicsPoor braking performance requiring brake system bleeding and front wheel removal for hub access p. 97
Remove the front wheels to access the brake accumulator and hydraulic lines. When reinstalling the wheel components, tighten the front wheel nuts to exactly 200 Nm as directed on page 97. Bleed the brake lines completely and verify hydraulic reservoir fluid levels.
Manual Section: MaintenanceFrequently Asked Questions
What is the torque spec for JCB 403 wheel nuts?
The torque specification for JCB 403 wheel nuts is 200 Nm (147 lbf ft) for both front and rear wheels. It is recommended to check the wheel nut torques every day before starting work, and every two hours on new machines or when a wheel has been removed, until they remain correct.
What are the torque specs for the JCB 403 axle or loader arm pins?
For the chassis articulation, the nuts (items E and F) for the ball joint taper pins require a torque setting of 450 - 500 Nm (46 - 51 kgf m or 332 - 369 lbf ft). These pins connect the front and rear chassis sections.
How do you fix JCB 403 hydrostatic transmission will not engage in forward or reverse gear under load?
Inspect the transmission pump maximum pressure on page 158. Verify the system reaches 350 bar during operation. If pressure is low, check the fault finding table on page 190. Drain and refill the hydraulic system with exactly 40 Litres of approved fluid before retesting.
How do you fix deutz tier 2 engine dashboard warning light indicates excessively low oil pressure at high idle?
Test the oil circuit at 3000 rpm and confirm the minimum pressure is at least 2 bar as shown on page 236. Replace the oil filter and refill the crankcase with 5.8 Litres of fresh oil. Check for leaks around the sensor threads.
Is this Service Manual a digital download?
Instant PDF download. You get the full 255-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this JCB 403, JCB 403 Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Service Manual have electrical diagrams?
Included. The JCB 403, JCB 403 Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is generally crisp and easy to read throughout the manual. Diagrams and illustrations are a mix of raster images and photos; they are clear, and their labels are readable. The pages are clean with no noticeable scan artifacts, stains, or skewed content. There are several intentionally blank pages and "Notes" pages included as filler.
