Need a JCB 3C service manual PDF that handles the whole backhoe family? This OEM release (#9803/3250) runs 458 pages across the 3C, 3CX, 3D, 3CX Turbo Sitemaster, 4C Turbo, 4CN, and the 1400B/1550B/1700B series. Hydraulic schematics map the pump specs, relief valve pressures, and loader valve circuits, down to attachment setups like the Hamworthy double pump and BRH 250 Powerbreaker. Wiring diagrams trace the full electrical system, while torque tables, exploded views for every major assembly, and fault-finding charts cover the shuttle reverser and transmission. Practical numbers are here too: ram end cap at 678 Nm (500 lbf ft), hydraulic filter element swapped every 500 hours, filter nut C at 88 Nm (65 lbf ft) on machines up to no. 296220. Bookmarked and keyword-searchable, it opens on any device so you can get back to wrenching.
What's Inside This JCB EXCAVATOR LOADER & variants Manual
| System | Pages | Key Topics |
|---|---|---|

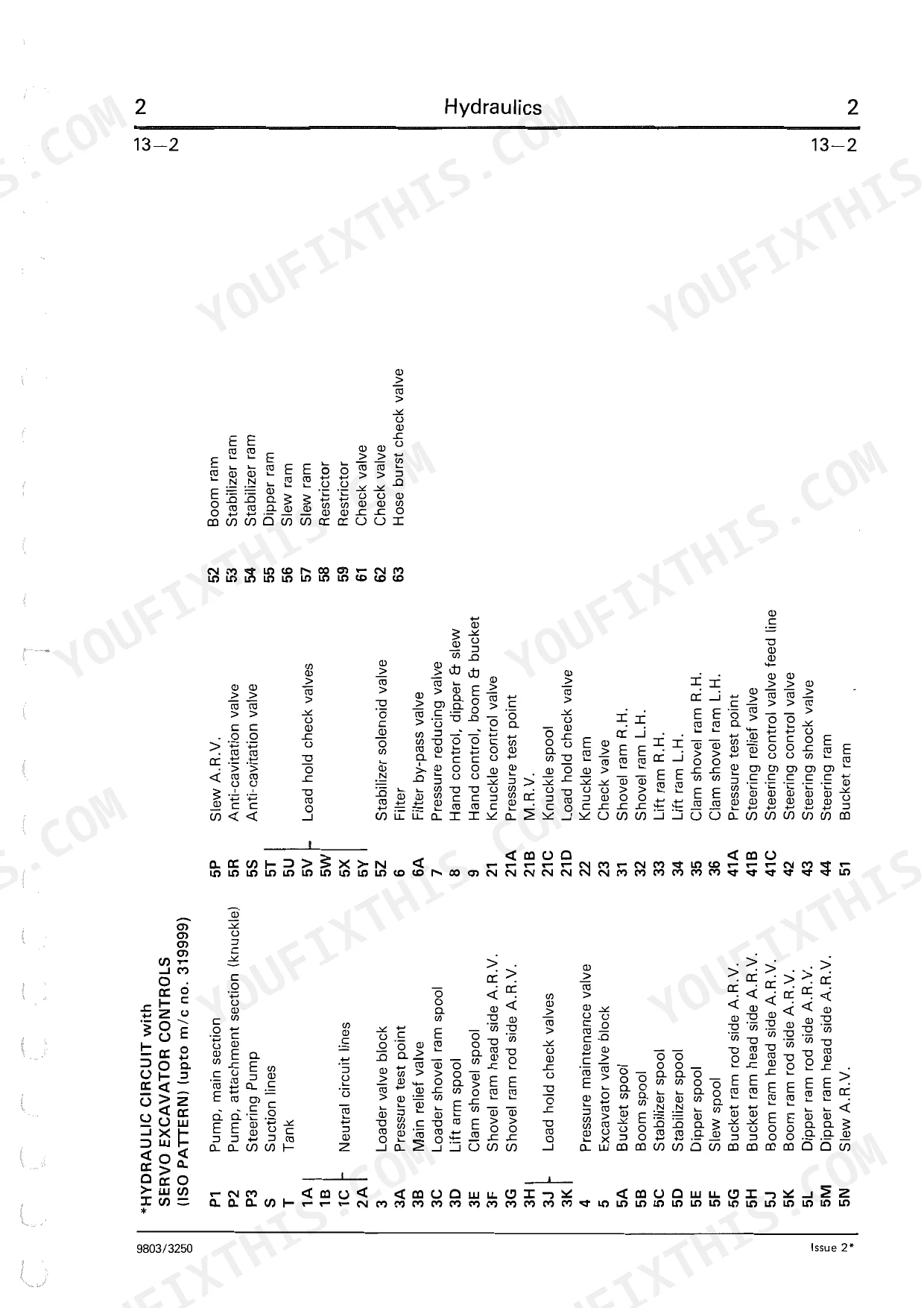

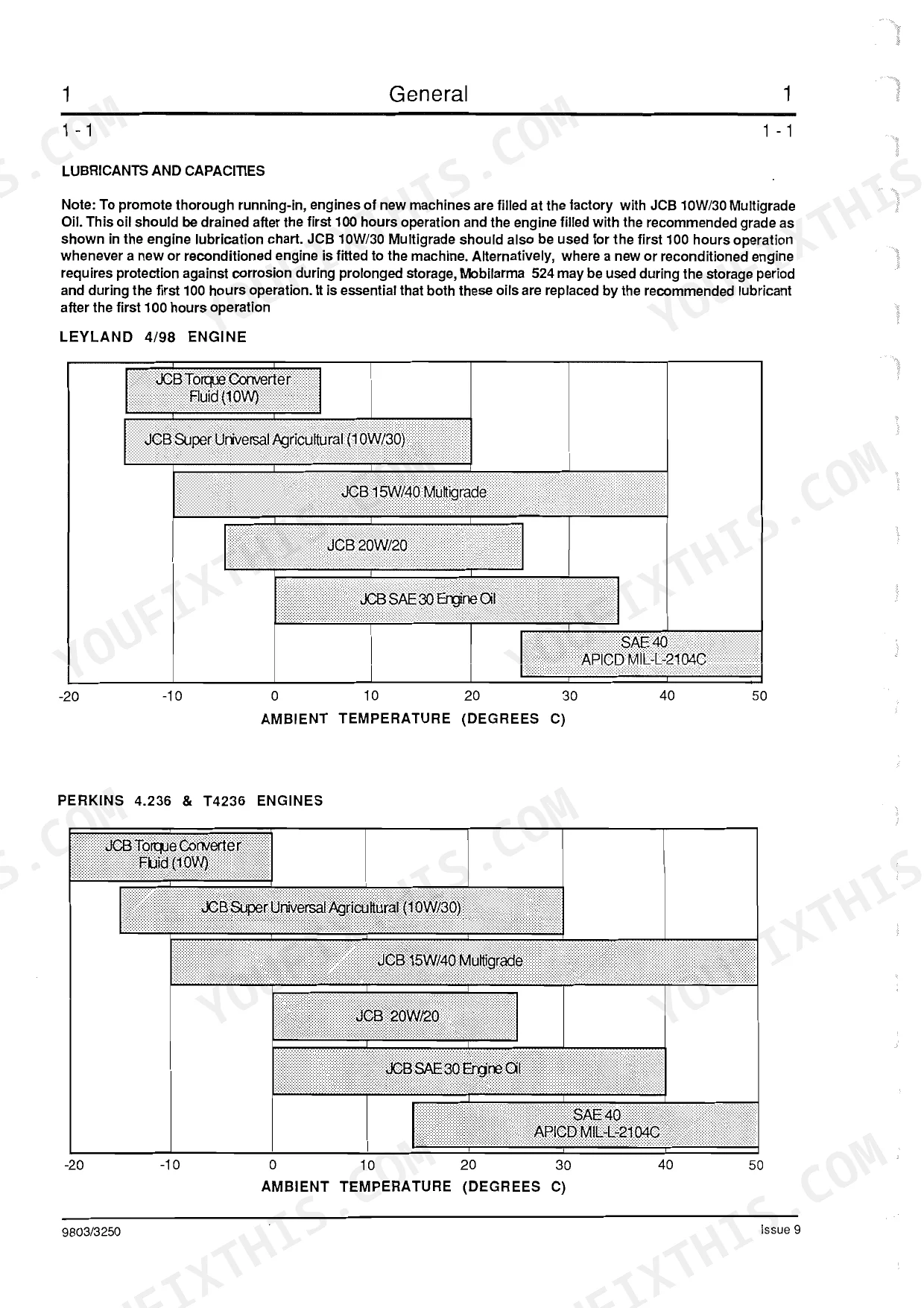

| Hydraulics | 18-162 | Technical Data (Pump, Main Relief Valve Pressures to Machine No. 306000, Main Relief Valve Pressures From Machine No. 306001 to 310999, Main Relief Valve Pressures From Machine No. 311000) |
| Attachments | 163-189 | Machine Neutral Circuit with Roadbreaker to M/C No. 295695, Machine Neutral Circuit with Roadbreaker From M/C No. 295696, Machine Neutral Circuit with Seventh Spool |
| Body & Framework | 190-210 | Glass Doors & Frameless Windows, Cab Heater Air Filter, In Cab Boom/Slew Lock, Boom/Slew Lock Master Cylinder, Boom/Slew Lock Slave Cylinder, Slew Actuator Operation |
| Engine | 211-232 | Technical Data, Engine Oil & Filter, Fuel System, Cooling System, Fan Belt, Air Filter |
| Transmission | 233-320 | Technical Data, Towing Procedure, Shuttle Reverser Maintenance, Shuttle Reverser Operation, Shuttle Reverser Components, Shuttle Reverser Testing and Fault Finding |
| Axles | 321-374 | Technical Data (Drive Axle - Rear, Drive Axle - Front, Steer Axle, Tyre Pressures), Drive Axle Oil, Crownwheel Assembly, Drive Axle - Rear, Rigid Drive Axle |
| Brakes | 375-384 | Technical Data, Parking Brake, Brake System Bleeding Procedure, Service Brake, Master Cylinder |
| Hydraulic Steering | 385-404 | Technical Data, Steering Circuit, Flow Regulating Valve Operation, Steer Pump, Power Steering Operation, Hydraulic Steering Unit, Steering Column, Steering Ram Operation |

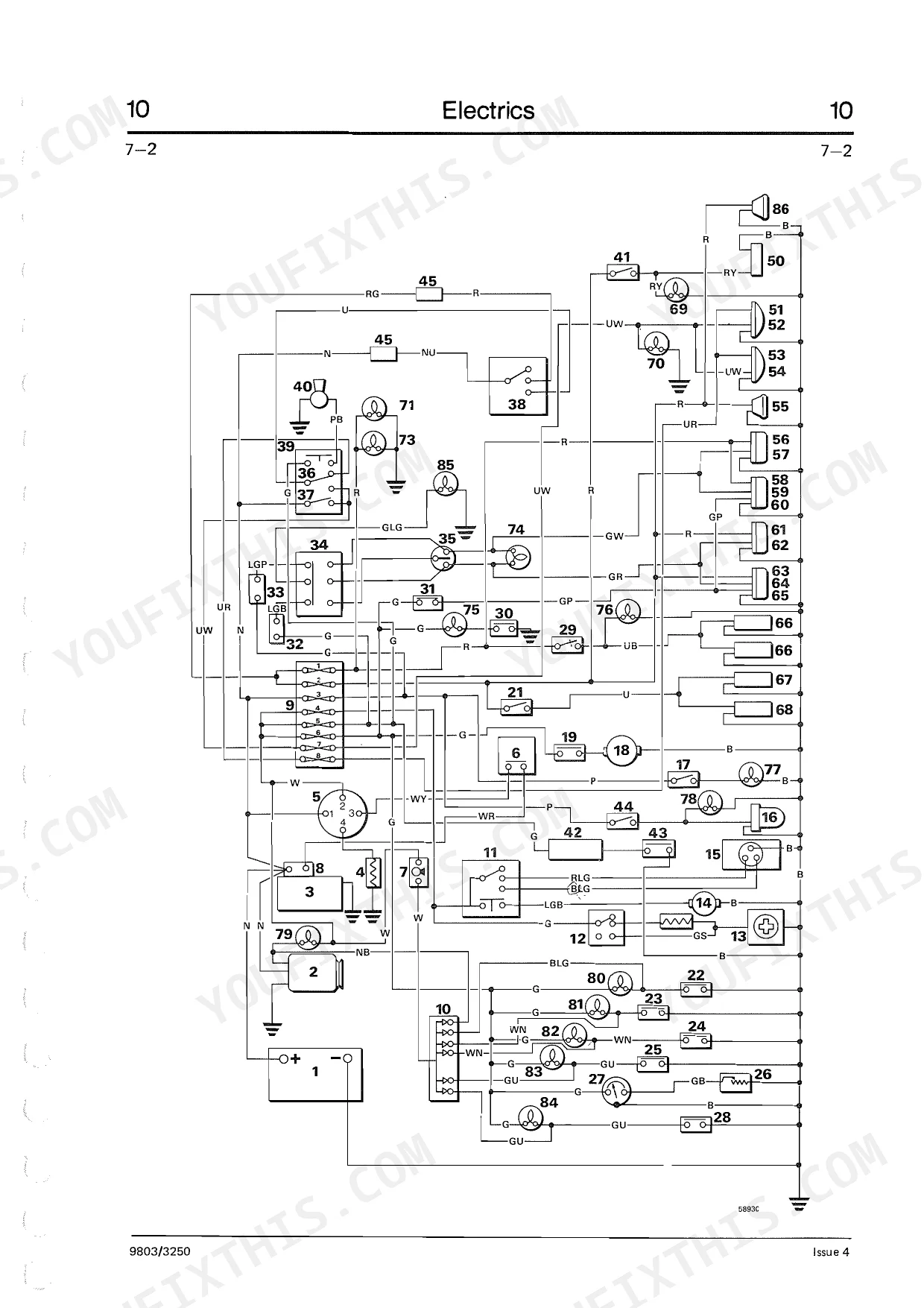

| Electrics | 405-436 | Technical Data, Batteries, Alternators, Charging Circuit Check, Starting Circuit Test, Starter Motor - Lucas M50 and M127, Circuit Diagram |
| Service Tools | 437-450 | Service Tool Numerical List, Hydraulics Tools, Attachments Tools, Transmission Tools, Axles Tools, Steering Tools, Sealing and Retaining Compounds |

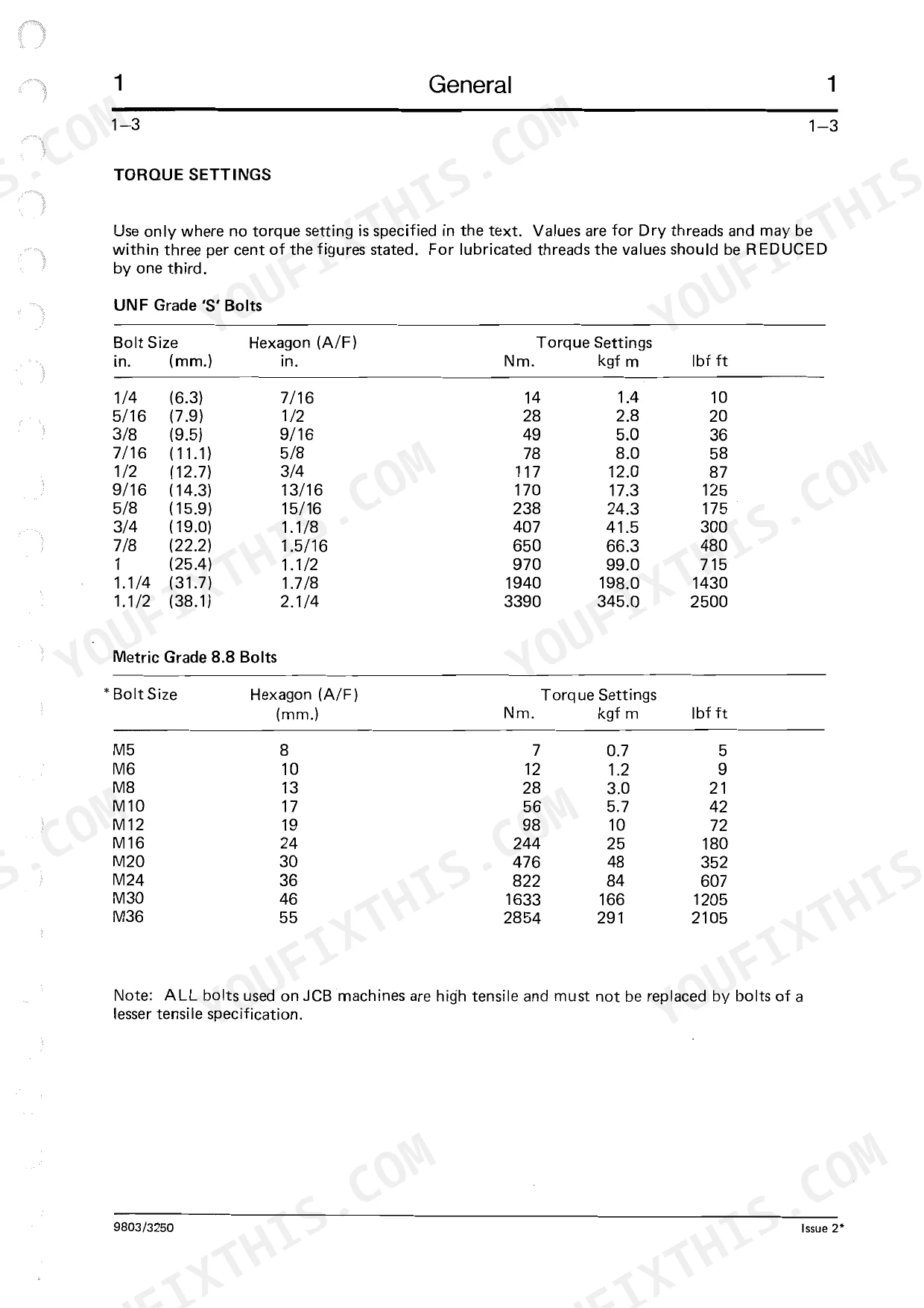

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 2WD models | ||
| Wheel bolts torque | 405 Nm (300 Ibf ft) | p. 340 |
| All Models | ||
| Typical ram piston head torque | 405 Nm (41 kgf m, 300 Ibf ft) | p. 139 |
| Typical ram end cap torque | 678 Nm (69 kgf m, 500 Ibf ft) | p. 139 |
| Hydraulic filter element replacement interval | 500 Hours | p. 20 |
| Air filter outer element replacement interval | 1000 Hours | p. 228 |
| Air filter inner element replacement interval | 2000 Hours | p. 228 |
| Shuttle Reverser Forward Clutch pack clearance | 0.3 to 1.2mm (0.011 to 0.046in.) | p. 251 |
| JCB Transmission end plate end-float | 3.6 to 4.4 mm (0.140 to 0.170 in) | p. 295 |

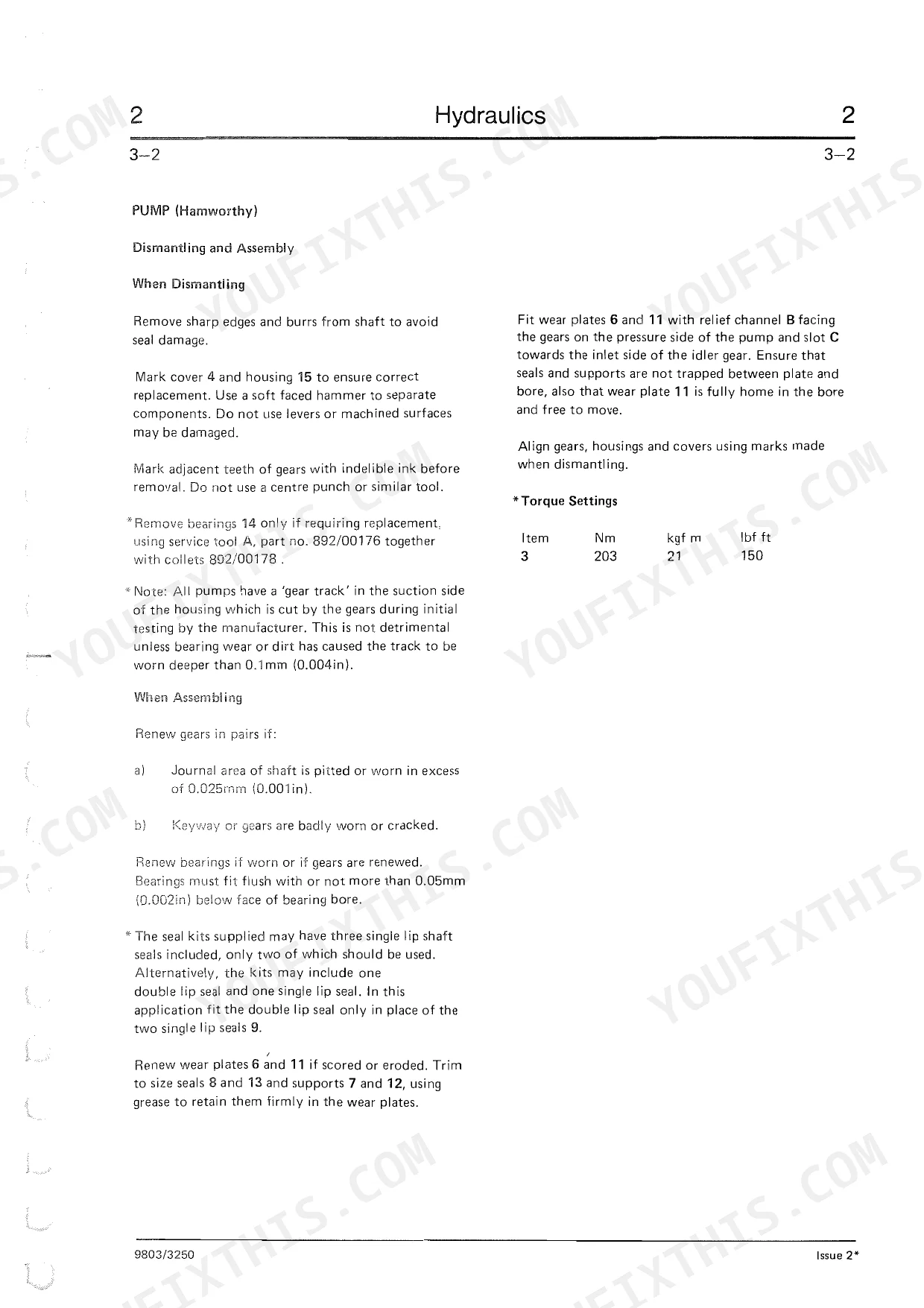

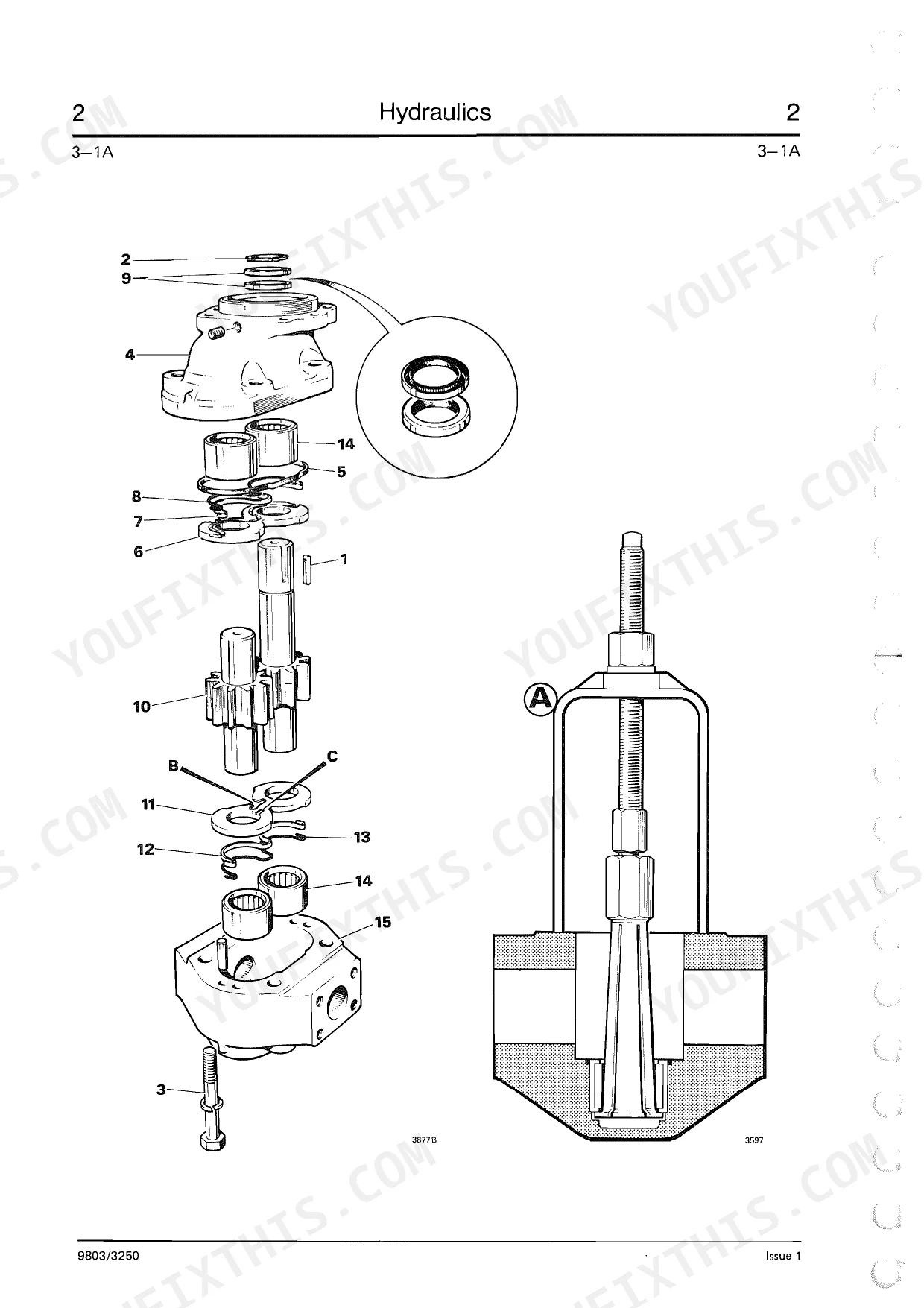

| Hamworthy Pump bolt 3 torque | 203 Nm (21 kgf m, 150 Ibf ft) | p. 25 |
| all up to m/c no. 296220 | ||
| Hydraulic filter nut C torque (Original filter to m/c no. 296220) | 88 Nm (65 Ibf ft) | p. 20 |
| 4/98NT, 4/98TT | ||
| Fuel filter element replacement interval (4/98 Engine) | 500 Hours | p. 216 |
| 4.236 (LD), T4.236 (LH), T4.236 (LJ) | ||
| Fuel filter element replacement interval (4.236 Engine) | 500 hours | p. 217 |
JCB EXCAVATOR LOADER & variants Common Problems This Manual Covers

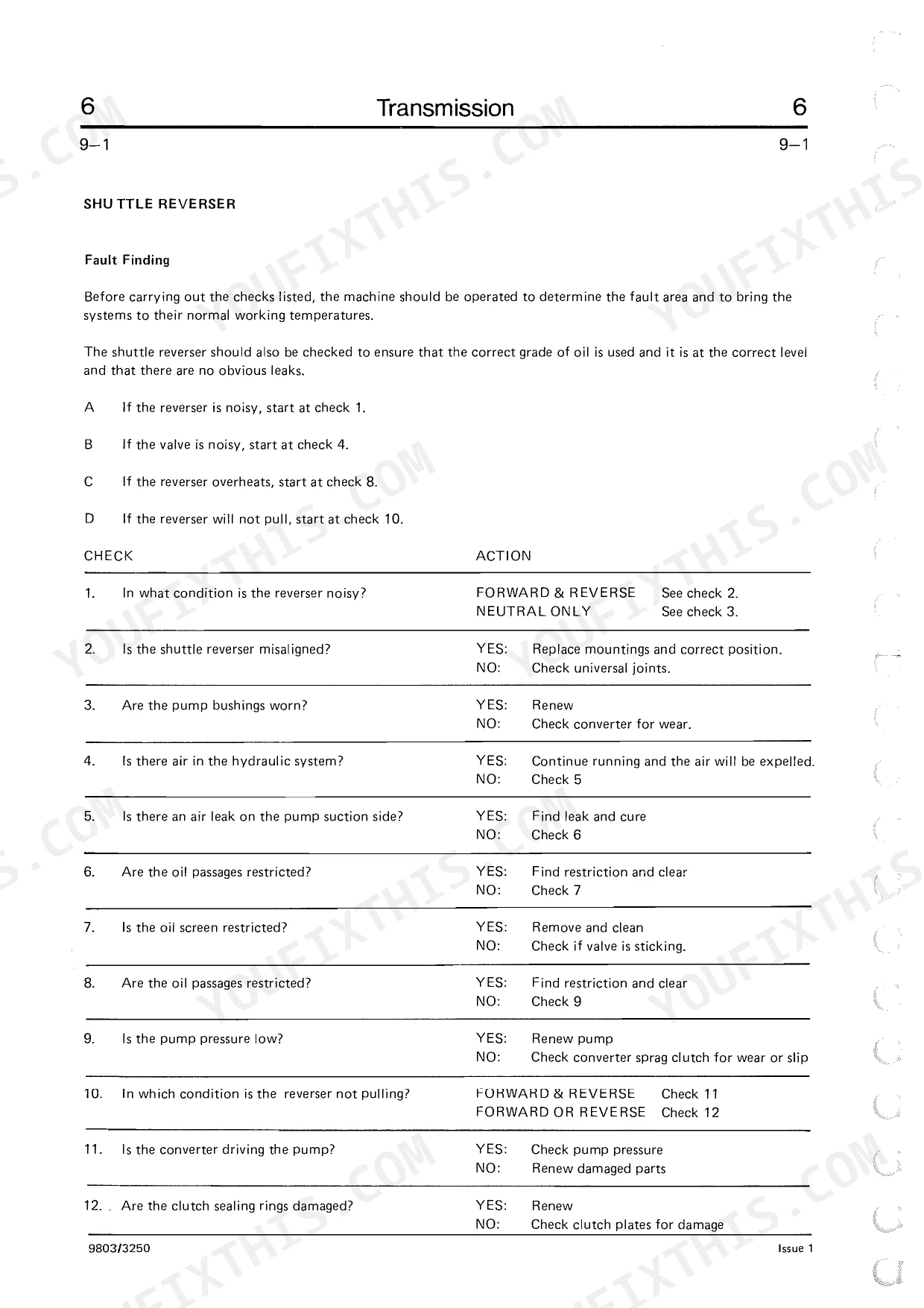

JCB 3CX shuttle reverser hesitates, slips between forward and reverse, machine loses drive
Start at the fault-finding chart, then measure forward clutch pack clearance against the 0.3 to 1.2mm (0.011 to 0.046in.) spec. Out of range means pulling the clutch pack and rebuilding it with new friction plates and seals. Confirm transmission oil level and condition too, since low or contaminated oil speeds up clutch wear.
Manual Section: TransmissionHydraulic boom and dipper response slow, weak lift, functions drift after shutdown p. 9
Verify the hydraulic oil sits at the full 130-litre capacity and is clean. Swap the filter element every 500 hours, using the 15-micron paper element. If functions still drift with the level correct, pull the piston seals and check cylinder bores for internal leakage. On reassembly, torque ram piston heads to 405 Nm.
Manual Section: HydraulicsEngine hard to start, low power, black smoke, overheating on older machines p. 211
Inspect the air filter and replace the outer element at 1000 hours. Renew the fuel filter every 500 hours on 4/98NT or TT engines (page 216). Still rough? Measure compression on those engines; the minimum is 28 bar. Check the thermostat and radiator passages and clear any blockage before you suspect injector or pump wear.
Manual Section: EngineSteering feels heavy, slow to respond, requires excessive effort at full lock p. 404
Test steer pump pressure with the procedure on page 404. Relief valve pressure should read 117 to 124 bar; anything lower points to pump wear or internal bypass. Gauge the pump housing bore against its 0.1mm (0.004in.) wear limit. Rule out a blocked flow regulating valve before you commit to pump disassembly.
Manual Section: Hydraulic SteeringExcessive play in front linkage, bucket wanders or droops, pins and bushings worn through p. 203
Measure kingpost clearance at the pivot; acceptable range is 2 to 4mm (0.08 to 0.16in.), with page 203 covering machines up to serial number 293245. Rock the bucket under load to tell worn pins from worn bores. Torque the steering swivel bearing cap bolts to 220 Nm, and renew pins and bushings as a matched set.
Manual Section: Body & FrameworkFrequently Asked Questions
What are the replacement specifications for hydraulic filters?
Renew the hydraulic filter element every 500 hours. On original filters up to machine no. 296220, tighten nut C to 88 Nm (65 lbf ft); for ribbed head filters from no. 296221, take nut C to 136 Nm (100 lbf ft); and from machine no. 315000, tighten screws C to 7 Nm (5 lbf ft).
What are the replacement specifications for fuel filters?
Both the Leyland 4/98 and Perkins 4.236 fuel filter elements get renewed every 500 hours. On 4.236 engines, tighten the drain plug to a maximum of 34Nm (3.5kgf m; 25lbf ft).
What do I get after purchasing this JCB EXCAVATOR LOADER & variants manual?
Download the full 458-page searchable Service Manual immediately. Open it on any device: the laptop at your desk or a phone out in the field.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this JCB EXCAVATOR LOADER & variants manual?
Yes, this JCB EXCAVATOR LOADER & variants Service Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy the full text. The text quality is generally crisp and clear throughout, making it easy to read. Diagrams and illustrations are raster images, meaning they may show some pixelation if zoomed in significantly, but labels are consistently readable. Pages are mostly clean with minimal scan artifacts, though some exhibit slight skewing and occasional faint lines. You will find several blank or filler pages interspersed within the document.
