Hunting down a reliable JCB 3C 1400B, 3C 1500B, 3CX Sitemaster, 3D 1700B, 4CN, 3C 1550B, 3C1400B, 3C1550B, 3D1700B Operator Manual PDF? This 65-page factory reference (OEM #9801/4486) breaks down every daily maintenance schedule, instrument panel indicator, and operating procedure for your backhoe loader. Inside, you get complete operating hints for the knuckle boom and extending dipper, safe working load charts for the forks, and a full section of daily service schedules. Open up to clear instructions on bleeding the engine fuel system, greasing the propshafts, and checking every fluid level before you turn the key. Confirm your standard battery is rated at 12 Volt 95 amp/hr and verify the hydraulic system is topped off at exactly 33.6 US Gallons. Avoid expensive downtime caused by skipped daily checks. Bookmarked for fast navigation, you can pull this file up on your phone and verify your daily checklist right from the cab.
What's Inside This JCB 3C 1400B & variants Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety First | 3-5 | - |
| Machine Care | 6-8 | Machine Cleanliness, Moving Off, Multi-Purpose Controls |

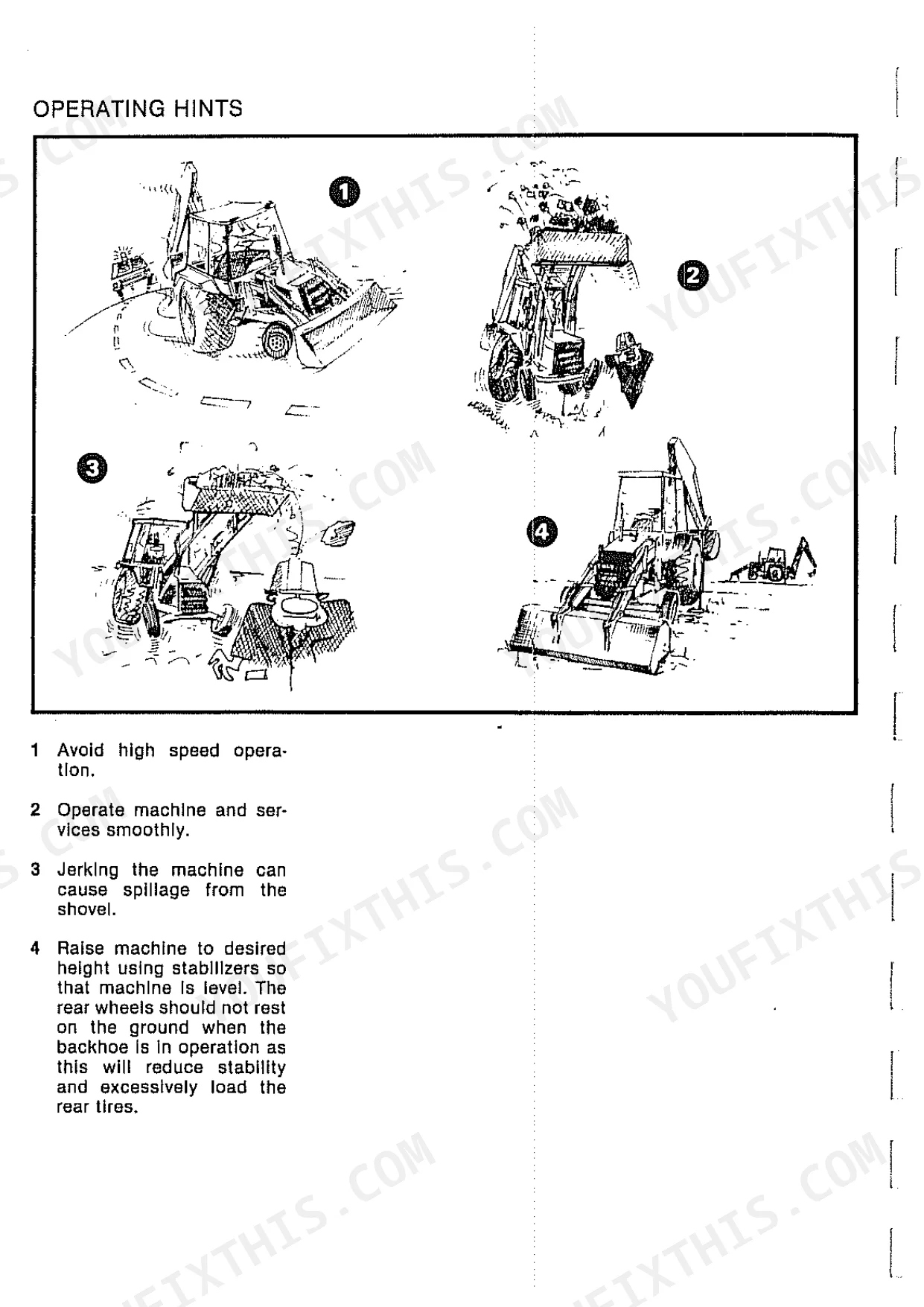

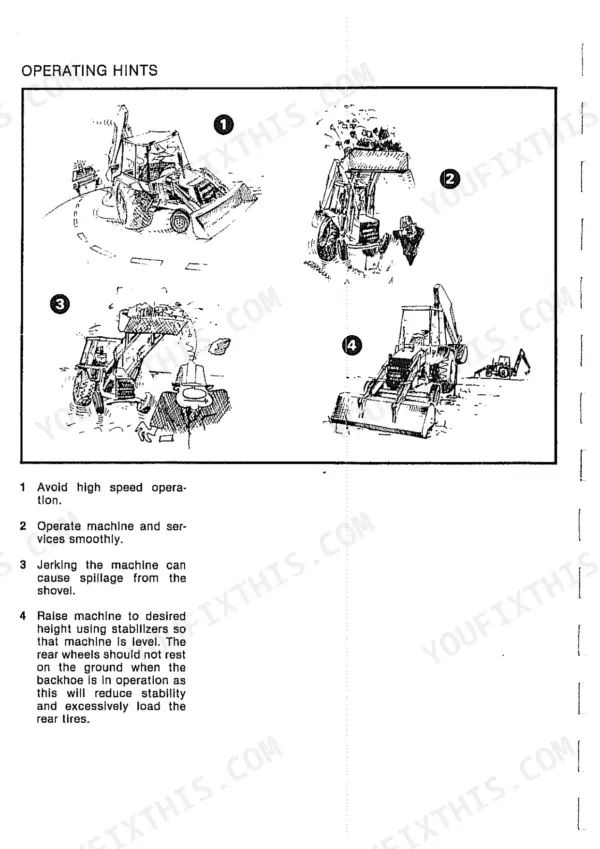

| Operating Hints | 9-11 | - |
| Instrument Panel | 12-16 | Fuel Gauge, Hourmeter, Battery Condition Indicator, Alternator, Engine Oil Pressure, Transmission Oil Pressure |
| Travelling | 17-19 | Tire Sizes |
| Backhoe Controls | 20 | Battery, Brakes, Buckets-Size and Capacities, Bulbs-Light |
| Rear Window | 21 | Locking Levers, Window, Lever, Retention Catches, Stops |
| Hydraslide | 22 | Hydraulic Filter, Hydraulic Fluid Level, Hydraulic Hoses |
| Adjustable Tipping Lever | 23-37 | Air Filter Pre-Cleaner, Air Filter-Inner, Air Filter-Outer, Anti-Freeze, Axles-Greasing, Axle-Oil Level |
| Gearbox-Oil Level | 38-41 | Greasing (Boom, Dipper & Stabilisers, Propshafts, Shovel & Loader Arms) |
| Parking Brake | 42-46 | Parts Cleanliness, Propshafts-Greasing |

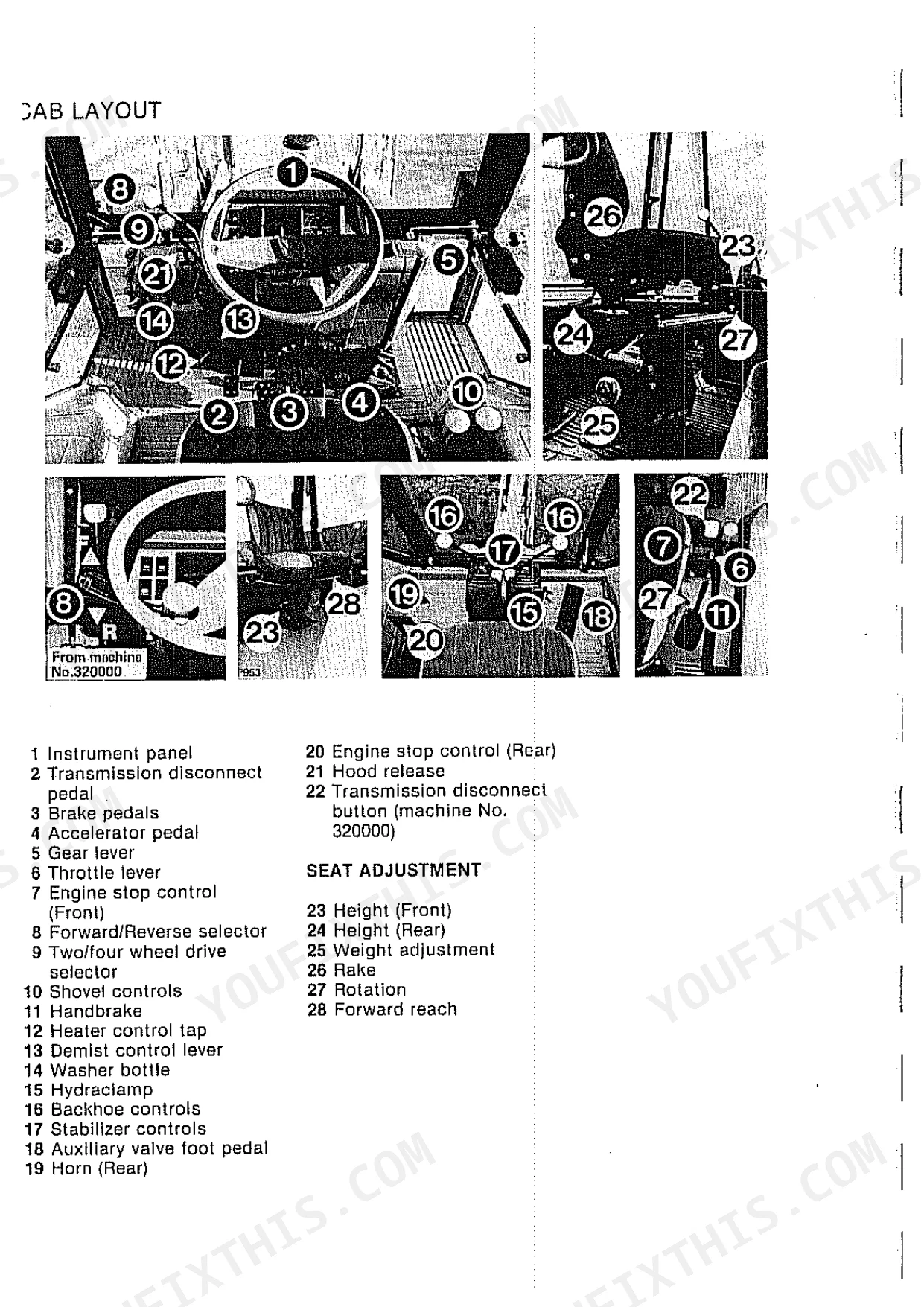

| Cab Heater Filter | 47-48 | Cab Layout, Capacities |
| JCB Extending Dipper-Operation | 51-53 | JCB Extending Dipper-Greasing, JCB Jaw-Operation, JCB Syncro Shuttle-Oil Level |
| Knuckle Boom | 54-56 | Boom Pivot Pin, Foot Pedal, Pivots |
| Lubricants | 57 | Engine, Shuttle Reverser, Gearbox, JCB Synchro Shuttle, Hydraulic System, Brake System |

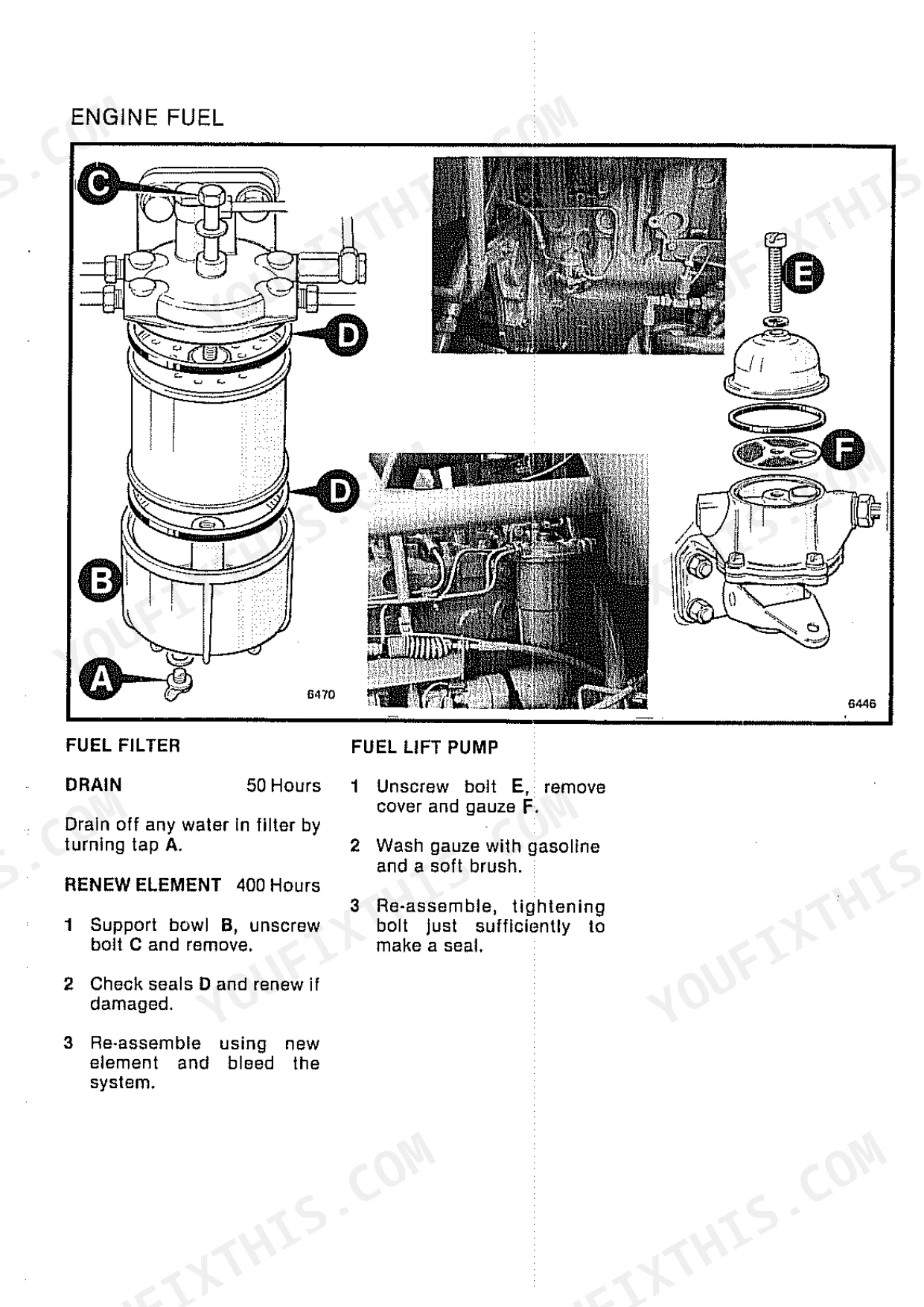

| Electrical System | 58-60 | Engine Coolant System Drain & Refill, Engine Fan Belt, Engine Fuel Filter & Lift Pump, Engine Fuel System-Bleeding, Engine Oil, Engine Oil Filter |
| Forks-Safe Working Loads | 61-65 | Forks-Stowage, Fuses |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery (standard) | 12 Volt — 95 amp/hr at 20hr rate | p. 58 |
| Battery (optional) | 12 Volt — 128 amp/hr at 20hr rate | p. 58 |
| Alternator | 45 amp | p. 58 |
| Sealed Alternator | 37 amp | p. 58 |
| Hydraulic System Capacity | 33.6 US Gal | p. 56 |
| Fuel Tank Capacity | 24 US Gal | p. 56 |
| Engine Oil Drain & Filter Renewal Interval | 200 hours | p. 29 |
| Fuel Filter Element Renewal Interval | 400 hours | p. 28 |
| Drive Axle Drain Plug Torque | 79 Nm (60 lbf.ft.) | p. 41 |
| Brake Pad Minimum Friction Material Thickness | 3mm (0.125in) | p. 42 |
| 4.236 or T4.236 engine | ||
| Engine Oil Capacity (4.236 or T4.236) | 2.8 US Gal | p. 56 |
| all (specific filter type depends on machine serial number) | ||
| Hydraulic Filter Element Renewal Interval | 400 hours | p. 44 |
JCB 3C 1400B & variants Common Problems This Manual Covers
JCB 3C 1400B engine cranks poorly or turns over slowly during cold weather startup attempts. p. 46
Inspect the battery electrolyte levels as outlined on page 46. Perform this check every 1600 hours. Clean the terminals and verify the negative ground connection is secure. Check the engine fan belt slack on page 36, ensuring it measures exactly 10 mm (0.4 in.) to maintain proper alternator charging.
Manual Section: Battery Electrolyte & Terminal MaintenanceMachine starts up normally but will not move forward or backward when engaged in gear. p. 40
Verify the transmission oil pressure warning light extinguishes after starting, shown on the instrument panel on page 12. Drain the JCB Syncro Shuttle oil and clean the strainer screen on page 40. Perform this maintenance every 800 hours on machines from serial number 320000 to prevent valve sticking.
Manual Section: Gearbox-Oil LevelHydraulic boom and bucket functions operate slowly accompanied by a loud system whining noise. p. 56
Inspect all lines for chafing or kinks before checking fluid levels. Verify the hydraulic system capacity on page 56 matches the required 33.6 US Gal. Replace the hydraulic filter element every 400 hours as shown on page 44 to ensure unrestricted fluid flow to the main pump.
Manual Section: Knuckle BoomParking brake fails to hold the machine stationary when parked on a steep incline. p. 42
Check the brake pads and cable slack on page 42. Adjust the tension until the lever engages firmly. Renew the brake pads immediately if the friction material thickness measures less than 3mm (0.125in) to maintain safe holding power during operation.
Manual Section: Parking BrakeFrequently Asked Questions
What are the replacement specifications for battery?
The manual specifies two battery options: a standard 12 Volt battery with 95 amp/hr at a 20hr rate, and an optional 12 Volt battery with 128 amp/hr at a 20hr rate.
How do you fix JCB 3C 1400B engine cranks poorly or turns over slowly during cold weather startup attempts?
Inspect the battery electrolyte levels as outlined on page 46. Perform this check every 1600 hours. Clean the terminals and verify the negative ground connection is secure. Check the engine fan belt slack on page 36, ensuring it measures exactly 10 mm (0.4 in.) to maintain proper alternator charging.
How do you fix machine starts up normally but will not move forward or backward when engaged in gear?
Verify the transmission oil pressure warning light extinguishes after starting, shown on the instrument panel on page 12. Drain the JCB Syncro Shuttle oil and clean the strainer screen on page 40. Perform this maintenance every 800 hours on machines from serial number 320000 to prevent valve sticking.
How do you fix hydraulic boom and bucket functions operate slowly accompanied by a loud system whining noise?
Inspect all lines for chafing or kinks before checking fluid levels. Verify the hydraulic system capacity on page 56 matches the required 33.6 US Gal. Replace the hydraulic filter element every 400 hours as shown on page 44 to ensure unrestricted fluid flow to the main pump.
How will I receive this JCB 3C 1400B & variants Operator Manual?
This is a 65-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this JCB 3C 1400B & variants Operator Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This is a scanned PDF document, not a native digital file. You can search and copy the full text thanks to an effective OCR layer. The text is generally crisp and easy to read, with minor scan artifacts typical of a scanned handbook. Diagrams and illustrations are scanned line drawings and black and white photographs, which are clear enough for labels and details to be readable. Pages are clean with a consistent background texture, and there are no notable blank pages.
