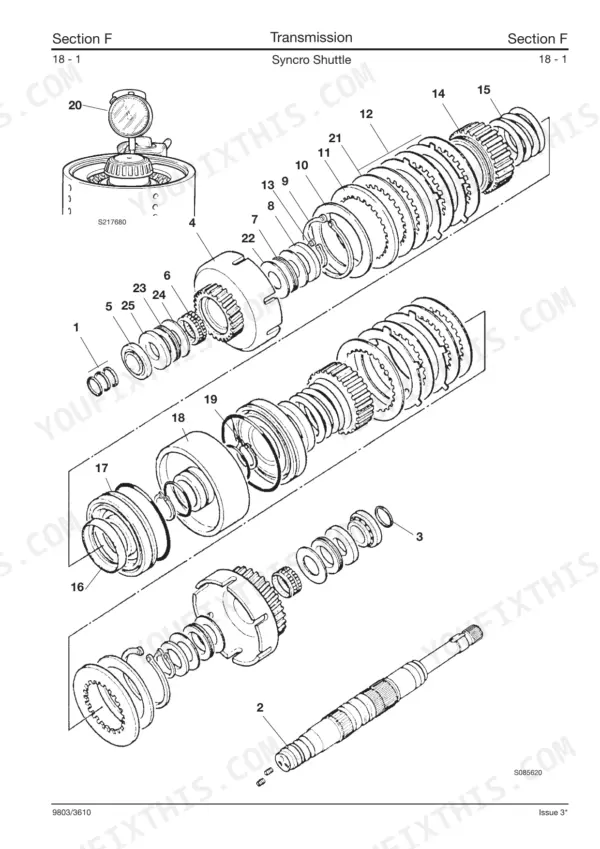

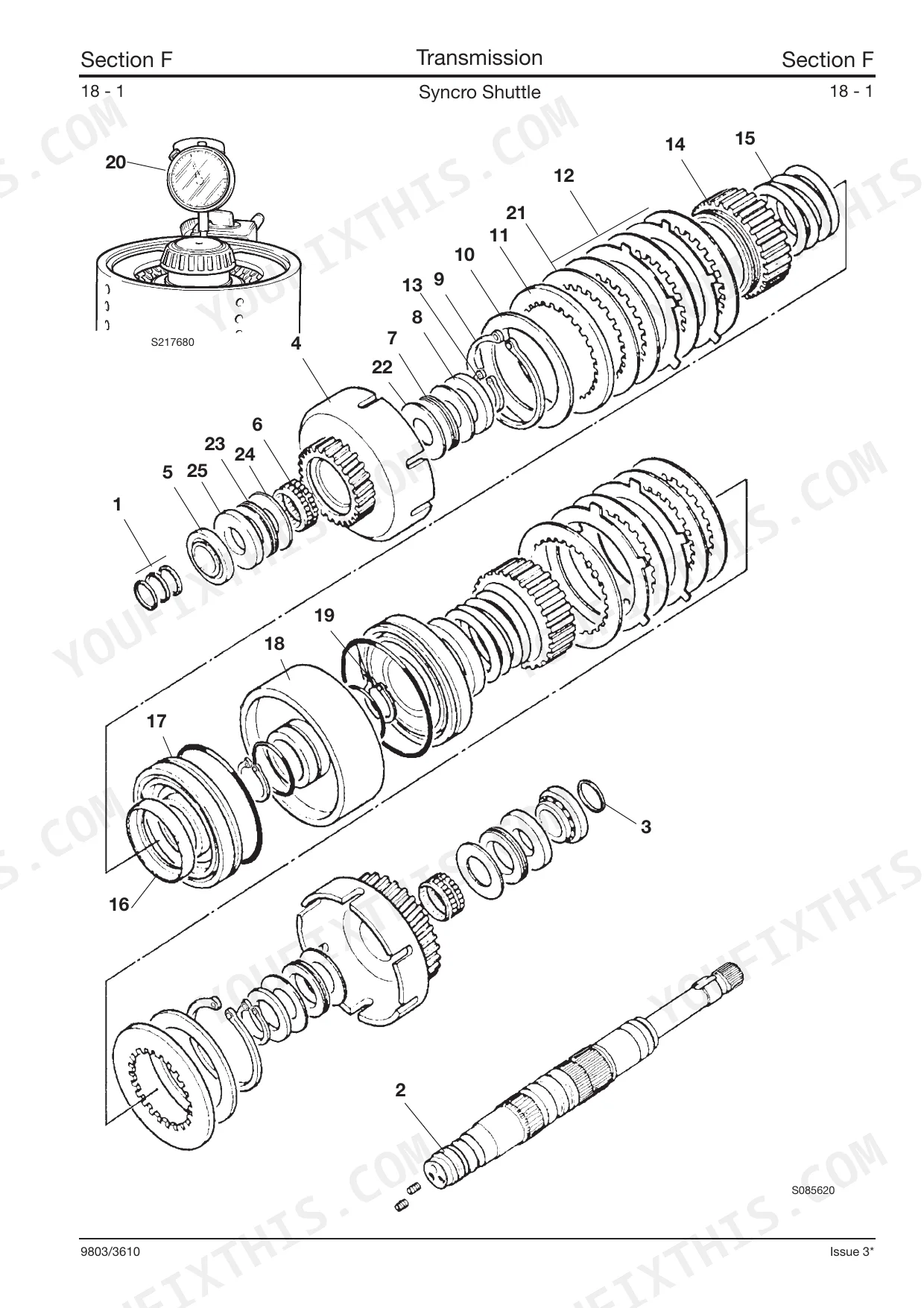

Tired of guessing at pressures and clearances on your telehandler? This 588-page JCB Loadall Service Manual PDF (OEM #9803/3610 Issue 10) breaks down every system on your 520, 526, and 504B series machines, from the 520-55 RS to the 526S AWS. Open the file to find complete wiring diagrams, full hydraulic schematics with smooth ride system routing, and step-by-step syncro shuttle transmission teardowns. You get detailed fault-finding charts for the powershift setup and page after page of exploded views for the main boom assemblies. Lock down the boom wear pad bolts to 55 Nm and tighten the front hub filler plug to exactly 80 Nm before sending the machine back out. Don't waste another hour chasing electrical ghosts. Grab this bookmarked download, open it on your shop tablet, and get the repair done right.
What's Inside This JCB 520-55 RS & variants Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-30 | Service Tools |
| Care & Safety | 31-37 | Safety Notices, General Safety, Operating Safety, Maintenance Safety, Lubricants - Health and Safety |

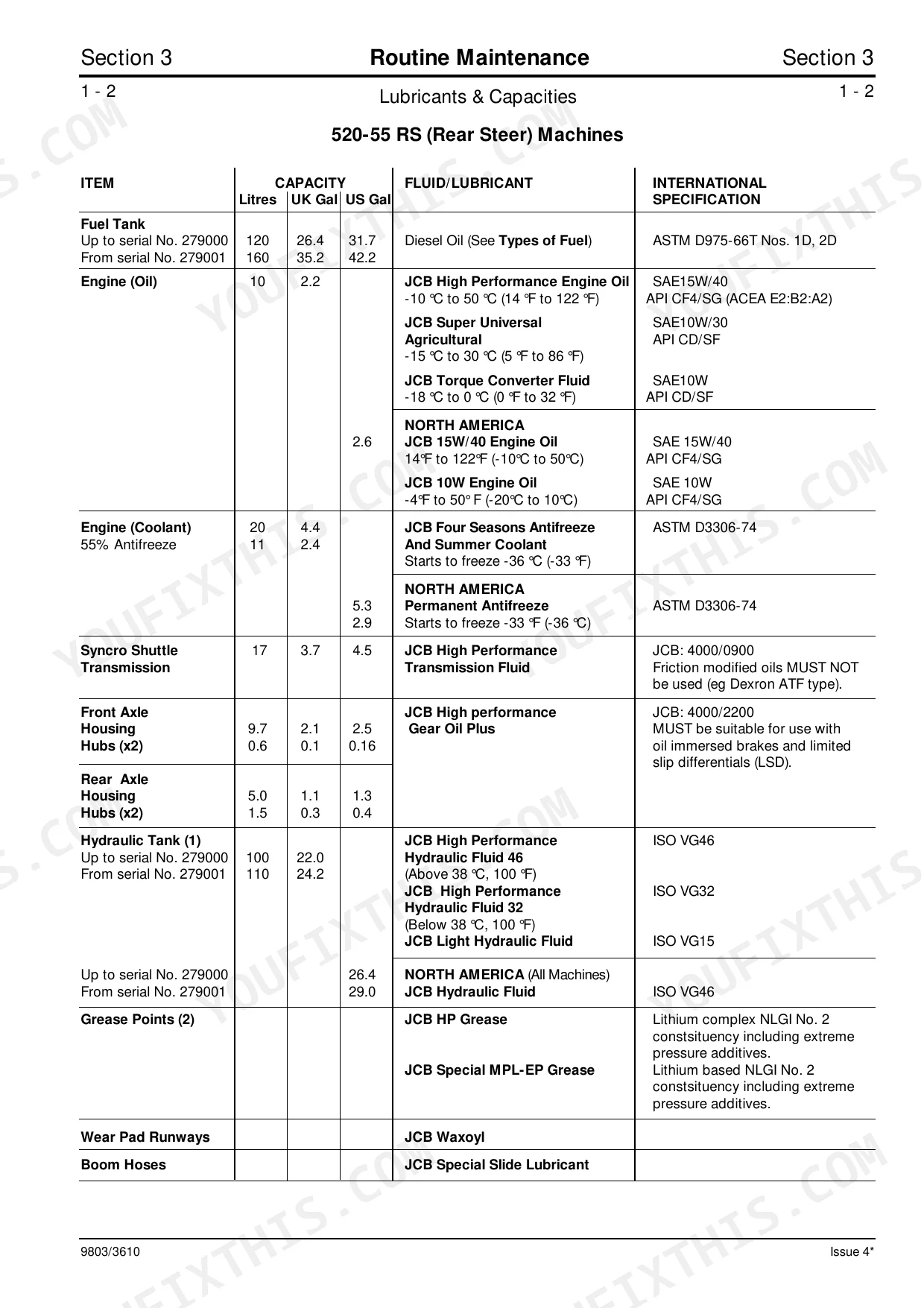

| Routine Maintenance | 38-52 | Lubricants and Capacities, Service Schedules |
| Attachments | 53-86 | Grease, Engine Air Filter, Engine Cooling System, Fuel System |
| Body & Framework | 87-115 | Cab Direct Glazing |

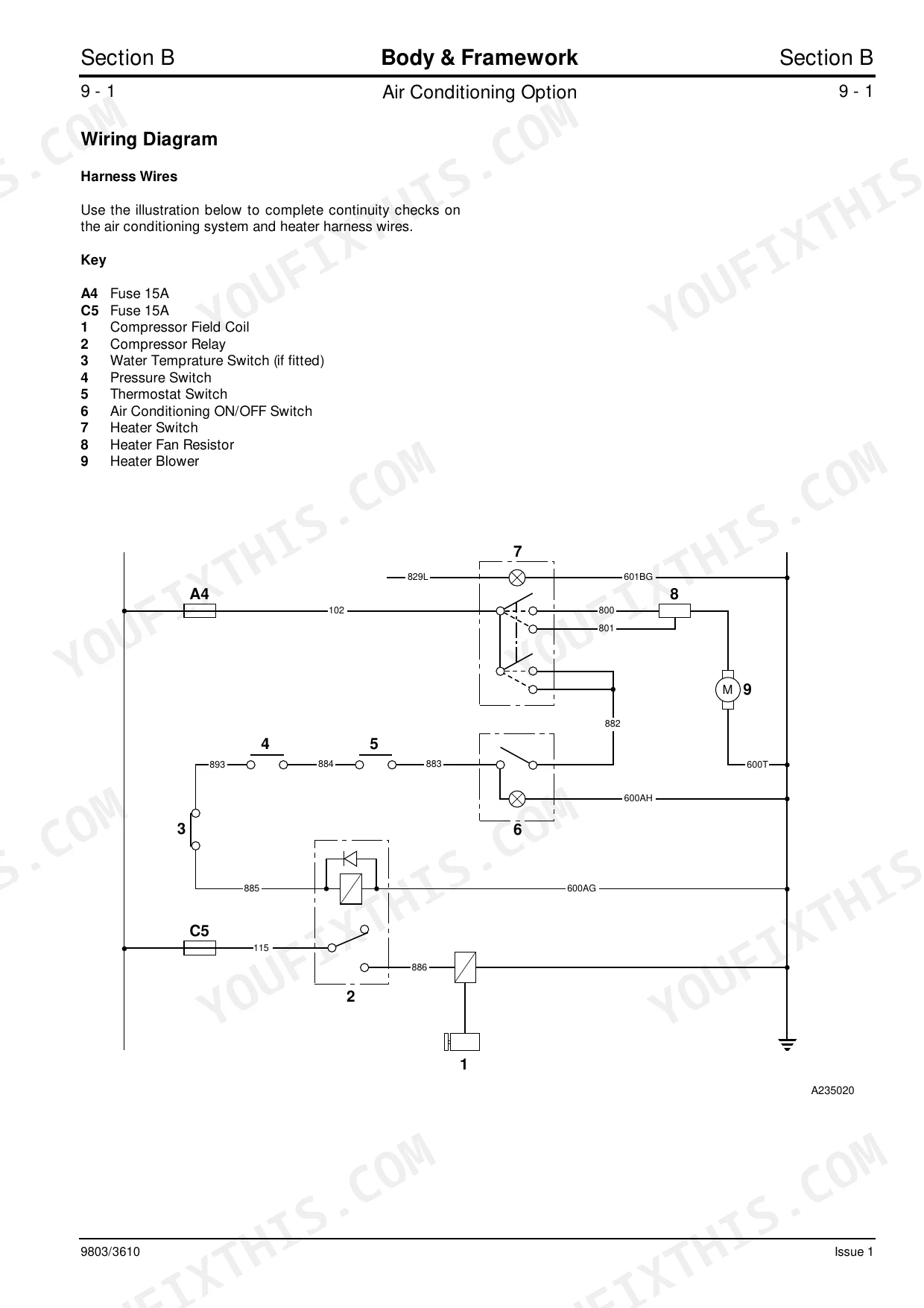

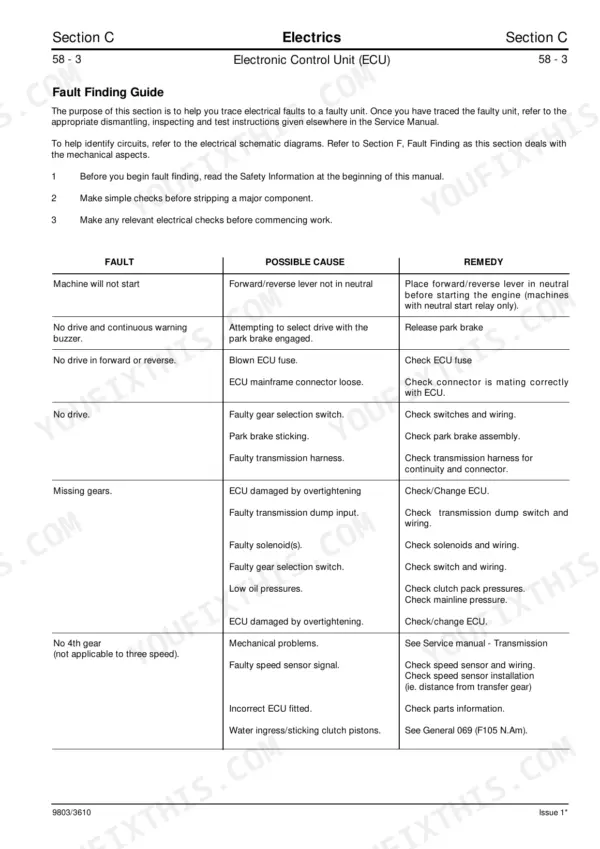

| Electrics | 116-204 | Technical Data, Test Methods, Schematics, Description Wire Harness Numbers, Batteries Warning Symbols, Alternator Precautions, Starter Motor Starter Circuit Test |
| Controls | 205-206 | - |
| Hydraulics | 207-275 | Schematic Circuit, Descriptions Basic Machine Neutral Circuit, Smooth Ride System, Fault Finding Contents, Pump Main Pump Removal & Replacement |

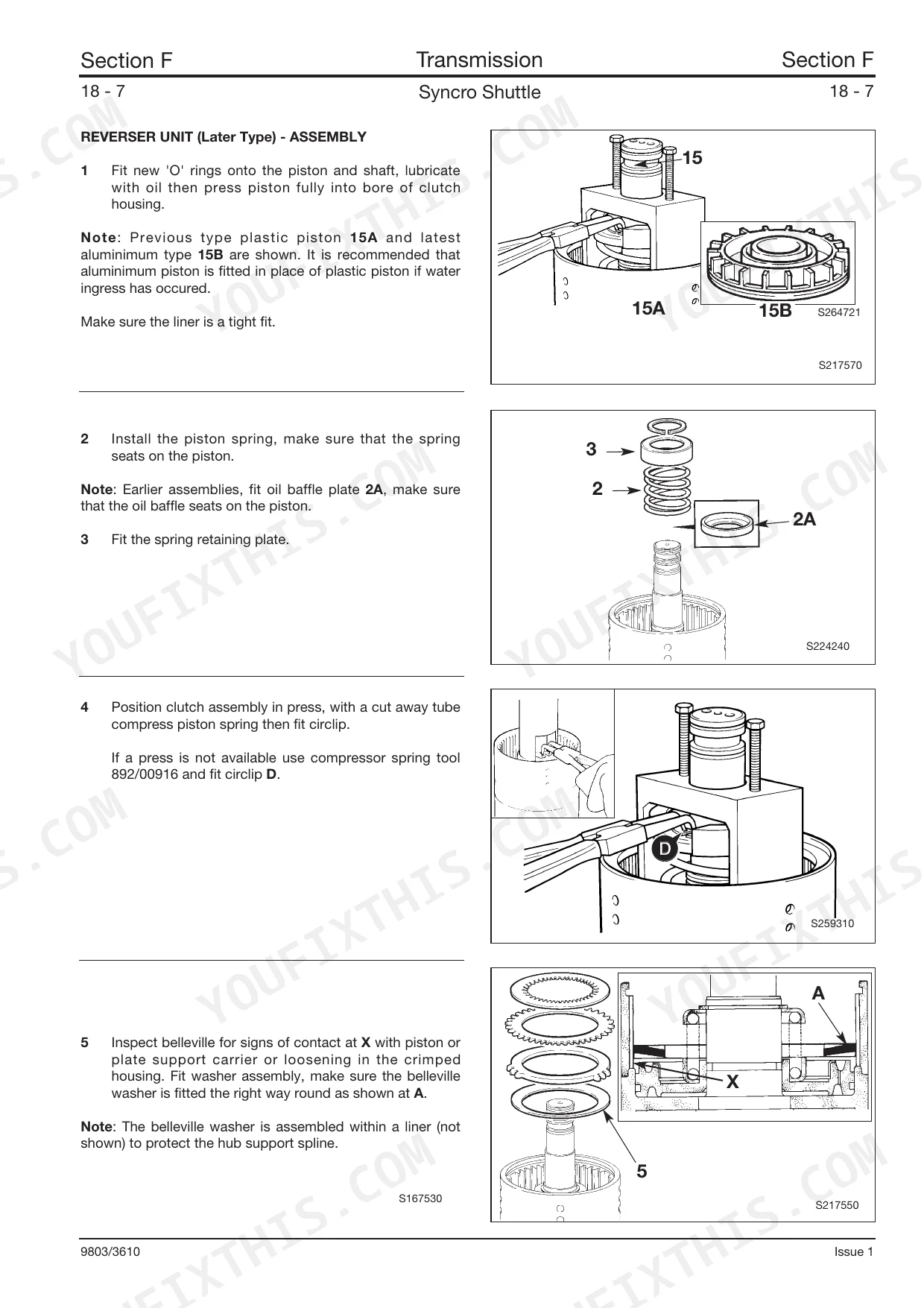

| Transmission | 276-506 | Technical Data, Descriptions General Description, Fault Finding Syncro Shuttle, Fault Finding Powershift, Syncro Shuttle Overhaul, Powershift Overhaul |
| Brakes | 507-545 | Descriptions Compensating Master Cylinder, Fault Finding Probable Causes Action, Accumulator Charge Valve Removal & Replacement |
| Steering | 546-579 | Descriptions Steer Valve Operation Neutral, Descriptions Priority Valve Operation Neutral, Descriptions Steer System Left Turn, Fault Finding Contents |
| Engine | 580-588 | Identification, Torque Settings, Service Tools (Numerical List, Section B, Section C, Section E, Section F, Section H, Section K), Sealing and Retaining Compounds |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Hub Filler/Drain Plug Torque | 80 Nm (8.0 Kgf. m, 60 lbf. ft) | p. 437 |
| Front Hub Planet Carrier Screws Torque | 25 Nm (2.5 Kgf. m, 18.5 lbf. ft) | p. 437 |
| Boom Wear Pad Bolts Torque | 55 Nm (5.5 Kgf. m, 40 lbf. ft) | p. 101 |
| Main Relief Valve (M.R.V.) Adjustment Procedure | Adjust the M.R.V. by releasing locknut A and screwing body B in or out as required. Screwing adjuster B inwards increases pressure, outwards decreases pressure. | p. 264 |

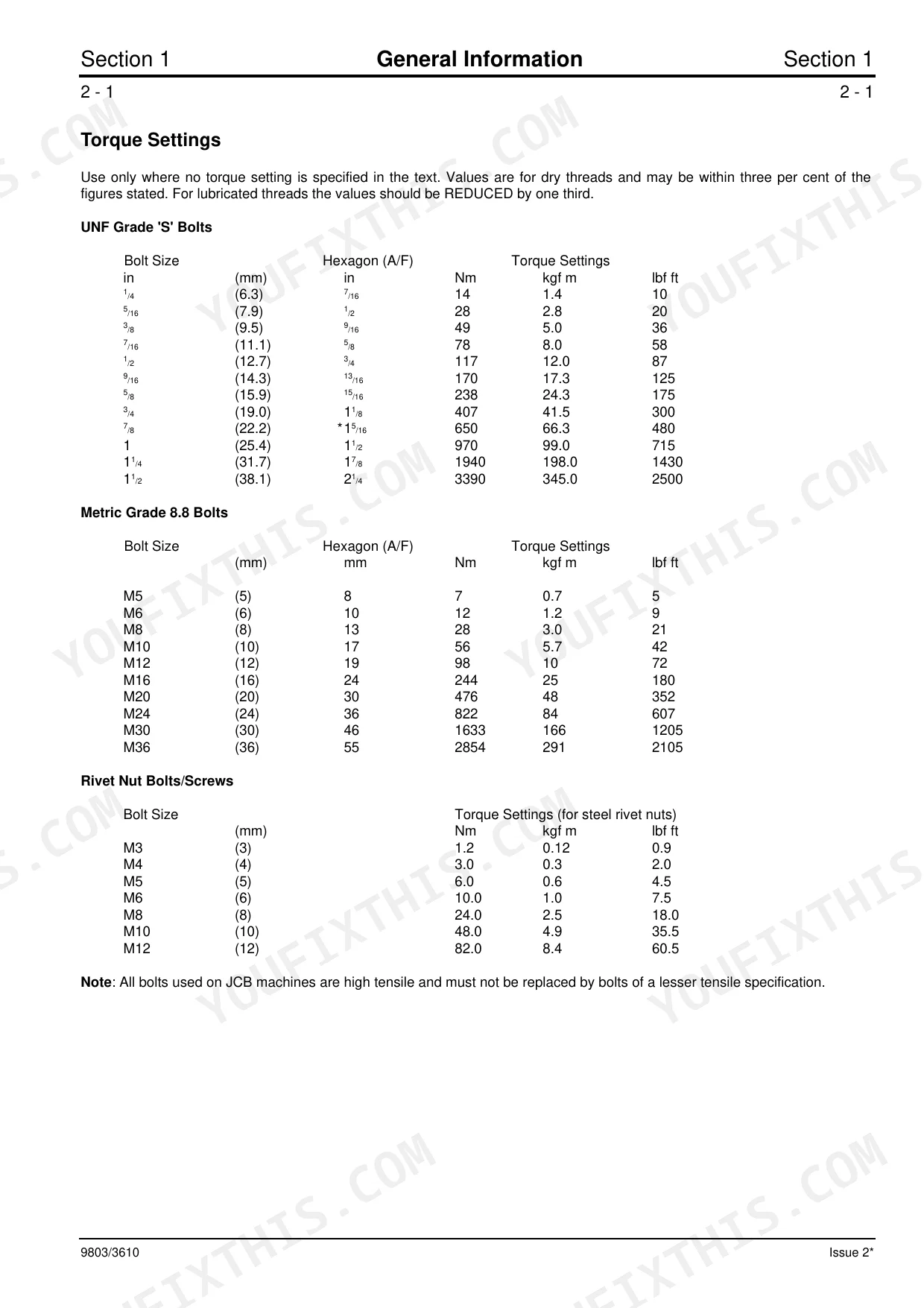

| UNF Grade 'S' Bolts Torque Settings | Various values from 14 Nm (1.4 kgf m, 10 lbf ft) to 3390 Nm (345.0 kgf m, 2500 lbf ft) | p. 7 |
| Metric Grade 8.8 Bolts Torque Settings | Various values from 7 Nm (0.7 kgf m, 5 lbf ft) to 2854 Nm (291 kgf m, 2105 lbf ft) | p. 7 |
| Front Hub Taper Bearings Clearance | Do not require pre-load or clearance checks | p. 437 |
| Brake Discs Wear Limit | Less than 3.8 mm (0.15 in.) thick | p. 441 |
| Front Wheel Shaft Carrier Bolts Torque (Grade 8.8) | 156 Nm (15.8 Kgf. m, 114.8 lbf. ft) | p. 441 |
| Priority Valve Connector Torque | 103 Nm (10 Kgf. m, 76 lbf. ft) | p. 577 |
| Exhaust Components Torque | No specific torque or clearance values are given for exhaust components. General Metric Grade 8.8 bolt torque settings apply. | p. 585 |
| Wear Pad Clearance | Not exceed a total of 1.5 mm (0.05 in) from side to side or top to bottom | p. 101 |
JCB 520-55 RS & variants Common Problems This Manual Covers
JCB 520-55 RS brake pedal goes to the floor with absolutely no brakes after brake pack overhaul p. 472
Inspect the brake discs for wear limits before reassembly. Replace any discs measuring less than 3.8 mm (0.15 in.) thick. Verify system bleeding procedures and check the compensating master cylinder. Torque the front wheel shaft carrier bolts to the torque specified in the quick reference (Grade 8.8, 156 Nm, page 441).
Manual Section: Transmission - AxlesSteering system stuck in crab steer mode or rear wheels will not return to normal steering mode p. 547
Test the steering mode solenoids and inspect the priority valve for sticking spools. Verify the steering relief valve operating pressure reaches 175 bar as noted on page 547. Inspect the sensor linkages for damage. When replacing components, torque the priority valve connector to 103 Nm (76 lbf. ft) per page 577.
Manual Section: Steering - Fault Finding (General)Front wheel hubs run excessively hot and bearings wear out or fail prematurely during heavy loader work p. 451
Drain the hub and check for metal shavings. Verify the pinion bearing pre-load rolling torque is between 105N to 157N (23.5lbf to 35.25lbf) as detailed on page 451. When refilling, torque the front hub filler and drain plugs to 80 Nm (60 lbf. ft) according to page 437.
Manual Section: TransmissionTool carrier structure shows visible fatigue cracks at the bottom pivot point near the boom attachment p. 101
Inspect the lower pivot points for stress fractures. Measure the boom wear pads and replace them if necessary. Torque the boom wear pad bolts to 55 Nm (40 lbf. ft) as instructed on page 101. Verify the hydraulic boom lift bore measures exactly 100 mm per page 209.
Manual Section: Body & FrameworkFrequently Asked Questions

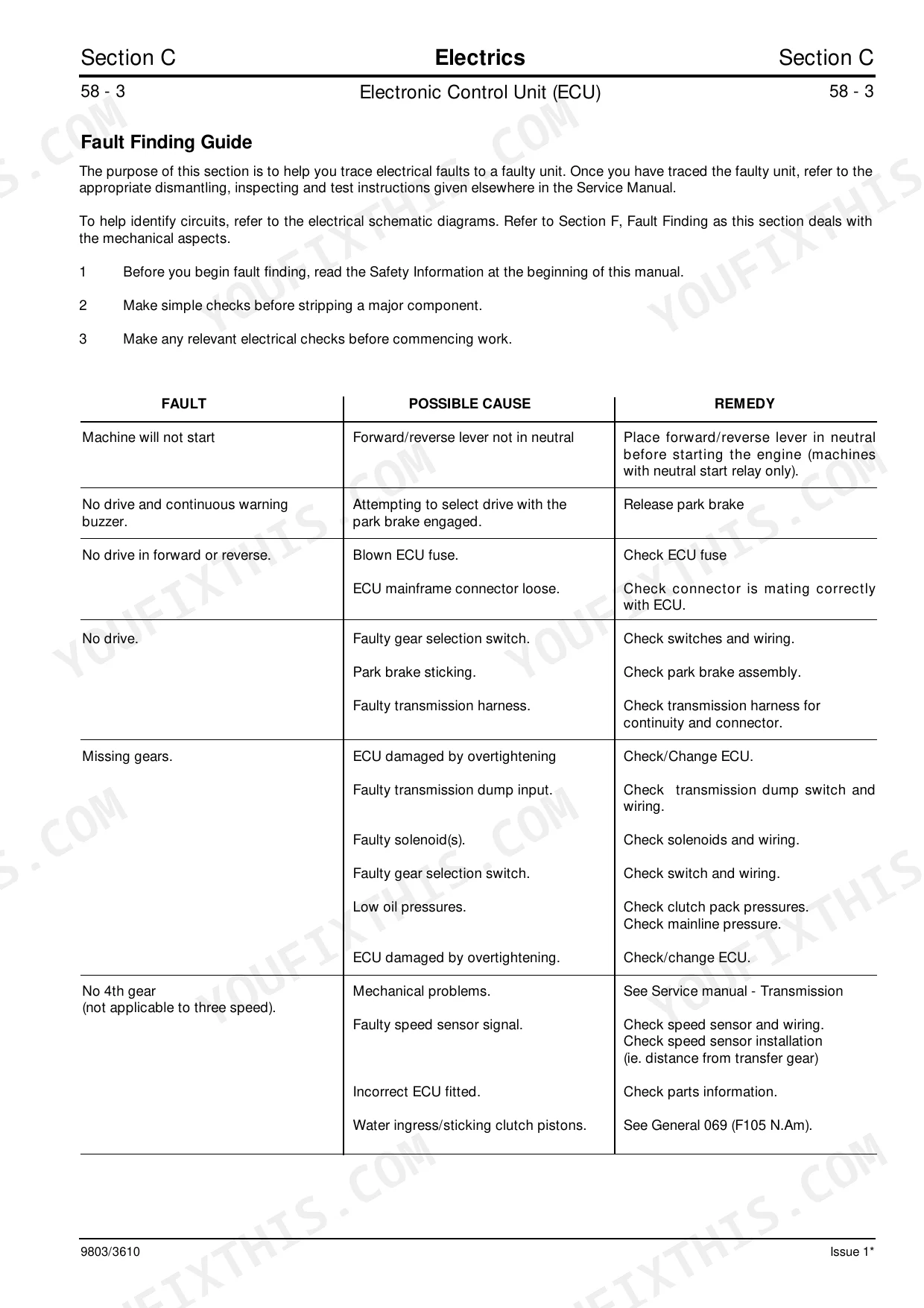

What does the error code mean on a JCB telehandler dashboard?
The manual provides a table of Diagnostic Fault Codes for the LMI System. For example, "Fault Code 1: Transducer signal fault" indicates that the transducer is not connected, the harness is faulty, or the transducer itself is faulty. "Fault Code 5: Low battery voltage" means the battery voltage is below 9 Volts.
What are the torque settings/specs for JCB 520-55 RS / 526-55 / 526S AWS service work?
The manual provides general torque settings for UNF Grade 'S' Bolts, Metric Grade 8.8 Bolts, and Rivet Nut Bolts/Screws. For instance, a Metric Grade 8.8 M10 bolt requires a torque of 56 Nm (5.7 kgf m, 42 lbf ft). These values are for dry threads and should be reduced by one third for lubricated threads.
What are the replacement specifications for front wheel bearings?
For front wheel bearings, the taper bearings (items 20 and 23) are machined to fine tolerances and do not require pre-load or clearance checks. If any component is outside the limits, it must be replaced. A Hub Service Kit (part number 892/01092) is available for removal and replacement of hub bearings.
What are the replacement specifications for brake packs?
For brake packs, only the latest type friction and counter plates should be used, and they must be replaced as complete axle sets. If brake discs are less than 3.8 mm (0.15 in.) thick, new ones must be fitted, and the entire brake pack should be replaced as a complete assembly if worn or damaged.
Is this Service Manual a digital download?
Instant PDF download. You get the full 588-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

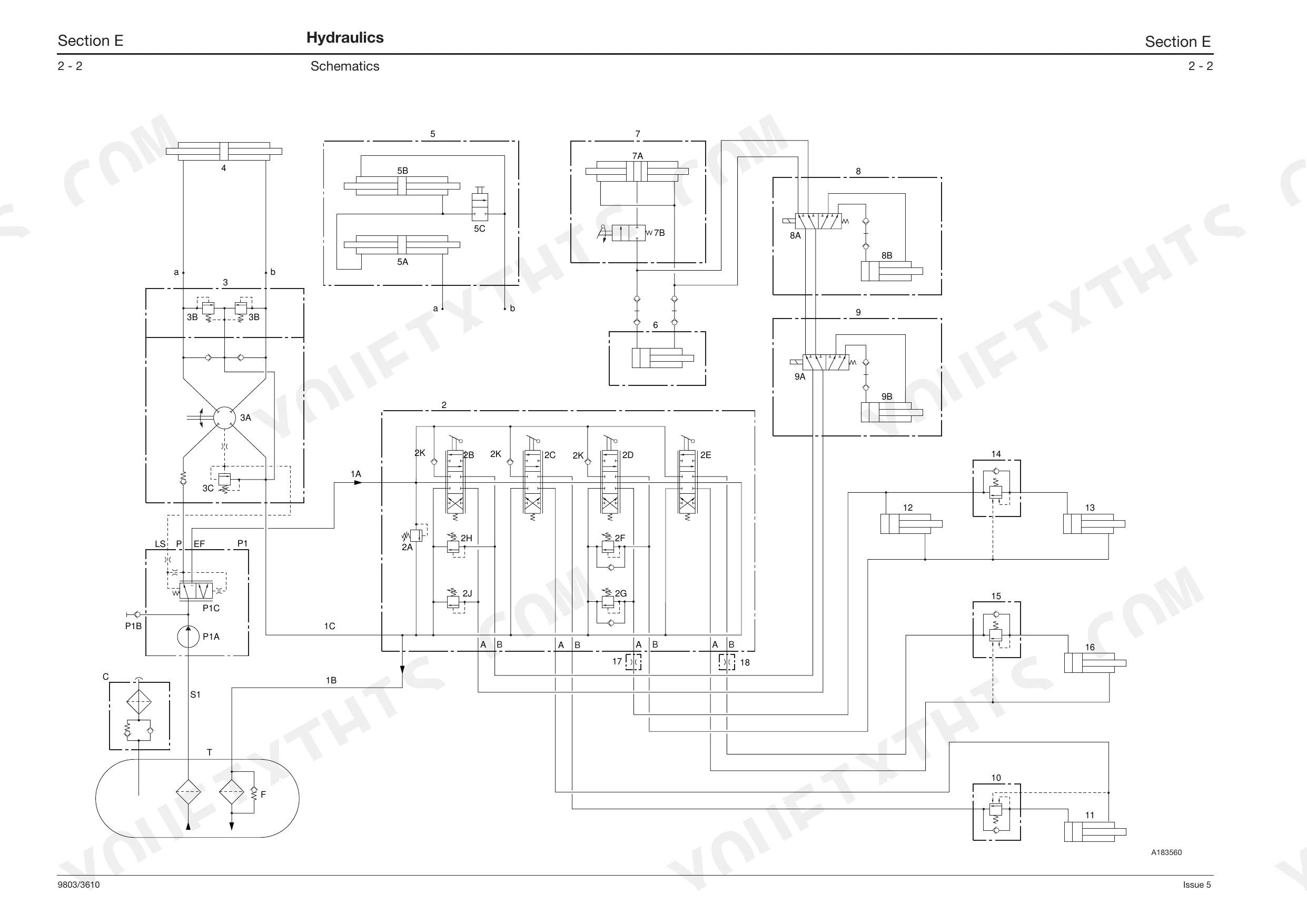

Does this JCB 520-55 RS & variants manual include hydraulic schematics?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text is generally crisp and easy to read, with minimal fading or blurriness. Diagrams and illustrations are raster images, but their labels are clear and readable. Pages are clean with no notable scan artifacts, stains, or skewed content, and there are no blank or filler pages.
