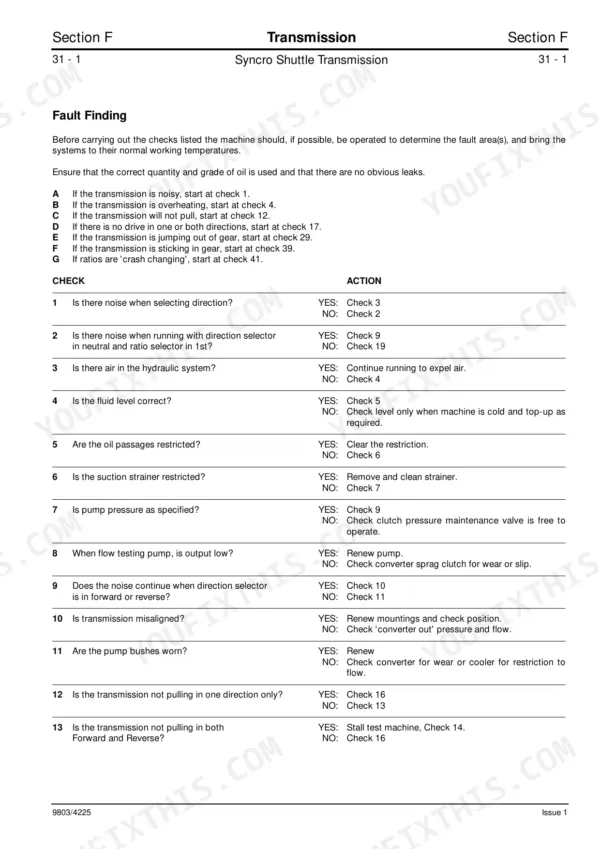

Every system on your 1994-2007 wheeled loader gets stripped down and rebuilt in this 552-page JCB TM200, TM270, TM300 service manual PDF (OEM #9803/4225). You get complete hydraulic schematics detailing the fluid routing, full wiring diagrams for chasing electrical faults, and step-by-step teardown instructions for the Syncro Shuttle transmission. Open up the troubleshooting sections to quickly diagnose steering or brake issues before tearing into the heavy components. Lock down the loader control valve auxiliary section shut-off plug assembly to exactly 65 Nm, and tighten the cap screws to 9.5 Nm for a leak-free seal. Stop wasting valuable shop hours on guesswork. Download this bookmarked file, pull up the exact factory numbers on your tablet, and get the machine back in the dirt.
What's Inside This JCB TM200, TM270, TM300 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-14 | - |
| Optional Equipment | 15-36 | Service Tools Numerical List, Service Tools Body & Framework, Service Tools Hydraulics, Service Tools Transmission |
| Care & Safety | 37-44 | Maintenance Safety |

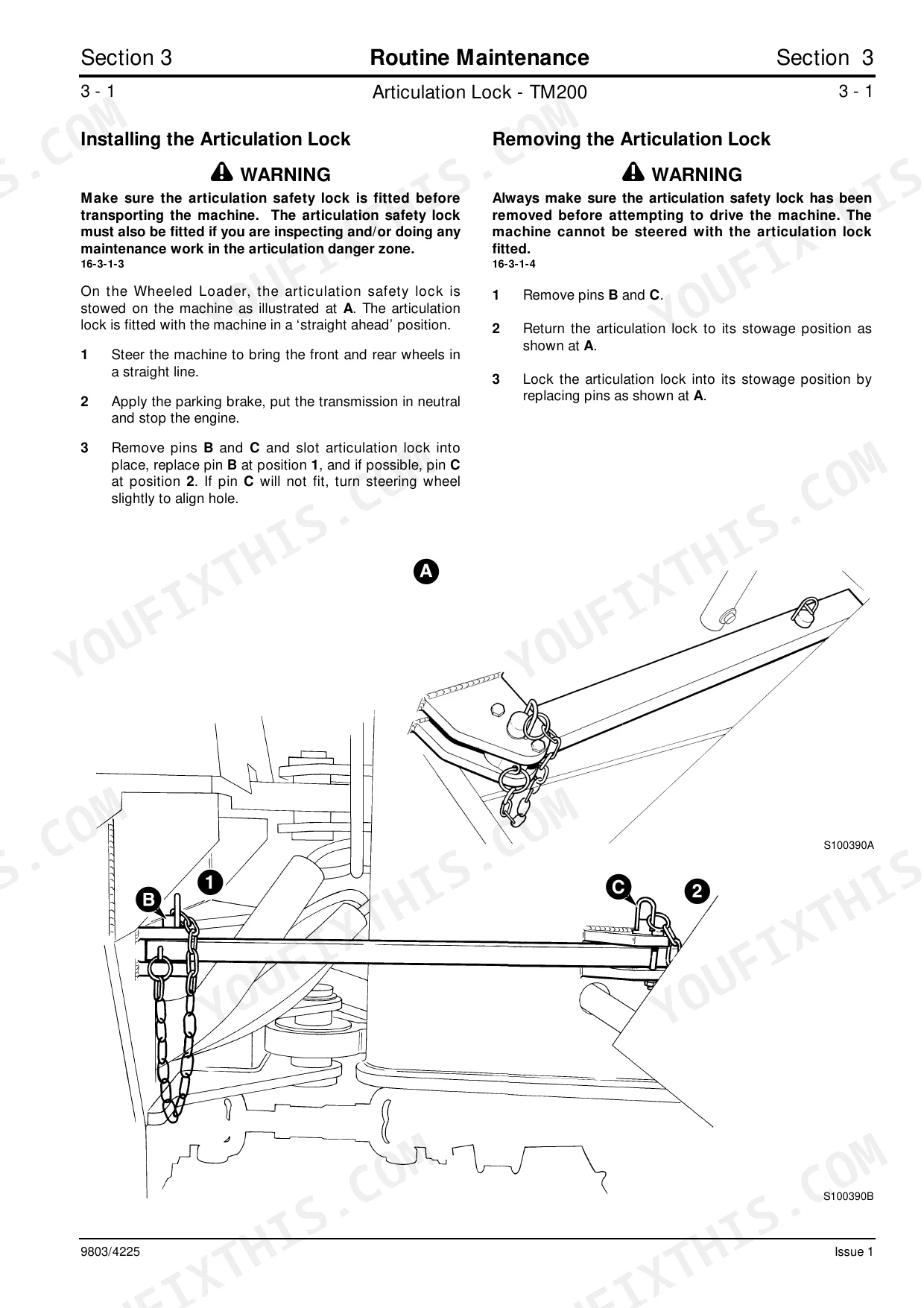

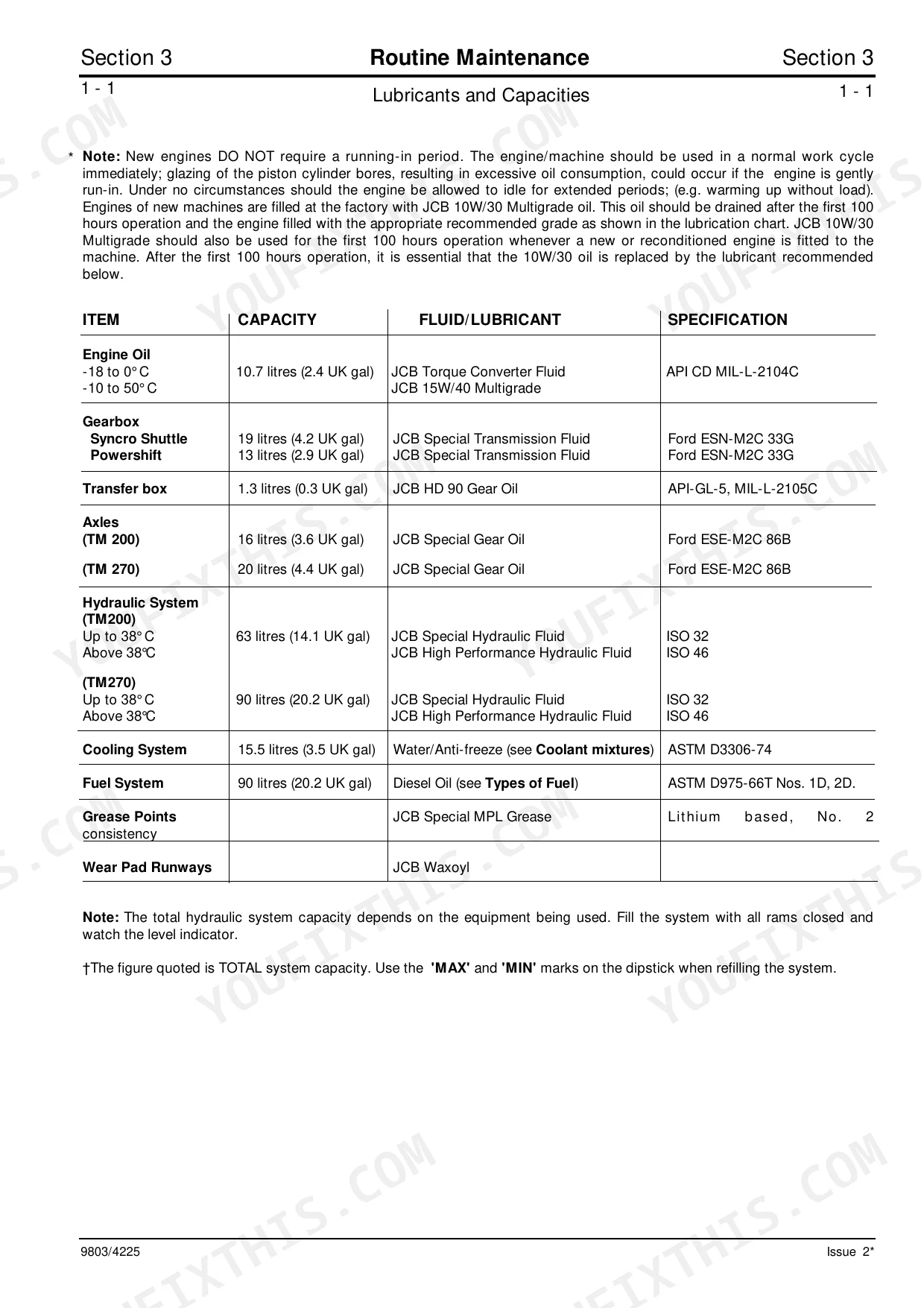

| Routine Maintenance | 45-102 | Lubricants & Capacities, Service Schedules, Greasing, Cab, Fuel System, Engine Air Filter, Engine Oil and Filter |
| Body & Framework | 103-130 | Direct Glazing, Cooling Pack TM300, Centre Pivot TM200, Articulated Joint TM270 / TM300, Boom Shim Adjustment |

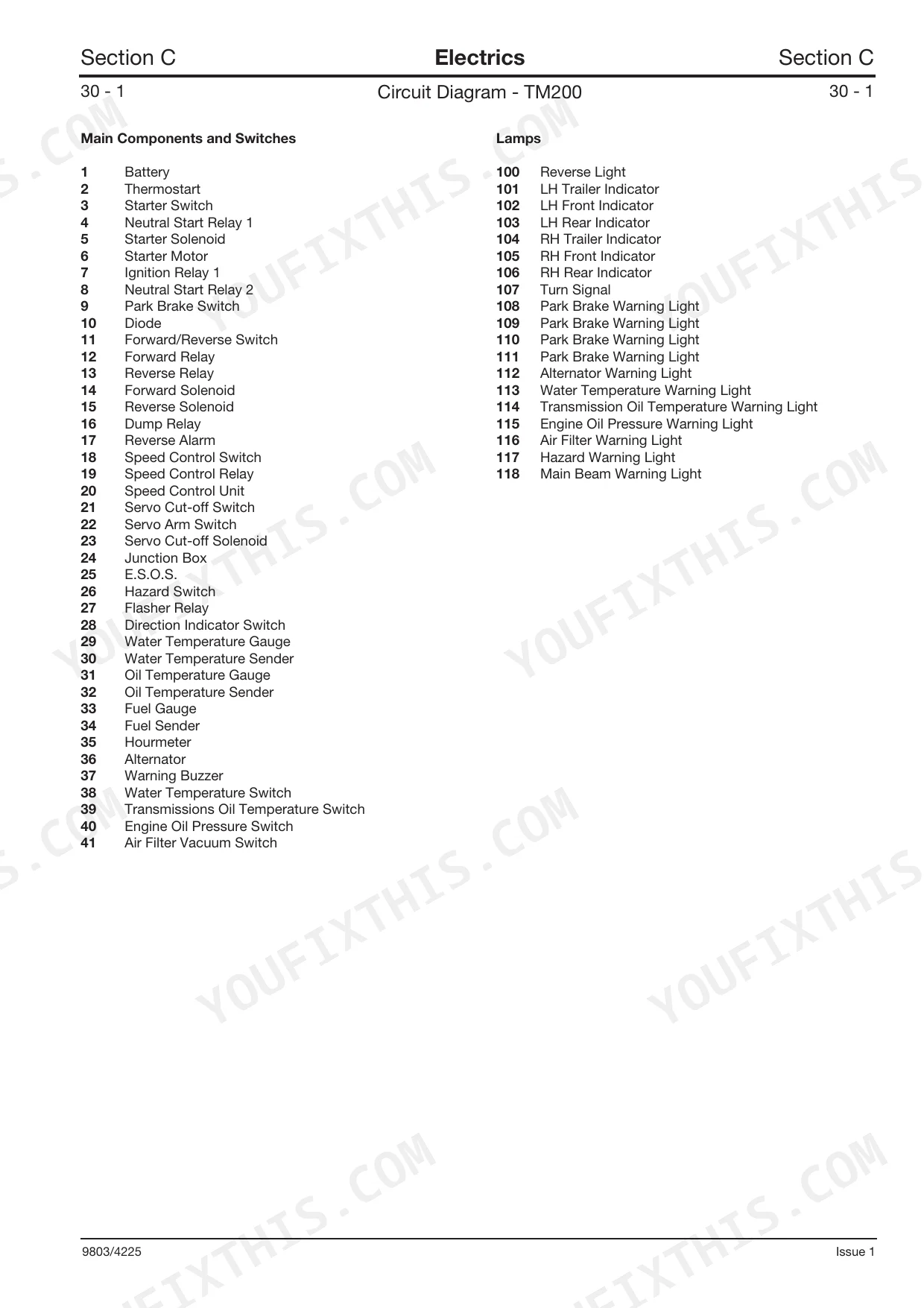

| Electrics | 131-209 | Technical Data, Test Methods, Wiring Harness Repair, Starter Motor, Alternator, Safe Load Indicator, Load Moment Indicator TM300, Circuit Diagram - TM200 |
| Controls | 210 | - |

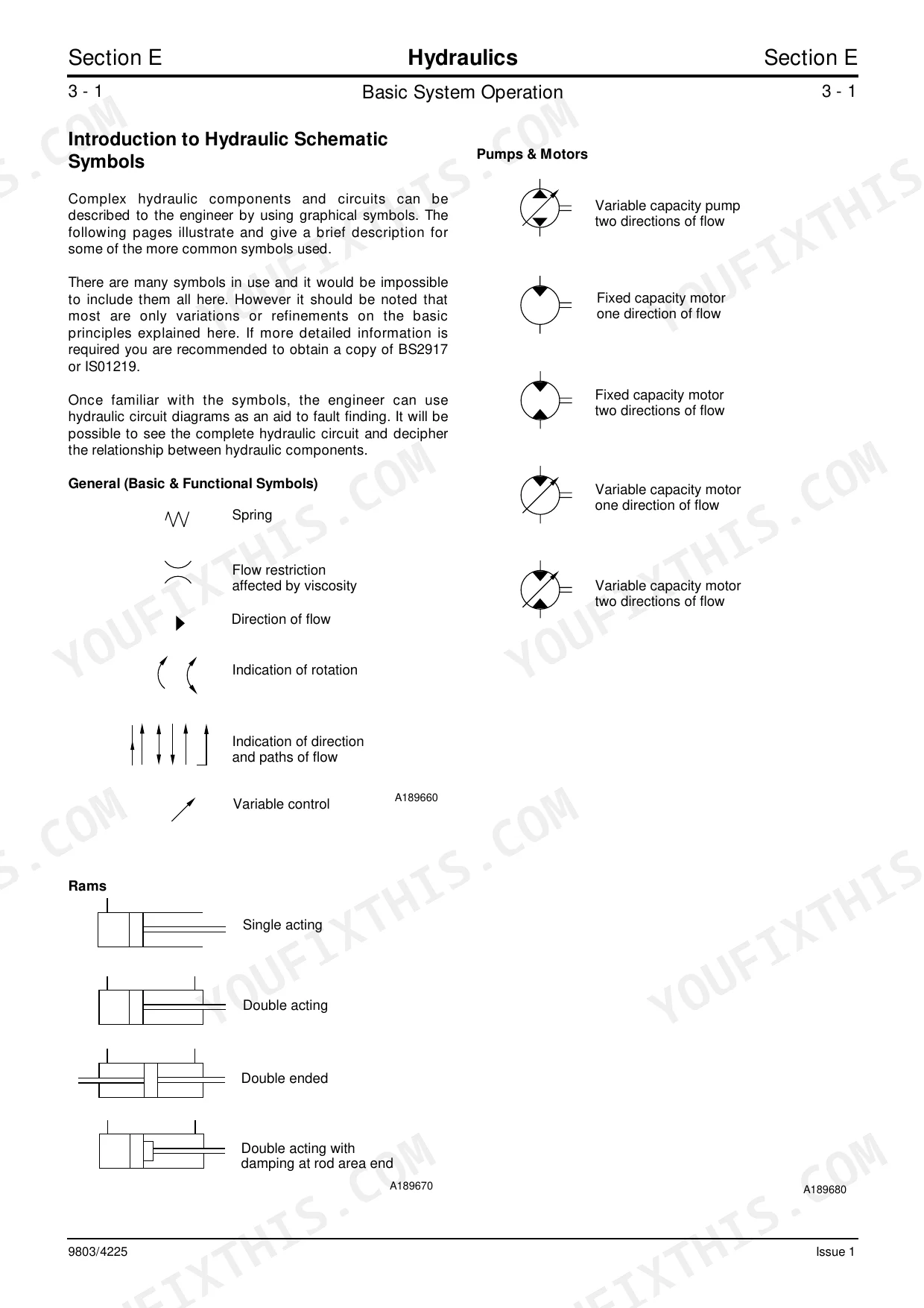

| Hydraulics | 211-292 | Technical Data, Introduction to Hydraulic Schematic Symbols, Loader Control Valve, Loader Control Valve TM300, Dismantling and Assembly, Hand Control Valve (Servo) TM300, Pumps |

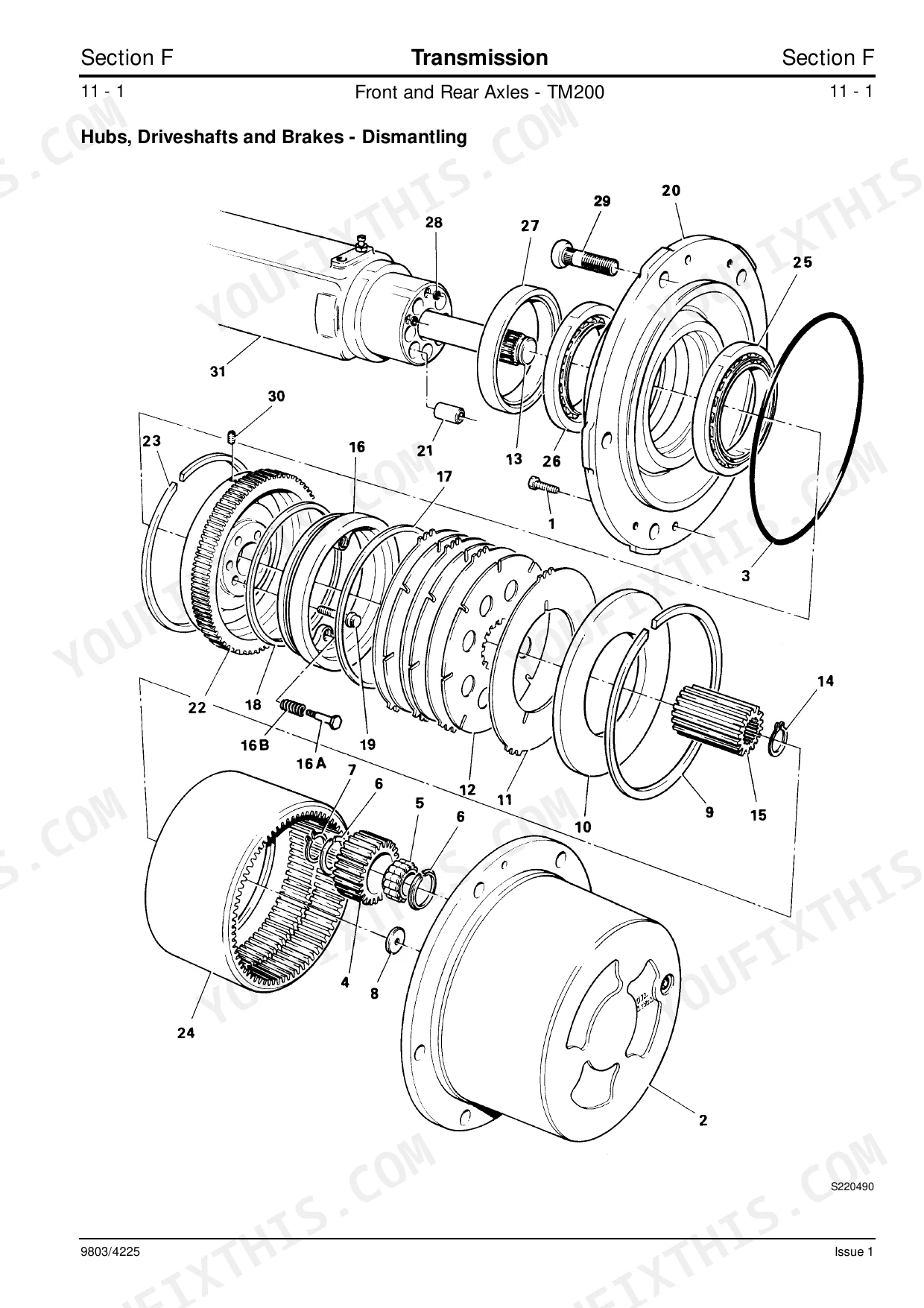

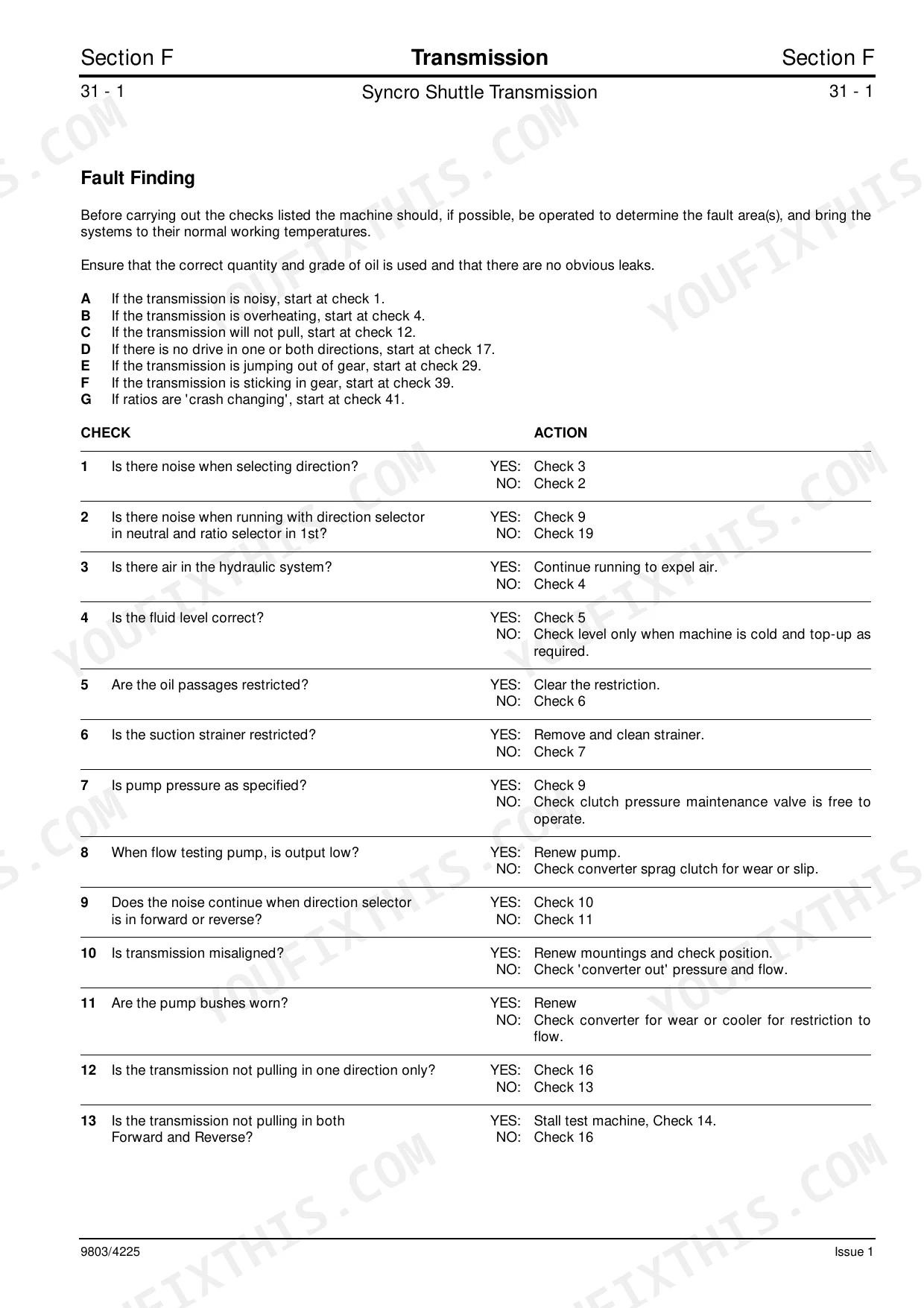

| Transmission | 293-496 | Technical Data, Front and Rear Axles - TM200, Front and Rear Axles - TM270 & TM300, Syncro Shuttle Transmission, Reverser Unit - Assembly, Torque Converter, Powershift Transmission |
| Brakes | 497-520 | Parking Brake - TM270 From Ser. No. 787076 & TM300, Fault Finding, Accumulator Charge Valve |
| Steering | 521-546 | Hydraulic Steering Unit - TM200, Hydraulic Steering Unit - TM270 & TM300 |
| Engine | 547-552 | Machine Identification Plate, Typical Vehicle Identification Number, Typical Engine Identification Number, Serial Plates |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TM300 | ||
| Loader Control Valve Auxillary Section Shut Off Plug Assembly Torque | 65 Nm | p. 215 |
| Loader Control Valve Auxillary Section Cap Screw Torque | 9.5 Nm | p. 215 |
| TM200 | ||
| Hydraulic Filter Filtration Size | 25 microns | p. 213 |
| Hydraulic Filter By-pass Pressure | 1.05 bar | p. 213 |
| Valve Clearance - Cold - Inlet | 0.20mm (0.008 in) | p. 548 |
| Valve Clearance - Cold - Exhaust | 0.45mm (0.018 in) | p. 548 |
| All Models | ||
| Typical Ram End Cap Seals Replacement | Fit new seals 10, 11, 12 into end cap 1 | p. 271 |
| Typical Ram Piston Head O-ring Replacement | Fit a new 'O' ring 8 into piston head 3 | p. 272 |
| Syncro Shuttle Transmission Strainer Gasket Torque | 10 Nm | p. 74 |
| Powershift Transmission Strainer Gasket Torque | 10 Nm | p. 75 |

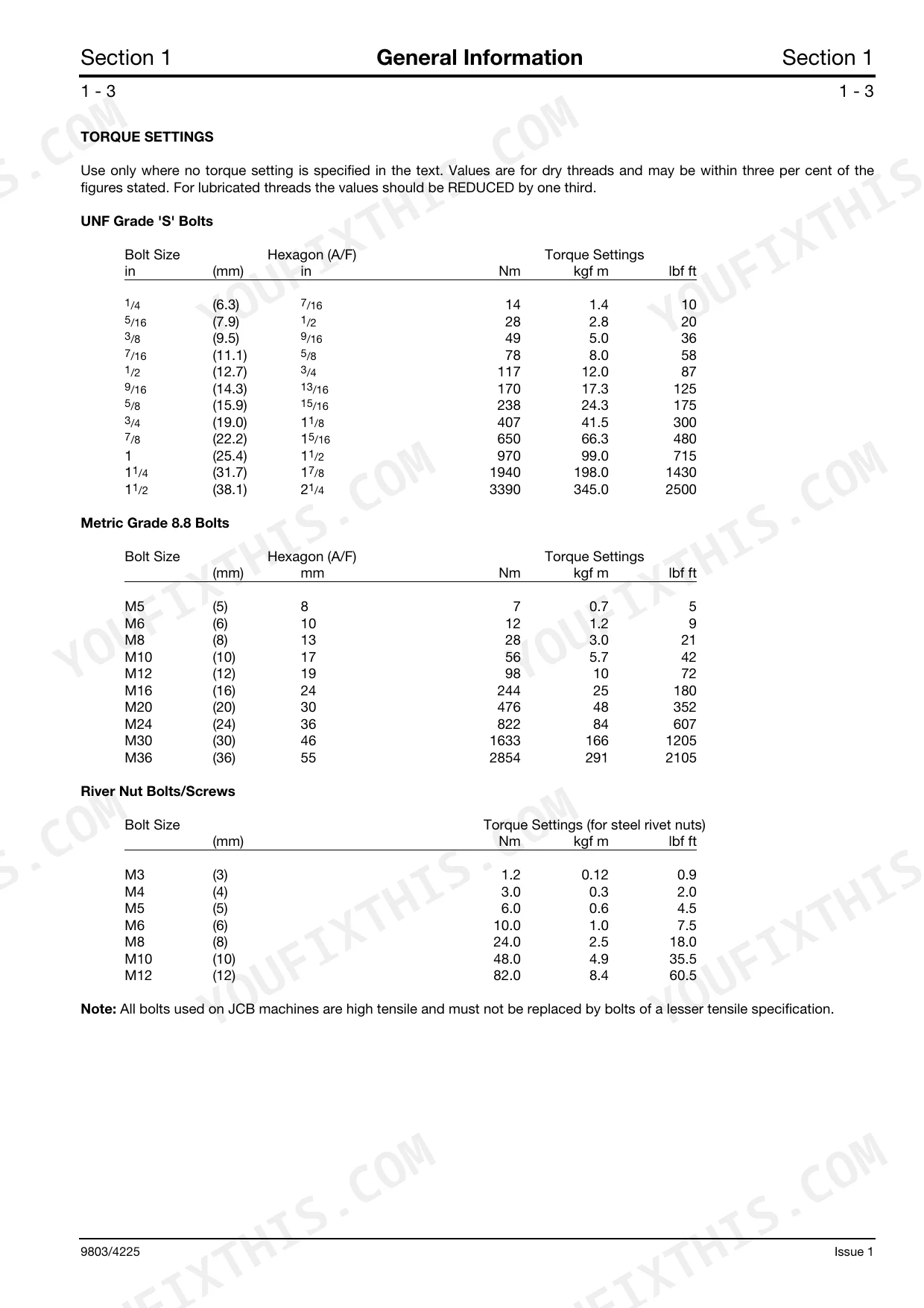

| BSP Port Connection 1/8" Adapter Torque | 20 Nm | p. 13 |
| BSP Port Connection 1/4" Adapter Torque | 34 Nm | p. 13 |
JCB TM200, TM270, TM300 Common Problems This Manual Covers
JCB TM300 hydraulic attachment control is erratic and only works in short bursts before stopping. p. 277
Inspect the Smooth Ride System pressure switch as detailed on page 277 if the attachment system will not activate. Replace the faulty switch as necessary. When reassembling the auxiliary section of the loader control valve, tighten the shut off plug assembly to exactly 65 Nm.
Manual Section: Hydraulics - Smooth Ride System (SRS) - Fault FindingEngine runs hot, loses power under heavy load, or shows abnormal valve train noise. p. 548
Measure the valve clearances when the engine is completely cold. Adjust the TM200 inlet clearance to 0.20 mm (0.008 in) as specified on page 548. Set the exhaust valves to 0.45 mm (0.018 in). Check the cooling system for restrictions and verify coolant levels before restarting the loader.
Manual Section: EngineLoader loses transmission drive power or implements become weak and jerky under heavy load. p. 467
Test mainline and converter pressures following the powershift transmission flow testing procedures. Drain the fluid and remove the suction strainer. Clean the housing thoroughly and install the suction strainer using a new gasket. Tighten the strainer bolts to exactly 10 Nm as noted on page 467.
Manual Section: TransmissionPowershift transmission leaks fluid from the output shaft and fails to maintain internal operating pressure. p. 480
Remove the old output shaft oil seal and clean the mounting bore. Pack grease securely between the lips of the new seal before pressing it into place. Tighten the powershift transmission drain plug to 203 Nm as shown on page 480 to prevent further fluid loss during operation.
Manual Section: TransmissionFrequently Asked Questions
What do the error codes mean on a JCB TM200/TM270/TM300?
For the Load Moment Indicator (LMI) on the TM300, Fault Code 1 indicates a transducer signal fault, Fault Code 2 means calibration is out of range, Fault Code 3 signifies calibration is required, Fault Code 4 points to a display unit fault, and Fault Code 5 indicates low battery voltage (below 9 volts). These codes help diagnose issues with the LMI system.
What are the torque specs for JCB TM200/TM270/TM300 wheel nuts?
The correct torque specification for both front and rear wheel nuts on the JCB TM200, TM270, and TM300 models is 680 Nm (500 lbf ft). It is recommended to check these torques every two hours on new machines or whenever a wheel has been removed, until they remain correct.
What are the torque specs for JCB TM200/TM270/TM300 boom pins?
For boom shim adjustment, the M10 TUF Lock with plain washers should be tightened to 98 Nm (72 lbf ft). This specification is relevant for bolts associated with the boom structure, although not explicitly for 'boom pins' as a general category.
What are the replacement specifications for hydraulic filters?
For the TM200, TM270, and TM300 models, the hydraulic filter's filtration size is 25 microns. The bypass pressure for these filters is 1.05 bar (1.07 kgf/cm² or 15 lbf/in²).
Is this Service Manual a digital download?
Instant PDF download. You get the full 552-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find wiring schematics in this JCB TM200, TM270, TM300 manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is generally crisp and easy to read throughout. Diagrams and illustrations are mostly raster images, showing some pixelation when zoomed, but their labels remain readable. Page condition is fair, with some minor scan artifacts and slight skewing on a few pages. You will also find several blank pages interspersed, particularly at the end of sections or as filler.
