This is the full JCB factory service manual (publication 9813-7450) covering the large-platform skid steer loaders 225T, 250, 250T, 260, 260T, 270, 270T, 280, 300, 300T, 320T, 325T and 330. It is the broadest edition of the range, spanning the earlier Tier 2/3 mechanical-engine machines through to the Tier 4 Final models, so it is the one to reach for when you are working across a mixed fleet. Across 1,520 pages it carries the dealer-level diagnostics, removal and refit procedures, clearances, torque figures and the wiring and hydraulic circuit diagrams for every system on the machine: engine, fuel and exhaust, cooling, the hydrostatic driveline, hydraulics, brakes, electrics, the quickhitch and attachments, plus body, operator station and HVAC.

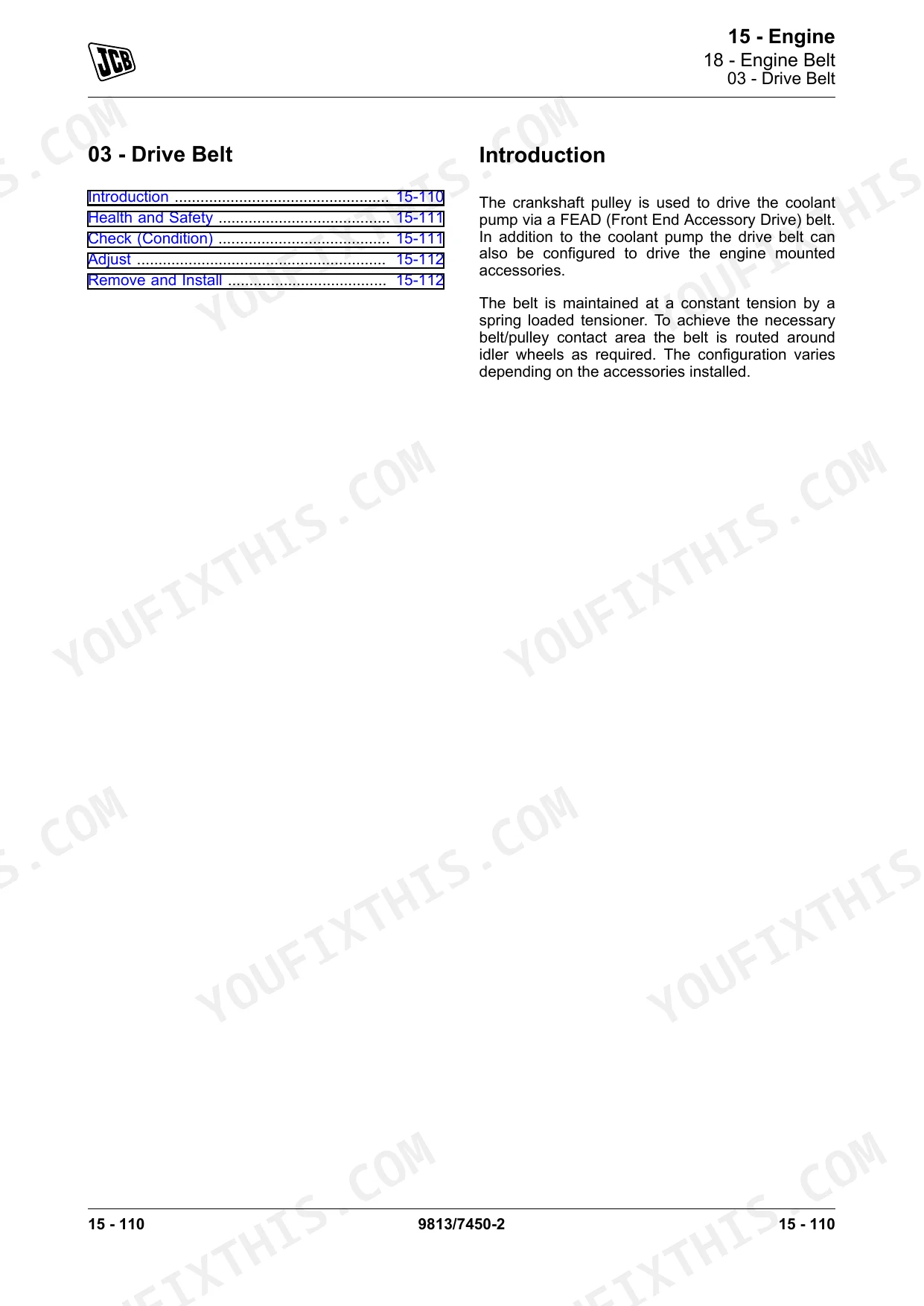

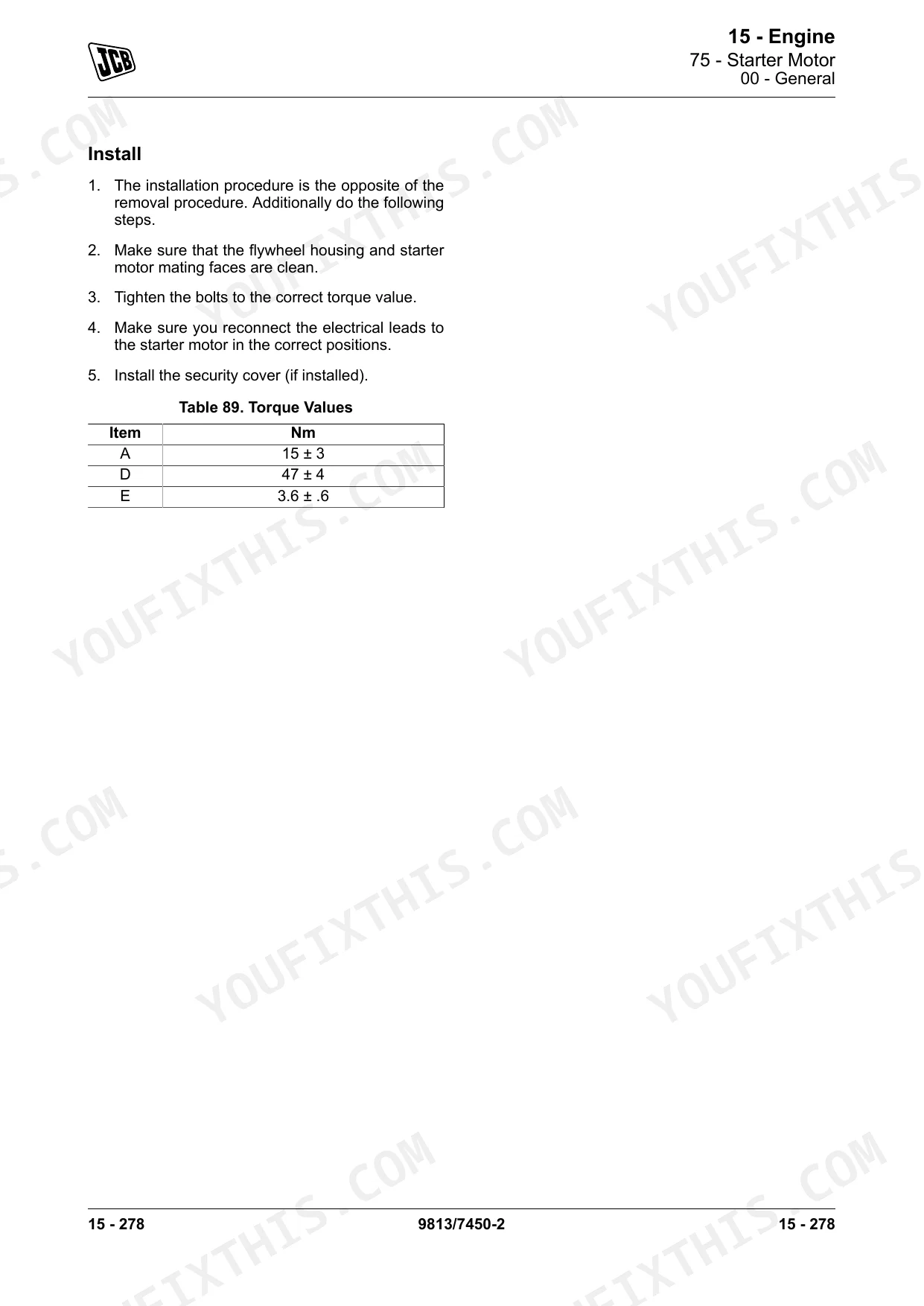

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Models covered | 225T, 250, 250T, 260, 260T, 270, 270T, 280, 300, 300T, 320T, 325T, 330 | |
| Engine family | JCB Dieselmax / EcoMAX 4-cylinder turbo-diesel | |
| Emissions span | Tier 2/3 mechanical through Tier 4 Final | |
| Displacement | 4.4 L (and 4.8 L on later Tier 4 models) | |
| Fuel system | Mechanical injection (Tier 2/3) or common-rail (Tier 4) | |
| Rated power | up to ~108-129 kW on the 4.8 L variant | |
| Quickhitch bolt torque | 562 Nm | |
| Driveline | Hydrostatic two-speed drive | |
| Manual pages | 1520 |
JCB 250-330 Common Problems This Manual Covers
Engine starts but the machine will not move or only creeps under load
Treat it as a hydrostatic-drive fault. Check the hydraulic oil level and condition and look for charge-pressure loss first, then test the drive pump and motors and read the fault codes; low or contaminated oil and a weak charge pump are the usual culprits for a no-drive or creep-only machine.
Manual Section: DrivelineLift arms will not raise or lower, or operate sluggishly
Confirm hydraulic oil level and renew a clogged filter, then check for leaks and test the loader control valve and main pump. Sluggish or dead arms usually trace back to low oil, a restricted filter or a worn pump rather than the cylinders themselves.
Manual Section: Hydraulic SystemHydraulic functions are slow after start-up or fade under load
Check fluid level and bleed any air from the system, warm cold oil before judging it, and renew restricted filters. If flow still fades under load, flow- and pressure-test the main pump against spec; cavitation from a suction-side restriction will show as the same symptom.
Manual Section: Hydraulic SystemMachine derates, alarms, or shuts down unexpectedly
Read the stored fault codes first. A derate is almost always an engine-protection event: low oil pressure, high coolant temperature, or a clogged air filter. Clear the root condition, confirm sensor signals, and the protection strategy will release the power.
Manual Section: Electrical SystemRepeated water-in-fuel warnings
Drain the water separator on the documented schedule and check it is sealing and draining properly. Persistent warnings after draining point to fuel contamination upstream or a failed separator element; renew the element and clean the tank if it keeps returning.
Manual Section: Fuel and Exhaust SystemFrequently Asked Questions
Which machines does this JCB skid steer service manual cover?
It is the broad-coverage edition (publication 9813-7450) for the large-platform skid steer loaders 225T, 250, 250T, 260, 260T, 270, 270T, 280, 300, 300T, 320T, 325T and 330, across the Tier 2/3 and Tier 4 engine generations.
How do I reset a service light or fault code on these JCB loaders?
The Electrical System section covers the diagnostic mode, warning lamps and fault-code read and reset procedures for the 250 through 330 range, so you can clear a service reminder or read a stored code without a dealer tool.
What do the water-in-fuel and air-filter warning lights mean?
The water-in-fuel lamp tells you to drain the fuel water separator before it reaches the injection system; the air-filter warning means a restricted or dust-loaded element that is choking engine power. Both procedures and their thresholds are in the manual.
My machine will not drive or only creeps. Where does the manual point me?
To the hydrostatic driveline diagnostics: checking charge pressure, hydraulic oil condition and the drive pump and motors. It walks through the pressure tests that separate a charge-pressure or oil problem from a failed pump.
Does it include wiring and hydraulic circuit diagrams?
Yes. There are dedicated Electrical System and Hydraulic System sections with the full circuit diagrams, component locations and fault-finding for the range.
Is this the right manual if I run both older and newer JCB skid steers?
Yes. This edition deliberately spans the Tier 2/3 mechanical-engine machines and the later Tier 4 models, so one manual covers a mixed 250 to 330 fleet.
