When your zero-turn mower stalls out mid-cut, this 144-page JCB ZT 20D, Yanmar 2V750 -CVER diesel service manual PDF (OEM #9803/9430-1) gives you the exact factory procedures to get it running again. Open the file to find detailed hydraulic schematics for the wheel motor drive system, complete wiring diagrams for chasing electrical faults, and step-by-step pump linkage adjustments. You get a full troubleshooting section covering mower deck issues and engine start failures, plus high-quality exploded views for pump teardowns. Verify the main electrical circuit with a 30-amp fuse rating, and lock down dry 1/4-20 SAE Grade 5 fasteners to exactly 12 Nm before firing up the engine. Stop wasting time blindly adjusting throttle cables in the dark. Download the bookmarked file directly to your tablet, pull up the right page, and fix the machine today.
What's Inside This JCB ZT 20D, Yanmar 2V750-CVER Diesel Manual

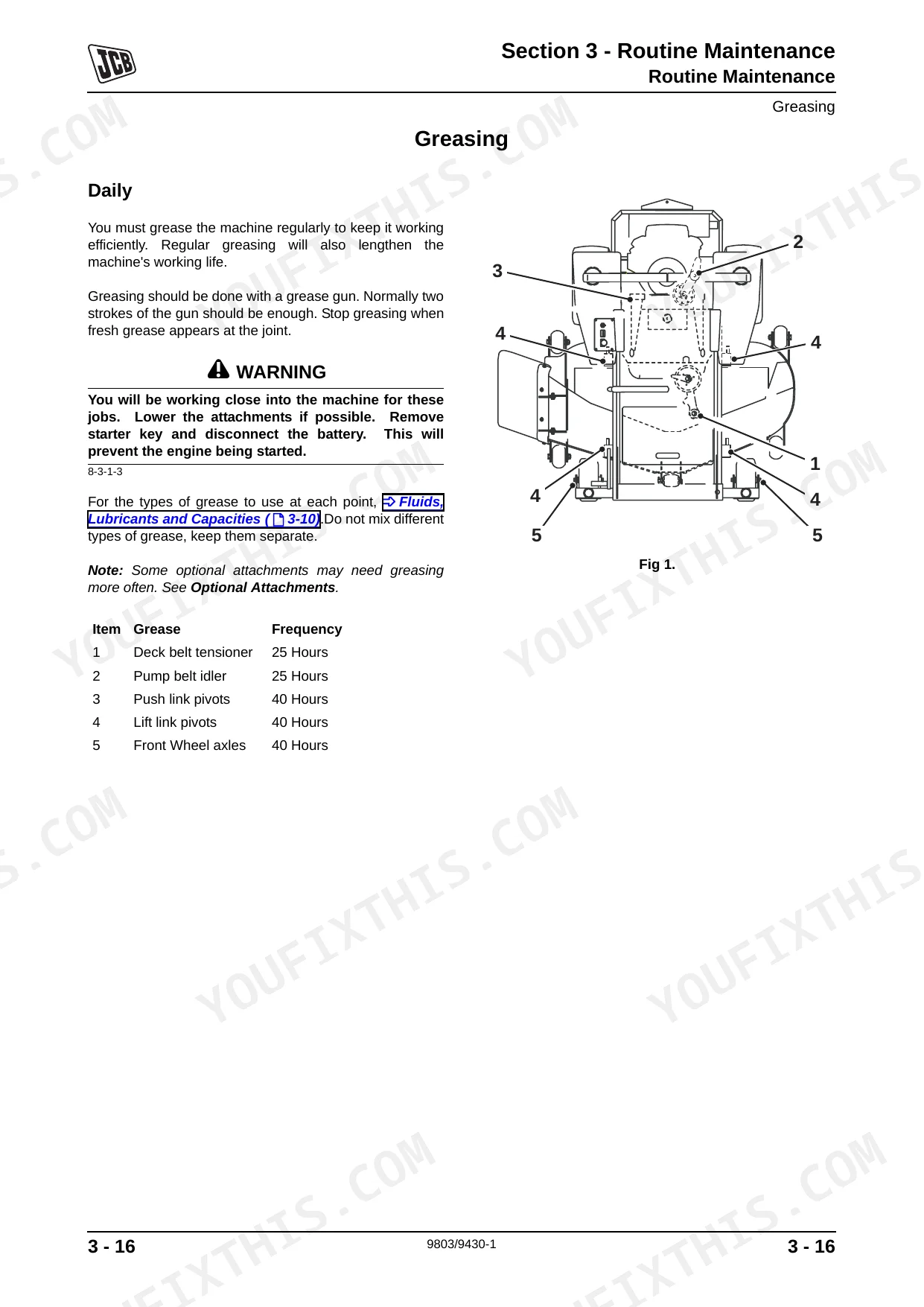

| System | Pages | Key Topics |
|---|---|---|
| General Information | 2-30 | Introduction, Machine Identification, Service Tools, Fastener Torque Chart, Consumables |
| Care and Safety | 16-30 | Safety Notices, Safety Checklist, Safety Decals |
| Routine Maintenance | 31-76 | Service Requirements, Health and Safety, Service Schedules, Fluids, Lubricants and Capacities, Safety Checks, Cleaning the Machine, Checking for Damage |
| Body and Framework | 77-81 | Fuel Tank |
| Electrics | 82-119 | Technical Data, Service Procedures, Service Tools, Schematic Circuits |

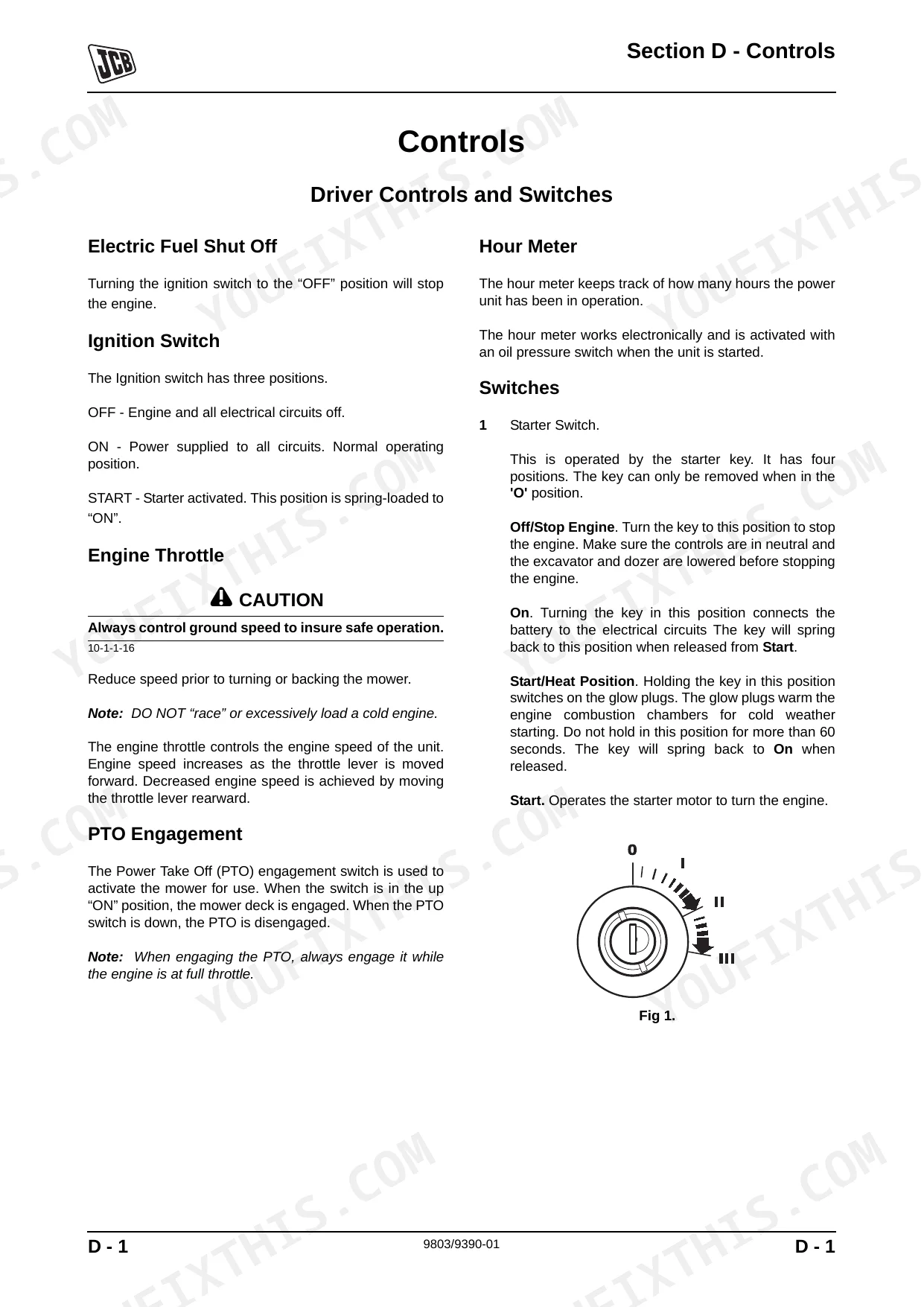

| Controls | 120-130 | Driver Controls and Switches (Electric Fuel Shut Off, Ignition Switch, Engine Throttle, PTO Engagement, Hour Meter) |

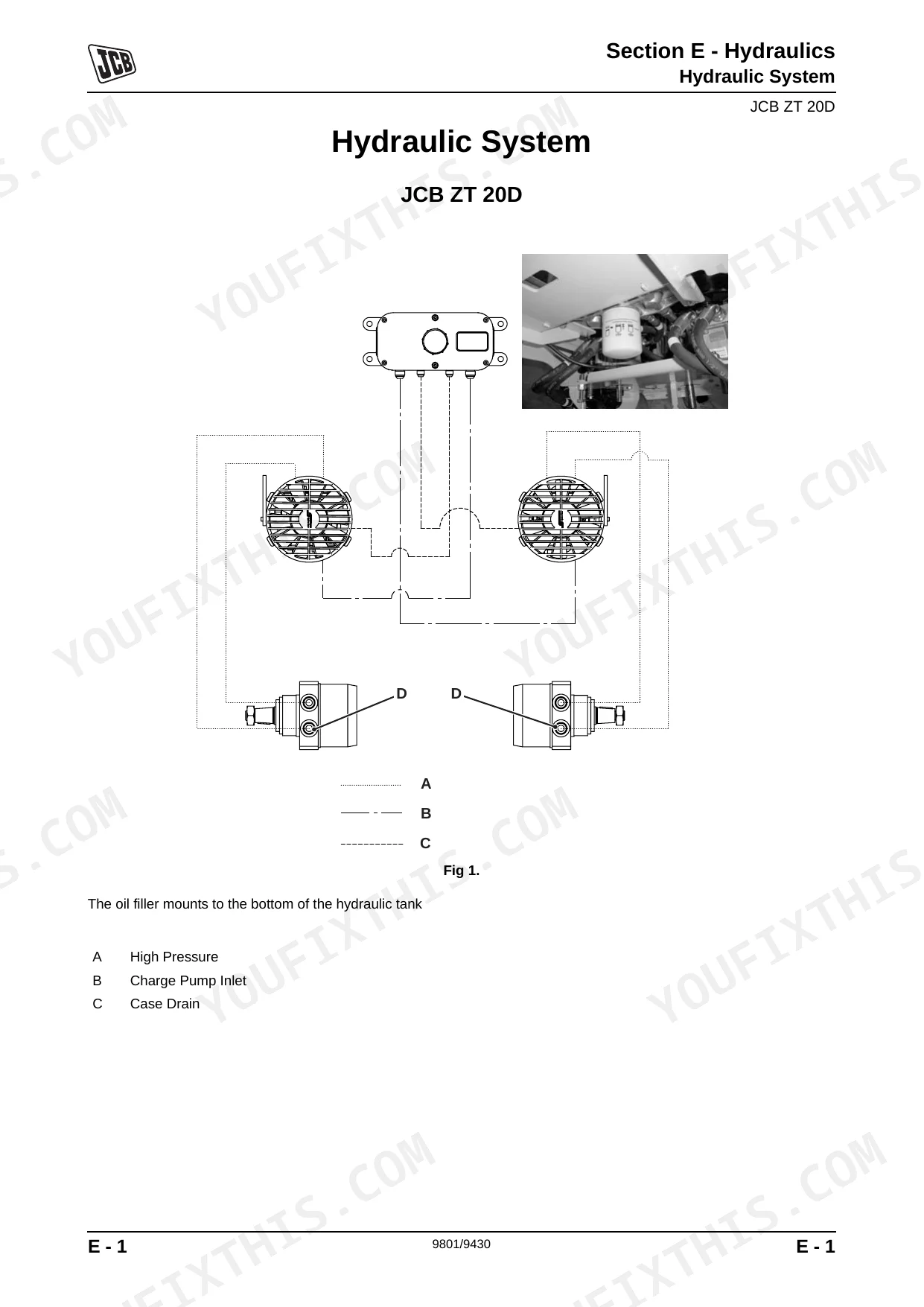

| Hydraulics | 131-140 | Hydraulic System JCB Zt 20D |
| Engine | 141-144 | Technical Data, Specification, Fuel System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fastener Torque Chart (SAE Grade 5) - 1/4-20 (Lube) | 9 Nm | p. 12 |
| Fastener Torque Chart (SAE Grade 5) - 1/4-20 (Dry) | 12 Nm | p. 12 |
| Oil seals, gaskets, etc. replacement condition | Renewal required for any component showing obvious signs of wear or damage | p. 6 |
| 'O' rings, Seals and Gaskets replacement condition | Renew whenever disturbed unless otherwise instructed | p. 27 |
| Fuse A Rating | 30 amp | p. 90 |
| Fuse B Rating | 30 amp | p. 90 |
| PTO Clutch Bolt Torque | 61 Nm (45 lbf ft) | p. 13 |
| Clutch Coil Resistance | 3 to 4 ohms | p. 118 |
| Fuel Filter Replacement Interval | Change at initial 50 hour service then every 200 hours | p. 41 |
| Condition causing false oil level reading | insufficient time for oil to drain back into the engine sump | p. 51 |
| Maximum input speed for PC, PL, PG and PJ series pumps | 3600 rpm | p. 138 |
| Maximum input speed for PR series pumps | 3400 rpm | p. 138 |

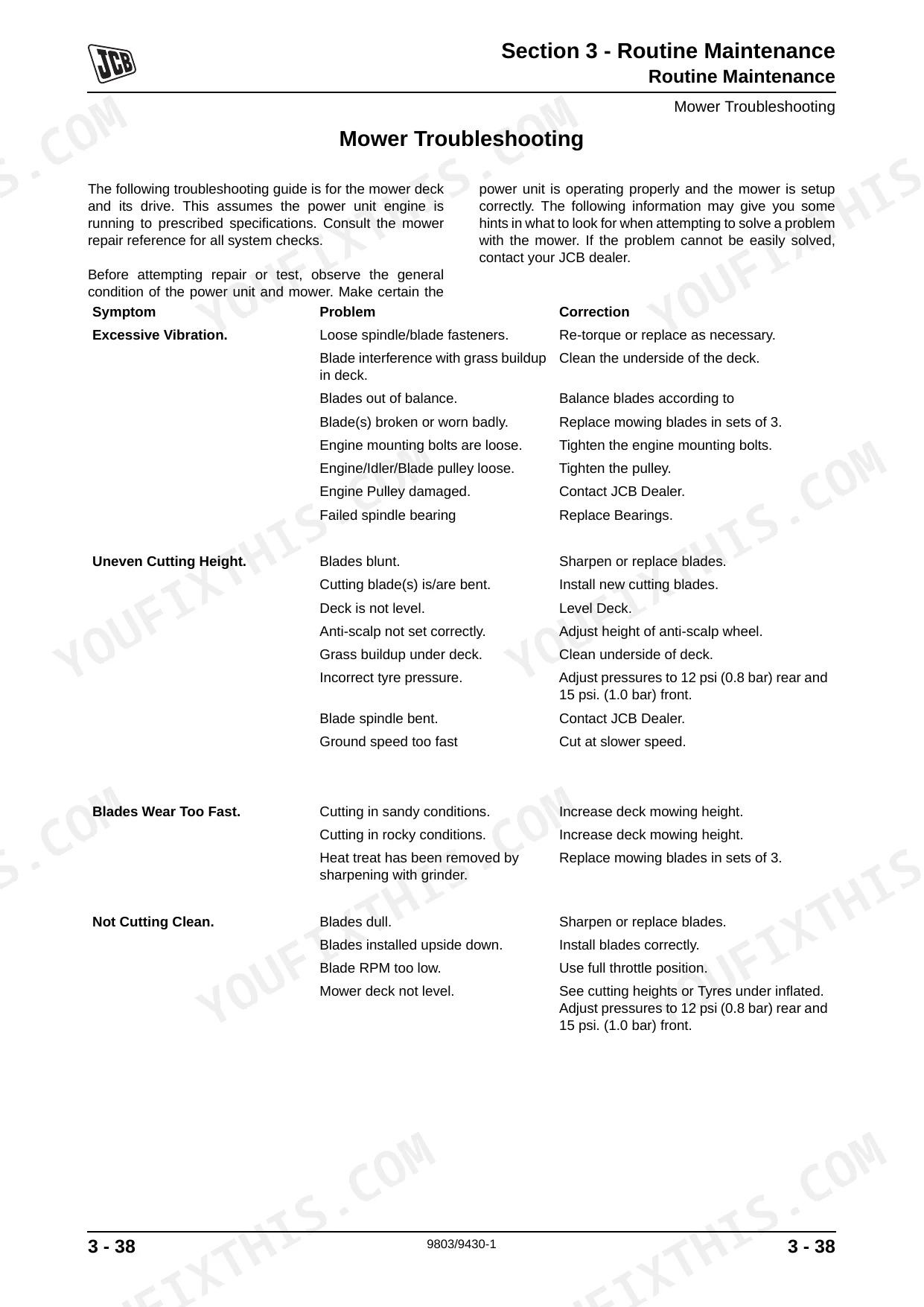

JCB ZT 20D, Yanmar 2V750-CVER Diesel Common Problems This Manual Covers
JCB ZT 20D engine cranks but fails to fire despite a new battery and fresh fuel. p. 90
Inspect the starter cranking circuit and verify the lap bars are fully parked. Check the main circuit on page 90 to ensure the 30 amp fuses are intact. Test the electrical connections and replace any blown fuses before attempting to restart the mower.
Manual Section: Electrical System Fault FindingMower drive system engages unexpectedly or electric clutch fails to engage when PTO switch is activated. p. 119
Measure the electric clutch air gap as detailed on page 119. Adjust the clearance to exactly .014 inch (±.001) for proper engagement. Test the clutch coil resistance using a multimeter to confirm it reads between 3 to 4 ohms before replacing the entire assembly.
Manual Section: Electrical System Fault FindingEngine overheats and loses power under load after extended mowing operations in dusty or hot conditions. p. 73
Clean the clogged air intake screen and cooling fins as noted on page 73. Drain the hydrostatic oil reserve if it is too low and refill with exactly 3.8 litres (0.8 gal) of approved fluid per the capacity chart on page 43.

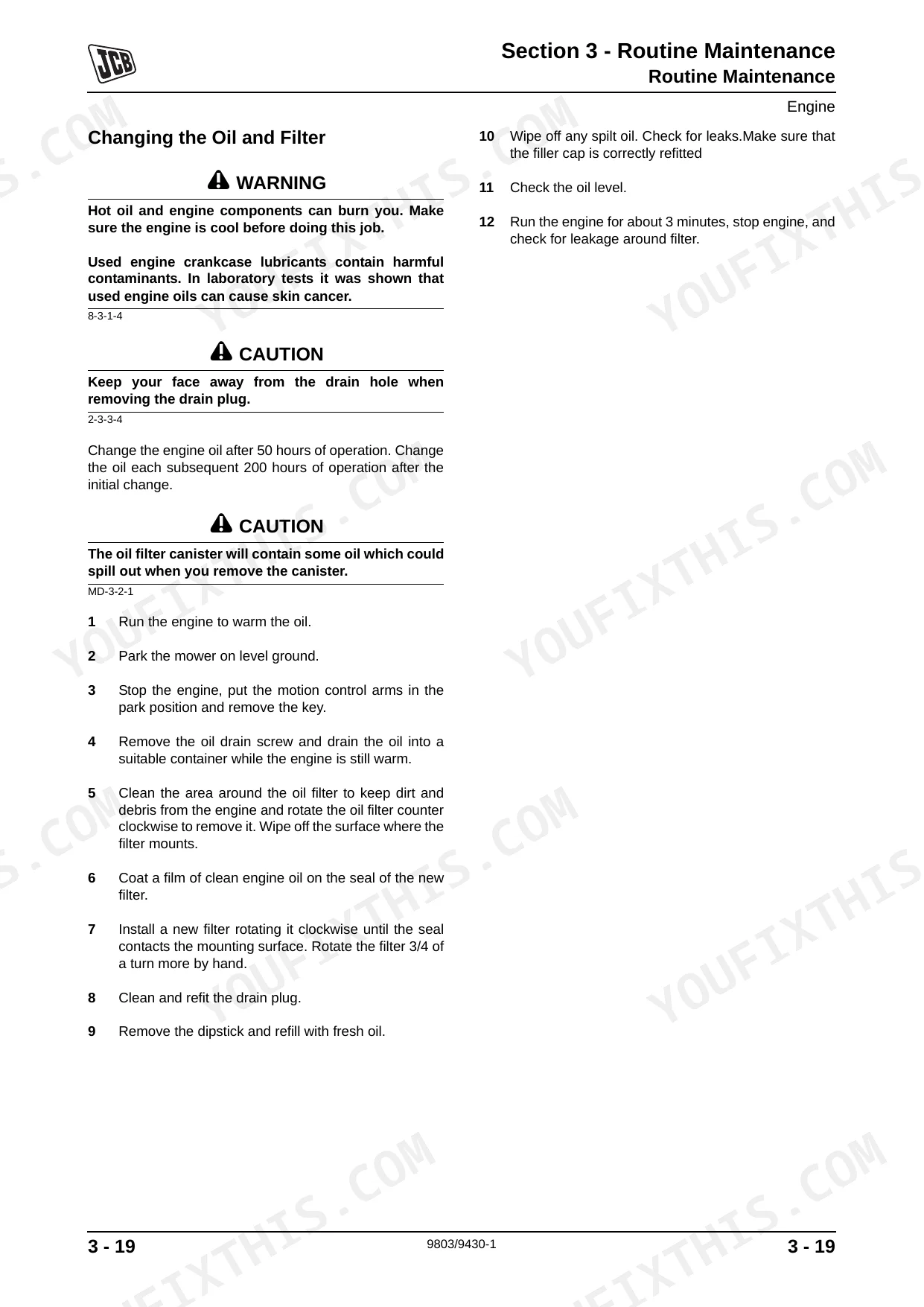

Manual Section: Mower TroubleshootingFalse or inaccurate engine oil level reading on the dipstick immediately after shutting down the power unit. p. 51
Wait at least five minutes after operation to allow sufficient time for oil to drain back into the engine sump. Check the level on page 51 and ensure the system contains the correct 2.27 Litres capacity before adding extra fluid to prevent overfilling.
Manual Section: Routine MaintenanceFrequently Asked Questions

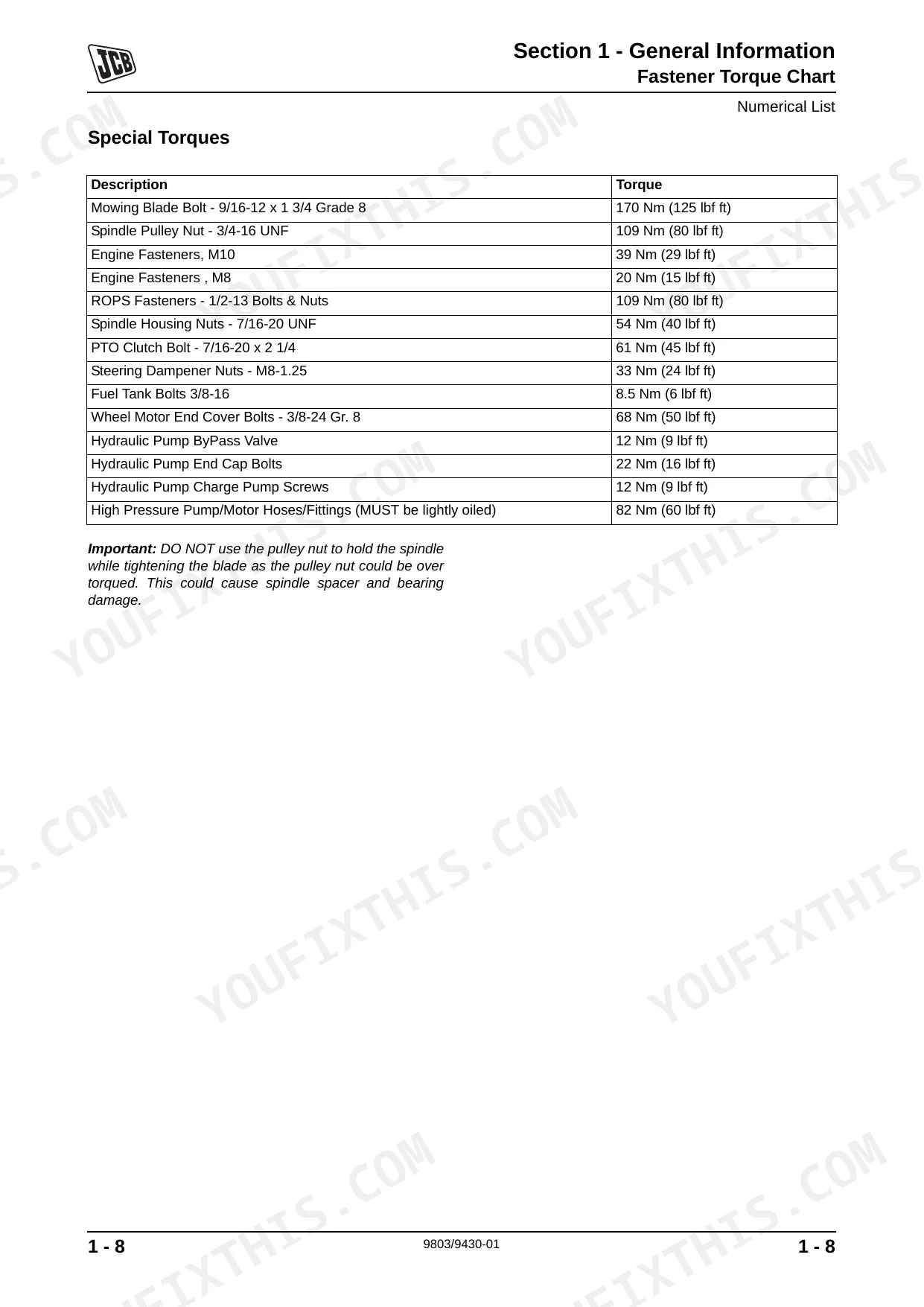

What are the torque specs for JCB ZT 20D fasteners?
The manual provides a Fastener Torque Chart for SAE Grade 5 fasteners, listing torque values in Nm and lbf ft for various sizes. For example, a 1/4-20 size fastener requires 9 Nm (7 lbf ft) when lubed and 12 Nm (9 lbf ft) dry. Special torques are also listed, such as the Mowing Blade Bolt at 170 Nm (125 lbf ft) and Wheel Motor End Cover Bolts at 68 Nm (50 lbf ft).
How do I replace the drive belt on a JCB ZT 20D?
To replace the drive belt, first raise the floor pan and loosen the two 3/8-16 nuts on the u-bolt for the tension arm to release tension. Roll the old drive belt off the idler pulley, then install the new belt, ensuring it's routed correctly according to the decal on the floor pan's bottom. Finally, tighten the 3/8-16 nut until the spring length, measured from inside hook to inside hook, is between 196 mm and 198 mm (7.7-7.8 inches).
What are the replacement specifications for Oil seals and gaskets (renewal required for worn/damaged components)?
For gasket flanges, JCB Multi-Gasket (Part No. 4102/1212, 50 ml) is recommended as a medium strength sealant. The manual advises to renew 'O' rings, seals, and gaskets whenever they are disturbed, unless otherwise instructed, to prevent leakages and potential accidents. It also warns against using Triochloroethane or paint thinners near these components.
What are the replacement specifications for Fuses (common failure causing start issues)?
When replacing fuses, always use ones with the correct ampere rating to prevent electrical system damage. The JCB mower has two primary fuses, both rated at 30 amps. These fuses are located on the right-hand side of the frame, under the seat plate, next to the relay block.
How will I receive this manual?
A 144-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this JCB ZT 20D, JCBZT20D, Yanmar 2V750?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

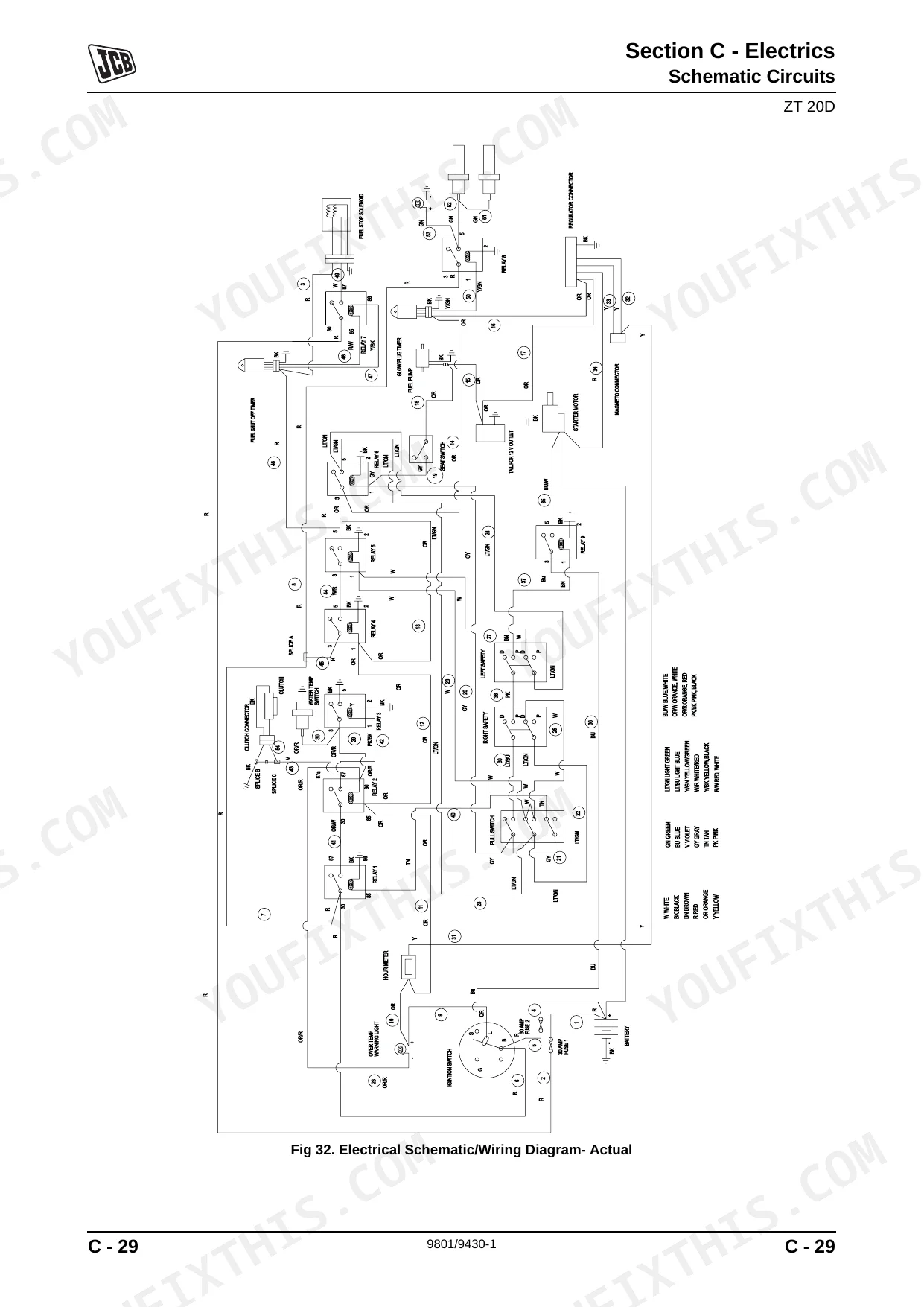

Are electrical wiring diagrams included in this JCB ZT 20D, JCBZT20D, Yanmar?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text throughout. The text quality is crisp and easy to read, with the OCR layer enhancing readability. Diagrams and illustrations, including electrical schematics, are raster images; while labels are generally readable, they may pixelate when zoomed in. Pages are clean and consistently aligned, free from scan artifacts or marks. You will find several "Page left intentionally blank" filler pages included in the document.
