Need the complete factory teardown procedures for your 2004 JCB JS crawler excavator? This 885-page JCB JS200 service manual PDF (OEM #9803/6580-6) breaks down every system for the JS200, JS220, JS235, JS240, and JS260 variants. Inside, you get extensive electrical diagrams, full hydraulic circuit descriptions, and a fault-finding section covering everything from the main control valve to the track gearbox. Open up to complete engine error code charts and detailed step-by-step procedures for rebuilding the remote control valves and travel pedals. Lock down the turntable bearing slew frame bolts to exactly 525 Nm (387 lbf ft) and verify the HYD TMP sensor is not throwing an open-circuit fault before running the equipment. Stop waiting on dealer callbacks while your machine sits idle. Download this bookmarked file directly to your tablet, jump straight to the right section, and get back to work.
What's Inside This JCB JS200–JS260 Series Manual
| System | Pages | Key Topics |
|---|---|---|

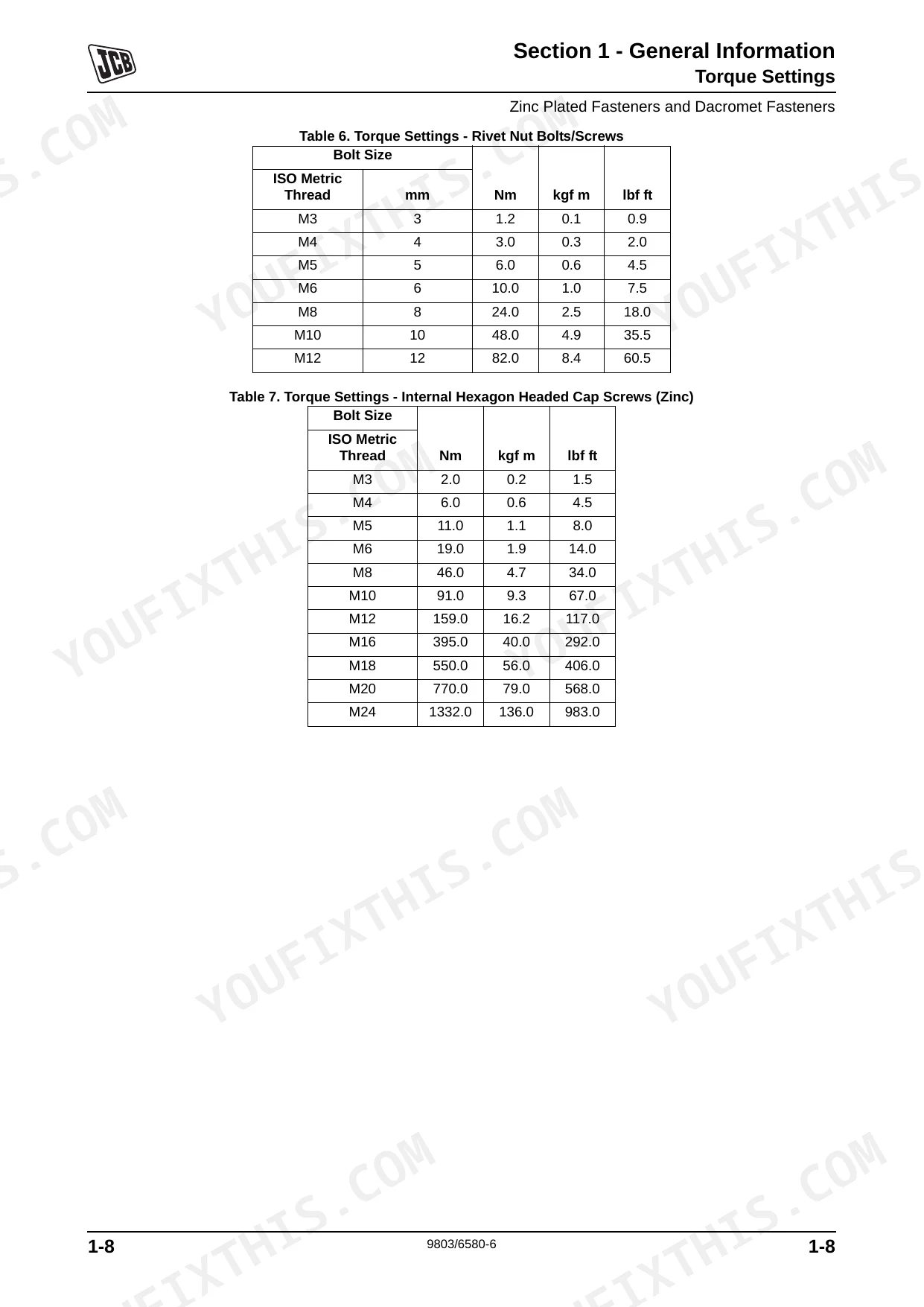

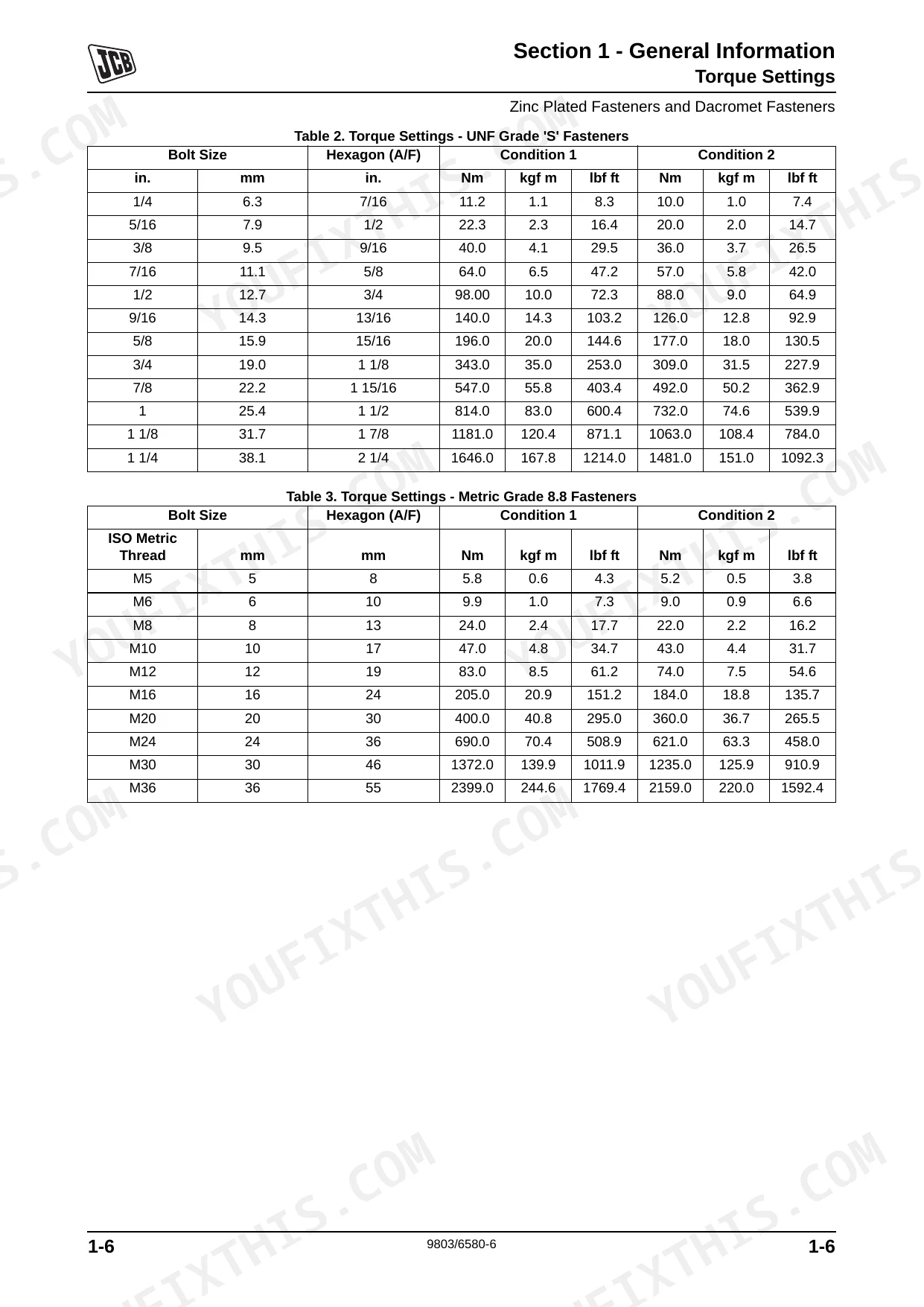

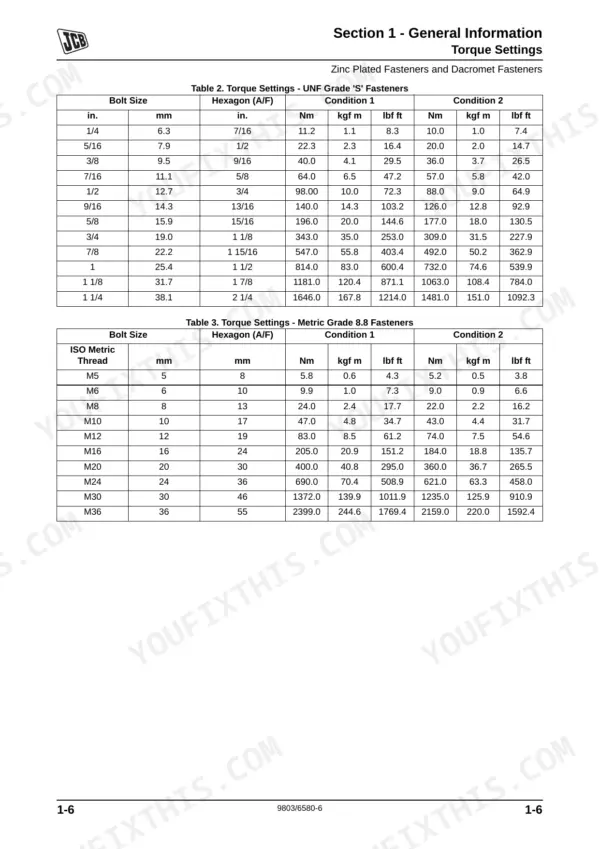

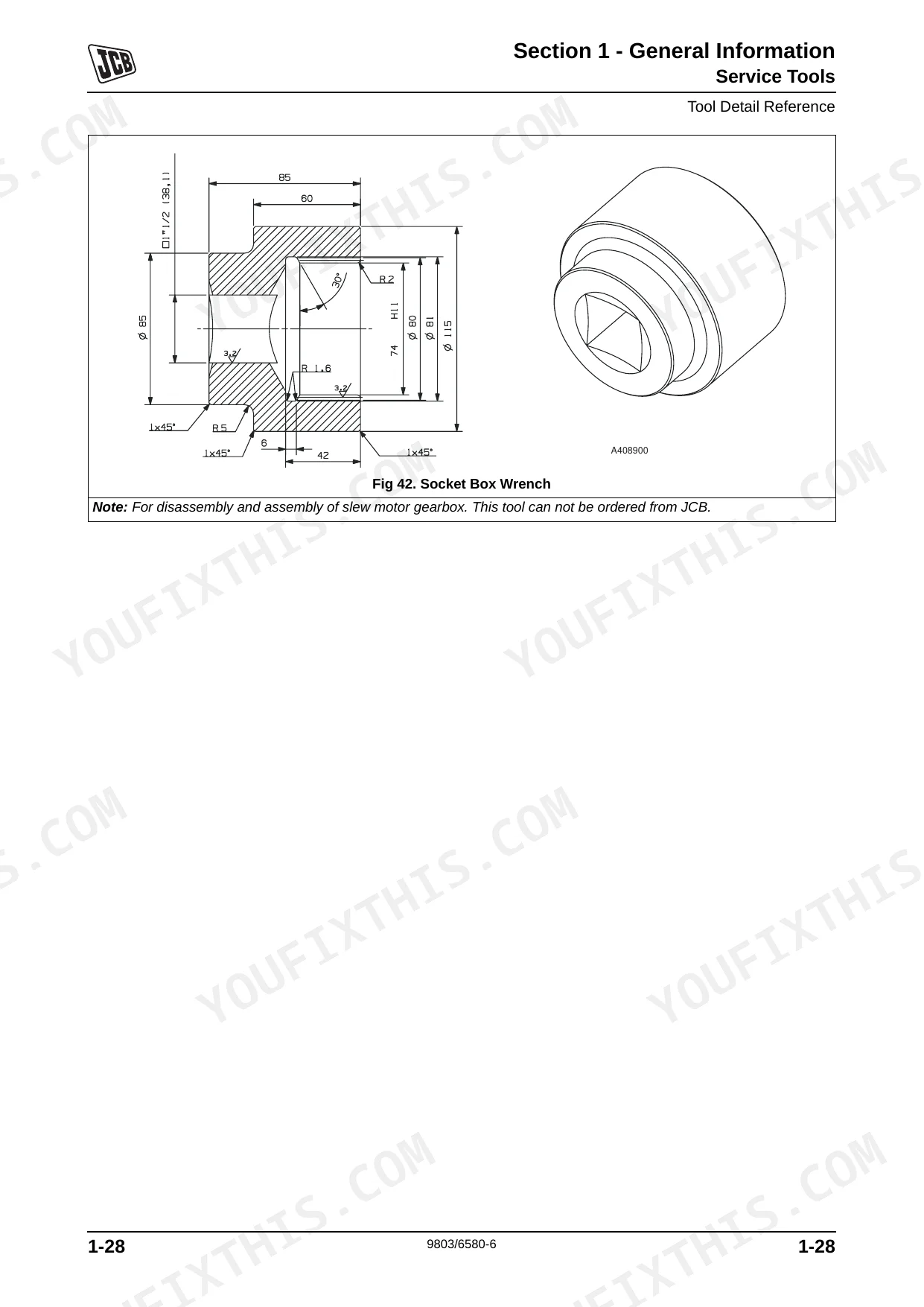

| General Information | 1-44 | Introduction (Identifying Your Machine), Torque Settings (Zinc Plated Fasteners and Dacromet Fasteners, Hydraulic Connections) |
| Care and Safety | 45-64 | Safety Check List, General Safety, Operating Safety, Maintenance Safety, Safety Labels |

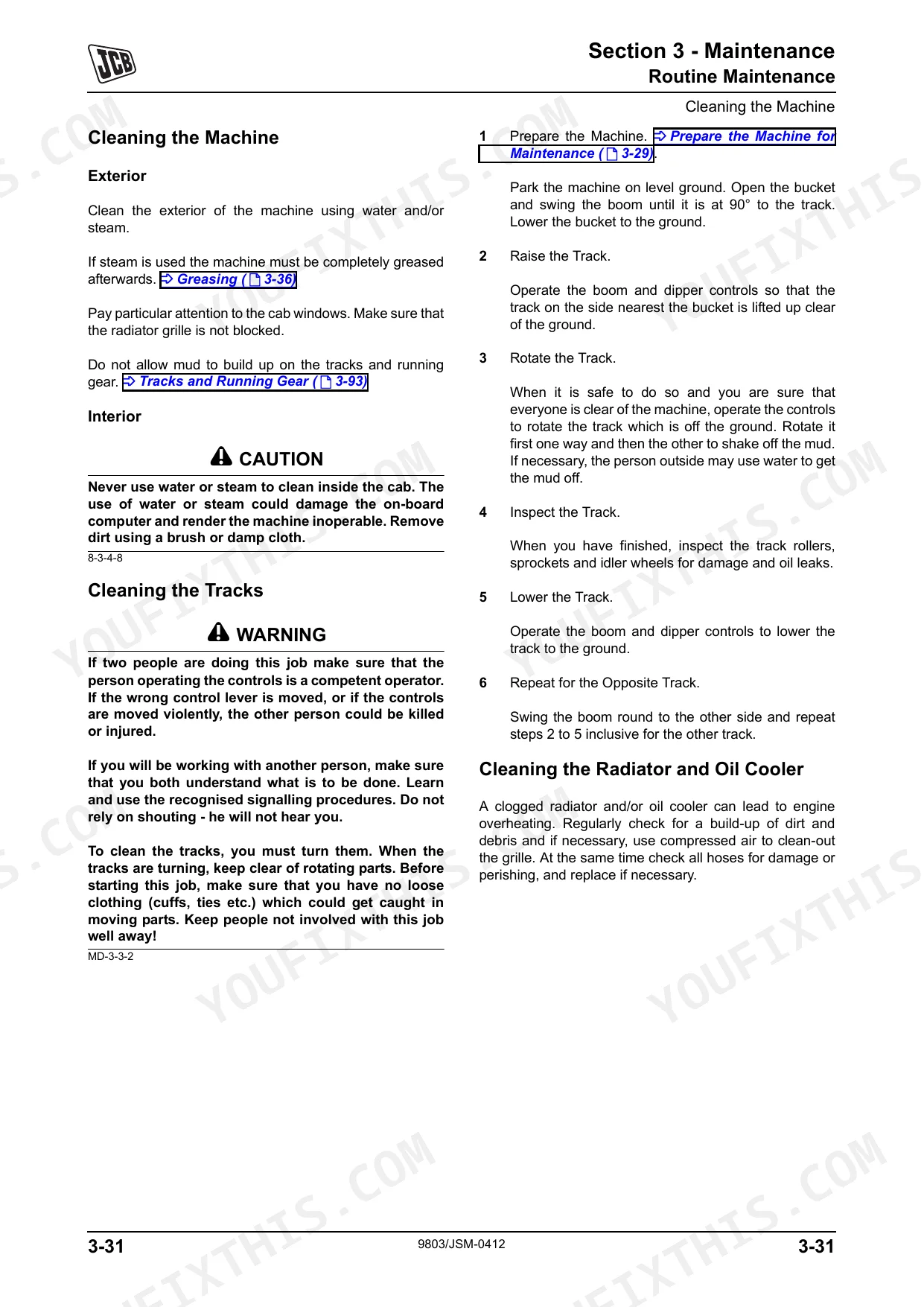

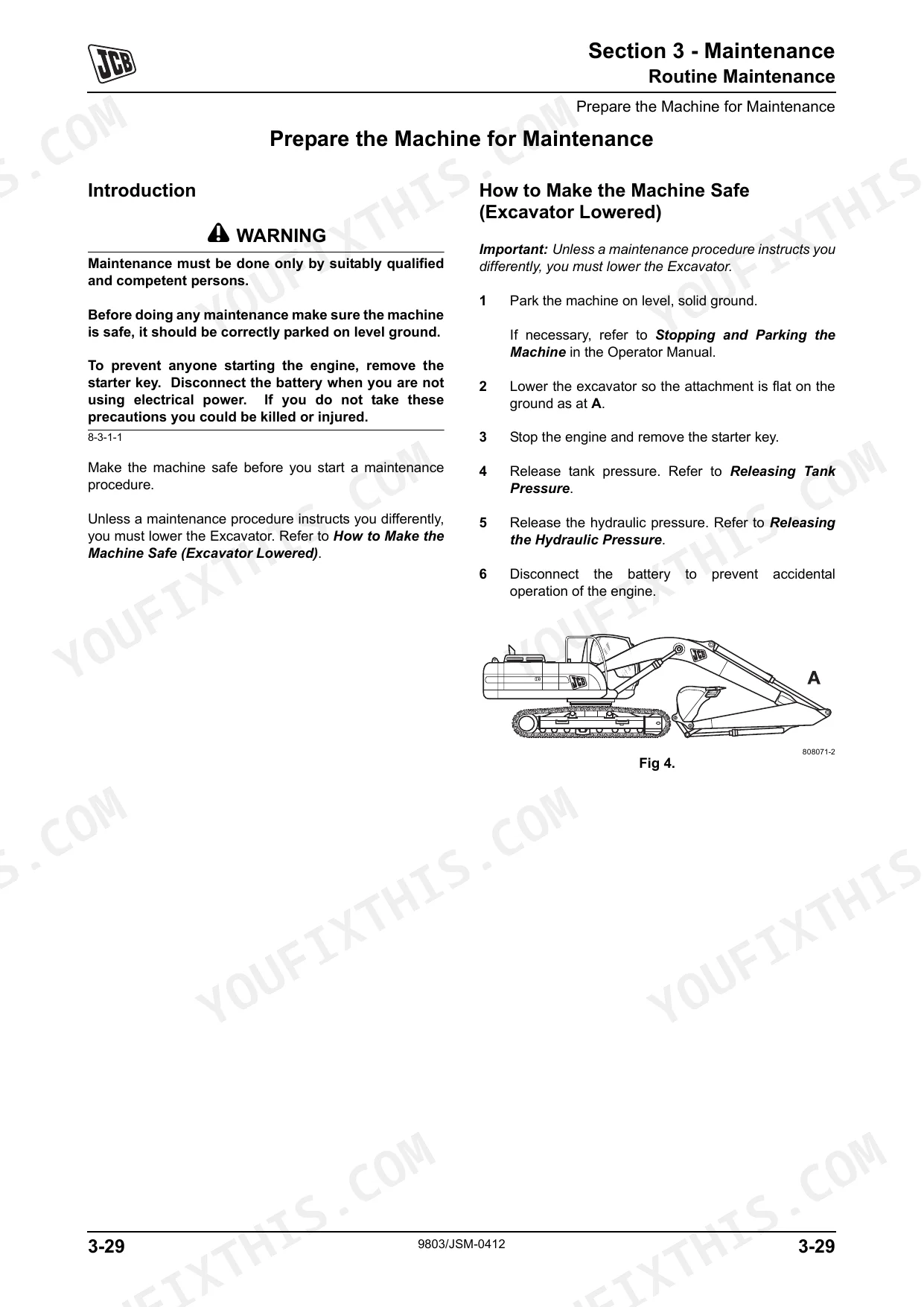

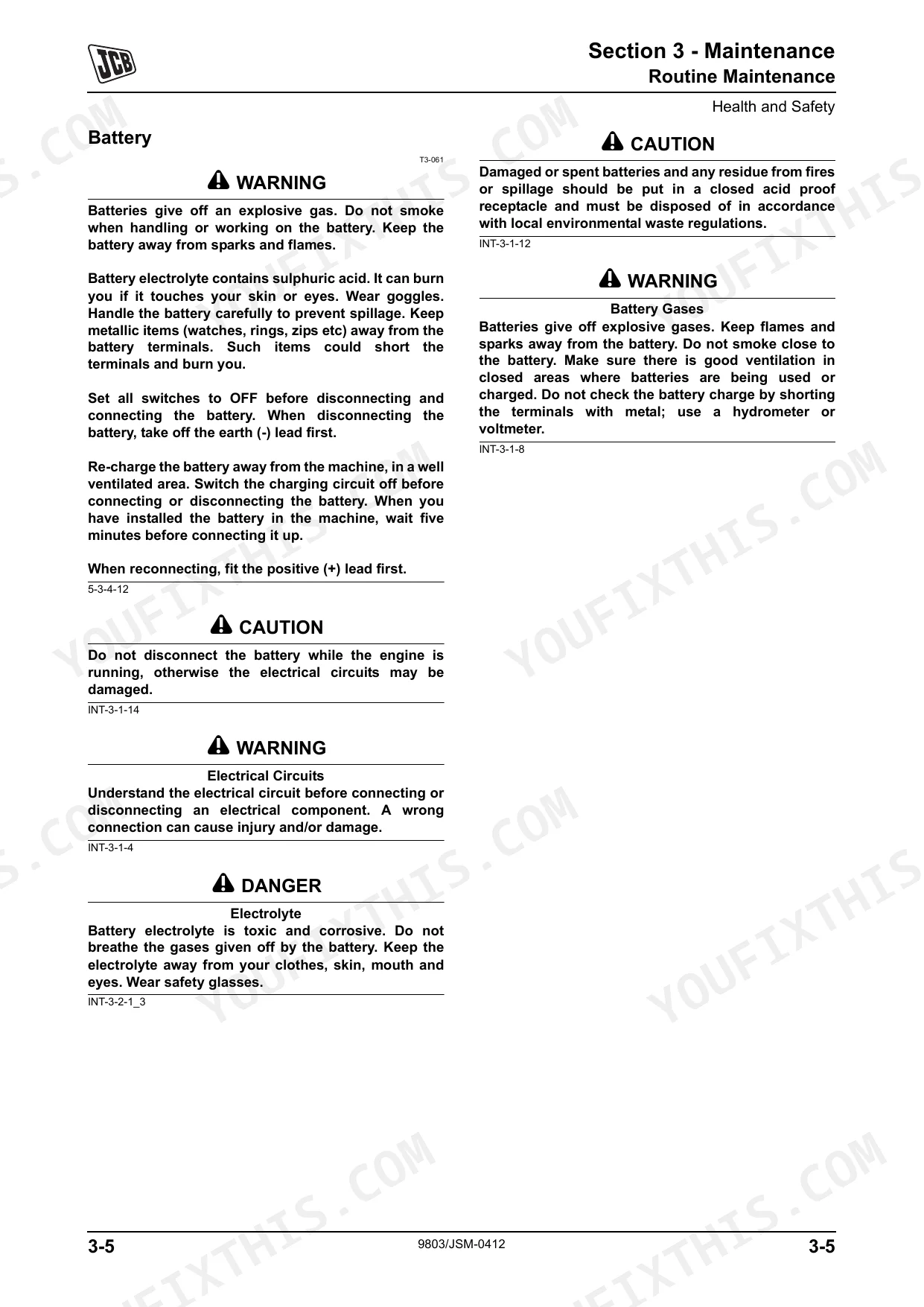

| Maintenance | 65-176 | Routine Maintenance, Health and Safety, Service Schedules, Fluids, Lubricants and Capacities, Tools, Prepare the Machine for Maintenance, Cleaning the Machine |
| Body & Framework | 177-226 | Technical Data, Basic Operation, Fault Finding, Service Procedures, Cab Structure, Cab Panels |
| Electrics | 227-455 | Basic System Operation, Fault Finding, Service Procedure, Harness Data |
| Hydraulics | 456-725 | Technical Data, Basic System Operation, Circuit Descriptions, Main Control Valve, Hydraulic Pump/Regulator, Remote Control Valve (Hand Control), Travel Pedal Valve |
| Transmission | 726-793 | Technical Data, Basic System Operation, Removal and Replacement, Start Up and Running in, Fault Finding, Track Motor, Track Gearbox |
| Track and Running Gear | 794-832 | Technical Data, Idler Wheel and Recoil Unit, Idler Wheel, Recoil Unit, Grease Cylinder, Drive Sprocket, Top Roller, Bottom Roller |
| Engine | 833-885 | Technical Data, Engine Error Codes, Fault Finding |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| JS200-260 | ||
| Turntable Bearing (Slew Frame) Tightening Torque | 525 Nm (387 lbf ft) | p. 118 |
| Lower (Track) Roller Tightening Torque | 290 Nm (213 lbf ft) | p. 118 |
| Engine (Engine Mount) Tightening Torque | 290 Nm (213 lbf ft) | p. 118 |
| Hydraulic Pump Tightening Torque | 68 Nm (50 lbf ft) | p. 118 |
| All Models | ||
| HYD TMP (Hydraulic Temperature Sensor) | The hydraulic temperature sensor is open-circuit. | p. 385 |
| Engine oil filter replacement | Tighten the filter until the seal bites onto the filter housing, then a minimum of one more full turn. | p. 125 |
| Servo Filter Element replacement | Change | p. 77 |
| Return Filter Element replacement | Change | p. 77 |
| JS115-JS145 | ||
| Engine Oil Capacity | 15 litres | p. 84 |
| JS200-JS235 | ||
| Engine Oil Capacity | 23.5 litres | p. 86 |
| Fuel Tank Capacity | 343 litres | p. 86 |
| JS240/260 | ||
| Hydraulic System Capacity | 241 litres | p. 87 |
JCB JS200–JS260 Series Common Problems This Manual Covers
JCB JS200-JS260 series main hydraulic functions become weak, slow, or intermittent during normal operation. p. 462
Test the main hydraulic pump operating pressure per the specifications on page 462. Inspect the system for contamination and replace the servo filter element as outlined on page 77. Clean the main control valve blocks if performance remains sluggish.
Manual Section: HydraulicsSlew performance drops significantly and the upper structure feels sluggish when rotating under load. p. 463
Measure the slew motor brake torque per the specification on page 463 for your model variant. Inspect the turntable bearing bolts and torque them to 525 Nm (387 lbf ft) as specified on page 118. Drain and inspect the swing gearbox oil.
Manual Section: Slew System FaultsEngine will not start or turns over slowly during early morning cold weather operation. p. 86
Check the battery terminals for corrosion and clean them thoroughly. Drain the engine oil and refill the system with exactly 23.5 litres of fresh oil for JS200-JS235 models on page 86. Tighten the new engine oil filter until the seal bites, plus one full turn.
Manual Section: Engine System FaultsTravel performance drops significantly and the tracks bind or hesitate when turning on soft ground. p. 163
Drain the track gearbox oil and check for internal metal contamination. Reinstall the track gearbox oil drain plug and tighten it to the torque specified on page 163. Refill with fresh fluid and test the travel pedal valve operation to ensure smooth movement.
Manual Section: Travel System FaultsFrequently Asked Questions
How do I reset the JCB JS200/JS220/JS240/JS260 service indicator or maintenance light?
To cancel the service indicator, press and hold the "SET" and "MODE" buttons on the EMS simultaneously for 20 seconds until "SERVICE OFF" is displayed. Then, press the "ACK" button, enter a four-digit dealer code using the "Up/Down" keys and "ACK" button, and finally press "SET" to save the code and extinguish the warning lamp. This procedure is detailed on page 346.
What do JCB JS200-series hydraulic or ECU error codes mean?
The manual provides tables detailing the meaning of various error codes for JCB JS200-series excavators. For instance, electrical fault code 104 signifies "HYD TMP The hydraulic temperature sensor is open-circuit." These codes are displayed on the EMS to indicate specific malfunctions within the engine or hydraulic systems, as listed in tables on page 385.
What are the torque specs for JCB JS200-series track adjuster, swing bearing, or engine mounting bolts?
For JS200-260 models, the torque specification for Engine (Engine Mount) bolts (M16) is 290 Nm (213 lbf ft) for tightening and 265 Nm (195 lbf ft) for checking. Turntable Bearing (Undercarriage) bolts (M20) require a tightening torque of 525 Nm (387 lbf ft) and a checking torque of 470 Nm (347 lbf ft). For the track adjuster check valve torque, refer to the torque settings tables in Section 1 of the manual.
What are the replacement specifications for Engine oil main filter element?
The Engine oil and filter should be sampled/changed at regular intervals, including 10, 50, 250, 500, 1000, 2000, 4000, and 5000 hours, as per the service schedules on page 76. When replacing the filter, smear the new filter's seal with engine oil, tighten it until the seal bites onto the filter housing, and then tighten a minimum of one more full turn.
How will I receive this Service Manual?
Instant PDF download. You get the full 885-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

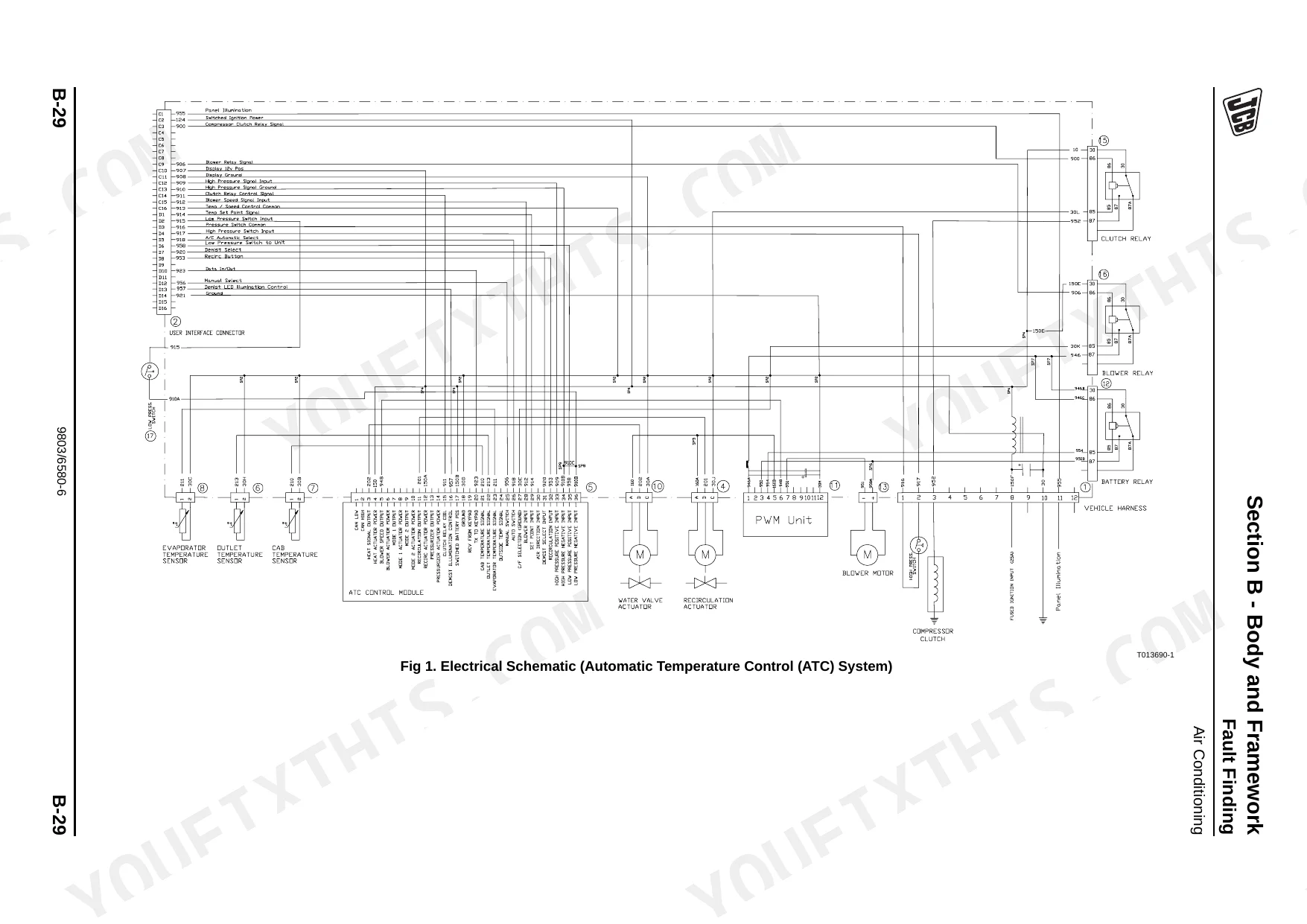

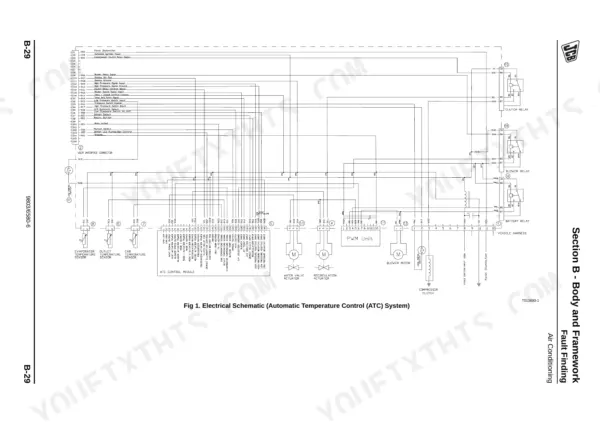

Are there wiring harness diagrams in this JCB JS200–JS260 Series manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
Document Quality
This is a high-quality digital PDF, allowing you to search and copy the full text. The text is consistently crisp and easy to read throughout. Diagrams and illustrations are a mix of sharp vector-like drawings and clear raster images, with all labels perfectly legible. Pages are clean, free from scan artifacts, stains, or skewed content. There are several intentionally blank pages for notes or as filler, which is typical for service manuals.
