All 611 pages of this JCB 714 Service Manual PDF (OEM #9813/0550-3) focus on one goal: keeping your 714 and 718 Articulated Dump Trucks out of the shop and on the haul road. Inside, you get complete wiring diagrams for the transmission and instrumentation, hydraulic schematics covering both the primary and secondary pumps, and fault-finding procedures. Open to the suspension section for step-by-step rebuild instructions, or scan the torque tables to lock down every fastener. Torque your wheel nuts to 600 +/- 20 Nm and verify the new park brake pad material thickness measures exactly 15 mm before putting the machine back in gear. Every hour in the shop costs money. Grab this bookmarked download, pull it up on your tablet, and get the exact factory answer on the first try.
What's Inside This JCB JCB 714, 718 Articulated Dump Truck Manual

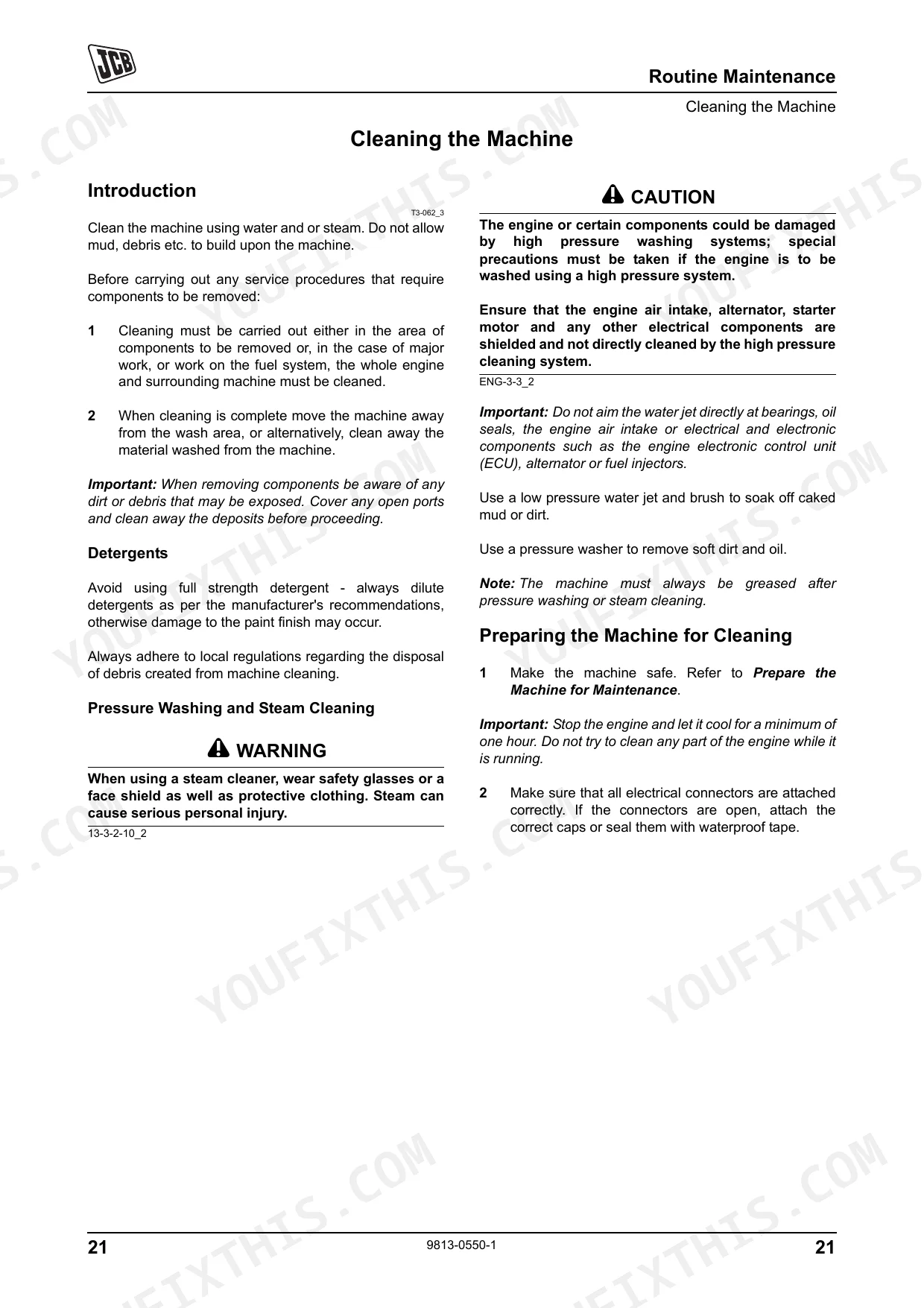

| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-48 | Identification (Machine Model and Serial Number, Using the Service Manual, Section Numbering, Left Side, Right Side, Identifying Your Machine, Machine Identification Plate, Component Identification Plates) |
| Care and Safety | 49-68 | Safety Notices, Safety Check List, Operating Safety, Maintenance Safety, Safety Labels, Safety Label Identification, Part Numbers and Descriptions |

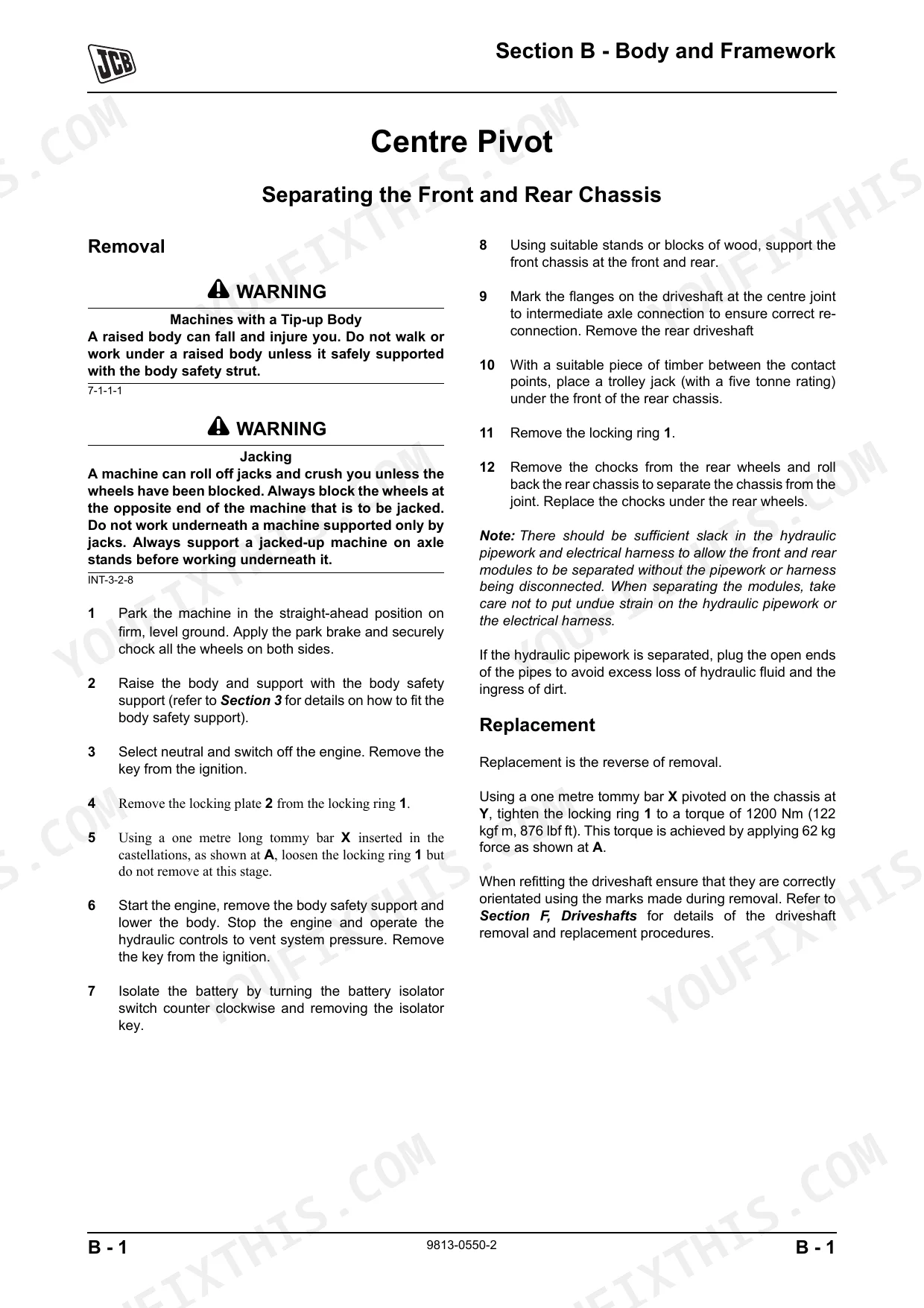

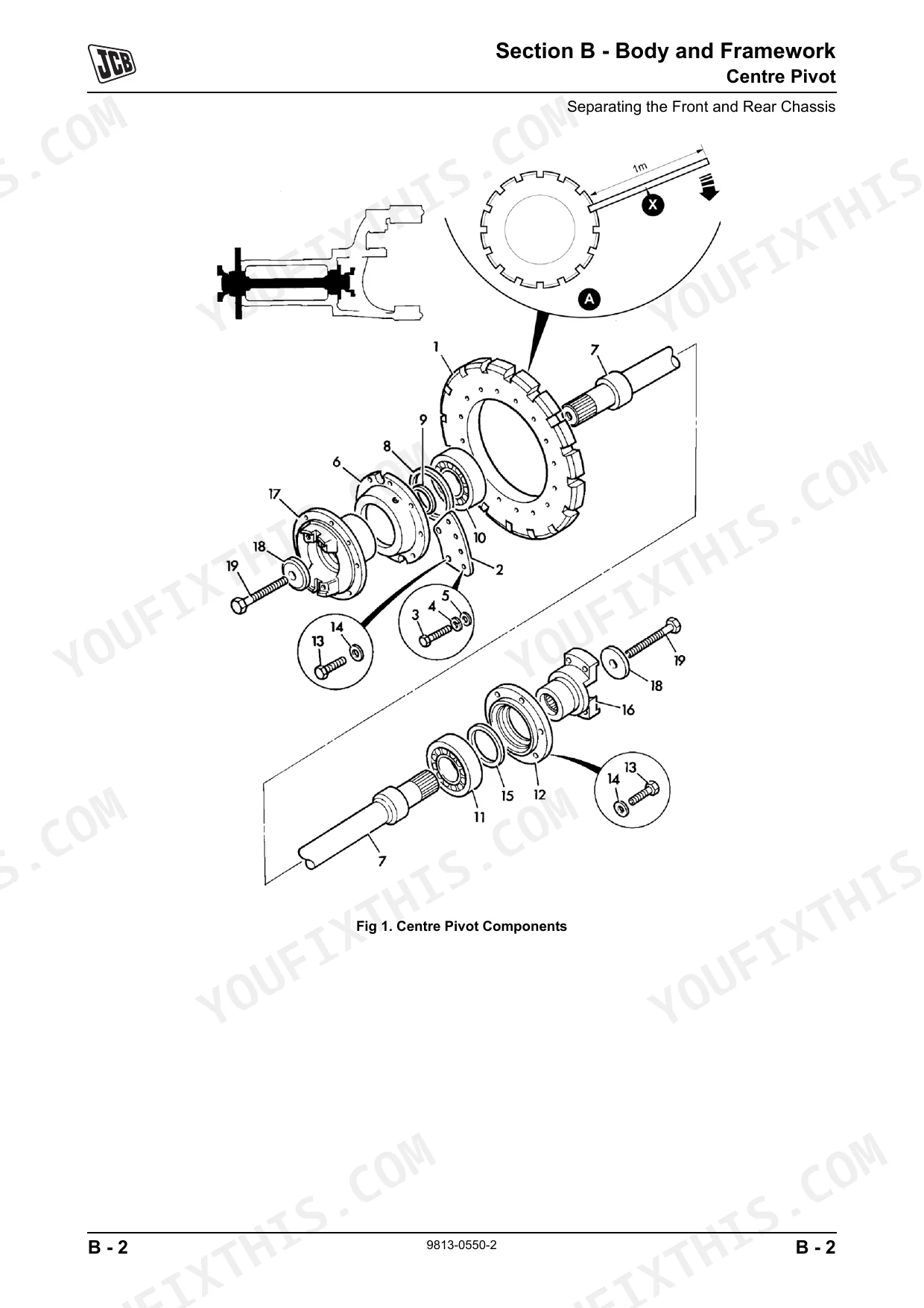

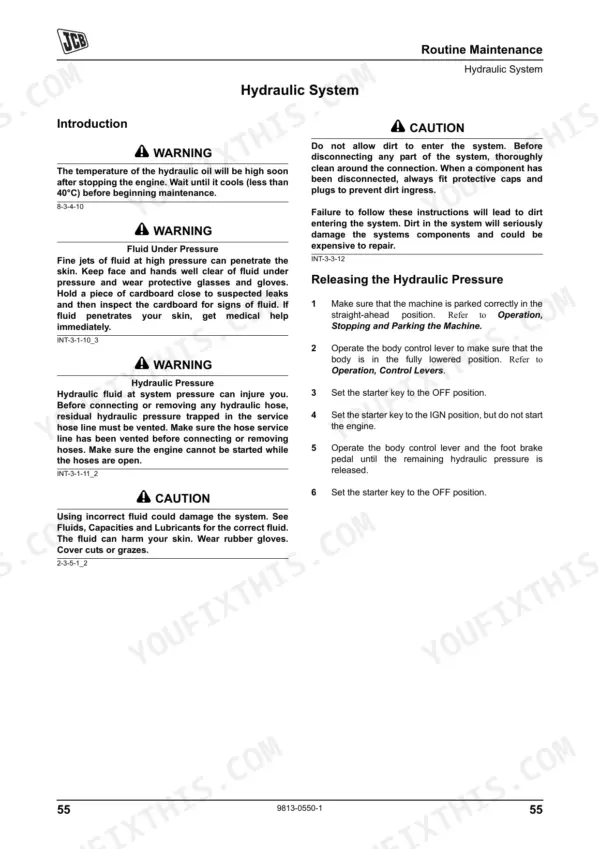

| Body and Framework | 141-176 | Centre Pivot (Separating the Front and Rear Chassis, Removal, Replacement, Centre Casting - Removal and Replacement) |
| Electrics | 177-256 | Technical Data (Information, General, Bulbs, Fuses) |
| Hydraulics | 257-304 | Technical Data (Main System Components, Primary Pump Adt 714, Primary Pump Adt 718, Secondary Pump Adt 714, Secondary Pump Adt 718, Control Valve, Main Relief Valve Operating Pressure, Auxiliary Relief Valve Operating Pressure, Hydraulic Rams, Accumulator Pre-Charge Pressures at 15 Degrees C, Filter) |
| Transmission | 305-484 | Technical Data (Axles, Tyres, Stall Testing), Driveshafts (Removal and Replacement, Removal, Replacement) |
| Brakes | 485-520 | Technical Data (Brakes), Fault Finding (Brake System, Park Brake Function, Brake Charging System) |
| Hydraulic Steering | 521-546 | Technical Data (Hydraulic Steering Data), Basic System Operation (Hydraulic Steering System, Emergency Steering Operation) |
| Engine | 547-576 | Technical Data (From: 1304500, 1304600) |
| Suspension | 577-611 | Technical Data (Suspension Data Adt 718), Description (Front Suspension, Hose and Pipework Layout) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nut torque | 600 +/- 20 Nm (443 +/- 15 lbf ft) | p. 137 |
| Park Brake caliper bolts L torque | 75-85 Nm (55.3-62.7 lbf ft) | p. 497 |
| New Park Brake pad material thickness (E) | 15 mm (0.59 in.) | p. 106 |
| New Park Brake pad material thickness (F) | 20 mm (0.787 in.) | p. 106 |
| Park Brake centre-pin locknut C torque | 35 mm A/F | p. 106 |
| Hydraulic filter (Return Line) Filtration Size | 10 Micron | p. 262 |
| Oil filter replacement interval | 500, 1000, 2000 hours | p. 81 |
| Engine Oil capacity (includes filter) | 14 Litres (3.1 Gallon) | p. 85 |
| Transmission capacity | 35 Litres (7.7 Gallon) | p. 85 |
| Contaminated hydraulic oil symptom | fluid is cloudy, then water or air has contaminated the system. This could damage the hydraulic pump. | p. 129 |
| ADT 718 | ||
| Brake Disc Screws (10 off) torque | 140-160 Nm (103-118 lbf ft) | p. 319 |
| ADT 714 | ||
| ADT 714 Brake Disc Screws (10 off) torque | 65-75 Nm (48-55 lbf ft) | p. 319 |
JCB JCB 714, 718 Articulated Dump Truck Common Problems This Manual Covers
JCB 714 articulated dump truck rear wheels difficult to rotate or brakes dragging after pad replacement p. 497
Inspect the brake caliper adjustment. Measure the service brake pad thickness and replace if below the minimum 2 mm (0.08 in.) allowed. Torque the park brake caliper bolts to 75-85 Nm (55.3-62.7 lbf ft) as shown on page 497. Verify the caliper backs off correctly to prevent drag.

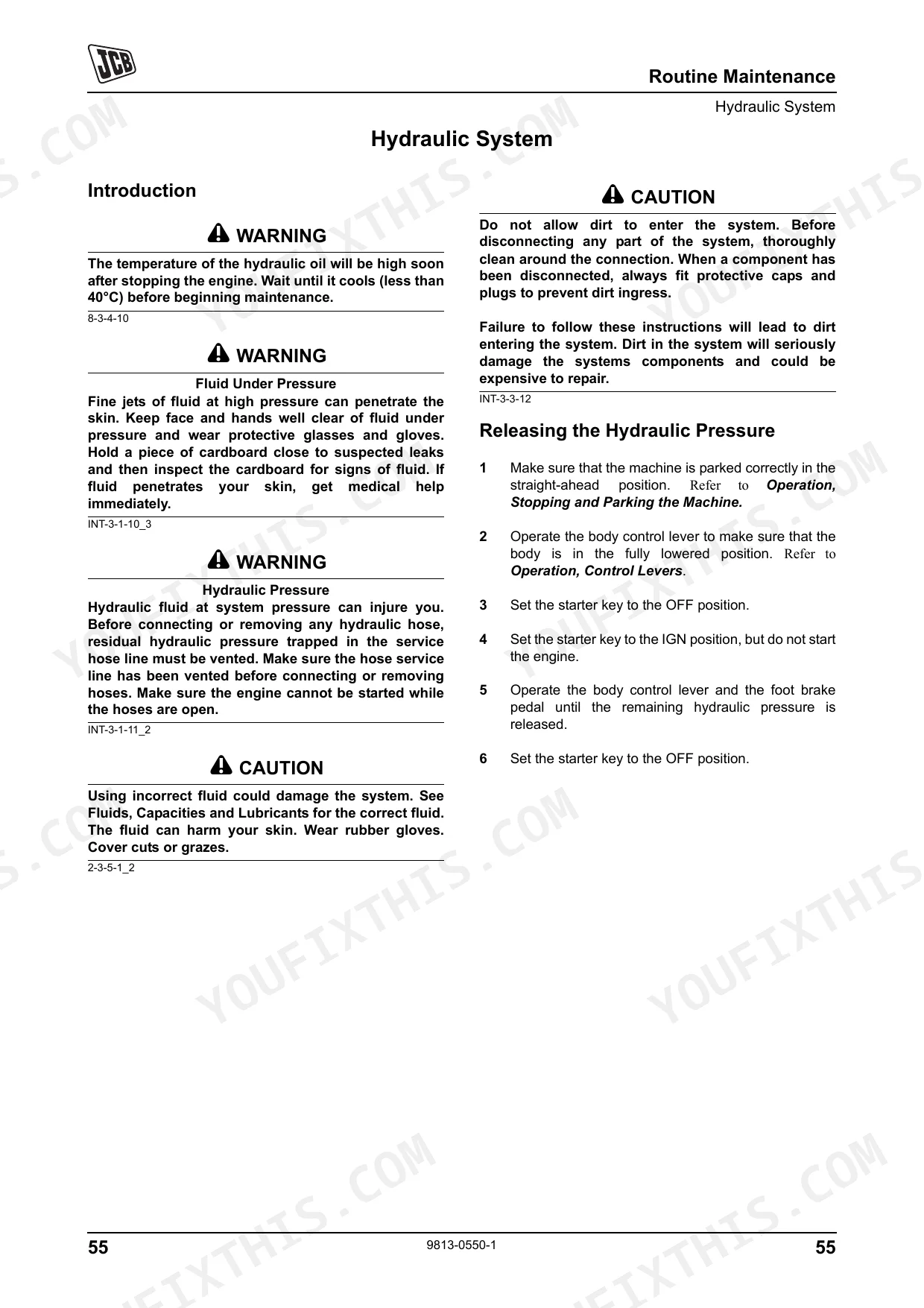

Manual Section: BrakesHydraulic rams slow to operate or fluid appears cloudy indicating air or water contamination p. 262
Drain and flush the hydraulic system if the fluid is cloudy. Replace the return line filter with a genuine 10 Micron element as detailed on page 262. Refill the hydraulic reservoir to the level marked on the sight gauge. Test the main relief valve operating pressure.
Manual Section: Hydraulic System Fault FindingMachine steering feels heavy or unresponsive during operation at low engine RPM p. 525
Test the steering stand-by pressure at the test port and compare to the specification on page 525. Check for leaking lines or trapped hoses if pressure remains low. Adjust the compensator valve per the factory procedure if pressure is out of range.
Manual Section: Hydraulic SteeringWheel studs breaking or loose lug nuts discovered during daily walkaround inspections p. 137
Torque all wheel nuts to exactly 600+/-20 Nm (443+/-15 lbf ft) using a calibrated heavy-duty torque wrench. Follow the tightening sequence outlined on page 137. Inspect the hub and stud threads for stretching or physical damage before reinstalling the wheels.
Manual Section: General InformationEngine temperature gauge spikes into the red zone or coolant boils over during heavy hauling p. 85
Inspect the radiator fins for debris and clean with compressed air. Check the coolant level and top up to the specification on page 85. Mix the standard coolant to provide freezing protection down to -40 °C (-39 °F) as detailed on page 86.
Manual Section: EngineFrequently Asked Questions
How to reset JCB 718 service light?
The "Service Required" light is reset when data is downloaded by your JCB Dealer. If this light is illuminated, you should contact your JCB Dealer for assistance.
What are the replacement specifications for brake pads?
For new park brake pads, material thickness is approximately 15 mm (0.59 in.) for pad E and 20 mm (0.787 in.) for pad F. It is recommended to change park brake pads when only 4 mm (0.157 in.) of thickness remains. For service brake pads, the minimum allowed thickness is 2 mm (0.08 in.).
What are the replacement specifications for brake caliper components?
For the park brake, if any parts of the valve are damaged or excessively worn, the complete valve must be renewed. The seal kit for the park brake valve includes a Boot (1), 'O'Ring Seal (1), and Seal Polypak (1).
How do you fix JCB 714 articulated dump truck rear wheels difficult to rotate or brakes dragging after pad replacement?
Inspect the brake caliper adjustment. Measure the service brake pad thickness and replace if below the minimum 2 mm (0.08 in.) allowed. Torque the park brake caliper bolts to 75-85 Nm (55.3-62.7 lbf ft) as shown on page 497. Verify the caliper backs off correctly to prevent drag.
How will I receive this Service Manual?
You get a 611-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there hydraulic schematics in this JCB 714 & variants manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a high-quality, digitally processed PDF, featuring a full OCR layer that allows you to search and copy all text. The text is consistently crisp, sharp, and easy to read on every page. Diagrams and illustrations are clear raster images with all labels perfectly readable, and the included photos are also sharp. Pages are clean with no scan artifacts, stains, marks, or skewed content present. Please be aware that several pages are intentionally left blank for notes or as filler.
