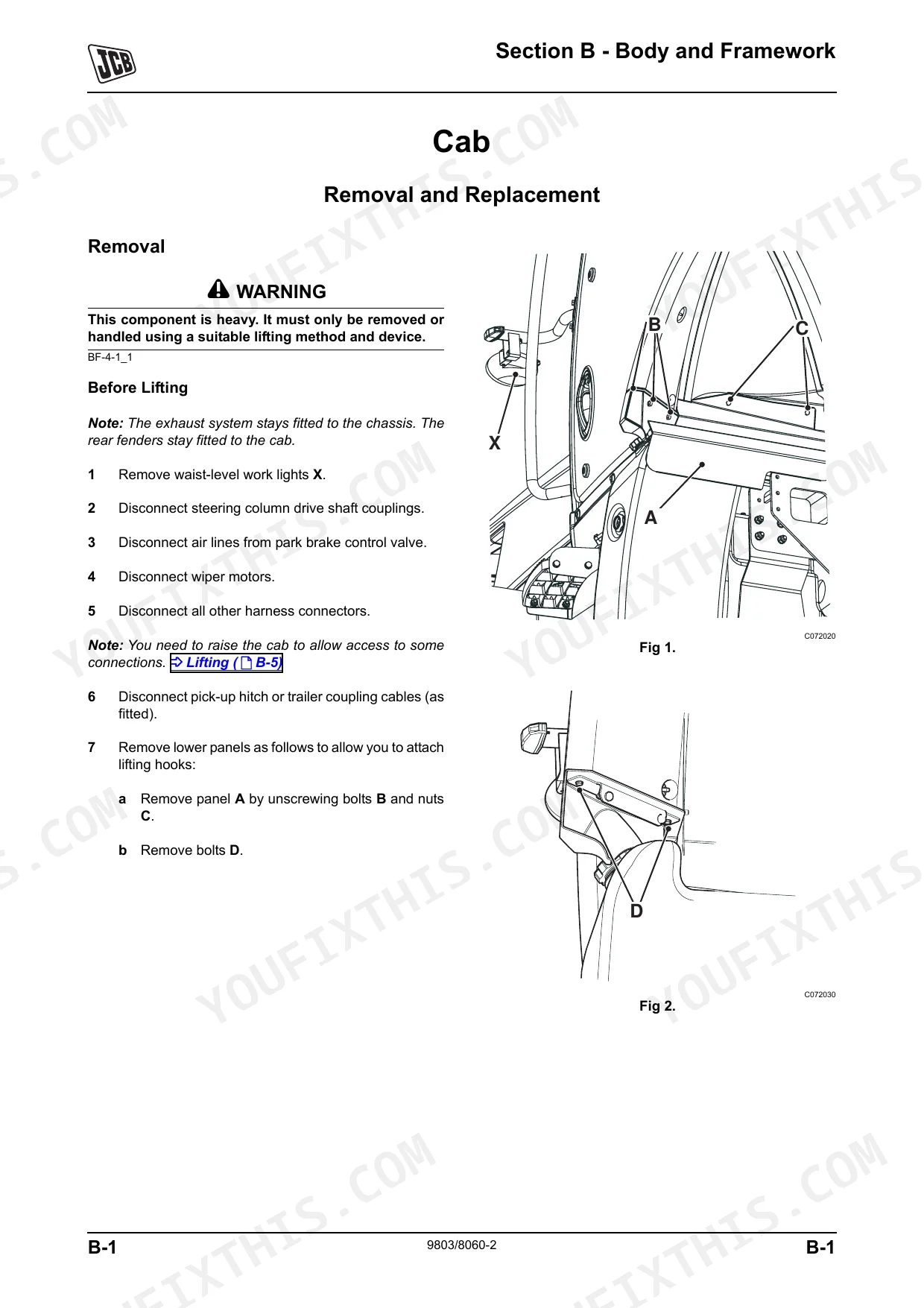

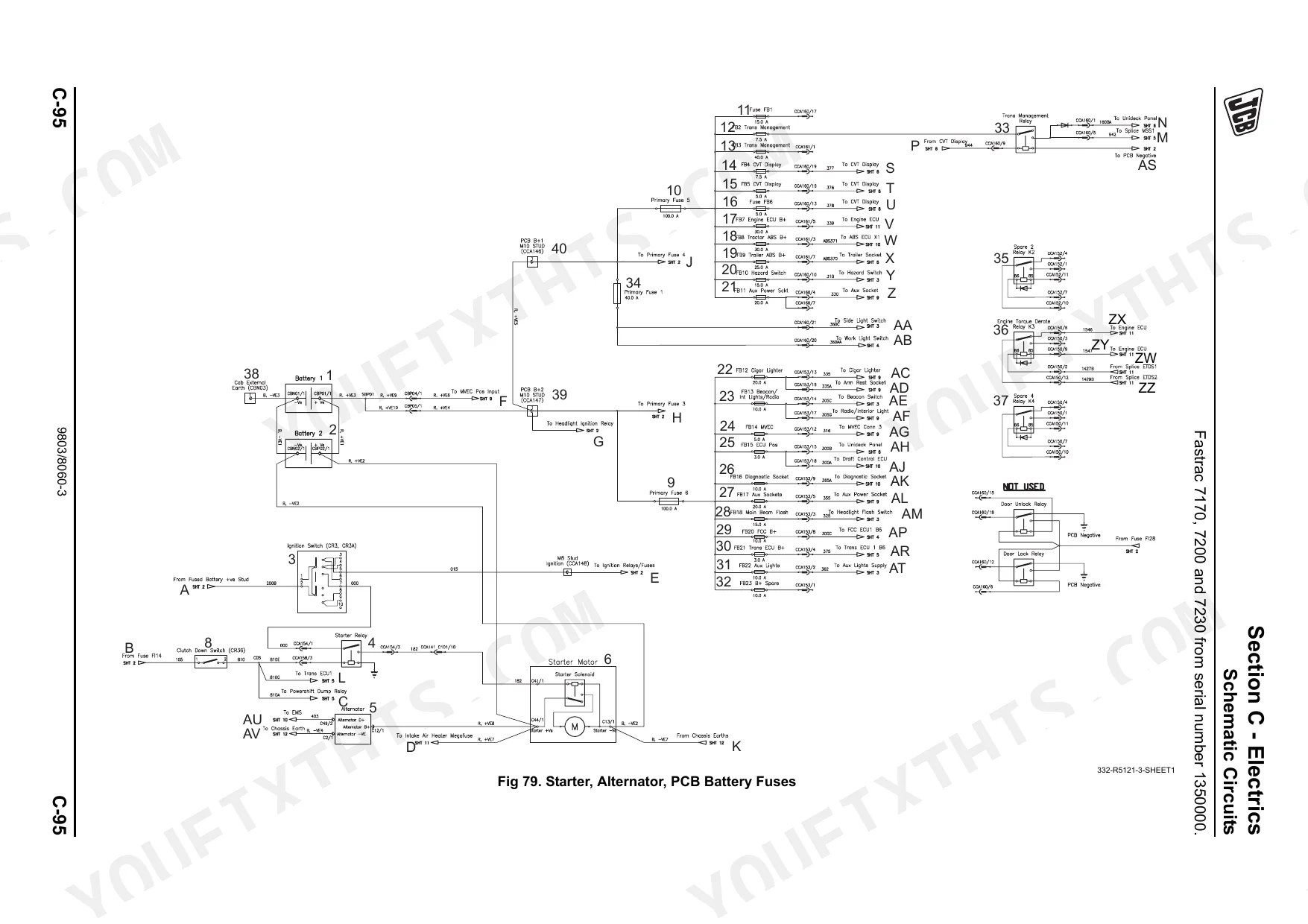

Built for the 2007 model year, this 779-page JCB 7000 Fastrac series service manual PDF (OEM #9803/8060-3) gives you the factory tear-down procedures for the Fastrac 7170 and related models. Open the file to find complete wiring diagrams, full hydraulic circuit schematics, and step-by-step front hitch and suspension calibration routines. You also get extensive fault finding tables, error code breakdowns, and diagnostic procedures for the smoothshift gearbox and ABS braking system. Set your air compressor to exactly 5.5 bar when blowing out the cab carbon filters. Time spent hunting for numbers is money lost in the shop. Grab this neatly bookmarked digital download, open it directly on your rugged shop tablet, and start turning wrenches with confidence.
What's Inside This JCB Fastrac 7170–7270 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-43 | Introduction (Machine Model and Serial Number, Using the Service Manual, Units of Measurement, Section Numbering) |
| Care and Safety | 44-61 | Safety First (Important Information, Operator Manual, Safety Warnings, Safety Check List, Safety - Yours and Others, Operating Safety, Maintenance Safety) |
| Maintenance | 62-155 | Routine Maintenance (Service Requirements, Introduction, Owner/Operator Support, Service/Maintenance Agreements, Initial Service and Inspection, Obtaining Replacement Parts, Health and Safety, Lubricants, Battery, Service Schedules, How to Use the Service Schedules, Calendar Equivalents, Pre-Start Cold Checks, Service Points and Fluid Levels, Functional Test and Final Inspection, Fluids, Lubricants and Capacities, Coolant Mixtures, Fuel, Carrying Tools Onto the Machine, Cleaning the Machine, Preparing the Machine for Cleaning, Checking for Damage, Check the Machine Body and Structure, Check the Tyres, Check the Seat and Seat Belt, Check the Hydraulic Hoses and Fittings, Checking the ROPS Structure, Access Panels, Engine Covers, Panniers, Greasing, Drive Shafts, Front 3-Point Linkage, Front Axle Steering Swivels, Suspension Cylinder Pivots, Hydraulic Lift and 3-Point Linkage, Pick-Up Hitch, Automatic Trailer Coupling, Air Conditioning and Heater, Cleaning the Fresh Air Filter, Cleaning the Recirculation Air Filter, Brakes, Checking the Foot Brake Fluid Level, Checking the Trailer Air Tank, Checking the Air Tank Warning Lights, Checking and Renewing Foot Brake Pads, Testing the Park Brake, Checking the Park Brake Pads, Electrical System, Jump-Starting the Engine, Fuses and Relays, Relay Identification, Checking the Beam Alignment, Engine, Changing the Air Filter Elements, Checking the Oil Level, Changing the Oil and Filter, Cooling System, Checking the Coolant Level, Draining and Refilling the Coolant, Fan Belt, Fuel System, Draining the Fuel Pre-Filter, Changing the Fuel Pre-Filter Element, Changing the Fuel Filter Element, Bleeding the Fuel System, Hydraulic System, Checking the Fluid Level, Changing the Filter, Emptying the Hydraulic Coupling Drain Reservoirs, Transmission, Checking the Transmission Oil Level, Changing the Transmission Oil Filter, Changing the Transmission Oil and Cleaning the Strainer, Axles, Front Axle, Rear Axle, Tyres and Wheels, General, Wheel and Tyre Replacement, Adjustable Track Width, Wheel Nut Torques, Tyre Inflation, Checking and Adjusting the Front Wheel Alignment, Front Fender Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheels Torque | 600 Nm | p. 149 |
| Rear Wheels Torque | 600 Nm | p. 149 |
| Carbon filters replacement interval | 250 hour intervals | p. 98 |
| Compressed air pressure for cleaning filters | 5.5 bar | p. 98 |
| BSP Hose Torque (1/8 in.) | 14.0 - 16.00 Nm | p. 15 |
| BSP Hose Torque (1/4 in.) | 24.0 - 27.0 Nm | p. 15 |
| Wiring harness insulation removal for splice | 7mm | p. 195 |
| Front hitch position sensor highest position typical value | 750 to 850 | p. 161 |
| Front hitch position sensor lowest position typical value | 150 to 250 | p. 162 |
| Battery electrolyte level | 6 mm above the plates | p. 107 |
| Battery charge level | three quarters charged | p. 190 |
| Transmission Charge Pump Maximum flow rate @ 2200 engine rev/min | 67 - 71 Litres/min | p. 474 |
JCB Fastrac 7170–7270 Common Problems This Manual Covers
JCB Fastrac 7170 intermittent dashboard warning lights and loss of central controller communication
Check the wiring harnesses for chafing and test the battery no-load voltage as outlined in the charging system fault finding section. If repairing a wire, remove 7mm of insulation for the splice. Read the fault codes to isolate the controller issue.

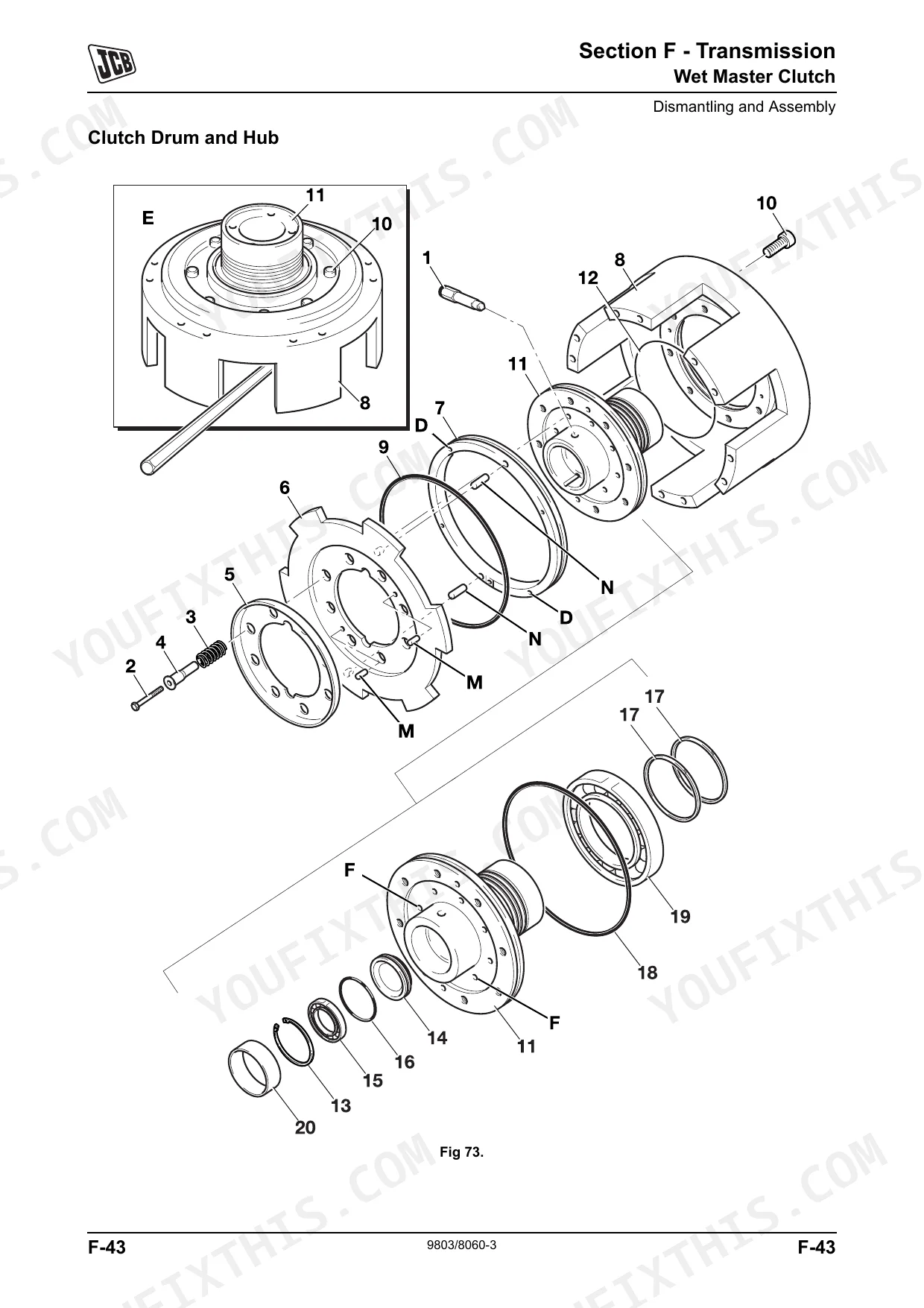

Manual Section: Electrical Fault Finding Tables (ECUs)Gearbox slipping under heavy draft load and slow engagement into four wheel drive p. 474
Connect a pressure gauge to the mainline test port. Run the engine to 2200 rev/min and verify the charge pump delivers 67 - 71 Litres/min as specified on page 474. Inspect the transmission oil filter and torque the bowl to the specification in the manual during reassembly.

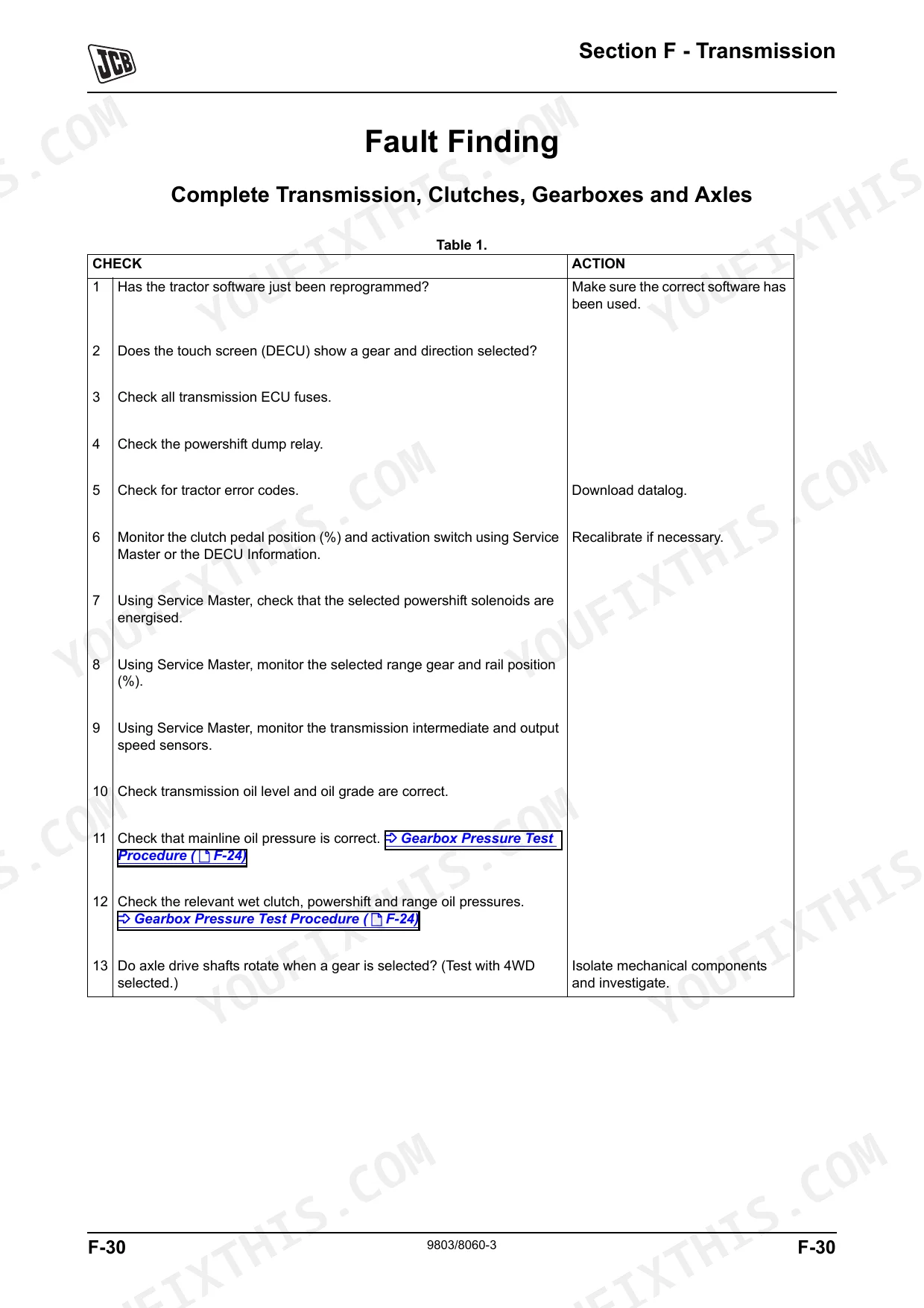

Manual Section: Transmission Fault FindingDifferential lock fails to engage when requested and dashboard indicator light stays off p. 477
Test the differential lock pressure at the test port while running the engine at 1600 rev/min and compare against the specification on page 477. Replace the solenoid valve if pressure drops below specification, and check the associated electrical relay.
Manual Section: Transmission Pressure TestingEngine turns over very slowly on cold mornings and completely refuses to start p. 190
Inspect the battery terminals for corrosion and measure the electrolyte level to ensure it sits 6 mm above the plates. Test the charging circuit on page 190 to confirm the alternator output stays within the specified limit for a maintenance-free battery.
Manual Section: Charging System Fault FindingFrequently Asked Questions
What do the JCB Fastrac 7170 error codes mean?
The manual provides extensive fault code tables for the JCB Fastrac 7170. For example, a fault code starting with 'A' (e.g., A0201) indicates an ABS ECU fault, while 'C' (e.g., C0120) indicates a Fastrac Central Controller (ECU1) fault. These codes and their descriptions are listed across multiple pages in the "Fault Finding Tables" section, starting on page 198.

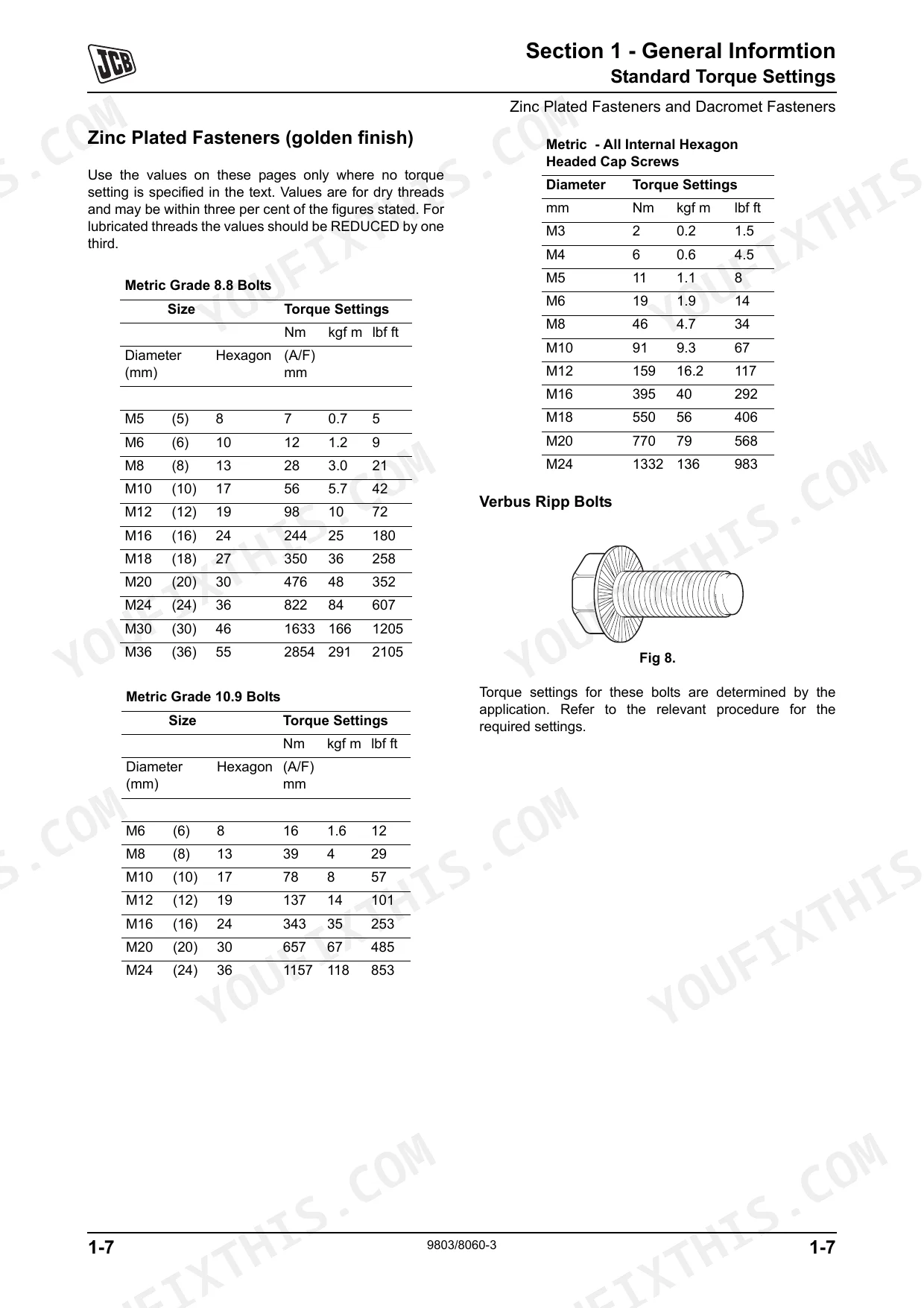

What are the torque specs for JCB Fastrac 7170 wheel nuts, hub bolts, or engine fasteners?
The torque specifications for JCB Fastrac 7170 wheel nuts are 600 Nm (60.0 kgf m, 440 lbf ft) for both front and rear wheels. These should be checked every ten hours on a new machine until they remain correct, as detailed on page 149 under "Wheel Nut Torques". General torque settings for various fasteners (e.g., Metric Grade 8.8 bolts) are also provided on page 12.

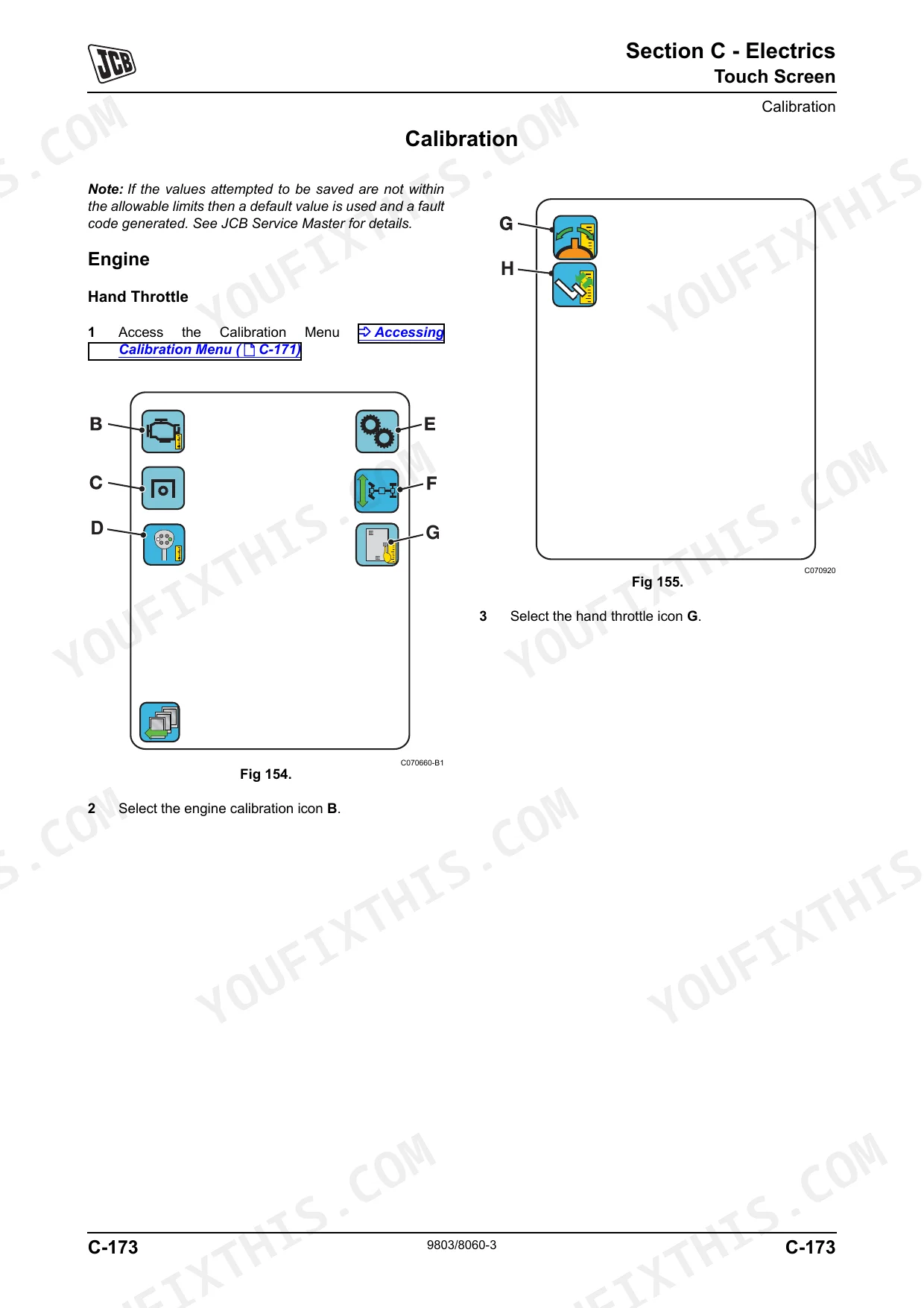

How do I reset the transmission or P-Tronic system on a JCB Fastrac 7170?
To "reset" the transmission or P-TRONIC system on a JCB Fastrac 7170, you need to perform a "Transmission Calibration". This procedure is necessary after replacing transmission-related items like the Transmission ECU, wiring, valves, position sensors, or speed sensors. The process involves setting the park brake, putting the transmission in neutral, ensuring the clutch pedal is up, and starting the engine at 1500 rpm, then following the on-screen instructions on the touch screen, as detailed on page 180 and 182.
How to reset error codes on JCB Fastrac 7170
The manual indicates that if an error code is displayed in black text, the fault has occurred and has been cleared. If the fault is currently present, it will be displayed in red text. The manual does not provide a specific procedure to manually "reset" error codes, implying they clear automatically once the underlying fault is rectified. For persistent faults, it advises contacting a JCB Dealer, as mentioned on page 170 under "Error Codes".
How quickly can I access this manual after buying?
Immediate download of the complete 779-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this JCB Fastrac 7170 & variants Service Manual cover the hydraulic system?

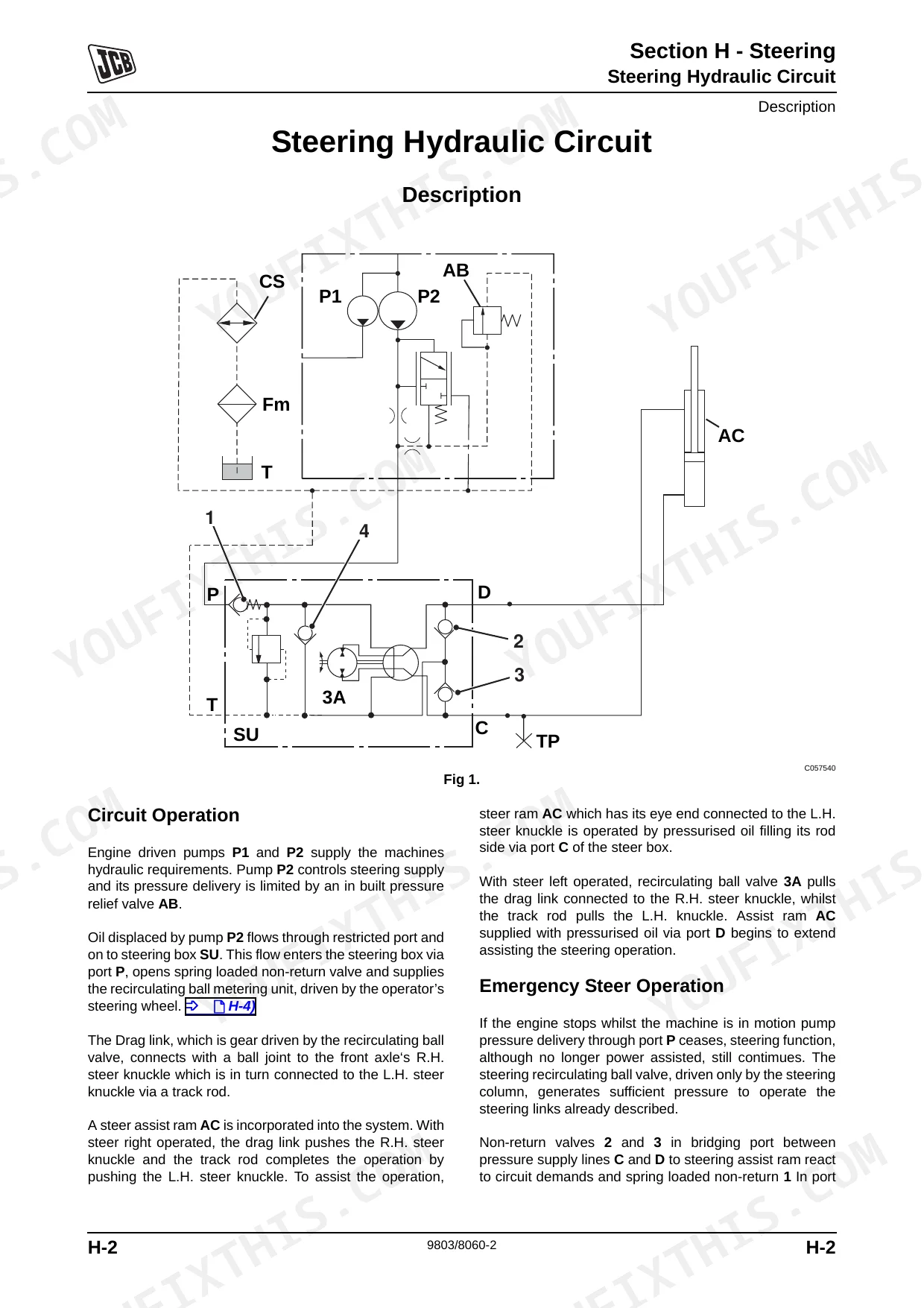

Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text throughout is crisp and consistently easy to read, with no blurriness or fading. Diagrams and illustrations are primarily clear line drawings, though some appear to be rasterized, and all labels are readable at various zoom levels. Pages are clean with no noticeable scan artifacts, stains, marks, or skewing, maintaining a professional appearance. There are a few "Notes:" pages with blank lines and some "Page left intentionally blank" pages, which serve as filler.
