Part of the JCB Operator Manuals.
This 296-page JCB Fastrac 7170, 7200, 7230, 7270 Operator Manual PDF (OEM #9811/1851) covers every daily maintenance and cab control procedure for your wheeled agricultural tractor. You get complete maintenance interval schedules, full touch-screen EMS programming guides, and step-by-step operating procedures for the P-Tronic transmission and the front 3-point linkage. Open to the dashboard section to quickly decode visual error codes before they turn into major mechanical failures. Swap out the hydraulic oil filter every 500 hours as scheduled, and verify your front and rear wheel nuts are torqued strictly to 600 Nm. A flashing warning light should not ruin your entire day in the field. Download this bookmarked file, pull it up on your phone right in the cab, and keep the machine moving.
What's Inside This JCB FASTRAC 7170, FASTRAC 7200, FASTRAC 7230, FASTRAC 7270 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety & Introduction | 9-36 | Safety Notices, Safety Warnings, Safety Check List, Operating Safety, Maintenance Safety, Safety Labels, Safety Label Identification, Identifying Your Machine, Machine Description |

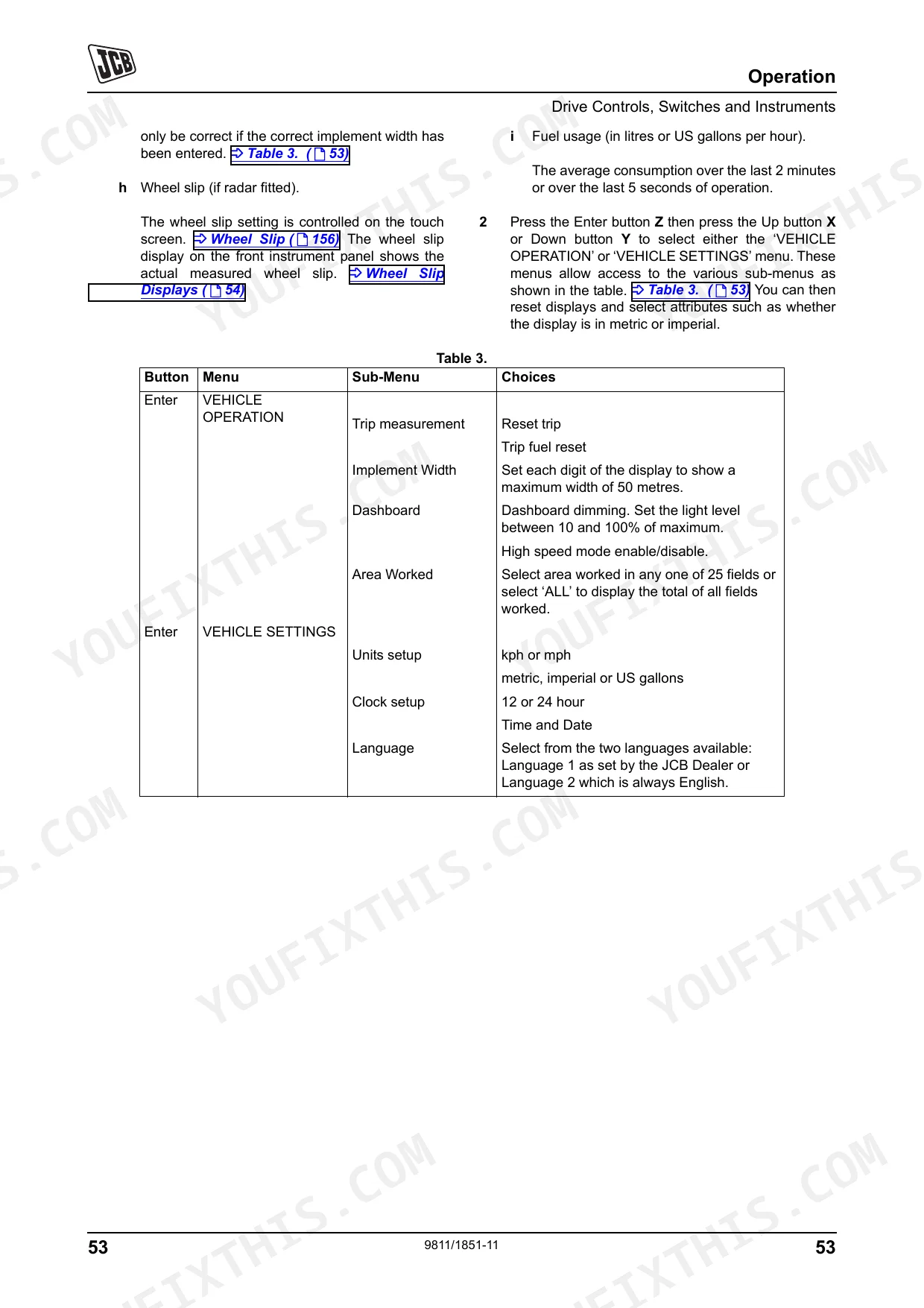

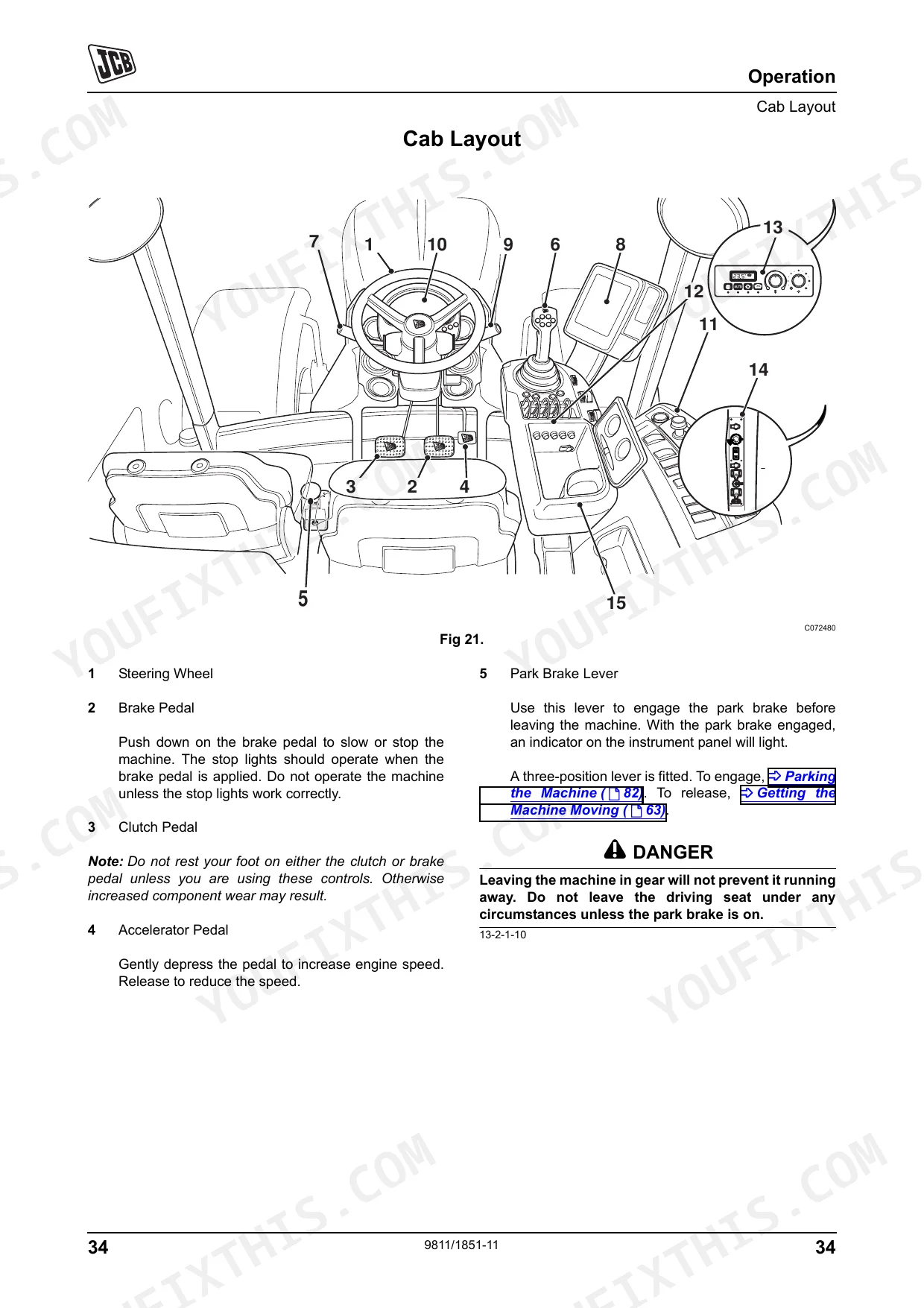

| Controls & Instruments | 40-58 | Seat Belt Operation, Steering Column Adjustment, Steering Column Multi-Purpose Switch, Side Console Controls, Starter Switch, Instruments, Audible/Visual Warnings, Ems Programming, Transport Lock |
| Starting & Driving Operation | 59-87 | Park Brake, Pre-Start Inspection, Normal Starting, Cold Starting, P-Tronic Transmission, Anti-Lock Braking System (ABS), Parking on an Incline, Operating Practices and Site Safety, Danger Zone |
| Drivetrain & Hydraulic Linkage Controls | 88-111 | Four Wheel Drive (4WD), Differential Lock, Automatic Differential Lock Cut-Out, Rear 3-Point Linkage, Front 3-Point Linkage Control, Power Down Mode, Float Mode, Linkage Type and Connection, External Hydraulics Control Layout, Quick Release Couplings |
| Towing & Power Take-Off | 112-140 | Ladder Hitches, Connecting Trailer Air Brakes, Connecting Trailer Hydraulic Brakes, PTO Driven Implements, Slip Clutch, Hydraulic Brake, Output Shaft Rotation, Rear PTO Operational Speeds |

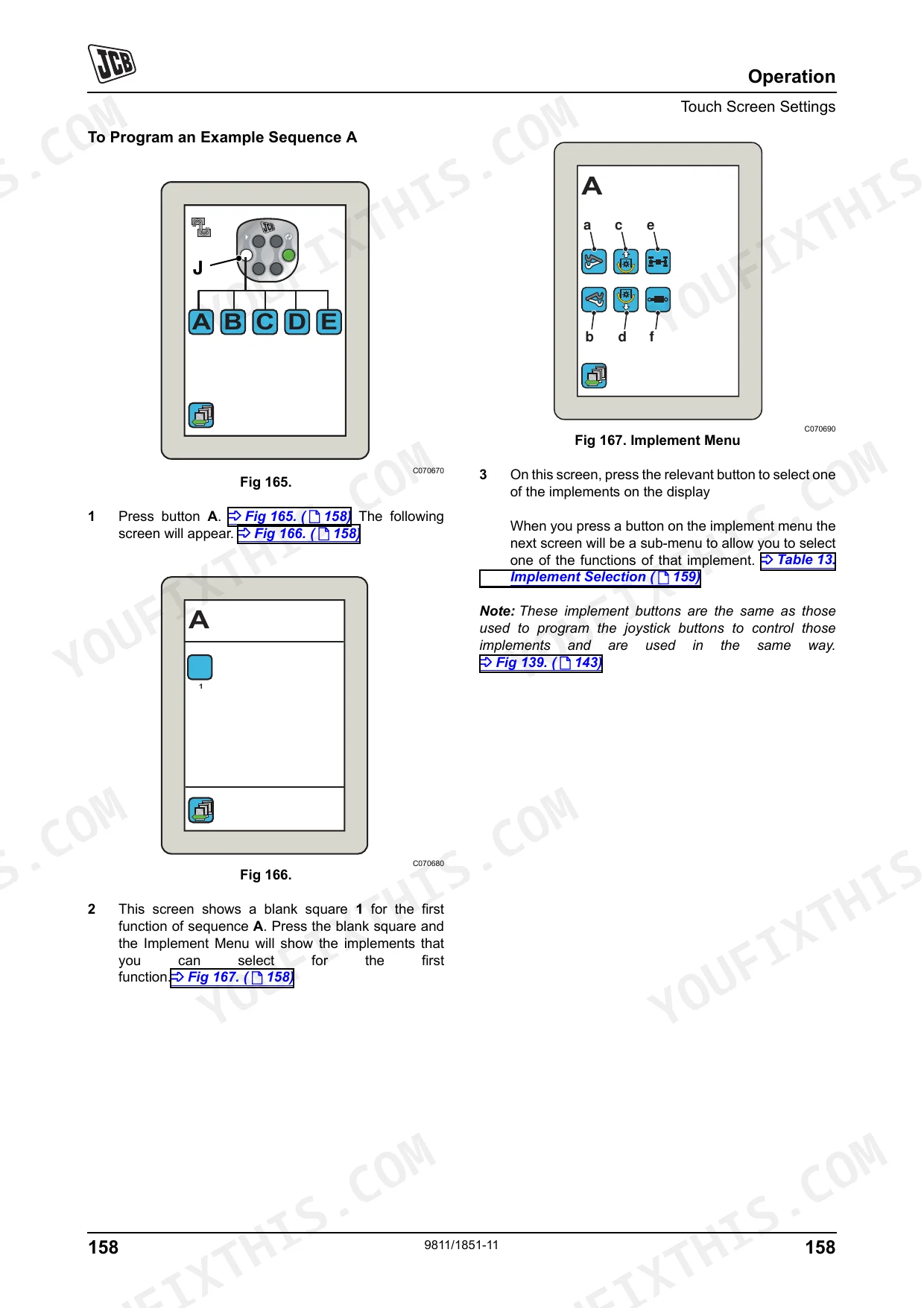

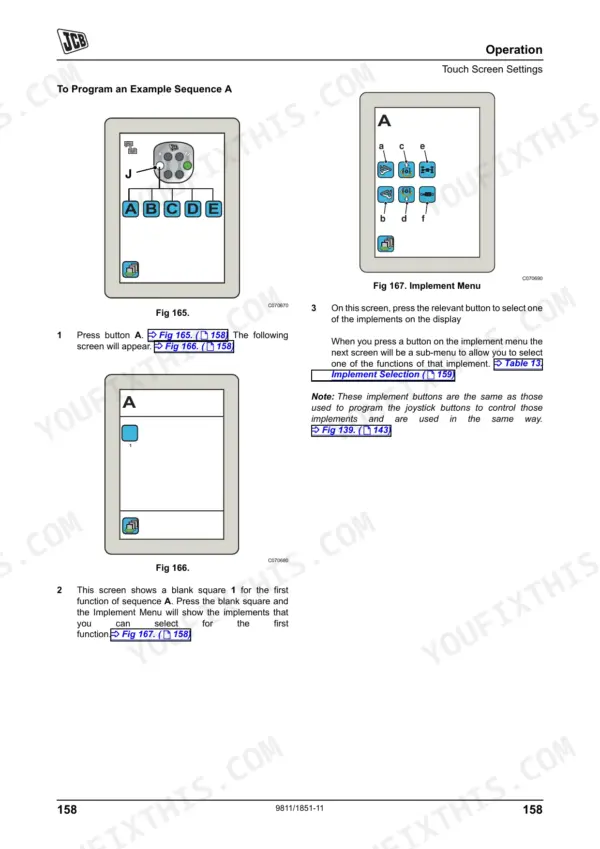

| Touch Screen Settings | 141-169 | Programming the Joystick Push Buttons, Automatic Field Settings, Wheel Slip, Headland Management System |
| Operating Environment & Storage | 170-191 | Operating in High Temperatures, Refuelling the Machine, Moving a Disabled Machine, Transporting the Machine, Storage of the Machine, Take the Machine Out of Storage |

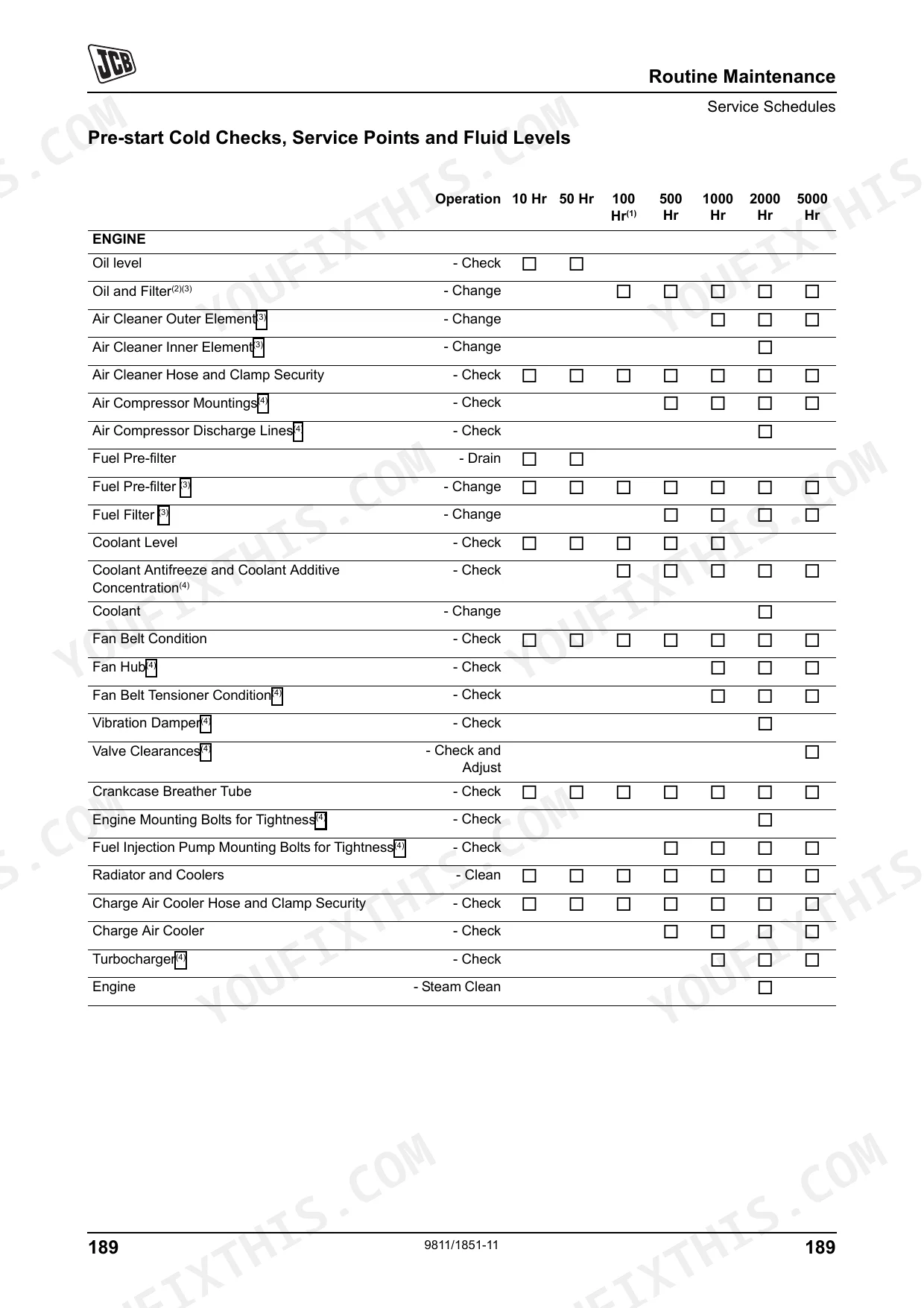

| Maintenance & Lubrication | 192-273 | Service Requirements, Battery, Service Schedules, Service Points and Fluid Levels, Drive Shafts, Front Axle Steering Swivels, Suspension Cylinder Pivots, Hydraulic Lift and 3-Point Linkage, Pick-Up Hitch |
| Tyres & Wheels | 274-281 | Adjustable Track Width, Wheel Nut Torques, Tyre Inflation, Front Wheel Alignment, Front Fender Adjustment, Windscreen Washer |

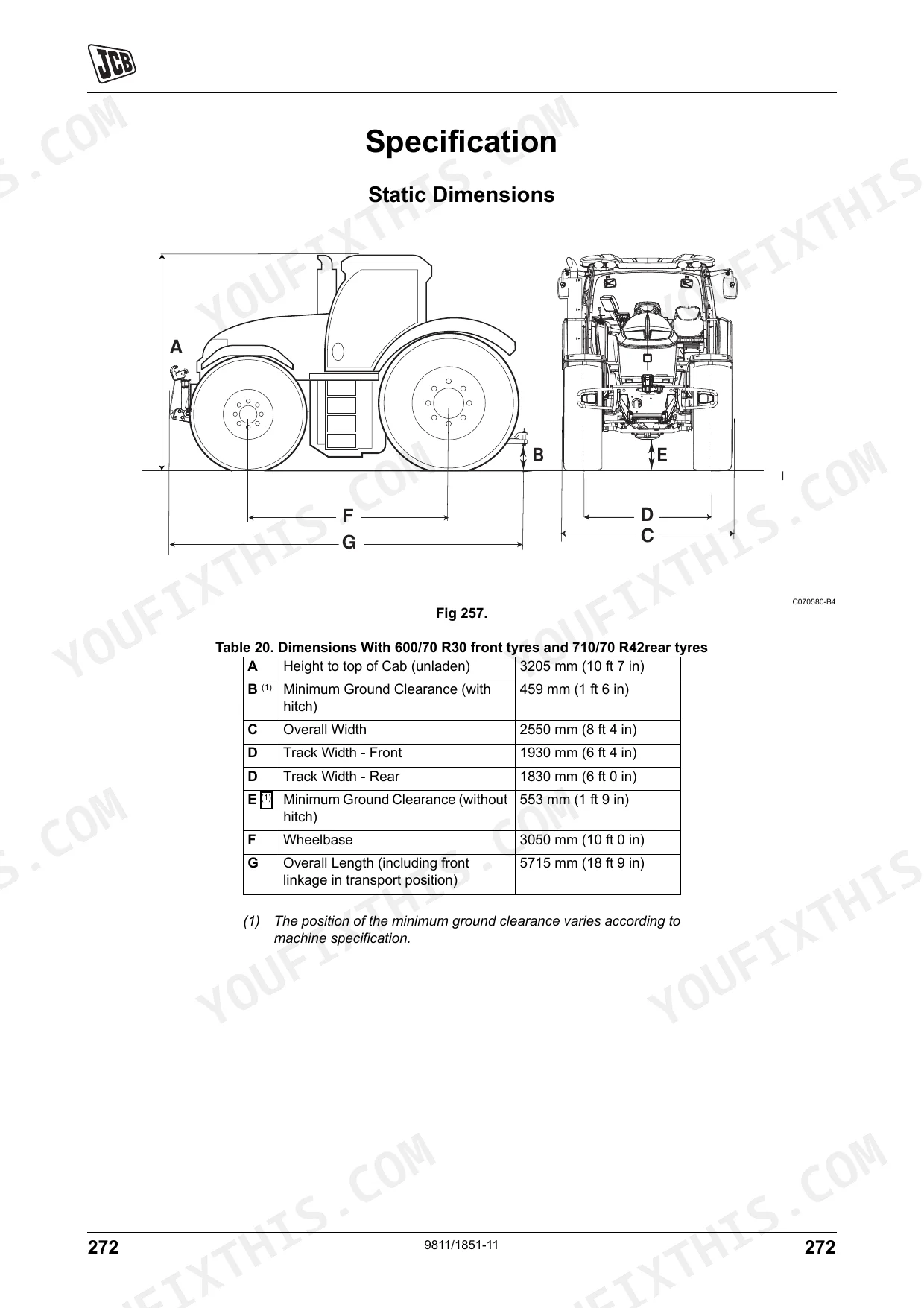

| Specifications | 282-288 | Static Dimensions, Weights and Loads, Tyres, Travel Speeds, Noise Data, Vibration Data |
| Warranty & Compliance | 289-296 | Machine Service Record Sheet, Registration Information, Ec Declaration of Conformity |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Nut Torque | 600 Nm (440 lbf ft) | p. 276 |
| Rear Wheel Nut Torque | 600 Nm (440 lbf ft) | p. 276 |
| Hydraulic Oil Filter Replacement Interval | Every 500 hours | p. 198 |
| Air Cleaner Outer Element Replacement Interval | Every 500 hours | p. 198 |
| Air Cleaner Inner Element Replacement Interval | Every 1000 hours | p. 198 |
| Foot Brake Pad Minimum Thickness | 3 mm (0.12 in) | p. 230 |
| Park Brake Pad Minimum Thickness | 3 mm (0.12 in) | p. 233 |
| Front Wheel Alignment Toe-in | 0 to 5 mm (0 to 0.2 in) | p. 278 |
| Front Wheel Alignment Nut D Torque | 250 Nm (184 lbf ft) | p. 278 |
| Transmission Oil Filter Bowl Torque | 30 Nm (22 lbf ft) | p. 266 |
| Transmission Oil Drain Plug Torque | 203 Nm (150 lbf ft) | p. 267 |
| Coolant 50% Concentration Protection | -40 °C (-39 °F) | p. 206 |
JCB FASTRAC 7170, FASTRAC 7200, FASTRAC 7230, FASTRAC 7270 Common Problems This Manual Covers
JCB Fastrac 7170 transmission hesitates during shifts and defaults to limp mode while working p. 168
Check the touch screen settings for error codes on page 168. Drain the transmission oil and clean the strainer according to the torque specification on page 268. Follow the transmission oil service schedule in the maintenance chapter to prevent electro-hydraulic shifting faults.
Manual Section: Touch Screen SettingsBrake performance feels weak and the tractor pulls to one side during field operations p. 230
Inspect the brake calipers and verify foot brake pad thickness exceeds the 3 mm (0.12 in) minimum limit shown on page 230. Replace the brake system fluid at the interval specified in the service schedule on page 198 to clear contamination from the twin caliper circuits.
Manual Section: GreasingSteering feels unstable and four-wheel-steer system fails to track properly at high travel speeds p. 278
Check the front wheel alignment toe-in measurement and adjust it to exactly 0 to 5 mm (0 to 0.2 in) as detailed on page 278. Torque the front wheel nuts to 600 Nm (440 lbf ft) using the torque specifications provided on page 276.
Manual Section: Tyres and WheelsEngine temperature gauge spikes into the red zone and loses power under heavy loads p. 253
Inspect the cooling system components and check fan belt deflection against the specification on page 253. Verify the coolant mixture provides adequate protection down to -40 °C (-39 °F) with a 50 percent concentration as noted on page 206.
Manual Section: GreasingExternal hydraulic functions operate slowly or intermittently when lifting heavy implements on the linkage p. 261
Drain some fluid and examine it for a cloudy appearance indicating air or water entry, as warned on page 261. Replace the hydraulic oil filter every 500 hours following the maintenance schedule on page 198 to restore full flow to the rear spool valves.
Manual Section: GreasingFrequently Asked Questions
What does the error code mean on a JCB Fastrac 7170/7200/7230/7270?
The manual provides a list of error codes and their meanings, categorized by prefix letter for the affected part of the machine (e.g., 'A' for Anti-lock Brake System, 'G' for Gearbox). For specific codes like D0231, it means "Air tank 1 pressure low" and suggests ensuring the brake circuit air tank pressure light has gone out before moving the machine. If a fault occurs, a fault code will be displayed on the touch screen, and if the error code is in red text, the fault is currently present.
What are the torque specs for JCB Fastrac 7170/7200/7230/7270 wheel nuts?
The torque specification for both Front Wheels and Rear Wheels on the JCB Fastrac 7170/7200/7230/7270 is 600 Nm (60.0 kgf m, 440 lbf ft). Tighten the nuts evenly in sequence. On a new machine, recheck the wheel nut torques at regular short intervals until they remain stable, as described on page 276.
How do you fix JCB Fastrac 7170 transmission hesitates during shifts and defaults to limp mode while working?
Check the touch screen settings for error codes on page 168. Drain the transmission oil and clean the strainer according to the torque specification on page 268. Follow the transmission oil service schedule in the maintenance chapter to prevent electro-hydraulic shifting faults.
How do you fix brake performance feels weak and the tractor pulls to one side during field operations?
Inspect the brake calipers and verify foot brake pad thickness exceeds the 3 mm (0.12 in) minimum limit shown on page 230. Replace the brake system fluid at the interval specified in the service schedule on page 198 to clear contamination from the twin caliper circuits.
How will I receive this JCB Fastrac 7170, 7200, 7230, 7270 Operator Manual?
You get a 296-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this JCB Fastrac 7170, 7200, 7230, 7270?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
