Running a JCB 135 HD or 155 HD skidsteer hard without reading the manual is a fast way to miss something expensive. This 192-page Operator Manual (OEM #9831/0450) covers every control, maintenance schedule, and safety protocol from dashboard indicators to daily walk-around inspection checklists. Step-by-step attachment guidelines walk you through handling heavy loads safely, and the fluid capacity tables leave no guesswork on fills. Swap out the main fuel filter every 500 hours and verify the lifting eyes are torqued precisely to 190 N·m before securing any overhead load. Routine maintenance intervals are laid out shift by shift so nothing slips through. Download the bookmarked file, pull it up on your tablet right in the cab, and keep the machine moving.
What's Inside This JCB 135 HD, 155 HD Operator Manual

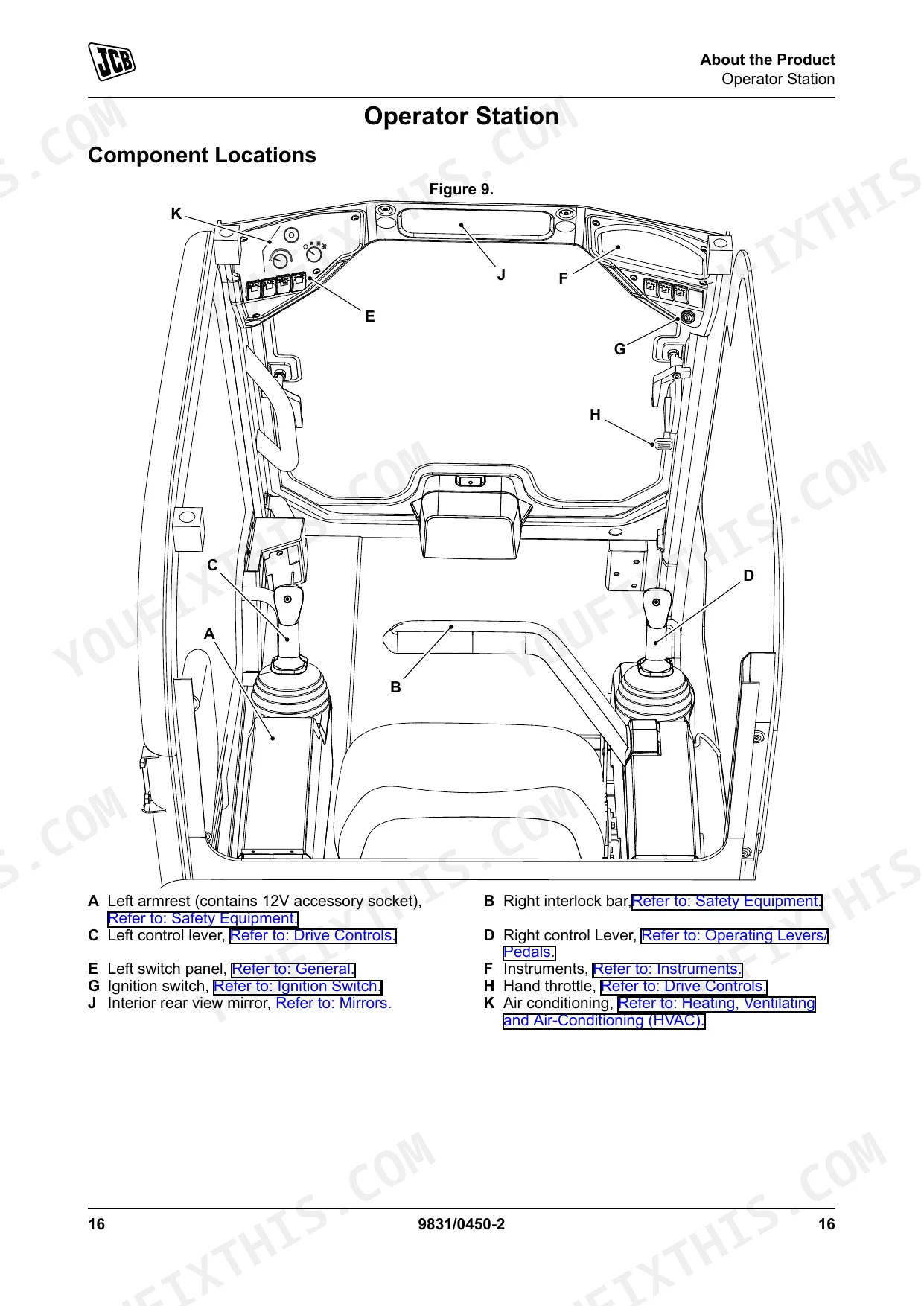

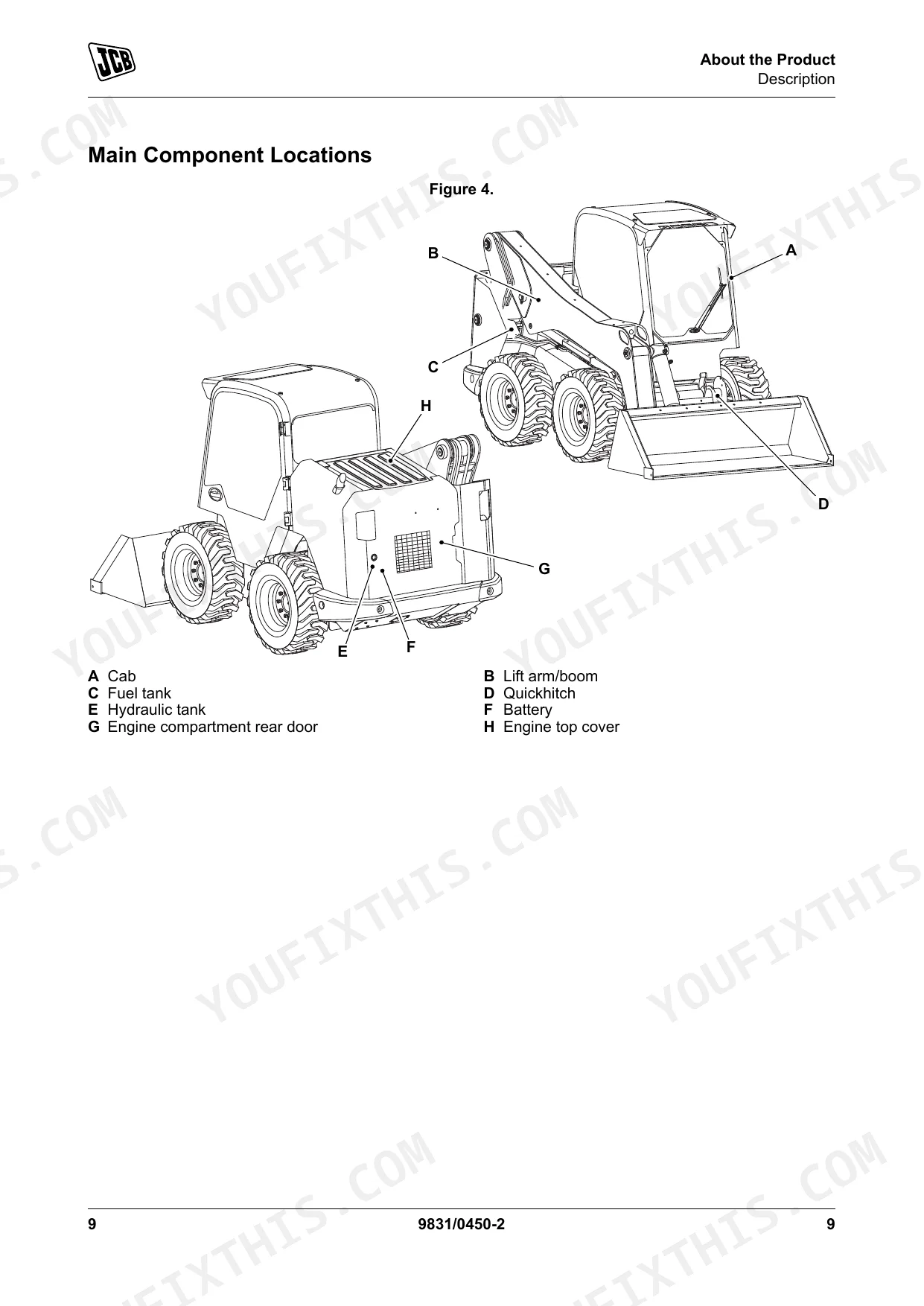

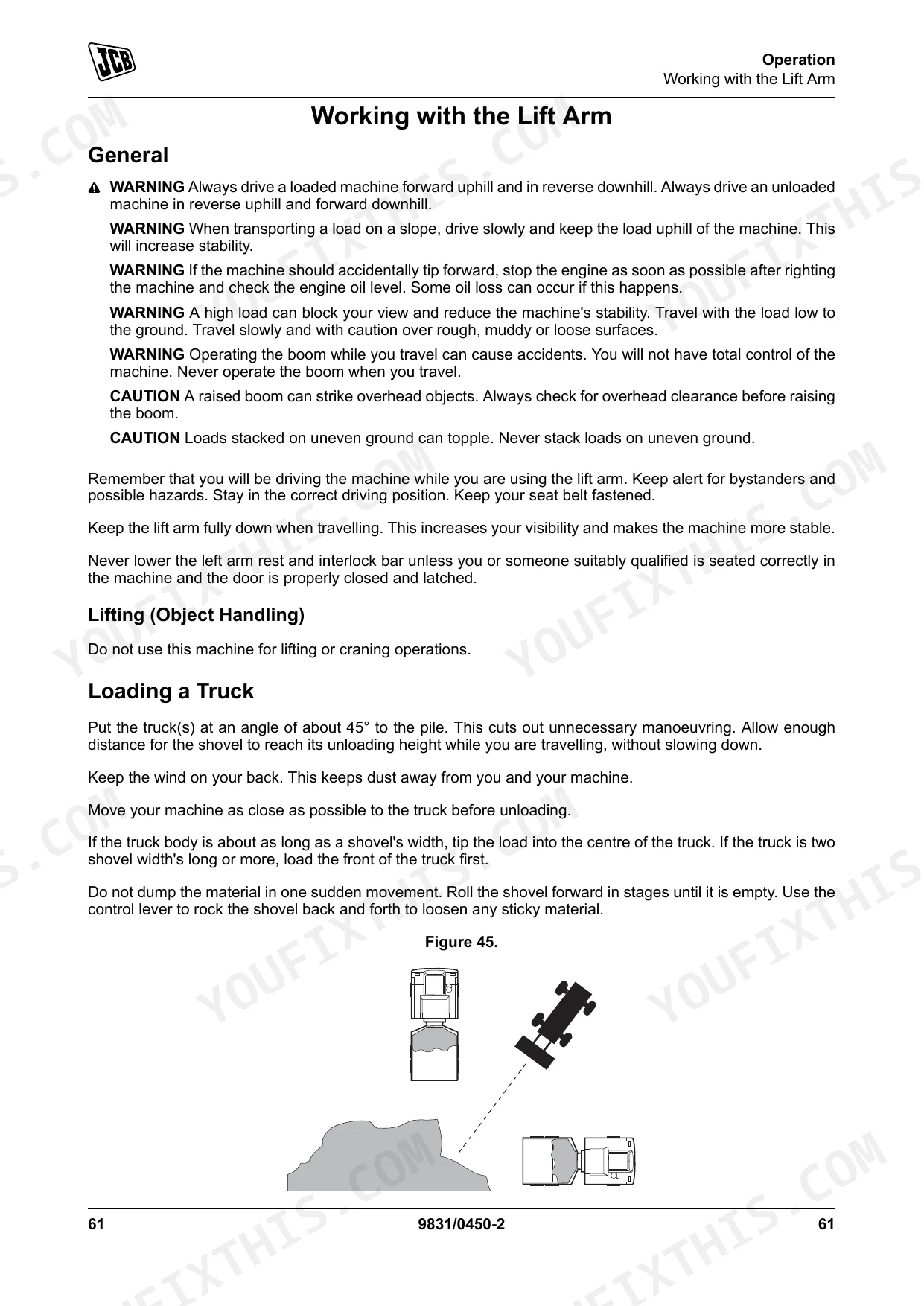

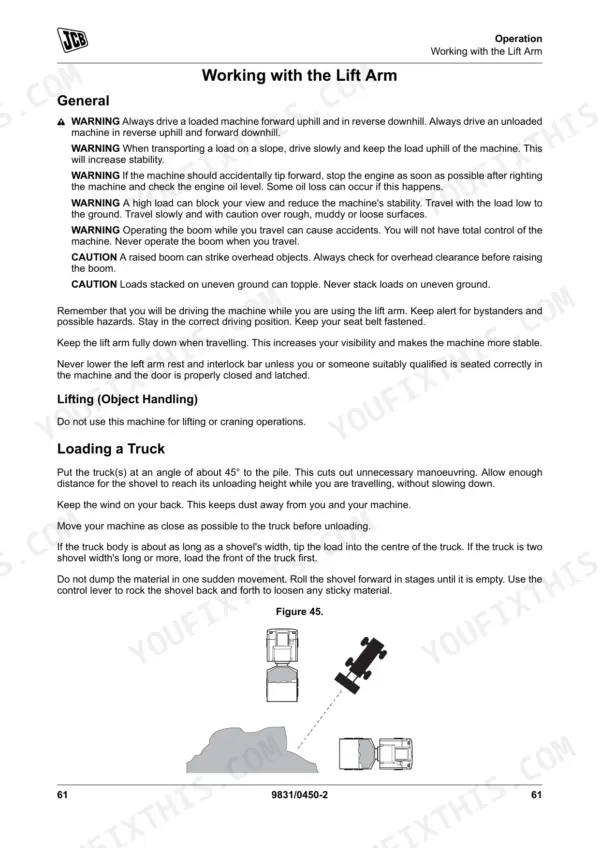

| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 7-8 | DEF, ECU, ESOS, FOPS, HVAC, LCD |
| Introduction | 9-14 | Safety |
| About the Product | 15-28 | Description (General, Intended Use, Log Moving/Object Handling, Optional Equipment and Attachments, Danger Zone), Main Component Locations |
| Operation | 29-80 | Operating Safety (General, Worksite Safety, Risk Assessment), Walk-Around Inspection (General), Entering and Leaving the Operator Station (General, Emergency Exit) |
| Attachments | 81-100 | Connecting/Disconnecting Hydraulic Hoses, Shovels |
| Preservation and Storage | 101-110 | Cleaning, Preparation, Checking for Damage, Storage, Security, LiveLink |
| Maintenance, Safety, Schedules & Routine Servicing | 111-142 | Maintenance Safety, Maintenance Schedules, Maintenance Positions, Service Points, Access Apertures, Lubrication, Body and Framework, Operator Station |
| Engine, Fuel & Cooling Systems | 143-153 | Engine, Air Filter, Fuel System, Cooling System |
| Chassis & Drivetrain | 154-161 | Brakes, Wheels, Tyres, Tracks, Drive Gearbox |
| Hydraulic & Electrical Systems | 162-168 | Hydraulic System, Electrical System |
| Technical Data | 169-192 | Static Dimensions, Performance Dimensions, Fluids, Lubricants and Capacities |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Mounting Nuts Torque | 205N·m | p. 181 |
| Lifting Eyes Torque | 190N·m | p. 181 |
| Main fuel filter/sedimenter Replacement Interval | 500h, 1000h, 1500h, 2000h | p. 119 |
| Engine fuel filter (Secondary) Replacement Interval | 500h, 1000h, 1500h, 2000h | p. 119 |
| Hose and pipework Check Interval | 10h, 50h, 500h, 1000h, 1500h, 2000h | p. 120 |
| Hydraulic Hoses Replacement Instruction | Replace a damaged hose before you use the machine again. The replacement hoses must be of the same size and standard. | p. 162 |
| O' rings, Seals and Gaskets Replacement Instruction | Renew whenever disturbed unless otherwise instructed. | p. 113 |
| Battery electrolyte level Check Interval | 50h, 500h, 1000h, 1500h, 2000h | p. 119 |
| Battery voltage/system voltage | 12V | p. 182 |
| Lever and pedal locks Check Interval | 10h, 50h, 500h, 1000h, 1500h, 2000h | p. 121 |
| Control Locks Check Interval | 10h, 50h, 500h, 1000h, 1500h, 2000h | p. 121 |
| Hydraulic Services Check Interval | 10h, 50h, 500h, 1000h, 1500h, 2000h | p. 121 |
JCB 135 HD, 155 HD Common Problems This Manual Covers

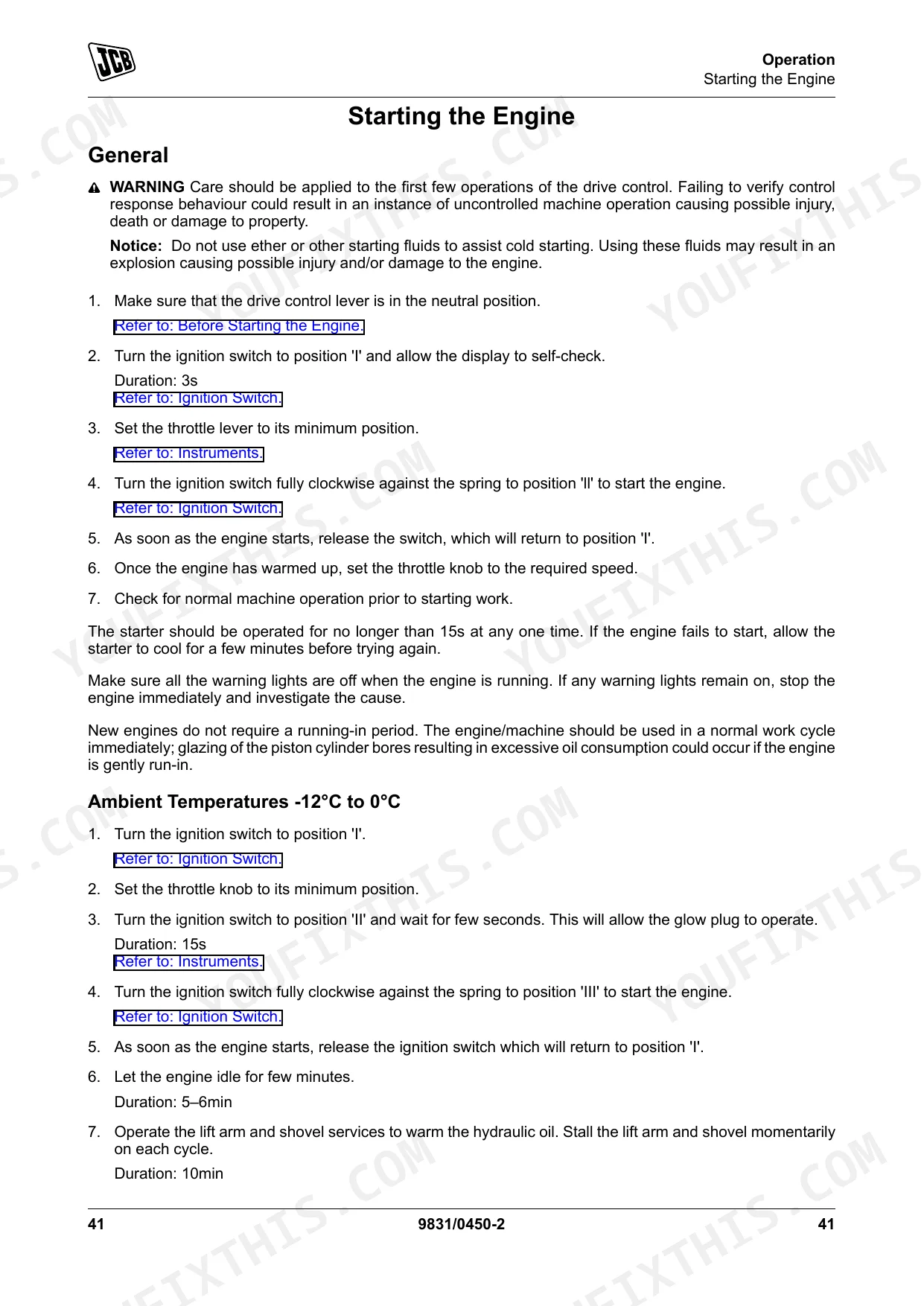

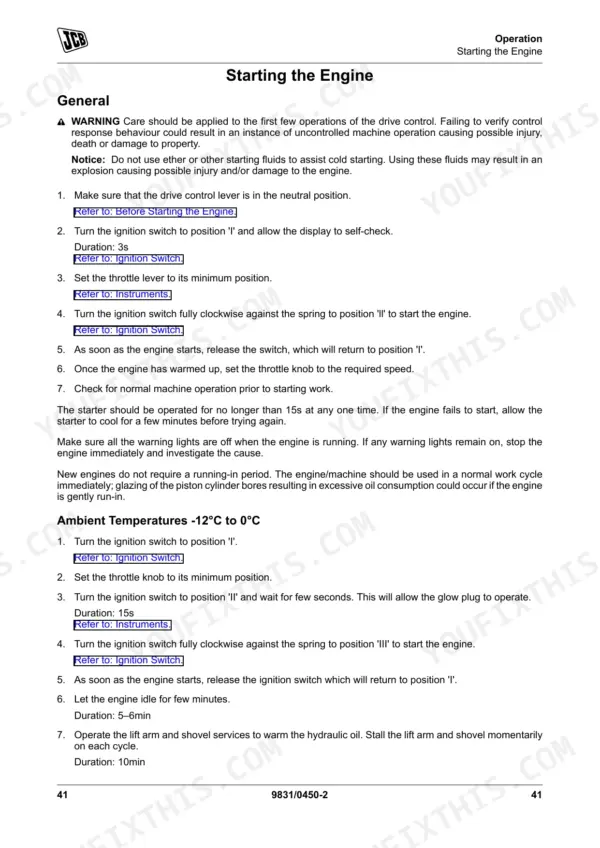

JCB 135 HD or 155 HD engine cranks but will not start during cold morning shifts p. 181
Start with the main fuel filter and sedimenter: drain any trapped water and verify the 12V battery system has full charge. If you recently changed the filter, torque the new cartridge to 17 N·m as shown on page 181. Bleed air from the fuel system before cranking again.
Manual Section: MaintenanceLoader arms lift slowly and hydraulic functions feel weak when operating high flow attachments under load p. 185
Inspect the hydraulic tank sight glass and fill to the maximum 26L capacity. Verify the auxiliary hydraulic flow reaches 70 L/min at 230 bar. Review page 185 for standard flow specifications. Check all hoses and pipework for visible fluid weeping or damaged outer casings.
Manual Section: MaintenanceDashboard warning lights flash intermittently and steering controls become completely unresponsive during normal operation p. 164
Examine the electrical circuits for damaged connectors or chafed wiring harnesses according to the instructions on page 164. Verify the safety switches on the lever and pedal locks engage properly. Confirm battery connections are tight and system voltage holds steady at 12V.
Manual Section: MaintenanceUnusual vibration or loose feeling from the undercarriage while driving across uneven terrain with a full bucket p. 186
Verify wheel nuts before each shift: torque all front and rear wheel nuts to 220 N·m. Inspect the tires for cuts or excessive wear, and inflate the 10 x 16.5 8-ply tires to 4.2 bar as specified on page 186.
Manual Section: MaintenanceFrequently Asked Questions
How do you clear warning lights on a JCB 135 HD?
Warning symbols on the instrument panel go off when the ignition key is turned to the off position. If a warning light comes on and an alarm sounds, stop the machine as soon as it is safe to do so and contact your JCB dealer. Do not run the machine with an active fault condition.
What torque specs are needed for JCB 135 HD wheel bolts / hub bolts?
The torque specification for wheel nuts on both the front and rear of the JCB 135 HD is 220 N·m. On new machines, and whenever a wheel has been removed, it is recommended to check the wheel nut torques every two hours until they stay correct.
how to reset warning light on JCB 155 HD
On the JCB 155 HD, turning the ignition key to the off position clears the instrument symbols. If a warning light activates and an alarm sounds, the manual instructs you to stop the machine as soon as safely possible and call your JCB dealer. Running with a fault condition risks damaging the engine or transmission.
What are the replacement specifications for hydraulic hoses?
When replacing damaged hydraulic hoses, they must be of the same size and standard as the original. For more detailed information or if necessary, contact your JCB dealer.
How quickly can I access this manual after buying?
Instant PDF download. You get the full 192-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this JCB 135 HD, 155 HD Operator Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a native digital PDF, allowing you to easily search and copy all text within the manual. The text is consistently crisp and clear throughout every page, ensuring excellent readability. All diagrams and illustrations are high-quality vector graphics, which remain sharp and detailed even when zoomed in, and their labels are perfectly legible. The pages are clean with no scan artifacts, stains, marks, or skewed content. There are a few designated "Notes" pages and a blank section in the foreword, which serve as filler pages.
