Before you put your wheeled agricultural tractor to work in the field, grab this 293-page JCB Fastrac 2155, 2170 operator manual PDF (OEM #9811/5600) to master every control and maintenance schedule. Inside, you get complete cab operating procedures, detailed dashboard indicator guides, and daily safety checklists. Open up to the routine service section to find exact fluid capacities and maintenance intervals required to keep your machine pulling hard. Top off the front axle hub with 1.9 liters of HP90 gear oil and verify your wheel nuts are secured at 500 Nm before hitting the road. Prevent costly downtime caused by missed daily checks. Download this bookmarked file right to your tablet, jump straight to the specification charts, and get your tractor ready for the day.
What's Inside This JCB Fastrac 2155, 2170 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 14-15 | Important Information, Operator Manual, Safety Warnings |
| Introduction | 16-41 | About This Manual, Machine Description, Safety Check List, Operating Safety, Maintenance Safety, Safety Labels, Safety Label Identification, Identifying Your Machine |
| Operation | 42-181 | Before Entering the Cab, Entering and Leaving the Cab - Doors and Windows, Opening and Closing the Doors, Emergency Exit, Opening and Closing the Windows, Visibility Aids |
| Routine Maintenance | 182-277 | Service Requirements, Obtaining Replacement Parts, Health and Safety, First Aid - Oil, Battery, Warning Symbols, Service Schedules, Pre-Start Cold Checks |
| Specification | 278-285 | Static Dimensions, Weights and Loads, Laden Weights, Tyres, Maximum Travel Speeds in All Gear Ratios, Noise Data, Vibration Data |
| Warranty | 286-289 | Machine Service Record Sheet, Registration Information |
| European Community Standards | 290-293 | Ec Declaration of Conformity, Explanation of the Ec Declaration of Conformity |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel Nut Torque - Front Wheels | 500 Nm (51.0 kgf m, 370 lbf ft) | p. 269 |
| Wheel Nut Torque - Rear Wheels | 500 Nm (51.0 kgf m, 370 lbf ft) | p. 269 |
| Front Axle Hub Oil Capacity | 1.9 Litres (0.4 UK Gal) | p. 195 |
| Front Axle Hub Oil Type | JCB Gear Oil HP90, API-GL-5, MIL-L-2105C | p. 195 |
| Foot Brake Pad Minimum Thickness | 3 mm | p. 223 |
| Battery Electrolyte Level | 6 mm | p. 226 |
| Fan Belt Deflection | 9.5-12.7 mm | p. 245 |
| Air Conditioning Filter Cleaning Pressure | 5.5 bar | p. 218 |
JCB Fastrac 2155, 2170 Common Problems This Manual Covers
JCB Fastrac 2155 inconsistent brake performance and excessive moisture buildup inside the air tanks p. 223
Drain the air tanks daily to prevent moisture buildup. Inspect the brake master cylinders for leaks. Verify the brake pads meet the minimum thickness of 3 mm as shown on page 223. Replace pads if they fall below this limit.
Manual Section: Routine MaintenanceEngine overheats quickly during heavy field work and the temperature warning light flashes p. 245
Clean the radiator and cooling pack to remove dirt and debris. Inspect the fan belt for cracks or glazing. Measure the fan belt deflection to ensure it is between 9.5-12.7 mm as specified on page 245. Adjust the tensioner if the belt feels loose.
Manual Section: Routine MaintenanceEngine oil level drops consistently between service intervals with visible drips underneath p. 240
Inspect the oil pan and surrounding block area for leaks. Drain the remaining fluid and check the engine oil drain plug on page 240 for the correct torque specification and the exact refill volume before topping up. Refill with fresh oil and verify the level on the dipstick.
Manual Section: Routine MaintenanceIntermittent dashboard warning lights and starter turns over slowly on cold mornings before shift p. 226
Inspect the battery cables and terminals for corrosion or loose connections. Remove the battery caps and check the fluid. Verify the battery electrolyte level is exactly 6 mm above the plates as detailed on page 226. Top up with distilled water if low.
Manual Section: Routine MaintenanceTractor sits lop-sided at the front and the steering feels loose and unstable p. 269
Inspect the front suspension components and anti-roll bar bushes for excessive wear. Torque all front and rear wheel nuts to 500 Nm in a star pattern as instructed on page 269. Replace any damaged suspension pins immediately before operating the machine.
Manual Section: Routine MaintenanceFrequently Asked Questions
What are the most common JCB Fastrac 2155 and 2170 problems?
The manual lists various system error codes that indicate problems with the JCB Fastrac 2155 and 2170. These include "No communication between the instrument cluster and the central controller" (C000), "Central controller faults" (C080-C202), "Engine fault" (Q0001-Q2556), and "Transmission will not operate correctly" (T000-T003). See page 82 for the full error code table and the actions required for each fault.
How do I reset a JCB Fastrac 2155/2170 error code?
The manual does not provide a general procedure to "reset" error codes for the JCB Fastrac 2155/2170. Instead, it focuses on "Fault Identification and Rectification," meaning the underlying fault must be addressed and repaired before the code will clear. For example, if an engine fault (Q0001-Q2556) occurs, engine performance may be affected and the fault must be corrected before continuing.
What are the torque specs for JCB Fastrac 2155/2170 wheel or hub bolts?
The torque specifications for the wheel nuts on JCB Fastrac 2155/2170 are 500 Nm (51.0 kgf m, 370 lbf ft) for both front and rear wheels, as specified on page 269. Check these torques regularly on a new machine until they remain correct, and daily before starting work.
How do I reset the service interval on a JCB Fastrac 2155?
To adjust the service interval on a JCB Fastrac 2155, access "Level 1 Programming Mode" and scroll to the flashing message 'SERVICE' on the centre display (page 79, step 5). The display will show the total running hours at which the next service is due. Use buttons A or B to adjust this setting, noting that adjustments can only be made in 50 hour steps.
What are the replacement specifications for anti-roll bar bushes?
The manual does not provide specific replacement specifications for anti-roll bar bushes. It references "Rear Anti-roll Bar Ball Joints" in the greasing section (page 212) and "Rear Anti-roll Bar Condition and Torque Tightness" in the service schedules (page 192), indicating these components should be inspected and torque-checked at service intervals. For replacement specifications, consult your JCB dealer.
What format is this manual in?
Instant PDF download. You get the full 293-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
This PDF is completely DRM-free with no print restrictions. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works fine.
Document Quality

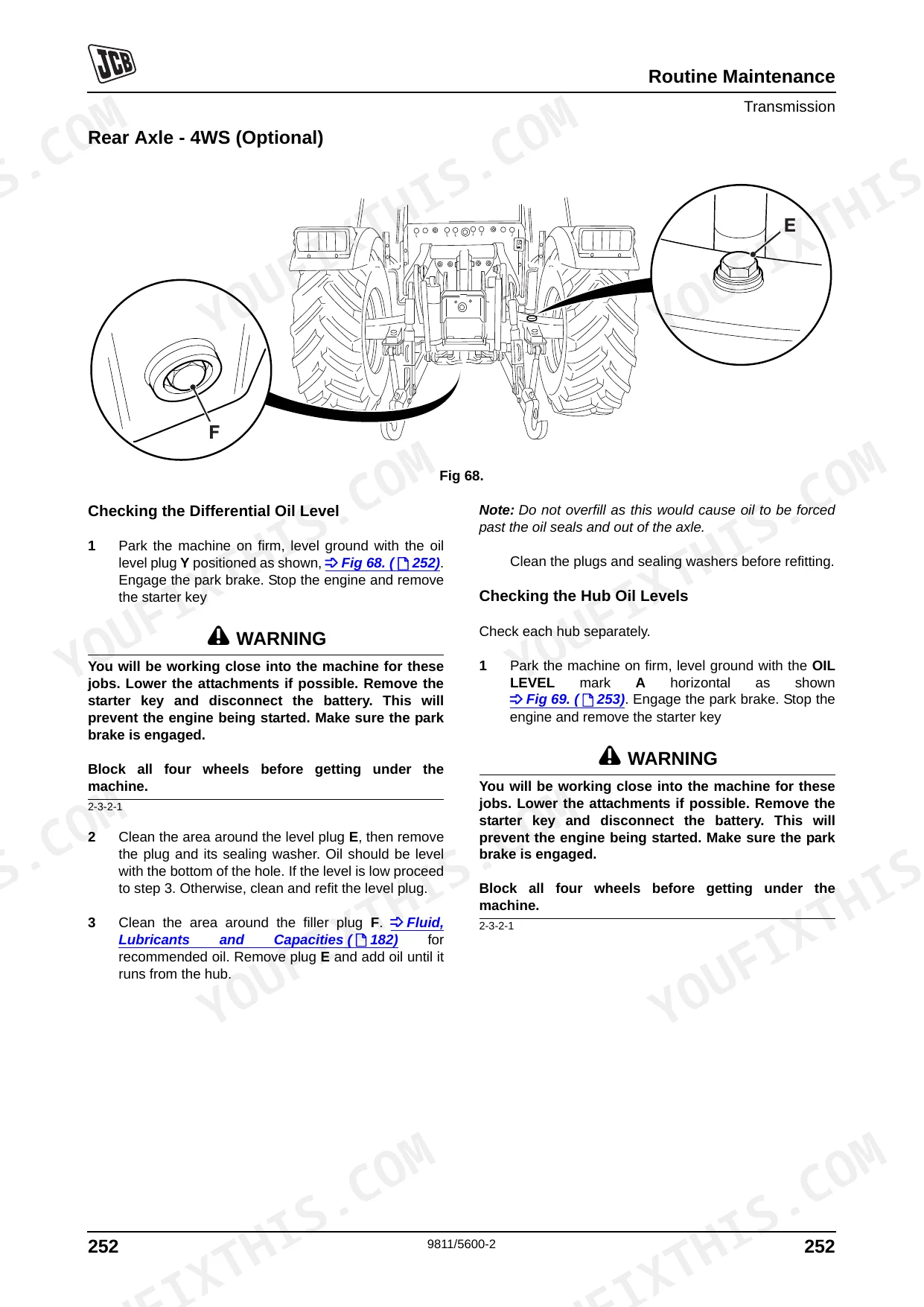

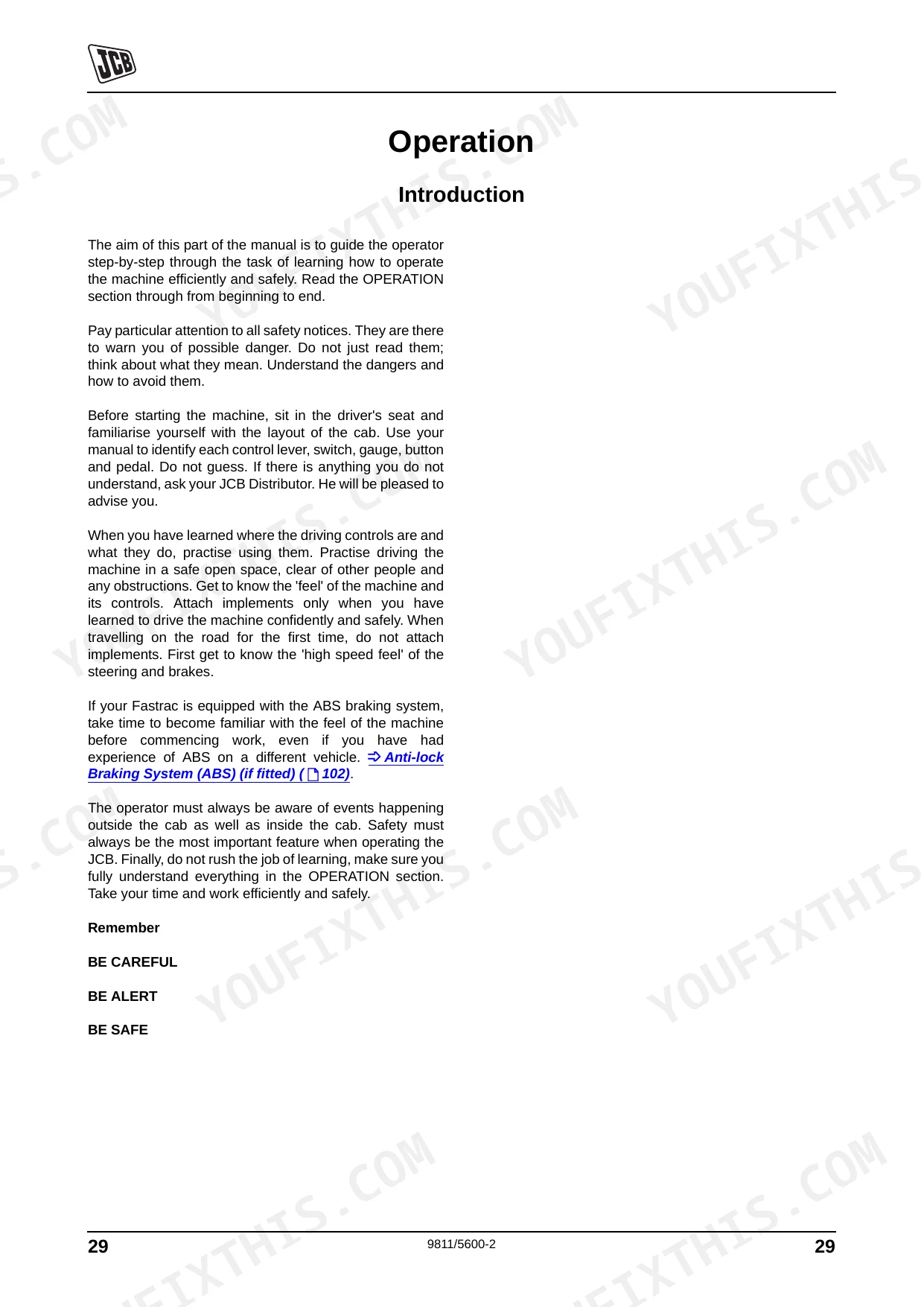

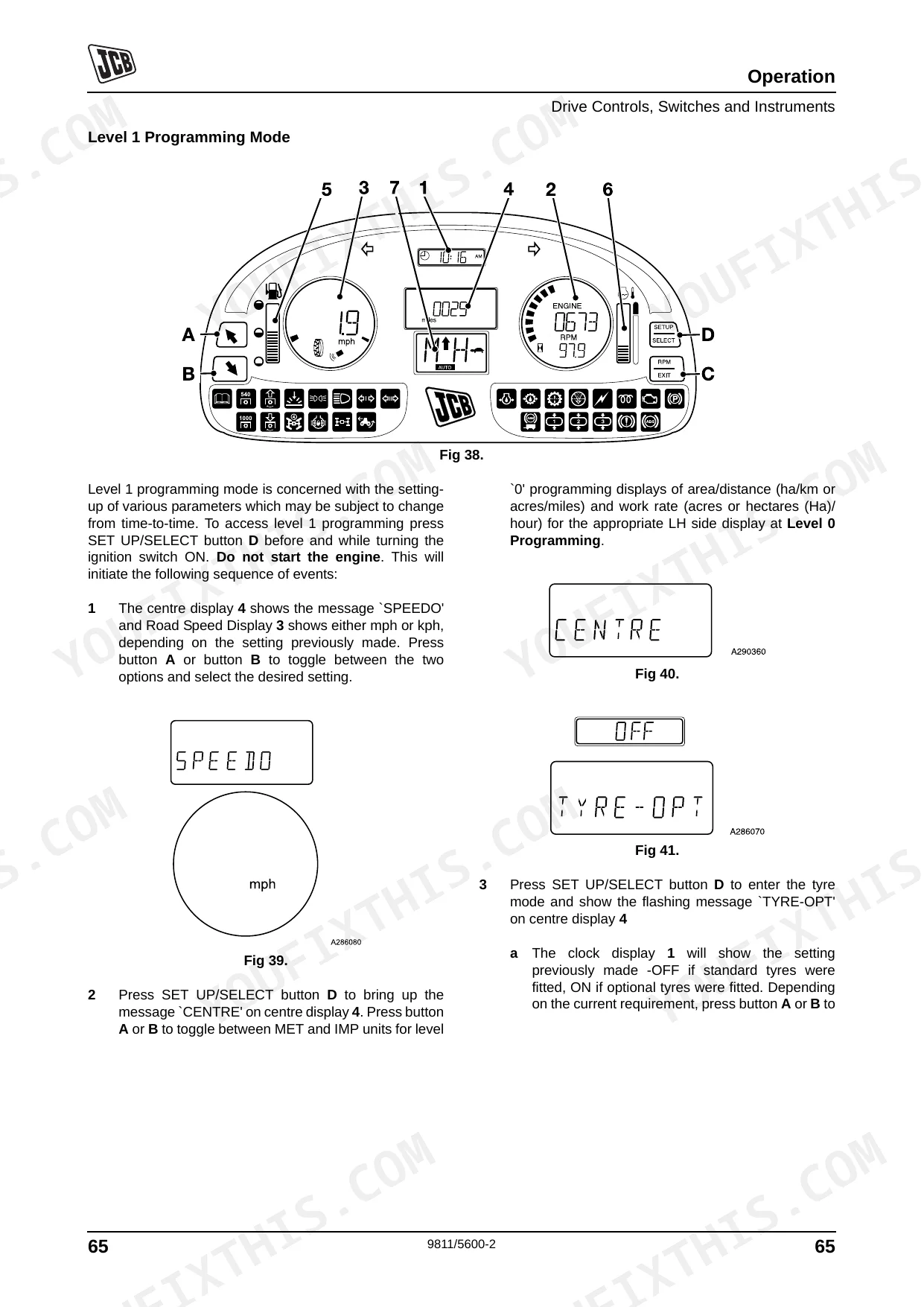

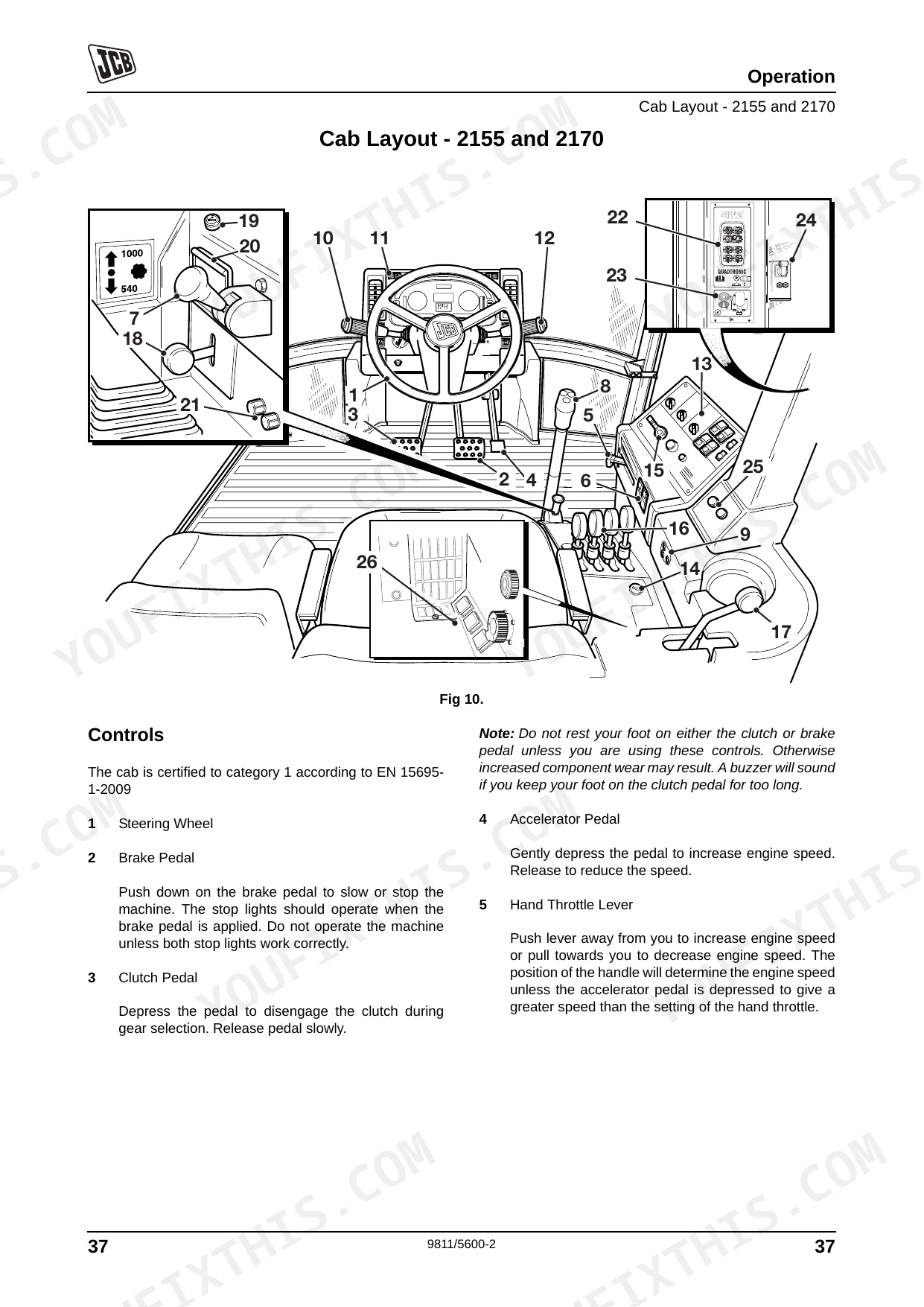

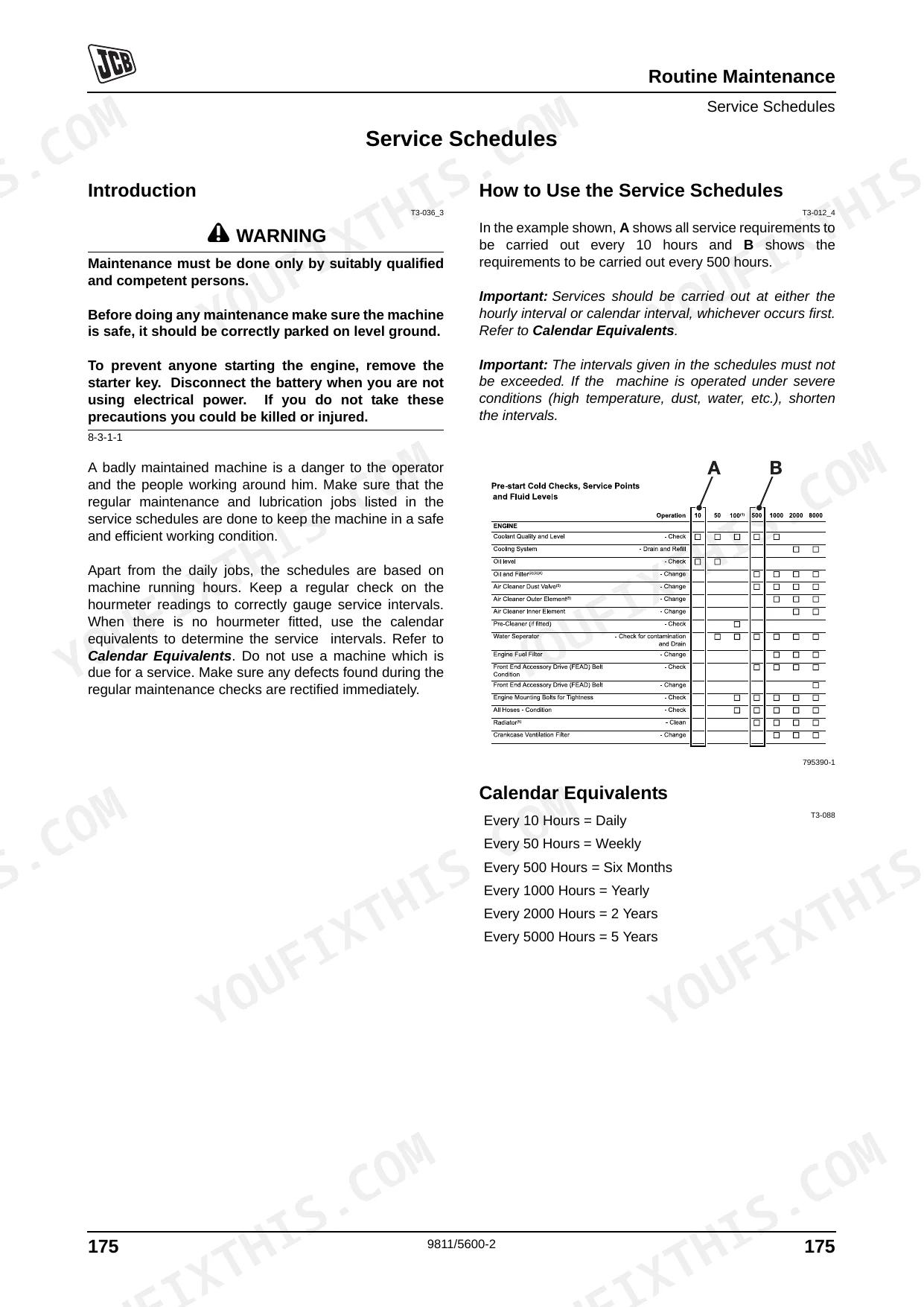

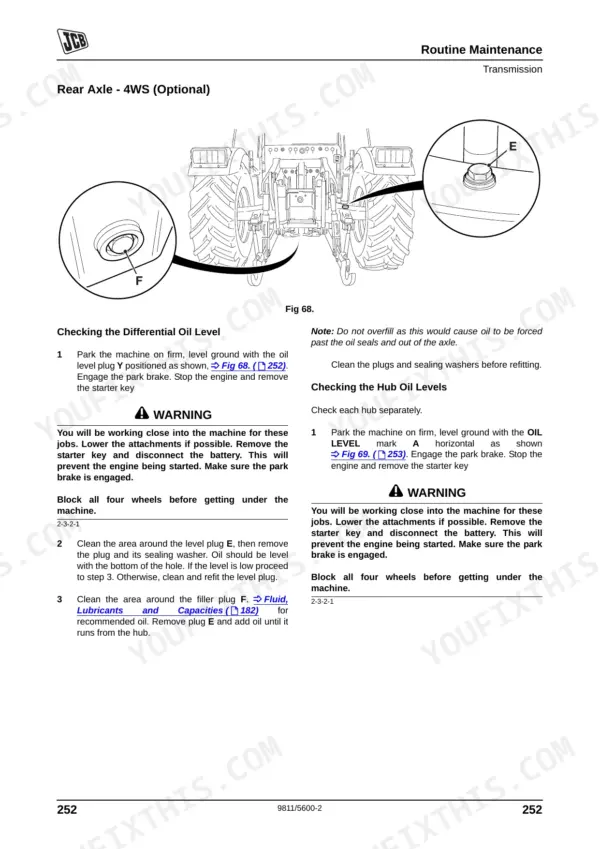

This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text quality is generally good and readable, though not as crisp as a native digital document. All diagrams and illustrations are raster images, but their labels and details are clear and easy to understand. The pages are clean, with no noticeable scan artifacts, stains, marks, or skewing. Several pages throughout the document are intentionally left blank, as indicated within the manual.
