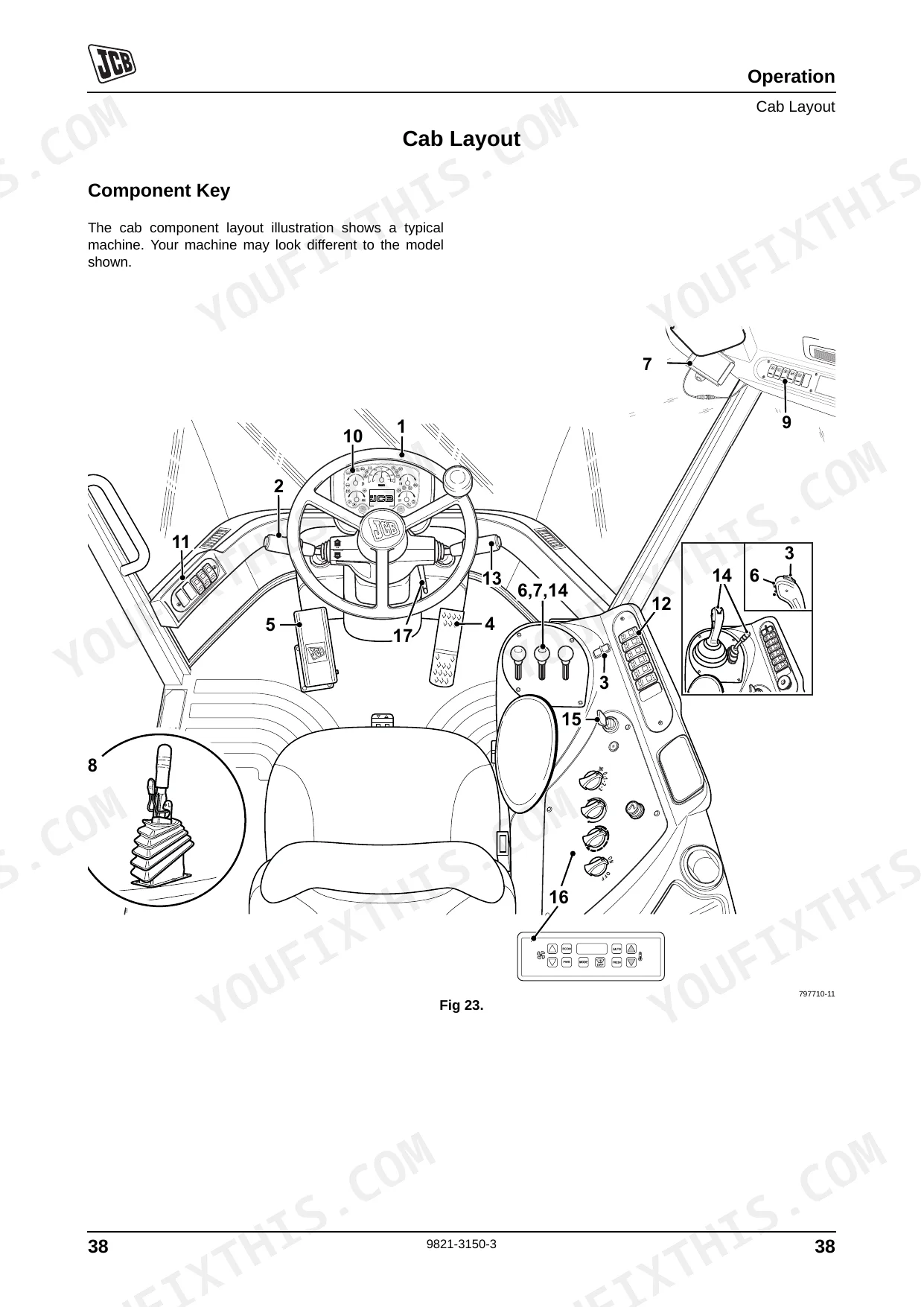

Getting your 2012-2013 wheeled loader ready for a heavy shift starts with the factory procedures inside this 236-page JCB 427, 435S, 437 operator manual PDF (OEM #9821-3150). You get complete daily maintenance schedules, detailed dashboard indicator guides, and exact fluid capacities to keep your machine running hot. Open up the routine service section to find thorough pre-start cold checks, cab layout diagrams, quickhitch control operations, and clear instructions for connecting auxiliary hydraulic hoses. Change the main fuel filters strictly every 500 hours and verify the front wheel nuts are tightened to exactly 600 Nm before hitting the job site. A delayed morning walkaround wastes valuable daylight. Download this bookmarked file directly to your phone or tablet, find your specific maintenance intervals instantly, and get the loader moving.
What's Inside This JCB 427, 435S, 437 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 9-10 | Important Information, Operator Manual, Safety Warnings |
| Introduction | 11-30 | About This Manual, Machine Description, Safety - Yours and Others, Operating Safety, Maintenance Safety, Safety Labels, Safety Label Identification, Part Numbers and Descriptions |
| Operation | 31-106 | Before Entering the Cab, Entering and Leaving the Cab, Emergency Exit, Doors and Windows, JCB Rear-View System (Option), Radar Detection System (Option), Cab Layout, Drive Controls |
| Routine Maintenance | 107-188 | Service Requirements, Fit for Purpose Tests for Lifting Equipment, Health and Safety, Battery, Service Schedules, Pre-Start Cold Checks, Service Points and Fluid Levels |
| Optional Attachments | 189-200 | Attachments for Your Machine, Connecting/Disconnecting Hydraulic Hoses, Quickhitch Control, Work Platforms |

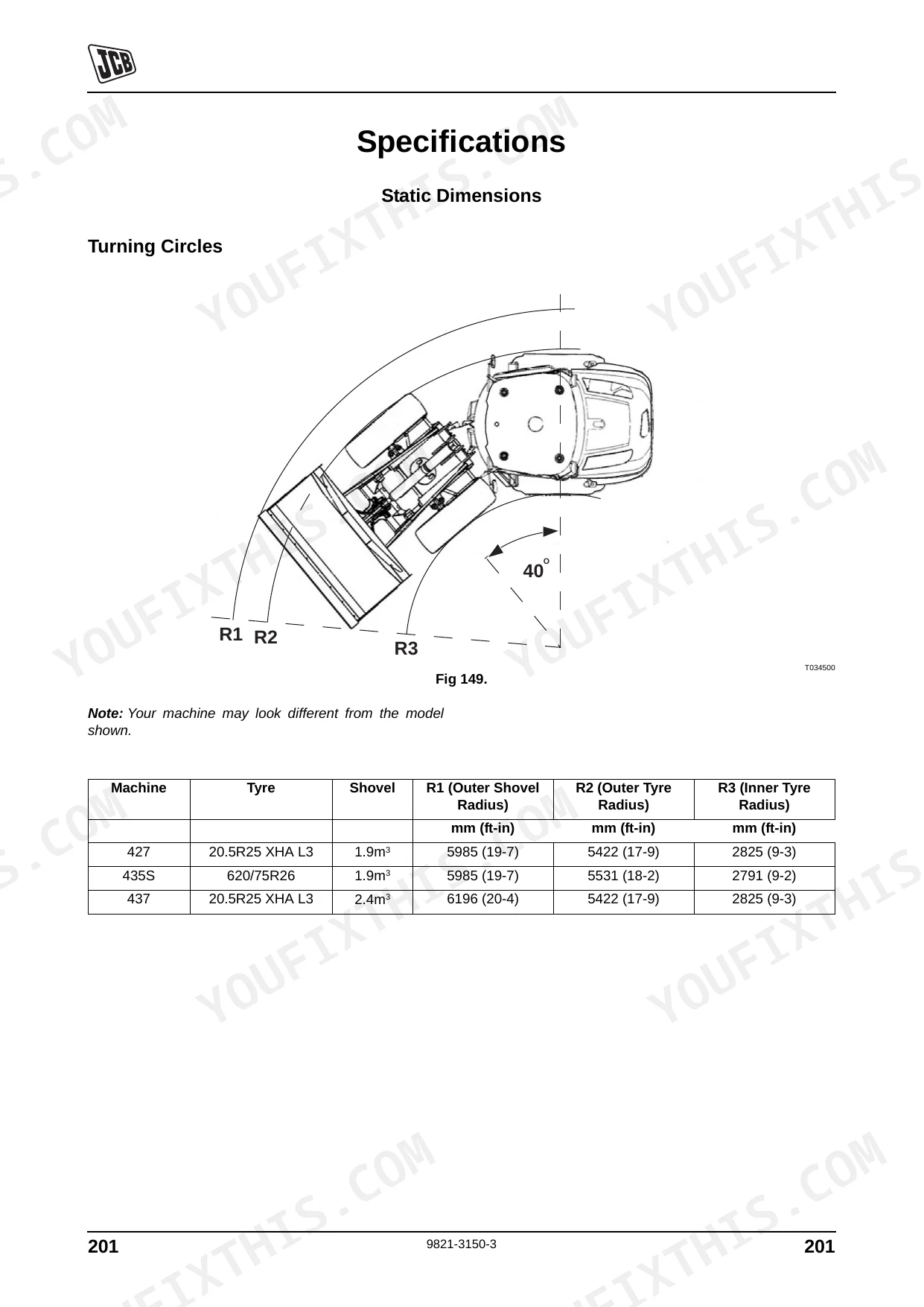

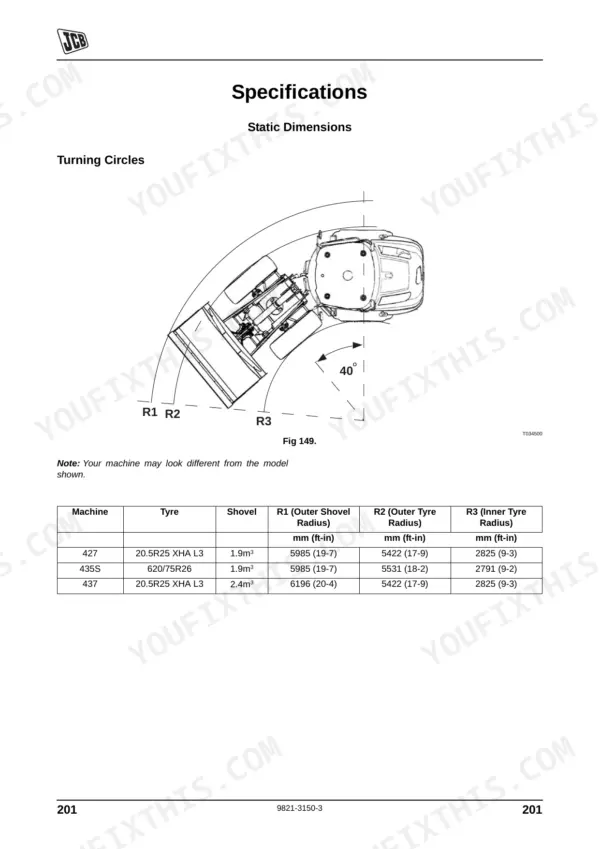

| Specifications | 201-218 | Static Dimensions, 427, 435S, 437, Working Capacity, Trailer Towing, Maximum Travel Speeds, Tyre Sizes and Pressures |
| Warranty Information | 219-222 | Machine Service Record Sheet, Registration Information |
| European Community Standards | 223-236 | Ec Declaration of Conformity, Explanation of the Ec Declaration of Conformity |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| ROPS/FOPS Mounting Bolts Torque | 330 Nm (243 lbf ft) | p. 143 |
| Wheel Nut Torque (Front) | 600 Nm (443 lbf ft) | p. 195 |
| Operator Manual replacement condition | immediately if it is lost, damaged or becomes unreadable | p. 9 |
| Battery electrolyte level above plates | 6 mm (1/4 in) | p. 161 |

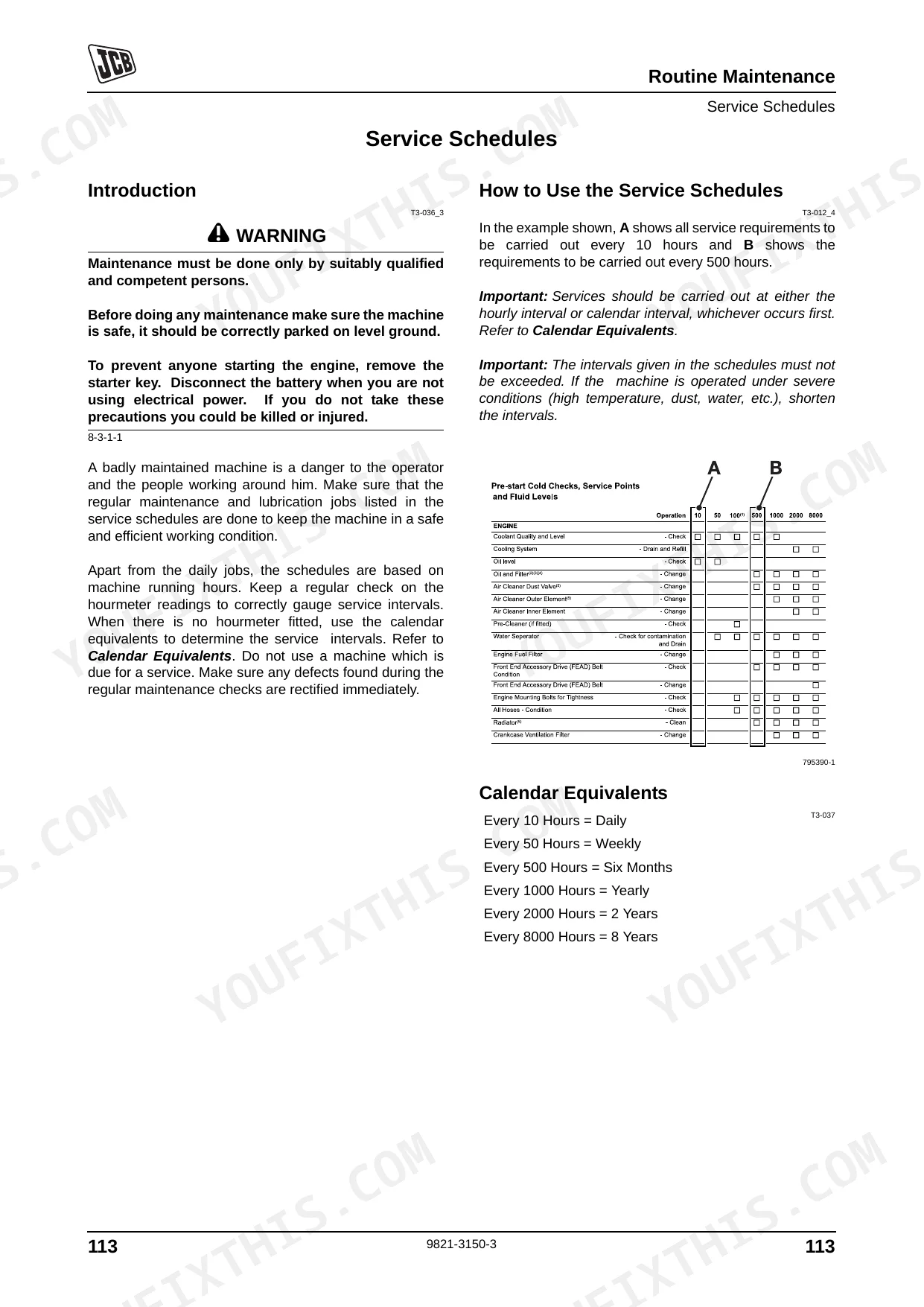

| Fuel Filters change interval | 500 hours | p. 123 |
| Engine Oil Capacity | 18 L (3.95 Gal) | p. 211 |
| Engine Coolant Capacity | 35 L (7.7 Gal) | p. 215 |
| Hydraulic System Capacity | 210 L (46.2 Gal) | p. 7 |
| 427 | ||
| Gearbox Capacity | 30 L (6.6 Gal) | p. 186 |
| 435S, 437 | ||
| Gearbox Capacity | 36 L (7.9 Gal) | p. 217 |
JCB 427, 435S, 437 Common Problems This Manual Covers
JCB 427, 435S, or 437 engine won't start or turns over intermittently in cold weather p. 161
Inspect the battery on page 161 to ensure electrolyte levels are 6 mm (1/4 in) above the plates. Wait for the pre-heat lamp to turn off before cranking. Do not operate the starter motor for more than 10 seconds without the engine firing as noted on page 54.
Manual Section: Routine MaintenanceEngine hesitates, runs rough, or lacks power during heavy material loading work p. 114
Replace the fuel filters every 500 hours as outlined on the maintenance schedule on page 114. Drain the water separator daily before operation. Bleed the system using the manual priming handle until pressure builds up and all trapped air releases from the lines.
Manual Section: Routine MaintenanceCab structure heavily rattles or feels loose when driving over rough job site terrain p. 143
Inspect the ROPS/FOPS structure for visible damage or missing hardware. Torque the mounting bolts to 330 Nm (243 lbf ft) as specified on page 143. Check all safety labels and replace the operator manual immediately if it is lost, damaged, or unreadable.
Manual Section: Routine MaintenanceClicking or popping noise from the wheels during tight turns or heavy lifting p. 195
Inspect the tyres for distortion, deep cuts, or embedded objects before each shift. Torque all front and rear wheel nuts to 600 Nm (443 lbf ft) using the specifications on page 195. Verify daily tyre pressures match the load requirements for safe travel.
Manual Section: Optional AttachmentsLoader arms lift slowly or fail to reach full height during operation p. 7
Check the hydraulic oil sight glass during daily pre-start cold checks. Top off the fluid if low — the total hydraulic system capacity is 210 L (46.2 Gal). Inspect all hydraulic hoses for chafed or ballooned covers.
Manual Section: Routine MaintenanceFrequently Asked Questions
How do I reset the service light on a JCB 427?
The manual does not explicitly mention a 'service light' reset. However, the 'Operator Menu' (page 62, Table 14) contains values like 'Engine run time since the last reset' and 'Distance travelled in km or miles since the last reset'. These values can be reset by pushing and holding the P1 button for three seconds to enter the menu, then selecting the 'Reset' option.
How do I reset fault codes on a JCB 435S?
The manual does not provide a procedure for an operator to 'reset' fault codes. However, it describes how to acknowledge warning events: 'Push and release the P1 button within three seconds to acknowledge the oldest buzzer warning event' (page 55). If there are multiple warning events, the button needs to be pushed the corresponding number of times.
What do JCB 437 error codes mean?
The JCB 437 error codes, referred to as fault codes, are listed in Table 13 'Fault Symbols and Codes' on page 61. This table provides descriptions for various fault symbols and their corresponding fault codes, such as 'Fault condition 1922' or 'Fault condition 2369'.
How do I reset the transmission calibration on a JCB 435S?
To perform an automatic transmission calibration on a JCB 435S, the manual states that this procedure 'should only be done by a trained JCB service engineer' (page 63). This indicates it is not an operator-level task.
JCB 437 error code list
Table 13 on page 61 lists the complete set of JCB 437 fault symbols and codes. Each entry pairs a fault symbol icon with a numeric fault code and a brief description. Examples from the table include Fault condition 1922 and Fault condition 2369. Bring this page to any JCB dealer or trained engineer for fast code identification.
Is this JCB 427, 435S, 437 Operator Manual a digital download?
This is a 236-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this JCB 427, 435S, 437 Operator Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text throughout. The text is consistently crisp and easy to read across all pages. Diagrams and illustrations are raster images, but they are clear with readable labels, even when zoomed in. The pages are generally clean, with no significant scan artifacts, stains, or skewed content. You will find a few "Page left intentionally blank" filler pages as part of the original document structure.
