Spanning 282 pages, this 2015-2016 JCB 427, 435S, 437 Operator Manual PDF (OEM #9831/1600) outlines the precise daily maintenance and operating procedures for your wheel loader. Inside, you get a complete breakdown of the operator station, dashboard error codes, and strict maintenance interval schedules. Open to the operational sections to find step-by-step walk-around inspections, grease point locations, load charts, and detailed operating procedures. Verify your machine's fluid levels with absolute certainty, knowing the main hydraulic system takes exactly 240L, the engine oil pan holds 18L, and those front wheel nuts require a solid 600 N-m of torque. Stop relying on guesswork when an unknown warning light flashes on the dash. Grab this bookmarked file, pull it up on your phone right inside the cab, and keep your machine earning its keep.
What's Inside This JCB 427, 435S, 437 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 11-12 | Atc, CAN, Cesar, DEF, ECU, Etrto |
| Introduction | 13-18 | Safety |
| About the Product | 19-38 | Description (General, Intended Use, Log Moving/Object Handling, Optional Equipment and Attachments, Danger Zone, Main Component Locations) |

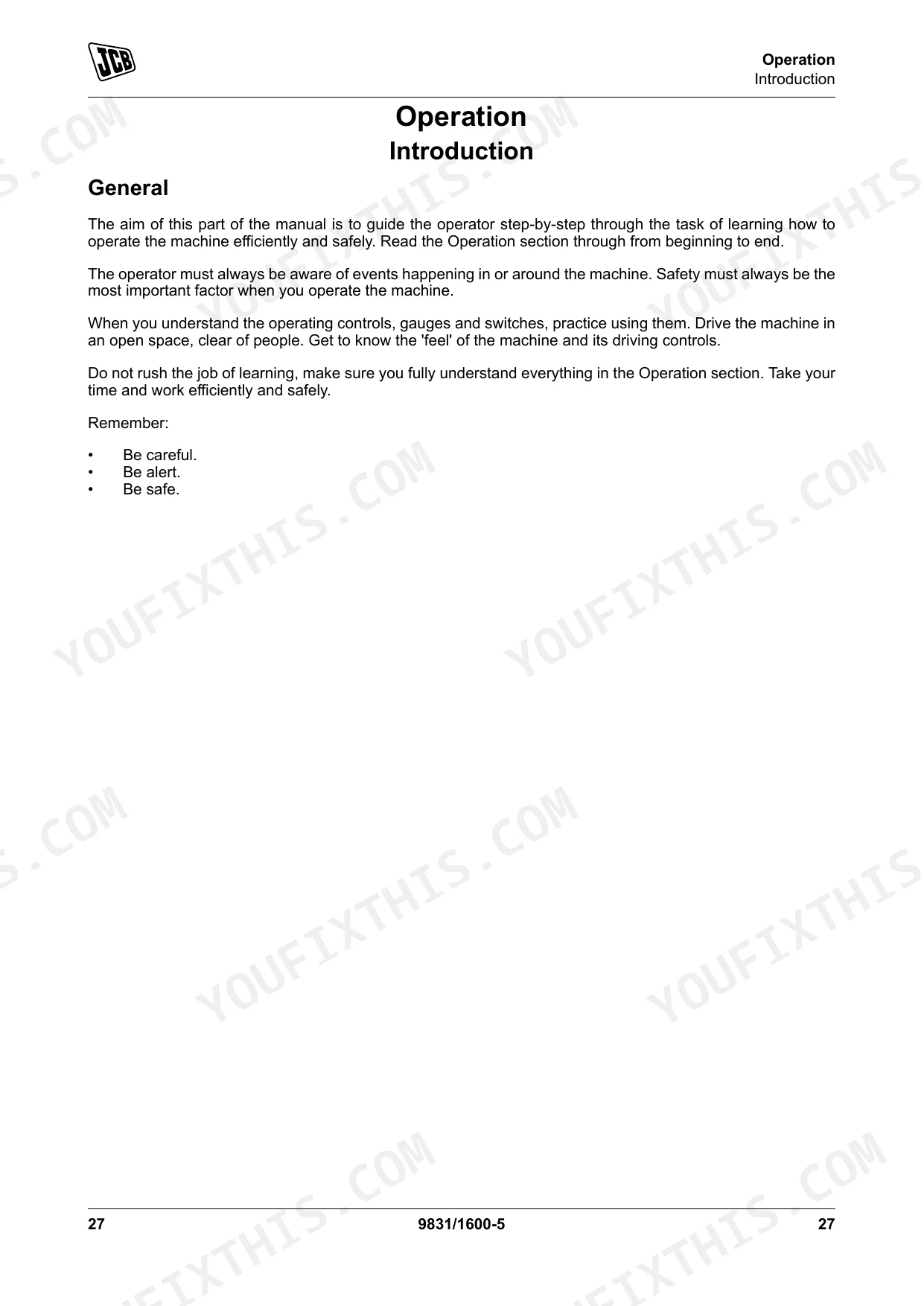

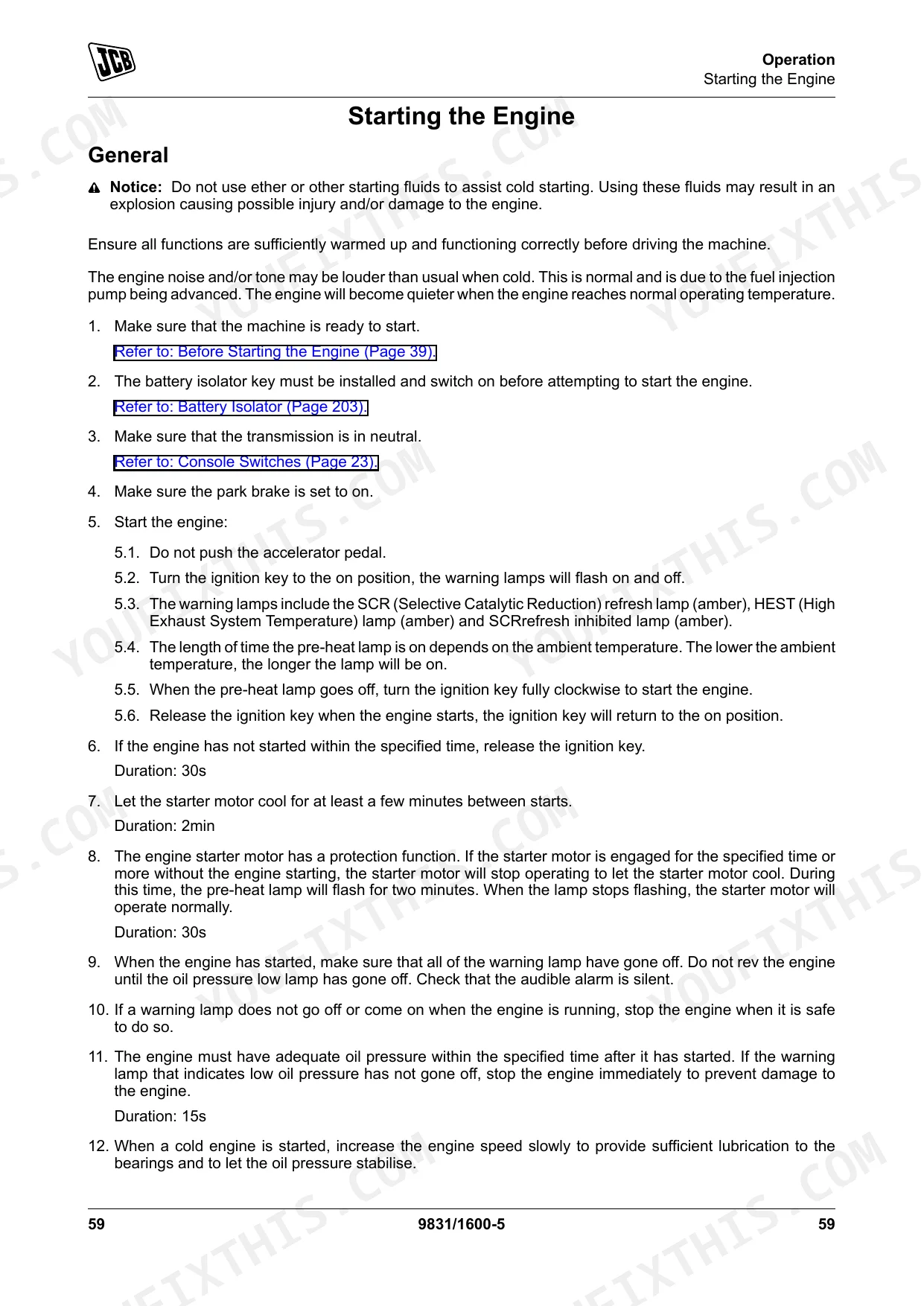

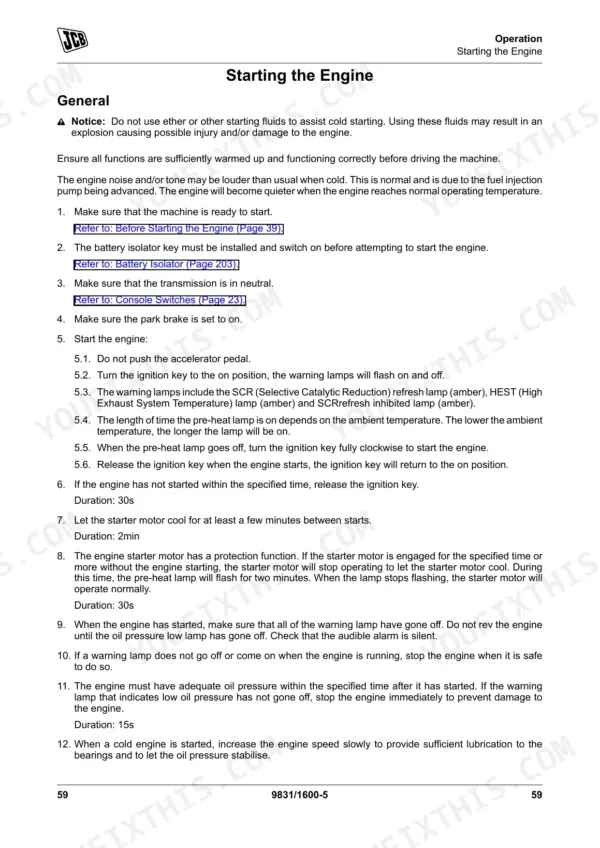

| Operation | 39-144 | Operating Safety (General, Worksite Safety, Risk Assessment), Walk-Around Inspection (General), Entering and Leaving the Operator Station (General, Emergency Exit) |

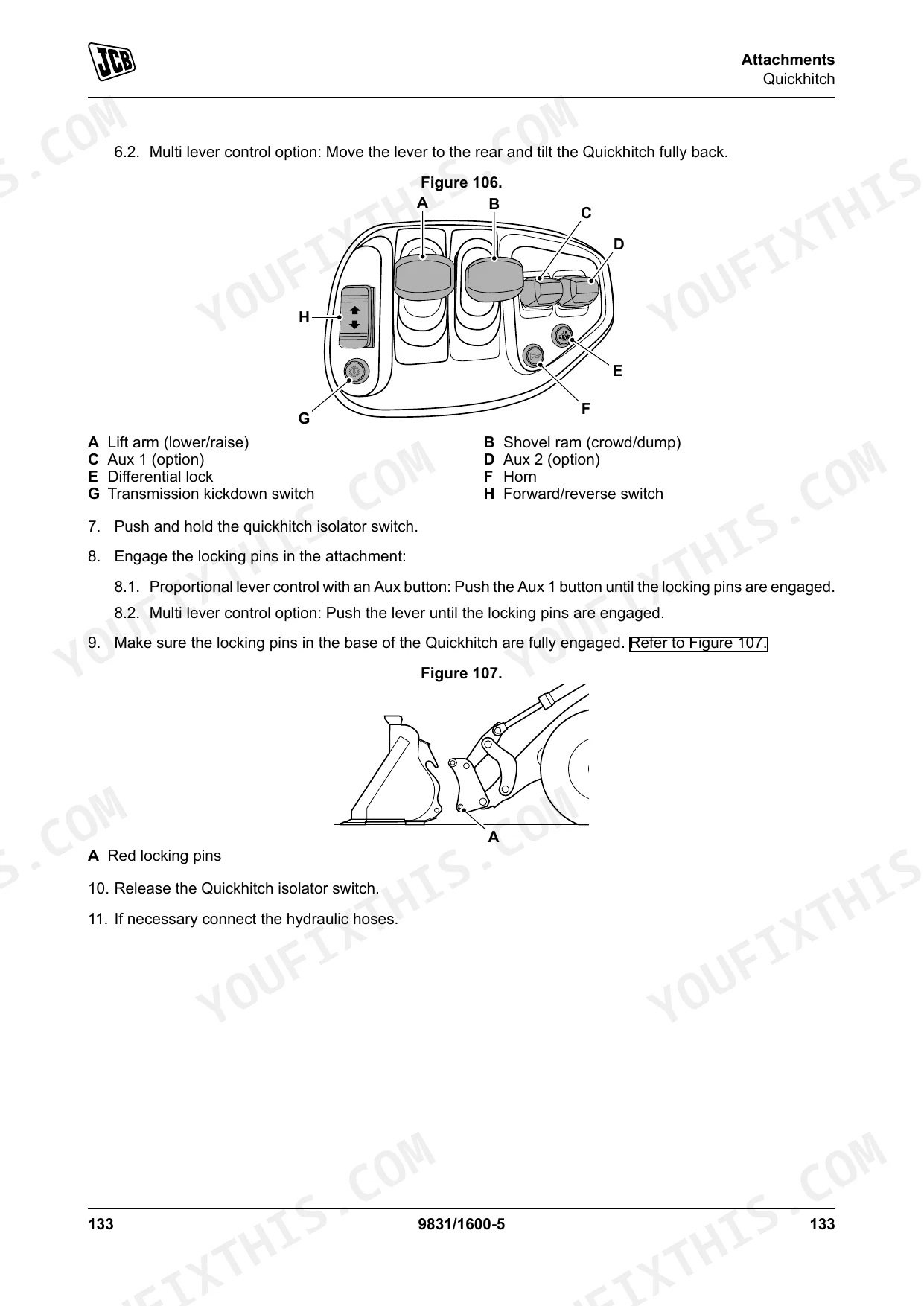

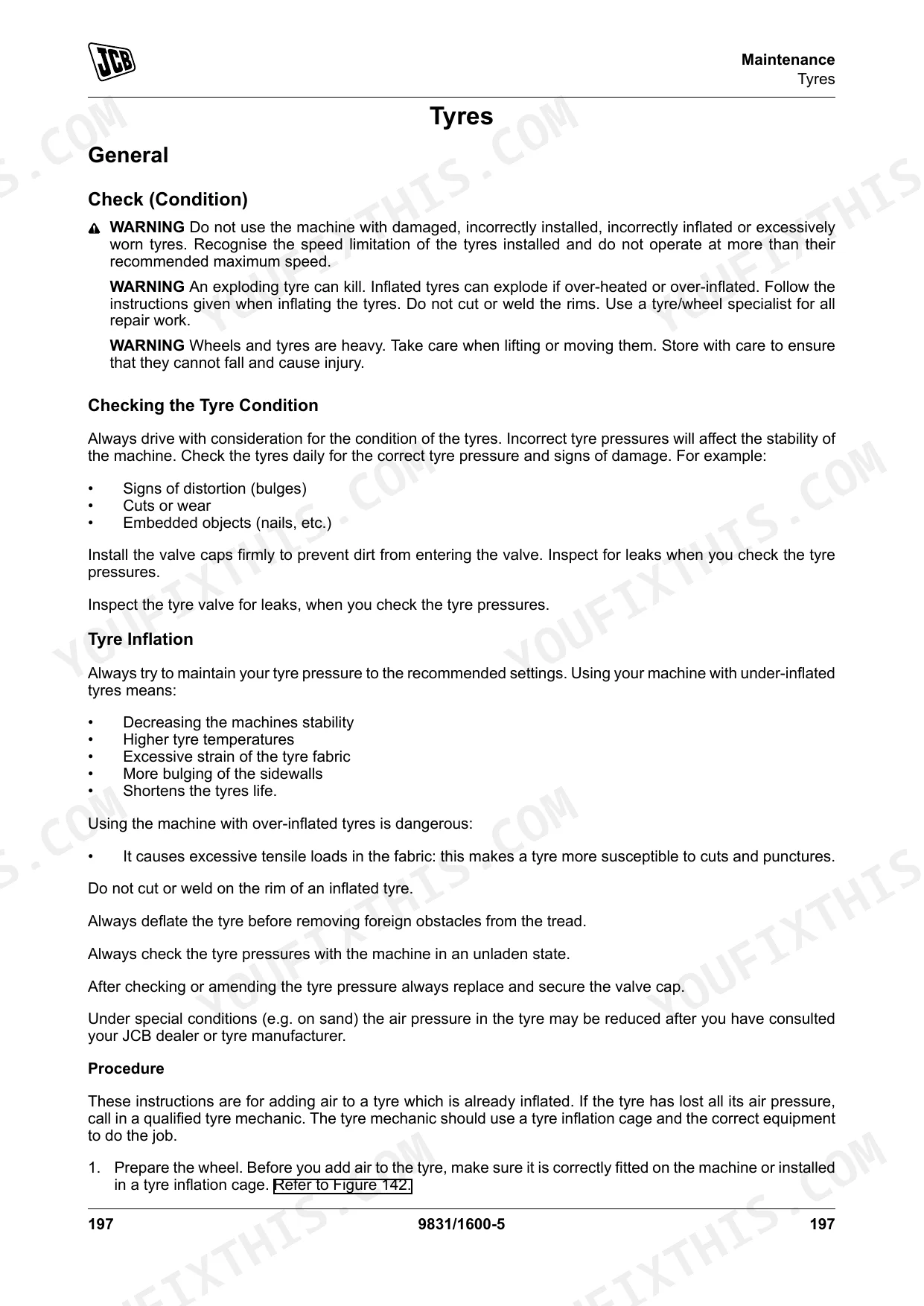

| Maintenance | 145-282 | Maintenance Safety, Maintenance Schedules, Maintenance Positions, Service Points, Access Apertures, Engine, Fuel System, Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine oil capacity | 18L | p. 5 |
| Hydraulic system capacity | 240L | p. 252 |
| Transmission oil capacity | 41L | p. 6 |
| Front axle oil capacity | 35L | p. 240 |
| Rear axle oil capacity | 35L | p. 240 |
| 427 [T4F], 437 [T4F] | ||
| Whole-body vibration emission (loader work soil) | 0.42m/s² | p. 254 |
| 435S [T4F] | ||
| Whole-body vibration emission (loader work soil) | 0.44m/s² | p. 255 |
JCB 427, 435S, 437 Common Problems This Manual Covers
JCB 427 intermittent shutdown or sudden stalling during operation under heavy load
Check the error code reference for fuel or electronic system faults. Inspect the 24V electrical harness for loose connections. Verify transmission oil level is maintained at the 41L capacity shown on page 6. Drain any accumulated water from the fuel separator daily.
Manual Section: OperationWarning light flashing on dashboard after startup with no immediate loss of power p. 30
Review the operator controls layout on page 30 to identify the specific warning indicator. Check the engine oil dipstick to ensure the 18L system capacity is full. Inspect the DEF tank level and verify all sensor connectors are free of debris before resuming work.
Manual Section: About the ProductVisible fluid loss under the lift arms and cloudy oil in the sight glass p. 252
Inspect the lift cylinder hoses for external damage and loose fittings. Verify the hydraulic system fluid level against the 240L capacity specification on page 252. Drain the system if water contamination is present and refill with approved fluid according to the maintenance schedule on page 145.
Manual Section: MaintenanceDaily walk-around inspection reveals loose fasteners around the front axle and wheels p. 252
Torque the front wheel nuts to 600 N·m as specified on page 252. Check the axle housing for leaks. Verify the front axle oil level is topped up to the 35L capacity shown on page 240. Tighten the axle fill plug to the torque specified in the maintenance section.
Manual Section: MaintenanceFrequently Asked Questions
What are the replacement specifications for Hydraulic hoses and seals?
For hydraulic hoses, replacements must be of the same size, standard, and pressure rating. If you need more information, contact your JCB dealer. For 'O' rings, seals, and gaskets, they should be renewed whenever disturbed unless otherwise instructed, as badly installed, damaged, or rotted components can cause leakages and accidents.
How do you fix JCB 427 intermittent shutdown or sudden stalling during operation under heavy load?
Check the error code reference for fuel or electronic system faults. Inspect the 24V electrical harness for loose connections. Verify transmission oil level is maintained at the 41L capacity shown on page 6. Drain any accumulated water from the fuel separator daily.
How do you fix warning light flashing on dashboard after startup with no immediate loss of power?
Review the operator controls layout on page 30 to identify the specific warning indicator. Check the engine oil dipstick to ensure the 18L system capacity is full. Inspect the DEF tank level and verify all sensor connectors are free of debris before resuming work.
How do you fix visible fluid loss under the lift arms and cloudy oil in the sight glass?
Inspect the lift cylinder hoses for external damage and loose fittings. Verify the hydraulic system fluid level against the 240L capacity specification on page 252. Drain the system if water contamination is present and refill with approved fluid according to the maintenance schedule on page 145.
Is this JCB 427, 435S, 437 Operator Manual a digital download?
This is a 282-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this JCB 427, 435S, 437 Operator Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a scanned PDF, not a native digital file. An OCR layer is present, allowing you to search and copy the full text, which appears crisp and easy to read throughout. All diagrams and illustrations are raster images, but they are consistently clear with readable labels, even when zoomed in. Pages are generally clean with no noticeable scan artifacts, stains, or skewed content. There are a few blank "Notes" pages and a blank page 2, which serve as filler.
