The JCB 406, 407, 409 Wheeled Loader Operator Manual (OEM #9821-9350-5) runs 228 pages, built to keep your compact loader working and your operator safe. It opens with step-by-step operating procedures, then routine maintenance, pre-start cold checks, and a service schedule that runs from 100 hours out to 10,000. There are error codes and troubleshooting steps, machine specifications for all three models, load charts, and optional attachment procedures. Engine oil fills to a 12-litre capacity; wheel nuts torque to 450 Nm (330 lbf ft), straight from the factory rather than a forum guess. With the loader down and the clock running, download the bookmarked PDF, open it on your tablet, and walk out to the machine.
What's Inside This JCB 406, 407, 409 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 13-14 | Important Information, Operator Manual, Safety Warnings |

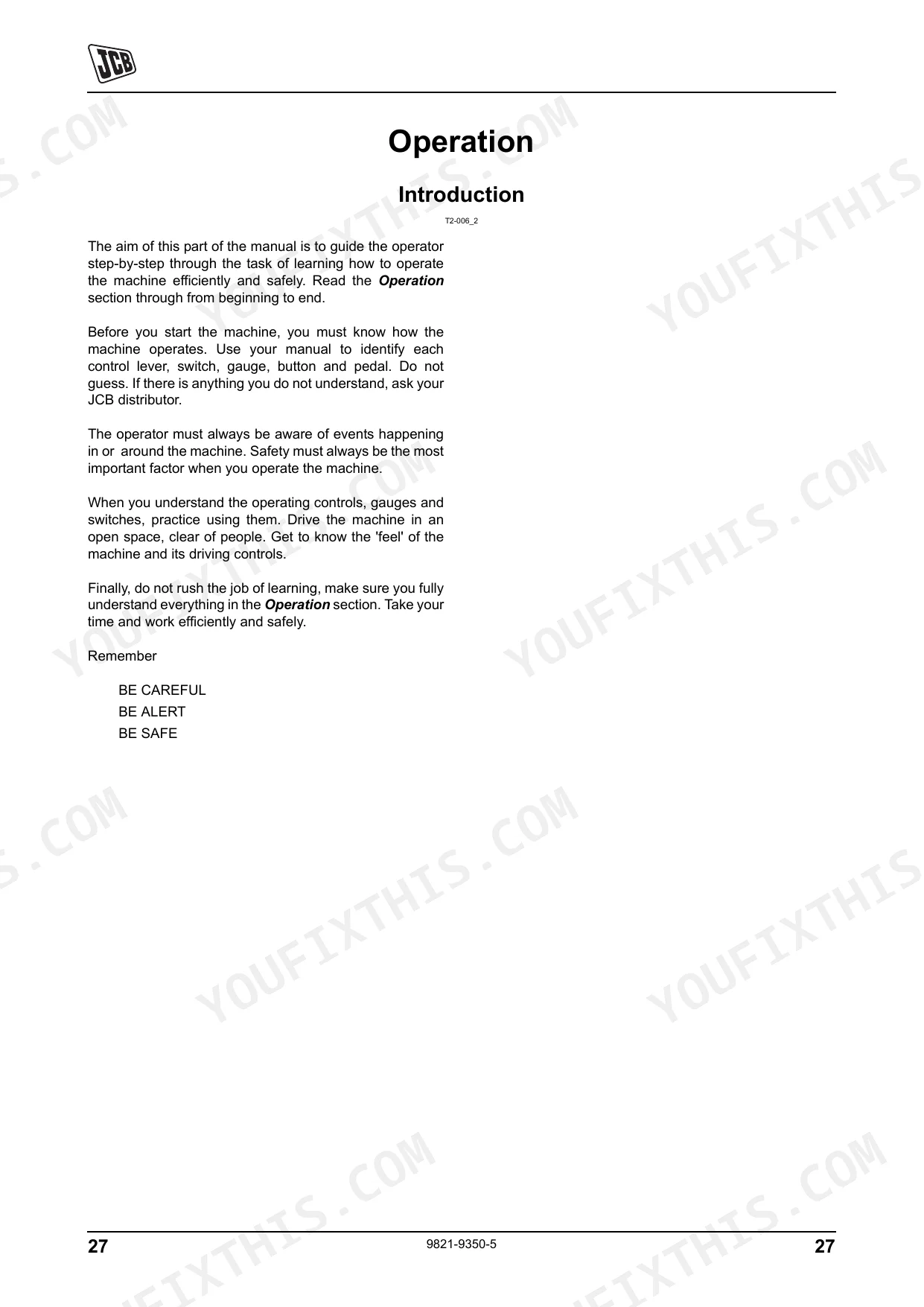

| Operation | 39-112 | Seat Belts (Inertia Reel Seat Belt, Fasten the Seat Belt, Check the Seat Belt Is Operating Correctly, Release the Seat Belt) |
| Moving a Disabled Machine | 113-126 | Storage of the Machine (Introduction, Storage Area, Prepare the Machine for Storage, Put the Machine Into Storage, During Storage, Take the Machine Out of Storage) |

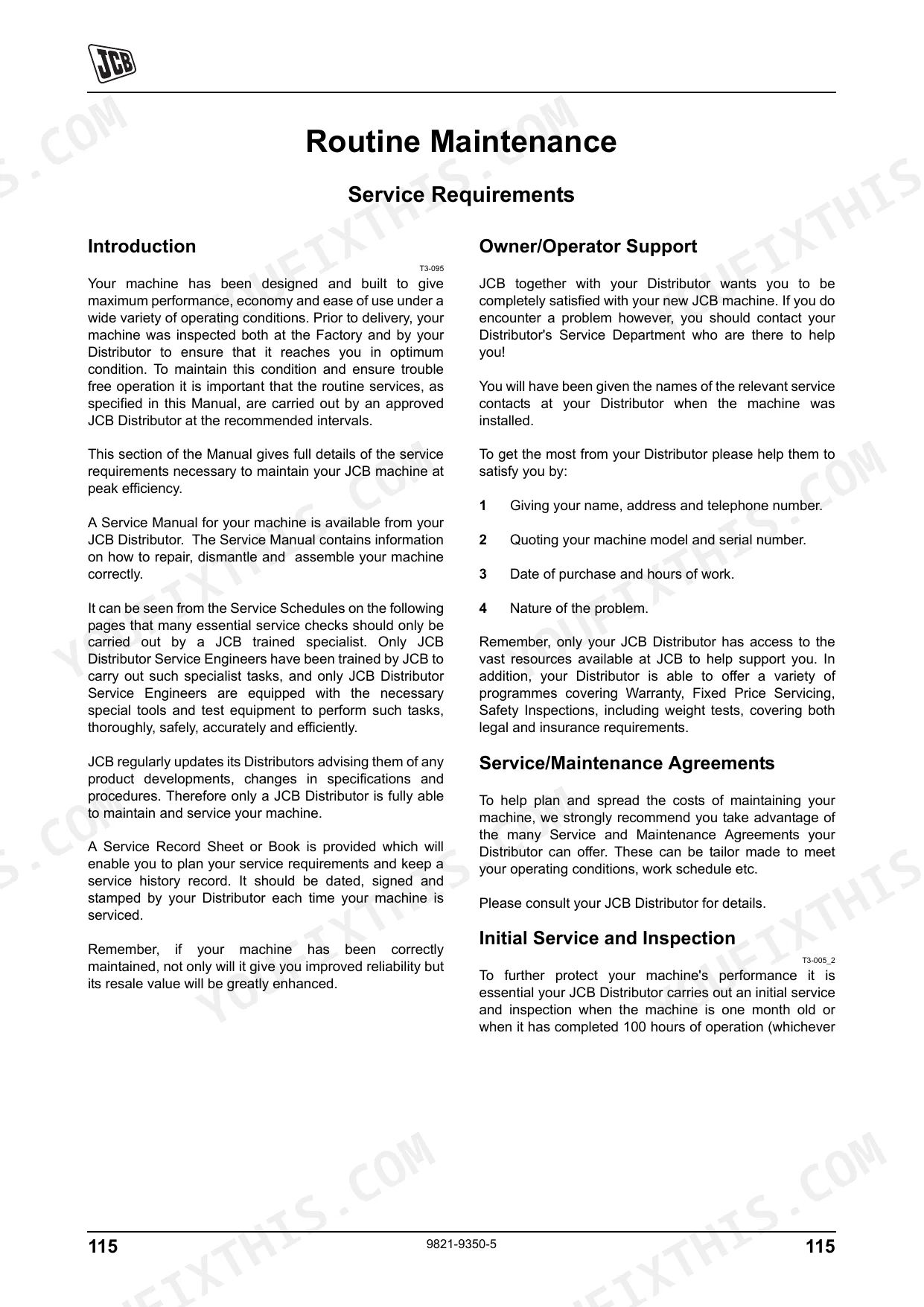

| Routine Maintenance | 127-194 | Fluids, Lubricants and Capacities (Specifications, Fuels, Acceptable and Unacceptable Fuels, Fuels for Low Temperatures, Biodiesel Fuel) |
| Optional Attachments | 195-202 | Tyre Sizes and Pressures (Introduction, & 407 Machine Tyre Pressures, Machine Tyre Pressures), Stopping Distance, Noise Data (Introduction, All Machines) |
| Specifications | 203-220 | Vibration Data (Introduction, Minimising Exposure to Vibration, 406, Machine Operating Duties, 407, 409), Towing (Machines, & 409 Machines) |
| Warranty Information | 221-224 | Machine Service Record Sheet, Installation Checklist, 1st 100 Hrs./2 Weeks, 500 Hrs./3 Month, 1000 Hrs./6 Month, 1500 Hrs./9 Month, 2000 Hrs./12 Month, 2500 Hrs./15 Month |
| European Community Standards | 225-228 | Ec Declaration of Conformity, Introduction, Declaration of Conformity |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Nut Torques (Front) | 450 Nm (330 lbf ft) | p. 191 |
| Wheel Nut Torques (Rear) | 450 Nm (330 lbf ft) | p. 191 |
| Engine Oil Capacity (Maximum) | 12 Litres | p. 140 |
| Engine Coolant Capacity | 16 Litres | p. 140 |
| Hydraulic System Capacity | 70 Litres | p. 140 |
| Front Axle Oil Capacity (Includes Hubs) | 4.4 Litres | p. 140 |
| Rear Axle Oil Capacity (Includes Hubs and Drop-Box) | 6.05 Litres | p. 140 |
| Wheel Nut Torque | 450 Nm (330 lbf ft) | p. 179 |
| ROPS/FOPS Mounting Bolts Torque | 200-210 Nm (147.5-155 lbf ft) | p. 152 |
| 406 | ||
| Fuse Ampere Ratings (Primary) | 50A, 40A | p. 170 |
| Fuse Ampere Ratings (Secondary - examples) | 3A, 5A, 7.5A, 10A, 15A, 20A | p. 170 |
| 407 & 409 | ||
| Maximum Trailer Weight | 3500 kg (7716 lb) | p. 219 |
JCB 406, 407, 409 Common Problems This Manual Covers
JCB 406/407/409 wheeled loader won't start or cranks intermittently at shift start
Confirm the battery isolator is fully engaged before any start attempt. Make sure the machine sits in neutral with the park brake applied, and the high-flow or constant-flow switch is OFF. If the engine still won't turn over, inspect the fuse and relay panel for blown fuses. In cold conditions, let the full preheat cycle finish before cranking. A discharged battery calls for the jump-start procedure.
Manual Section: Fuses and RelaysWarning lights stay on or flash after engine start, no obvious fluid issue

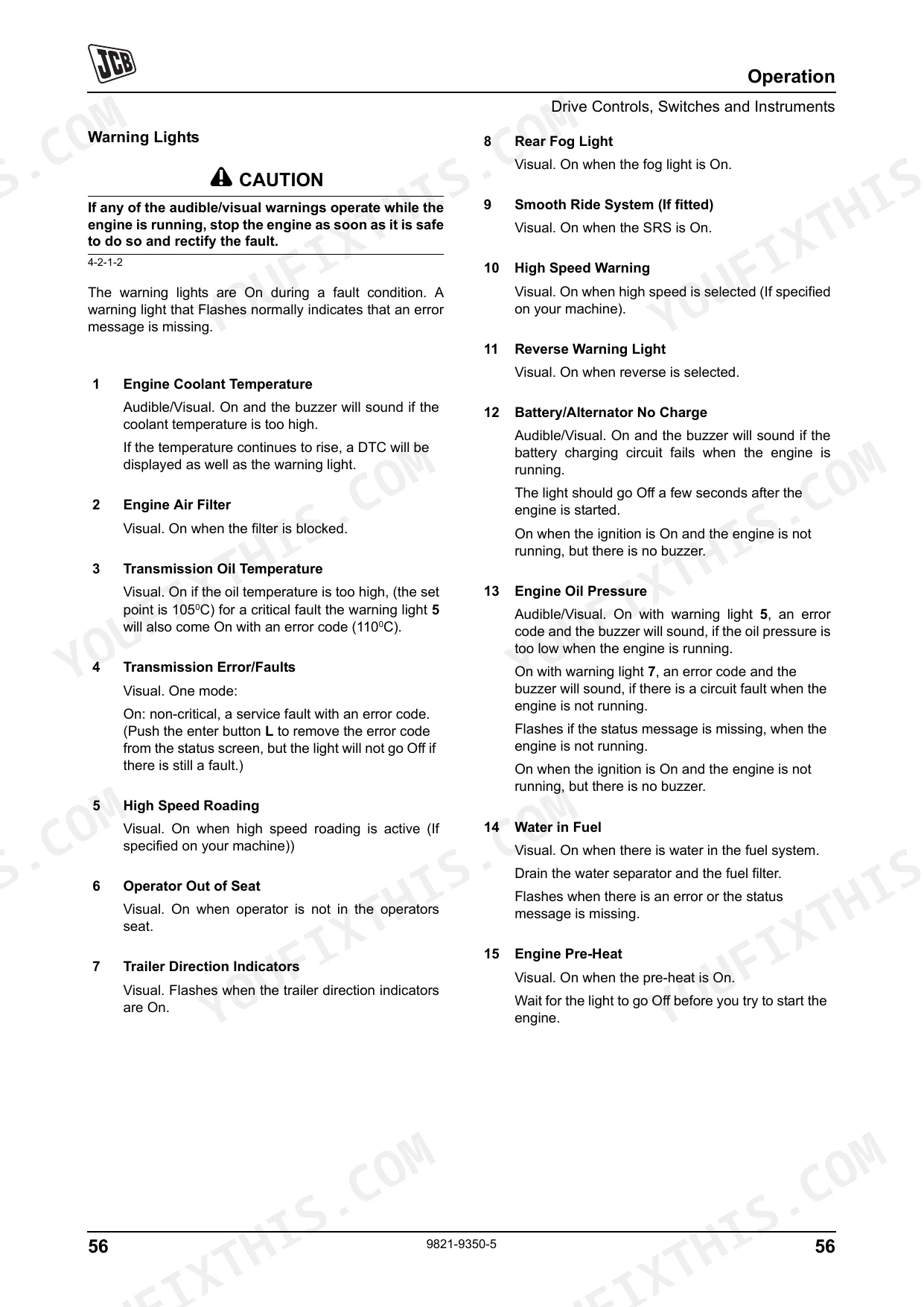

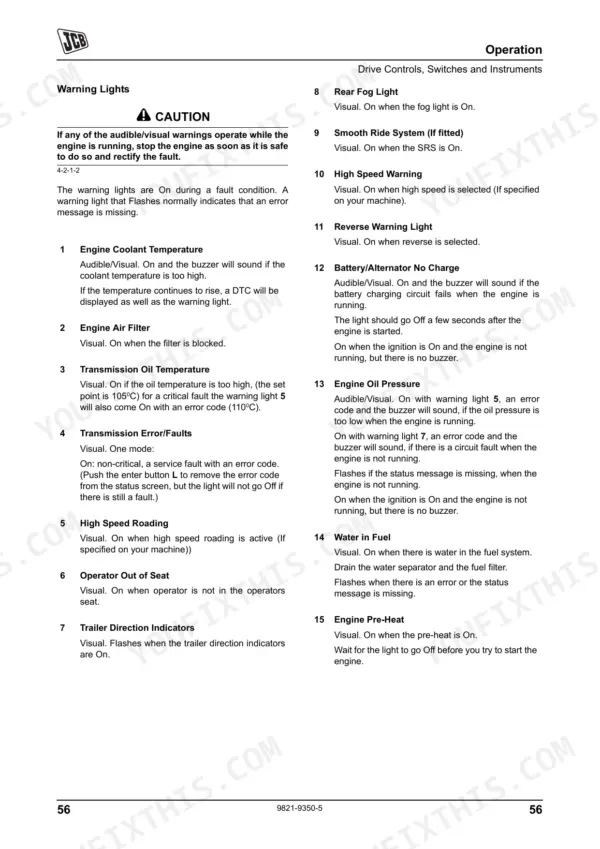

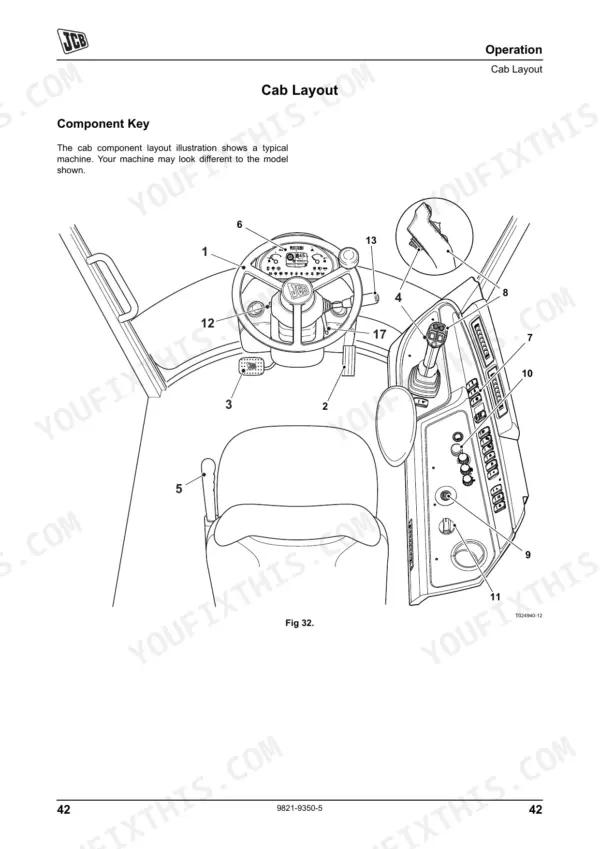

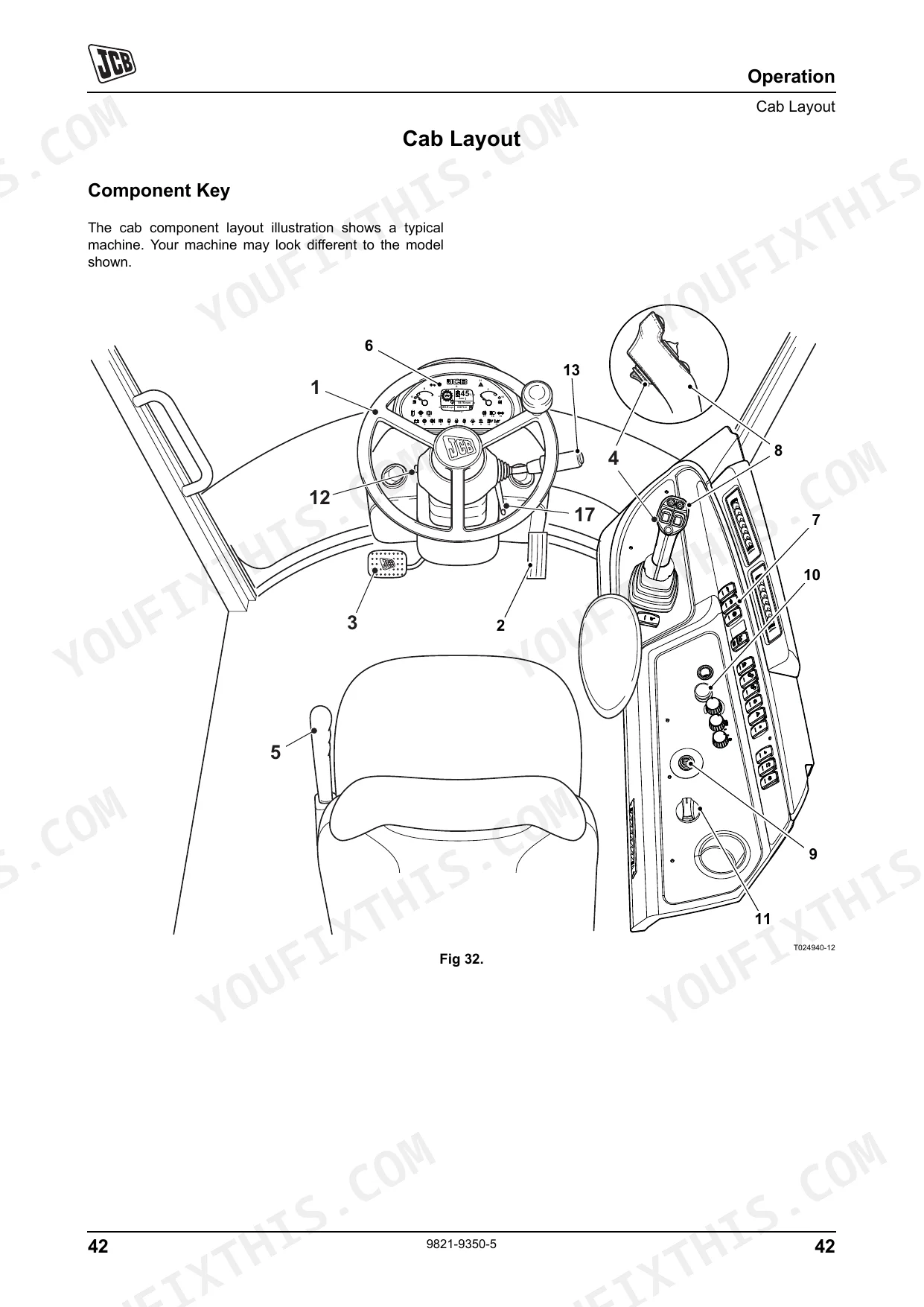

Read the operator controls layout to identify which indicator is lit, then cross-reference the troubleshooting procedures. Verify hydraulic oil sits between MIN and MAX on the sight glass (system capacity 70 litres) and engine oil is within its 12-litre maximum. If levels check out, inspect electrical connectors for corrosion or loose terminals before continuing operation.
Manual Section: OperationHydraulic functions feel weak, slow, or bucket response is jerky during loading p. 127
Shut down and check hydraulic fluid at the sight glass; top up to the MAX mark if it sits below minimum (total system capacity 70 litres). Inspect hydraulic hoses for kinks, chafing, or damage along the full run. Check the maintenance schedule on page 127 to confirm the hydraulic filter service interval is current. If rams drift or move without input, examine the hose burst protection valves before resuming work.
Manual Section: Routine MaintenanceEngine temperature gauge climbing, cooling performance noticeably reduced during operation
Stop the machine and let the engine idle briefly. Check coolant level against the 16-litre system capacity, then inspect the cooling pack and radiator area for packed debris, mud, or chaff blocking airflow. Look over the engine cover mesh for damage that lets in excess debris. Clean the cooling pack face with low-pressure air or water, working from the clean side outward. The maintenance intervals list cooling system service frequency.
Manual Section: Routine MaintenanceVisible oil, fuel, or coolant pooling under machine before or after a shift p. 127
Walk the machine before startup and trace any puddle back to its source. Check hydraulic hose connections, the engine oil drain plug area, and coolant hose joints, and confirm engine oil is within the 12-litre maximum. Do NOT operate with an active fluid leak. The daily inspection checklist on page 127 covers the full pre-operation walkround. If a hose fitting is the source, report it for repair before the machine goes back into service.
Manual Section: Routine MaintenanceMachine loses traction or drive response is sluggish and inconsistent during travel
Park on level ground and apply the park brake, then test its function. Inspect electrical connectors at the transmission control area for corrosion, chafing, or signs of previous amateur wiring repairs. Check the fuse panel for any blown fuses in the drive circuit. Do not run the machine with unknown electrical faults; trace and repair the wiring before returning to work.
Manual Section: Fuses and RelaysFrequently Asked Questions
How to reset a JCB 406/407/409 fault code?
To remove non-critical hydraulic, transmission, and engine codes from the status screen, push the enter button. If the key is cycled, the codes reappear but clear again the same way. The warning lights stay on if the fault persists.
How to clear error codes on a JCB compact wheel loader?
Push the enter button to clear non-critical hydraulic, transmission, and engine error codes from the status screen. Cycling the key brings them back, but the same method removes them again. Associated warning lights remain lit while the underlying fault is still present.

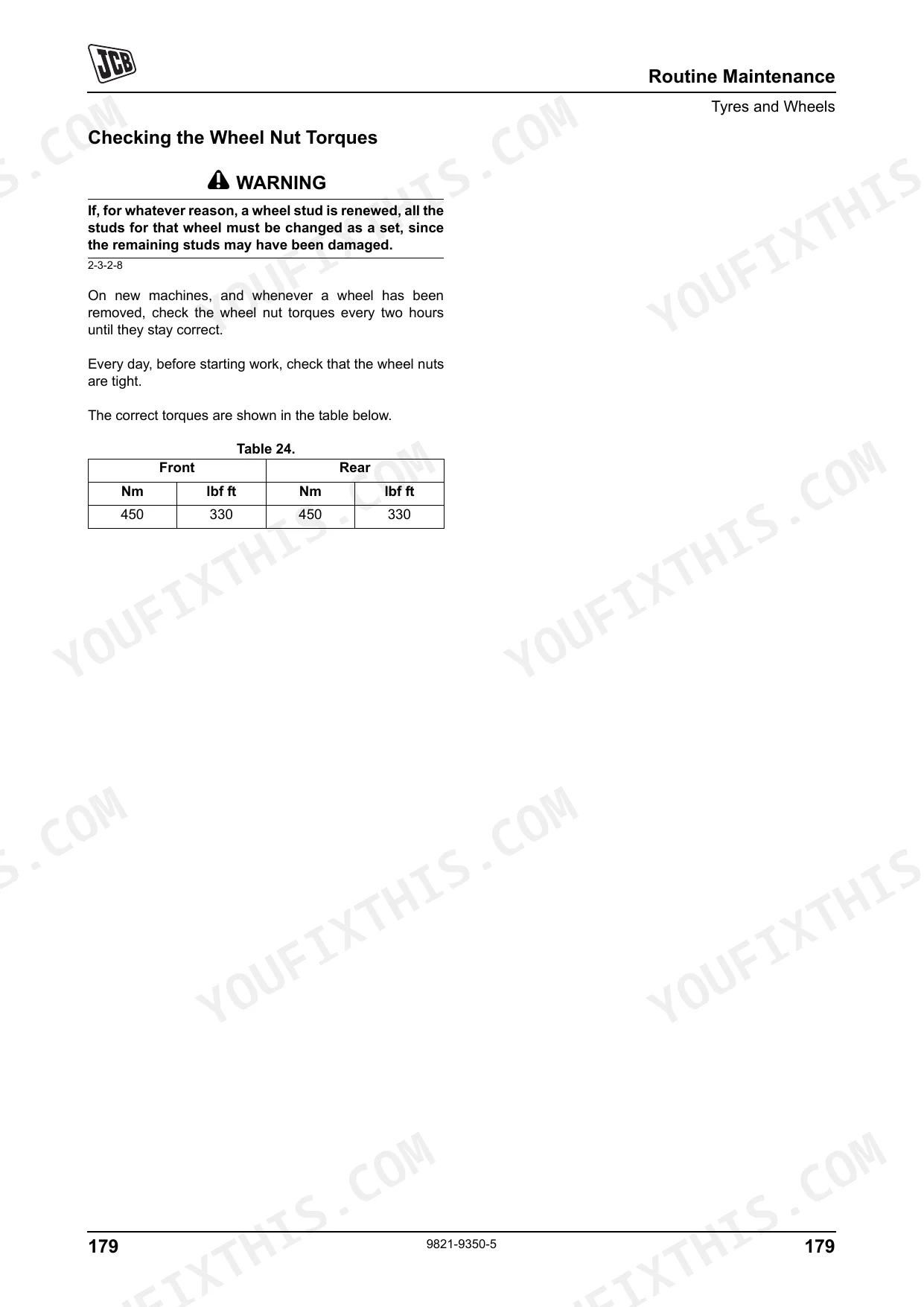

What are the torque specs for JCB 406/407/409 wheel loader wheel nuts?
Wheel nut torque on the JCB 406, 407, and 409 is 450 Nm (330 lbf ft), front and rear. Check it every two hours on a new machine, or after a wheel has been removed, until the readings stay correct.
how to reset JCB 409 warning light
On JCB 409 machines, the enter button clears a non-critical fault code from the status screen. The warning light itself stays lit while the fault persists, since the light flags an active problem.
How quickly can I access this manual after buying?
A 228-page Operator Manual in searchable PDF, available the moment checkout completes. Read it on a computer, tablet, or phone, with no shipping wait.
Is this JCB 406, 407, 409 Operator Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a native digital PDF, allowing you to search and copy all text. The text is crisp and clear throughout, making it easy to read. While diagrams and illustrations are raster images, their labels are generally readable, though some show slight pixelation when zoomed. Pages are clean with no scan artifacts or skewing. Note that several pages are intentionally blank.
