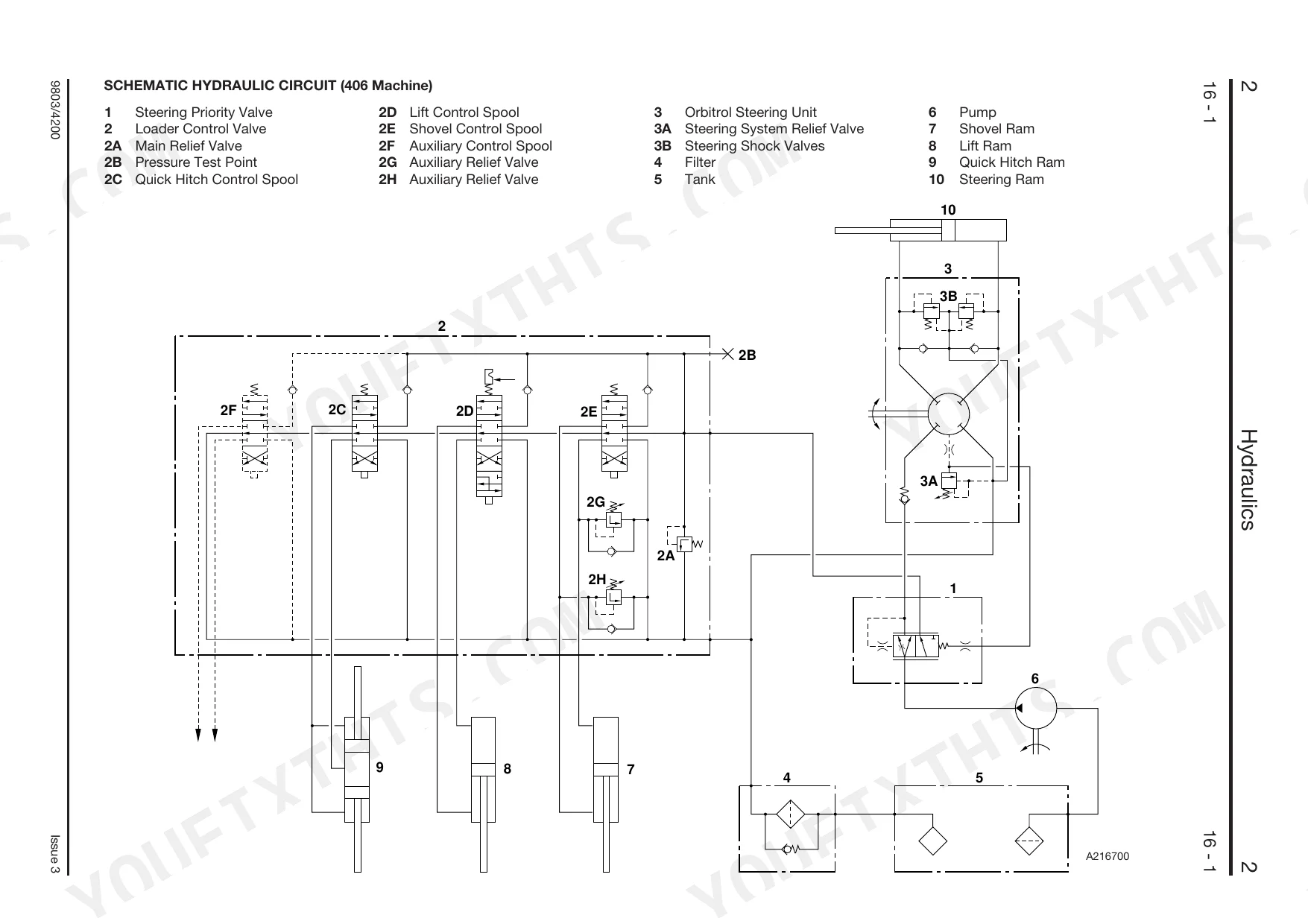

Tracking down a reliable JCB 409 service manual pdf doesn't have to be a headache. This 457-page factory reference (OEM #9803/4200) breaks down every teardown and rebuild procedure for the JCB 406, 407, 408, 409, and 409 Telemaster wheel loaders and telehandlers. Open it up to find complete hydraulic schematics covering the loader valve, steering ram, and main relief circuits. You also get full electrical wiring diagrams, syncro shuttle transmission fault-finding charts, and detailed axle disassembly instructions. Lock down the 1/2-inch UNF Grade S hardware to 117 Nm and verify the M12 fasteners sit at 98 Nm before sending the loader back to the dirt. Stop wasting hours hunting for the right fluid capacities. Download this searchable, bookmarked file directly to your tablet and start turning wrenches.
What's Inside This JCB 406–409 Manual
| System | Pages | Key Topics |
|---|---|---|

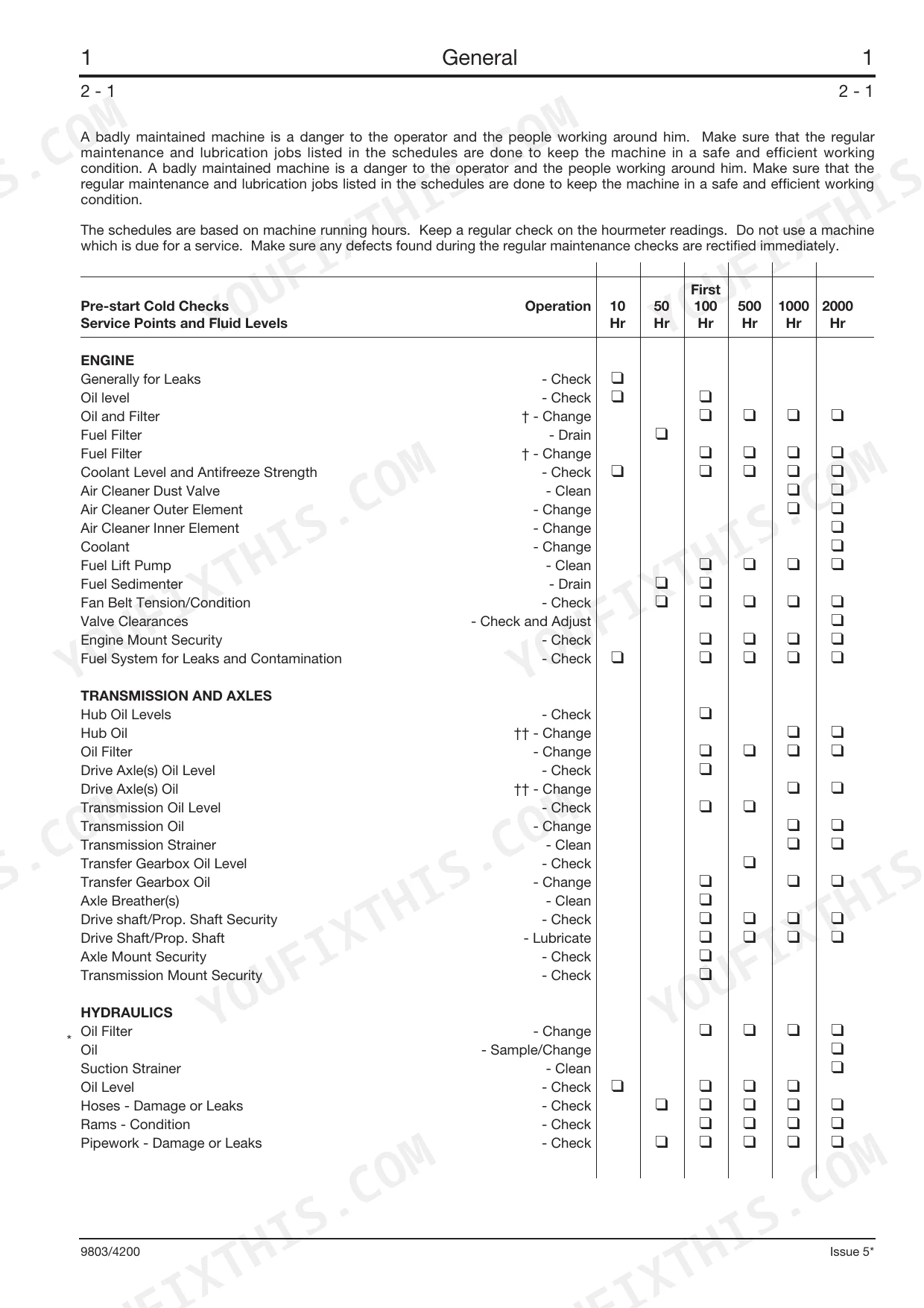

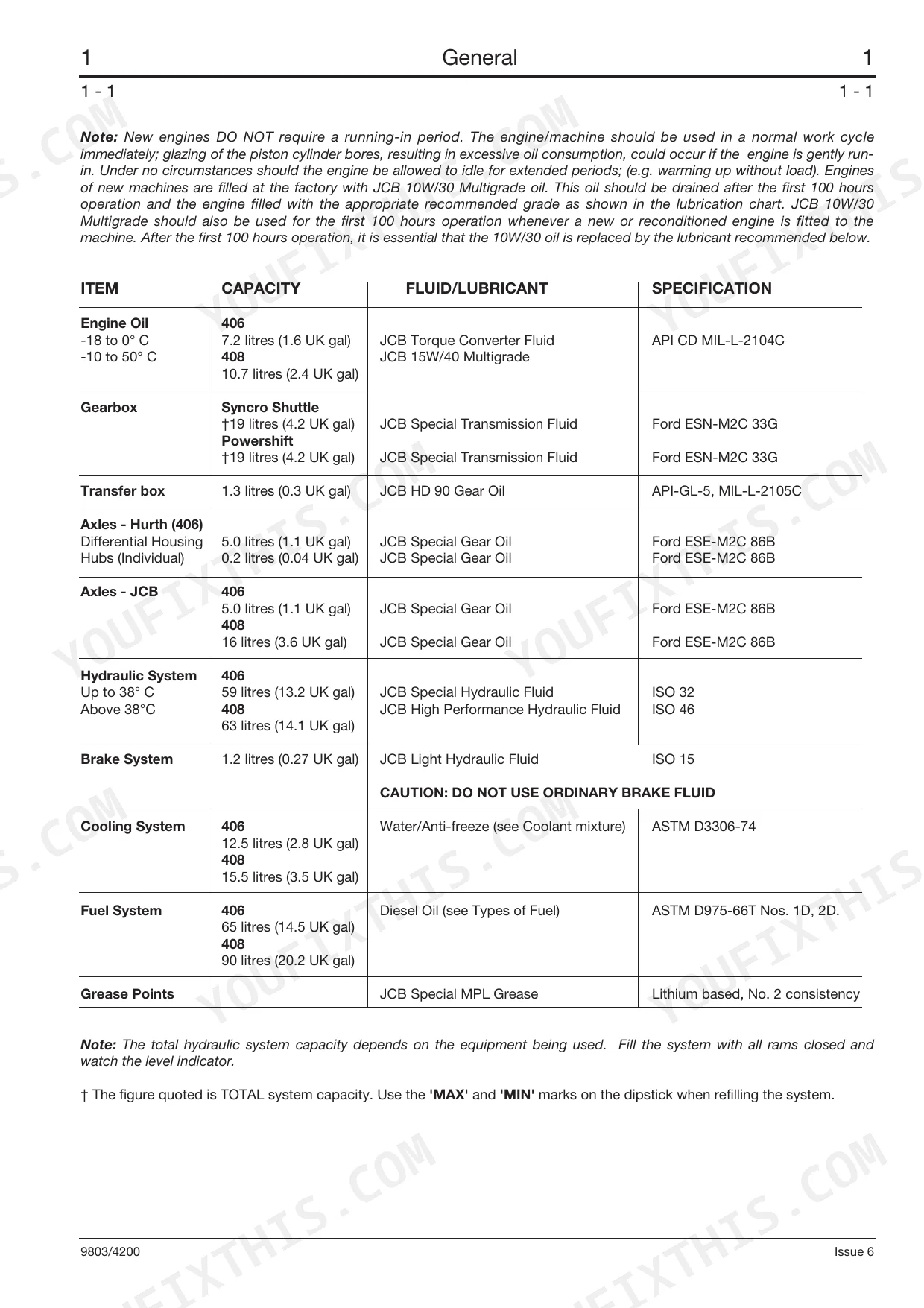

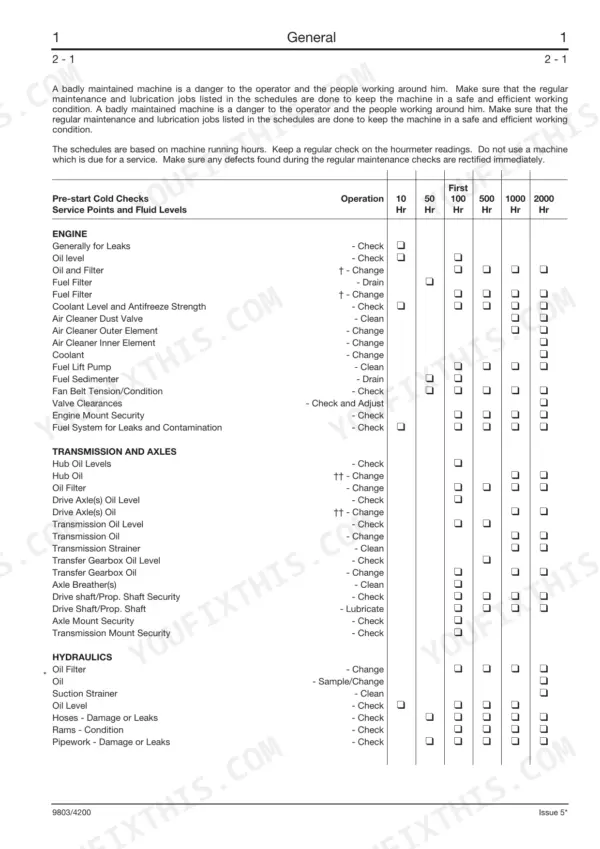

| General | 2-17 | Fluids, Lubricants, Capacities & Specifications, Service Schedules, Greasing |

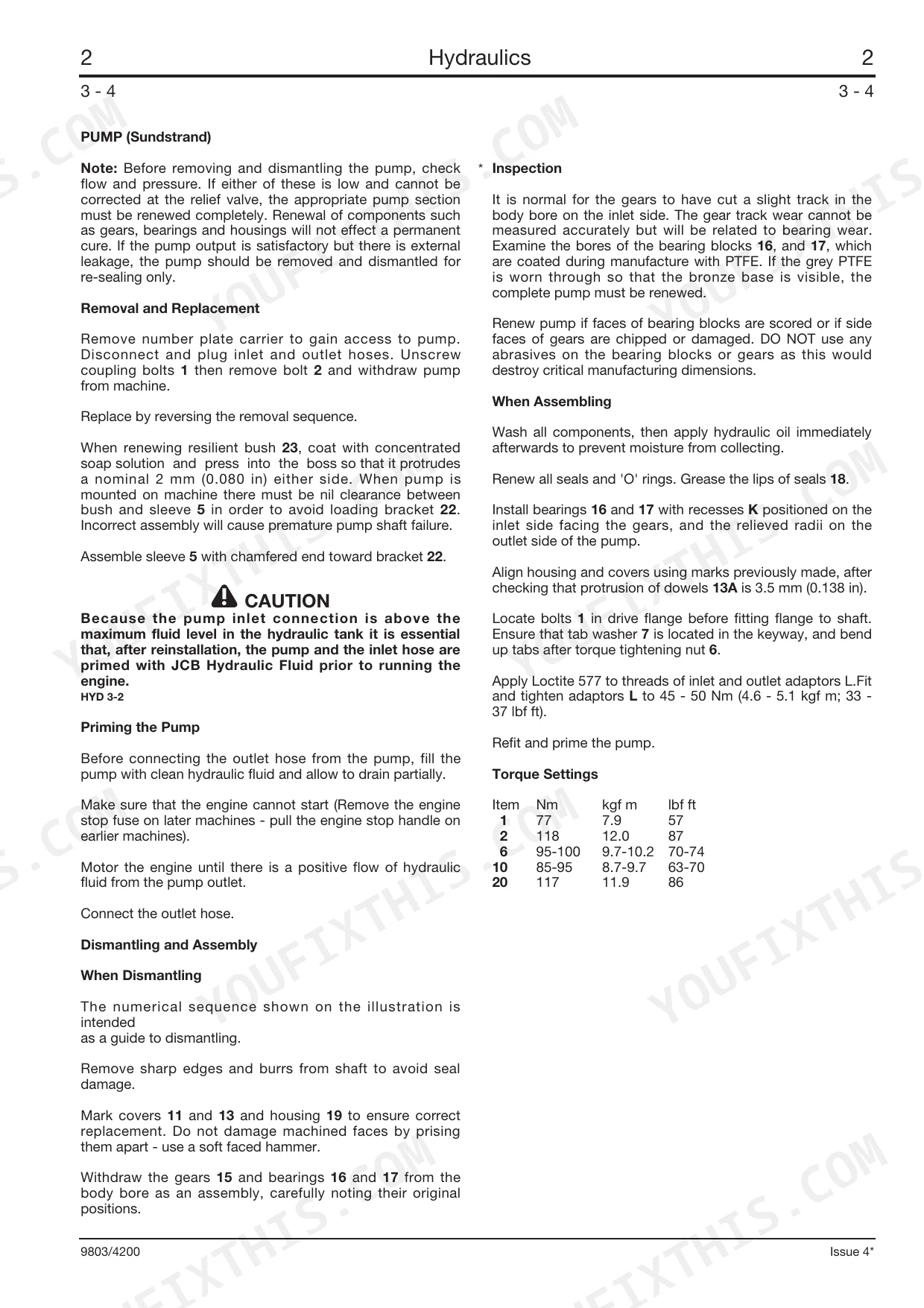

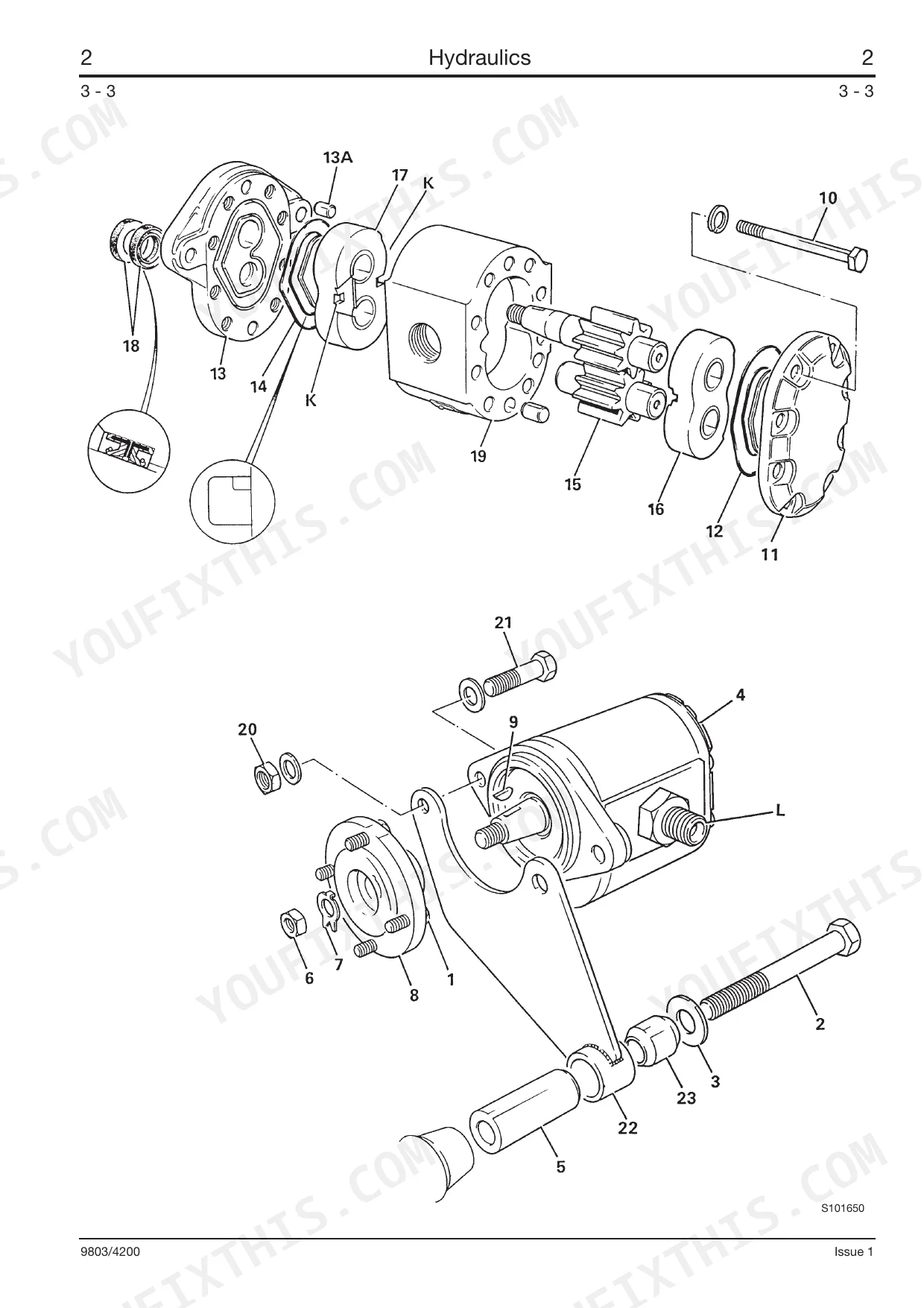

| Hydraulics | 18-73 | Technical Data (and 407, And 409, Telemaster), Fluid Level and Filter (406, 408), Tank and Suction Strainer, Pump (Operation, Removal, Replacement and Inspection, 406, And 409) |
| Attachments | 74-108 | Doors and Windows, Direct Glazing, Central Pivot Dismantling and Assembly, Quick Hitch - Dismantling and Assembly, Loader Arms - Pivot Seal Fitting, Boom Shim Adjustment |
| Engine | 109-128 | Technical Data, Engine Removal and Replacement |

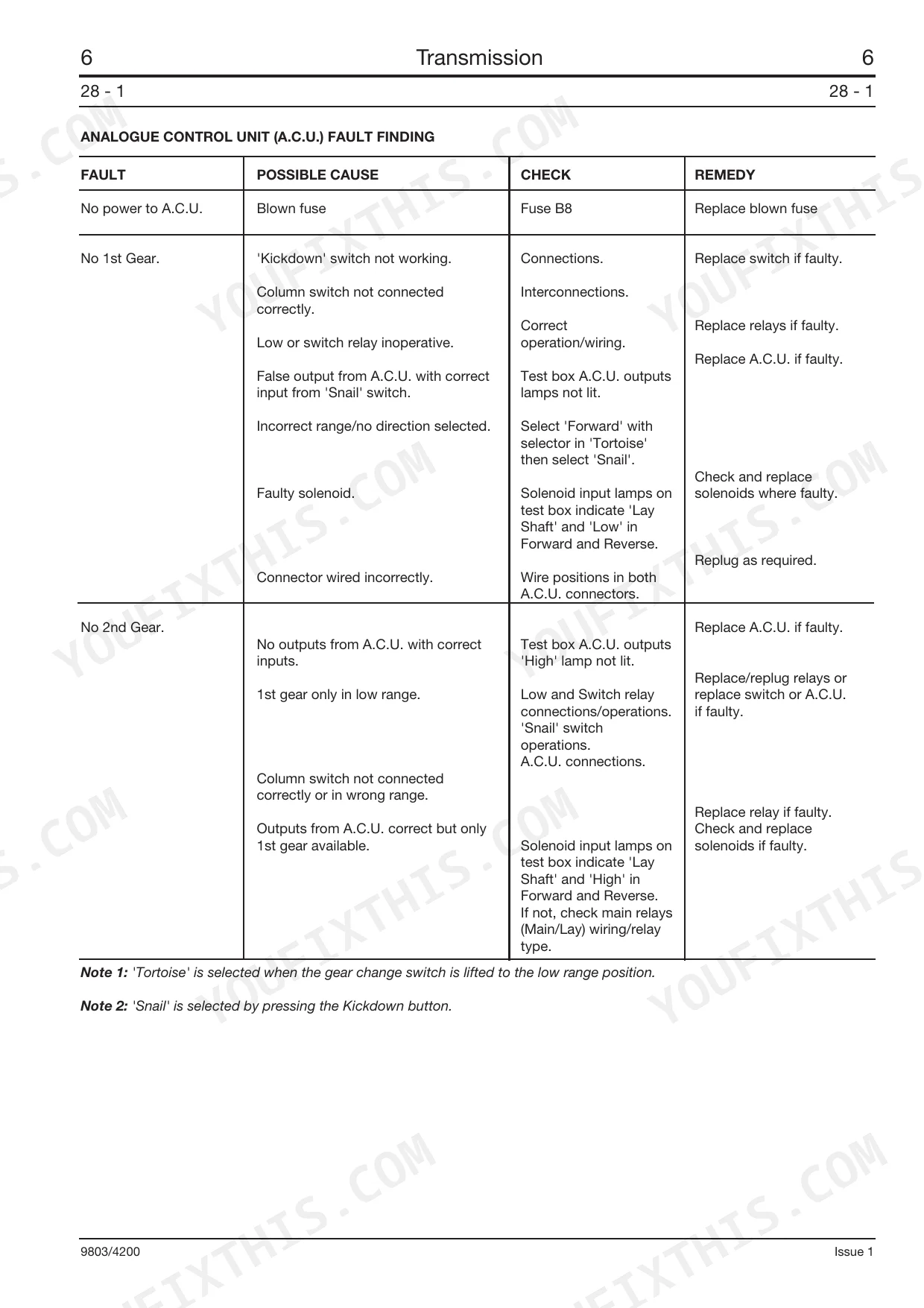

| Transmission | 129-261 | Technical Data, Syncro Shuttle Transmission - Fault Finding, Syncro Shuttle - Dismantling, Syncro Shuttle - Assembly, Driveshafts, Transfer Gearbox, Powershift Transmission |
| Axles | 262-301 | Axles - Dismantling, Axles - Assembly, Drive Head - 406 Machines with Jcb Axles Without Limited Slip Differential |
| Brakes | 302-324 | Accumulator Charge Valve (407/409 Machines) |
| Hydraulic Steering | 325-355 | Hydraulic Steering Unit |

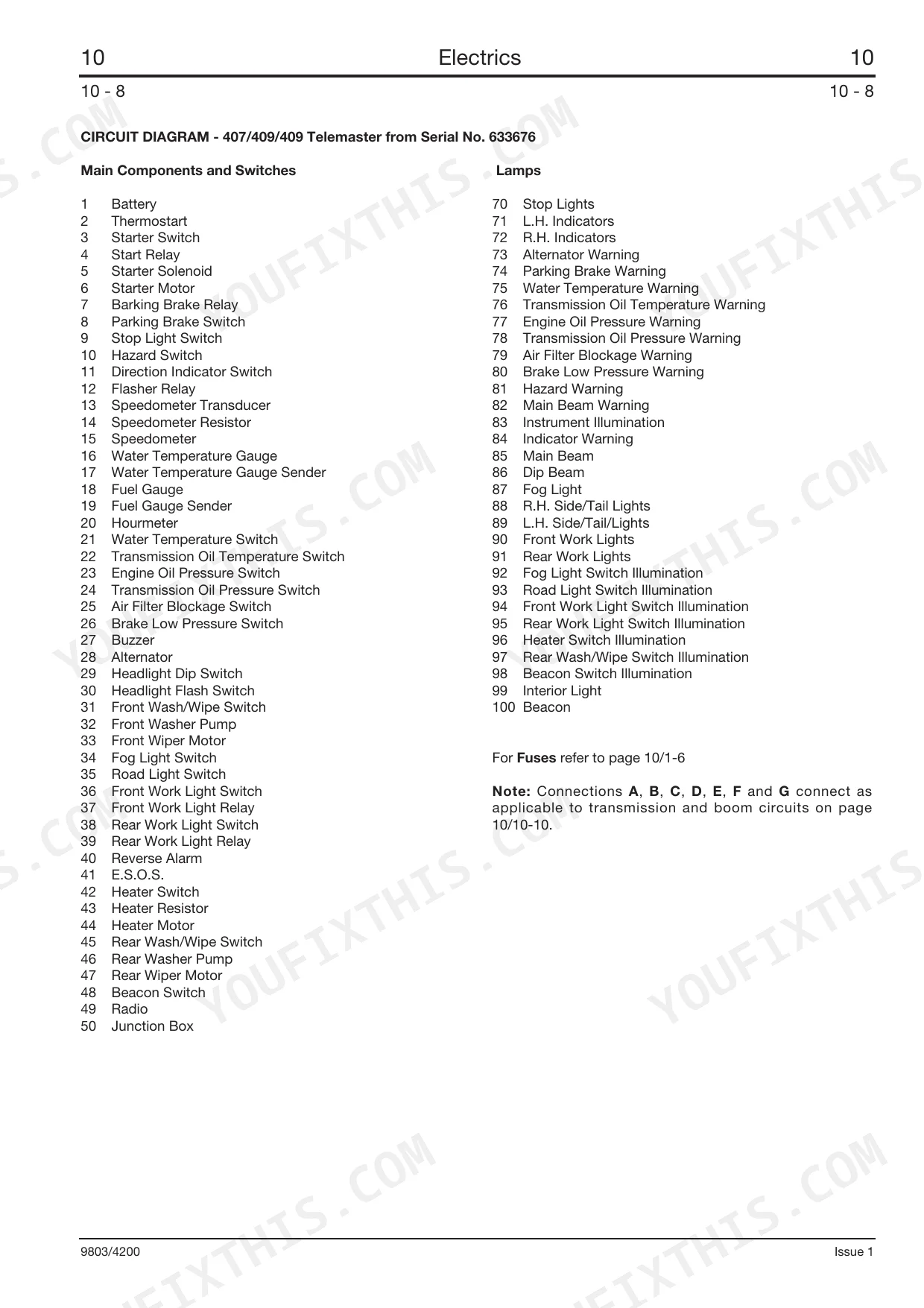

| Electrics | 356-443 | Technical Data, Alternator, Syncro Shuttle Wiring List - Panel Harness, Syncro Shuttle Wiring List - Main Harness, Powershift Wiring List - Panel Harness |
| Service Tools | 444-457 | Body & Framework |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Service Interval Reset | Not found. The manual lists service schedules but does not describe a procedure for resetting service intervals. | p. 9 |
| Hydraulic Fault Reset | Not found. The manual provides fault finding procedures for hydraulic systems but does not describe a procedure for resetting hydraulic faults. | p. 18 |
| General UNF Grade 'S' Bolts Torque Settings (1/2 inch) | 117 Nm (12.0 kgf m, 87 lbf ft) | p. 8 |
| General Metric Grade 8.8 Bolts Torque Settings (M12) | 98 Nm (10 kgf m, 72 lbf ft) | p. 8 |
| Wiring for Chaffing Check | Check ❑ | p. 10 |
| Battery Terminals for Condition and Tightness Check | Check ❑ | p. 10 |
| Speed Transducer Position/Connections Remedy | Reposition speed transducer (nominal 2 to 3 mm gap) | p. 259 |
| Safe Load Indicator Transducer Bolt Torque (Item B) | 70 Nm (7.1 kgf m, 51.6 lbf ft) | p. 440 |
| Loader Control Valve Inter-section Sealing Rings (Item 1) Torque | 27±1.32 Nm (2.75±0.13 kgf m, 20±1 lbf ft) | p. 43 |
| 409 Telemaster | ||
| Wheel Nut Torque | Not found. The service schedule lists 'Wheel Nut Torque' as a check item, but no specific value is provided for 409 Telemaster wheel nuts. | p. 10 |
| 406, 407 | ||
| Ram Piston Head Torque (406 Machine) | 405 Nm (41.3 kgf m, 300 lbf ft) | p. 20 |
| 406 | ||
| Engine Oil Capacity (406) | 7.2 litres (1.6 UK gal) | p. 5 |
JCB 406–409 Common Problems This Manual Covers
JCB 409 intermittent drive loss or complete failure to move forward and reverse p. 259
Inspect the transmission wiring harness for hacked repairs. Check the speed transducer position on page 259. Adjust the sensor to maintain a nominal 2 to 3 mm gap. If the gap is correct, perform a pump flow test to identify internal leaks.
Manual Section: TransmissionLoader arms lift slowly or lack bucket breakout force under heavy loads p. 255
Perform a pump flow test as detailed on page 255. A low reading indicates a worn pump or blocked suction strainer. Verify the main relief valve operating pressure reaches 207 bar (3000 lbf/in2) for 408 and 409 models before tearing down the pump.
Manual Section: Hydraulic System Pressure TestingEngine requires frequent oil top-ups or throws low pressure warnings at idle p. 113
Drain the crankcase and replace the filter. For 408 and 409 models (1004-4LR2 engine), fill with 10.7 litres (2.4 UK gal) of oil. Reset your maintenance schedule to perform this oil and filter change every 250 Hours according to page 113.
Manual Section: EngineParking brake fails to hold the machine on steep inclines or feels loose p. 306
Adjust the parking brake cable tension. Tighten the linkage until the lever fully engages at exactly 3 to 5 notches as specified on page 306. Test the holding force on a grade. If it slips, inspect the brake shoes for fluid contamination.
Manual Section: BrakesSyncro shuttle transmission emits a loud whining noise or overheats during operation p. 143
Check the troubleshooting chart on page 143. Start at check 1 for noise issues or check 4 for overheating. Verify the gearbox syncro shuttle capacity is at exactly 19 litres (4.2 UK gal). Drain and inspect the fluid for metal shavings.
Manual Section: Syncro Shuttle Transmission - Fault FindingFrequently Asked Questions
How do I clear hydraulic pressure warning on a JCB 407?
If hydraulic pressures are incorrect, the manual suggests renewing the accumulator charge valve, as no adjustment is possible for it. This action is expected to clear the hydraulic pressure warning. For specific pressure testing procedures, refer to page 8/7-1.
How to reset transmission warning on JCB 408
The manual describes fault-finding procedures for transmission issues, where resolving the underlying fault is the method to clear the warning. For example, if the transmission is noisy, checks are performed on the pump, clutch pressure, or alignment, and parts are renewed or adjusted as needed. There is no explicit "reset transmission warning" procedure.
What are the replacement specifications for Wiring harness / repaired wiring sections?
The manual provides detailed wiring lists for various harnesses, specifying wire number, size (e.g., 1.00, 1.50, 2.00, 3.00, 44/3, 28/3, 21/3, 14/3), color, source, and destination for different machine models and serial numbers. However, it does not provide general replacement specifications for entire wiring harnesses or repaired sections beyond these individual wire details.
What are the replacement specifications for Sensors and switches in the drive/control circuit?
The manual lists various sensors and switches within the drive/control circuit, such as the Speed Transducer, Water Temperature Gauge Sender, and Air Filter Switch. For faulty components, the general instruction is to replace them. Some components, like the speed transducer, have specific adjustment requirements, such as a nominal 2 to 3 mm gap.
What do I get after purchasing this JCB 406 & variants manual?
Immediate download of the complete 457-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this JCB 406 & variants Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this JCB 406 & variants manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the JCB 406 & variants.
Document Quality
This is a scanned PDF document with an effective OCR layer, allowing you to search and copy text throughout. The text quality is generally crisp and easy to read, although some pages exhibit minor fuzziness or slight variations in darkness. Diagrams and illustrations are raster images, which appear clear at normal zoom but may show pixelation when magnified; however, their labels remain readable. Pages are mostly clean, with occasional faint scan artifacts and minor skewing, but no significant stains or blank filler pages are present.
