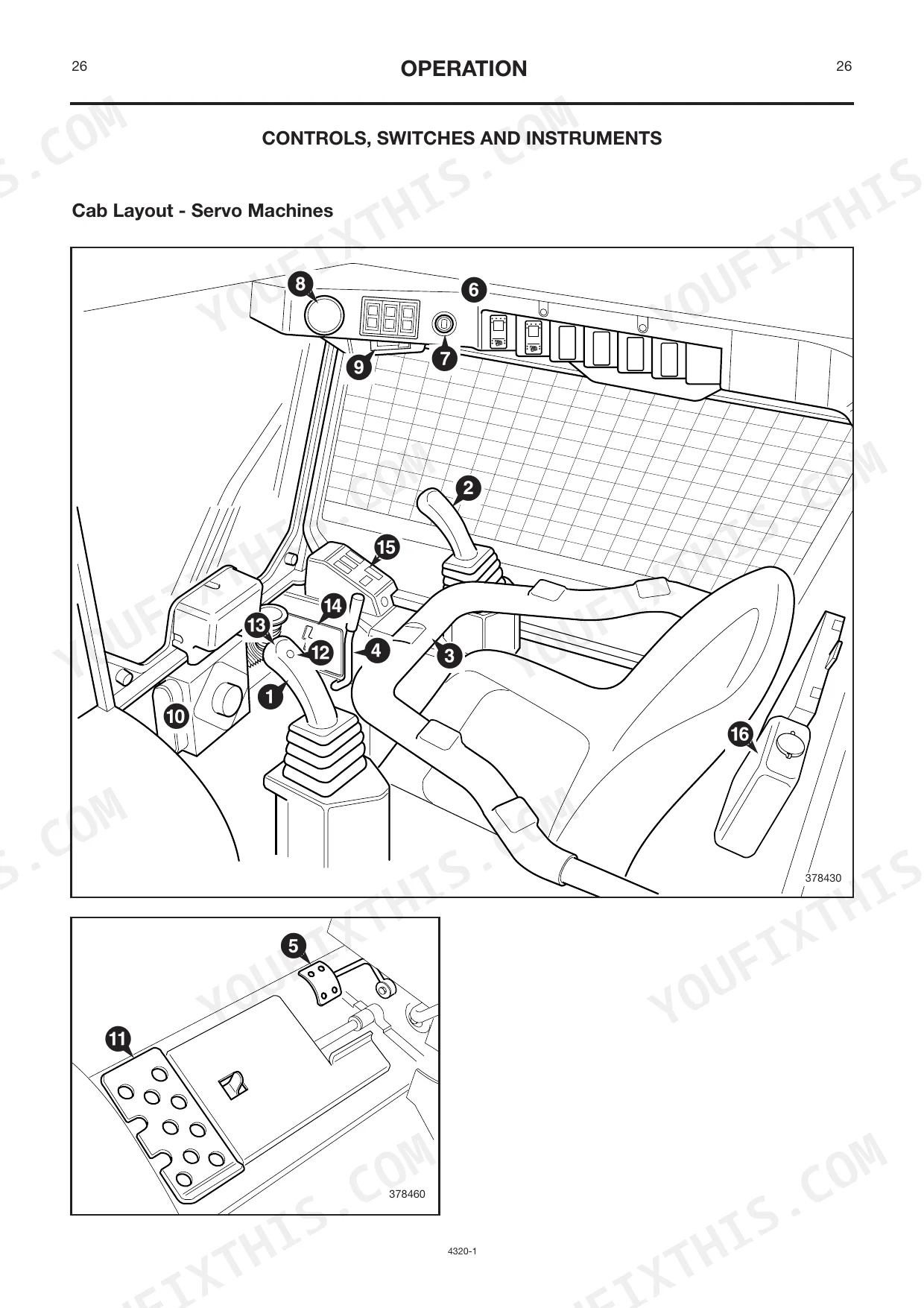

Covering the 1998-2005 production run, this 112-page JCB robot 190 operator manual pdf details the daily maintenance and cab controls for the Robot 190, 190HF, 1110, and 1110HF skid steer loaders. Inside, you get complete operating procedures covering everything from the single-lever servo drive system to engaging the quickhitch attachments. You will also find a full section of daily service schedules, dashboard warning indicator charts, and safe transport guidelines to keep your loader out of the shop. Check your track sag clearance and adjust it to 5 to 10 mm, then verify the front lifting bracket bolts are torqued to 244 Nm before strapping the machine to a trailer. Operator mistakes cost money. Grab this bookmarked file, pull it up on your tablet in the cab, and get back to work.
What's Inside This JCB Robot 190, 190HF, 1110, 1110HF Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-14 | About this Handbook, The JCB Skid Steer Loader, Safety First - Yours and Other People's, Operating Safety, Maintenance Safety, Safety Decals, Identifying Your Machine, JCB Immobiliser Option |

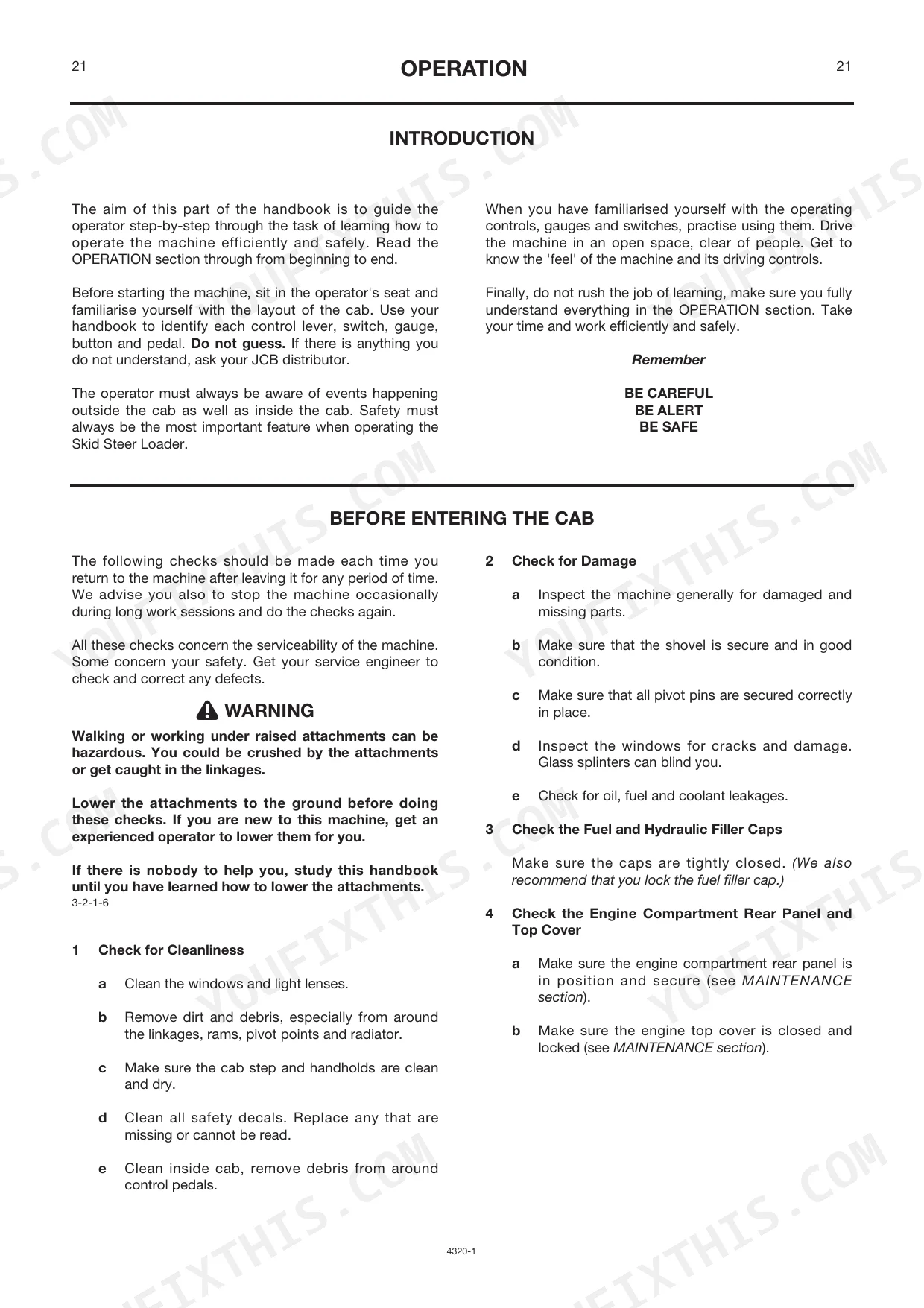

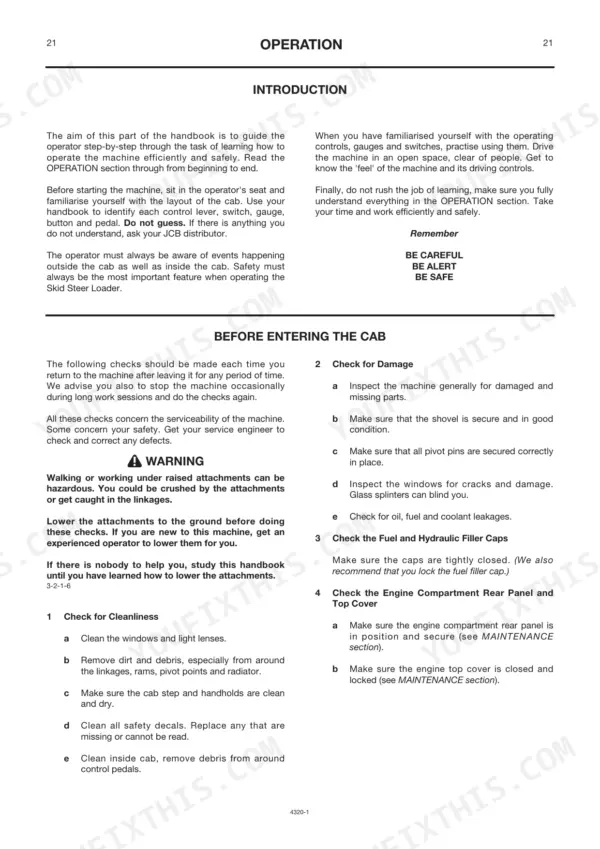

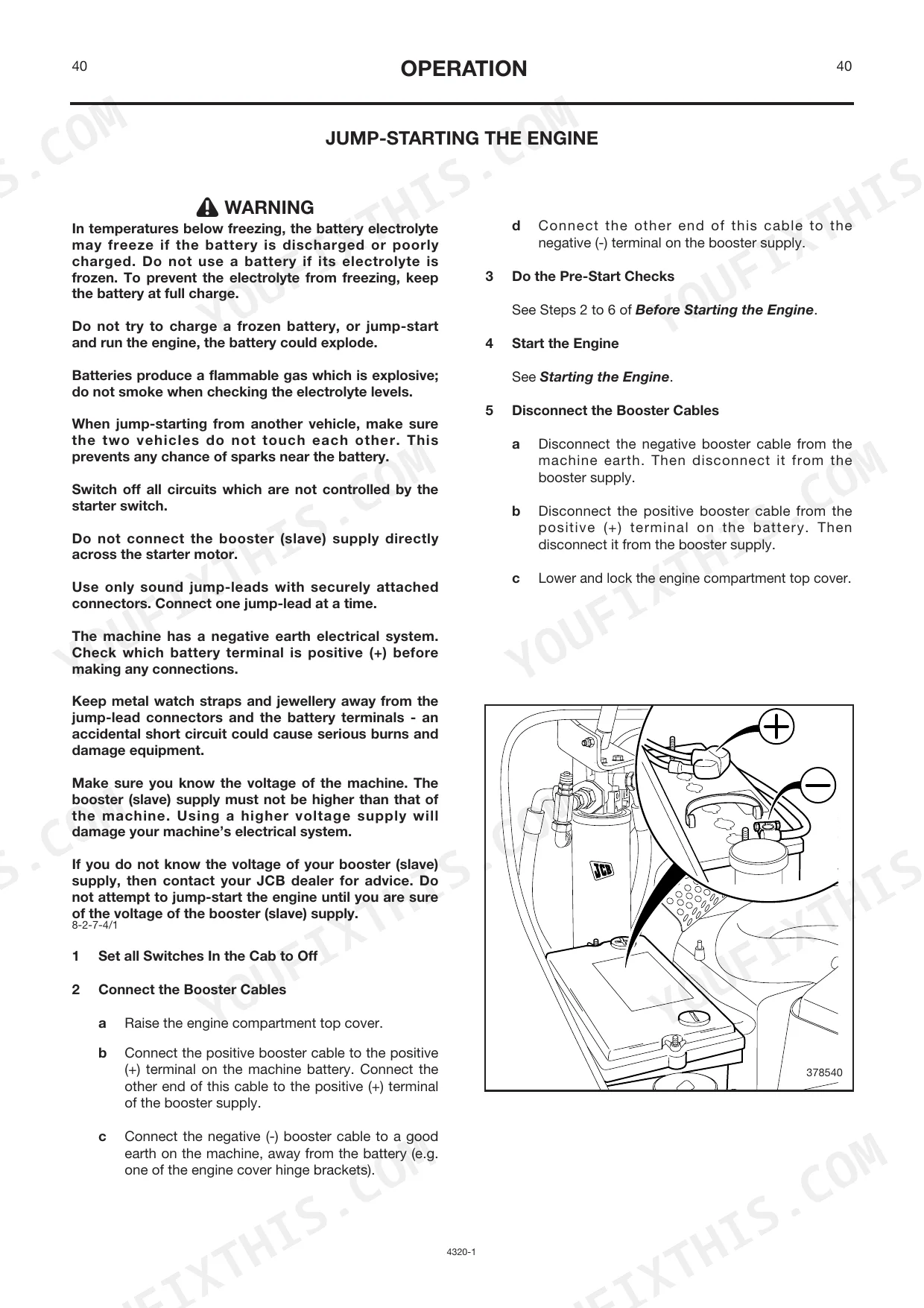

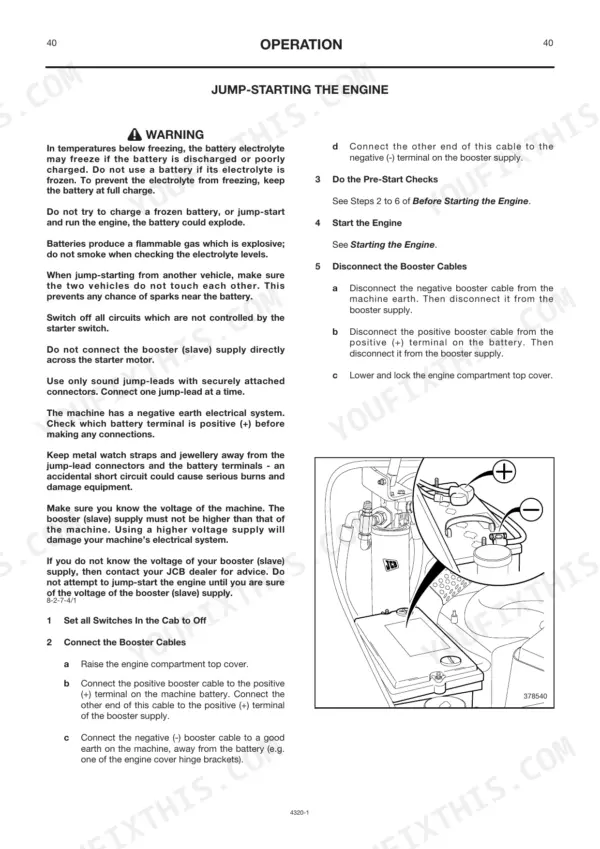

| Operation | 15-54 | Introduction, Before Entering the Cab, Entering/Leaving the Cab, Cab Door and Vents (Opening and Closing the Cab Door, Ventilation of Optional Glazed Cab), Emergency Exits |

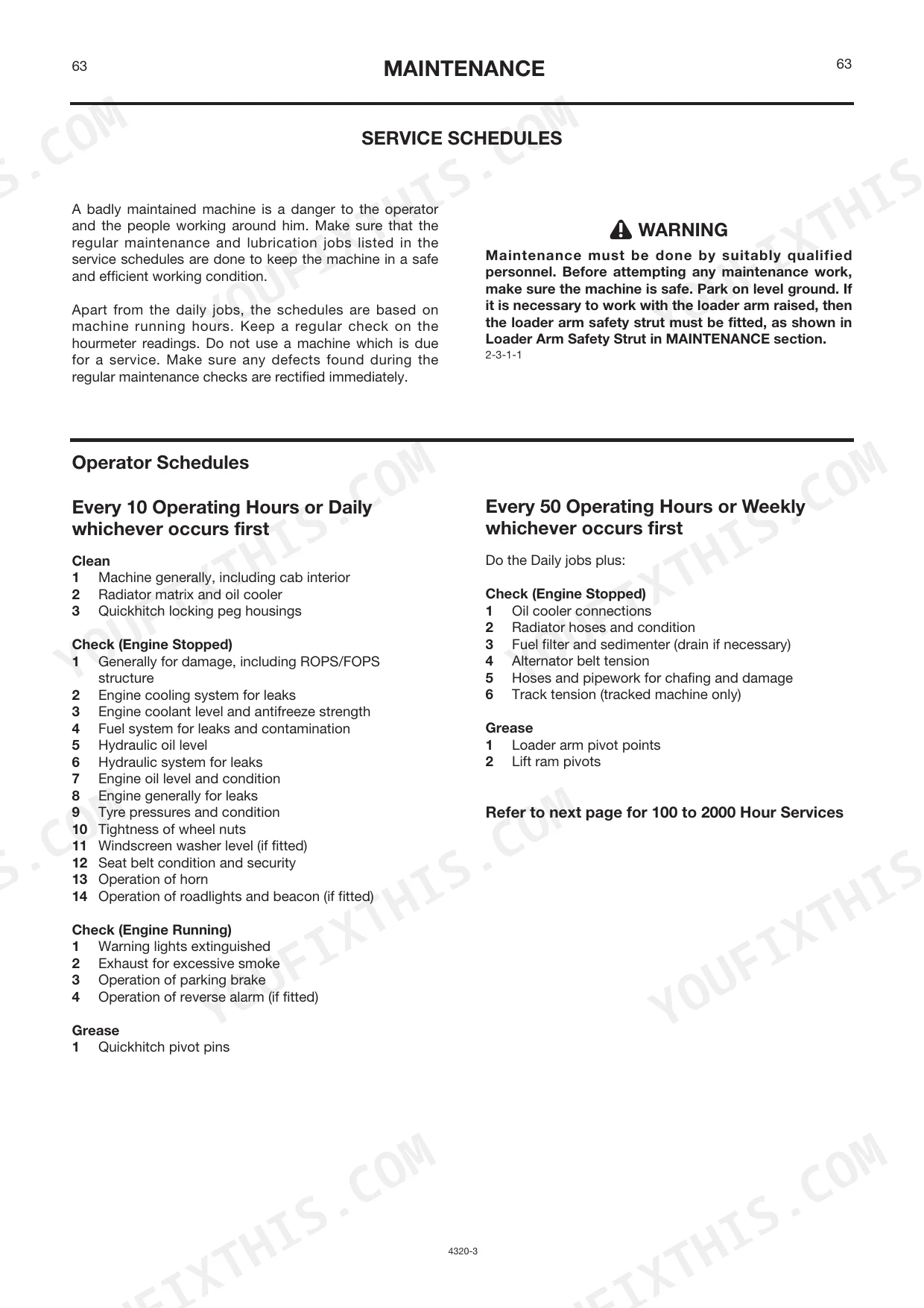

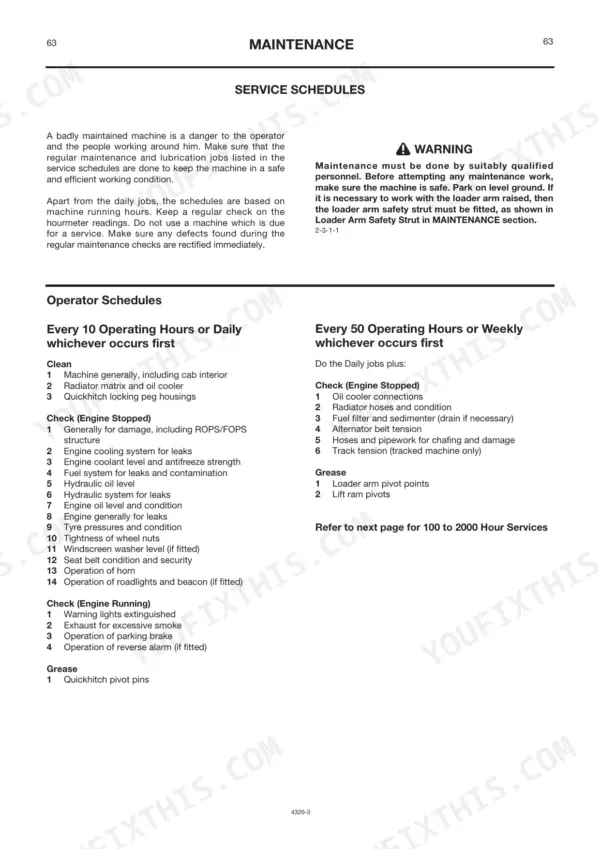

| Maintenance | 55-88 | Service Requirements, Lubricants - Health and Safety, Service Schedules, Cleaning the Cab Floor and Rear Chassis, Loader Arm Safety Strut, Engine Compartment Access, Seat Belt |
| Optional Attachments | 89-100 | Introduction, Quick Release Couplings, Connecting/Disconnecting Hydraulic Hoses, Attachments Controls, Shovels, Using the 6-In-1 Shovel, Daily Maintenance, Pallet Forks |

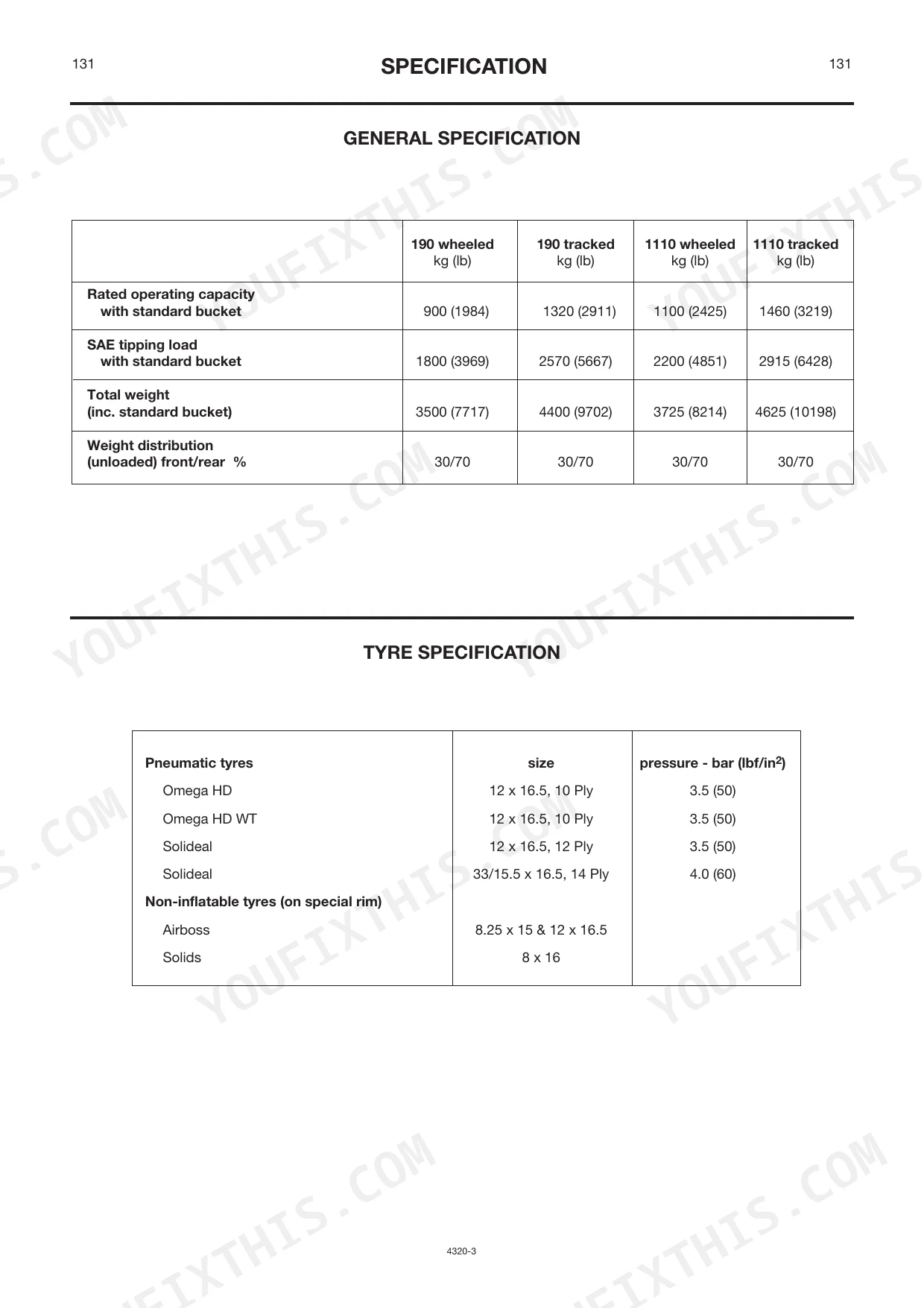

| Specification | 101-112 | General Specification, Static Dimensions - Wheeled Machines, Static Dimensions - Tracked Machines, Noise and Vibration Data, Machines From Serial No. 888056 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Brake cover retaining screws torque | 14 - 16 Nm (10 - 12 lbf ft) | p. 48 |
| Track sag clearance | 5 to 10 mm (0.2 to 0.4 in) | p. 85 |
| Battery electrolyte level | 6 mm (1/4 in) above the plates | p. 81 |
| Front Lifting Bracket Bolt Torque | 244 Nm | p. 51 |
| Rear Lifting Bracket Bolt Torque | 395 Nm | p. 51 |
| Seat Belt Replacement Interval | 3 years | p. 68 |
| Alternator Belt Deflection | 10 mm (3/8 in) | p. 70 |
| Engine Oil Drain Plug Torque | 34 Nm (25 lbf ft) | p. 73 |
| Coolant Antifreeze Renewal Interval | 2 years | p. 74 |
| Battery Electrolyte Level Above Plates | 6 mm (1/4 in) | p. 81 |
| Track Sag | 5 to 10 mm (0.2 to 0.4 in) | p. 85 |
| Wheel Nut Torque | 220 Nm (162 lbf ft, 22.5 kgf m) | p. 86 |
JCB Robot 190, 190HF, 1110, 1110HF Common Problems This Manual Covers
JCB Robot 190 skid steer tracks feel loose or slip during operation in muddy terrain p. 85
Inspect the undercarriage and clear packed mud from the tensioner area. Measure the track sag midway between the idler and sprocket. Adjust the grease tensioner until track sag is exactly 5 to 10 mm (0.2 to 0.4 in) as detailed on page 85.
Manual Section: Track AdjustmentEngine turns over slowly or will not start after sitting idle overnight in cold weather p. 81
Clean the battery terminals and inspect the casing for cracks. Remove the cell caps on page 81 and verify the battery electrolyte level is 6 mm (1/4 in) above the plates. Top up with distilled water if necessary and recharge.
Manual Section: MaintenanceWarning light flashing on dashboard indicating low engine oil pressure during heavy loader work p. 93
Stop the machine immediately and check the dipstick. Drain the system and refill with fresh oil, noting the 10.8 litres capacity for 190 and 190HF models on page 93. Tighten the engine oil drain plug to 34 Nm (25 lbf ft) found on page 73.
Manual Section: MaintenanceTemperature gauge spikes into the red zone and coolant warning light activates during operation p. 70
Turn off the engine and clear debris from the radiator grille. Check the alternator belt tension on page 70 and adjust to achieve 10 mm (3/8 in) deflection. Flush the system if the coolant antifreeze renewal interval of 2 years on page 74 has passed.
Manual Section: MaintenanceFrequently Asked Questions
How do you fix JCB Robot 190 skid steer tracks feel loose or slip during operation in muddy terrain?
Inspect the undercarriage and clear packed mud from the tensioner area. Measure the track sag midway between the idler and sprocket. Adjust the grease tensioner until track sag is exactly 5 to 10 mm (0.2 to 0.4 in) as detailed on page 85.
How do you fix engine turns over slowly or will not start after sitting idle overnight in cold weather?
Clean the battery terminals and inspect the casing for cracks. Remove the cell caps on page 81 and verify the battery electrolyte level is 6 mm (1/4 in) above the plates. Top up with distilled water if necessary and recharge.
How do you fix warning light flashing on dashboard indicating low engine oil pressure during heavy loader work?
Stop the machine immediately and check the dipstick. Drain the system and refill with fresh oil, noting the 10.8 litres capacity for 190 and 190HF models on page 93. Tighten the engine oil drain plug to 34 Nm (25 lbf ft) found on page 73.
How do you fix temperature gauge spikes into the red zone and coolant warning light activates during operation?
Turn off the engine and clear debris from the radiator grille. Check the alternator belt tension on page 70 and adjust to achieve 10 mm (3/8 in) deflection. Flush the system if the coolant antifreeze renewal interval of 2 years on page 74 has passed.
How quickly can I access this manual after?
You get a 112-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this JCB Robot 190, 190HF, 1110, 1110HF?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This PDF is a scanned document with an OCR layer, allowing you to search and copy text. The text is generally crisp and readable, though some original image-based elements are slightly less sharp. Diagrams and illustrations are clear raster images, with labels that are readable despite minor pixelation on zoom. Pages are mostly clean, showing some slight skewing and occasional faint scan artifacts. There are no notable blank pages within the provided content.
