Looking for the factory operating guidelines for your wheeled loader? This 99-page JCB 412S, 414S Operator Manual PDF (OEM #9801/8340) breaks down every cab control, safety protocol, and daily maintenance routine required to keep your machine earning its keep. You get full dashboard warning light explanations, proper jump-starting procedures, and complete service schedules for all major systems. Jump into the maintenance chapters to locate every vital grease fitting on the loader arm pivot points, shovel pivots, and propshafts. Swap out the main hydraulic oil filter every 250 hours, replace the servo filter at 500 hours, and verify your wheel nuts are torqued to the model-specific value (500 Nm on the 412S, 600 Nm on the 414S) before shifting into gear. Ignoring a segmented display error will cost you serious downtime. Grab this bookmarked file, pull it up on your tablet right in the cab, and operate your equipment with total confidence.
What's Inside This JCB 412S, 414S Operator Manual

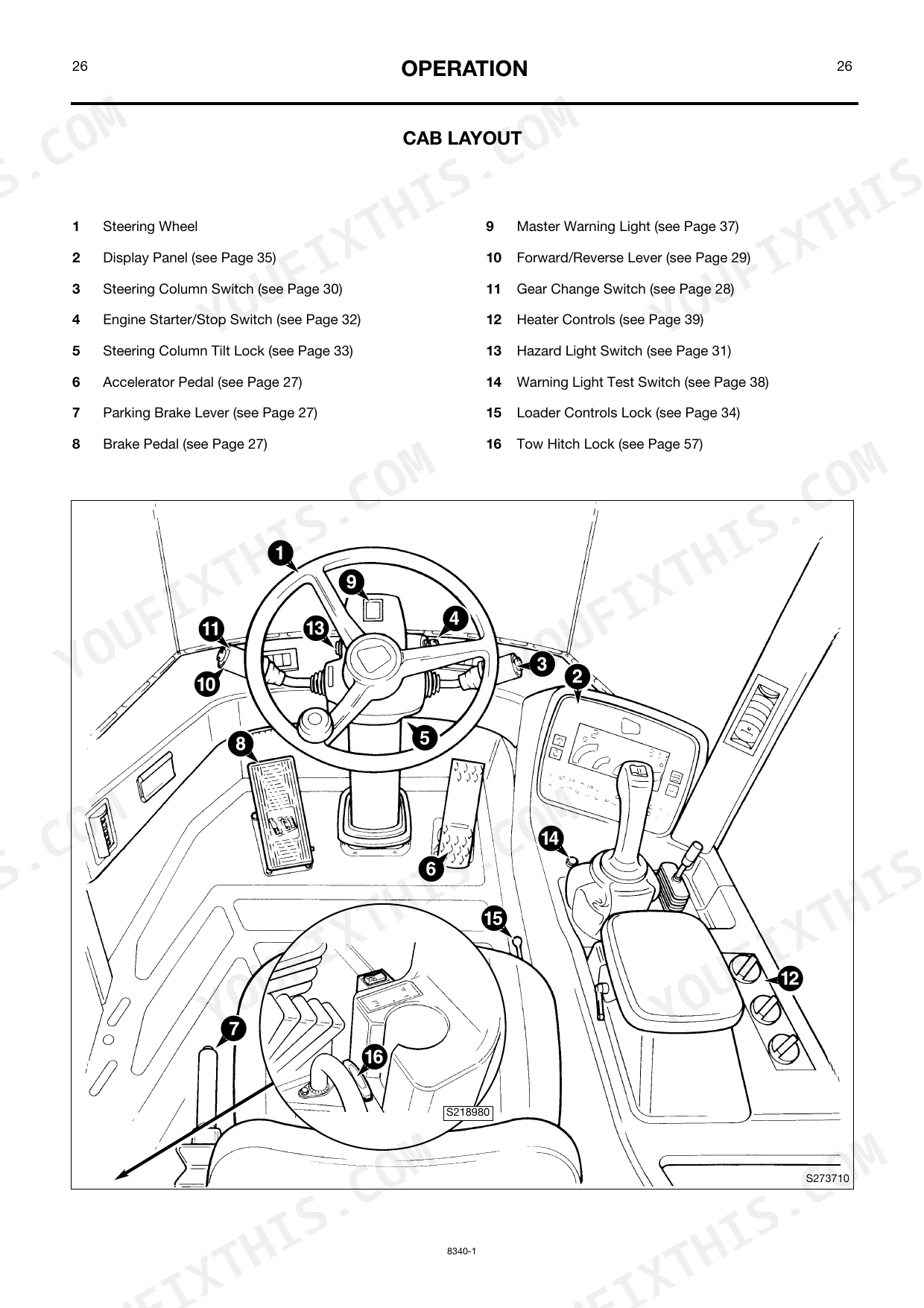

| System | Pages | Key Topics |
|---|---|---|
| Operator Handbook | 1-2 | - |
| Safety Notices | 3-6 | Danger, Warning, Caution, Study This Handbook Before Starting the Machine, Non-Approved Attachment, Machine Security |
| The JCB Wheeled Loader | 8 | Machine Description |
| Safety First - Yours and Other People's | 9-12 | Safety Check List, Operating Safety, Maintenance Safety |
| Safety Decals | 13 | Decals, Decal Safety Instructions, Eye-Glasses for Reading, Replacement Decals, Labels in Other Languages |
| Identifying Your Machine | 14 | Machine Identification Plate, Unit Identification |
| Display Panel | 29-32 | Ignition on, Pre-Start Mode, Setting Up, Start Inhibit, Warning Lights, Automatic Engine Shut Down, Segmented Displays, Master Warning Light |
| Heater/Air Conditioning Controls | 33 | Air Recirculation |
| Loader Controls | 34-35 | Standard Shovel, Auxiliary Attachments, Loader Arm Preset Height, Testing the Loader Arm Preset Height, Shovel Preset Angle, Testing the Shovel Preset Angle |
| Travelling Position | 41 | On Site, On Public Roads, Automatic Carry Control System - Accs |
| Getting the Machine Moving | 42-43 | Operating Hints |
| Engine Covers | 44-51 | Transmission and Axles, Service Requirements, Lubricants - Health and Safety, General Safety, Loader Arm Safety Strut, Articulation Lock, ROPS/FOPS Structure |
| Engine Oil and Filter | 52-59 | Checking for Damage, Centre Pivot and Steering Ram, Greasing, Propshafts, Cab Heater/Filter, Brakes, Engine Air Filter |
| Engine Fan Belt | 60-63 | Engine Cooling System, Changing the Oil and Filter, Changing the Coolant |
| Draining the Sedimenter Bowl | 64-67 | Fuel System, Air Conditioning Compressor Drive Belt, Draining the Fuel Filter |

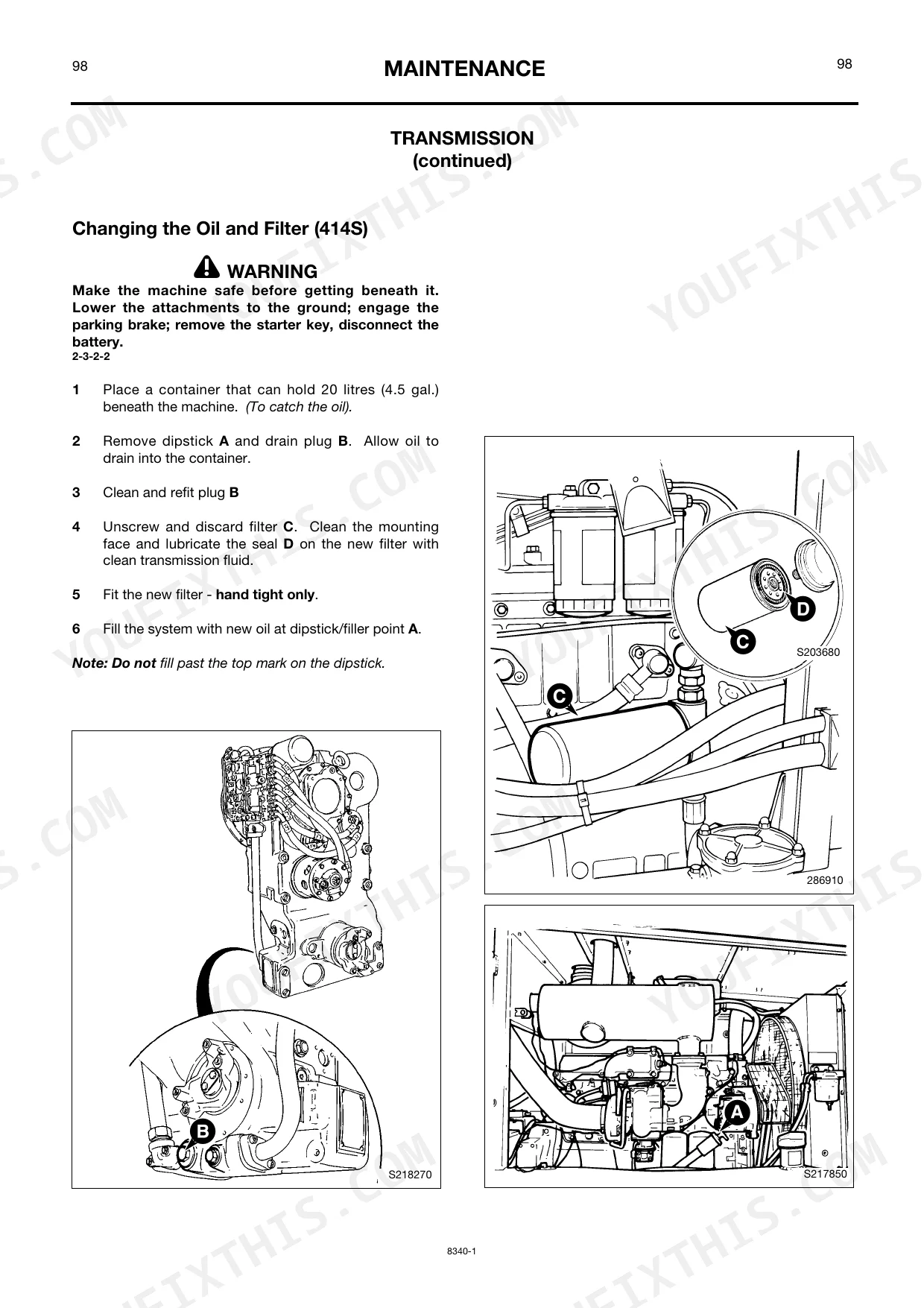

| Changing the Oil and Filter (414S) | 68-71 | Transmission, Bleeding the Fuel System, Changing the Oil and Filter (412S) |
| Changing the Servo Filter Element (412S) | 72-75 | Hydraulic System, Front and Rear Axles, Changing the Filter Element |
| Bulbs | 76-79 | Checking the Electrolyte Level, Battery, Electrical System |
| Fire Extinguisher | 80-83 | Fluids, Capacities and Lubricants, Tyres and Wheels |
| Optional Attachments | 84-89 | Introduction, Quick Release Couplings, Quick Hitch Control, Engaging the Shovel/Attachments, Power Diverter |
| Specification | 90-93 | Tyre Pressures, Working Capacity, Static Dimensions, Noise and Vibration Data |
| Service Record Sheet | 94-95 | Distributor Preparation, First 100 Hr./2 Weeks, 500 Hr./3Month, 1000 Hr./6 Month, 1500 Hr./9 Month, 2000 Hr./12 Month Annual Insurance Inspection |
| Warranty | 96-99 | Warranty and Procedure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 412S | ||
| Wheel Nut Torque | 500 Nm (369 lbf ft) | p. 80 |
| Engine Oil Capacity | 10.7 litres | p. 81 |
| Transmission Oil Capacity | 18 litres | p. 81 |
| Hydraulic System Capacity | 110 litres | p. 81 |
| All Models | ||
| Hydraulic Filter Element Nuts Torque | 7 Nm (5 lbf ft) | p. 74 |
| Hydraulic Oil Filter Replacement Interval | 250 Hr | p. 47 |
| Hydraulic Servo Filter Replacement Interval | 500 Hr | p. 47 |
| Air Cleaner Outer Element Replacement Interval (standard conditions) | 250 Hr | p. 46 |
| Air Cleaner Inner Element Replacement Interval (standard conditions) | 1000 Hr (every 3rd outer element change) | p. 46 |
| 414S | ||
| Engine Oil Capacity | 16.0 litres | p. 81 |
| Transmission Oil Capacity | 23.0 litres | p. 81 |
| Hydraulic System Capacity | 125 litres | p. 81 |
JCB 412S, 414S Common Problems This Manual Covers
JCB 412S loader loses lifting power and hydraulic pressure warning light flashes during heavy operation p. 29
Stop the machine and review the warning lights on page 29. Check the hydraulic oil level in the sight glass. If fluid is adequate, replace the hydraulic oil filter. The standard replacement interval is 250 Hr. Torque the filter element nuts to 7 Nm (5 lbf ft).
Manual Section: Display PanelEngine temperature indicator rises rapidly when operating continuously in severely dusty mining environments p. 46
Park safely and shut off the engine. Inspect the radiator grille for debris blockages. Check the outer air cleaner element for severe clogging. In standard conditions, replace the outer element every 250 Hr as noted on page 46, but change it more frequently in extreme dust.
Manual Section: MaintenanceLoader bucket fails to lock securely into position when engaging the quick hitch mechanism p. 84
Lower the loader arms to the ground. Inspect the hydraulic locking pin and quick release couplings for trapped dirt. Maintain the standard 700-750 RPM idle speed. Follow the attachment engagement procedures on page 84 to verify the locking pins fully extend before lifting any loads.

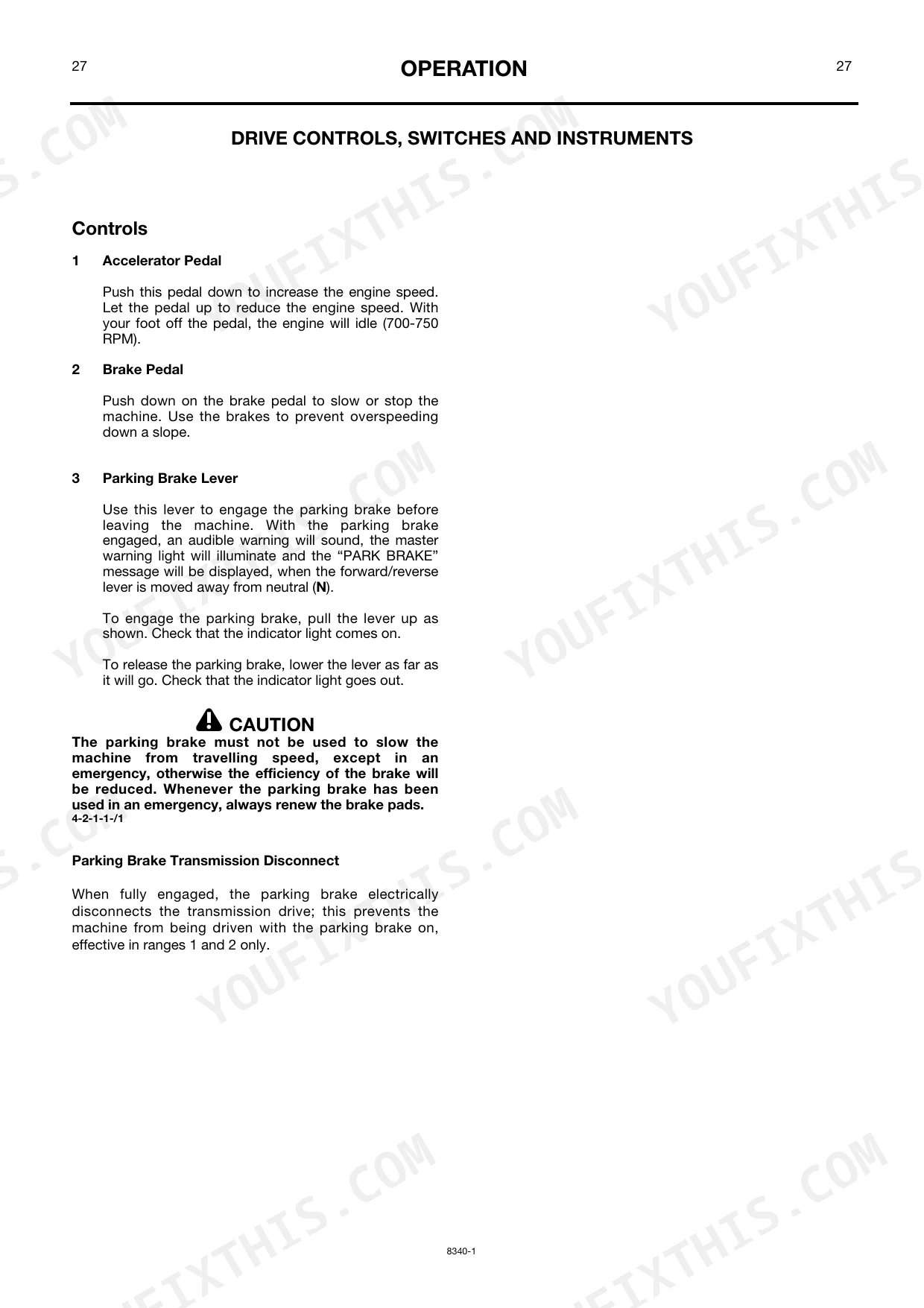

Manual Section: Optional AttachmentsMachine creeps forward slowly when parked on an incline with the parking brake fully engaged p. 56
Secure the machine with wheel chocks on level ground. Adjust the parking brake cable mechanism. Turn the adjuster exactly half a turn as instructed on page 56. Test the holding power on a safe incline before returning the machine to active site operation.
Manual Section: Adjusting the Parking BrakeFrequently Asked Questions
How do I reset the JCB 412S/414S steering system?
The manual indicates that if the main hydraulic system pressure for the steering fails, a "STEERING PRESS" warning will light up, and the machine should be stopped to rectify the fault. However, it does not provide a specific procedure for resetting the steering system.
What are the torque specs for JCB 412S/414S wheel loader fasteners?

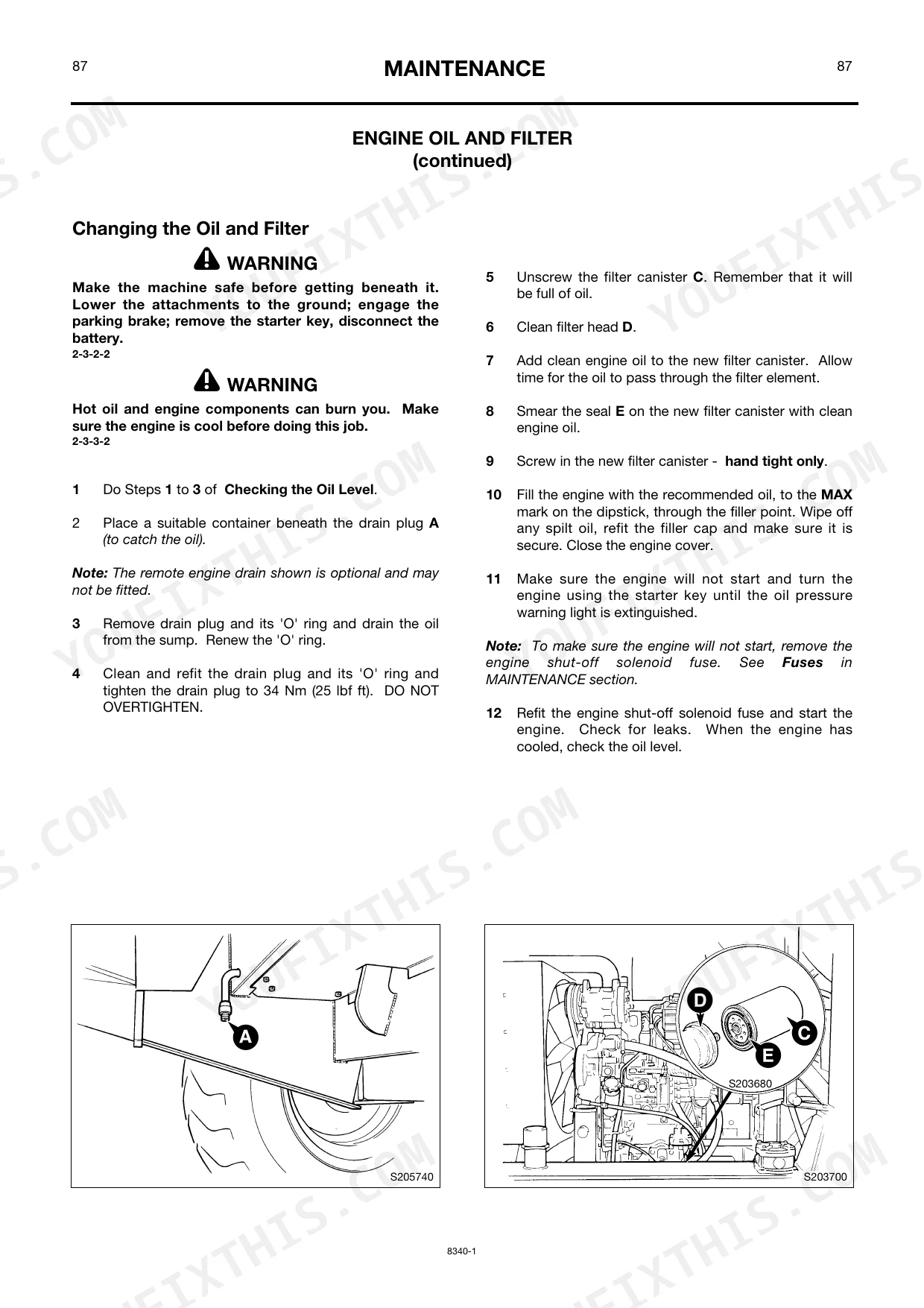

For wheel nuts, the torque for 412S is 500 Nm (369 lbf ft) and for 414S is 600 Nm (443 lbf ft). ROPS/FOPS mounting bolts should be tightened to 330 Nm (243 lbf ft). The engine oil drain plug should be tightened to 34 Nm (25 lbf ft), and hydraulic filter cover plate nuts to 7 Nm (5 lbf ft). Axle fill/level plugs and drain plugs should be tightened to 85 Nm (60 lbf ft).
What do JCB 412S/414S error codes mean?

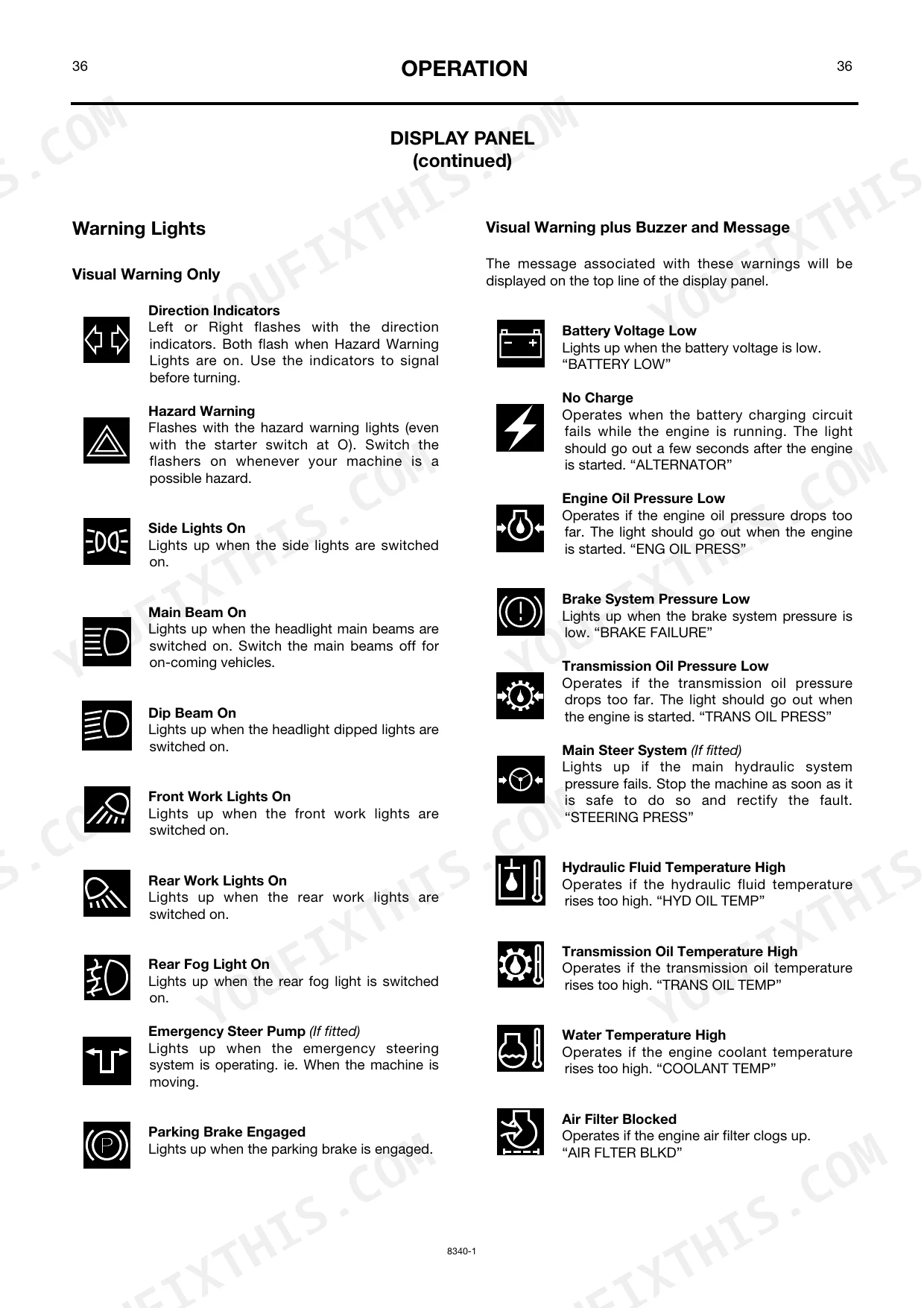

The display panel shows various warning messages such as "BATTERY LOW" for low battery voltage, "ALTERNATOR" for charging circuit failure, "ENG OIL PRESS" for low engine oil pressure, and "BRAKE FAILURE" for low brake system pressure. Other messages include "TRANS OIL PRESS" for transmission oil pressure, "HYD OIL TEMP" for high hydraulic fluid temperature, "COOLANT TEMP" for high engine coolant temperature, and "AIR FLTER BLKD" for a clogged air filter. "SERVICE REQD" indicates a service is due, and "IN GEAR" or "PARK BRAKE" appear if the transmission is not in neutral or the parking brake is engaged during start inhibit.
How do I reset fault codes on a JCB 412S/414S?
In an emergency, the "MANUAL" button can be pressed to reset the automatic engine shut-down counter for 30 seconds, allowing the machine to be moved. The "START INHIBIT" message can also be overridden by pushing the "MANUAL" button once. For the "SERVICE REQD" message, it is reset when data is downloaded by your JCB distributor.
What is the hydraulic pressure spec on a JCB 412S/414S?
When changing the servo filter element, a 0-40 bar (0-600 lbf/in²) pressure gauge should be fitted to the servo pressure test point P to ensure all residual hydraulic pressure is vented from the system before removal.
What do I get after purchasing this JCB 412S, 414S manual?
You get a 99-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this JCB 412S, 414S Operator Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text is crisp and consistently easy to read throughout. Diagrams and illustrations are clear raster images with readable labels, though some may show slight pixelation when highly magnified. Pages are clean, free from scan artifacts, stains, or skewed content. Please note that pages 2, 43, 83, 89, 95, and 97 are intentionally blank.
