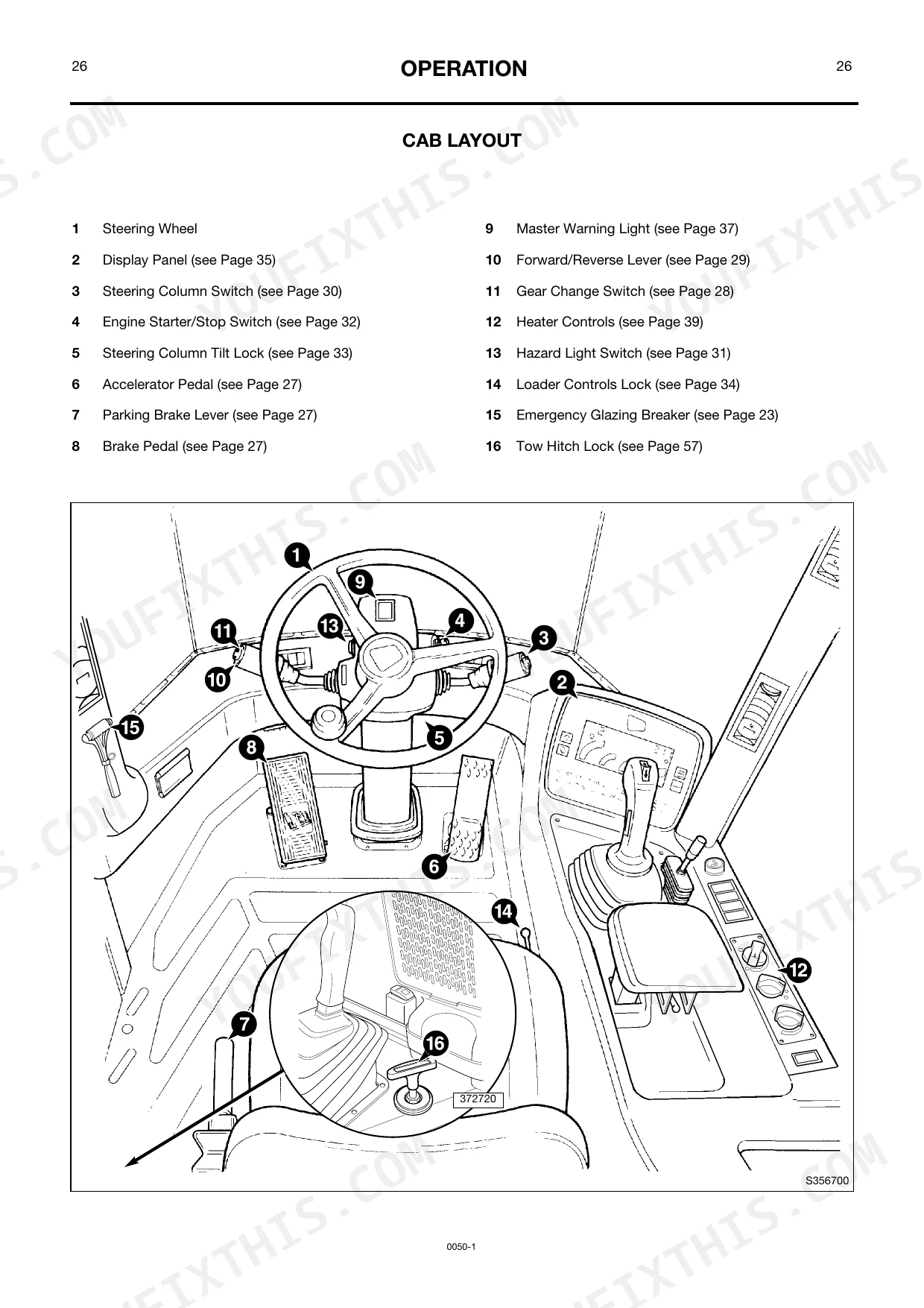

Mastering the daily upkeep on your wheeled loader requires exactly what you will find in this 104-page JCB 414S, 416S Operator Manual PDF (OEM #0050-1). Inside, you get a complete breakdown of the display panel warning lights, automatic carry control system operations, and step-by-step greasing points for the shovel and loader arms. Open to the maintenance schedules to lock down your daily fluid checks, filter replacement intervals, and cab layout specifics. Torque your wheel nuts to exactly 600 Nm and verify the primary front work light fuse is running a 50 Amp rating before heading to the job site. Stop guessing what that flashing dashboard indicator means and risking costly downtime. Bookmarked for quick navigation, this digital file opens instantly on your phone or tablet so you can check the specs and get back to work.
What's Inside This JCB 414S, 416S Operator Manual

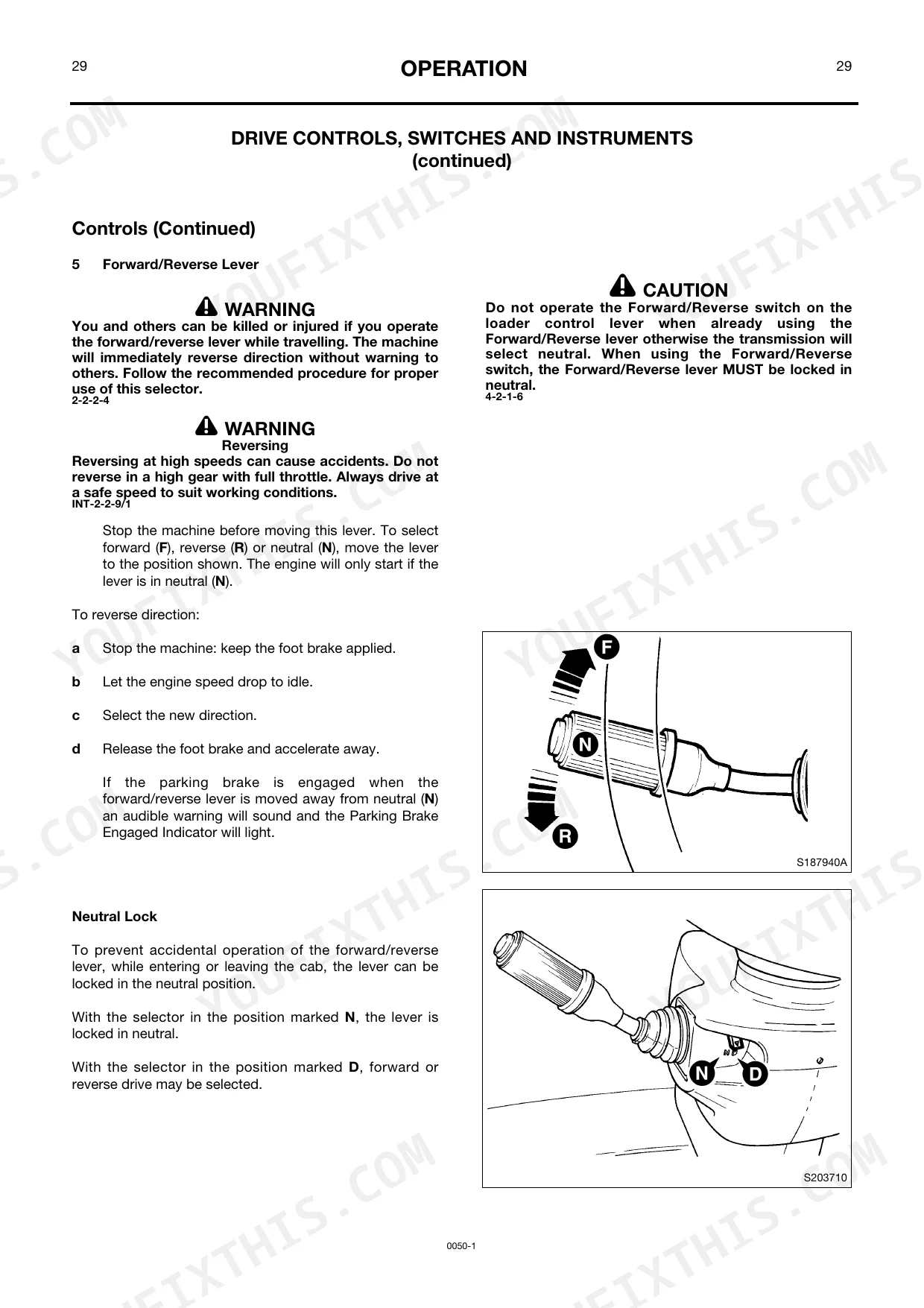

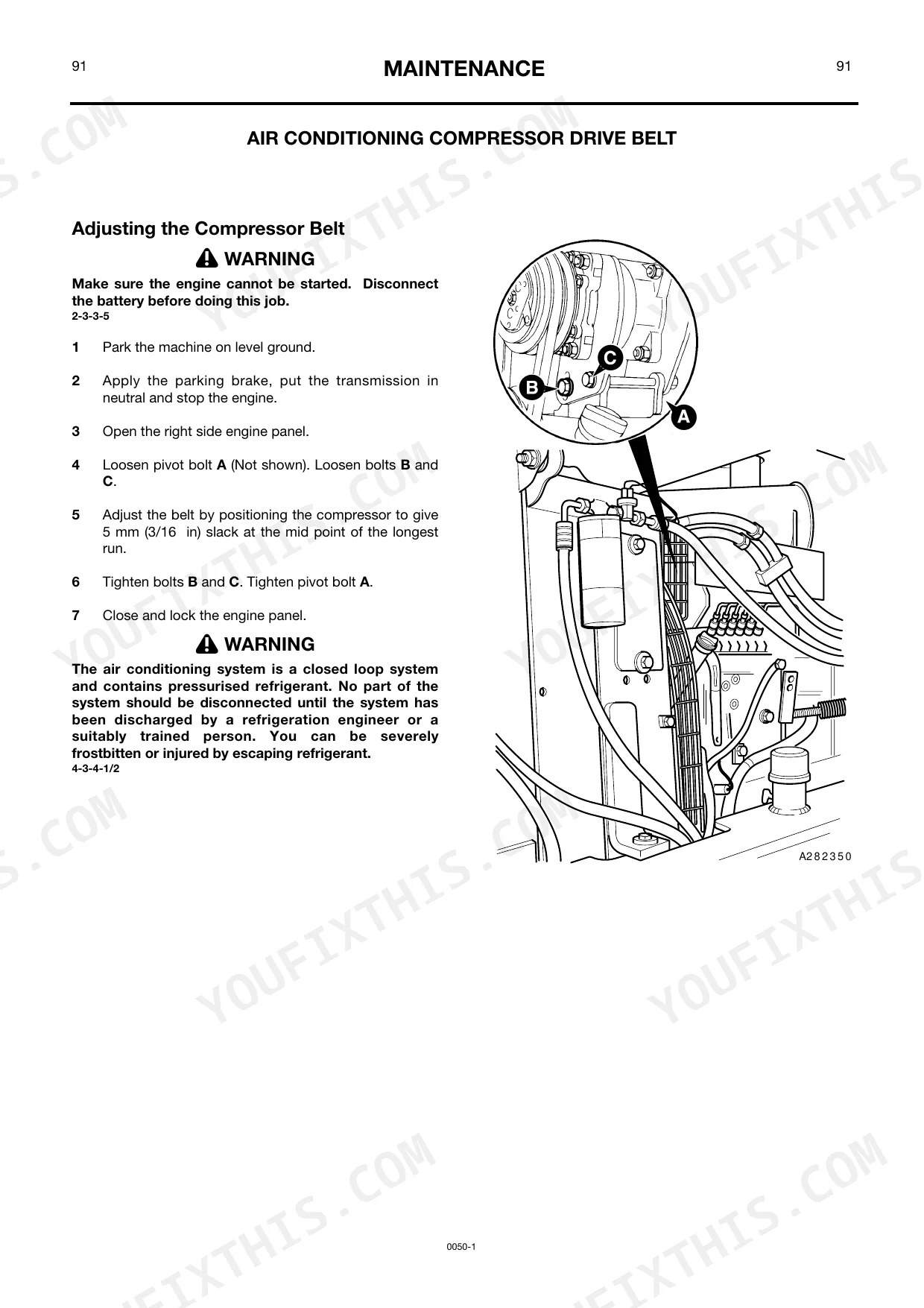

| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 1-4 | Machine Security |
| Introduction | 5-12 | About This Handbook, The JCB Wheeled Loader, Safety First - Yours and Other People's, Safety Decals, Identifying Your Machine |
| Operation | 13-52 | Introduction, Before Entering the Cab, Entering/Leaving the Cab, Door and Windows (Opening and Closing the Door, Opening and Closing the Side Windows, Emergency Exit) |
| Maintenance | 53-90 | Lubricants - Health and Safety (Hygiene, Storage, Waste Disposal, Handling, First Aid - Oil, Spillage, Fires) |
| Optional Attachments | 91-96 | Introduction, Quick Release Couplings, Quick Hitch Control |

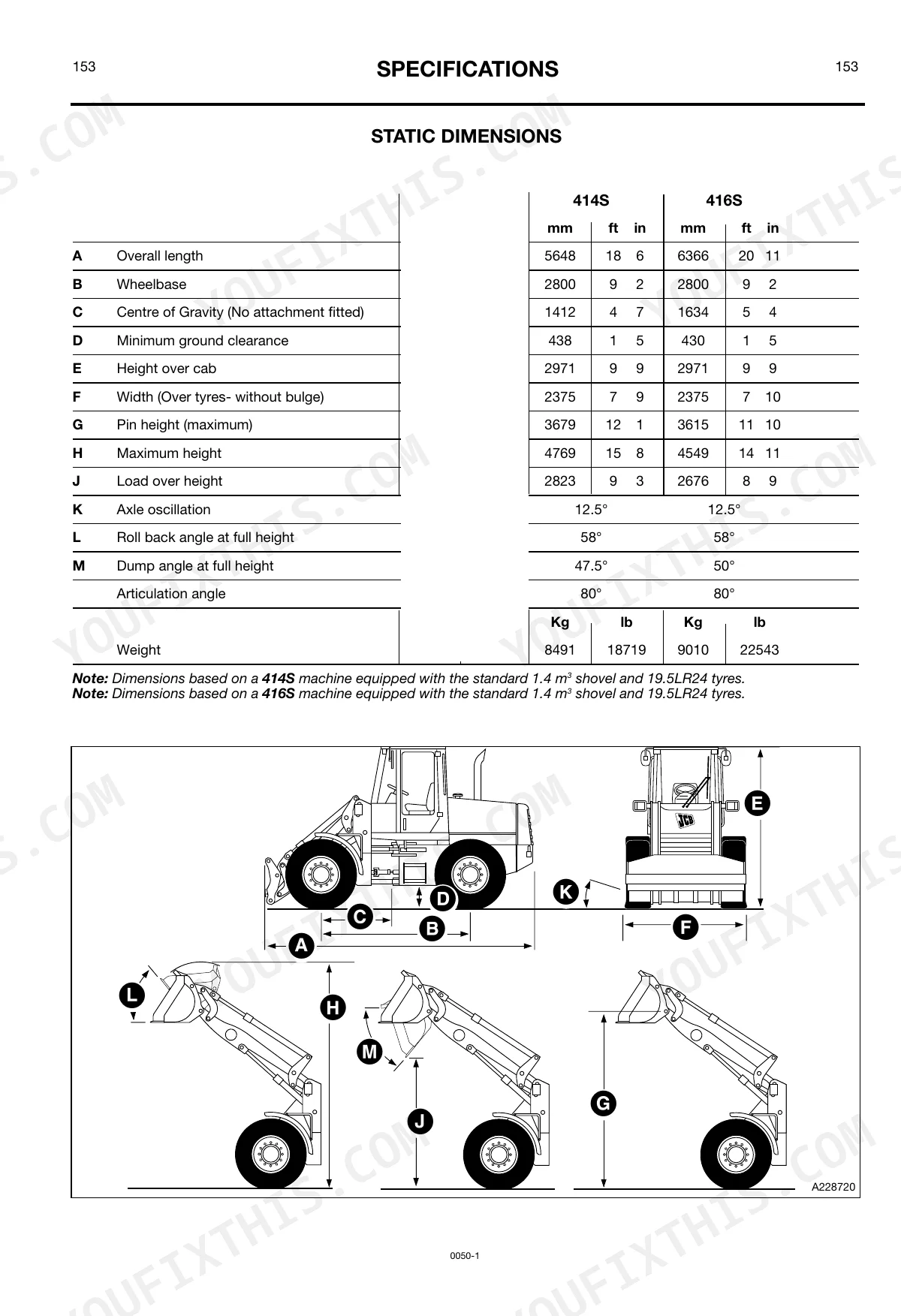

| Specification | 97-100 | Tyre Pressures, Working Capacity, Static Dimensions, Noise and Vibration Data |
| Service Record Sheet | 101-104 | Distributor Preparation /P.D.I., First 100 Hr./2 Weeks, 500 Hr./3Month, 1000 Hr./6 Month, 2000 Hr./12 Month Annual Insurance Inspection |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 414S, 416S | ||
| Wheel Nut Torque | 600 Nm (443 lbf ft) | p. 88 |
| All Models | ||
| Hydraulic Filter Cover Plate Nuts Torque | 7 Nm (5 lbf ft) | p. 82 |
| Hydraulic Hoses | No specific numerical values for clearance, torque, or replacement found. Instructions for inspection only. | p. 10 |
| Air Filter | No specific numerical values for clearance, torque, or replacement found. Instructions for cleaning and replacement conditions only. | p. 66 |
| Primary Fuse PF1 (Front Work Lights, Rear Work Lights, Main Beam, Dip Beam, Fog Lights) | 50 Amps | p. 86 |
| Primary Fuse PF2 (RH Side/Tail Lights & Switch Illumination, LH Side/Tail Lights & No. Plate Lights, Headlight Flash, Radio (24 Volt), Beacon & Interior Light, Hazard Warning, EMS (Battery Feed), ZF Computer (Battery Feed), 12 Volt Trailer Electrics) | 40 Amps | p. 86 |
| Cab Glass / Mirrors | No specific numerical values for clearance, torque, or replacement found. Instructions for inspection only. | p. 65 |

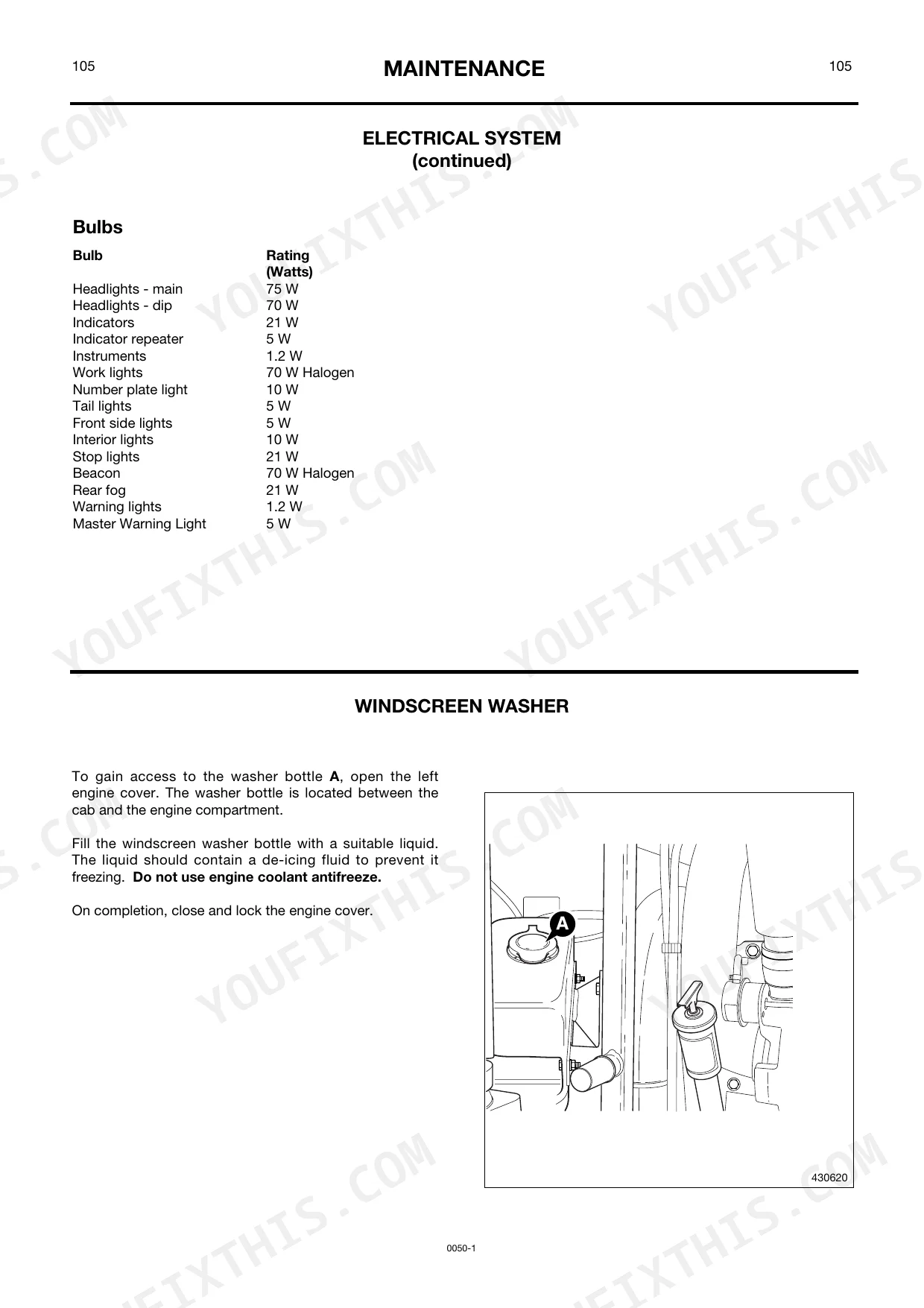

| Headlights - main bulb wattage | 75 W | p. 87 |
| Headlights - dip bulb wattage | 70 W | p. 87 |
| Battery Cables / Wiring | No specific numerical values for clearance, torque, or replacement found. Instructions for connection and inspection only. | p. 83 |
| 414S | ||
| Tyre Pressure (Front) for 414S 17.5 LR24 | 2.8 Bar (41 lbf/in²) | p. 97 |
| Tyre Pressure (Rear) for 414S 17.5 LR24 | 2.2 Bar (32 lbf/in²) | p. 97 |
JCB 414S, 416S Common Problems This Manual Covers
JCB 414S and 416S engine will not crank or turns over slowly after turning the key p. 86
Inspect the battery isolator and ensure the transmission is in neutral before cranking. Check the ignition relays and starter solenoid circuit by inspecting Primary Fuse PF3 on page 86. Replace the fuse if blown, ensuring you install the correct 40 Amps replacement to restore starting function.
Manual Section: MaintenanceLoader lift arms respond slowly or completely lose hydraulic function during heavy material handling p. 89
Verify the fluid level at the sight glass and check for cloudy fluid indicating water ingress. Drain and fill the reservoir to the full 130 litres (28.6 UK gal) capacity on page 89 if contaminated. Tighten the hydraulic filter cover plate nuts to 7 Nm (5 lbf ft) on page 82 to prevent air leaks.
Manual Section: MaintenanceMachine refuses to raise or lower the load p. 97
Reduce the weight in the bucket immediately. Verify the payload does not exceed the maximum load for the loader unit, rated at 1000 kg (1 tonne, 2205 lb) as detailed on page 97. Clear the excess material to restore normal boom operation.
Manual Section: SpecificationFront work lights and main beam headlights fail to illuminate during night operation p. 87
Check the work light housings for damage during your daily walkaround. Inspect the bulbs and replace any blown 70 W Halogen work lights as specified on page 87. If multiple lights fail, check Primary Fuse PF1 on page 86 and replace it with a 50 Amps fuse.
Manual Section: MaintenanceEngine temperature gauge reads high and warning lights stay illuminated after startup p. 90
Stop the machine immediately to prevent overheating. Inspect the engine drive belt tension on page 90 and adjust it if the maximum deflection exceeds 9.5 to 12.7 mm (0.375 to 0.5 in). Check the fluid levels and add oil to reach the 14.0 litres (3.1 UK gal) capacity.
Manual Section: MaintenanceFrequently Asked Questions
What do JCB 414S warning lights mean?
The manual provides a comprehensive list of warning lights and their meanings. For example, the 'Battery Voltage Low' light indicates low battery voltage, the 'No Charge' light operates if the battery charging circuit fails, and the 'Engine Oil Pressure Low' light indicates low engine oil pressure. These warnings are displayed on the top line of the display panel, sometimes accompanied by a buzzer and message.
What are the torque specs for JCB 414S wheel loader wheel nuts?
For JCB 414S and 416S models, the correct torque specification for wheel nuts is 600 Nm (443 lbf ft). It is recommended to check wheel nut torques every 2 hours on new machines or whenever a wheel has been removed, until they remain correct.
how to reset JCB 416S service light
The 'Service Required' warning message, which displays "SERVICE REQD" on the panel, indicates that service is needed. This warning is reset when diagnostic data is downloaded by your JCB distributor. The operator cannot reset this light directly.
How do you fix JCB 414S and 416S engine will not crank or turns over slowly after turning the key?
Inspect the battery isolator and ensure the transmission is in neutral before cranking. Check the ignition relays and starter solenoid circuit by inspecting Primary Fuse PF3 on page 86. Replace the fuse if blown, ensuring you install the correct 40 Amps replacement to restore starting function.
How will I receive this JCB 414S, 416S Operator Manual?
A 104-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is an OCR'd scanned PDF, allowing you to search and copy the full text. The text quality is generally crisp and readable throughout, with no significant blurriness or fading. Diagrams and illustrations are raster images, which remain clear at moderate zoom levels, and their labels are readable. Pages are clean with no stains or marks, though some exhibit slight skewing from the scanning process. While there are no completely blank pages, the service record and registration pages at the end contain large empty sections for user input.
