Need the factory operating instructions for your tracked excavator? This 186-page JCB JS120 Operator Manual PDF (OEM #9821/2100) details every cab control, daily check, and scheduled service interval. Find the troubleshooting section covering engine fault messages and hydraulic pump issues, along with procedures for routine upkeep without second-guessing. Replace the main fuel hoses every 4000 hours or every 2 years, whichever comes first, and keep the battery electrolyte level exactly 15 mm (0.6 in) above the internal plates. You cannot afford unexpected downtime from missed maintenance. Grab this bookmarked file on your tablet, walk out to the job site, and get back to work.
What's Inside This JCB JS120 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 9-10 | Important Information, Operator Manual, Safety Warnings |
| Introduction | 11-32 | About This Manual, Machine Description, Component Location, Safety Check List, Safety Labels, Identifying Your Machine |

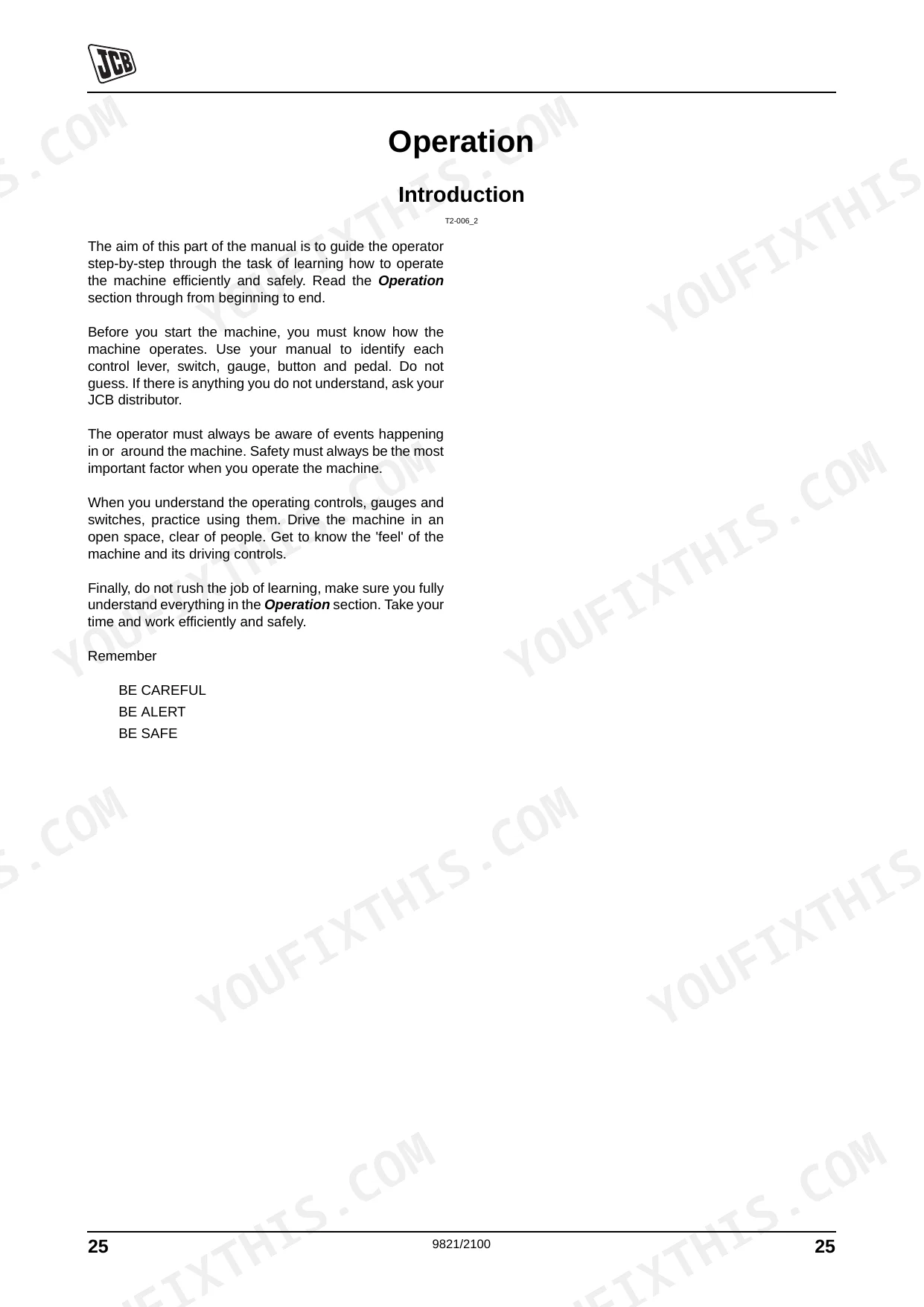

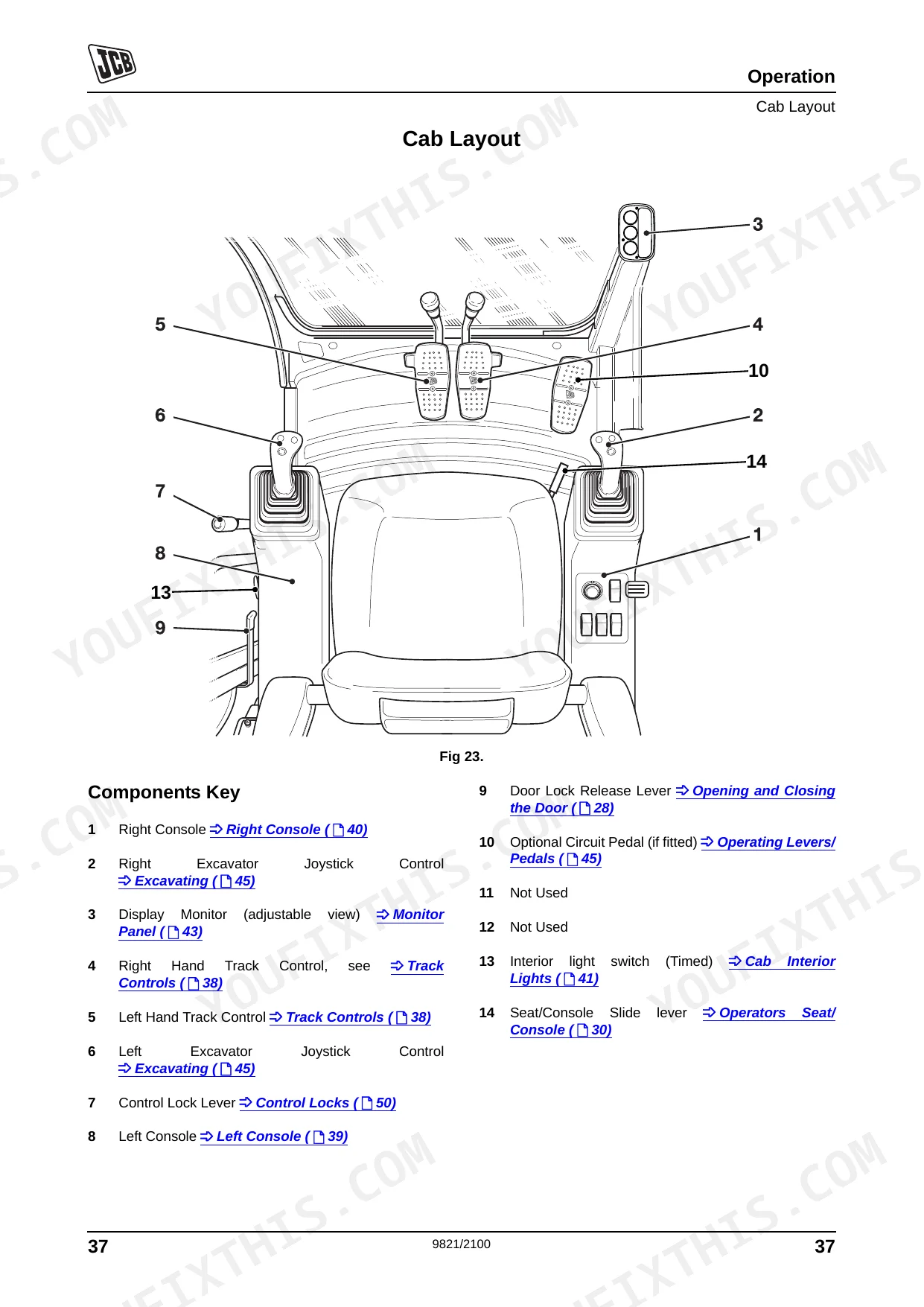

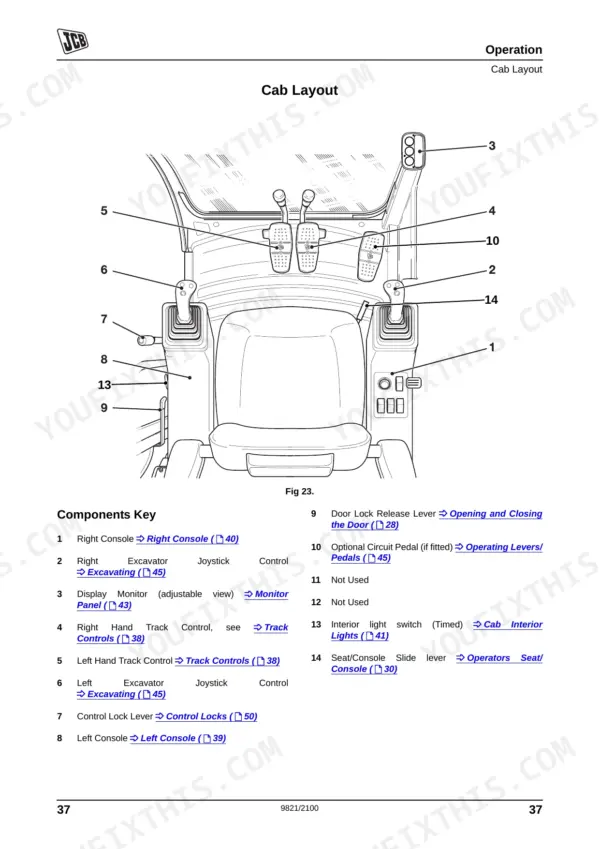

| Operation | 33-94 | Before Entering the Cab, Entering and Leaving the Cab (Standard Cab Machines) |

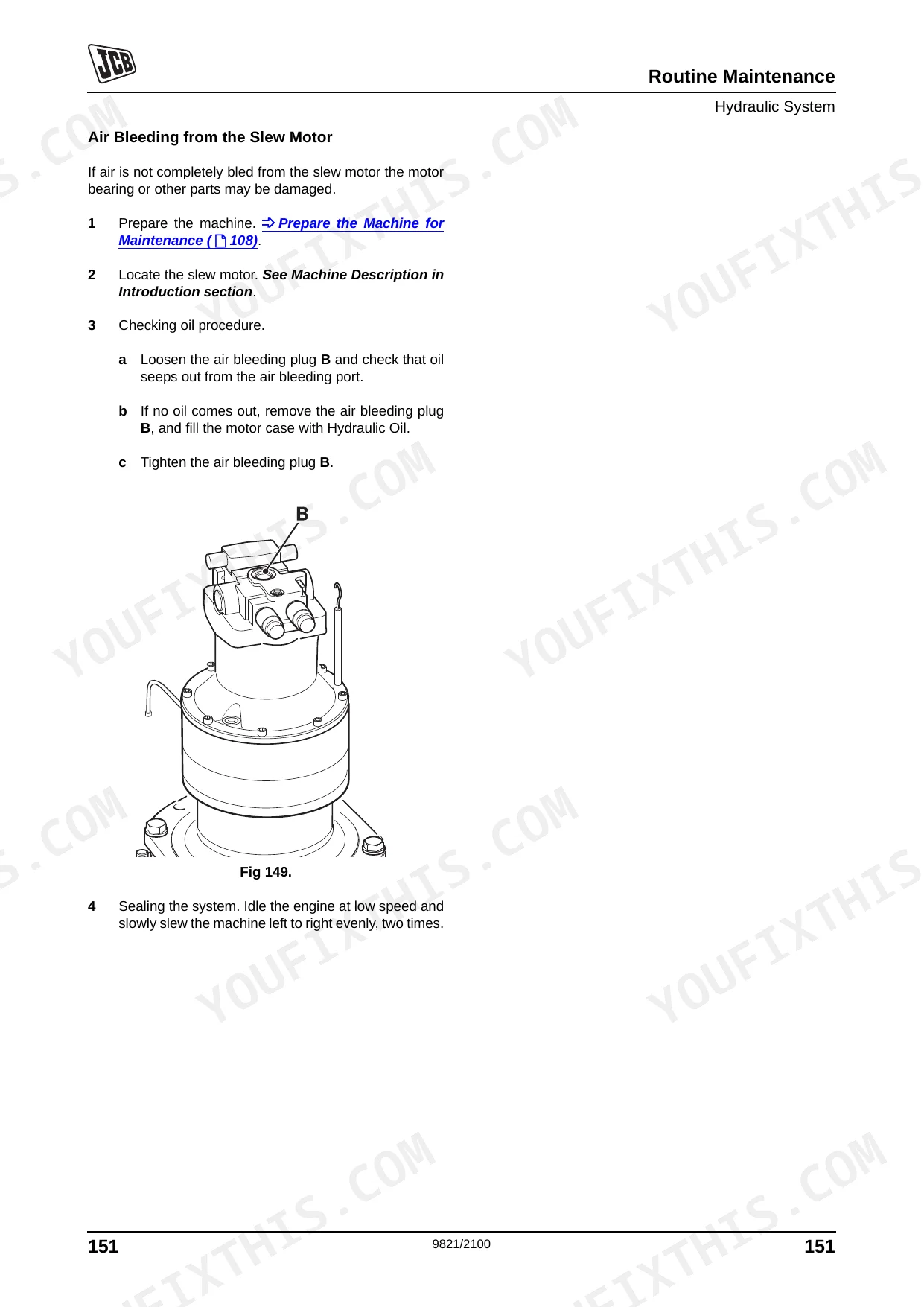

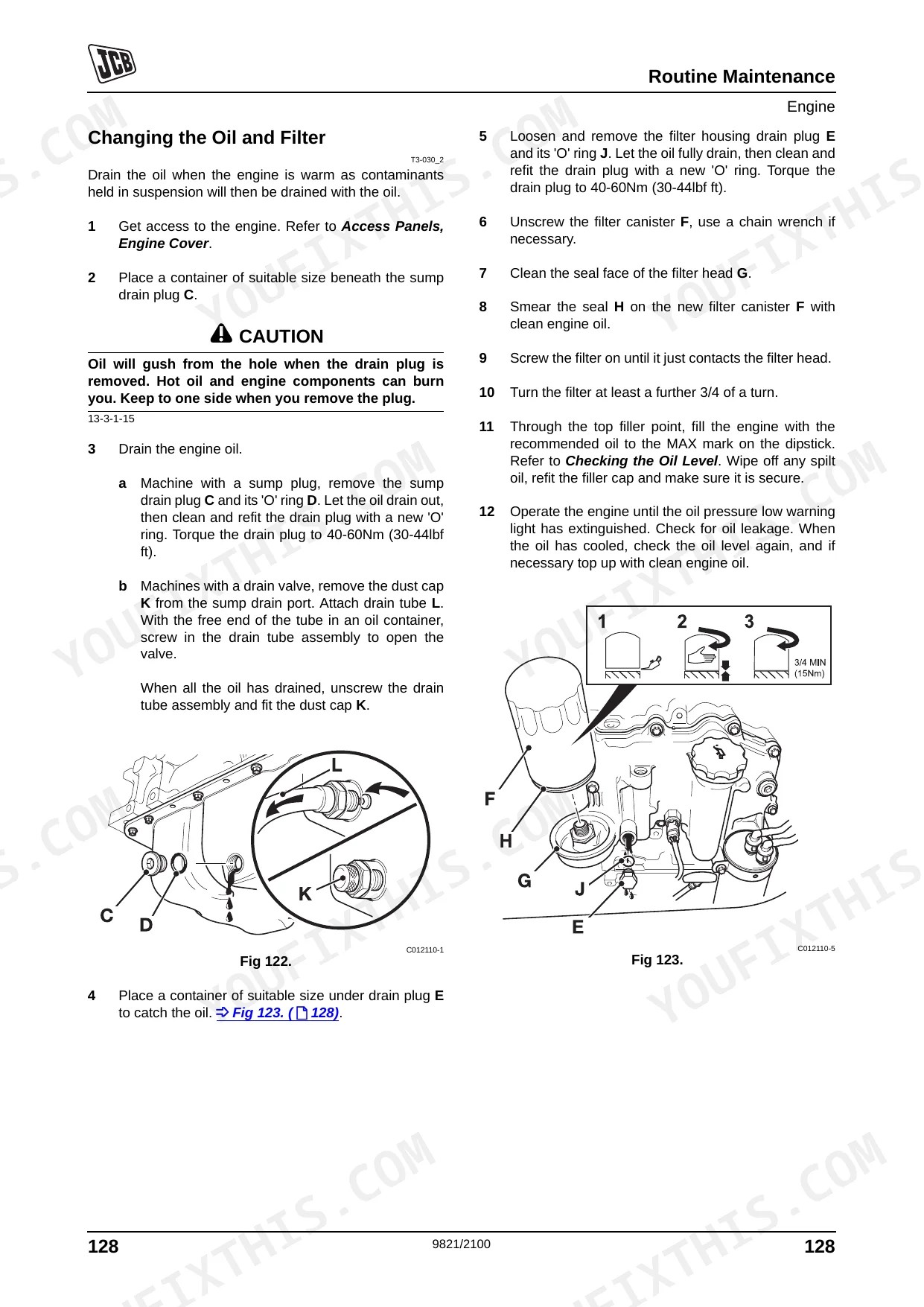

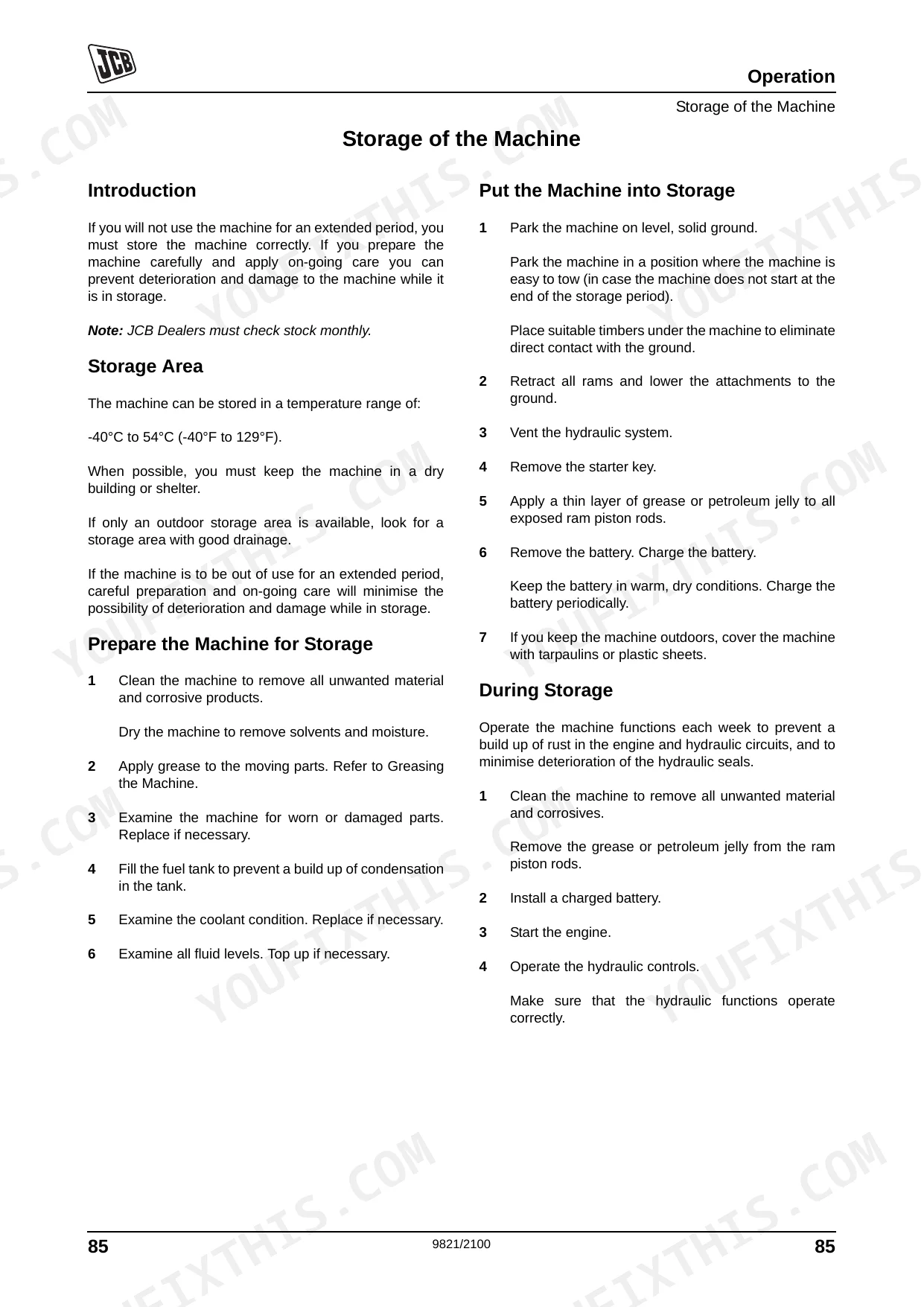

| Routine Maintenance | 95-168 | Service Requirements (Introduction, Owner/Operator Support, Service/Maintenance Agreements, Fit for Purpose Tests for Lifting Equipment, Obtaining Replacement Parts) |
| Optional Attachments | 169-174 | Attachments for Your Machine, Connecting/Disconnecting Hydraulic Hoses (Introduction), Hydraulic Rockbreaker (Preparation, Operation and Maintenance) |
| Specifications | 175-186 | Static Dimensions (JS120), Dig Depth Chart (JS120), Shipping Weight, Travel Speeds |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic ram seals replacement | Replace hydraulic ram seals(1) | p. 173 |
| Battery Electrolyte Level | 15 mm (0.6 in) above the plates | p. 126 |
| Tighten terminal clamps | Tighten terminal clamps | p. 100 |
| Fuel Hose (Fuel Tank - Engine) replacement interval | Every 2 years or every 4000 hours, whichever comes first | p. 108 |
| Fuel Hose (Fuel Filter - Injection Pump) replacement interval | Every 2 years or every 4000 hours, whichever comes first | p. 108 |
| Track sag (Firm / Hard ground) | 35-40 | p. 161 |
| Track sag (Soft / Muddy ground) | 60-70 | p. 161 |
| Remedy for Foreign matter caught on control valve spool | Wash the control valve(1) | p. 172 |
| Remedy for Valve sticking | Repair or replace valve assembly(1) | p. 172 |
| Remedy for Damaged hydraulic ram seals (attachment sinks down) | Replace hydraulic ram seals(1) | p. 173 |
| Remedy for Damaged hydraulic ram, cylinder (attachment sinks down) | Replace hydraulic ram/cylinder or the assembly(1) | p. 173 |
| Rams - Chrome Condition check interval | Check | p. 103 |
JCB JS120 Common Problems This Manual Covers
JCB JS120 tracked excavator boom, dipper, and bucket response is very weak or completely dead. p. 172
Check the hydraulic oil sight gauge and refill the tank to the full-level mark. Inspect the suction hose for loose clamps allowing air entry. If oil is completely missing, refer to page 172 for troubleshooting low hydraulic oil and check the pump suction side.
Manual Section: Hydraulic System TroubleshootingEngine cranks but will not start after prolonged storage or routine maintenance work. p. 100
Tighten terminal clamps securely as outlined on page 100. Inspect the battery electrolyte level and ensure it sits exactly 15 mm (0.6 in) above the plates. Verify the fuel shutoff solenoid is fully connected before attempting another crank cycle to prevent starter motor damage.
Manual Section: Electrical System TroubleshootingTracks derailing or making popping noises while turning under heavy load on firm ground. p. 161
Measure the track tension sag on firm ground using a straight edge. Adjust the tension grease cylinder until the sag measures exactly 35-40 mm as specified on page 161. Check the track wear components thoroughly if the tension drops rapidly after making this adjustment.
Manual Section: Routine MaintenanceVisible hydraulic oil leaks or severe chrome pitting on exposed boom cylinder rods. p. 103
Check the rams for chrome condition as directed on page 103. Replace damaged hydraulic ram seals immediately to stop fluid loss. Always coat exposed cylinder rods with protective wax if parking the machine for extended periods to prevent rust formation on the polished surfaces.
Manual Section: Routine MaintenanceFuel lines or hydraulic hoses weeping fluid or showing deep surface cracks near fittings. p. 108
Replace the fuel hose connecting the fuel tank to the engine every 2 years or every 4000 hours, whichever comes first, as specified on page 108. Follow the replacement procedure in the Routine Maintenance chapter. Clean all connecting surfaces thoroughly before installing the new hoses.
Manual Section: Routine MaintenanceFrequently Asked Questions
Torque specifications for JCB JS120 hydraulic pump bolts?
The hydraulic pump bolts (No. 15) on the JCB JS120 should be tightened to a torque of 67 Nm (6.83 kgf m or 49.41 lbf ft). This specification is for M10 bolts with a 17 mm wrench size.
What are the common fault messages on the JCB JS120 excavator?
The manual lists several common fault messages displayed on the monitor, including WATER TEMP (water leakage, belt elongation, defective radiator, broken fan, improper anti-freeze mixture, defective thermostat, defective water pump, dirty oil cooler/radiator, defective dust protection net, defective monitor), OIL PRESS (low engine oil, oil leakage, defective sensor, low viscosity, defective oil pump, defective monitor), AIR FILTER (clogged element, clogged intake system), and ALTERNATOR (belt tension). Each message has a corresponding cause and recommended remedy, as detailed in the fault message tables on page 162.
Torque specifications for JCB JS120 bucket pivot pins?
The manual provides torque specifications for bucket-related pins in Table 11 on page 132. Refer to that table for the exact torque values for pins such as 'Bucket ram to Bucket linkage' (E) and 'Bucket linkage to Bucket pin' (F). The greasing intervals for these pins are listed in Table 10 on page 124.
How to interpret error codes on JCB JS120?
To interpret error codes on the JCB JS120, refer to the 'Monitor Display - Fault Messages' section in the Troubleshooting chapter on page 162. This section contains tables listing various fault messages, their causes, and recommended remedies for issues like water temperature, oil pressure, air filter, alternator, and other system warnings.
What are the replacement specifications for battery?
The manual states that when replacing the battery, old and new batteries should not be mixed — they must be replaced as a pair to avoid shortening the service life of the new battery. For jump-starting, consult the Electrical System section for the correct booster supply voltage specification.
How quickly can I access this manual after buying?
A 186-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text, though some smaller text might be difficult to select accurately. The text quality is generally readable but exhibits typical scan artifacts, appearing slightly fuzzy or uneven, especially in smaller fonts. Diagrams and illustrations are raster images, which become pixelated when zoomed, and some labels or fine details within them are blurry and challenging to read. Pages are clean with no notable stains or marks, but the background is not pure white, indicating a scanned origin. There are several intentionally blank pages and some pages that are mostly blank except for a figure or heading.
