Need the factory operating instructions for your JCB rough terrain forklift? This 200-page JCB 926 operator manual pdf (OEM #9811/5700) details every daily check, load chart, and dashboard indicator for the 926, 930, 940, and 950 models. You get a complete breakdown of cab controls, strict safety warnings, and routine maintenance intervals designed to keep your equipment out of the repair bay. Open up to find exact fluid capacity tables, load handling procedures, and step-by-step greasing schedules. Inflate the 15.5 x 25 Sure Grip Loader tires to exactly 3.0 bar and verify the front wheel nuts are tightened to 680 Nm before you start your shift. A neglected machine always costs you money in the end. Download this bookmarked file directly to your tablet, jump straight to the service schedule, and get to work.
What's Inside This JCB 926–950 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 9-10 | Important Information, Operator Manual, Safety Warnings |

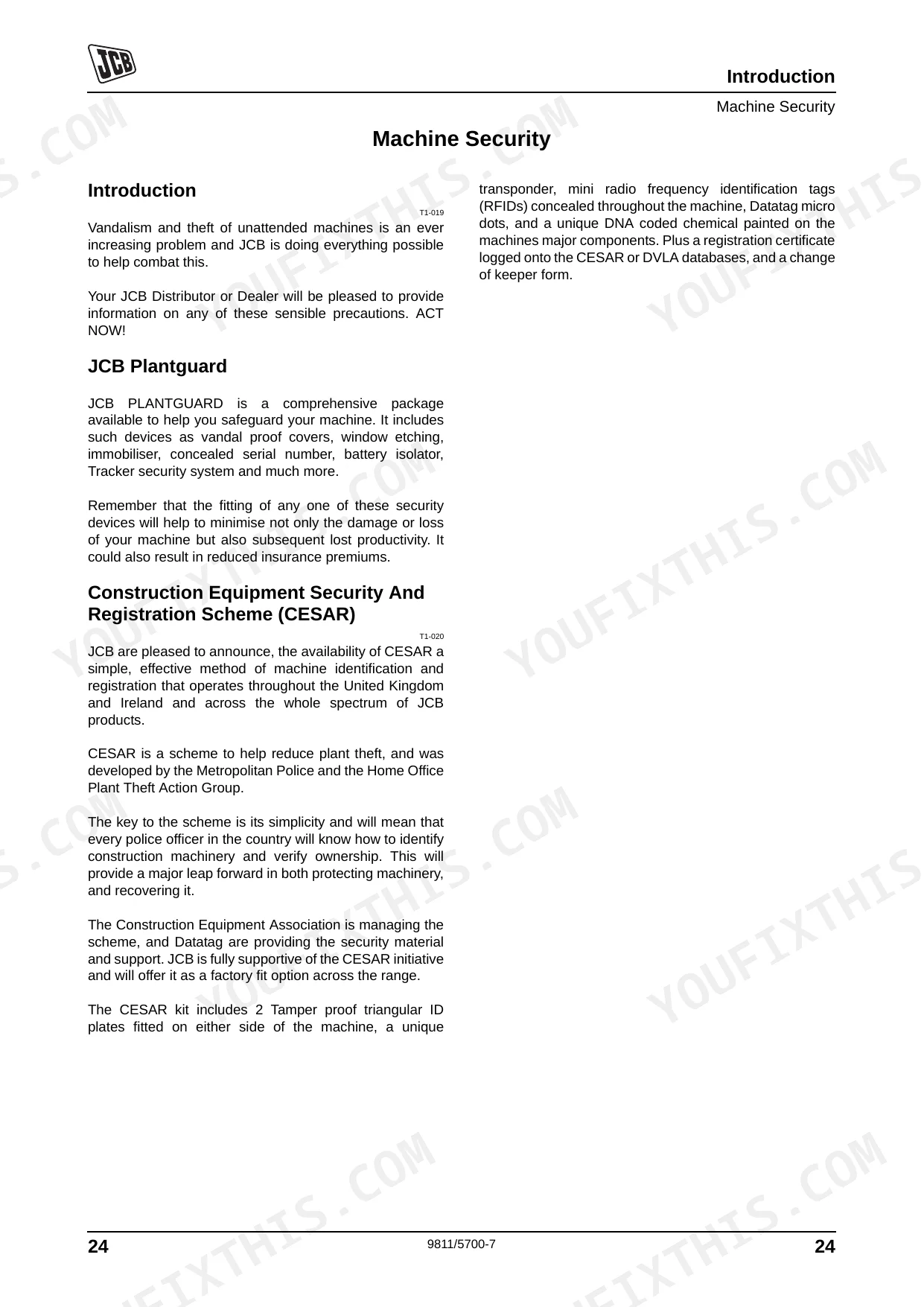

| Introduction | 11-24 | About This Manual, Machine Description, Safety Check List, Safety Labels, Identifying Your Machine, Machine Security |

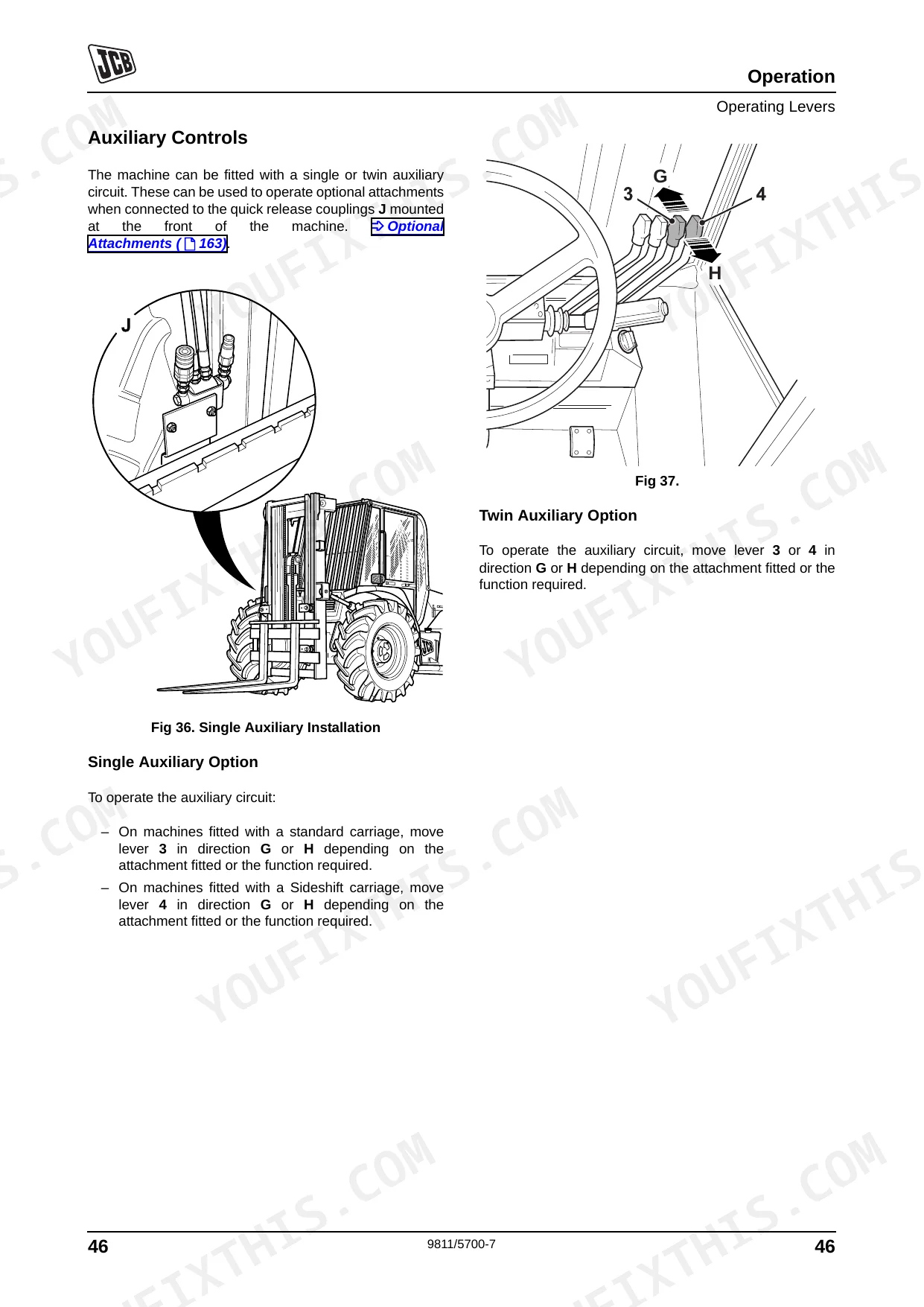

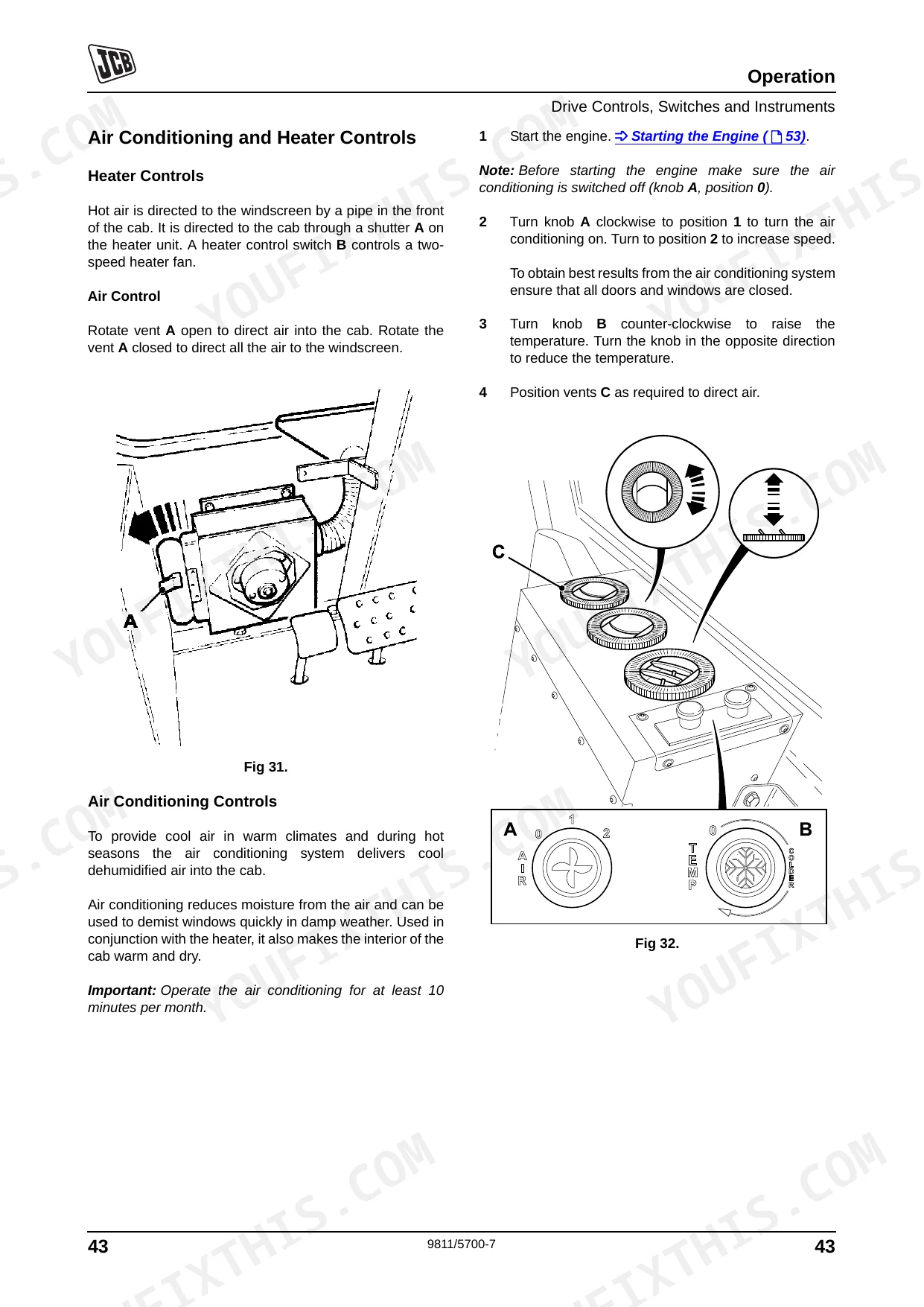

| Operation | 25-86 | Safety Labels (Introduction), Before Entering the Cab (Safety Label Identification), Entering and Leaving the Cab, Doors and Windows (Opening and Closing the Doors) |

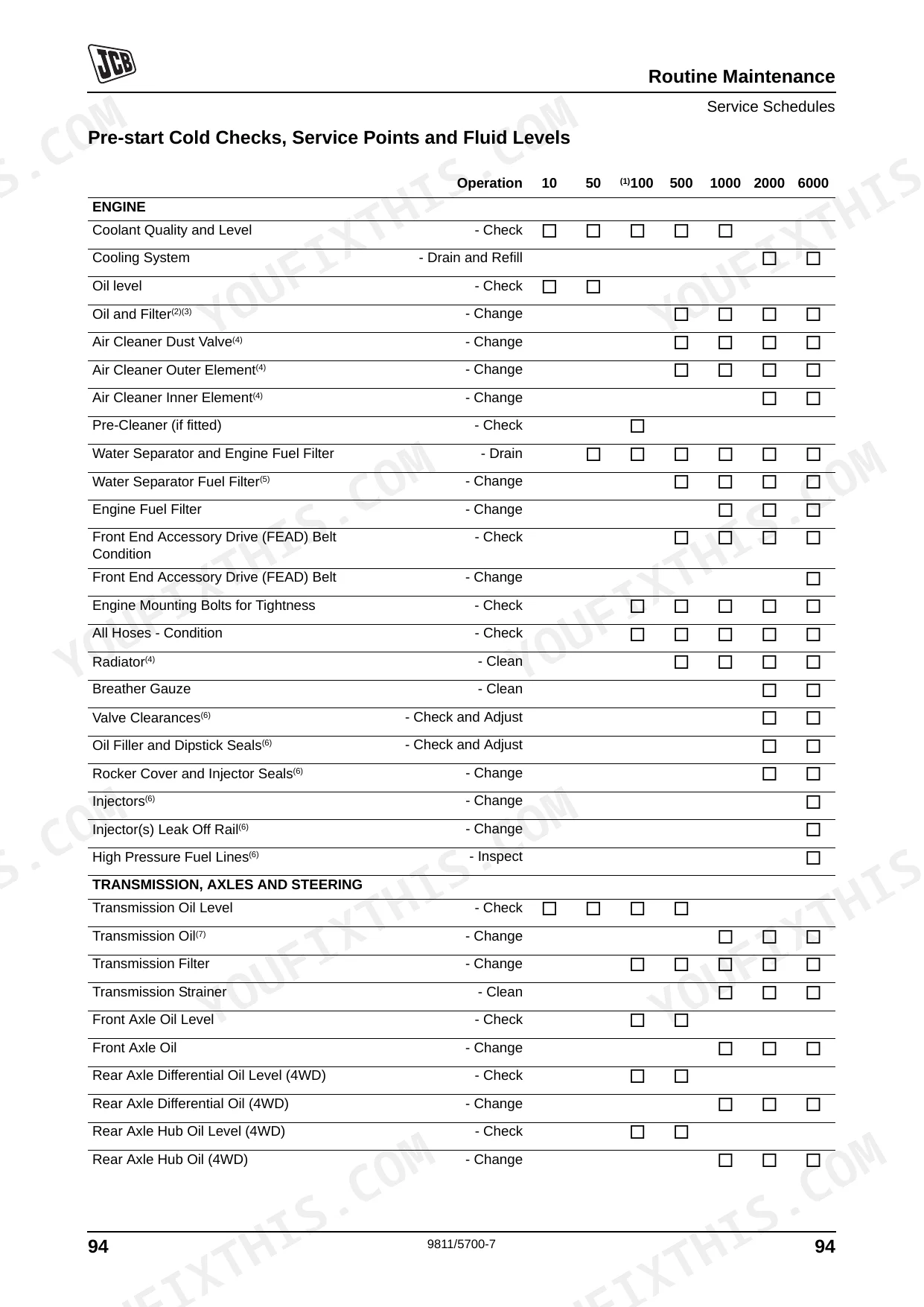

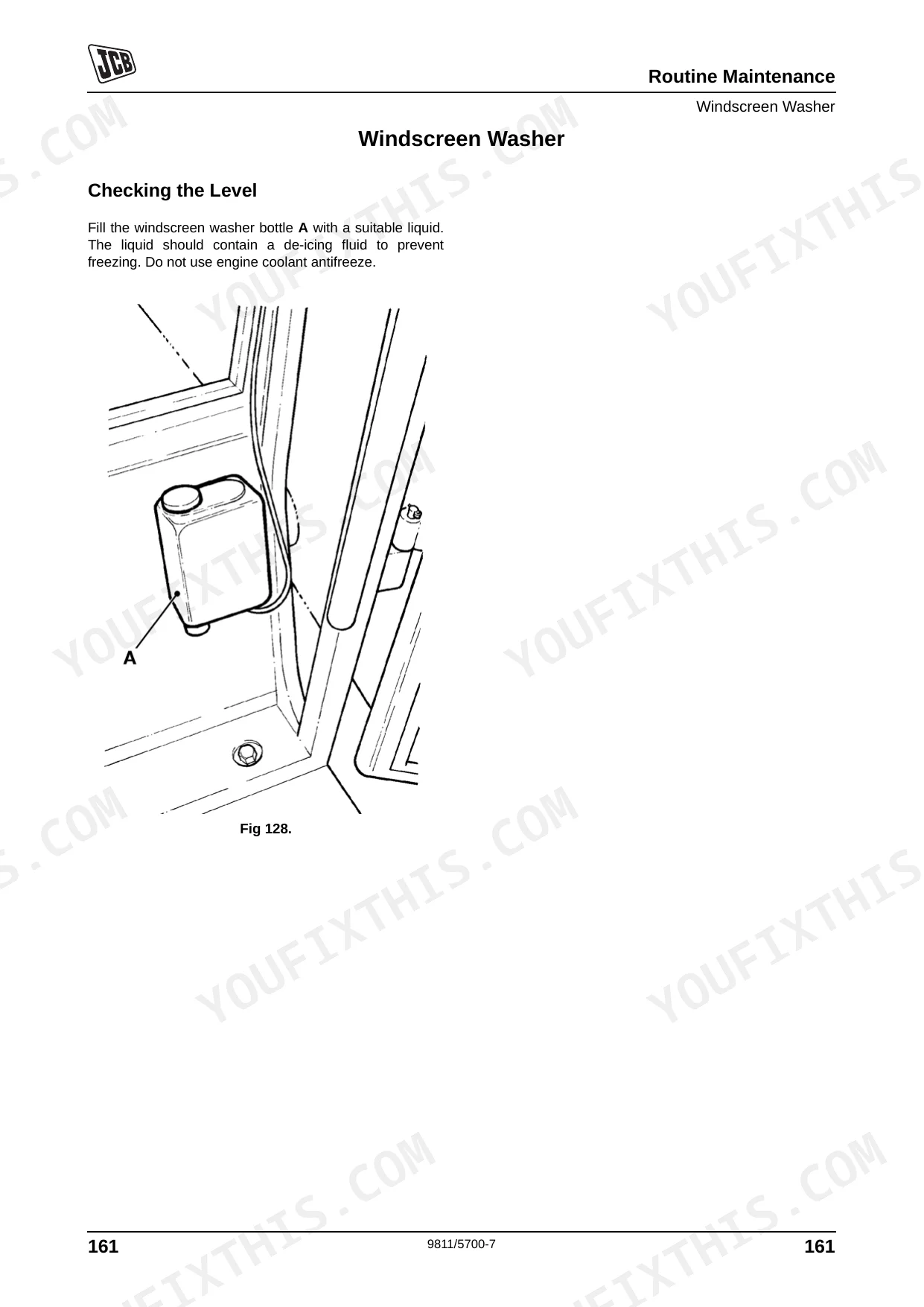

| Routine Maintenance | 87-162 | Service Requirements (Introduction, Owner/Operator Support, Service/Maintenance Agreements, Initial Service and Inspection, Fit for Purpose Tests for Lifting Equipment, Obtaining Replacement Parts) |
| Optional Attachments | 163-170 | Attachments for Your Machine, Connecting/Disconnecting Hydraulic Hoses (Introduction, Quick Release Couplings), Work Platforms |
| Specifications | 171-182 | Static Dimensions (All Models), Performance Dimensions (Lift Performance, Maximum Wading Depth), Noise Data (Introduction, All Machines), Vibration Data (Introduction, All Models) |
| Warranty Information | 183-186 | Machine Service Record Sheet (Installation Checklist, 1st 100 Hrs./1 Month, 500 Hrs./6 Month, 1000 Hrs./12 Month, 1500 Hrs./18 Month, 2000 Hrs./24 Month, 2500 Hrs./30 Month, 3000 Hrs./36 Month, 3500 Hrs./42 Month, 4000 Hrs./48 Month, 4500 Hrs./54 Month, 5000 Hrs./60 Month, 5500 Hrs./66 Month, 6000 Hrs./72 Month, 6500 Hrs./78 Month, 7000 Hrs./84 Month, 7500 Hrs./90 Month, 8000 Hrs./96 Month, 8500 Hrs./102 Month, 9000 Hrs./108 Month, 9500 Hrs./114 Month, 10000 Hrs./120 Month) |
| European Community Standards | 187-200 | Ec Declaration of Conformity (Introduction), Declaration of Conformity Form (Figure 140) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Nut Torque (Front) | 680 Nm (500 lbf ft) | p. 168 |
| Wheel Nut Torque (Rear) | 680 Nm (500 lbf ft) | p. 168 |
| Hydraulic Filter Element Installation | hand-tight only | p. 160 |
| Overall Cab Height | 2570 mm | p. 181 |
| 926-2 | ||
| Tyre Pressure (15.5 X 25 SURE GRIP LOADER (SGL)) | 3.0 bar (43.5 lbf/in2) | p. 186 |
| Tyre Pressure (12.5/80 X 18 PLY RIB & BAR - AM IMPLEMENT) | 2.5 bar (36 lbf/in2) | p. 189 |
| 926, 930, 940 | ||
| Ground Clearance | 370 mm | p. 186 |
JCB 926–950 Common Problems This Manual Covers
JCB 926 hydraulic lift and tilt functions feel weak or intermittently stop working after warming up p. 160
Drain the hydraulic tank and replace the filter element. Install the new hydraulic filter element hand-tight only as specified on page 160. Refill the system and verify the fluid level reaches the correct mark, keeping in mind the total system capacity is 64 Litres.
Manual Section: Routine MaintenanceMachine feels unstable on rough terrain or steering pulls noticeably to one side p. 168
Inspect all tires for damage and check air pressures. If a tire needs replacement, follow the wheel changing procedure. Tighten the front and rear wheel nuts to exactly 680 Nm as outlined on page 168. Recheck the torque after the first hour of operation.
Manual Section: Optional AttachmentsEngine cranks slowly or will not start at all during morning cold weather operations p. 99
Check the water separator and drain any accumulated water. Verify the fuel tank is full, noting the 88 Litres capacity shown on page 99. If the tank ran dry, bleed the air from the fuel lines before attempting to crank the starter motor again.
Manual Section: Routine MaintenanceMachine rolls slightly when parked on an incline or brake warning indicators stay illuminated
Test the park brake effectiveness on a safe incline. Inspect the linkage for wear or debris. If adjustment is required, check the maintenance schedule for proper intervals. Verify the ROPS mounting bolts remain torqued to 238 Nm to ensure cab safety during testing.
Manual Section: Routine MaintenanceFrequently Asked Questions
What are the replacement specifications for hydraulic filters?
Hydraulic filters should be changed at intervals of 500, 1000, 2000, and 6000 operating hours. When replacing, ensure to use a genuine JCB filter, smear the seal with hydraulic fluid, and screw the new element hand-tight. Using non-genuine filters can cause damage to the system.
What are the replacement specifications for hydraulic hoses?
Hydraulic hoses should be inspected regularly for damage such as chafed outer covers, kinks, or displaced end fittings. If a hose or hose fitting is damaged, it must be replaced immediately with a new one of the same size and standard to prevent fatal accidents.
How do you fix JCB 926 hydraulic lift and tilt functions feel weak or intermittently stop working after warming up?
Drain the hydraulic tank and replace the filter element. Install the new hydraulic filter element hand-tight only as specified on page 160. Refill the system and verify the fluid level reaches the correct mark, keeping in mind the total system capacity is 64 Litres.
How do you fix machine feels unstable on rough terrain or steering pulls noticeably to one side?
Inspect all tires for damage and check air pressures. If a tire needs replacement, follow the wheel changing procedure. Tighten the front and rear wheel nuts to exactly 680 Nm as outlined on page 168. Recheck the torque after the first hour of operation.
Is this JCB 926 & variants Operator Manual a digital download?
You get a 200-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this JCB 926 & variants Operator Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This is a scanned document with an OCR layer, allowing you to search and copy the full text. The text throughout is crisp and clear, making it easy to read. Diagrams and illustrations are present on most pages and their labels are readable, though they appear to be raster images. Pages are clean with no noticeable scan artifacts or skewed content, and a few pages are intentionally left blank.
