Spanning 160 pages, this factory JCB Micro excavator operator manual pdf (OEM #8900 - 06) lays out the exact daily maintenance and operating procedures for your 1994-2005 Micro and Micro Plus tracked excavators. Open to a complete breakdown of dashboard indicators, safe lifting regulations, and cold-climate warm-up procedures to keep your undercarriage and hydraulics intact. You get a full section of step-by-step daily checks, exact fluid capacities, and factory maintenance intervals to prevent costly downtime on the jobsite. Swap the fuel filter element every 500 operating hours and plan to replace the outer air filter element right at the 1000-hour mark. Don't let skipped maintenance ruin a good machine. Grab this bookmarked PDF, pull it up on your phone right by the tracks, and get back to digging.
What's Inside This JCB Micro, Micro Plus, JCB Micro Excavator Operator Manual
| System | Pages | Key Topics |
|---|---|---|

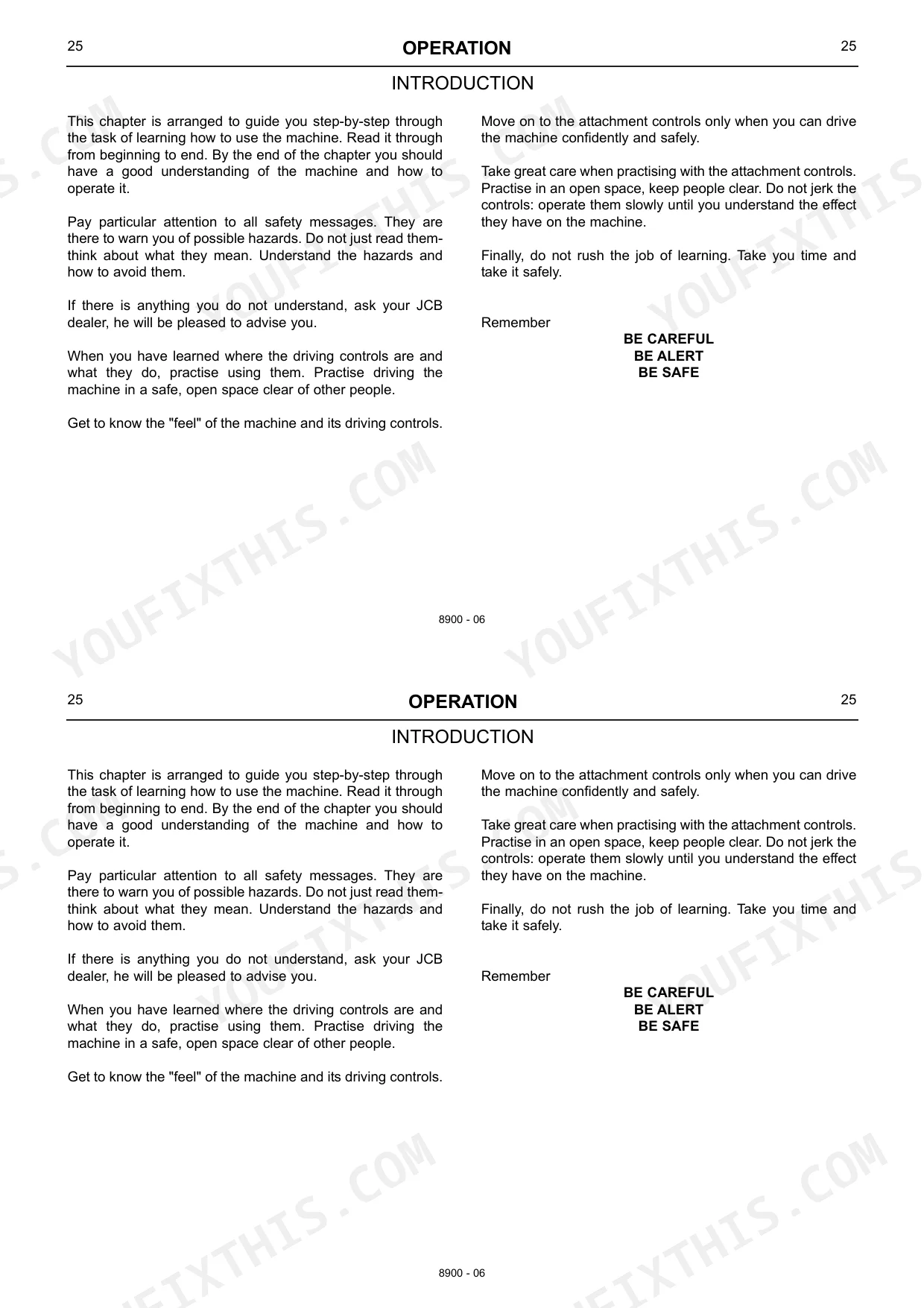

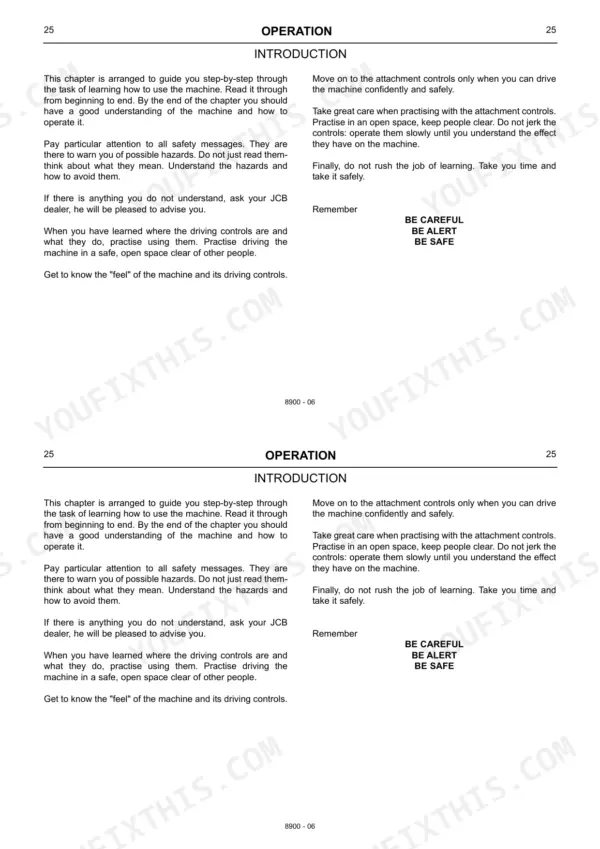

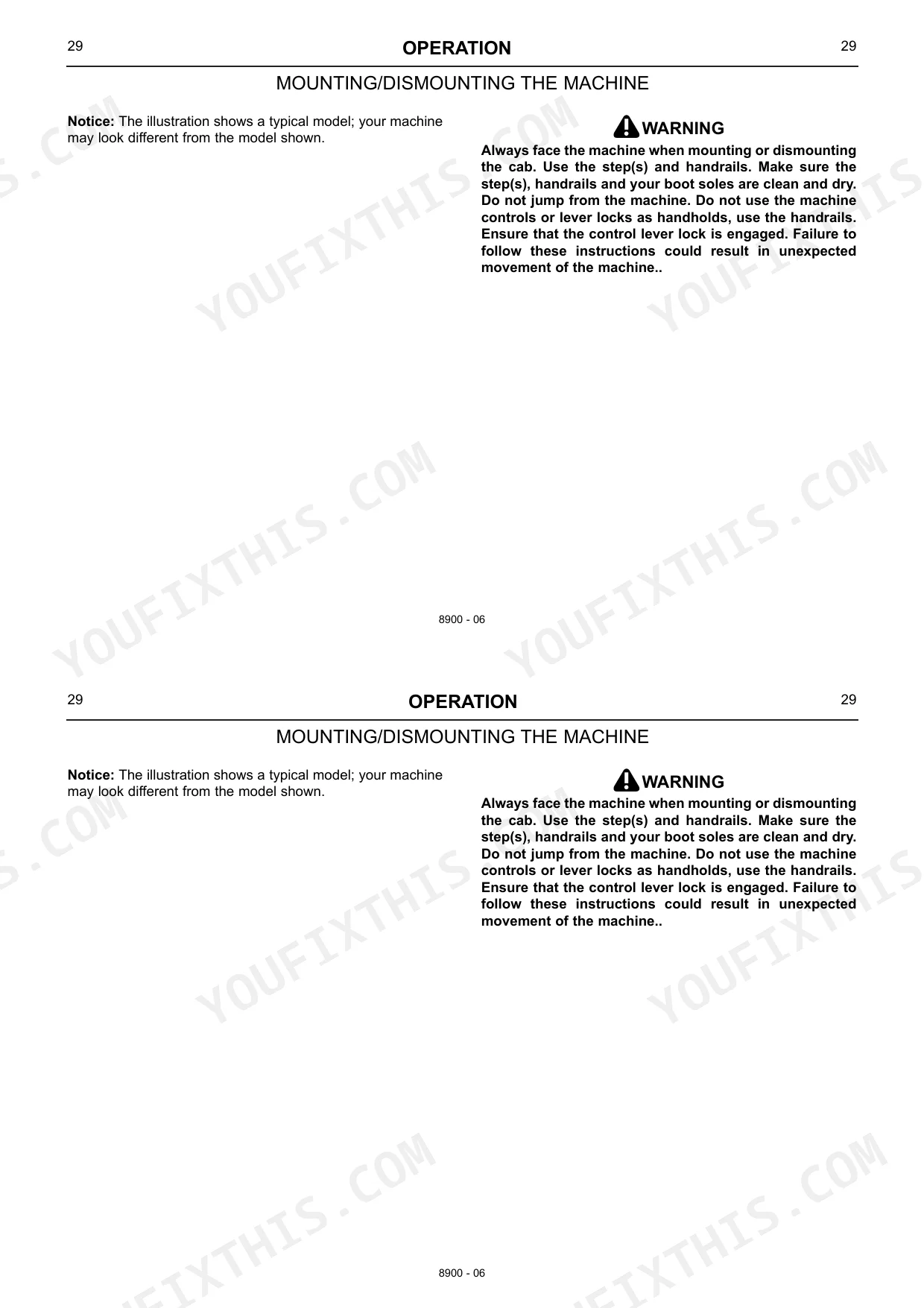

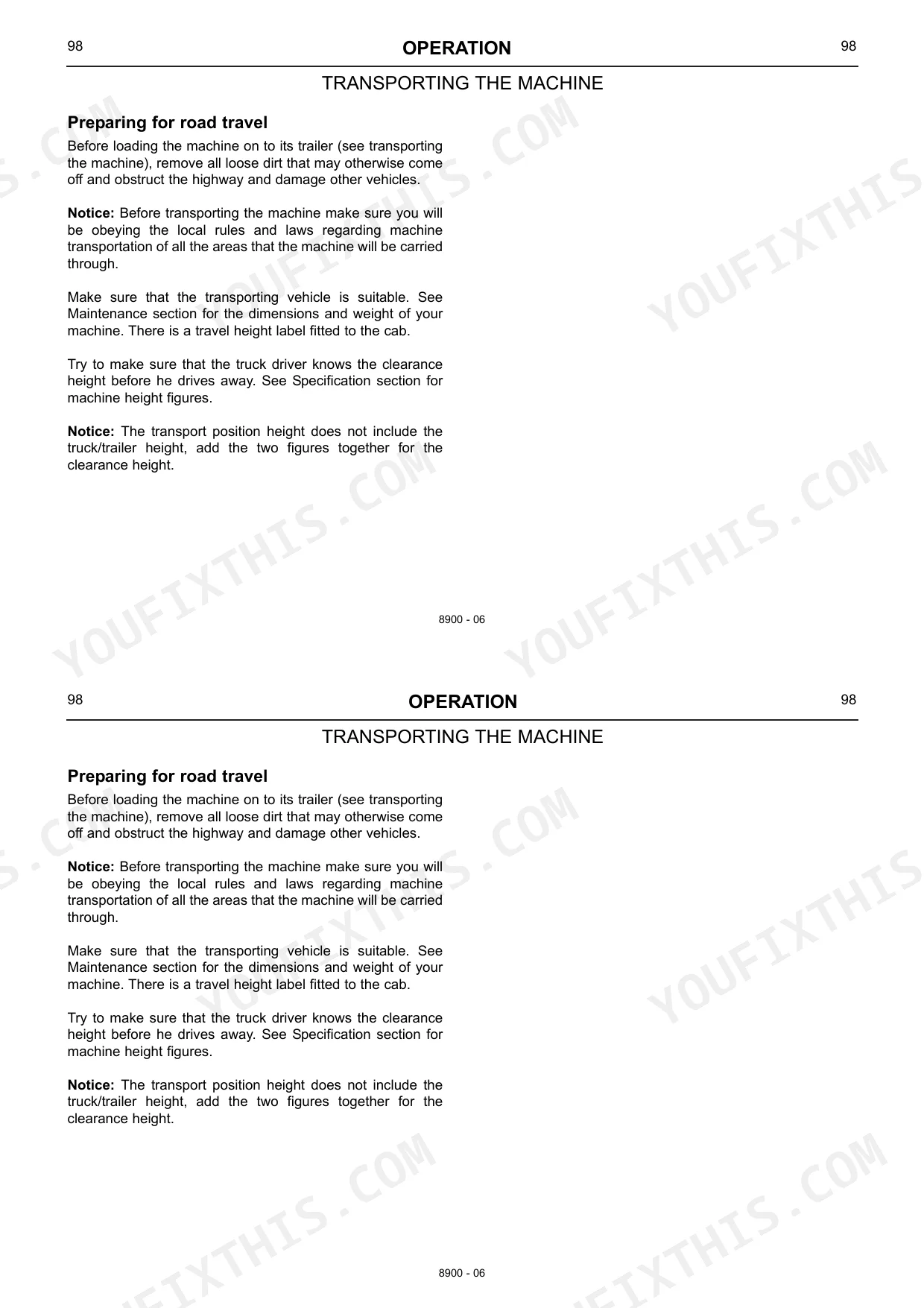

| Introduction | 5-22 | General Safety Check List, Safety Decals, The JCB Micro Excavator |
| Hood Locking | 27-29 | Starter Key, Engine, Hood Lock, Handle, Operating Safety Checklist |
| Seat Control | 30 | Engine, Control Levers, Operator's Seat, Seat Locking Lever |
| Seat Belt (If Fitted) | 31-66 | Engine Controls, Excavator Controls Lock, Slew Machine, Dipper |
| Cold Climate Warm Up | 67 | Engine, Hydraulic Oil, Hydraulic Circuit, Bucket Crowd, Dozer Control Lever, Boom, Dipper, Bucket |
| Operating in Low Temperatures | 68 | Engine Lubricating Oil, Diesel Fuel, Coolant Mixture, Battery, Fuel Tank, Air Filter |
| Operating in High Temperatures | 69-73 | Engine Lubricating Oil, Coolant Mixture, Coolant System, Radiator/Oil Cooler, Ventilation Grills |
| Getting the Machine Moving | 74-101 | Moving the Machine While Digging on the Level, Digging Near Walls / Digging Up Against Obstructions, Lifting Regulations and Safe Working Loads |
| Preparation for Storage | 102 | Bucket, Dipper Rams, Dig End, Boom |
| Maintenance | 103-154 | Service Contracts, Lubricants - Health and Safety, Maintenance Safety Check List, Service Schedules, Checking the Machine, Greasing, Engine Air Filter, Engine Oil |
| Specifications | 155-160 | Noise and Vibration Data, Static Dimensions, Performance Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Air filter element (outer) replacement interval | Every 1000 operating hours (or yearly) | p. 111 |
| Air filter element (inner) replacement interval | Every 2000 operating hours (or 2 years) | p. 111 |
| Fuel filter element replacement interval | Every 500 operating hours (or 6 months) | p. 110 |
| Hydraulic oil return filter element replacement interval | Every 500 operating hours (or 6 months) | p. 110 |
| Hydraulic oil and clean suction strainer replacement interval | Every 2000 operating hours (or 2 years) | p. 111 |

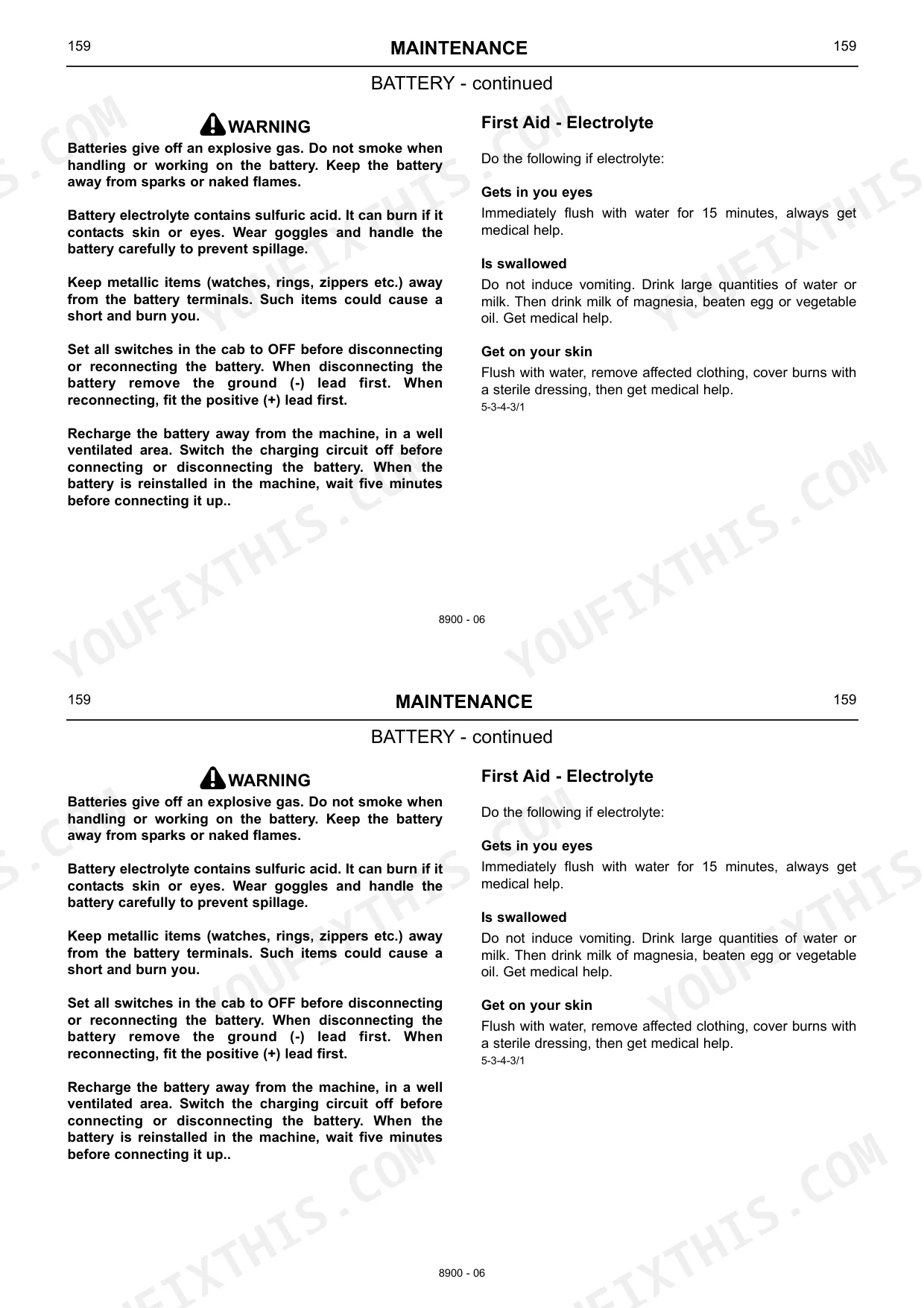

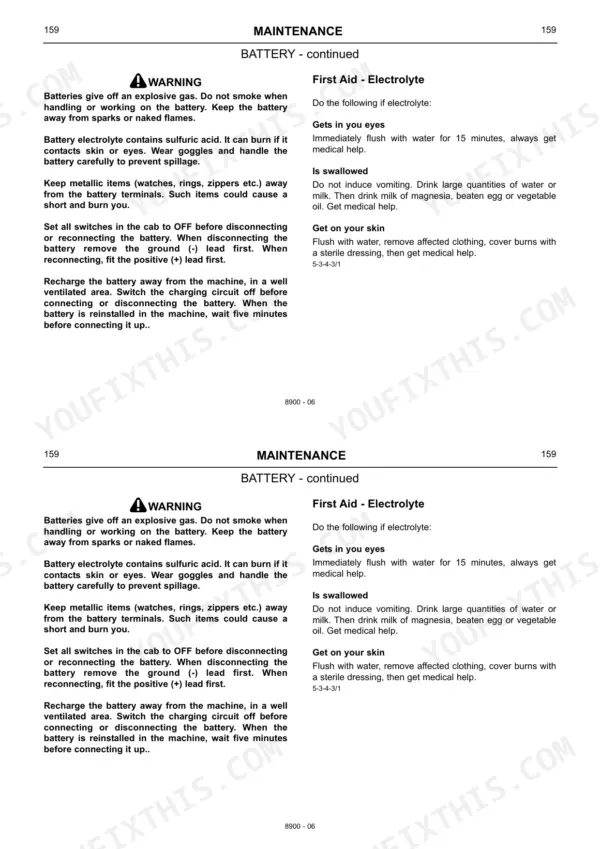

| Battery electrolyte level above plates | 1/4 in (6 mm) | p. 149 |
| Starter motor and alternator brush gear check interval | Every 2000 operating hours (or 2 years) | p. 111 |
| Fan belt slack | 0.2 in (5 mm) | p. 129 |
| Idler wheel and track rollers oil and seals replacement interval | Every 1000 operating hours (or yearly) | p. 111 |
| Track gearbox oil change interval | First 250 operating hours | p. 110 |
| Fuel Tank Capacity | 3.8 US Gal (14.6 Liters) | p. 152 |
| Engine Oil Capacity (First 100 hours) | 0.925 US Gal (3.5) | p. 152 |
JCB Micro, Micro Plus, JCB Micro Excavator Common Problems This Manual Covers
JCB Micro Excavator engine cranks but will not start or starts intermittently in cold weather p. 151
Inspect the main fuse block on page 151. Verify the main fuse is intact and not blown. Check the battery electrolyte level is 1/4 in (6 mm) above the plates as noted on page 149. Clean terminals and recharge if voltage is low.
Manual Section: Fuses / Electrical Circuit FaultsRed engine warning lights turn on and dashboard temperature buzzer stays on during operation p. 153
Shut down immediately and let the engine cool. Check the coolant reservoir level as shown on page 153. Inspect the radiator area for blocked airflow or severe debris buildup before restarting.
Manual Section: Operating in High TemperaturesHydraulic controls respond poorly and the machine loses digging power during heavy trenching p. 111
Drain the old fluid and replace the hydraulic oil and clean suction strainer every 2000 operating hours as instructed on page 111. Refill the reservoir to the capacity shown on page 153. Inspect control valve linkages for binding.
Manual Section: MaintenanceEngine squeals on startup or alternator charging fault warning light remains on p. 129
Inspect the engine bay and check the fan belt tension. Adjust the pulley bracket until the fan belt slack is exactly 0.2 in (5 mm) as required on page 129. Replace the belt completely if you see deep cracks or missing ribs.
Manual Section: MaintenanceEngine runs rough, misfires, or stalls frequently when operating on an incline p. 110
Drain water from the sedimenter and replace the fuel filter element every 500 operating hours as outlined on page 110. Bleed air from the fuel lines. Top off the fuel tank to its maximum 3.8 US Gal (14.6 Liters) capacity on page 152.
Manual Section: Fuel Filter/Sedimenter MaintenanceFrequently Asked Questions
How do I reset the fault code on a JCB Micro Plus?

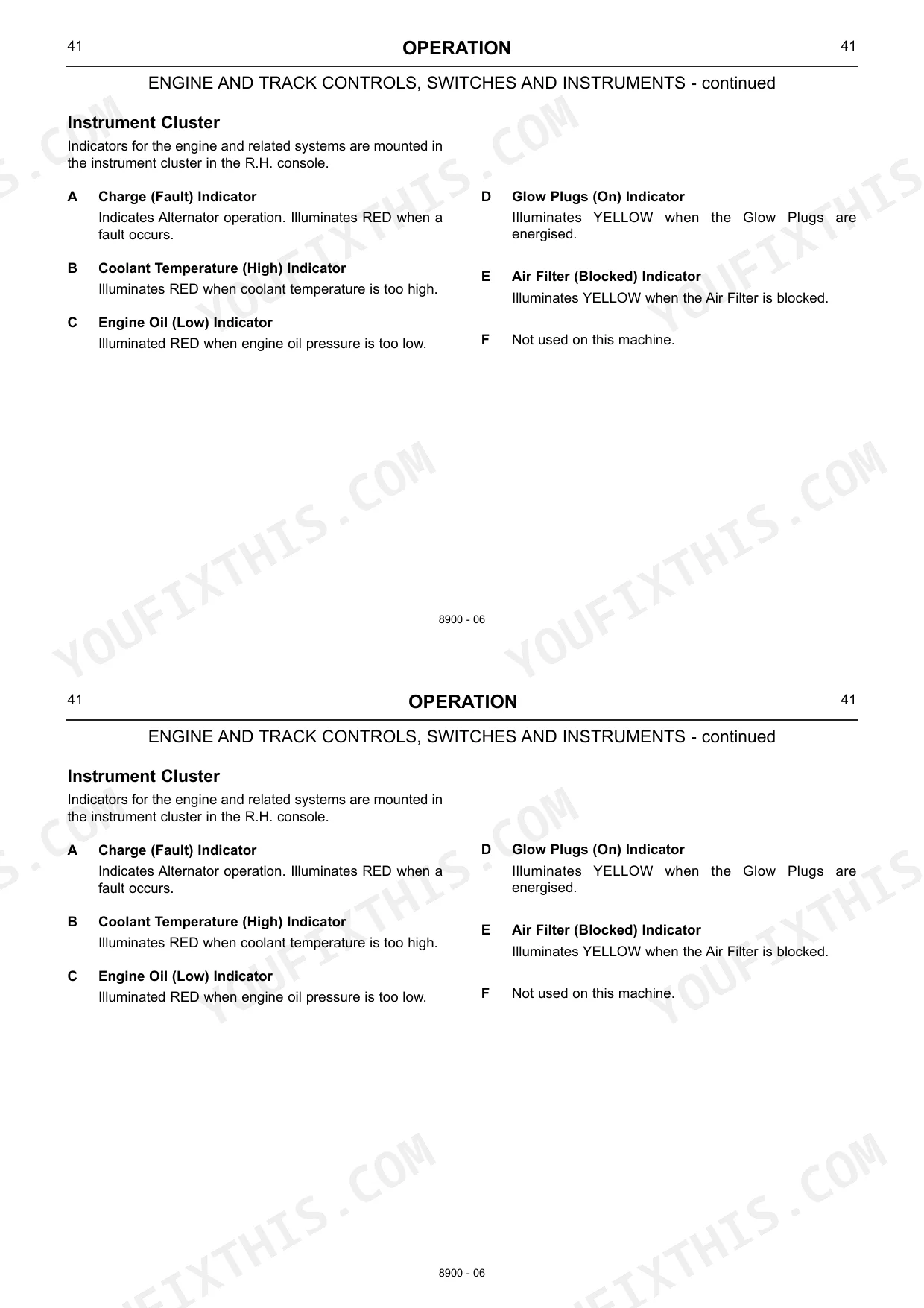

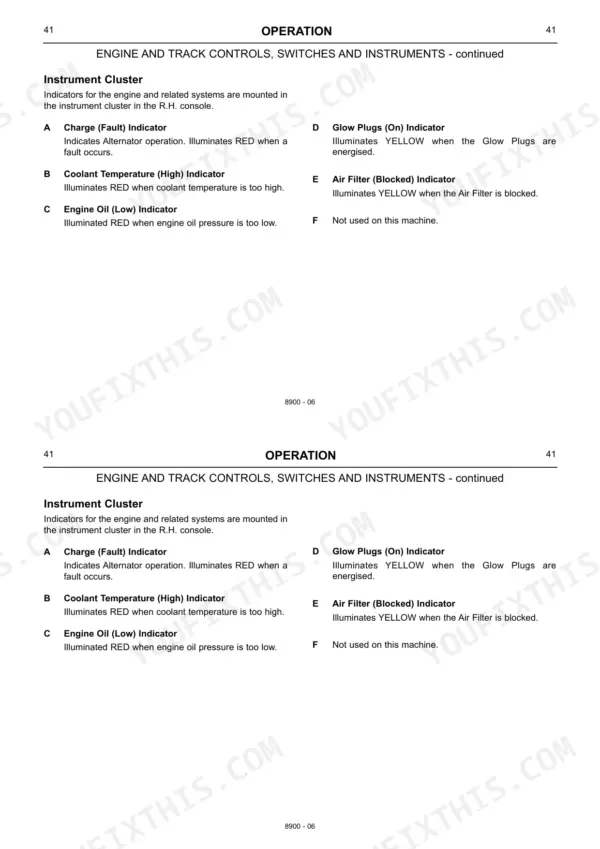

For machine faults indicated by a buzzer, such as Charge, Coolant Temperature, Engine Oil, or Air Filter, you can reset all operations by switching the ignition off. If the fault is ignored, the buzzer will sound continuously for 180 seconds, then intermittently.
How do I clear a warning alarm on a JCB Micro excavator?
For machine faults indicated by a buzzer, such as Charge, Coolant Temperature, Engine Oil, or Air Filter, you can clear the alarm by switching the ignition off. If the fault is ignored, the buzzer will sound continuously for 180 seconds, then intermittently.
What are the replacement specifications for Air filters?
The manual specifies changing the outer air filter element every 1000 operating hours (or yearly) and the inner air filter element every 2000 operating hours (or 2 years). The procedure for changing the element is detailed on page 131.
What are the replacement specifications for Fuel filters?
The fuel filter element should be changed every 500 operating hours (or 6 months). The procedure for draining the filter/sedimenter and changing the filter element is described on page 134.
What do I get after purchasing this JCB Micro / Micro Plus Operator Manual?
This is a 160-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this JCB Micro / Micro Plus Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text throughout is crisp and consistently easy to read, with no blurriness or fading. Diagrams and illustrations are primarily vector-based, appearing sharp and clear even when magnified, and their labels are easily readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content. There are a few blank pages present, which serve as filler pages.
