Part of the New Holland Repair Manuals.
This is the factory repair manual for the New Holland TM120, TM130, TM140, TM155, TM175 and TM190 tractors, part number 87611250. At 7954 pages it is the largest book in this range, and the reason is diagnostics: the electrical section alone runs from page 1635 to page 7942, and more than four thousand of those pages are step-by-step diagnostic procedures written per error code, split by transmission family and serial-number break. The engine section tabulates all six tractors side by side, from the 90 kW TM120 to the 168 kW TM190.
What's Inside This New Holland TM120-TM190 Repair Manual

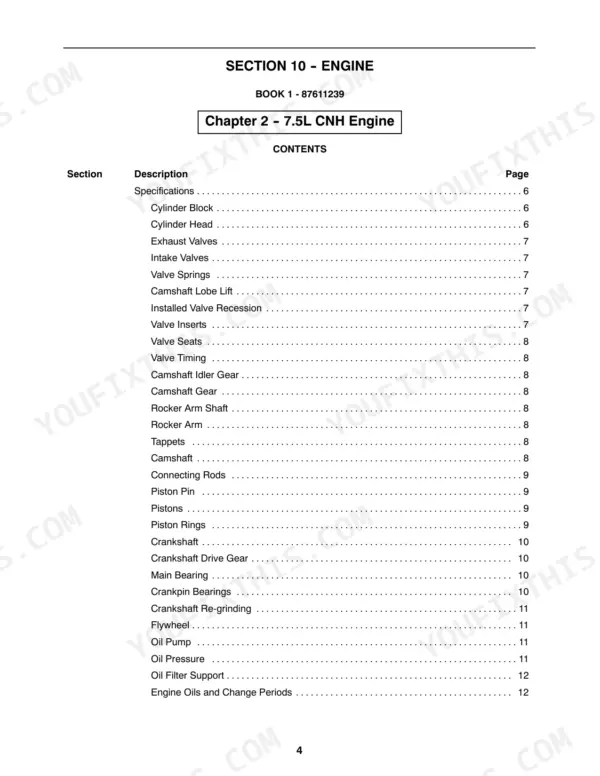

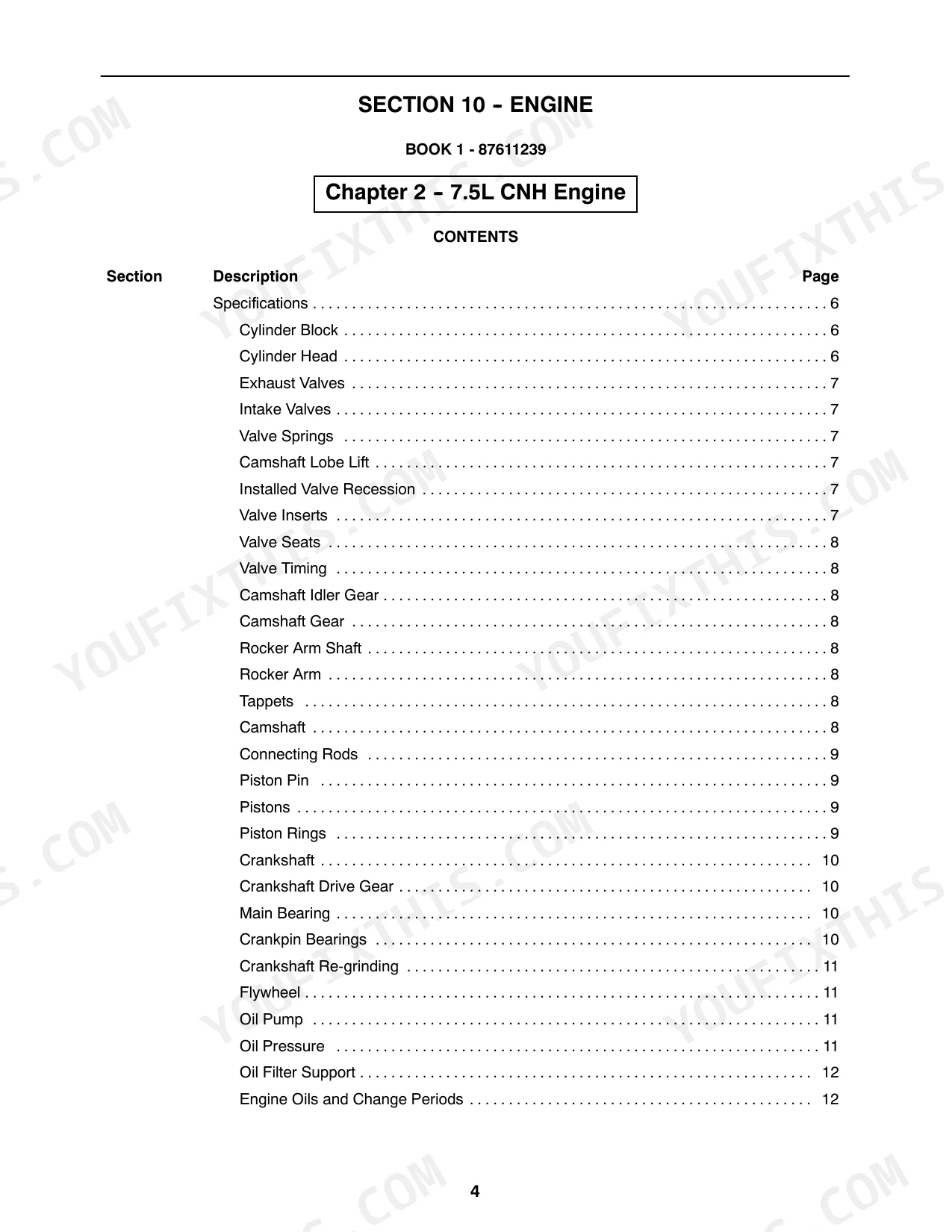

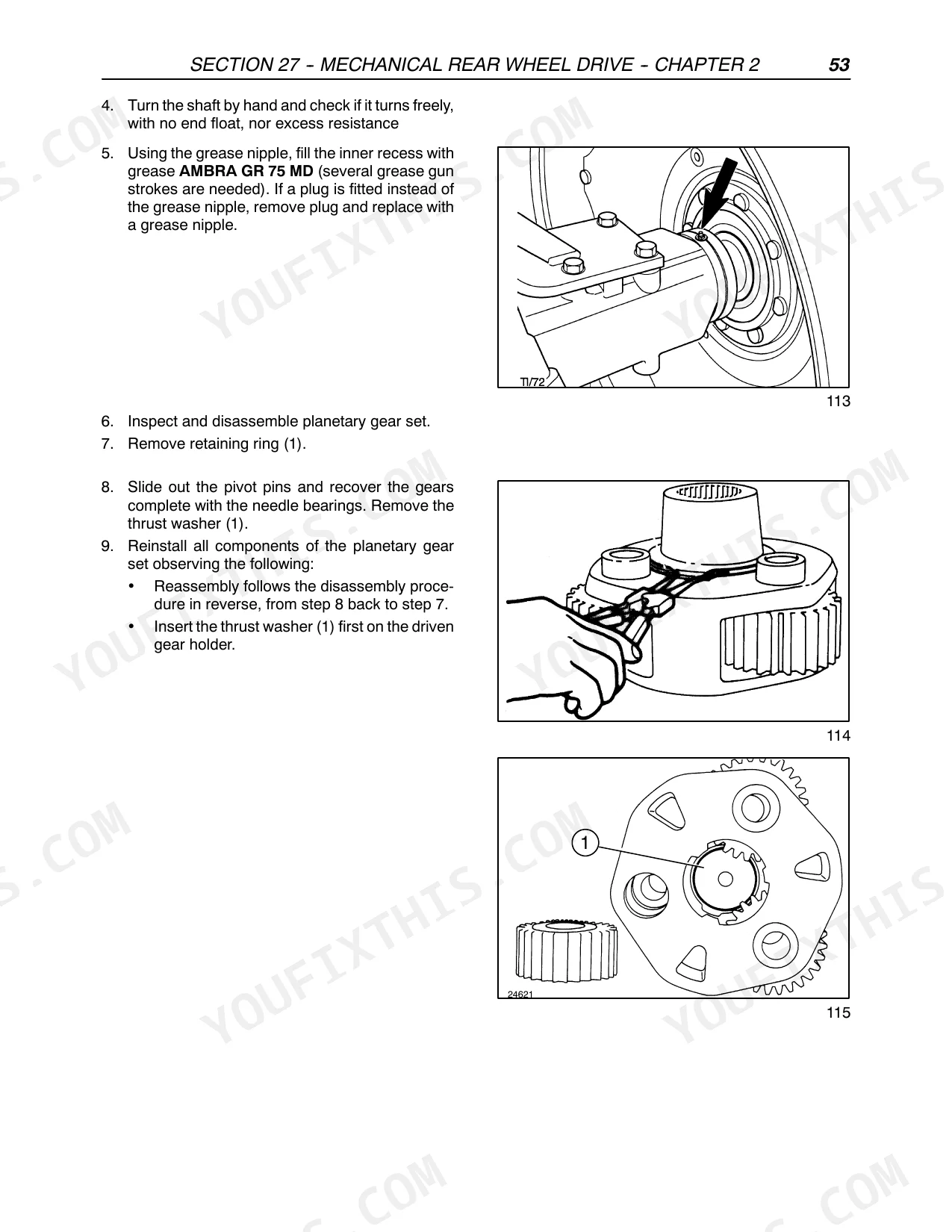

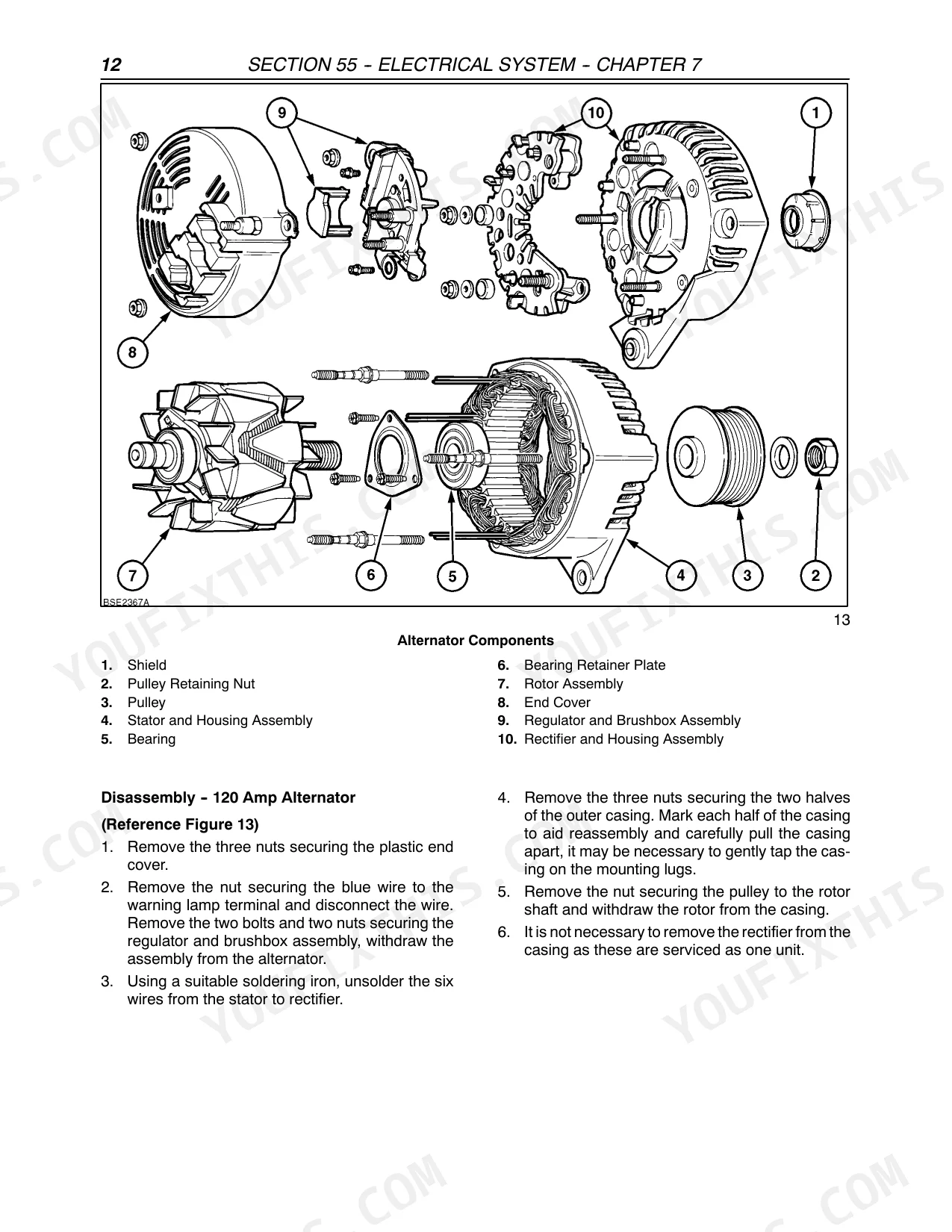

| System | Pages | Key Topics |
|---|---|---|
| General | 115-136 | Shop Safety, Standard Tightening Torques, Approved Fluids and Consumables, Tractor Identification |
| Engine | 137-280 | 6-Cylinder 7500 Cc Diesel in Six Ratings, Specifications and Wear Limits, Mechanical and Electronic Governor Variants, Cylinder Head and Block, Compression Test, Engine Overhaul |
| Clutch | 281-294 | Clutch and Its Release Mechanism, Pedal Free Play, Clutch Removal and Refitting |
| Transmission Systems | 295-650 | Range Command and Full Powershift Transmissions, Clutch Packs and Control Valves, Shuttle, Creeper, Pressure Testing and Overhaul |
| Drive Lines | 651-684 | Drive Shafts and Couplings, Universal Joints, Drive Line Service |
| Front Axle | 685-778 | Driven Front Axle, Bevel Drive and Differential, Hub Reduction, Steering Knuckles, Axle Rebuild |
| Mechanical Rear Wheel Drive | 779-888 | Rear Bevel Gear Pair and Differential, Differential Lock, Final Drives, Bearing Preload and Backlash |
| Power Take-Off | 889-976 | Rear and Front PTO Clutch and Brake, Speed Selection and Shaft Change, PTO Overhaul |
| Brakes | 977-1060 | Service Brakes, Parking Brake, Trailer Brake, Pedal Adjustment, Bleeding the Circuit |
| Hydraulic System | 1061-1518 | Hydraulic Pump and Supply Circuit, Electronic Draft Control Lift, Remote Control Valves, Three-Point Linkage, Pressure Testing and Pump Overhaul |
| Steering | 1519-1554 | Hydrostatic Steering Unit and Circuit, Steering Control Valve and Cylinder, Steering Column |
| Front Axle and Wheels | 1555-1578 | Two-Wheel-Drive Front Axle, Hubs and Stub Axles, Wheel Track Adjustment, Tyre Fitment |
| Auxiliary Units | 1579-1634 | Cab Heating, Ventilation and Air Conditioning, Compressor and Condenser, Refrigerant Handling |
| Electrical System: Circuits and Components (Chapters 1-9) | 1635-2430 | Electrical System Overview, Starting and Charging Circuits, Harness and Connector Diagrams, Sensors and Switches, Instruments and Lighting, Fuses and Relays |
| Electrical System: Fault Code Descriptions (Chapters 10 and 10A) | 2431-2602 | Fault Code Descriptions for the Full Powershift and Range Command Transmissions, Split by Serial-Number Break, With the Four Electrical Test Procedures They Rely on |

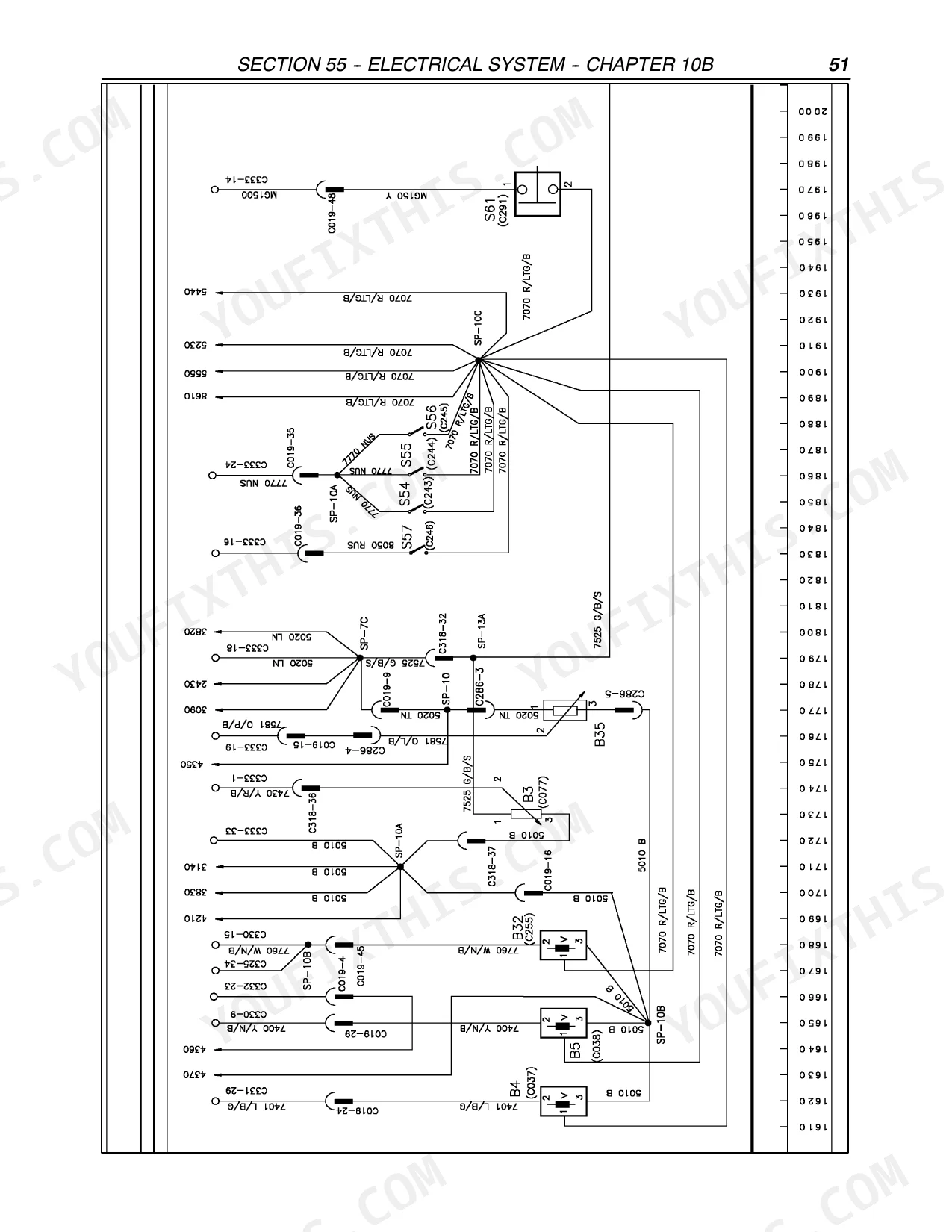

| Electrical System: Diagnostic Procedures (Chapter 10B) | 2603-4696 | Step-By-Step Diagnostic Procedures per Error Code, For Example Rear PTO Failure to Start and Shuttle Lever Reverse Switch Input Voltage Faults |
| Electrical System: Diagnostic Procedures (Chapter 10C) | 4697-6802 | Step-By-Step Diagnostic Procedures for the Second Controller Family, Including Sender Open-Circuit Codes Such As Coolant Temperature |
| Electrical System: Circuits and Schematics (Chapters 11-14) | 6803-7942 | Wiring Schematics and Circuit Drawings for Each Build, Component Location and Connector Views |
| Cab | 7943-7954 | Cab Assembly and Mounts, Glazing, Operator Seat and Controls |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TM120 (engine TA/HD) | ||
| Gross power (ISO TR14396) | 90 kW (121 Bhp) | |
| TM130 (engine TA/HC) | ||
| Gross power (ISO TR14396) | 98 kW (131 Bhp) | |
| TM140 (engine TA/HB) | ||
| Gross power (ISO TR14396) | 107 kW (143 Bhp) | |
| TM155 (engine TA/HA) | ||
| Gross power (ISO TR14396) | 114 kW (153 Bhp) | |
| TM175 (engine TA/FB) | ||
| Gross power (ISO TR14396) | 156 kW (209 Bhp) | |
| TM190 (engine TA/FA) | ||
| Gross power (ISO TR14396) | 168 kW (225 Bhp) | |
| TM120 to TM155 / TM175 and TM190 | ||
| Governor and boost | Mechanical governor, no boost / electronic governor, with boost | |
| Low and high idle speed | 800 and 2375 rpm / 920 and 2380 rpm | |
| All models | ||
| Engine | 6 cylinders, 7500 cc, firing order 1-5-3-6-2-4 | |
| Bore, stroke and compression ratio | 111.8 mm x 127.0 mm, 17.5:1 | |
| Compression at 200 rpm cranking speed | 25.5 bar (375 psi) | |
| Rated speed | 2200 rpm | |
New Holland TM120-TM190 Common Problems This Manual Covers
The tractor logs an error code and you cannot find the procedure for it.
Identify the transmission family and the serial-number break first. The fault-code descriptions are split between chapter 10 and chapter 10A precisely because a Full Powershift before serial number ACM263461 does not use the same codes as later machines, and the diagnostic procedures then split again between chapters 10B and 10C. Read the description chapter that matches your tractor, then follow only the procedure chapter it points to.
Manual Section: SECTION 55 - ELECTRICAL SYSTEM: Fault Code Descriptions (Chapters 10 and 10A)The engine is down on power, or two tractors of different models behave differently on the same job.
Check the rating and the governor type. Gross power runs from 90 kW on the TM120 to 168 kW on the TM190, and the split matters: the TM120 to TM155 use a mechanical governor with no boost, while the TM175 and TM190 use an electronic governor with boost. A mechanical machine will never behave like an electronic one under load, and their idle speeds differ too. Then run the compression test, which should read 25.5 bar at a 200 rpm cranking speed.
Manual Section: SECTION 10 - ENGINEThe rear lift or a remote valve is slow, or the draft control behaves oddly.
The hydraulic section runs from page 1061 to page 1518 and covers the pump and supply circuit, the electronic draft control lift, the remote control valves and the three-point linkage, along with the pressure test procedure. Because draft control is electronic here, pull any stored code before you strip a valve: the electrical section's diagnostic chapters cover the lift sensors and their circuits directly.
Manual Section: SECTION 35 - HYDRAULIC SYSTEMFrequently Asked Questions
Which tractors does this manual cover?
All six TM tractors: TM120, TM130, TM140, TM155, TM175 and TM190, under part number 87611250. New Holland also published this range under part number 6045511102, a separate edition; if your paperwork cites one number, use that book.
What power does each tractor make?
Gross power to ISO TR14396: 90 kW (121 Bhp) on the TM120, 98 kW (131 Bhp) on the TM130, 107 kW (143 Bhp) on the TM140, 114 kW (153 Bhp) on the TM155, 156 kW (209 Bhp) on the TM175 and 168 kW (225 Bhp) on the TM190. Each has its own engine designation, from TA/HD on the TM120 through to TA/FA on the TM190.
What is the difference between the smaller and larger TM engines?
Governor and boost. The TM120 through TM155 run a mechanical governor with no boost, with an 800 rpm low idle and a 2375 rpm high idle. The TM175 and TM190 run an electronic governor with boost, and their idle speeds are 920 and 2380 rpm. Rated speed is 2200 rpm across all six, and they share the 6-cylinder 7500 cc block with a 111.8 mm bore, a 127.0 mm stroke and a 17.5:1 compression ratio.
Why is this manual so large?
Because of the diagnostics. The electrical section runs from page 1635 to page 7942, and two chapters of it, 10B and 10C, are step-by-step diagnostic procedures written one error code at a time, filling roughly four thousand two hundred pages between them. The fault-code descriptions that precede them are split by transmission family and by serial-number break, so the procedure you follow matches the controller your tractor actually has.
How big is the manual and can I search it?
It runs to 7954 pages in English and is a searchable, printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
How will I receive this New Holland TM120, TM130, TM140, TM155, TM175, TM190?
A 7954-page Repair Manual in searchable PDF format (154 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this New Holland TM120, TM130, TM140, TM155, TM175, TM190 manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
