Part of the New Holland Repair Manuals.

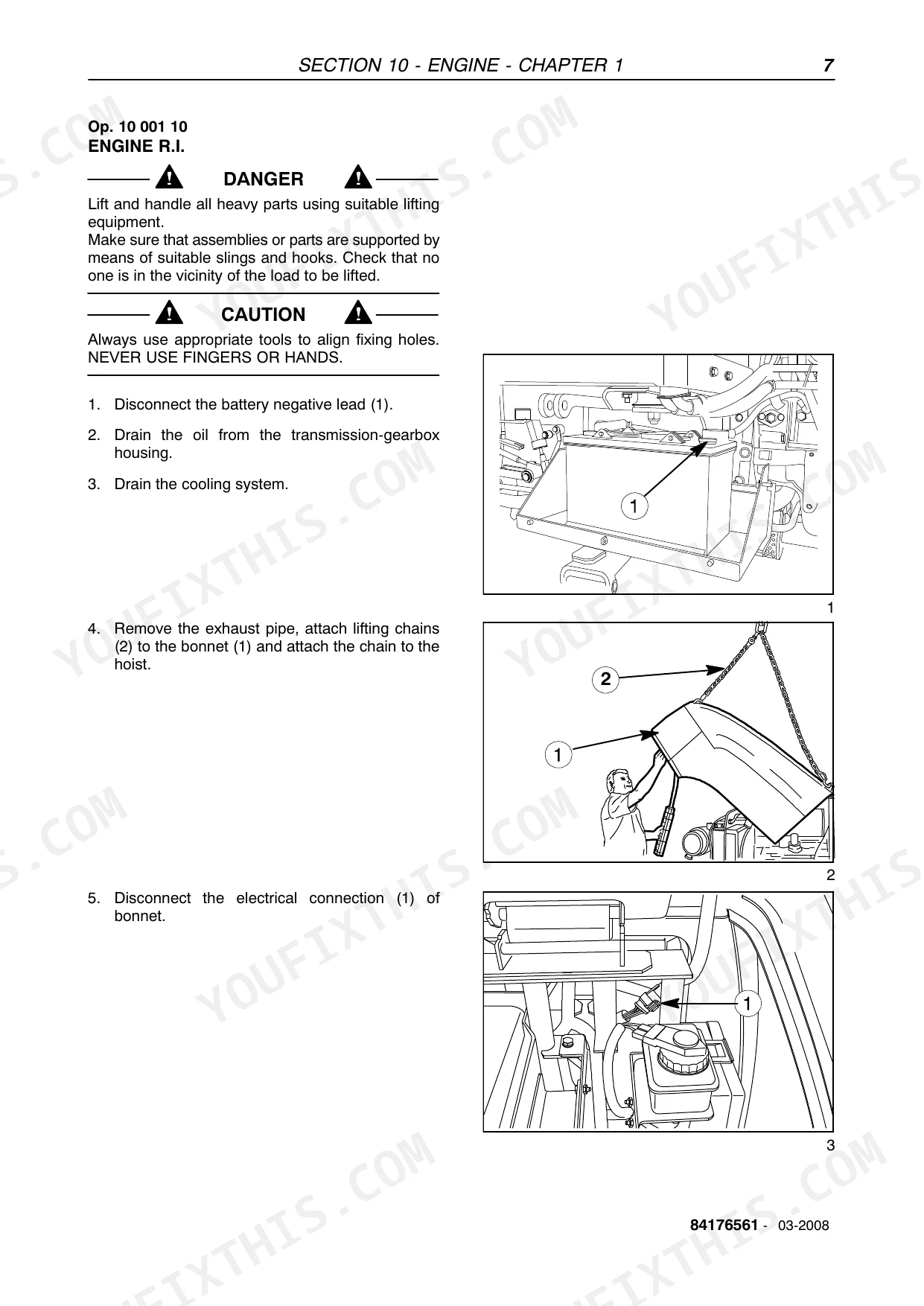

All 691 pages of this New Holland TD5050 service manual pdf (OEM #84176561B) focus on tearing down and rebuilding your TD5010, TD5020, TD5030, or TD5040 tractor to exact factory standards. You get complete wiring diagrams for the cab and chassis, full hydraulic schematics for the open center system, and dedicated engine troubleshooting charts for both the F5C and NEF powerplants. Open to any chapter and find step-by-step procedures covering everything from the 12x4 mechanical transmission to the hydrostatic steering control valve. Lock down the starter motor retaining bolts to exactly 55 Nm and follow the factory sequence to time and bleed the Bosch rotary injection pump. End the guesswork that costs your shop time and money. Grab this bookmarked file, open it on your shop tablet, and get the tractor back in the dirt.
What's Inside This New Holland TD5010–TD5050 Series Manual

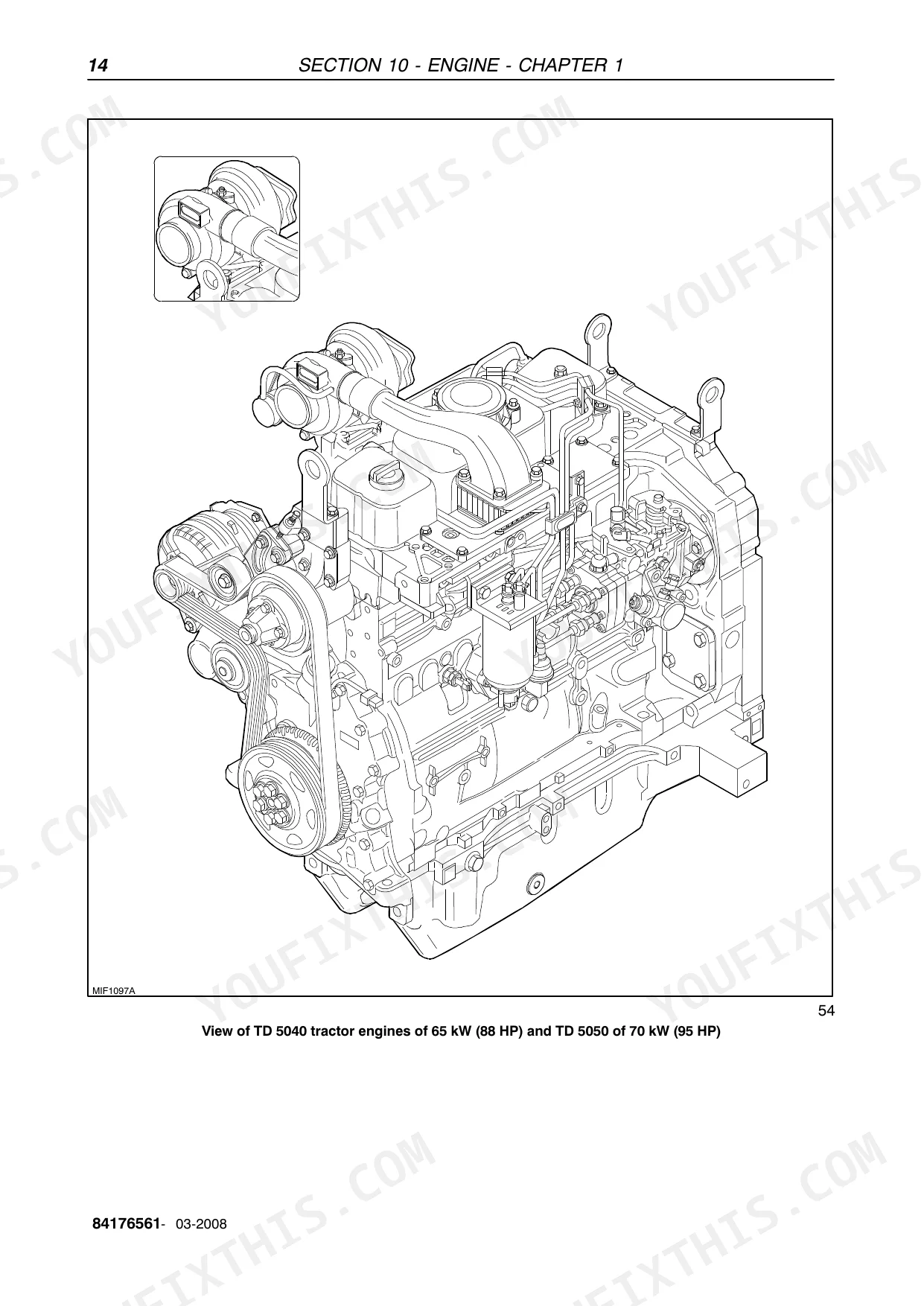

| System | Pages | Key Topics |
|---|---|---|
| General | 12-17 | General Instructions, Notes for Spare Parts, Notes for Equipment, Safety Rules, Consumables |
| Engine | 18-157 | Engine System (Tools, Engine Troubleshooting, Engine R.I.) |
| Clutch | 158-185 | Clutches (Tightening Torques, Tools, Cross-Sectional Views, Clutch Troubleshooting, Removal Installation, Overhaul, Minimum Permissible Dimensions After Refacing, Adjustments, Main and PTO Clutch Control Linkage) |
| Transmissions | 186-215 | Main Data, Tightening Torques, Tools, Section Views, Description and Operation, Fault Diagnosis |
| Drive Lines − Chapter 1 | 216-223 | Main Specification, Torque Settings and Tools, Cross−Sectional Views, Transmission Shafts and Guard, Drive Gear Housing, Drive Gear Housing Removed |
| Drive Lines - Chapter 2 | 224-239 | 4WD Electrohydraulic Engagement, Propeller Shaft Data, Reduction Ratio, Internal Diameter of Sliding Sleeve, Diameter of Driving Shaft, Length of Spring |
| Mechanical Front Axle | 240-281 | Main Data, Tightening Torques, Tools, Cross-Sectional Views, Description and Operation, Bevel Drive Adjustment |
| Rear Axle and Transmiss Ion | 282-343 | Main Data, Tightening Torques, Special Tools, Cross−sectional Views, Description and Operation and Troubleshooting, Differential Pinion and Side Gear Backlash Adjustment |
| Power Take-Off | 344-367 | Main Specification, Tools, Torque Settings, Sectional Drawings, Description and Operation, Troubleshooting |
| Braking System | 368-393 | Main Data, Tightening Torques, Cross-Sectional Views, Description & Operation, Tools - Troubleshooting, Adjusting Service Brake Pedals Travel |

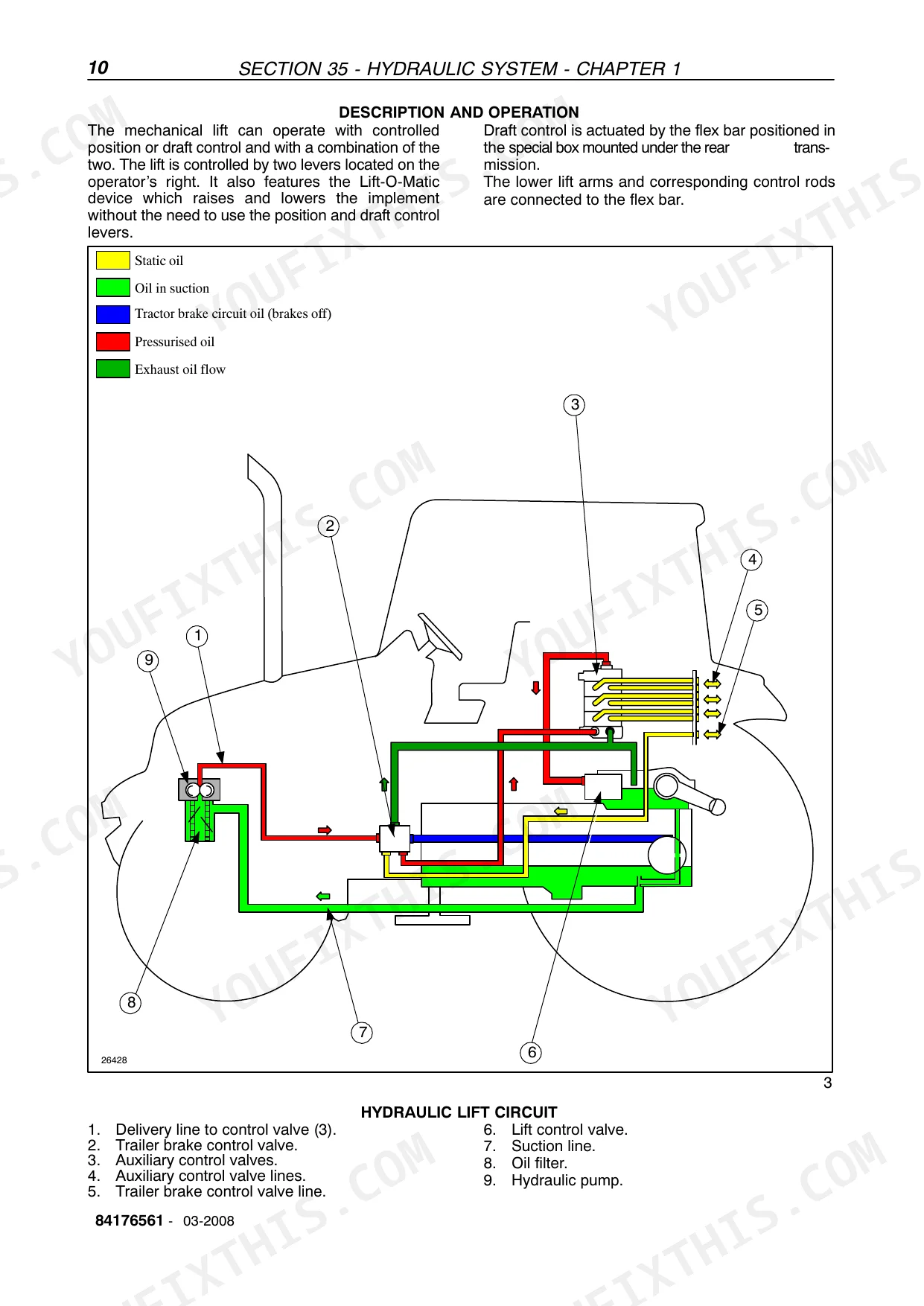

| Hydraulic System | 394-463 | Rear Mechanical Hydraulic Lift, Open Centre System Auxiliary Control Valves, Trailer Brake Auxiliary Control Valve, Lift Piston, Pressure Relief Valve, Lift Control Valve |
| Steering | 464-497 | Hydrostatic Steering Control Valve, Hydrostatic Steering Oil Pump, Steering Cylinder, Hydraulic Diagram, Fault Diagnosis |
| Front Axle and Wheels | 498-517 | Axle Articulation Pin, Stub Axle Pin, Wheel Hub, Front Axle Differential, Bevel Drive, Steering Knuckle |
| Auxiliary Units | 518-559 | Cab Air Conditioning System, Refrigerant Recovery-Recycling, Evacuation-Charging Stations, Receiver-Drier, Condenser, Compressor Drive Belt Tension Adjustment |
| Electrical System | 560-667 | Analogue Instruments, Transmitter and Switch, Starting System, Charging System, Battery, Electrical Circuits |
| Cab | 668-691 | Control Levers, Seat, Electrical Controls, Rear Window, LH Door, Front Wiper Motor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bosch injection pump R.I. Timing. Air bleed | 100 | p. 4 |
| Fuel filtering | through wire filter in fuel supply pump, and replaceable cartridge on delivery line to injection pump | p. 43 |
| Fuel pump | with double diaphragm | p. 43 |
| Injection pump | rotating distributor with speed governor and advance regulator incorporated | p. 44 |
| Starter motor retaining bolts | 55 ± 5 Nm | p. 50 |
| Fuel pump retaining bolts | 25 ± 5 Nm | p. 50 |
| Starter motor | Repair or replace starter motor. | p. 58 |
| Fuel filters | Replace the filter cartridges. | p. 58 |

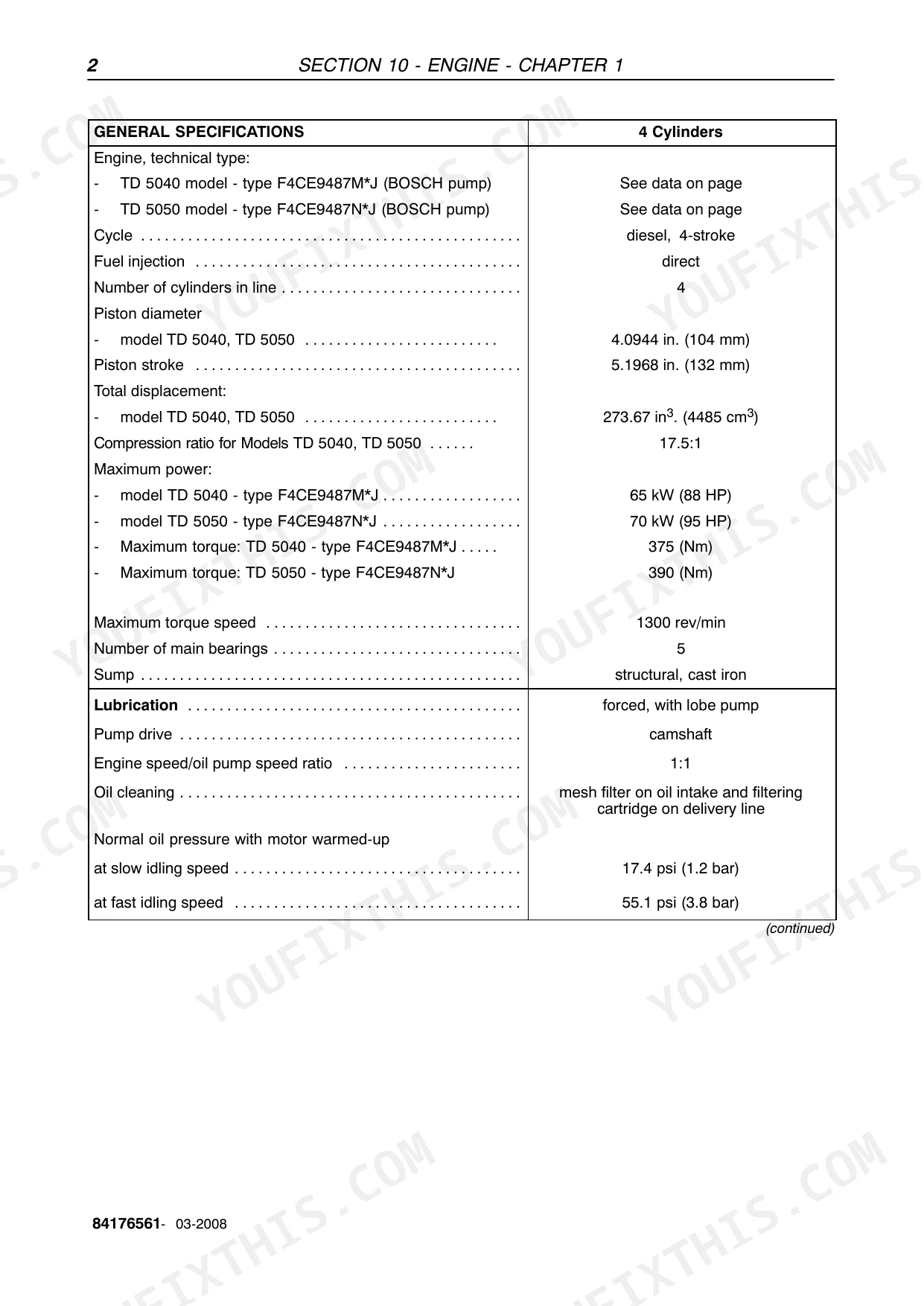

| Engine Piston Stroke | 5.1968 in. (132 mm) | p. 41 |
| Engine Intake Valve-Rocker Arm Clearance (cold) | 0.25 ± 0.05 mm | p. 42 |

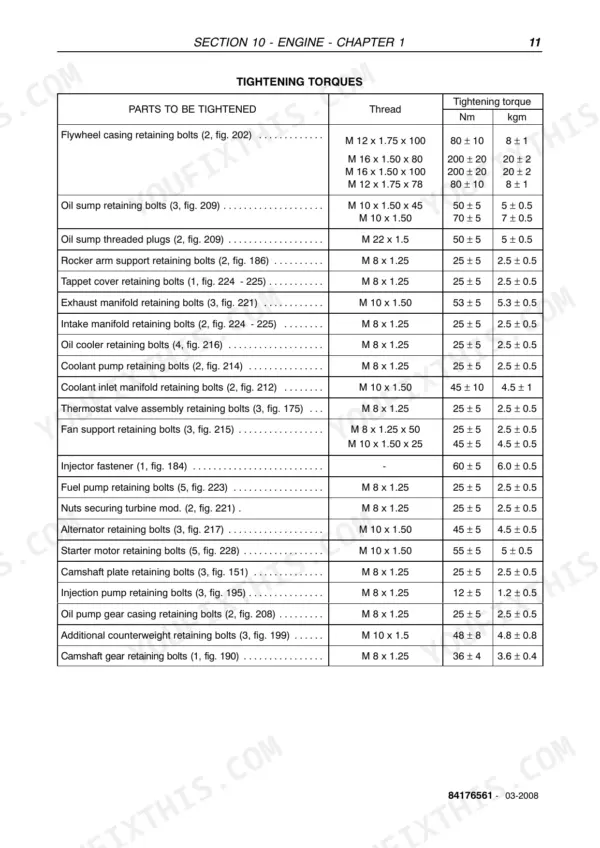

| Flywheel Casing Retaining Bolts (M12 x 1.75 x 100) | 80 ± 10 Nm | p. 50 |
| Clutch/Flywheel Retaining Bolts (M8 x 1.25) | 25 Nm | p. 347 |
New Holland TD5010–TD5050 Series Common Problems This Manual Covers
New Holland TD5010 diesel engine won't start after refueling, air bubbles visible in the fuel line

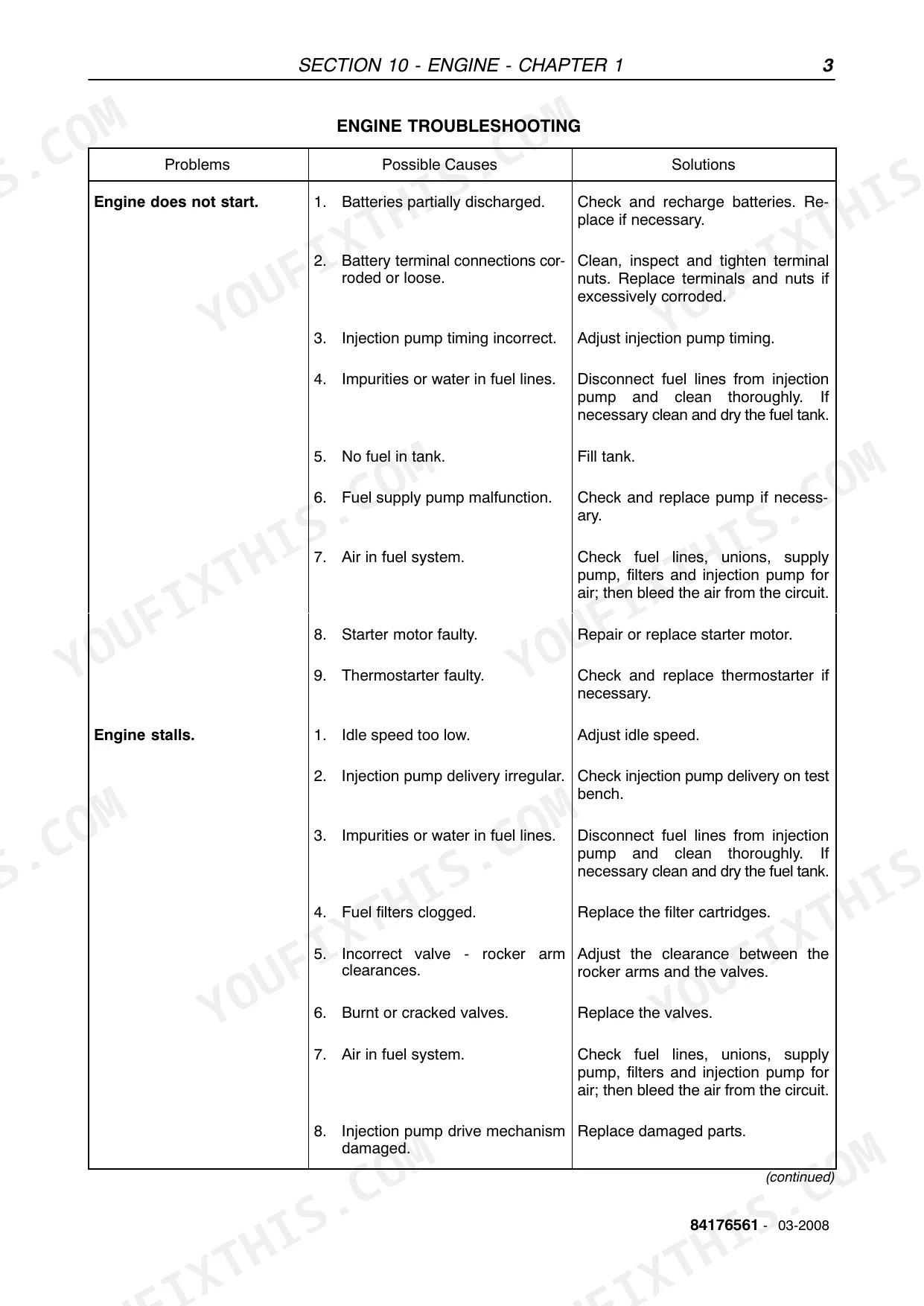

Check pages 20 through 23 for the fuel troubleshooting steps, then loosen the union at the fuel filter head and operate the hand primer until the stream runs clear of bubbles. Bleed each injector line in turn, crank the engine, and torque the injector fasteners to 60 ± 5 Nm on reassembly to stop new air ingress.
Manual Section: Engine TroubleshootingComplete no-start with dash lights on but starter motor makes no sound or click
Check the battery terminals and cables first; voltage drop across the positive cable should stay under the 0.2 V limit given on page 578. Bench test the starter and confirm current draw falls in the 250 to 300 A range noted on page 577. If the field winding fails the 1 Ω continuity check, replace the starter motor.
Manual Section: Electrical System p. 578Fuel filters clog quickly, tractor stalls under load or loses power on hills
Check the engine troubleshooting section on pages 20 through 23 for fuel starvation symptoms, then replace both filter cartridges per the service note on page 58. Fuel passes through a wire filter in the supply pump and a replaceable cartridge on the delivery line to the injection pump (page 43); torque the supply pump retaining bolts to 25 ± 5 Nm on reinstall and bleed before restarting.
Manual Section: Engine TroubleshootingBrakes lock on or grab unevenly, tractor pulls to one side when stopping
Check the brake troubleshooting index on page 376 for unbalanced braking and locked-brake causes. Pull the wheels and measure disc thickness against the 4 mm (0.1575 in.) minimum from page 368; replace any disc below spec. Bleed the hydraulic circuit evenly side to side and adjust service brake pedal travel so both sides engage at the same pedal height.
Manual Section: Brake Troubleshooting p. 376Steering wheel feels excessively stiff to turn, especially when the engine idles at low RPM
Check the hydrostatic steering fault diagnosis on pages 472 through 473 for stiff-wheel causes. On 2WD models verify the pressure relief valve holds the 100 bar (1450.37 psi) setting specified on page 464; a valve stuck low will starve the steering cylinder. Check pump drive belt tension and top off the reservoir before condemning the steering pump itself.
Manual Section: Hydrostatic Steering Fault Diagnosis p. 472PTO output shaft slips and loses speed under load when engaging attachments
Check the power take-off troubleshooting notes on page 355 for slipping and speed-loss causes. Inspect the PTO clutch for worn friction plates and verify the PTO box fixing screws are torqued to 221 Nm as specified on page 347. Adjust the PTO clutch linkage and bleed any air from the hydraulic engagement circuit before retesting under load.
Manual Section: Power Take-Off Troubleshooting p. 355Frequently Asked Questions
What are the torque specs for the engine bolts on New Holland TD50 series tractors?

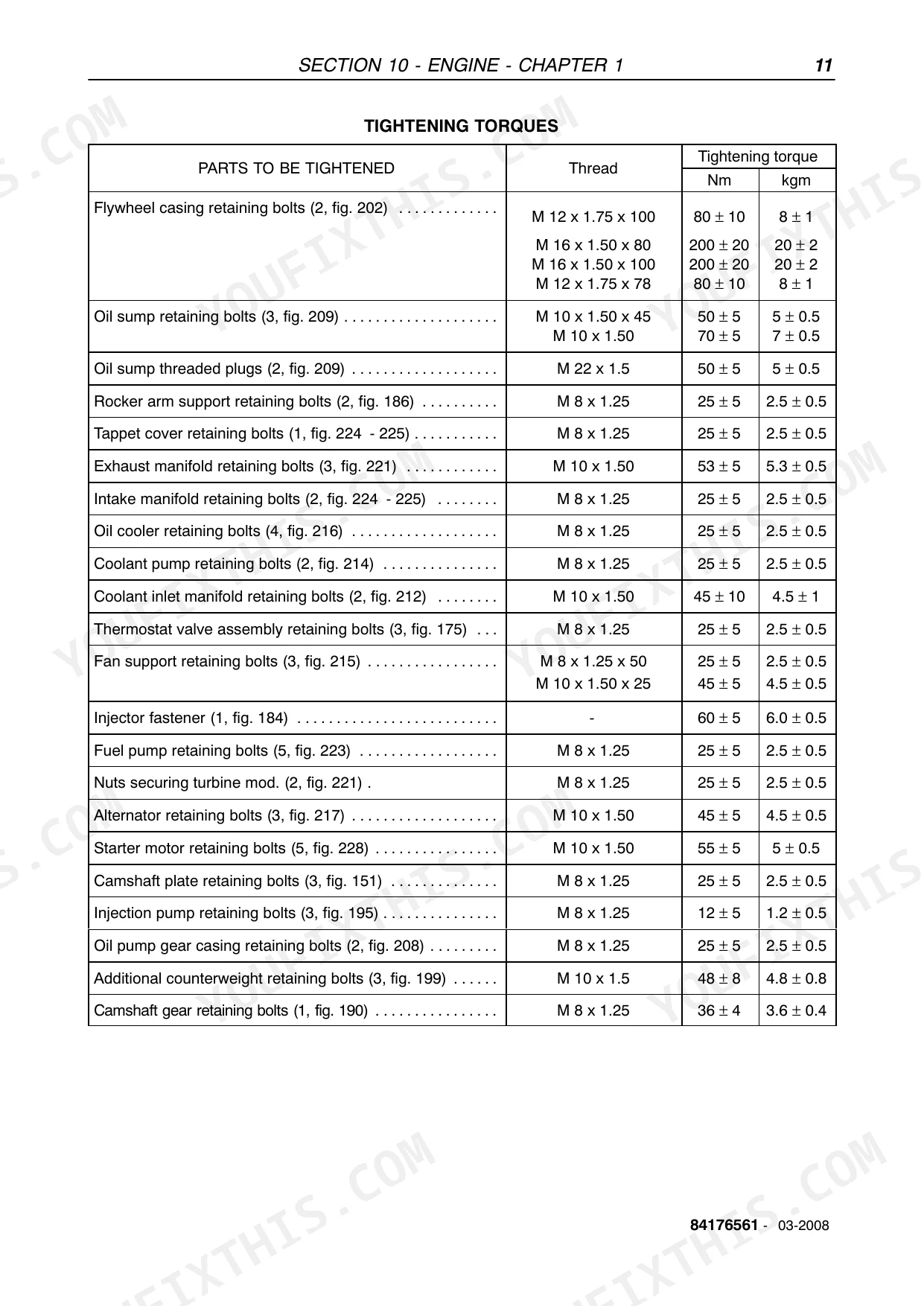

The manual provides various torque specifications for engine bolts. For instance, flywheel casing retaining bolts (M12 x 1.75 x 100) should be tightened to 80 ± 10 Nm (8 ± 1 kgm). Cylinder head bolts (M12 x 1.75 x 70) require a three-phase tightening process, starting with 50 ± 5 Nm (5.0 ± 0.5 kgm) and then two stages of angular tightening to 90° and 180° respectively for longer bolts. p. 50
What are the replacement specifications for Starter motor?
For starter motors, the minimum brush length is 7.0 mm (0.2756 in.) for TD5030, TD5040, TD5050 models. The minimum switch diameter is 42 mm (1.6535 in.) for TD5010, TD5020 and 42.5 mm (1.6732 in.) for TD5030, TD5040, TD5050 models. If brushes are worn and minimum length is less than specified, the starter motor must be changed. p. 572
What is the engine oil capacity for New Holland TD5040 and TD5050 tractors?
The engine sump capacity for New Holland TD5040 and TD5050 models is 10.0 liters/dm3. This is equivalent to 2.64 US gallons or 2.20 Imperial gallons. p. 17
What is the cooling system capacity for New Holland TD5030, TD5040, and TD5050 tractors equipped with a cab?
For New Holland TD5030, TD5040, and TD5050 models equipped with a cab, the cooling system capacity is 16 liters/dm3. This translates to 4.22 US gallons or 3.52 Imperial gallons. p. 17
How quickly can I access this New Holland TD5010–TD5050 Series manual after?
Instant PDF download. You get the full 691-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this New Holland TD5010–TD5050 Series manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

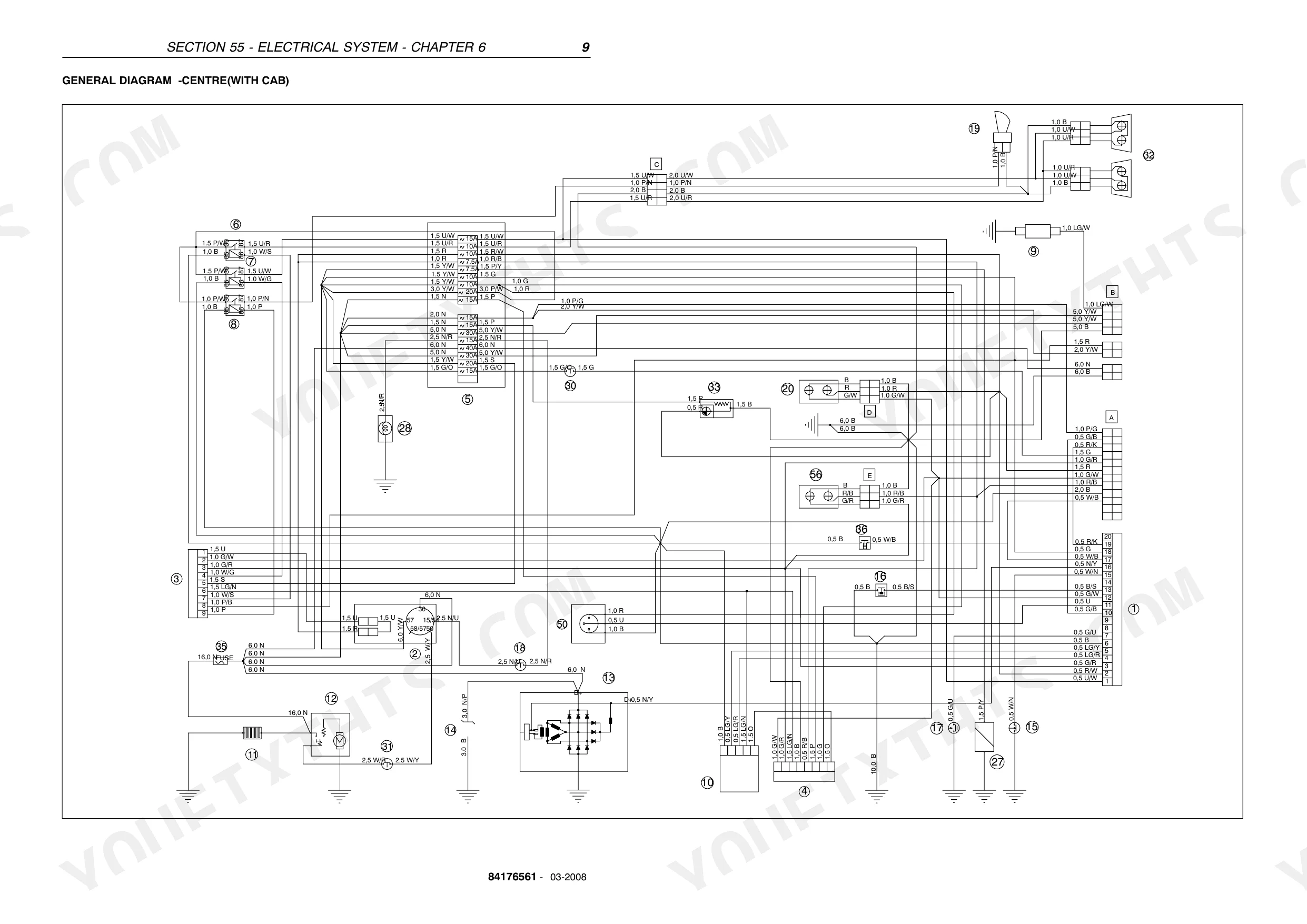

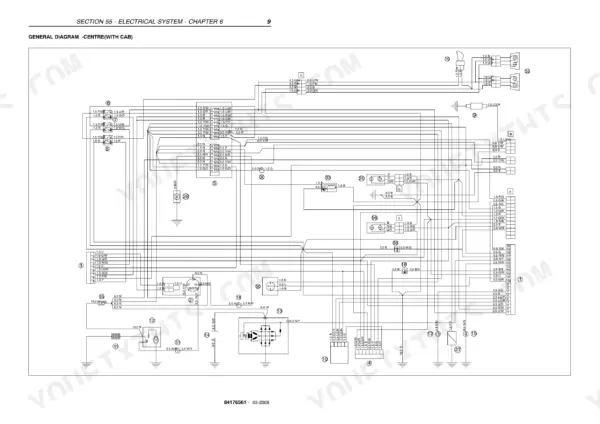

Does this New Holland TD5010–TD5050 Series manual include wiring diagrams?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
