Part of the New Holland Repair Manuals.
New Holland repair manual 87728447 NA covers the D85B and D95B Tier 3 crawler dozers. It was issued March 2008 in North American English. It runs from the hydraulic pump and relief valves through the hydrostatic drive, final drives, tracks and blade cylinders.
Every subsection is marked for both models, and where the D85B and D95B differ you get separate lines. The specifications give the relief settings, hydrostatic pressures, fill capacities and the track and final drive torques.
Fault codes for the AIC, DTC and EDC come with step-by-step checks. You also get connector diagrams and fold-out schematics.
What's Inside This New Holland D85B, D95B Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Contents | 1-24 | Cover, Contents, Safety Rules, Introduction, Torque Information |
| Primary Hydraulic Power System | 25-95 | Special Tools, Hydraulic Pump and Control Valve, Visual Inspection, Removal and Installation, Relief Valves, Testing |
| Secondary Hydraulic Power System | 96-122 | Auxiliary Valve Section, Relief Valve Exploded View, Removal and Installation |

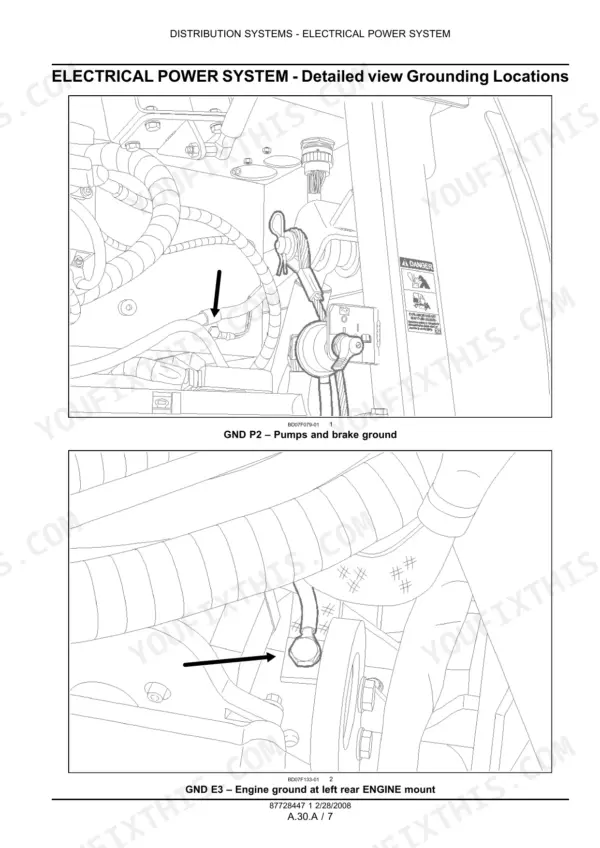

| Electrical Specifications, Grounds and Fuses | 123-130 | Electrical General Specification, Ground Points, Fuses and Relays |

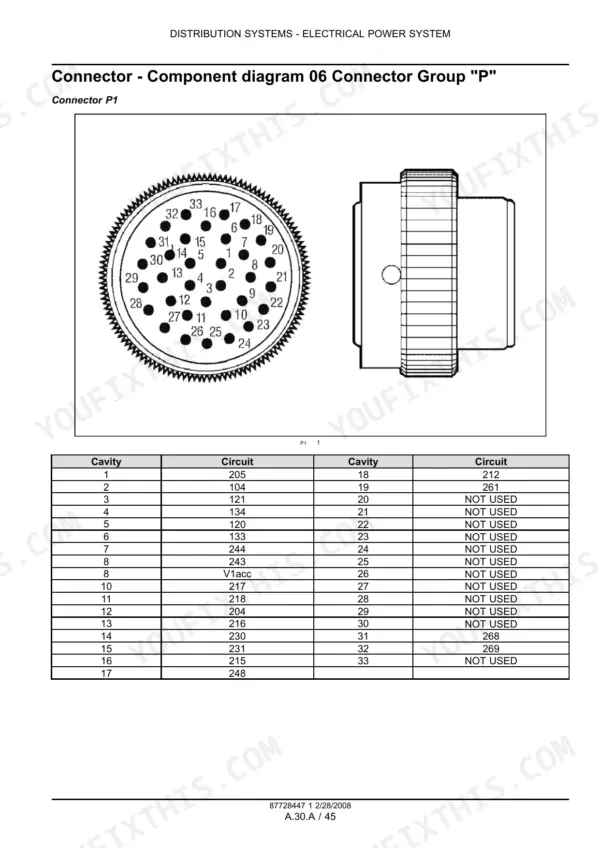

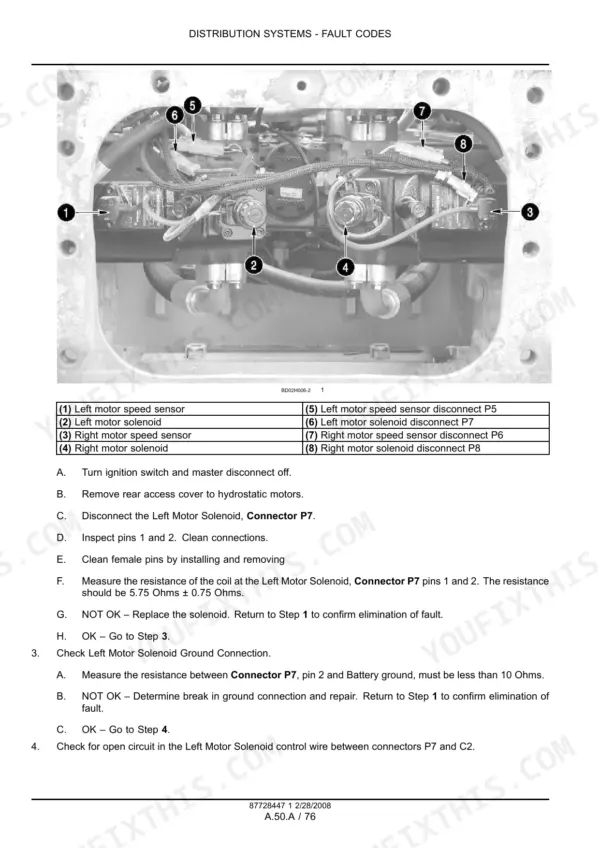

| Connector Diagrams | 131-171 | Connector Component Diagrams 01 to 08, Connector Pin Locations |
| Wiring Harnesses and Electrical Schematics | 172-217 | Harness Identification, Electrical Schematic Frames 01 to 27, Battery, Electrical Testing |
| Lighting System | 218-227 | Work Lights and Lighting Testing |
| Fault Codes: Retrieval and Instrument Cluster (AIC) | 228-271 | Retrieving Fault Codes, Instrument Cluster Fault Codes with Cause and Solution Steps |
| Fault Codes: Drive Train Controller (DTC) | 272-398 | Pump and Motor Solenoid, Parking Brake and Drive Train Controller Fault Codes with Cause and Solution Steps |
| Fault Codes: Engine Controller (EDC) | 399-833 | Engine Sensor and Controller Fault Codes with Cause and Solution Steps, Fault Code Index |

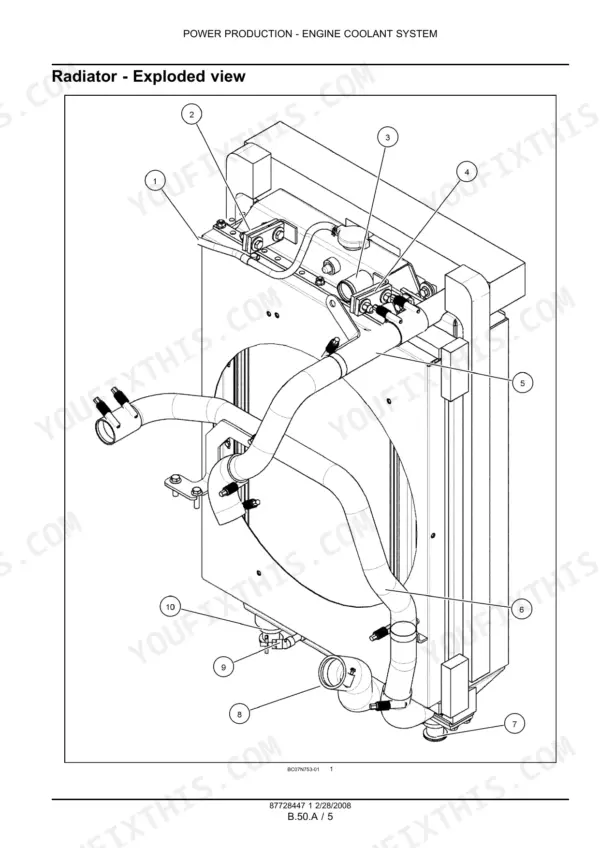

| Engine, Fuel, Air Intake, Cooling and Lubrication | 834-863 | Engine Power, Idle Speeds and Torques, Engine Removal, Fuel Tank, Air Intake, Radiator and Coolant, Engine Oil |
| Starting System | 864-905 | Starter Torques, Starter Removal and Installation |

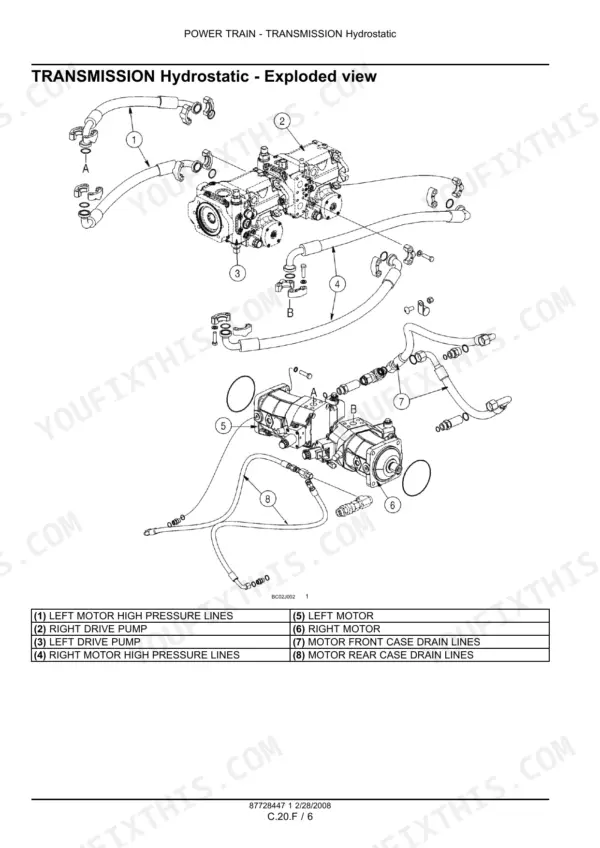

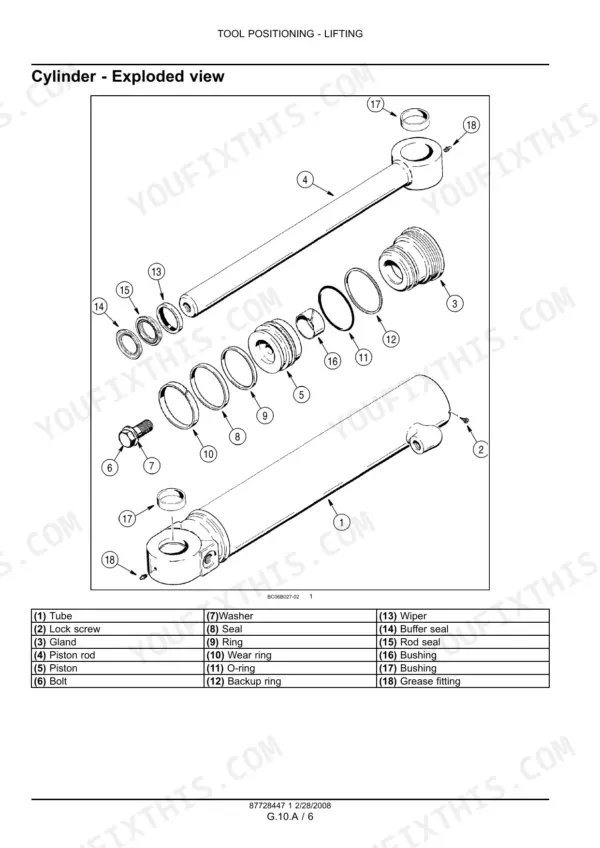

| Drive Shaft and Hydrostatic Transmission | 906-970 | Drive Shaft Torques, Hydrostatic Pumps and Motors, Charge and Port Pressures, Testing |
| Final Drive | 971-1063 | Final Drive Torques and Lubricant Capacity, Removal, Disassembly and Assembly |
| Service and Parking Brakes | 1064-1094 | Hydraulic Service Brake Torques, Parking Brake, Removal and Adjustment |
| Tracks, Rollers and Idlers | 1095-1199 | Special Tools, Track Deflection and Tension Adjustment, Master Link, Track Rollers, Idler and Sprocket |
| Operator Controls, Seat and ROPS | 1200-1251 | Digital Instrument Cluster, Operator Controls, Seat, ROPS Cab and Canopy |
| Heating, Air Conditioning and Ventilation | 1252-1363 | Heater Testing, Air Conditioning Specifications and Refrigerant Charge, Compressor, Condenser |
| Blade Lift, Tilt and Angle | 1364-1475 | Lift, Tilt and Angle Cylinder Torques, Removal, Disassembly, Seals and Assembly |

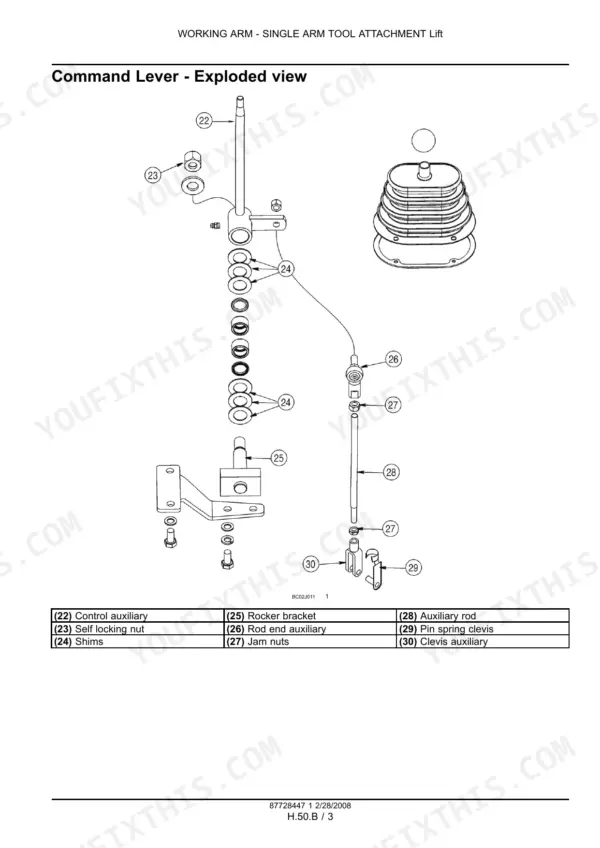

| Command Lever | 1476-1485 | Command Lever Exploded View, Removal and Installation |
| Ripper and Dozer Blade | 1486-1514 | Ripper and Dozer Blade Exploded Views, Removal and Installation |
| Hydraulic Schematic | 1515-1515 | Fold-Out Hydraulic Schematic of the D85B and D95B Dozer |
| Electrical Schematic | 1516-1516 | Fold-Out Electrical Schematic with Charging, Cranking, Relays, Fuses, Drive Train Controller, Pumps and Motors Circuits |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine gross power | 67.1 kW (90 Hp) D85B; 73.8 kW (99 Hp) D95B | p. 834 |
| Engine net power | 62.6 kW (84 Hp) D85B; 71.6 kW (96 Hp) D95B | p. 834 |
| Engine low idle | 800 to 1050 rpm | p. 834 |
| Engine high idle, no load | 2170 to 2270 | p. 834 |
| Engine mount bolts to chassis | 205 - 230 Nm (151 - 170 lb ft) | p. 834 |
| Engine oil with filter | 12.3 l (13 US qt) D85B; 15.8 l (16.7 US qt) D95B, SAE 10W-30 | p. 860 |
| Coolant capacity without heater | 22.5 l (6 US gal) D85B; 26.5 l (7 US gal) D95B | p. 852 |
| Fuel tank | 189.3 L 50 US gal | p. 840 |
| Hydraulic reservoir refill capacity | 75.7 L 20 US gal | p. 28 |
| Hydraulic pump output | 76.8 L at 207 bar at 2000 RPM | p. 28 |
| Main relief valve pressure | 203 - 214 bar (2950 - 3100 psi) | p. 28 |
| Circuit relief valves | 214 - 227 bar (3100 - 3300 psi) with hand pump | p. 28 |
| Neutral system pressure | 12 - 15 bar (180 - 220 psi) at 2000 RPM | p. 28 |
| Hydrostatic charge pump pressure | 24 bar (350 psi) | p. 911 |
| Hydrostatic pump port pressure | 414 bar (6000 psi) | p. 911 |
| Final drive lubricant capacity, each | 14.2 L ( 15 US qt) | p. 971 |
| Final drive to frame mounting bolts | 1160 - 1300 Nm (856 - 959 lb ft) | p. 971 |
| Track deflection | 38 - 50 mm (1.5 - 2 in) | p. 1098 |
| Track master link bolts | 430 - 470 Nm (318 - 346 lb ft) | p. 1096 |
| Air conditioning refrigerant charge | 2.0 kg ( 4.6 lb) | p. 1262 |
New Holland D85B, D95B Common Problems This Manual Covers
Code 4121: left forward pump solenoid circuit open or over current, crawler will not move forward
This code means the wiring or solenoid circuit is open, or the drivetrain control module has failed. The Fault Codes: Drive Train Controller (DTC) section has you clean and inspect the pump solenoid connector first. Then measure the coil. Resistance should be 5.75 Ohms ± 0.75 Ohms. If it reads outside that, replace the solenoid.
Manual Section: Fault Codes: Drive Train Controller (DTC) p. 272Code 4431: parking brake solenoid open circuit, crawler will not move
An open in the wiring or the solenoid circuit sets this code, and the machine stays put. The Fault Codes: Drive Train Controller (DTC) section says to disconnect the parking brake solenoid, inspect the pins and clean the connections. The brake itself is covered in the Service and Parking Brakes section.
Manual Section: Fault Codes: Drive Train Controller (DTC) p. 360Code 3146: water detected in fuel
Water in the fuel filter sets this code. The Fault Codes: Engine Controller (EDC) section says to drain the fuel filter first. Then check the supply to the water-in-fuel sensor for 12 V. If you don't get 12 V, check fuse F6 in the fuse and relay panel. If every reading is good, replace the sensor.
Manual Section: Fault Codes: Engine Controller (EDC) p. 620Code 1320: engine oil pressure too low, critical
This code sets when engine oil pressure drops below the set range. The Fault Codes: Retrieval and Instrument Cluster (AIC) section has you check the engine oil type and level first. Next, check the supply to the oil pressure sending unit for 5 V. If the 5 V is there, the book says to replace the sending unit.
Manual Section: Fault Codes: Retrieval and Instrument Cluster (AIC) p. 256Frequently Asked Questions
Does this manual cover my New Holland D85B or D95B crawler dozer?
This is New Holland repair manual 87728447 NA for the D85B and D95B Tier 3 crawler dozers, issued March 2008 in North American English. Every subsection is marked for both models. Where values differ, the book gives separate D85 and D95 lines. Gross power is 67.1 kW (90 Hp) on the D85B and 73.8 kW (99 Hp) on the D95B. No serial number ranges are printed, so match it by model. p. 1
How much engine oil, coolant and fuel do the New Holland D85B and D95B take?
With the filter, the engine takes 12.3 l (13 US qt) of oil on the D85B and 15.8 l (16.7 US qt) on the D95B. Both use SAE 10W-30. Without the heater, coolant is 22.5 l (6 US gal) on the D85B and 26.5 l (7 US gal) on the D95B. The fuel tank holds 189.3 L (50 US gal). Hydraulic reservoir refill is 75.7 L (20 US gal). Each final drive takes 14.2 L (15 US qt). p. 860
What are the New Holland D85B and D95B hydraulic relief pressures and pump output?
The main relief valve is set at 203 to 214 bar (2950 to 3100 psi). Circuit relief valves run 214 to 227 bar (3100 to 3300 psi), checked with a hand pump. Neutral system pressure is 12 to 15 bar (180 to 220 psi) at 2000 RPM. Pump output is 76.8 L at 207 bar at 2000 RPM. On the hydrostatic drive, charge pump pressure is 24 bar (350 psi) and pump port pressure is 414 bar (6000 psi). p. 28
How do I set track tension on the New Holland D85B and D95B, and what are the track and final drive torques?
Track deflection should be 38 to 50 mm (1.5 to 2 in). Once the deflection is correct, the valve is tightened to 61 to 74 Nm (45 to 55 lb ft). Master link bolts are torqued to 430 to 470 Nm (318 to 346 lb ft). The final drive to frame mounting bolts take 1160 to 1300 Nm (856 to 959 lb ft). Adjustment and master link work are in the Tracks, Rollers and Idlers section. p. 1098
What is inside this manual: schematics, fault codes, diagnostics?
You get connector diagrams 01 to 08 and electrical schematic frames 01 to 27. Fold-out hydraulic and electrical schematics are at the back. Fault codes are listed for the instrument cluster (AIC), drive train controller (DTC) and engine controller (EDC). Each code has step-by-step cause and solution checks, and there is a fault code index. Engine electrical schematics are in the separate engine repair manual, not this book. p. 228
